基于EVI指数的DMSP/OLS夜间灯光数据去饱和方法

doi:10.11821/dlxb201508012

摘要/Abstract

摘要：

DMSP/OLS夜间灯光数据被广泛应用于表征人类活动强度及其生态环境影响的诸多研究中,但因OLS传感器设计的局限,在用电强度较高的城市中心,灯光信号存在明显的饱和,这一不足可能影响到一些基于夜间灯光数据研究成果的可靠性。针对这一问题,NOAA-NGDC研发了辐射定标算法,但因缺乏星上定标系统,算法较为复杂,且受较多条件限制等原因,目前只有部分时期的辐射定标数据产品（RCNTL）。近期有学者提出一种基于植被指数NDVI构建的城市灯光指数VANUI,为灯光数据去饱和研究提供了一个操作简单且结果良好的方法,但该方法在一些城市效果不佳。基于此,本文综合利用夜间灯光与EVI指数信息,通过对VANUI指数构建方法进行改进,建立了一个新的缓解夜间灯光强度饱和的EANTLI指数。为了评价指数的效果,将EANTLI与VANUI从三个方面进行比较：① 区分、识别饱和区内地物的能力;② 与RCNTL的拟合程度;③ 对用电量估算的效果。结果表明：EANTLI在三个方面均表现出优势,在潜在饱和区内对特征地物具有更高的可区分性,与RCNTL的线性相关程度更高,与用电量的相关性相比于NTL、VANUI亦明显提高。因此可以认为EANTLI在指数的设计上较为合理,不仅易于计算,而且能达到较好的缓解灯光强度饱和、凸现城市内部差异的目的,在用于反演城市发展指标时能获得更为准确的结果,因此具有较高的应用价值。

关键词: DMSP/OLS, 夜间灯光, EANTLI, 饱和, EVI指数

Abstract:

DMSP/OLS nighttime light (NTL) data has been widely applied to many studies on anthropogenic activities and their effects on the environment. Due to the limitations of the OLS sensor, NTL data suffers from saturation problem in the core of urban areas, which further influences researches based on nocturnal lights. The radiance calibrated nighttime light (RCNTL) products developed by the National Geophysical Data Center (NGDC) at NOAA partially solved the problem. However, they are only available for a very limited number of years. Recently, a vegetation adjusted NTL urban index (VANUI) has been developed based on the stylized fact that vegetation and urban surfaces are inversely correlated. Despite its simplicity of implementing and effectiveness in increasing variation to NTL data, VANUI does not perform well in some fast growing cities. In this paper, we proposed a new urban index, i.e., the Enhanced Vegetation Index (EVI) adjusted nighttime light index (EANTLI), which combined MODIS EVI with NTL to alleviate the saturation problem of NTL data. In order to evaluate the proposed EANTLI's capability in reducing NTL saturation, we first compared its spatial distributions in potential saturated areas (PSAs) of three metropolitan areas in China with that of the original NTL and VANUI, respectively. Then we randomly selected 30 latitudinal transects across these urban areas to verify EANTLI's similarity to the RCNTL. Finally, we tested EANTLI's effectiveness in assessing electric power consumption of 168 prefecture-level cities in China. Results from these experiments showed that EANTLI significantly increases spatial heterogeneity in the PSAs and effectively alleviates the NTL saturation problem. EANTLI's similarity to RCNTL is consistently higher than that of VANUI in the comparison of latitudinal transects. EANTLI also yields better results in the estimation of electric power consumption. In conclusion, the EANTLI can effectively reduce NTL saturation in urban centers and thus has great potential of wide range applications in the future.

Key words: DMSP/OLS, nighttime light, EANTLI, saturation, EVI

卓莉, 张晓帆, 郑璟, 陶海燕, 郭宇伯. 基于EVI指数的DMSP/OLS夜间灯光数据去饱和方法[J]. 地理学报, 2015, 70(8): 1339-1350.

Li ZHUO, Xiaofan ZHANG, Jing ZHENG, Haiyan TAO, Yubo GUO. An EVI-based method to reduce saturation of DMSP/OLS nighttime light data[J]. Acta Geographica Sinica, 2015, 70(8): 1339-1350.

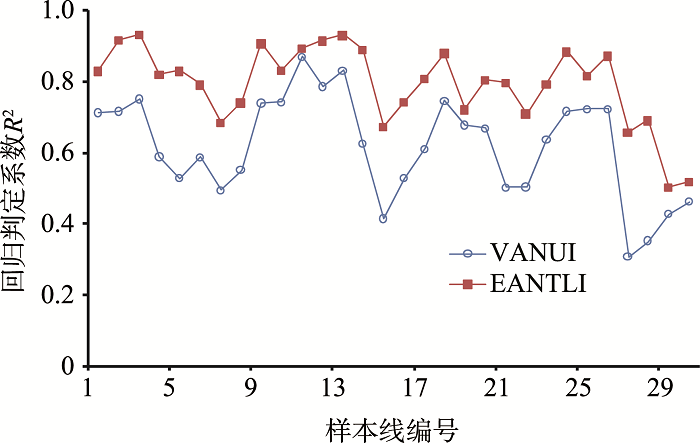

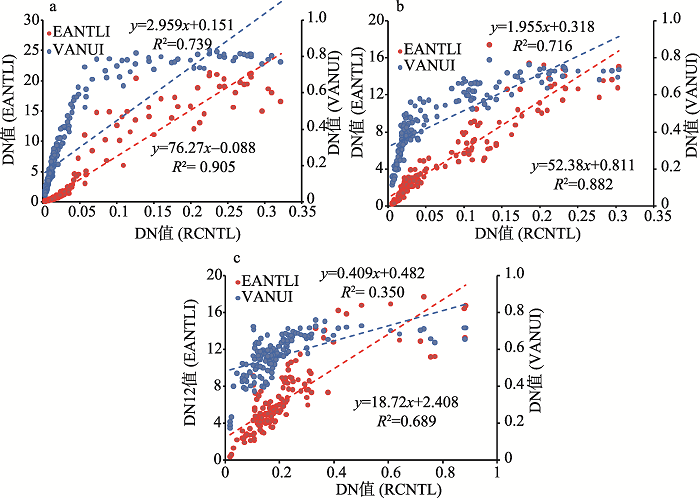

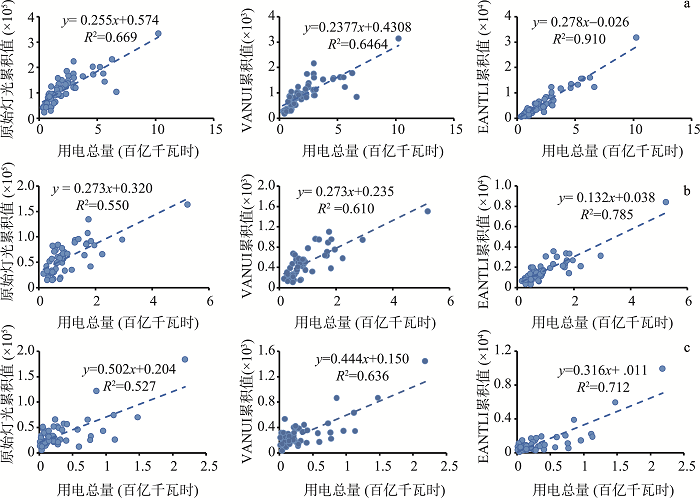

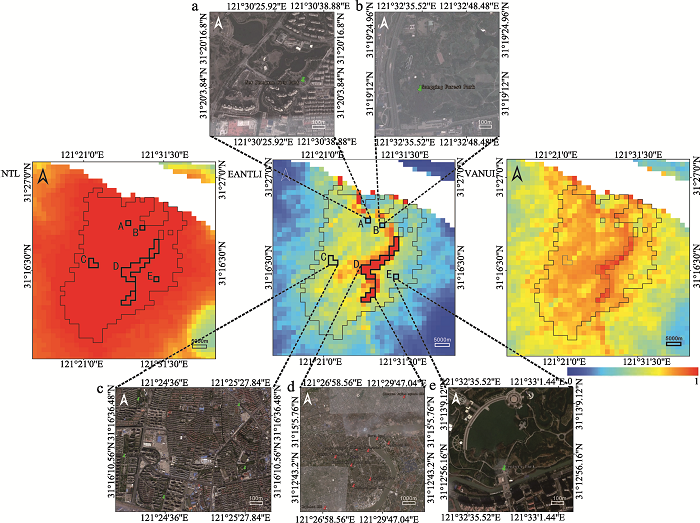

图/表 6

图1

图2

图3

图4

图5

图6

参考文献 41

[1]	Chen Jin, Zhuo Li, Shi Peijun, et al.The study on urbanization process in China based on DMSP/OLS data: Development of a light index for urbanization level estimation. Journal of Remote Sensing, 2003, 7(3): 168-175, 241.
	[陈晋, 卓莉, 史培军, 等. 基于DMSP/OLS数据的中国城市化过程研究: 反映区域城市化水平的灯光指数的构建. 遥感学报, 2003, 7(3): 168-175, 241.]
[2]	Zhuo Li, Shi Peijun, Chen Jin, et al.Application of compound night light index derived from DMSP/OLS data to urbanization analysis in China in the 1990s. Acta Geographica Sinica, 2003, 58(6): 893-902.
	[卓莉, 史培军, 陈晋, 等. 20世纪90年代中国城市时空变化特征: 基于灯光指数CNLI方法的探讨. 地理学报, 2003, 58(6): 893-902.]
[3]	Zhang Qingling, Seto K C.Mapping urbanization dynamics at regional and global scales using multi-temporal DMSP/OLS nighttime light data. Remote Sensing of Environment, 2011, 115(9): 2320-2329. doi: 10.1016/j.rse.2011.04.032
[4]	Lo C P, Welch R.Chinese urban population estimates. Annals of the Association of American Geographers, 1977, 67(2): 246-253.
[5]	Lo C P.Modeling the population of China using DMSP operational linescan system nighttime data. Photogrammetric Engineering and Remote Sensing, 2001, 67(9): 1037-1047. doi: 10.1016/S0031-0182(01)00321-2
[6]	Lo C P.Urban indicators of China from radiance-calibrated digital DMSP-OLS nighttime images. Annals of the Association of American Geographers, 2002, 92(2): 225-240. doi: 10.1111/1467-8306.00288
[7]	Sutton P C, Roberts D, Elvidge C D, et al.Census from heaven: An estimate of the global human population using night-time satellite imagery. International Journal of Remote Sensing, 2001, 22(16): 3061-3076. doi: 10.1080/01431160010007015
[8]	Sutton P C.A scale-adjusted measure of "Urban sprawl" using nighttime satellite imagery. Remote Sensing of Environment, 2003, 86(3): 353-369.
[9]	Zhuo Li, Chen Jin, Shi Peijun, et al.Modeling population density of China in 1998 based on DMSP/OLS nighttime light image. Acta Geographica Sinica, 2005, 60(2): 266-276.
	[卓莉, 陈晋, 史培军, 等. 基于夜间灯光数据的中国人口密度模拟. 地理学报, 2005, 60(2): 266-276.]
[10]	Elvidge C D, Baugh K E, Kihn E A, et al.Relation between satellite observed visible-near infrared emissions, population, economic activity and electric power consumption. International Journal of Remote Sensing, 1997, 18(6): 1373-1379. doi: 10.1080/014311697218485
[11]	Amaral S, Câmara G, Monteiro A M V, et al. Estimating population and energy consumption in Brazilian Amazonia using DMSP night-time satellite data. Computers, Environment and Urban Systems, 2005, 29(2): 179-195. doi: 10.1016/j.compenvurbsys.2003.09.004
[12]	Welch R.Monitoring urban population and energy utilization patterns from satellite data. Remote Sensing of Environment, 1980, 9(1): 1-9. doi: 10.1016/0034-4257(80)90043-7
[13]	Cheng Liyu, Zhou Yi, Wang Litao, et al.An estimate of the city population in China using DMSP night-time satellite imagery. IGARSS 2007, 2007: 691-694.
[14]	Sutton P C, Taylor M J, Elvidge C D.Using DMSP OLS imagery to characterize urban populations in developed and developing countries. Remote Sensing of Urban and Suburban Areas, 2010: 329-348.
[15]	Zhuo Li, Ichinose T, Zheng Jing, et al.Modeling the population density of China at the pixel level based on DMSP/OLS non-radiance-calibrated night-time light images. International Journal of Remote Sensing, 2009, 30(4): 1003-1018.
[16]	Raupach M R, Rayner P J, Paget M.Regional variations in spatial structure of nightlights, population density and fossil-fuel CO2 emissions. Energy Policy, 2010, 38(9): 4756-4764.
[17]	Sutton P C, Elvidge C D, Ghosh T.Estimation of gross domestic product at sub-national scales using nighttime satellite imagery. International Journal of Ecological Economics & Statistics, 2007, 8(7): 5-21.
[18]	Ghosh T, Powell R L, Elvidge C D, et al.Shedding light on the global distribution of economic activity. The Open Geography Journal, 2010, 3(1): 148-161.
[19]	Ghosh T, Anderson S, Powell R, et al.Estimation of Mexico's informal economy and remittances using nighttime imagery. Remote Sensing, 2009, 1(3): 418-444.
[20]	Han Xiangdi, Zhou Yi, Wang Shixin, et al.GDP spatialization in China based on DMSP/OLS data and land use data. Remote Sensing Technology and Application, 2012, 27(3): 396-405.
	[韩向娣, 周艺, 王世新, 等. 基于夜间灯光和土地利用数据的GDP空间化. 遥感技术与应用, 2012, 27(3): 396-405.]
[21]	Elvidge C D, Baugh K E, Anderson S J, et al.The Night Light Development Index (NLDI): A spatially explicit measure of human development from satellite data. Social Geography, 2012, 7(1): 23-35. doi: 10.5194/sg-7-23-2012
[22]	Chen Xi, Nordhaus W D.Using luminosity data as a proxy for economic statistics. Proceedings of the National Academy of Sciences, 2011, 108(21): 8589-8594.
[23]	Wang Qi, Yuan Tao, Zheng Xinqi.GDP gross analysis at province-level in China based on nighttime light satellite imagery. Urban Development Studies, 2013, 20(7): 44-48. doi: 10.3969/j.issn.1006-3862.2013.07.007
	[王琪, 袁涛, 郑新奇. 基于夜间灯光数据的中国省域GDP总量分析. 城市发展研究, 2013, 20(7): 44-48.] doi: 10.3969/j.issn.1006-3862.2013.07.007
[24]	Chand T R Kiran, Badarinath K V S, Elvidge C D, et al. Spatial characterization of electrical power consumption patterns over India using temporal DMSP-OLS night-time satellite data. International Journal of Remote Sensing, 2009, 30(3): 647-661. doi: 10.1080/01431160802345685
[25]	Chalkias C, Petrakis M, Psiloglou B, et al.Modelling of light pollution in suburban areas using remotely sensed imagery and GIS. Journal of Environmental Management, 2006, 79(1): 57-63. doi: 10.1016/j.jenvman.2005.05.015 pmid: 16171928
[26]	He Chunyang, Ma Qun, Li Tong, et al.Spatiotemporal dynamics of electric power consumption in Chinese Mainland from 1995 to 2008 modeled using DMSP/OLS stable nighttime lights data. Journal of Geographical Sciences, 2012, 22(1): 125-136. doi: 10.1007/s11442-012-0916-3
[27]	Doll C H, Muller J, Elvidge C D.Night-time imagery as a tool for global mapping of socioeconomic parameters and greenhouse gas emissions. AMBIO: a Journal of the Human Environment, 2000, 29(3): 157-162. doi: 10.1639/0044-7447(2000)029[0157:NTIAAT]2.0.CO;2
[28]	Li Jinggang, He Chunyang, Shi Peijun, et al.The use of multisource satellite and geospatial data to study the ecological effects of urbanization: A case of the urban agglomerations in Bohai Rim. Journal of Remote Sensing, 2007, 11(1): 115-126.
	[李景刚, 何春阳, 史培军, 等. 基于DMSP/OLS灯光数据的快速城市化过程的生态效应评价研究: 以环渤海城市群地区为例. 遥感学报, 2007, 11(1): 115-126.]
[29]	Imhoff M L, Tucker L, Compton J, et al.The use of multisource satellite and geospatial data to study the effect of urbanization on primary productivity in the United States. IEEE Transactions on Geoscience and Remote Sensing, 2000, 38(6): 2549-2556.
[30]	Imhoff M L, Bounoua L, DeFries R, et al. The consequences of urban land transformation on net primary productivity in the United States. Remote Sensing of Environment, 2004, 89(4): 434-443. doi: 10.1016/j.rse.2003.10.015
[31]	Elvidge C D, Baugh K, Dietz J B, et al.Radiance calibration of DMSP-OLS low-light imaging data of human settlements. Remote Sensing of Environment, 1999, 68(1): 77-88. doi: 10.1016/S0034-4257(98)00098-4
[32]	Ziskin D, Baugh K, Hsu F C.Methods used for the 2006 radiance lights. Proceedings of the Asia Pacific Advanced Network, 2010: 131-142. doi: 10.7125/APAN.30.18
[33]	Letu H, Hara M, Yagi H, et al.Estimating energy consumption from night-time DMPS/OLS imagery after correcting for saturation effects. International Journal of Remote Sensing, 2010, 31(16): 4443-4458. doi: 10.1080/01431160903277464
[34]	Letu H, Hara M, Tana G, et al.A saturated light correction method for DMSP/OLS nighttime satellite imagery. IEEE Transactions on Geoscience and Remote Sensing, 2012, 50(2): 389-396. doi: 10.1109/TGRS.2011.2178031
[35]	Zhang Qingling, Schaaf C, Seto K C.The Vegetation adjusted NTL Urban Index: A new approach to reduce saturation and increase variation in nighttime luminosity. Remote Sensing of Environment, 2013, 129: 32-41. doi: 10.1016/j.rse.2012.10.022
[36]	Pozzi F, Small C.Analysis of urban land cover and population density in the United States. Photogrammetric Engineering and Remote Sensing, 2005, 71(6): 719-726. doi: 10.1007/s11069-004-6485-8
[37]	Small C.Estimation of urban vegetation abundance by spectral mixture analysis. International Journal of Remote Sensing, 2001, 22(7): 1305-1334. doi: 10.1080/01431160151144369
[38]	Weng Qihao, Lu Dengsheng, Liang Bingqing.Urban surface biophysical descriptors and land surface temperature variations. Photogrammetric Engineering and Remote Sensing, 2006, 72(11): 1275-1286. doi: 10.14358/PERS.72.11.1275
[39]	Weng Qihao, Lu Dengsheng, Schubring J.Estimation of land surface temperature-vegetation abundance relationship for urban heat island studies. Remote Sensing of Environment, 2004, 89(4): 467-483. doi: 10.1016/j.rse.2003.11.005
[40]	Wang Zhengxing, Liu Chuang, Huete Alfredo.From AVHRR-NDVI to MODIS-EVI: Advances in vegetation index research. Acta Ecologica Sinica, 2003, 23(5): 979-987. doi: 10.1023/A:1022289509702
	[王正兴, 刘闯, Huete Alfredo.植被指数研究进展: 从AVHRR-NDVI到MODIS-EVI. 生态学报, 2003, 23(5): 979-987.] doi: 10.1023/A:1022289509702
[41]	Huete A R, Justice C O, Van Leeuwen W.MODIS vegetation index (MOD 13). Version 3. Algorithm theoretical basis document. Greenbelt MD: NASA, Goddard Space Flight Center, 1999: 44-45.
