面向无人机应用的低空空域资源研究探讨

doi:10.11821/dlxb202111001

摘要/Abstract

摘要：

相对于无人机技术及其应用的快速发展,承载无人机作业的低空空域资源的相关研究却相对滞后。本文从地理学的视角,对面向无人机应用的低空空域资源研究的相关关键问题进行了阐述。首先,从理论层面对低空空域的自然属性、社会属性和经济属性进行了界定,在国家自然资源开发利用体系中应加大关注;其次,分析了低空空域资源无人机应用的现状,对制约面向无人机应用的低空空域资源自然、社会两大方面的限制因素进行了归类分析,指出地理学的介入将加快其开发利用进程;最后,构建了由3大类9小类指标构成的低空空域资源量测度指标,提出了“资源非冲突、安全保障、效益优先、兼顾公平”的低空空域资源量测度4大基本原则,并由此形成了以国土范围（S）、真高（H）和时间（t）为基本三要素的低空空域资源量测度方法理论模型框架。从地理学的角度对低空空域资源研究进行的探索和思考,将在一定程度上促进地理学和航空学的交叉融合。

关键词: 无人机, 低空空域, 资源利用, 资源量, 地理学

Abstract:

With the development of hardware techniques and the decrease in equipment costs, unmanned aerial vehicle (UAV) has been widely applied in various socio-economic fields. However, there have been relatively few studies on low-altitude airspace resources as the operational carrier of UAVs. In this study, from the perspective of geography, the key issues related to the research of low-altitude airspace resources for UAV applications are discussed. Firstly, it is theoretically defined that low-altitude airspace is an important kind of natural resources with natural, social, and economic attributes, which should be included in the national natural resource development and utilization system; Secondly, we review the latest UAV applications based on the low-altitude airspace resources, categorize their constraints to utilize resources from natural and social aspects, and point out that the intervention of geography will speed up the development and utilization process of low-altitude airspace resources. Finally, this paper constructs the low-altitude airspace resource measurement index composed of three categories and nine sub-categories, and proposes four basic principles of low-altitude airspace resource measurement of "non-conflict utilization of resources, safety guarantee, benefit priority, and fairness", and thus forming a theoretical model of low-altitude airspace resource measurement with the three basic elements of national scope (S), true height (H) and time (t). This paper explores and discusses the low-altitude airspace resources from the perspective of geography, which will promote the interdisciplinarity of geography and aviation to some extent and the sustainable utilization of low-altitude airspace resources.

Key words: UAV, low-altitude airspace, resources exploitation, resources quantity, geography

廖小罕, 黄耀欢, 徐晨晨. 面向无人机应用的低空空域资源研究探讨[J]. 地理学报, 2021, 76(11): 2607-2620.

LIAO Xiaohan, HUANG Yaohuan, XU Chenchen. Views on the study of low-altitude airspace resources for UAV applications[J]. Acta Geographica Sinica, 2021, 76(11): 2607-2620.

图/表 5

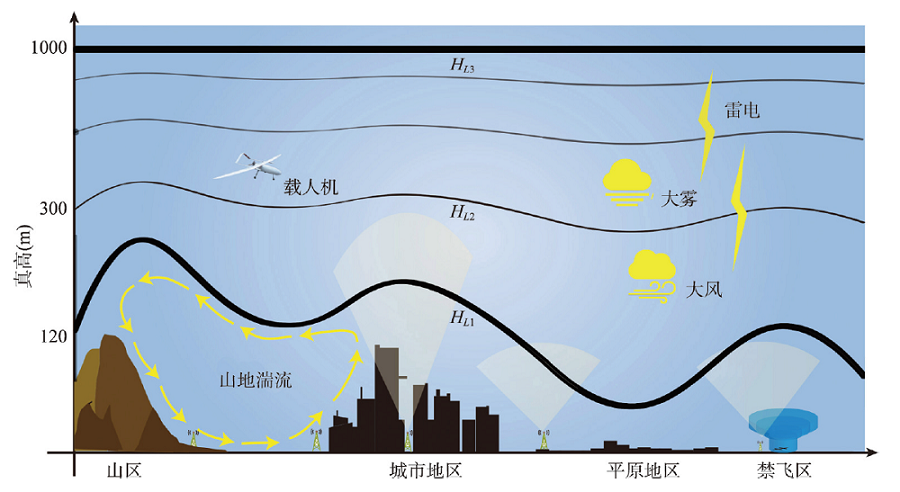

图1

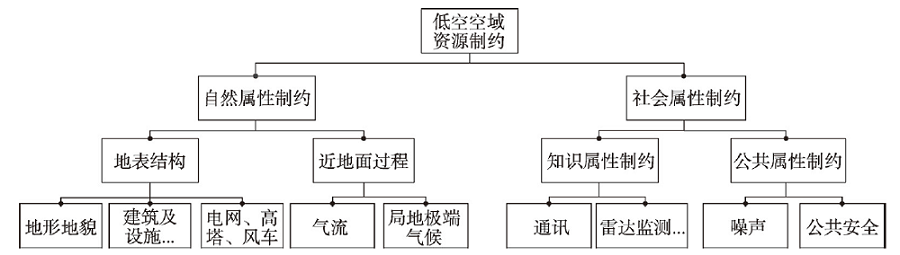

图2

表1

表2

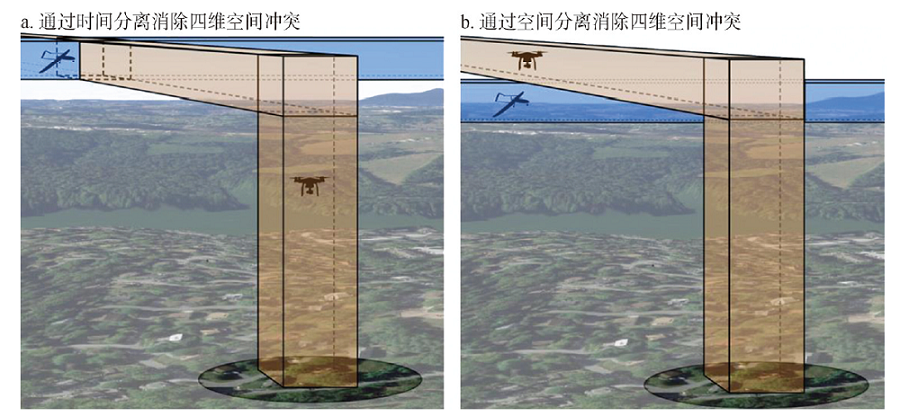

图3

参考文献 38

[1]	Sun Honglie, Cheng Shengkui, Feng Zhiming. From integrated surveys of natural resources to comprehensive research of resources science over 60 years. Journal of Natural Resources, 2010, 25(9):1414-1423.
	[孙鸿烈, 成升魁, 封志明. 60年来的资源科学: 从自然资源综合考察到资源科学综合研究. 自然资源学报, 2010, 25(9):1414-1423.]
[2]	Sun Honglie, Feng Zhiming. Present and future of resources science. Resources Science, 1998, 20(1):3-12.
	[孙鸿烈, 封志明. 资源科学研究的现在与未来. 资源科学, 1998, 20(1):3-12.]
[3]	Feng Zongxu, Gao Wenming. Airspace characteristics and airspace management. Air Traffic Management, 2002(5):11-13.
	[丰宗旭, 高文明. 空域特性及空域管理. 空中交通管理, 2002(5):11-13.]
[4]	International Civil Aviation Organization. Annex 11 to the Convention on International Civil Aviation: Air Traffic Services. Montreal, 2001. https://www.icao.int.
[5]	Yang Yong, Sui Dong. Thoughts on reforming low altitude airspace and development of general aviation in China. Journal of Nanjing University of Aeronautics and Astronautics (Social Sciences), 2010, 12(2):50-53, 57.
	[杨勇, 隋东. 我国低空空域改革和通用航空事业发展有关问题的思考. 南京航空航天大学学报(社会科学版), 2010, 12(2):50-53, 57.]
[6]	Wang Shijin. Research on key technologies and their application in airspace classification[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2010.
	[王世锦. 空域分类关键技术及应用研究[D]. 南京: 南京航空航天大学, 2010.]
[7]	State Air Traffic Control Commission. Regulations on the Administration of the Use of Low-Altitude Airspace (Tentative Standard). 2014. www.ccaonline.cn/news/hot/10274.html.
	[国家空管委. 低空空域使用管理规定(试行). 2014. www.ccaonline.cn/news/hot/10274.html.]
[8]	Chen Zhijie. Theory and Method of Airspace Management. Beijing: Science Press, 2011.
	[陈志杰. 空域管理理论与方法. 北京: 科学出版社, 2011.]
[9]	Chen Zhijie. Technological challenges of future air traffic control system development. Command Information System and Technology, 2016, 7(6):1-5.
	[陈志杰. 未来空中交通管制系统发展面临的技术挑战. 指挥信息系统与技术, 2016, 7(6):1-5.]
[10]	Liao Xiaohan, Xu Hao. UAV Operational Regulation Technology Development and Application. Beijing: Science Press, 2020.
	[廖小罕, 许浩. 无人机运行管控技术发展与应用. 北京: 科学出版社, 2020.]
[11]	Lu Zi, Du Xinru. The theoretical sources, innovation of methodologies and practice of the exploitation and utilization of airspace in western countries. Advances in Earth Science, 2015, 30(11):1260-1267.
	[路紫, 杜欣儒. 国外空域资源开发利用的理论基础、方法论变革与实践. 地球科学进展, 2015, 30(11):1260-1267.]
[12]	Zhang Wenju. Several applied basic theoretical issues of administrative management of land and resources (Part 1): Analysis of the attributes of natural resources. National Land & Resources Information, 2002(11):52-55.
	[张文驹, 国土资源行政管理的若干应用基础理论问题(上): 自然资源属性分析. 国土资源通讯, 2002(11):52-55.]
[13]	Lu Jiarui. Development and utilization of space resource. Social Sciences in China, 1992(5):83-94.
	[卢嘉瑞. 空间资源的开发与利用. 中国社会科学, 1992(5):83-94.]
[14]	Liu Yuecui, Zhang Huixia. On resources sustainability. Journal of Northwest Forestry University, 2004, 19(2):142-145.
	[刘悦翠, 张慧霞. 资源的持续性. 西北林学院学报, 2004, 19(2):142-145.]
[15]	Wang Tianyan, Ge Shaoyun. Constraints on the state ownership of natural resources from the perspective of supply of public goods. Journal of Shenzhen University (Humanities & Social Sciences), 2015, 32(3):136-143.
	[王天雁, 葛少芸. 公共物品供给视角下自然资源国家所有权的限制. 深圳大学学报(人文社会科学版), 2015, 32(3):136-143.]
[16]	Li Changgeng. An analysis of the theory of state ownership. Political Science and Law, 2011(12):97-110.
	[李昌庚. 国家所有权理论拷辨. 政治与法律, 2011(12):97-110.]
[17]	Wang Liming. Research on Property Law (Volume 1). Beijing: China Renmin University Press, 2007: 506, 508.
	[王利明. 物权法研究(上卷). 北京: 中国人民大学出版社, 2007: 506, 508.]
[18]	Cai Shouqiu. The Legal Protection of Commons. Hebei Law Science, 2012, 30(4):11-26.
	[蔡守秋. 论公众共用物的法律保护. 河北法学, 2012, 30(4):11-26.]
[19]	Xu Shengyu. Urban Underground Space Economics. Beijing: Economic Science Press, 2014: 113-119.
	[徐生钰. 城市地下空间经济学. 北京: 经济科学出版社, 2014: 113-119.]
[20]	Zhu Yizhong, Xia Jun. On the nature and system of water rights. Progress in Geography, 2006, 25(1):16-23.
	[朱一中, 夏军. 论水权的性质及构成. 地理科学进展, 2006, 25(1):16-23.]
[21]	Huang Li, Wang Zhimin, Bao Haijun, et al. Analysis of resource attributes and development characteristics of urban underground spaces. Shanghai Land & Resources, 2018, 39(2):37-40.
	[黄莉, 王直民, 鲍海君, 等. 城市地下空间的资源属性与开发特性分析. 上海国土资源, 2018, 39(2):37-40.]
[22]	Meng Zhimin. Water rights trading market: A means of water resources allocation. China Water Resources, 2000(12):11-12.
	[孟志敏. 水权交易市场: 水资源配置的手段. 中国水利, 2000(12):11-12.]
[23]	Bai Yiqin, Chen Xinfeng. Statistical Report of UAV Operation Data in China. Beijing: Civil Aviation Administration of China Press. 2019: 5.
	[柏艺琴, 陈新锋. 中国无人机运行数据统计报告. 北京: 中国民航出版社, 2019: 5.]
[24]	Quan Quan, Li Gang, Bai Yiqin, et al. Low altitude UAV traffic management: An introductory overview and proposal. Acta Aeronautica et Astronautica Sinica, 2020, 41(1):6-34.
	[全权, 李刚, 柏艺琴, 等. 低空无人机交通管理概览与建议. 航空学报, 2020, 41(1):6-34.]
[25]	FORWARD Inc. UAV Industry Status and Development Trend Report(2018). 2018. https://bg.qianzhan.com/report/detail/1809281520250567.html.
	[前瞻产业研究院. 2018年无人机行业现状与发展趋势报告. 2018. https://bg.qianzhan.com/report/detail/1809281520250567.html.]
[26]	Yan Lei, Liao Xiaohan, Zhou Chenghu, et al. The impact of UAV remote sensing technology on the industrial development of China: A review. Journal of Geo-information Science, 2019, 21(4):476-495.
	[晏磊, 廖小罕, 周成虎, 等. 中国无人机遥感技术突破与产业发展综述. 地球信息科学学报, 2019, 21(4):476-495.]
[27]	Liao Xiaohan. Standard for a framework for structuring low altitude airspace for unmanned aerial vehicle(UAV)operations. IEEE, 2019. https://sagroups.ieee.org/1939-1/.
[28]	Xu Chenchen, Ye Huping, Yue Huanyin, et al. Iterative construction of UAV low-altitude air route network in an urbanized region: Theoretical system and technical roadmap. Acta Geographica Sinica, 2020, 75(5):917-930. doi: 10.11821/dlxb202005003
	[徐晨晨, 叶虎平, 岳焕印, 等. 城镇化区域无人机低空航路网迭代构建的理论体系与技术路径. 地理学报, 2020, 75(5):917-930.]
[29]	CAAC. Interim Regulations on Flight Management of Unmanned Aircraft (Draft for Comments). 2018. http://www.caac.gov.cn/HDJL/YJZJ/201801/t20180126_48853.html.
	[中国民用航空局. 无人驾驶航空器飞行管理暂行条例(征求意见稿). 2018. http://www.caac.gov.cn/HDJL/YJZJ/201801/t20180126_48853.html.]
[30]	CAAC. Airspace capacity assessment guidance materials. 2006. http://www.caac.gov.cn/XXGK/XXGK/GFXWJ/201511/t20151102_8122.html.
	[中国民用航空局. 空域容量评估方法指导材料. 2006. http://www.caac.gov.cn/XXGK/XXGK/GFXWJ/201511/t20151102_8122.html.]
[31]	NASA. UTM: Air traffic management for low-altitude drone. 2015. http://www.nasa.gov.
[32]	SESAR. U-Space Blueprint. Belgium: Bietlot Press, 2017: 2-5.
[33]	Salleh M, Low K H. Concept of operations (Con Ops) for traffic management of unmanned aircraft systems (TM-UAS) in urban environment//2017 AIAA Information Systems-AIAA Infotech@Aerospace. Reston, VA: AIAA, 2017: 0223.
[34]	Salleh M, Chi W C, Wang Z, et al. Preliminary concept of adaptive urban airspace management for un-manned aircraft operations//2018 AIAA Information Systems-AIAA Infotech@Aerospace. Reston, VA: AIAA, 2018: 2260.
[35]	US Department of Transportation Federal Aviation Administration. Unmanned aircraft systems (UAS) traffic management (UTM) conception of operations V2.0. 2020. https://www.aa.gov.
[36]	Zhang Jun, Zhang Xie, Zhang Xuejun. ATM systems based on networks. International Aviation, ATM systems based on networks. International Aviation, 2008(10):28-30.
	[张军, 张勰, 张学军. 网络化空中交通管理系统. 国际航空, 2008(10):28-30.]
[37]	Fan Bangkui, Zhang Ruiyu. Unmanned aircraft system and artificial intelligence. Geomatics and Information Science of Wuhan University, 2017, 42(11):1523-1529.
	[樊邦奎, 张瑞雨. 无人机系统与人工智能. 武汉大学学报·信息科学版, 2017, 42(11):1523-1529.]
[38]	Song Guanfu, Zhong Ershun, Zhou Qin, et al. Research and practice on general 3D field data model in GIS. Journal of Geomatics, 2020, 45(2):1-7.
	[宋关福, 钟耳顺, 周芹, 等. 通用三维GIS场数据模型研究与实践. 测绘地理信息, 2020, 45(2):1-7.]

无人机应用分类	应用领域	具体应用场景举例
民用消费级	娱乐消费	个人航拍、影视航拍、遥控玩具、飞行/灯光表演,等
民用工业级	农林植保	农药喷洒、辅助授粉、森林灭火、农林病虫害监测,等
	安防	公安巡逻、消防巡逻、交通巡逻、灾情检查、指挥调度、应急救援,等
	自动巡检	电力巡检、石油管线巡检、其他线路巡检,等
	水利气象环保	人工降雨、防洪抗旱、大气取样、企业偷排、入河海排污口/固废/岸线开发排查、生态环境监测、生态环境辅助执法,等
	测绘勘探	资源勘探、城市规划、地图测绘,等
	科教文体	教学、航拍测试、极端环境科学数据获取、科学研究、竞速比赛,等
	物流运输	货物运输、精准投递,等
军事和航天级	-	-

资源属性	指标项	隶属指标
自然属性	时空体基本三要素	时间(t)、国土范围(S)、真高(H)
	空间体积影响要素	地形(DEM)、下垫面状态(DSM)
	地表飞行影响要素	地形起伏度、地表粗糙度
	气候影响要素	风速、降水、气压、闪电频次等
	极端灾害限制要素	洪涝、火灾、地震、海啸等
社会属性	知识技术要素	无人机技术、低空交通服务技术等
	资源公共性要素	国家安全、行政管理法规制度
	社会生活公平要素	公共安全性、噪声影响、大气污染影响等
经济属性	经济价值	交通密度
