基于Meta-Gaussian模型的中国农业干旱预测研究

doi:10.11821/dlxb202103003

摘要/Abstract

摘要：

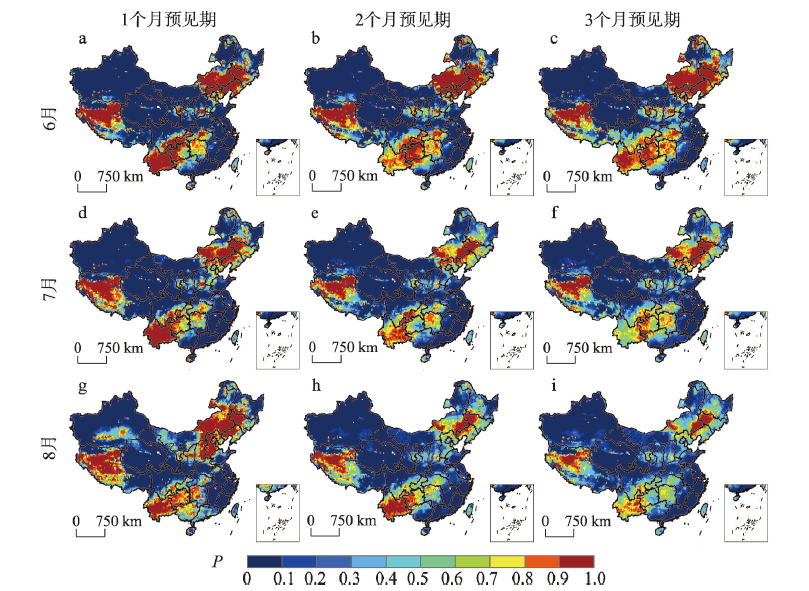

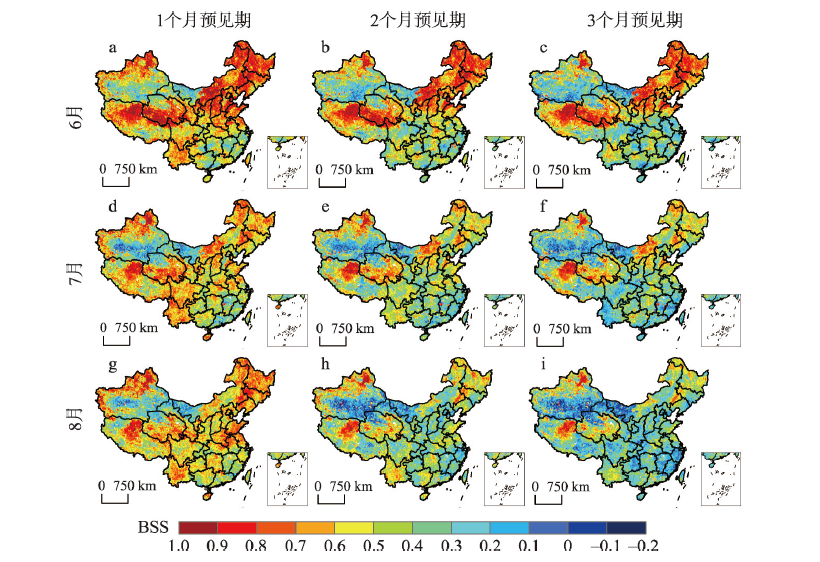

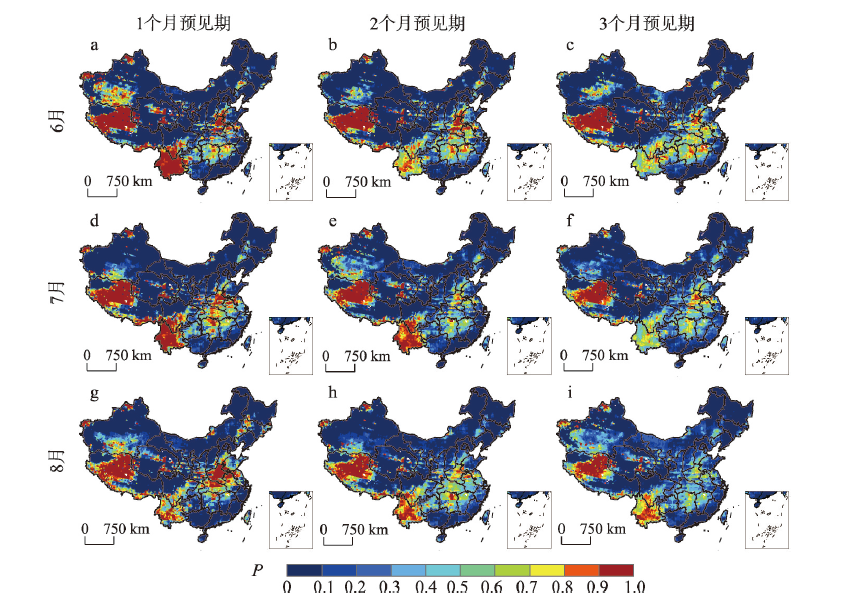

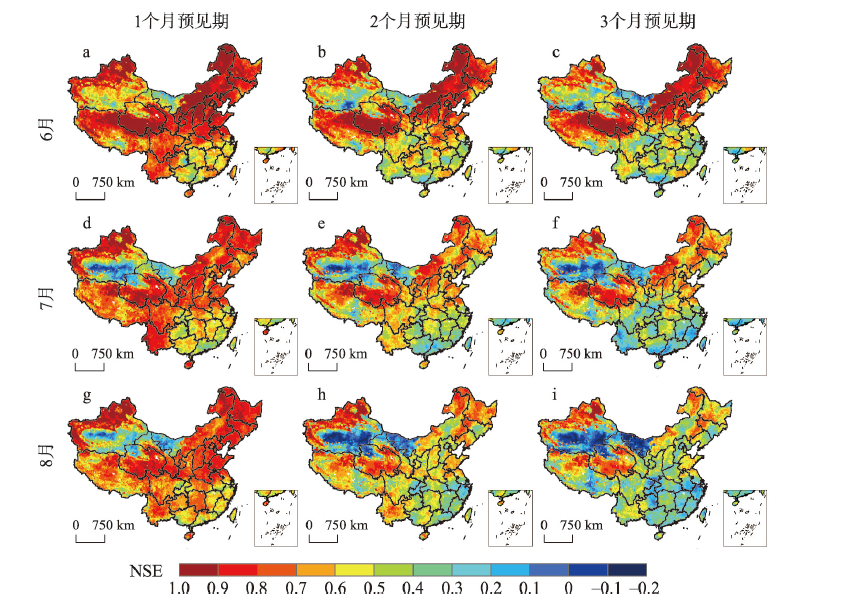

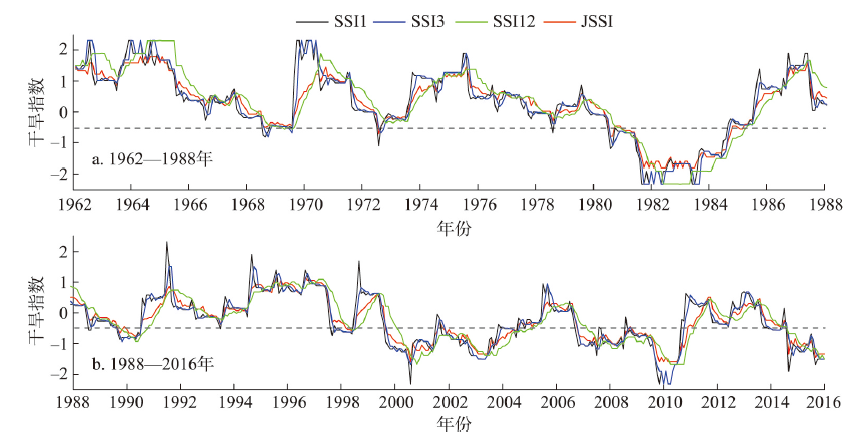

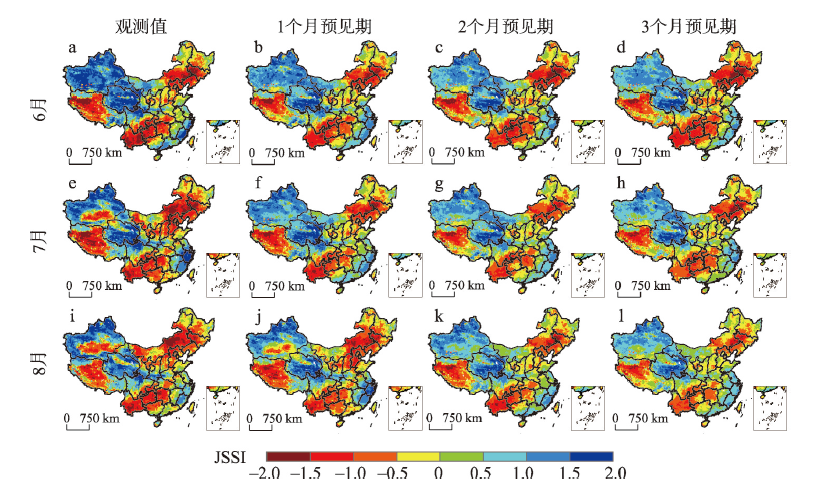

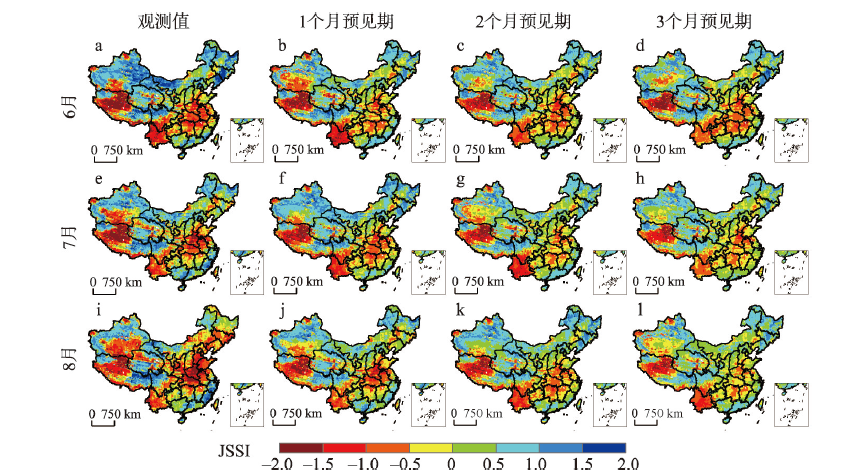

在全球气候变化背景下,干旱愈加频发,有效且可靠的农业干旱预测对于保障粮食安全和水资源安全具有重要意义。以标准化降水指数（SPI）和联合标准化土壤湿度指数（JSSI）分别表征气象干旱和农业干旱,以前期的气象干旱和农业干旱指数作为预测因子,在1~3个月预见期下基于Meta-Gaussian（MG）模型对中国1961—2015年6—8月的农业干旱进行预测,并采用Brier Skill Score（BSS）和纳什效率系数（NSE）评价MG模型的预测性能。结果表明：① 将1个月、3个月、6个月、9个月和12个月时间尺度的标准化土壤湿度指数（SSI）结合起来得到的JSSI能够对中国农业干旱的综合状况进行客观评价。② 以中国2010年和2014年遭受严重的干旱事件为例,预见期为1~3个月时,除新疆南部、青海西部以及内蒙古西部等沙漠地区外,MG模型对6—8月农业干旱预测结果的分布范围与实际干旱的分布区域较吻合,预见期越短,吻合越好。③ 预见期为1个月时,6—8月BSS ≥ 0.5的面积比例分别为0.714、0.642和0.640,NSE ≥ 0.5的面积比例分别为0.903、0.829和0.837,表明MG模型能够对中国大部分区域的农业干旱作出可靠的预测。本文结果可为中国农业干旱的监测、预警及干旱决策提供科学指导。

关键词: 农业干旱, 干旱预测, 预测概率, Meta-Gaussian模型

Abstract:

It is predicted that many regions will witness higher frequencies of drought events under global climate change, which could pose a threat to crop yield and water security. Therefore, the development of efficient and reliable methods for agricultural drought prediction is crucial. This study used the Standardized Precipitation Index (SPI) based on monthly precipitation at a 6-month time scale as an indicator of meteorological drought. The Joint Standardized Soil Moisture Index (JSSI) was used to assess the comprehensive situation of agricultural drought and was derived by combining the Standardized Soil Moisture Index (SSI) over 1-, 3-, 6-, 9-, and 12-month time scales based on monthly root zone soil moisture. Using the antecedent SPI and the persistent JSSI as predictors, the Meta-Gaussian (MG) model was applied to predict agricultural drought in China from June to August in 1961-2015. The Brier Skill Score (BSS) and Nash-Sutcliffe Efficiency Coefficient (NSE) were adopted for the evaluation of the prediction performance of the MG model. The results showed that the JSSI was capable of capturing both emerging and prolonged agricultural droughts in a timely manner, which is significant for agricultural drought monitoring. The spatial distribution of predictions of severe agricultural droughts with the 1- to 3-month lead by the JSSI for June to August in 2010 and 2014 resembled the corresponding observations for most parts of China. Moreover, the areas with a predicted higher probability of JSSI falling below -0.5 corresponded well with areas that experienced agricultural drought according to observed data (JSSI ＜ -0.5). The BSS and NSE results confirmed that the MG model was able to provide reliable predictions of agricultural drought for June to August in most parts of China. The prediction of JSSI from June to August by the MG model with the 1-month lead showed that the proportions of the total area with BSS ≥ 0.5 were 0.714, 0.642, and 0.640, respectively, whereas the proportions of the total area with NSE ≥ 0.5 were 0.903, 0.829, and 0.837, respectively. However, the MG model performed poorly in desert areas, including southern Xinjiang, western Qinghai and western Inner Mongolia, which may have been due to the extremely arid conditions of these regions with soil water mostly related to condensation water rather than rainfall. The results of this study can provide scientific basis for agricultural drought monitoring, early warning, and decision-making in China.

Key words: agricultural drought, drought prediction, prediction probability, Meta-Gaussian model

吴海江, 粟晓玲, 张更喜. 基于Meta-Gaussian模型的中国农业干旱预测研究[J]. 地理学报, 2021, 76(3): 525-538.

WU Haijiang, SU Xiaoling, ZHANG Gengxi. Prediction of agricultural drought in China based on Meta-Gaussian model[J]. Acta Geographica Sinica, 2021, 76(3): 525-538.

图/表 11

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

参考文献 32

[1]	Hao Z C, Hao F H, Singh V P, et al. Probabilistic prediction of hydrologic drought using a conditional probability approach based on the meta-Gaussian model. Journal of Hydrology, 2016,542:772-780.
[2]	Hao Z C, Hao F H, Singh V P, et al. An integrated package for drought monitoring, prediction and analysis to aid drought modeling and assessment. Environmental Modelling & Software, 2017,91:199-209.
[3]	Hao Z C, Hong Y, Xia Y L, et al. Probabilistic drought characterization in the categorical form using ordinal regression. Journal of Hydrology, 2016,535:331-339.
[4]	Hao Z C, Singh V P, Xia Y L. Seasonal drought prediction: Advances, challenges, and future prospects. Reviews of Geophysics, 2018,56(1):108-141.
[5]	Li X Y, Li Y, Chen A P, et al. The impact of the 2009/2010 drought on vegetation growth and terrestrial carbon balance in Southwest China. Agricultural and Forest Meteorology, 2019,269/270:239-248.
[6]	Zeng Z Q, Wu W X, Li Z L, et al. Agricultural drought risk assessment in Southwest China. Water, 2019,11(5):1064. DOI: 10.3390/w11051064.
[7]	Wang L, Yu H, Yang M L, et al. A drought index: The standardized precipitation evapotranspiration runoff index. Journal of Hydrology, 2019,571:651-668.
[8]	Zhang Gengxi, Su Xiaoling, Hao Lina, et al. Response of vegetation to drought based on NDVI and scPDSI data sets from 1982 to 2015 across China. Transactions of the Chinese Society of Agricultural Engineering, 2019,35(20):145-151.
	[ 张更喜, 粟晓玲, 郝丽娜, 等. 基于NDVI和scPDSI研究1982—2015年中国植被对干旱的响应. 农业工程学报, 2019,35(20):145-151.]
[9]	Li Qin, Zhang Qiang, Huang Qingzhong, et al. Nonparametric integrated agro-meteorological drought monitoring in China: New monitoring technique and applicability. Acta Geographica Sinica, 2018,73(1):67-80.
	[ 李勤, 张强, 黄庆忠, 等. 中国气象农业非参数化综合干旱监测及其适用性. 地理学报, 2018,73(1):67-80.]
[10]	Amrit K, Mishra S K, Pandey R P, et al. Standardized precipitation index-based approach to predict environmental flow condition. Ecohydrology, 2019,12(7):e2127. DOI: 10.1002/eco.2127.
[11]	Vicente-Serrano S M, Beguería S, López-Moreno J I. A multiscalar drought index sensitive to global warming: The standardized precipitation evapotranspiration index. Journal of Climate, 2010,23(7):1696-1718.
[12]	Yu H Q, Zhang Q, Xu C Y, et al. Modified palmer drought severity index: Model improvement and application. Environment International, 2019,130:104951. DOI: 10.1016/j.envint.2019.104951. pmid: 31272019
[13]	Xu Y P, Wang L, Ross K W, et al. Standardized soil moisture index for drought monitoring based on soil moisture active passive observations and 36 years of north american land data assimilation system data: A case study in the Southeast United States. Remote Sensing, 2018,10(3):301. DOI: 10.3390/rs10020301.
[14]	Sattar M N, Lee J Y, Shin J Y, et al. Probabilistic characteristics of drought propagation from meteorological to hydrological drought in south Korea. Water Resources Management, 2019,33(7):2439-2452.
[15]	Gevaert A I, Veldkamp T I E, Ward P J . The effect of climate type on timescales of drought propagation in an ensemble of global hydrological models. Hydrology and Earth System Sciences, 2018,22(9):4649-4665.
[16]	Hao Z C, Hao F H, Singh V P, et al. Statistical prediction of the severity of compound dry-hot events based on El Niño-Southern Oscillation. Journal of Hydrology, 2019,572:243-250.
[17]	Hao Z C, Hao F H, Singh V P, et al. Quantifying the relationship between compound dry and hot events and El Niño-southern Oscillation (ENSO) at the global scale. Journal of Hydrology, 2018,567:332-338.
[18]	Byakatonda J, Parida B P, Kenabatho P K. Relating the dynamics of climatological and hydrological droughts in semiarid Botswana. Physics and Chemistry of the Earth, 2018,105:12-24.
[19]	Sattar M N, Kim T-W. Probabilistic characteristics of lag time between meteorological and hydrological droughts using a Bayesian model. Terrestrial, Atmospheric and Oceanic Sciences, 2018,29(6):709-720.
[20]	Hao Z C, Aghakouchak A, Nakhjiri N, et al. Global integrated drought monitoring and prediction system. Scientific Data, 2014,1:140001. DOI: 10.1038/sdata.2014.1.
[21]	Kao S C, Govindaraju R S. A copula-based joint deficit index for droughts. Journal of Hydrology, 2010,380(1/2):121-134.
[22]	Gao C J, Chen H S, Sun S L, et al. A potential predictor of multi-season droughts in southwest China: Soil moisture and its memory. Natural Hazards, 2018,91(2):553-566.
[23]	Hao Z C, Hao F H, Singh V P, et al. Quantitative risk assessment of the effects of drought on extreme temperature in eastern China. Journal of Geophysical Research: Atmospheres, 2017,122(17):9050-9059.
[24]	Hao Z C, Hao F H, Singh V P, et al. A multivariate approach for statistical assessments of compound extremes. Journal of Hydrology, 2018,565:87-94.
[25]	Gringorten I I. A plotting rule for extreme probability paper. Journal of Geophysical Research, 1963,68(3):813-814.
[26]	Bogner K, Pappenberger F, Cloke H L. Technical note: The normal quantile transformation and its application in a flood forecasting system. Hydrology and Earth System Sciences, 2012,16(4):1085-1094.
[27]	Mirabbasi R, Anagnostou E N, Fakheri-Fard A, et al. Analysis of meteorological drought in northwest Iran using the Joint Deficit Index. Journal of Hydrology, 2013,492:35-48.
[28]	Genest C, Rémillard B, Beaudoin D. Goodness-of-fit tests for copulas: A review and a power study. Insurance: Mathematics and Economics, 2009,44(2):199-213.
[29]	Kelly K S, Krzysztofowicz R. A bivariate meta-Gaussian density for use in hydrology. Stochastic Hydrology and Hydraulics, 1997,11(1):17-31.
[30]	Wilks D S. Sampling distributions of the Brier score and Brier skill score under serial dependence. Quarterly Journal of the Royal Meteorological Society, 2010,136(653):2109-2118.
[31]	Hao Z C, Singh V P. Review of dependence modeling in hydrology and water resources. Progress in Physical Geography: Earth and Environment, 2016,40(4):549-578.
[32]	Bayat B, Nasseri M, Zahraie B. Identification of long-term annual pattern of meteorological drought based on spatiotemporal methods: Evaluation of different geostatistical approaches. Natural Hazards, 2015,76(1):515-541.
