中国土壤湿度的时空变化特征

doi:10.11821/dlxb201609003

摘要/Abstract

摘要：

基于中国155个农业气象观测站1981-2010年逐旬土壤湿度资料,分析了全国和12个气候区域0~50 cm逐层的土壤湿度时空分布规律,采用趋势分析和Cramér-von Mises（CVM）方法探究了土壤湿度的变化趋势及突变性。结果表明：西南、江淮、东北、江南、江汉、黄淮和华南地区各层土壤湿度均高于全国平均值,内蒙古地区最低;随着深度增加,西南地区土壤湿度增加最明显,仅青藏高原地区土壤湿度减小。不同区域0~50 cm各层土壤湿度年变化和季节变化差异明显,并具有阶段性特征,大部地区深层土壤湿度高于浅层;总体上,新疆、华南、华北、青藏高原、东北、黄淮地区1981-2010年土壤湿度减小趋势显著,其中新疆地区减小最为明显。除江淮地区外,各区域土壤湿度均存在较为明显的年际差异,突变时段主要集中在20世纪80年代后期至90年代初期、90年代后期两个时间段。

关键词: 土壤湿度, 气候区划, 线性趋势, CVM检验, 中国

Abstract:

Using actual observed soil moisture data of 155 agro-meteorological stations across China, at dekadal scale from 1981 to 2010, this paper examined the spatial and temporal characteristics of soil moisture at each 10 cm depth from 0 to 50 cm, at regional and national scales. Annual trend and significant change point were detected through tendency analysis and Cramér-von Mises test methods. Since soil texture and crop types were approximately homogeneous in each climatic region, regional average variation of soil moisture could be observed in the analysis. Mean soil moisture was between 15% and 25% in most regions while it was above 25% in the northern part of Northeast China and southern part of Southwest China. At each depth, larger soil moisture was detected in Southwest China, Jianghuai, Northeast China, Jiangnan, Jianghan, Huanghuai and South China, while the smallest value was observed in Inner Mongolia. As soil deepening, except in Tibetan Plateau, increases in soil moisture were apparent, being a maximal magnitude in Southwest China. Obviously, as well as periodical characteristics, annual and seasonal difference of soil moisture emerged at each depth, corresponding well to regional precipitation, temperature, and water demand for planting crops. An obvious freezing-increasing-deceasing-increasing trend existed in Northeast China, Inner Mongolia and Xinjiang, a variation of deceasing-increasing-fluctuating in North China, Huanghuai, and eastern Northwest China, a multiple fluctuation in Jianghuai, Jianghan and Jiangnan, and a deceasing-increasing-deceasing trend in South China and Southwest China, while an increasing-deceasing trend was found in the Tibetan Plateau. Soil moisture at a greater depth was higher than that at superficial layers. Annual soil moisture varied at each depth, but the mean value decreased from 1981 to 2010. Such annual variation could be well explained by corresponding temperature and precipitation. Consequently, soil moisture tended to decrease in response to temperature increase, following climate change. Apart from climatic factors, soil texture and crop type, as well as human activity, can have influence on soil moisture, which is needed to be studied further. Soil moisture decreased in Xinjiang, South China, North China, Tibetan Plateau, Northeast China and Huanghuai among which Xinjiang was most remarkable with a velocity above -2.3%?(10a)^-1. Except in Jianghuai, a significant change of soil moisture was detected, mainly during two periods, i.e. from the late 1980s to early 1990s, and late 1990s.

Key words: soil moisture, climatic zoning, linear tendency, Cramé, r-von Mises test, China

张蕾, 吕厚荃, 王良宇, 杨冰韵. 中国土壤湿度的时空变化特征[J]. 地理学报, 2016, 71(9): 1494-1508.

Lei ZHANG, Houquan LU, Liangyu WANG, Bingyun YANG. Spatial-temporal characteristics of soil moisture in China[J]. Acta Geographica Sinica, 2016, 71(9): 1494-1508.

图/表 11

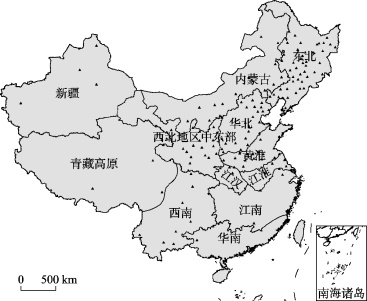

图1

表1

中国各气候区不同区域0~50 cm土壤质地分类

地区	土壤	北方地区土壤类型所占比例(%)					地区	土壤		南方地区土壤类型所占比例(%)
地区	土壤	0~10				10~20	20~30	30~40	40~50	0~10	10~20	20~30	30~40	40~50
东北	黏土	41	31	16	16	12	江淮	黏土	0		20	0	0	0
	黏壤土	39	29	43	41	45		黏壤土	40		20	40	20	20
	壤土	14	29	22	20	20		壤土	60		40	40	20	20
	砂壤土	4	6	10	8	10		砂壤土	0		20	20	40	40
	壤砂土	2	6	6	12	2		壤砂土	0		0	0	20	20
	砂土	0	0	2	2	10		砂土	0		0	0	0	0
内蒙古	黏土	20	0	0	7	0	江汉	黏土	0		0	0	0	0
	黏壤土	13	33	13	27	7		黏壤土	33		67	33	0	0
	壤土	27	20	33	7	40		壤土	33		33	0	0	0
	砂壤土	27	27	13	27	7		砂壤土	33		0	67	67	33
	壤砂土	7	7	40	33	40		壤砂土	0		0	0	33	33
	砂土	7	13	0	0	7		砂土	0		0	0	0	33
华北	黏土	12	8	0	4	4	江南	黏土	0		0	0	0	0
	黏壤土	40	16	12	20	16		黏壤土	25		0	25	0	0
	壤土	32	40	52	36	44		壤土	75		75	25	50	50
	砂壤土	8	20	24	8	12		砂壤土	0		25	25	0	25
	壤砂土	8	12	8	24	20		壤砂土	0		0	25	25	0
	砂土	0	4	4	8	4		砂土	0		0	0	25	25
黄淮	黏土	22	6	0	0	0	华南	黏土	0		0	0	0	0
	黏壤土	50	22	11	11	17		黏壤土	50		50	0	0	0
	壤土	17	44	28	33	22		壤土	50		50	100	0	0
	砂壤土	6	22	22	33	22		砂壤土	0		0	0	100	50
	壤砂土	6	6	22	17	22		壤砂土	0		0	0	0	0
	砂土	0	0	17	6	17		砂土	0		0	0	0	50
新疆	黏土	0	0	0	0	0	西南	黏土	22		33	11	11	33
	黏壤土	25	25	0	25	0		黏壤土	56		0	0	33	11
	壤土	50	25	50	25	75		壤土	0		44	44	22	22
	砂壤土	0	25	0	0	0		砂壤土	11		0	22	0	0
	壤砂土	25	0	25	25	0		壤砂土	11		11	11	22	11
	砂土	0	25	25	25	25		砂土	0		11	11	11	22
西北中东部	黏土	35	29	6	0	6	青藏高原	黏土	17		0	0	0	0
	黏壤土	47	35	53	35	47		黏壤土	50		50	33	17	33
	壤土	18	29	24	41	18		壤土	17		17	33	67	33
	砂壤土	0	6	18	12	24		砂壤土	0		0	17	0	17
	壤砂土	0	0	0	12	0		壤砂土	17		33	17	0	0
	砂土	0	0	0	0	6		砂土	0		0	0	17	17

表1

表2

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 33

[1]	Koster R D, Dirmeyer P A, Guo Z C, et al.Regions of strong coupling between soil moisture and precipitation. Science, 2004, 305: 138-1140. doi: 10.1126/science.1100217 pmid: 15326351
[2]	Lin Jie, Chen Xiaoming, Zhang Yong.Progress in the research on the relationship between climate change and soil moisture. Chinese Journal of Soil Science, 2012, 43(5): 1271-1276.
	[林洁, 陈效民, 张勇. 气候变化与土壤湿度关系的研究进展. 土壤通报, 2012, 43(5): 1271-1276.]
[3]	Ma Zhuguo, Wei Helin, Fu Tubin.Relationship between regional soil moisture variation and climatic variability over east China. Acta Meteorologica Sinica, 2000, 58(3): 278-287. doi: 10.11676/qxxb2000.029
	[马柱国, 魏和林, 符涂斌. 中国东部区域土壤湿度的变化及其与气候变率的关系. 气象学报, 2000, 58(3): 278-287.] doi: 10.11676/qxxb2000.029
[4]	Yang Yonghui, Watanabe Masataka, Wang Zhiping, et al.Impacts of temperature and precipitation changes on soil moisture of Taihang Mountains. Acta Geographica Sinica, 2004, 59(1): 56-63.
	[杨永辉, 渡边正孝, 王智平, 等. 气候变化对太行山土壤水分及植被的影响. 地理学报, 2004, 59(1): 56-63.]
[5]	Li Qiaoping, Ding Yihui, Dong Wenjie.A numerical study on effects of the soil moisture upon the regional short-term climate. Journal of Applied Meteorological Science, 2007, 18(1): 1-11. doi: 10.3969/j.issn.1001-7313.2007.01.001
	[李巧萍, 丁一汇, 董文杰. 土壤湿度异常对区域短期气候影响的数值模拟试验. 应用气象学报, 2007, 18(1): 1-11.] doi: 10.3969/j.issn.1001-7313.2007.01.001
[6]	Zhao Wenju, Li Xiaoping, Fan Yanwei, et al.Spatial-temporal stability distribution characteristics of soil moisture in gravel-sand mulched field in northwestern arid area. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2015, 31(17): 144-151.
	[赵文举, 李晓萍, 范严伟, 等. 西北旱区压砂地土壤水分的时空分布特征. 农业工程学报, 2015, 31(17): 144-151.]
[7]	Yu Jiehui, Liu Xinsheng, Luo Tianxiang, et al.Seasonal variations of soil temperature and moisture at the upper limit of alpine meadow in north-facing slope of the Nianqingtanggula Mountains. Acta Geographica Sinica, 2012, 67(9): 1246-1254.
	[俞洁辉, 刘新圣, 罗天祥, 等. 念青唐古拉山北麓草甸海拔分布上限土壤温湿度的季节变化. 地理学报, 2012, 67(9): 1246-1254.]
[8]	Fan Feng.Preliminary results on long-term soil moisture variation in Yunnan. Journal of Applied Meteorological Science, 2015, 26(4): 409-421.
	[樊风. 云南土壤湿度长期变化的初步研究. 应用气象学报, 2015, 26(4): 409-421.]
[9]	Wang Lei, Wen Jun, Wei Zhigang, et al.Soil moisture over the west of Northwest China and its response to climate. Plateau Meteorology, 2008, 27(6): 1257-1266.
	[王磊, 文军, 韦志刚, 等. 中国西北区西部土壤湿度及其气候响应. 高原气象, 2008, 27(6): 1257-1266.]
[10]	Yang Yuguang, Liu Zhihui, Qiao Peng.Study on soil humidity and its affecting factors on northern slope of the Tianshan Mountains in snow melting season. Arid Zone Research, 2012, 29(1): 173-178.
	[杨与广, 刘志辉, 乔鹏. 天山北坡融雪期土壤湿度特征及其影响因子. 干旱区研究, 2012, 29(1): 173-178.]
[11]	Zhang Congcong, Chen Xiaomin, Zhang Yong, et al.Influence of meteorological factors on soil moisture dynamics of upland soil in Taihu Lake region. Scientia Agricultura Sinica, 2013, 46(21): 4454-4463. doi: 10.3864/j.issn.0578-1752.2013.21.007
	[张聪聪, 陈效民, 张勇, 等. 气象因子对太湖地区旱作农田土壤水分动态的影响. 中国农业科学, 2013, 46(21): 4454-4463.] doi: 10.3864/j.issn.0578-1752.2013.21.007
[12]	Yang Na, Liu Liangming, Xiang Daheng, et al.Applying BP neural network to estimate soil moisture with meteorologic parameters. Chinese Journal of Soil Science, 2012, 42(6): 1324-1329.
	[杨娜, 刘良明, 向大享, 等. 利用BP神经网络由特征气象要素预测土壤湿度. 土壤通报, 2012, 42(6): 1324-1329.]
[13]	Zhang Qiang.Simulation and prediction of soil moisture based on support vector machine technique. Acta Pedologica Sinica, 2013, 50(1): 69-67.
	[张强. 基于支持向量机的土壤湿度模拟及预测研究. 土壤学报, 2013, 50(1): 69-67.]
[14]	Cammalleri C, Micale F, Vogt J.On the value of combining different modeled soil moisture products for European drought monitoring. Journal of Hydrology, 2015, 525: 547-558. doi: 10.1016/j.jhydrol.2015.04.021
[15]	Li Y, Zhou J, Wang H J, et al. Integrating soil moisture retrieved from L-band microwave radiation into an energy balance model to improve evapotranspiration estimation on the irrigated oases of arid regions in Northwest China. Agricultural and Forest Meteorology, 2015, 214/215: 306-318. doi: 10.1016/j.agrformet.2015.08.260
[16]	Zhang Wenjun, Zhou Tianjun, Yu Rucong.Spatial distribution and temporal variation of soil moisture over China (Part I): Multi-data intercomparison. Chinese Journal of Atmospheric Sciences, 2008, 32(3): 581-597. doi: 10.3878/j.issn.1006-9895.2008.03.15
	[张文君, 周天军, 宇如聪. 中国土壤湿度的分布与变化(I): 多种资料间的比较. 大气科学, 2008, 32(3): 581-597.] doi: 10.3878/j.issn.1006-9895.2008.03.15
[17]	Zuo Zhiyan, Zhang Renhe.Spatial and temporal variations of spring soil moisture in East China. Scientic Sinica Terrae, 2008, 38(11): 1428-1437.
	[左志燕, 张人禾. 中国东部春季土壤湿度的时空变化特征. 中国科学D辑: 地球科学, 2008, 38(11): 1428-1437.]
[18]	Liu L, Zhang R H, Zuo Z Y.Intercomparison of spring soil moisture among multiple reanalysis data sets over eastern China. Journal of Geographical Research: Atmosphere, 2014, 119(1): 54-64. doi: 10.1002/2013JD020940
[19]	Younis S M Z, Iqbal J. Estimation of soil moisture using multispectral and FTIR techniques. The Egyptian Journal of Remote Sensing and Space Science, 2015, 18(2): 151-161. doi: 10.1016/j.ejrs.2015.10.001
[20]	Mao Fuping, Zhang Shuwen, Ye Dan, et al.Impact of time correlated model errors on soil moisture estimates with the ensemble square root filter. Advances in Earth Science, 2015, 30(6): 700-708. doi: 10.11867/j.issn.1001-8166.2015.06.0700
	[毛伏平, 张述文, 叶丹, 等. 模式时间关联误差对集合平方根滤波估算土壤湿度的影响. 地球科学进展, 2015, 30(6): 700-708. ] doi: 10.11867/j.issn.1001-8166.2015.06.0700
[21]	Koster R D.Regions of strong coupling between soil moisture and precipitation. Science, 2004, 305: 138-1140. doi: 10.1126/science.1100217 pmid: 15326351
[22]	Dillon M E, Collini E A, Ferreira L J.Sensitivity of WRF short-term forecasts to different soil moisture initializations from the GLDAS database over South America in March 2009. Atmospheric Research, 2016, 167: 196-207. doi: 10.1016/j.atmosres.2015.07.022
[23]	National Meteorological Center.Manual for China Meteorological Geographic Devisions. Beijing: China Meteorological Press, 2006.
	[中国气象局国家气象中心. 中国气象地理区划手册 . 北京: 气象出版社, 2006.]
[24]	Dan G, Baruch G, Daniel R.Drip Irrigation: Principles, Design, and Agricultural Practices. KfarShmaryahu, Israel: Drip Irrigation Scientific Publications, 1976.
[25]	Wei Fengying.Modern Climatic Statistical Diagnosis and Prediction Technology. Beijing: China Meteorological Press, 2007.
	[魏凤英. 现代气候统计诊断与预测技术. 北京: 气象出版社, 2007.]
[26]	Holmes M, Kojadinovic I, Quessy J F.Nonparametric tests for change-point detection à la Gombay and Horváth. Journal of Multivariate Analysis, 2013, 115: 16-32. doi: 10.1016/j.jmva.2012.10.004
[27]	Mazdiyasni O, AghaKouchak A. Substantial increase in concurrent droughts and heatwaves in the United States. PNAS, 2015, 112(37): 11484-11489. doi: 10.1073/pnas.1422945112 pmid: 26324927
[28]	Ross G J, Adams N M.Two nonparametric control charts for detecting arbitrary distribution changes. Journal of Quality Technology, 2012, 44(2): 102-116.
[29]	Andersion T W, Darling D A.Asymptotic theory of certain goodness of fit criteria bases on stochastic processes. The Annals of Mathematical Statistics, 1952, 23(2): 191-211. doi: 10.1214/aoms/1177729437
[30]	Lu Dengrong, Huang Bin, Wang Jinsong.Change of the ten-day precipitation and its relationship with soil moisture in the rain-fed area east of the Yellow River in Gansu Province. Agricultural Research in the Arid Areas, 2011, 29(2): 230-235.
	[陆登荣, 黄斌, 王劲松. 甘肃河东雨养农业区旬降水变化及其与土壤湿度关系. 干旱地区农业研究, 2011, 29(2): 230-235.]
[31]	Clarke R T.On the (mis)use of statistical methods in hydro-climatological research. Hydrological Science Journal, 2010, 55(2): 139-144.
[32]	Li Baichao, Wen Xiuqing, Wang Liangliang, et al.Tendency of soil moisture in spring of Heilongjiang Province in recent 30 years. Journal of Arid Meteorology, 2011, 29(3): 289-296. doi: 10.3969/j.issn.1006-7639.2011.03.004
	[李百超, 温秀卿, 王晾晾, 等. 黑龙江省春季土壤湿度近30a变化趋势. 干旱气象, 2011, 29(3): 289-296.] doi: 10.3969/j.issn.1006-7639.2011.03.004
[33]	Li Ning, Gu Wei, Du Zixuan, et al.Soil water content observations under different soil classification in central and east Inner Mongolia of China. Advances in Earth Science, 2006, 21(2): 151-156.
	[李宁, 顾卫, 杜子璇, 等. 内蒙古中西部地区不同土壤类型下土壤水分的研究. 地球科学进展, 2006, 21(2): 151-156.]

	土壤湿度均值(%)							土壤湿度倾向率(%?(10a)^-1)
	0~50		0~10	10~20	20~30	30~40	40~50	0~50	0~10	10~20	20~30	30~40	40~50
全国	18.3	17.4	18.0	18.2	18.7	19.2		-0.8	-0.5	-0.9	-0.7	-0.9	-0.9
东北	21.7	20.8	21.7	21.9	21.9	22.0		-0.6^*	-0.3	-0.8^*	-0.8^*	-0.6^*	-0.7^*
内蒙古	9.5	8.9	9.1	9.4	10.0	10.4		-0.3	-0.1	-0.4	-0.3	-0.3	-0.3
华北	16.1	15.3	15.8	16.0	16.3	17.0		-1.3^*	-1.1^*	-1.4^*	-1.4^*	-1.2^*	-1.3^*
黄淮	19.5	18.7	19.2	19.2	19.9	20.5		-0.6^*	-0.1	-0.6^*	-0.7^*	-1.0^*	-1.0^*
新疆	11.3	9.5	10.7	11.5	12.0	12.9		-3.8^*	-3.6^*	-4.0^*	-3.5^*	-3.0^*	-2.3^*
西北地区中东部	13.9	13.5	14.2	14.0	13.9	13.9		-0.4	-0.3	-0.4	-0.4	-0.4	-0.4
江淮	24.1	23.6	23.6	23.9	24.3	24.8		-0.1	0.1	0.0	0.0	-0.5^*	-0.6^*
江汉	21.0	20.3	20.5	20.6	21.6	22.3		0.3	0.8^*	0.4	0.3	-0.3	-0.7
江南	21.3	21.3	21.1	21.2	21.4	21.6		-0.3	0.0	-0.3	-0.4	-0.5^*	-0.7^*
华南	18.9	18.2	19.7	19.3	18.7	18.7		-1.8^*	-1.8^*	-2.7^*	-1.7^*	-0.8^*	-0.4
西南	24.4	20.1	21.6	23.6	27.4	29.3		0.1	0.0	-0.4	0.2	0.6	0.5
青藏高原	17.9	19.0	18.8	17.6	17.1	17.2		-1.2^*	-0.5	-1.4^*	-1.2^*	-1.6^*	-2.4^*
