贵州绥阳阴河洞洞穴壶穴的演化过程

doi:10.11821/dlxb201611011

地理学报 ›› 2016, Vol. 71 ›› Issue (11): 2010-2019.doi: 10.11821/dlxb201611011

贵州绥阳阴河洞洞穴壶穴的演化过程

曹明达^1,²(), 周忠发^1,²(), 张结^1,², 殷超^1,², 潘艳喜^1,², 闫利会^1,³, 陈全^1,²

1. 贵州师范大学喀斯特研究院,贵阳 550001
2. 贵州省喀斯特山地生态环境国家重点实验室培育基地,贵阳 550001
3. 国家喀斯特石漠化防治工程技术研究中心,贵阳 550001

收稿日期:2016-07-19 修回日期:2016-10-20 出版日期:2016-11-25 发布日期:2016-11-25
作者简介:
作者简介：曹明达(1992-), 男, 安徽滁州人, 硕士生, 研究方向为喀斯特地貌与洞穴。E-mail: cmd965621@sina.com
基金资助:
国家自然科学基金项目(41361081);贵州省科技计划([2014]4004-2);贵州省重大应用基础研究项目([2014]200201)

The evolution of the cavernous potholes in Yinhe Cave, Suiyang county, Guizhou province

Mingda CAO^1,²(), Zhongfa ZHOU^1,²(), Jie ZHANG^1,², Chao YIN^1,², Yanxi PAN^1,², Lihui YAN^1,³, Quan CHEN^1,²

1. School of Karst Science, Guizhou Normal University, Guiyang 550001, China
2. State Key Laboratory Incubation Base for Karst Mountain Ecology Environment of Guizhou Province, Guiyang 550001, China
3. State Engineering Technology Center of Karst Rock Desertification Rehabilitation, Guiyang 550001, China

Received:2016-07-19 Revised:2016-10-20 Published:2016-11-25 Online:2016-11-25
Supported by:
National Natural Science Foundation, No.41361081;Guizhou Science and Technology Plan, No.[2014]4004-2;Guizhou Major Application of Basic Research Project, No.[2014]200201

摘要/Abstract

摘要：

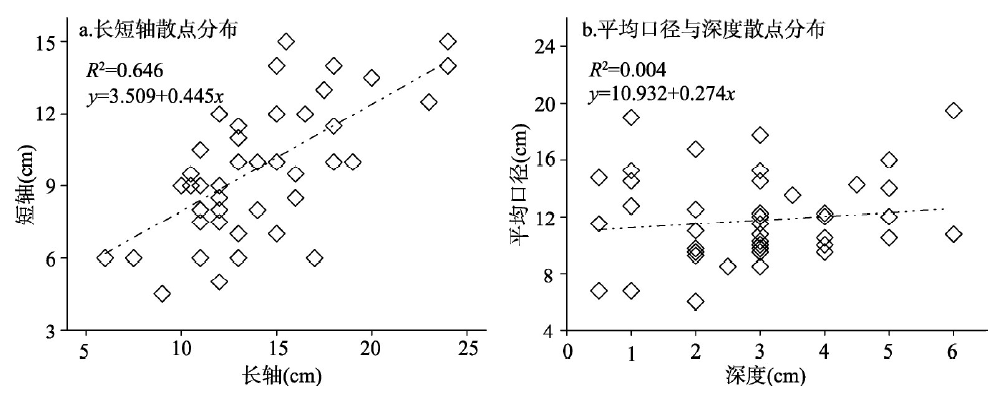

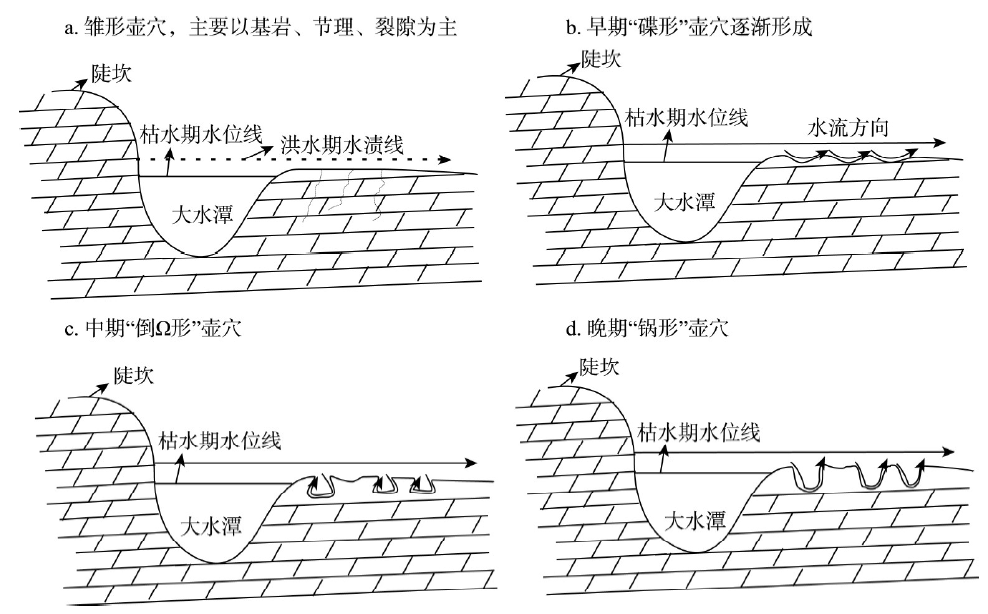

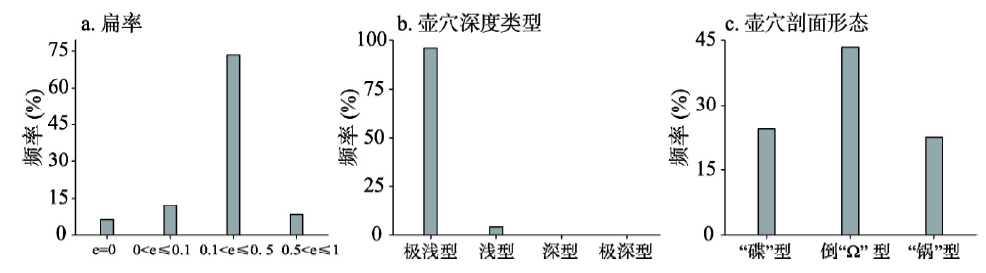

通过对贵州绥阳寒武系中上统娄山关组中发育洞穴之阴河洞地下河河床基岩面上49个壶穴进行详细测量和统计学定量分析,对其形态特征及空间分布进行描述,并探讨其形成演化过程和影响因素。主要结论为：阴河洞壶穴的整体形态以极浅的倒“Ω”型和“锅”型壶穴为主,并且壶穴发育相对较年轻;壶穴长短轴具有一定的相关性,但平均口径与深度的相关性较差,说明壶穴在发育的过程在洪水期以口径增大为主,枯水期以溶蚀深度加深为主,且表现为地下河河床下切的形式之一;从发育阶段看,阴河洞壶穴的形成演化主要分为3个阶段：“碟型”壶穴形成阶段;倒“Ω”型壶穴发育阶段;“锅”型壶穴发育阶段,其形成主要受水动力条件、构造条件、推移质、基岩性质和溶蚀作用等因素耦合的作用;洞穴壶穴主要是流水的侵—溶蚀作用形成的,并非冰川作用的结果,与“冰臼”的发育存在本质上的区别。

关键词: 绥阳阴河洞, 演化过程, 定量分析, 洞穴壶穴, 贵州

Abstract:

This paper measures and conducts a statistical quantitative analysis of 49 potholes on the subterranean river bedrock of Yinhe Cave, a forming cave in Loushanguan Formation of Middle-Upper Cambrian Series, Guizhou province. After a description on morphological characteristics and spatial distribution, the paper discusses the evolutionary process and influencing factors of the formation. It is concluded that the potholes in the Yinhe River are mostly extremely shallow upside-down omega and wok shaped, and are at a relatively early stage of formation; the major axis and minor axis of the potholes are correlated to some extent, but the average diameter and depth are poorly correlated, indicating that the potholes tend to enlarge the diameter during the floor period and deepen the depth of corrosion during the drought period, as one of the riverbed downcutting forms of subterranean rivers; the potholes of Yinhe Cave develop in three stages: saucer shaped stage, upside-down omega shaped stage, and wok shaped stage, under the influence of such factors as hydrodynamic conditions, tectonic conditions, bed load, bed rock properties and corrosion; cavernous potholes are formed by the erosion and corrosion of running water, instead of glacier, which are essentially different from moulins in formation.

Key words: Yinhe Cave, Suiyang, evolutionary process, quantitative analysis, cavernous potholes, Guizhou

曹明达, 周忠发, 张结, 殷超, 潘艳喜, 闫利会, 陈全. 贵州绥阳阴河洞洞穴壶穴的演化过程[J]. 地理学报, 2016, 71(11): 2010-2019.

Mingda CAO, Zhongfa ZHOU, Jie ZHANG, Chao YIN, Yanxi PAN, Lihui YAN, Quan CHEN. The evolution of the cavernous potholes in Yinhe Cave, Suiyang county, Guizhou province[J]. Acta Geographica Sinica, 2016, 71(11): 2010-2019.

图/表 8

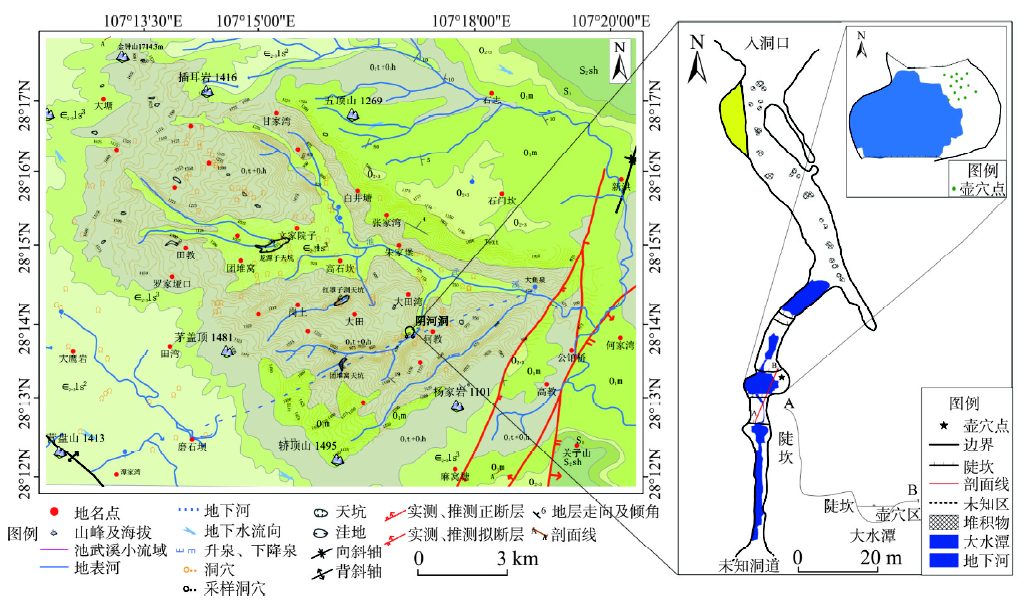

图1

图2

图3

图4

表1

图5

图6

表2

参考文献 20

[1]	Yang Chaoqun.A review of the controversy over the question of moulin and pothole. Tropical Geography, 2001, 21(1): 86-93.
	[杨超群. 冰臼与壶穴之争述评. 热带地理, 2001, 21(1): 86-93.]
[2]	Lü Hongbo, Zhang Yuxu.Discrimination and analysis of terms such as "pothole", "kettle" and "glacial pothole" and suggestions about their usage. Geological Bulletin of China, 2008, 27(6): 917-922. doi: 10.3969/j.issn.1671-2552.2008.06.022
	[吕洪波, 章雨旭.壶穴、锅穴、冰臼、岩臼等术语的辨析与使用建议》地质通报, 2008, 27(6): 917-922.] doi: 10.3969/j.issn.1671-2552.2008.06.022
[3]	Zhu Zhaoyu.A preliminary investigation on landform and weathered horizon in river valley in Jiexi County, Guangdong Province. Tropical Geography, 2000, 20(4): 331-336.
	[朱照宇. 广东揭西河谷地貌与风化层特征初步观察. 热带地理, 2000, 20(4): 331-336.]
[4]	Li Menghua, Xie Xiaokang.Argument between "pots" and "glacial potholes". Tropical Geography, 1999, 19(4): 381-384.
	[李孟华, 谢小康. “冰臼”与“壶穴”之争. 热带地理, 1999, 19(4): 381-384.]
[5]	Liu Shangren, Qin Chaofeng, Peng Hua.The discussion on the condition for glacier whether developed in Guangdong. Scientia Geographica Sinica, 2000, 20(4): 376-380. doi: 10.3969/j.issn.1000-0690.2000.04.014
	[刘尚仁, 覃朝锋, 彭华. 关于广东有无冰川发育条件的讨论. 地理科学, 2000, 20(4): 376-380.] doi: 10.3969/j.issn.1000-0690.2000.04.014
[6]	Lü Hongbo, Ren Xiaohui, Xu Min, et al.An arguement on the genesis of potholes formed by differential weathering or wind deflation. Geological Review, 2008, 54(2): 192-198.
	[吕洪波, 任晓辉, 许民, 等. 壶穴差异风化或风蚀作用成因质疑. 地质论评, 2008, 54(2): 192-198.]
[7]	Cui Zhijiu, Li Hongjiang, Nan Ling, et al.Discovery and environmental significance of huge pots of Hebei Province and Inner Mongolia and Chifeng wind route. Chinese Science Bulletin, 1999, 44(13): 1429-1434.
	[崔之久, 李洪江, 南陵, 等. 内蒙、河北巨型壶穴与赤峰风道的发现. 科学通报, 1999, 44(13): 1429-1434.]
[8]	Grab S, Svensen H.Rock doughnut and pothole structures of the Clarens Fm. Sandstone in the Karoo Basin, South Africa: Possiblelinks to Lower Jurassic fluid seepage. Geomorphology, 2011, 131(1): 14-27. doi: 10.1016/j.geomorph.2011.04.015
[9]	Zen E, Prestegaard K L.Possible hydraulic significance of two kinds of potholes: Examples from the paleo-Potomac River. Geology, 1994, 22(1): 47-50. doi: 10.1130/0091-7613(1994)0222.3.CO;2
[10]	Wang Wei, Xu Liubing Wu Zheng, et al. Shape and spatial distribution features of marine potholes on the coast of Shenzhen, China. Acta Geographica Sinica, 2010, 65(3): 320-330.
	[王为, 许刘兵, 吴正, 等. 深圳海岸壶穴的形态及空间分布特征. 地理学报, 2010, 65(3): 320-330.]
[11]	Wang Wei, Huang Shan, Liang Mingzhu.Formation and development of the potholes formed in a gorge river in Guangdong. Acta Geographica Sinica, 2007, 62(7): 691-697.
	[王为, 黄山, 梁明珠. 广东大峡谷河床壶穴形态的形成与发育. 地理学报, 2007, 62(7): 691-697.]
[12]	Li Hongjiang, Cui Zhijiu, Zhao Liang.Origin of pots in Inner Mongolia and northern Hebei: Also about the classification of pots. Acta Geographica Sinica, 2001, 56(2): 223-231. doi: 10.3321/j.issn:0375-5444.2001.02.011
	[李洪江, 崔之久, 赵亮. 内蒙、河北山区壶穴的成因探讨:兼论壶穴成因分类. 地理学报, 2001, 56(2): 223-231.] doi: 10.3321/j.issn:0375-5444.2001.02.011
[13]	Springer G S, Tooth S, Wohl E E.Dynamics of pothole growth as defined by field data and geometrical description. Journal of Geophysical Research, 2005, 110(F4): 1-10. doi: 10.1029/2005JF000321
[14]	Wu Chen, Xu Quanhong, Zhao Yanxia, et al.A study on multi-original potholes in north China mountain regions: A discussion on "glacial potholes" and other "glacial landforms" in North China mountain regions. Geological Review, 2012, 58(2): 319-328. doi: 10.3969/j.issn.0371-5736.2012.02.014
	[吴忱, 徐全洪, 赵艳霞, 等. 华北山地多成因壶穴初步研究: 对华北山地“冰臼”等“冰川地貌”的讨论. 地质论评, 2012, 58(2): 319-328.] doi: 10.3969/j.issn.0371-5736.2012.02.014
[15]	Li Po, He Wei, Qian Zhi, et al.Shuanghe Cave Geopark Research. Guiyang: Guizhou People's Publishing House, 2008:58-101.
	[李坡, 贺卫, 钱治, 等. 双河洞地质公园研究. 贵阳: 贵州人民出版社, 2008: 58-101.]
[16]	Cheng Guiming, Qi Hongyu, Pan Wei.Matlab (6.X) for Mathematical Statistics. Beijing: Science Press, 2002: 424.
	[陈桂明, 戚红雨, 潘伟. MATLAB 数理统计(6.X). 北京: 科学出版社, 2002: 242.]
[17]	Alexander H S.Pothole erosion. Journal of Geology, 1932, 40(4): 305-337. doi: 10.1086/623954
[18]	Whipple K X, Hancock G S, Anderson R S.River incision into bedrock: Mechanics and relative efficacy of plucking,abrasion,and cavitation. Geological Society of America Bulletin, 2000, 112(3): 490-503. doi: 10.1080/23267224.1911.10651282
[19]	He Jingyu, Meng Xianghua.Sedimentary Rock and Sedimentary Facies Model and Its Construction. Beijing: Geological Publishing House, 1987: 41.
	[何镜宇, 孟祥化. 沉积岩和沉积相模式及建造. 北京: 地质出版社, 1987: 41.]
[20]	Liu Xiaojiao, Xu Juan, Zhang Bin, et al.Morphological comparision and cause of river potholes in Sichuan hilly area. Journal of Mountain Science, 2013, 31(6): 723-730. doi: 10.3969/j.issn.1008-2786.2013.06.011
	[刘晓娇, 徐娟, 张斌, 等. 川中丘陵区河成壶穴的形态对比及成因. 山地学报, 2013, 31(6): 723-730.] doi: 10.3969/j.issn.1008-2786.2013.06.011

	均值	标准差	中值	极小值	极大值	离散系数
长轴长	13.84	3.86	13.00	6.00	24.00	0.28
短轴长	9.66	2.66	9.50	4.50	15.00	0.28
深	3.16	1.68	3.00	0.50	10.00	0.53

时间	采样点	pH	K⁺	Na⁺	Ca²⁺	Mg²⁺	Sr²⁺	CL^-	SO₄^2-	HCO₃^-	SI_c	SI_d
5月	上游河水	7.80	1.33	3.28	42.00	15.76	0.98	1.41	17.63	140.30	-0.11	-0.55
5月	壶穴内积水	8.00	2.36	2.05	65.00	14.15	1.32	2.62	24.89	225.70	0.58	0.72
10月	上游河水	8.64	1.38	1.57	45.00	16.85	0.30	1.46	16.14	201.30	-0.06	-0.98
10月	壶穴内积水	8.45	1.05	1.19	62.00	14.77	1.03	1.35	28.45	195.20	0.90	1.39
