1990-2010年中国耕地变化对粮食生产潜力的影响

doi:10.11821/dlxb201412003

地理学报 ›› 2014, Vol. 69 ›› Issue (12): 1767-1778.doi: 10.11821/dlxb201412003

1990-2010年中国耕地变化对粮食生产潜力的影响

刘洛^1,^2,³(), 徐新良²(), 刘纪远², 陈曦¹, 宁佳^2,³

1. 中国科学院新疆生态与地理研究所, 荒漠与绿洲生态国家重点实验室, 乌鲁木齐 830011
2. 中国科学院地理科学与资源研究所, 资源与环境信息系统国家重点实验室, 北京 100101
3. 中国科学院大学, 北京 100049

收稿日期:2013-10-15 修回日期:2014-06-04 出版日期:2014-12-25 发布日期:2014-12-25
作者简介:
作者简介：刘洛 (1987-), 男, 汉族, 湖南益阳人, 博士研究生, 主要从事土地利用土地覆被变化研究。E-mail: liuluo87930@qq.com
基金资助:
国家科技支撑计划 (2013BAC03B01);中国科学院西部行动计划项目 (KZCX2-XB3-08-01);高分辨率对地观测系统重大专项 (05-Y30B02-9001-13/15-10)

Impact of farmland changes on production potential in China during recent two decades

Luo LIU^1,^2,³(), Xinliang XU²(), Jiyuan LIU², Xi CHEN¹, Jia NING^2,³

1. State Key Laboratory of Desert and Oasis Ecology, Xinjiang Institute of Ecology and Geography, CAS, Urumqi 830011, China
2. State Key Laboratory of Resources and Environmental Information System, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
3. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2013-10-15 Revised:2014-06-04 Published:2014-12-25 Online:2014-12-25
Supported by:
National Key Project of Scientific and Technical Supporting Programs, No.2013BAC03B01; No.STSN-14-00;Project of CAS Action-plan for West Development, No. KZCX2-XB3-08-01;Important National Project of High-resolution Earth Observation System, No.05-Y30B02-9001-13/15-10

摘要/Abstract

摘要：

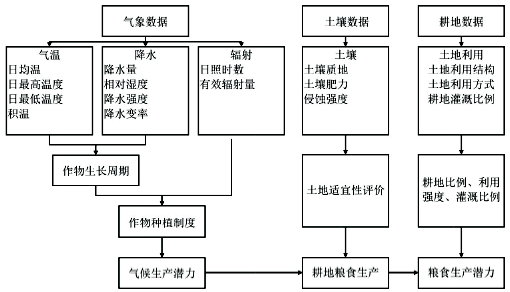

1990年以来,在国家生态环境保护工程实施、经济快速增长等因素的影响下,中国耕地数量与空间格局发生了巨大变化,对粮食生产潜力造成了巨大影响。本文采用GAEZ模型,结合中国气象、地形、土壤等因素,定量分析了中国耕地粮食生产潜力空间特征以及1990-2010年中国耕地变化对粮食生产潜力的影响。主要结论如下：① 2010年全国耕地粮食生产潜力总量为10.55亿t,全国耕地平均粮食生产潜力为7614 kg/hm²。中国耕地粮食生产潜力存在显著的空间差异,总体表现为东部高而西北部较低的趋势,并且高值区主要分布在长江中下游地区和华南区。② 1990-2010年的20年间,中国耕地粮食生产潜力变化表现出明显的时空差异,总体呈现南减北增、总量减少的基本特征。新增耕地粮食生产潜力的重心逐步由东北向西北转移。耕地粮食生产潜力总量净减少297万t,占2010年全国实际粮食总产量的0.29%。③ 在1990-2000年与2000-2010年两个时期,耕地变化对耕地粮食生产潜力影响差异明显。前10年,耕地粮食生产潜力总量净增加1011万t,主要集中在东北平原区和北方干旱半干旱区;后10年,耕地粮食生产潜力总量净减少1308万t,主要集中在长江中下游地区和黄淮海平原区。从总体看,近20年来耕地粮食生产潜力总量增加主要是由林、草地和未利用土地开垦所导致,而耕地粮食生产潜力总量减少主要是由城市扩展和退耕还林还草所导致。

关键词: 耕地, 粮食生产潜力, GAEZ模型, 中国

Abstract:

Quantity and spatial pattern of farmland has changed, which leads to significant change of farmland potential productivity under the influence of national ecological environmental protection project and the rapidly increased economic growth during the last two decades. In this study, farmland potential productivity in China was calculated based on meteorological data, terrain elevation data, soil data and land use data in 1990, 2000 and 2010 by using the Globe Agricultural Ecology Zone model (GAEZ). Then, the changes in farmland potential productivity in response to farmland change from 1990 to 2000 were subsequently analyzed. (1) In 2010, total farmland potential productivity is 1.055 billion tons in China, and the average farmland potential productivity is 7614 kg/hm², which shows tremendous heterogeneity in spatial pattern. The productivity in eastern China is high, while that of northwestern China is low. High value region of farmland potential productivity is mainly distributed in South China and the middle and lower reaches of the Yangtze River. (2) The obvious tempo-spatial heterogeneity of farmland change from 1990 to 2010 has a significant influence on the farmland potential productivity in China. The trend shows the farmland potential productivity decreased in southern China and increased in northern China. Furthermore, the gravity of the growth of farmland potential productivity moves gradually from northeastern to northwestern China. The net decrease of farmland potential productivity is 2.97 billion tons, which occupies 0.29% of the national total productivity. (3) There is a huge difference of the farmland potential productivity in response to farmland change between two periods from 1990 to 2000 and from 2000 to 2010. During the first decade, net increase in the cultivated land areas is 10.11 billion tons, which primarily spread across Northeast China Plain and arid and semiarid regions of North China. During the next decade, net decrease in the cultivated land areas is 13.08 billion tons, primarily distributed in the middle and lower Yangtze River region and the Huang-Huai-Hai Plain. In general, during the last two decades, the reason for the increase of the farmland potential productivity may contribute to the reclamation of grassland, woodland and unused land, and the reason for the decrease of the farmland potential productivity may result from the urbanization that occupies the cultivated land and Green for Grain Project that returns farmland to forests and grasslands.

Key words: farmland, production potential, GAEZ model, China

刘洛, 徐新良, 刘纪远, 陈曦, 宁佳. 1990-2010年中国耕地变化对粮食生产潜力的影响[J]. 地理学报, 2014, 69(12): 1767-1778.

Luo LIU, Xinliang XU, Jiyuan LIU, Xi CHEN, Jia NING. Impact of farmland changes on production potential in China during recent two decades[J]. Acta Geographica Sinica, 2014, 69(12): 1767-1778.

图/表 11

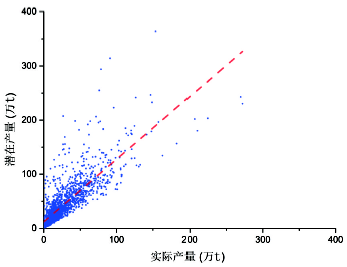

图1

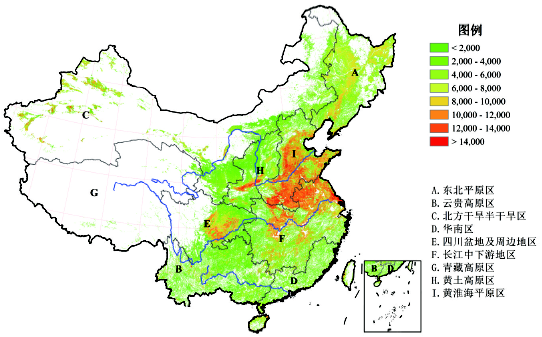

图2

图3

图4

图5

图6

表1

图7

图8

表2

表3

参考文献 28

[1]	Song W, Chen B M, Chen X W.Evaluation for use efficiency of agricultural resources in grain production: A case study of Changshu, Taihe and Ansai in China. Chinese Geographical Science, 2009, 19(1): 46-54.
[2]	Zeng Kejun, Chen Yi, Gao Zhonggui et al. Study on the relationship of cultivated land change and food security in Yangtze River Delta. Geography and Geo-Information Science, 2006, 22(6): 58-61.
	[曾科军, 陈逸, 高中贵等. 长江三角洲土地利用变化与粮食安全分析. 地理与地理信息科学, 2006, 22(6): 58-61.]
[3]	Liu Yansui, Wu Chuanjun.Situation of land-water resources and analysis of sustainable food security in China. Journal of Natural Resources, 2002, 17(3):270-275.
	[刘彦随, 吴传钩. 中国水土资源态势与可持续食物安全. 自然资源学报, 2002, 17(3): 270-275.]
[4]	Fu Zeqiang, Cai Yunlong, Yang Youxiao et al. Research on the relationship of cultivated land change and food security in China. Journal of Natural Resources, 2001, 16(4): 313-319.
	[傅绎强, 蔡运龙, 杨友孝等. 中国粮食安全与耕地资源变化的相关分析. 自然资源学报, 2001, 16(4): 313-319.]
[5]	Liu Jiyuan, Xu Xinliang, Zhuang Dafang et al. Impact of LUCC on light-temperature potential production in 1990s.Science in China Series D: Earth Sciences, 2005, 35(6): 483-492.
	[刘纪远, 徐新良, 庄大方等. 20 世纪90年代LUCC 过程对我国农田光温生产潜力的影响. 中国科学D辑, 2005, 35( 6): 483-492.]
[6]	Qin Yuanwei, Yan Huiming, Liu Jiyuan et al. Impacts of ecological restoration projects on agricultural productivity in China. Journal of Geographical Sciences, 2013, 23(3): 404-416.
[7]	Shi Shuqin, Chen Youqi, Yao Yanmin et al. Impact assessment of cultivated land change upon grain productive capacity in Northeast China. Acta Geographica Sinica, 2008, 63(6): 574-586.
	[石淑芹, 陈佑启, 姚艳敏等. 东北地区耕地变化对粮食生产能力的影响评价. 地理学报, 2008, 63(6): 574-586.]
[8]	Xu Xinliang, Liu Jiyuan, Cao Mingkui et al. Impact of recent climate fluctuation and LUCC process on potential productivity for crops in Northeast China. Scientia Geographica Sinica, 2007, 27(3): 318-324.
	[徐新良, 刘纪远, 曹明奎等. 近期气候波动与LUCC过对东北农田生产潜力的影响. 地理科学, 2007, 27(3): 318-324.]
[9]	Xu Xiaoli, Shi Peijun, Yang Mingchuan et al. The impact of the national land policy on the sustainable arable land use in China since1949. Journal of Beijing Normal University: Social Science Edition, 2003, (2): 115-123.
	[徐小黎, 史培军, 杨明川等. 我国土地政策对耕地可持续利用的影响. 北京师范大学学报: 社会科学版, 2003, (2): 115-123.]
[10]	Liu Jiyuan, Liu Mingliang, Tian Hanqin et al. Spatial and temporal patterns of China's cropland during 1990-2000: An analysis based on Landsat TM data. Remote Sensing of Environment, 2005, 98(4): 442-456.
[11]	Liu Jiyuan, Zhang Zengxiang, Zhuang Dafang et al. A study on the spatial-temporal dynamic changes of land-use and driving forces analyses of China in the 1990s. Geographical Research, 2003, 22(1): 1-12.
	[刘纪远, 张增祥, 庄大方等. 20世纪90年代中国土地利用变化时空特征及其成因分析. 地理研究, 2003, 22(1): 1-12.]
[12]	Liu Jiyuan, Buheaosier. Study on spatial-temporal feature or modern land-use change in China: Using remote sensing techniques. Quaternary Sciences, 2000, 20(3): 229-239.
	[刘纪远, 布和敖斯尔. 中国土地利用变化现代过程时空特征的研究: 基于卫星遥感数据. 第四纪研究, 2000, 20(3): 229-239.]
[13]	Liu Jiyuan, Zhang Zengxiang, Xu Xinliang et al. Spatial patterns and driving forces of land use change in China during the early 21st century. Journal of Geographical Sciences, 2010, 20(4): 483-494.
[14]	Liu Jiyuan, Liu Mingliang, Zhuang Dafang et al. Study on spatial pattern of land-use change in China during 1995-2000. Science in China Series D: Earth Sciences, 2003, 46(4): 373-384.
[15]	Liu Jiyuan, Kuang Wenhui, Zhang Zengxiang et al. Spatiaotemporal characteristics, patterns and causes of land-use changes in China since the late 1980s. Journal of Geographical Sciences, 2014, 24(2):195-210.
[16]	Shortridge Ashton, Messina Joseph.Spatial structure and landscape associations of SRTM error. Remote Sensing of Environment, 2011. 115(6): 1576-1587.
[17]	Hutchinson M F.Interpolation of rainfall data with thin plate smoothing splines. Part I: Two dimensional smoothing of data with short range correlation. Journal of Geographic Information and Decision Analysis, 1998, 2(2): 139-151.
[18]	Hutchinson M F.Interpolation of rainfall data with thin plate smoothing splines. Part II: Analysis of topographic dependence. Journal of Geographic Information and Decision Analysis, 1998, 2(2): 152-167.
[19]	Hutchinson M F.Hutchinson. Interpolating mean rainfall using thin plate smoothing splines. International Journal of Geographical Information Systems, 1995. 9(4): 385-403.
[20]	Fischer Gunther, Sun Laixiang.Model based analysis of future land-use development in China. Agriculture Ecosystems & Environment, 2001, 85(1-3): 163-176.
[21]	Fischer Gunther, Mahendra Shah, Harrij van Velthuizenet al. Global agro-ecological assessment for agriculture in the 21st century: Methodology and results.2002: International Institute for Applied Systems Analysis.
[22]	Fischer Gunther, Mahendra Shah, Harrij van Velthuizen et al. Agro-ecological Zones Assessments: Land Use and Land Cover. Encyclopedia of Life Support Systems (EOLSS), Developed under the Auspices of the UNESCO. Oxford, UK: Eolss Publishers, 2006.
[23]	Fischer Gunther, Mahendra Shah, Francesco N.Tubiello et al. Socio-economic and climate change impacts on agriculture: An integrated assessment, 1990-2080. Philosophical Transactions of the Royal Society B: Biological Sciences, 2005, 360(1463): 2067-2083.
[24]	Chen Yinjun, Yi Xiaoyan, Fang Linna et al. Analysis for arable land resource and its grain production capacity in China. Chinese Journal of Agricultural Resources and Regional Planning, 2012, 33(6): 4-10.
	[陈印军, 易小燕, 方琳娜等. 中国耕地资源及其粮食生产能力分析. 中国农业资源与区划, 2012, 33(6): 4-10.]
[25]	Yan Huimin, Liu Jiyuan, Cao Mingkui.Remotely sensed multiple cropping index variations in China during 1981-2000. Acta Geographica Sinica, 2005, 60(4): 559-566.
	[闫慧敏, 刘纪远, 曹明奎. 近20年中国耕地复种指数的时空变化. 地理学报, 2005, 60(4): 559-566.]
[26]	Tatsumi Kenichi, Yosuke Yamashiki, Roberto Valmir da Silva et al. Estimation of potential changes in cereals production under climate change scenarios. Hydrological Processes, 2011, 25(17): 2715-2725.
[27]	Jiang Qunou, Deng Xiangzheng, Lin Zhiying et al. Impacts of cultivated land conversion on cultivated land productivity in China: Prediction and analysis. Chinese Journal of Applied Ecology, 2010, 21(12): 3113-3119.
	[姜群鸥, 邓祥征, 林英志等. 中国耕地用途转移对耕地生产力影响的预测与分析. 应用生态学报, 2010, 21(12): 3113-3119.]
[28]	Gao Zhiqiang, Liu Jiyuan, Cao Mingkui et al. Impacts of land use and climate changes on ecosystem productivity and carbon cycle in the cropping grazing transitional zone in China. Science in China Series D, 2005, 48: 1479-1491.

时段	变化类型	主要原因	变化总量 (万t)	变化比例 (%)	空间分布

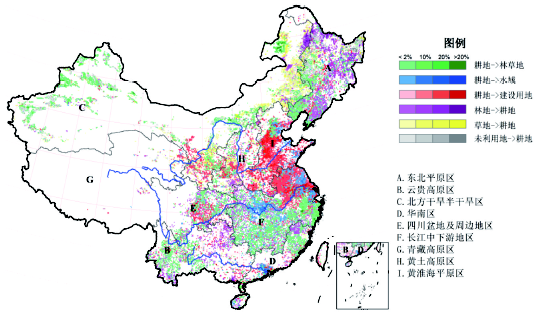

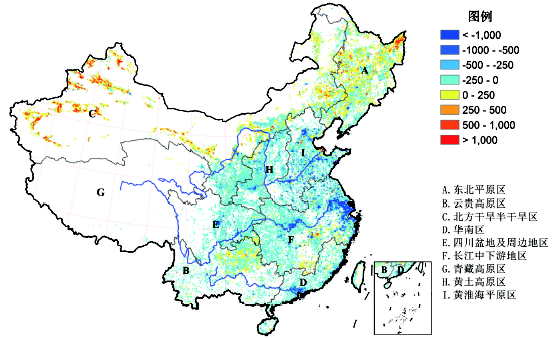

1990-2000	增加	耕地扩张 (毁林、毁草开垦),占增长总量的81.5%。	3486.89	3.30	主要分布于东北平原区和北方干旱半干旱区 (图5),分别占增加总量的47.8%和40.0%。
1990-2000	减少	城镇扩展侵占耕地和退耕还林还草,分别占减少总量的52.8%和32.3%。	-2475.89	-2.34	主要集中在长江中下游地区、北方干旱半干旱地区和黄淮海平原区 (图5),分别占减少总量的27.8%、25.8%和23.5%。

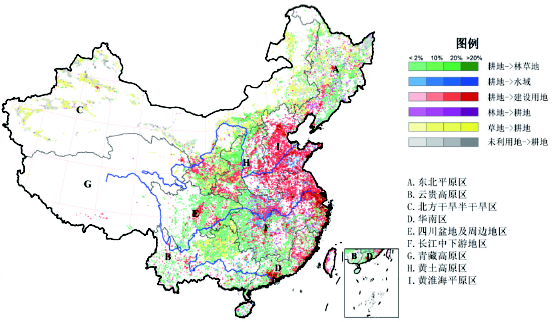

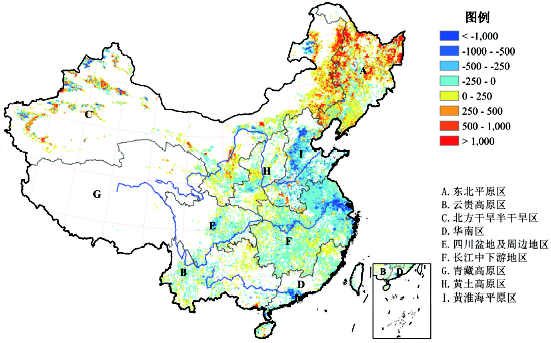

2000-2010	增加	未利用地和草地开垦,分别占增加总量的48.7%和27.3%。	1101.83	1.03	主要集中在北方干旱半干旱区 (图6),占增加总量的64.1%。
2000-2010	减少	城市扩展侵占耕地资源,占减少总量的66.0%。	-2410.28	-2.26	主要集中在长江中下游地区和黄淮海平原区 (图6),分别占耕地粮食生产潜力减少总量的38.0%和22.6%。

地区	减少						增加						净变化
地区	退耕还林	退耕还草		耕地转水域	城镇扩张侵占	耕地转未利用地	减少总量	林地开垦	草地开垦	水域转耕地	工矿建设用地转耕地	未利用地开垦	增加总量
东北平原区	-96.83	-39.19	-17.43	-37.38	-31.21	-222.03	697.62	634.96	46.16	1.94	291.21	1671.88	1449.85
云贵高原区	-20.38	-18.05	-3.05	-35.34	-0.00	-76.82	56.91	14.54	0.71	0.04	0.00	72.20	-4.62
北方干旱半干旱区	-57.12	-403.58	-19.46	-69.78	-87.23	-637.16	171.68	1033.53	18.79	42.96	113.16	1380.13	742.97
华南区	-29.72	-1.15	-35.45	-67.58	-0.00	-133.89	17.08	2.29	3.69	0.95	0.43	24.44	-109.45
四川盆地及周边地区	-5.59	-1.61	-4.37	-55.34	-0.00	-66.90	7.65	1.03	0.67	0.40	0.00	9.76	-57.14
长江中下游地区	-85.03	-3.52	-116.32	-481.06	-0.32	-686.26	44.28	11.73	32.43	0.71	0.39	89.54	-596.71
青藏高原区	-0.00	-0.30	-1.03	-1.15	-0.44	-2.91	0.62	8.37	0.42	0.00	0.65	10.05	7.14
黄土高原区	-9.92	-3.05	-5.85	-49.45	-0.52	-68.79	5.64	37.02	10.86	0.00	1.07	54.60	-14.19
黄淮海平原区	-20.69	-3.26	-43.87	-509.86	-3.45	-581.14	35.60	62.99	59.76	0.20	15.74	174.28	-406.85
全国	-325.27	-473.70	-246.82	-1306.93	-123.17	-2475.89	1026.08	1806.46	173.50	47.20	422.66	3486.89	1011.00

地区	减少						增加						净变化
地区	退耕还林	退耕还草		耕地转水域	城镇扩张侵占	耕地转未利用地	减少总量	林地开垦	草地开垦	水域转耕地	工矿建设用地转耕地	未利用地开垦	增加总量
东北平原区	-52.38	-39.17	-10.01	-46.75	-7.70	-156.02	84.86	52.68	13.71	10.63	83.13	245.02	89.00
云贵高原区	-32.34	-9.61	-4.02	-25.77	-0.00	-71.75	5.99	17.11	0.45	0.03	0.06	23.63	-48.12
北方干旱半干旱区	-33.39	-128.40	-9.41	-36.63	-19.38	-227.21	47.17	442.35	11.68	1.38	203.62	706.20	478.99
华南区	-22.09	-0.24	-13.85	-153.11	-0.53	-189.81	5.62	0.53	1.06	0.12	1.11	8.45	-181.36
四川盆地及周边地区	-25.38	-9.98	-4.10	-85.34	-0.07	-124.86	0.43	1.20	0.06	0.00	0.01	1.69	-123.17
长江中下游地区	-27.24	-1.80	-160.49	-724.44	-2.15	-916.13	20.50	3.86	30.86	1.10	0.92	57.24	-858.89
青藏高原区	-0.14	-3.30	-0.44	-2.56	-0.00	-6.44	0.25	1.45	0.00	0.00	0.11	1.80	-4.63
黄土高原区	-46.17	-48.20	-16.82	-62.47	-0.28	-173.94	0.55	4.19	6.71	0.00	1.18	12.62	-161.32
黄淮海平原区	-15.03	-0.78	-74.47	-452.66	-1.18	-544.12	1.81	13.06	18.09	1.58	10.62	45.17	-498.95
全国	-254.17	-241.49	-293.60	-1589.74	-31.29	-2410.28	167.18	536.42	82.62	14.85	300.76	1101.83	-1308.45
