黄河下游水沙关系模型参数随河段距离变化规律

doi:10.11821/dlxb202203010

摘要/Abstract

摘要：

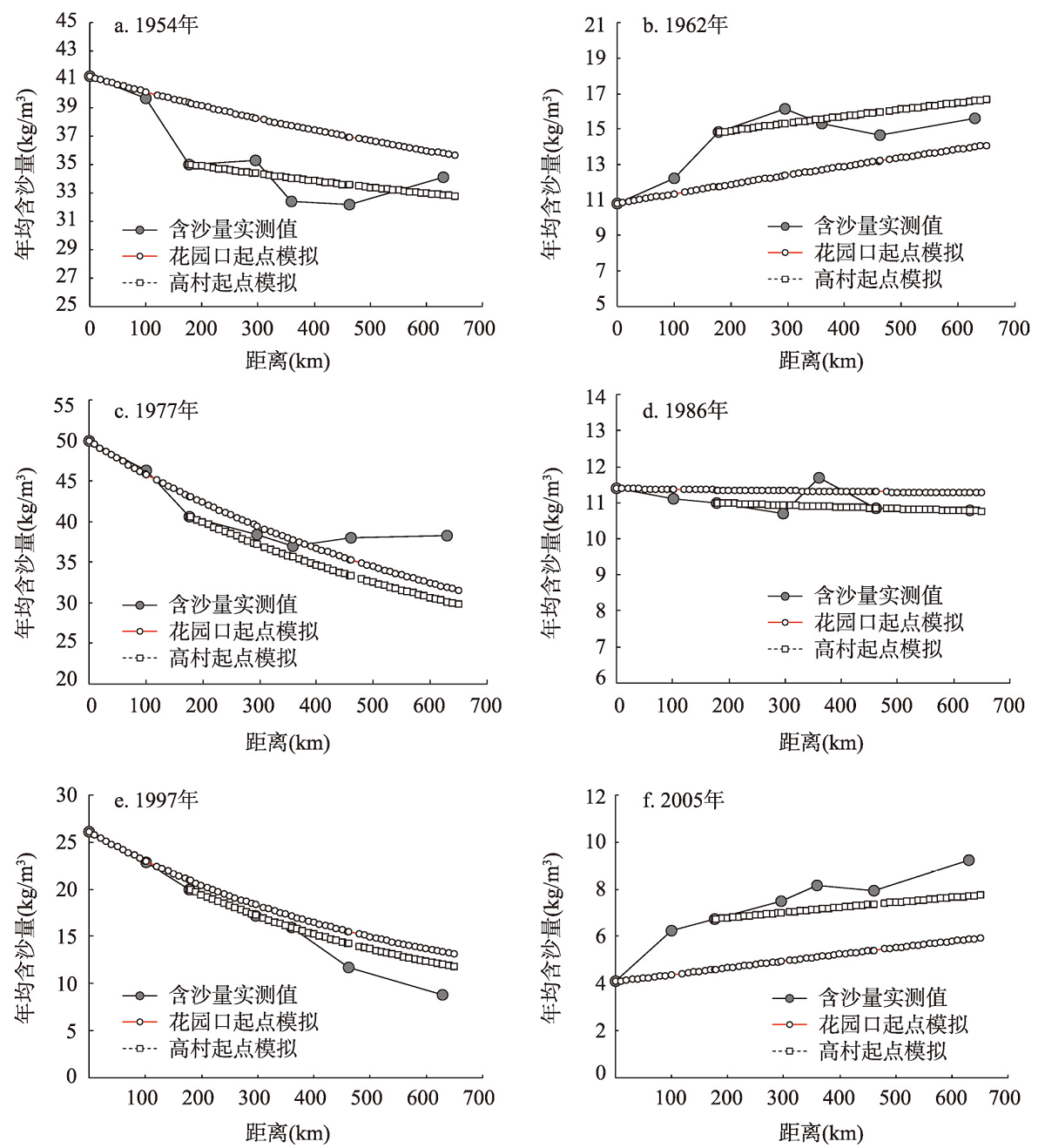

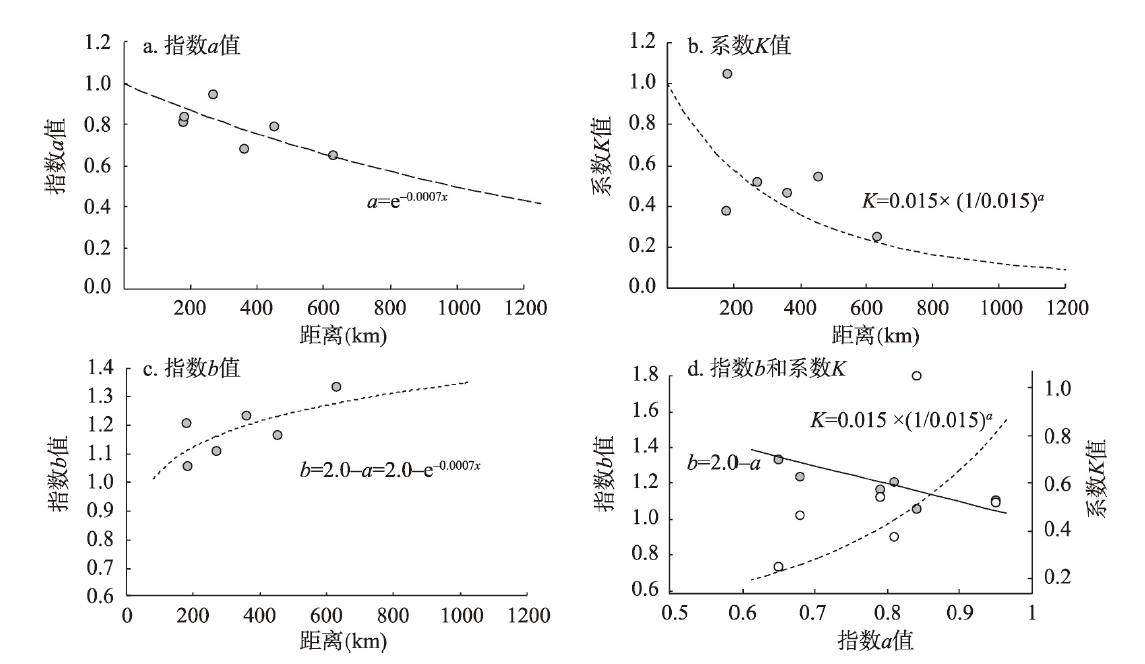

对于多沙河流或河段,水沙关系模型多表示为考虑来水含沙量的幂律函数形式：Q_s=KS_u^aQ^b,本质反映了河道的不平衡输沙规律,模型参数变化主要受到河道边界条件的影响。河段距离作为反映沿程空间尺度的一个重要指标,对模型系数K与指数a、b具有重要的影响。以黄河下游河道为研究对象,分析研究了模型系数K与指数a、b随河段距离的变化规律与计算方法,并用于黄河下游河道输沙沿程变化模拟。模型参数变化规律分析表明：指数a随河段距离的增大而减小,两者呈指数负相关关系;系数K随河段距离的增大而减小,且与指数a呈指数正相关关系;指数b随河段距离的增大而增大,且与指数a呈线性负相关关系,两者之和约为2.0。通过建立模型系数K与指数a、b随河段距离变化的计算表达式,构成了考虑来水含沙量的水沙关系模型的参数条件补充方程。对黄河下游河道输沙沿程变化模拟结果表明,黄河下游河道沿程含沙量的计算值与实测值变化趋势基本符合,确定性系数R²值可以达到0.96,Nash-Sutcliffe效率系数NSE值在0.93以上,模拟效果良好。研究结果有助于深入认识考虑来水含沙量的水沙关系模型参数的物理意义与探索模型参数的确定方法。

关键词: 黄河下游, 多沙, 水沙关系模型, 模型参数, 距离影响

Abstract:

The discharge-sediment relation model is an important research technique in river dynamics. Previous studies established a statistical relationship between the sediment transport rate and the flow discharge that follows a power-law form, shown as Q_s=AQ ^b. Studies have also shown that how to determine the model parameters is an important question. However, for heavy sediment-laden rivers, the discharge-sediment relation model is often expressed by a modified power-law relationship between the sediment transport rate and flow discharge, as well as an upstream sediment supply function: Q_s=KS_u^aQ^b, where the model parameters become more complex. Essentially, the modified model reflects a non-equilibrium sediment transport law, and model parameters including coefficient K and exponents a and b are mainly influenced by river boundary geomorphologic conditions. As an important index reflecting the spatial scale along the river, distance has an important impact on the modified model parameters, namely, coefficient K and exponents a and b. Taking the Lower Yellow River as the research object, we studied the variation laws of the model coefficient K and indexes a and b with distance. The results showed that the exponent a decreases exponentially with the increase of downstream distance; the coefficient K decreases with the increase of downstream distance and has a positive exponential correlation with the exponent a; the exponent b increases with the increase of downstream distance and has a negative linear correlation with the exponent a; and the sum of exponents a and b is about 2.0. From that, the calculation expressions of model coefficient K and exponents a and b varying with the distance were established. As such, it can be regarded as the parameter supplementary equations for the discharge-sediment relation model. Simulation results of sediment transport along the Lower Yellow River showed that the trend of calculated sediment concentrations are consistent with that of measured sediment concentrations. The values of the determination coefficient and Nash-Sutcliffe efficiency are 0.96 and 0.93, respectively. This study helps us to have a better understanding of the physical meaning and exploration of calculation methods for the discharge-sediment relation model parameters in heavy sediment-laden rivers.

Key words: Lower Yellow River, heavy sediment-laden flow, discharge-sediment relation model, model parameters, distance effect

申红彬, 曹兵, 吴华莉, 乔伟. 黄河下游水沙关系模型参数随河段距离变化规律[J]. 地理学报, 2022, 77(3): 635-649.

SHEN Hongbin, CAO Bing, WU Huali, QIAO Wei. Parameters variation law with distance in the discharge-sediment relation model of the Lower Yellow River[J]. Acta Geographica Sinica, 2022, 77(3): 635-649.

图/表 13

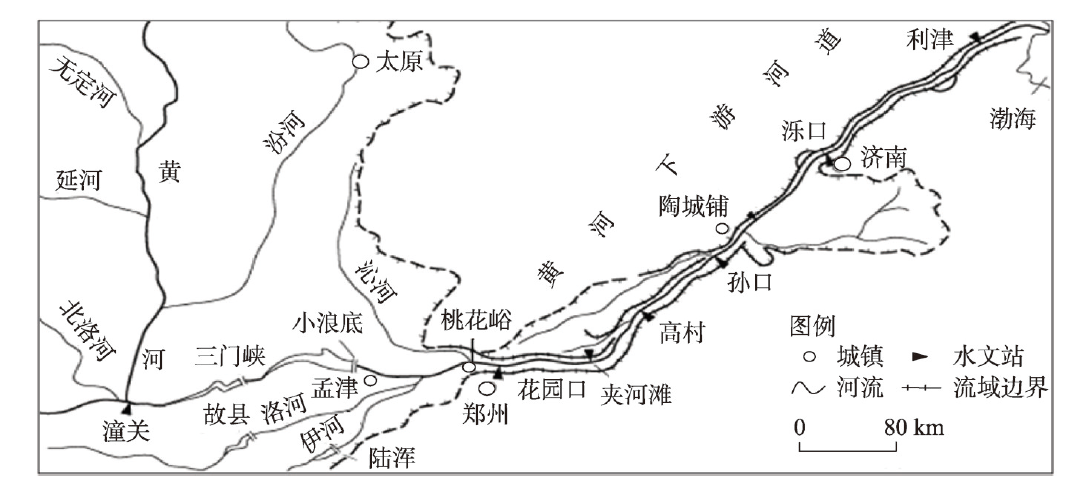

图1

表1

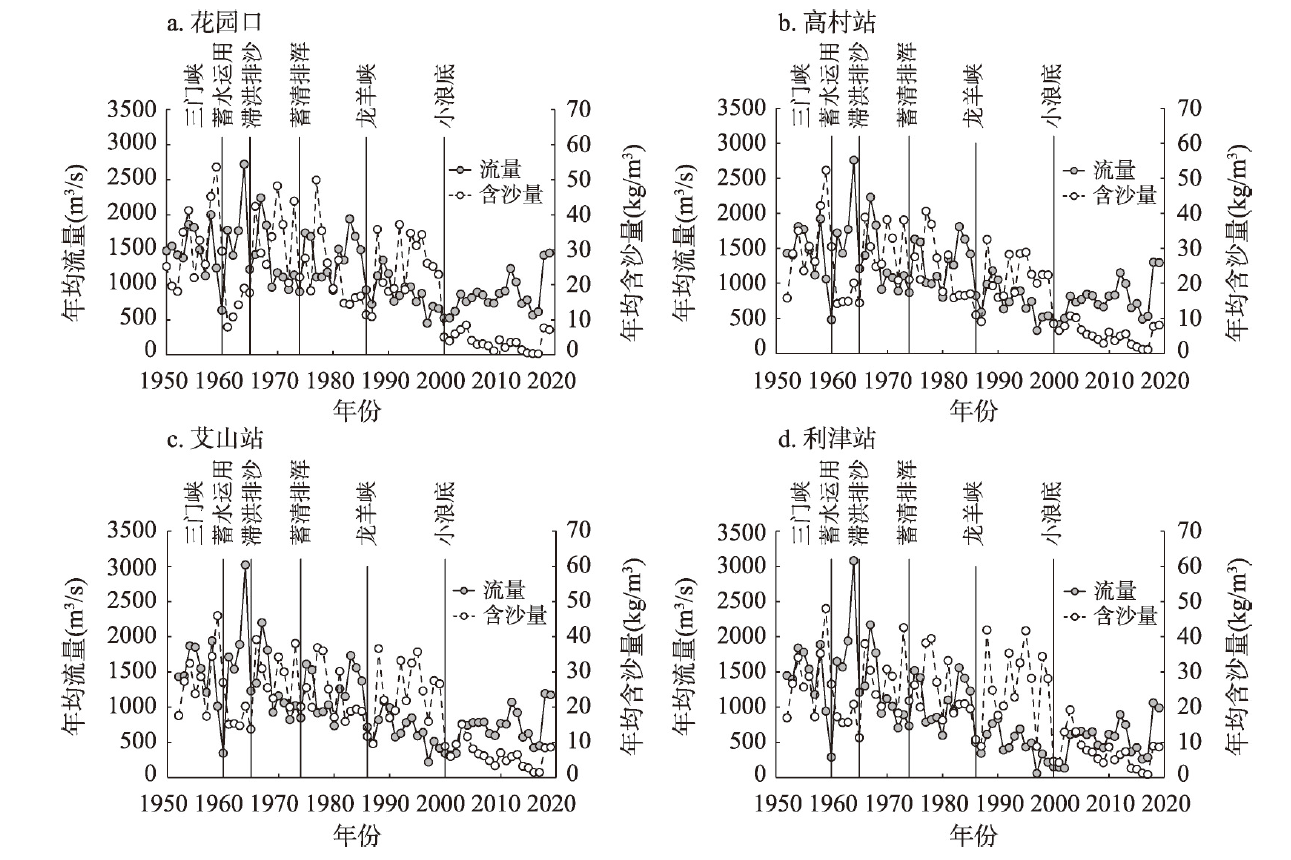

图2

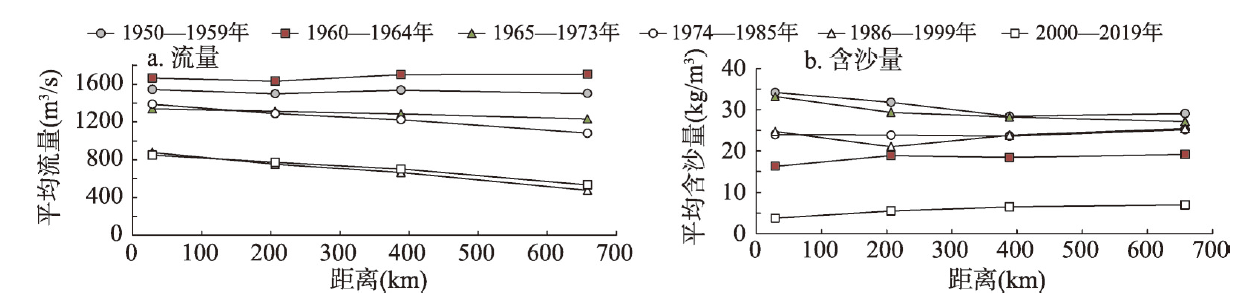

图3

表2

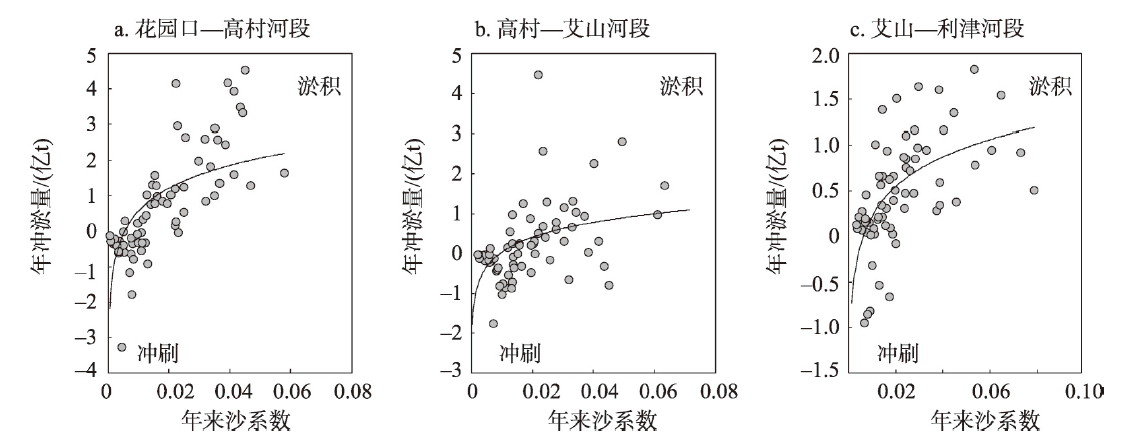

图4

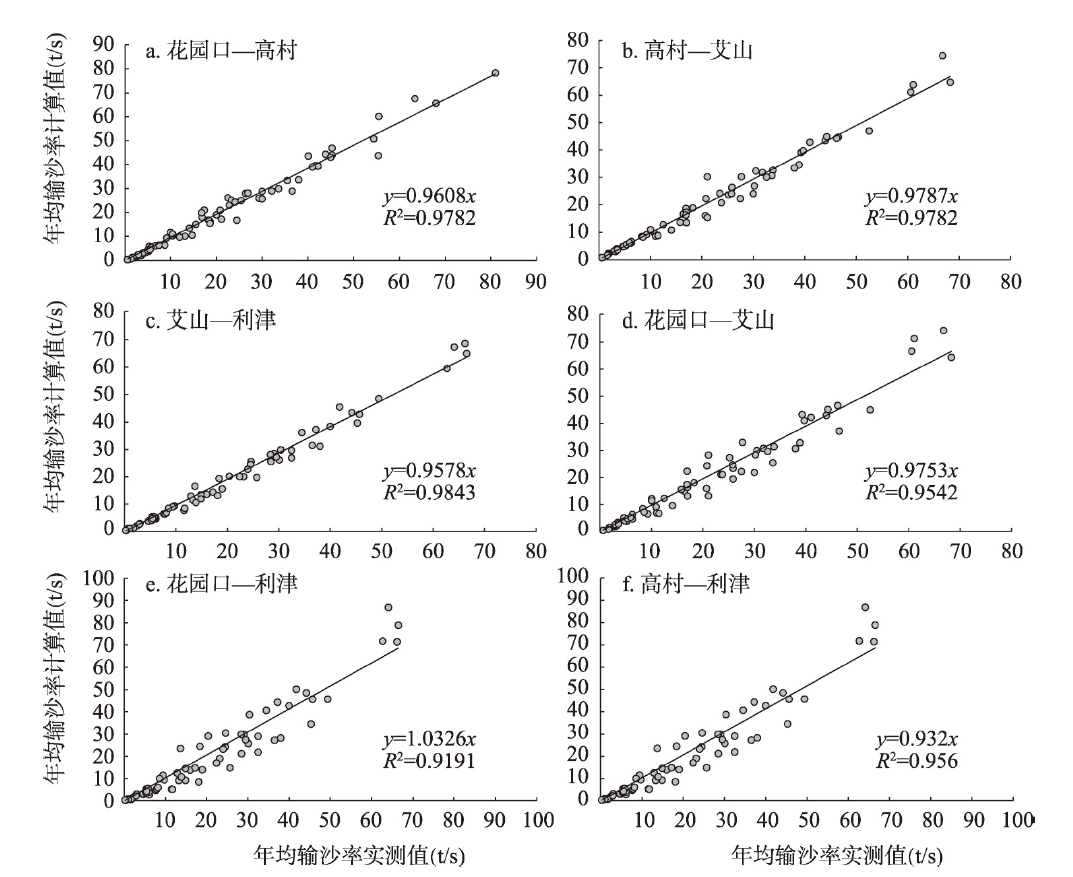

图5

表3

表4

图6

图7

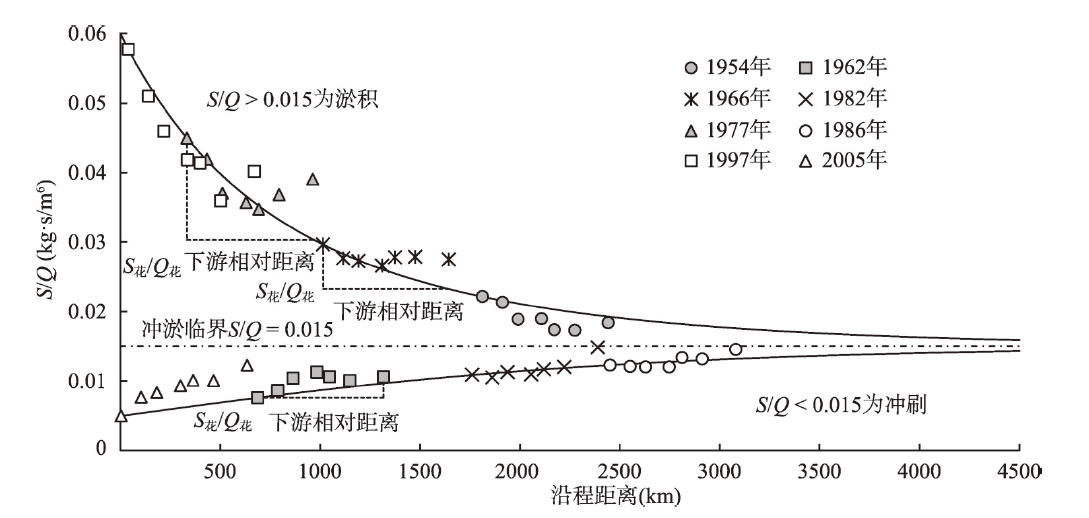

图8

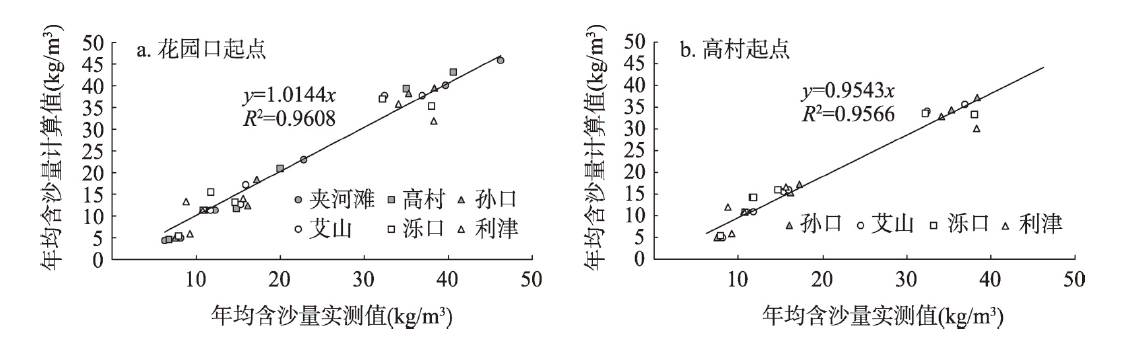

图9

参考文献 29

[1]	Yu Fengling. Suspended sediment rating curve of the Yangtze (Changjiang) River: Characteristics interpretations and practices[D]. Shanghai: East China Normal University, 2006.
	[余凤玲. 长江干流水沙关系模型特征、河流地貌学意义及其应用浅析[D]. 上海: 华东师范大学, 2006.]
[2]	Zhou Wenhao, Zeng Qinghua, Zhao Huaxia, et al. Analysis on sediment carrying capacity of the lower Yellow River. Journal of Sediment Research, 1994(3): 1-11.
	[周文浩, 曾庆华, 赵华侠, 等. 黄河下游河道输沙能力的分析. 泥沙研究, 1994(3): 1-11.]
[3]	Shen Guanqing, Zhang Yuanfeng, Hou Suzhen, et al. Impact of water and sediment regulation by reservoirs in the upper Yellow River on Inner-Mongolia reaches. Journal of Sediment Research, 2007(1): 67-75.
	[申冠卿, 张原锋, 侯素珍, 等. 黄河上游干流水库调节水沙对宁蒙河道的影响. 泥沙研究, 2007(1): 67-75.]
[4]	Yang G F, Chen Z Y, Yu F L, et al. Sediment rating parameters and their implications: Yangtze River, China. Geomorphology, 2007, 85: 166-175. doi: 10.1016/j.geomorph.2006.03.016
[5]	Morgan R P C. Soil Erosion and Conservation. 3rd ed. Malden: Blackwell Publishing Ltd, 2005.
[6]	Asselman N E M. Fitting and interpretation of sediment rating curves. Journal of Hydrology, 2000, 234: 228-248. doi: 10.1016/S0022-1694(00)00253-5
[7]	Syvitski J P, Morehead M D, Bahr D B, et al. Estimating fluvial sediment transport: The rating parameters. Water Resources Research, 2000, 36: 2747-2760. doi: 10.1029/2000WR900133
[8]	Liden R, Harlin J, Karlsson M, et al. Hydrological modeling of fine sediments in the Odzi River, Zimbabwe. Water SA, 2001, 27(3): 303-314.
[9]	Petersen-Øverleir A. Accounting for heteroscedasticity in rating curve estimates. Journal of Hydrology, 2004, 292: 173-181. doi: 10.1016/j.jhydrol.2003.12.024
[10]	Xu K Q, Chen Z Y, Zhao Y W, et al. Simulated sediment flux during 1998 big-flood of the Yangtze (Changjiang) River, China. Journal of Hydrology, 2005, 313: 221-233. doi: 10.1016/j.jhydrol.2005.03.006
[11]	Peng Wenchang, Li Yongshan. Transport characteristics of water and sediment from different sources in Inner Mongolian reach of the Yellow River. Journal of Desert Research, 2016, 36(3): 805-813.
	[彭文昌, 李永山. 黄河内蒙古段异源水沙输移特性. 中国沙漠, 2016, 36(3): 805-813.]
[12]	Ta W Q, Wang H B, Jia X P. Suspended sediment transport response to upstream wash-load supply in the sand-bed reach of the Upper Yellow River, China. Journal of Hydrology, 2015, 528: 562-570. doi: 10.1016/j.jhydrol.2015.06.051
[13]	Shen Hongbin, Wu Baosheng. Analysis on the parameterization method boundary conditions of hydrological model for river sediment transport. Journal of Hydraulic Engineering, 2020, 51(2): 193-200.
	[申红彬, 吴保生. 河流泥沙水文学模型边界条件参数化方法探讨. 水利学报, 2020, 51(2): 193-200.]
[14]	Qian Ning, Zhang Ren, Li Jiufa, et al. A preliminary study on the mechanism of self-regulation of sediment transport capacity in the lower Huang He (the Yellow River). Acta Geographica Sinica, 1981, 36(2): 143-156. doi: 10.11821/xb198102003
	[钱宁, 张仁, 李九发, 等. 黄河下游挟沙能力自动调整机理的初步探讨. 地理学报, 1981, 36(2): 143-156.]
[15]	Liu Yuelan, Han Shofa, Wu Zhi. A method for calculating sediment erosion and deposition in the Lower Yellow River. Journal of Sediment Research, 1987(3): 30-42.
	[刘月兰, 韩少发, 吴知. 黄河下游河道冲淤计算方法. 泥沙研究, 1987(3): 30-42.]
[16]	Zhao Ye'an, Pan Xiandi, Fan Zuoying, et al. Basic law and situation of erosion and sedimentation of the lower reaches of the Yellow River. Proceedings of Yellow River Institute of Hydraulic Research: Episode 1, Sediment, Soil and Water Conservation. Zhengzhou: Henan Science and Technology Press, 1989: 12-26.
	[赵业安, 潘贤娣, 樊左英, 等. 黄河下游河道冲淤情况及基本规律. 黄河水利委员会水利科学研究所文集: 第一集: 泥沙、水土保持. 郑州: 河南科学技术出版社, 1989: 12-26.]
[17]	Wu Baosheng, Zhang Yuanfeng. Analysis on sediment transport in the Lower Yellow River. Journal of Sediment Research, 2007(1): 30-35.
	[吴保生, 张原锋. 黄河下游输沙量的沿程变化规律和计算方法. 泥沙研究, 2007(1): 30-35.]
[18]	Leopold L B, Maddock T. The hydraulic geometry of stream channels and some physiographic implications. USGS Professional Paper No.252, 1953.
[19]	Fu Xudong, Jiang Liwei, Wu Baosheng, et al. Sediment delivery ratio and its uncertainties on flood event scale: Quantification for the Lower Yellow River. Scientia Sinica: Technologica, 2010, 40(4): 349-357. doi: 10.1360/ze2010-40-4-349
	[傅旭东, 姜立伟, 吴保生, 等. 黄河下游河道场次洪水排沙比及其不确定性. 中国科学: 技术科学, 2010, 40(4): 349-357.]
[20]	Wu Baosheng, Liu Kejing, Shen Hongbin, et al. Calculation methods for sediment load and deposition volume in the Inner Mongolia reach of the Yellow River. Advances in Water Science, 2015, 26(3): 311-321.
	[吴保生, 刘可晶, 申红彬, 等. 黄河内蒙古河段输沙量与淤积量计算方法. 水科学进展, 2015, 26(3): 311-321.]
[21]	Wang Y J, Wu B S, Zhong D Y, et al. Calculation method for sediment load in flood and non-flood seasons in the Inner Mongolia reach of the Yellow River. Journal of Geographical Sciences, 2016, 26(6): 707-721. doi: 10.1007/s11442-016-1294-z
[22]	Yao Wenyi, Yan Zhongmin, Li Yong. Adjustment of sediment capacity during channel shrinkage for lower Yellow River. Advances in Science and Technology of Water Resources, 2006, 26(3): 10-14.
	[姚文艺, 严忠民, 李勇. 黄河下游河道萎缩过程中输沙能力的调整. 水利水电科技进展, 2006, 26(3): 10-14.]
[23]	Shen Hongbin, Wu Baosheng. Exponent change rule of power law for sediment transport in alluvial rivers. Advances in Water Science, 2018, 29(2): 179-185.
	[申红彬, 吴保生. 冲积河流泥沙输移幂律函数指数变化规律. 水科学进展, 2018, 29(2): 179-185.]
[24]	Sun Gaohu. Responses of longitudinal profile and cross sections to variations of incoming runoff and sediment load in the Lower Yellow River[D]. Beijing: China Institute of Water Resources and Hydropower Research, 2006.
	[孙高虎. 水沙变异条件下黄河下游河道纵横剖面的响应[D]. 北京: 中国水利水电科学研究院, 2006.]
[25]	Hu Sheng, Cao Mingming, Qiu Haijun, et al. Applicability evaluation of CFSR climate data for hydrologic simulation: A case study in the Bahe River Basin. Acta Geographica Sinica, 2016, 71(9): 1571-1586. doi: 10.11821/dlxb201609009
	[胡胜, 曹明明, 邱海军, 等. CFSR气象数据在流域水文模拟中的适用性评价: 以灞河流域为例. 地理学报, 2016, 71(9): 1571-1586.]
[26]	Nash J E, Sutcliffe J V. River flow forecasting through conceptual models (Part 1): A discussion of principles. Journal of Hydrology, 1970, 10(3): 282-290. doi: 10.1016/0022-1694(70)90255-6
[27]	Gupta H V, Sorooshian S, Yapo P O. Status of automatic calibration for hydrologic models: Comparison with multilevel expert calibration. Journal of Hydrologic Engineering, 1999, 4(2): 135-143. doi: 10.1061/(ASCE)1084-0699(1999)4:2(135)
[28]	Xu jiongxin. Tendency of sedimentation in the Lower Yellow River influenced by human activities. Journal of Hydraulic Engineering, 2004, 35(2): 8-16.
	[许炯心. 人类活动影响下的黄河下游河道泥沙淤积宏观趋势研究. 水利学报, 2004, 35(2): 8-16.]
[29]	Wu Baosheng, Shen Guanqing. Approach to physical meaning of coming sediment coefficients. Yellow River, 2008, 30(4): 15-16.
	[吴保生, 申冠卿. 来沙系数物理意义的探讨. 人民黄河, 2008, 30(4): 15-16.]

类型	河段	分河段	距离(km)	平均比降(‰)	主槽河宽(km)
游荡型	桃花峪—高村	桃花峪—花园口	28.6	0.198	0.8~2.5
		花园口—夹河滩	100.8
		夹河滩—高村	77.1
过渡型	高村—陶城铺	高村—孙口	118.2	0.120	0.5~1.6
过渡型	高村—陶城铺	孙口—陶城铺	46.8	0.120	0.5~1.6
弯曲型	陶城铺—利津	陶城铺—艾山	17.1	0.110	0.3~0.8
		艾山—泺口	101.8
		泺口—利津	167.8

河段		距离(km)	模型参数			模型效果指标
河段		距离(km)	系数K	指数a	指数b	R²	NSE
基本河段	花园口—高村	177.9	0.38^*	0.81^*	1.21^*	0.978	0.975
	高村—艾山	182.1	1.05^*	0.84^*	1.06^*	0.978	0.977
	艾山—利津	269.6	0.52^*	0.95^*	1.11^*	0.984	0.980
扩展河段	花园口—艾山	360.0	0.46⁺	0.68⁺	1.24⁺	0.954	0.949
	花园口—利津	629.6	0.25^+*	0.65^+*	1.35^+*	0.919	0.890
	高村—利津	451.7	0.54⁺	0.79⁺	1.17⁺	0.956	0.946

河段	模型参数	刘月兰等^[15] (1987年)		赵业安等^[16] (1989年)			吴保生等^[17] (2007年)			本文 (2021年)	他人研究参数平均值
		汛期		非汛期		汛期	全年	汛期		全年
		不漫滩	漫滩	非汛期		汛期	全年	汛期		全年
花园口—高村	系数K	0.46	5.40	0.39	0.55		0.38	0.44	0.61		1.27
	指数a	0.76	0.76	0.49	0.76		0.81	0.81	0.88		0.73
	指数b	1.21	1.16	1.33	1.18		1.21	1.21	1.12		1.22
高村—艾山	系数K	0.65	0.79	0.15	0.51		1.05	1.13	0.6		0.71
	指数a	0.83	0.81	1.02	0.92		0.84	0.84	0.88		0.88
	指数b	1.08	1.06	1.25	1.12		1.06	1.06	1.12		1.11
艾山—利津	系数K	0.43	0.43	1.23	0.6		0.52	0.57	0.49		0.63
	指数a	1.00	1.00	1.13	0.96		0.95	0.95	0.83		1.00
	指数b	1.09	1.09	1.21	1.09		1.11	1.11	1.17		1.12

距离断面 (km)	方案1(花园口起点)					距离断面 (km)	方案2(高村起点)
距离断面 (km)	水文站	系数K	指数a	指数b	指数c	距离断面 (km)	水文站	系数K	指数a	指数b	指数c
0	花园口	1.00	1.00	1.00	0.00	0	高村	1.00	1.00	1.00	0.00
100	—	0.75	0.93	1.07	0.07	50	—	0.87	0.97	1.03	0.03
100.8	夹河滩	0.75	0.93	1.07	0.07	100	—	0.75	0.93	1.07	0.07
177.9	高村	0.61	0.88	1.12	0.12	118.2	孙口	0.72	0.92	1.08	0.08
200	—	0.58	0.87	1.13	0.13	150	—	0.66	0.90	1.10	0.10
296.1	孙口	0.46	0.81	1.19	0.19	182.1	艾山	0.60	0.88	1.12	0.12
300	—	0.45	0.81	1.19	0.19	200	—	0.58	0.87	1.13	0.13
360	艾山	0.39	0.78	1.22	0.22	250	—	0.51	0.84	1.16	0.16
400	—	0.36	0.76	1.24	0.24	283.9	泺口	0.47	0.82	1.18	0.18
461.8	泺口	0.31	0.72	1.28	0.28	300	—	0.45	0.81	1.19	0.19
500	—	0.29	0.70	1.30	0.30	350	—	0.40	0.78	1.22	0.22
600	—	0.24	0.66	1.34	0.34	400	—	0.36	0.76	1.24	0.24
629.6	利津	0.22	0.64	1.36	0.36	451.7	利津	0.32	0.73	1.27	0.27
700	—	0.20	0.61	1.39	0.39	500	—	0.29	0.70	1.30	0.30
