河南省肺癌空间分布格局及环境因素影响

doi:10.11821/dlxb202201017

地理学报 ›› 2022, Vol. 77 ›› Issue (1): 245-258.doi: 10.11821/dlxb202201017

• 生态系统服务与环境健康 • 上一篇

河南省肺癌空间分布格局及环境因素影响

魏海涛¹^,²(), 刘岩¹^,², 田智慧¹^,², 王晓蕾¹^,², 赫晓慧¹^,²(), 韦晶³^,⁴

1.郑州大学地球科学与技术学院,郑州 450000
2.郑州大学中国气象科学研究院郑州大学生态气象联合实验室,郑州 450000
3.北京师范大学遥感国家重点实验室全球变化与地球系统科学研究院,北京 100875
4.马里兰大学大气与海洋科学系地球系统科学跨学科研究中心,美国马里兰 20740

收稿日期:2020-08-11 修回日期:2021-04-19 出版日期:2022-01-25 发布日期:2022-03-25
通讯作者: 赫晓慧(1978-), 女, 博士, 教授, 研究领域为地理时空数据分析。E-mail: hexh@zzu.edu.cn
作者简介:魏海涛(1986-), 男, 博士, 讲师, 研究领域为健康地理学和空间数据分析。E-mail: zzu_wei@163.com
基金资助:
国家重点研发计划(2018YFB0505000);河南省重点研发与推广专项(科技攻关)项目(192102210124)

Spatial distribution pattern and environmental impact of lung cancer in Henan

WEI Haitao¹^,²(), LIU Yan¹^,², TIAN Zhihui¹^,², WANG Xiaolei¹^,², HE Xiaohui¹^,²(), WEI Jing³^,⁴

1. School of Earth Sciences and Technology, Zhengzhou University, Zhengzhou 450000, China
2. Joint Laboratory of Eco-Meteorology, Zhengzhou University, Chinese Academy of Meteorological Sciences, Zhengzhou University, Zhengzhou 450000, China
3. State Key Laboratory of Remote Sensing Science, College of Global Change and Earth System Science, Beijing Normal University, Beijing 100088, China
4. Department of Atmospheric and Oceanic Science, Earth System Science Interdisciplinary Center, University of Maryland, College Park, MD 20740, USA

Received:2020-08-11 Revised:2021-04-19 Published:2022-01-25 Online:2022-03-25
Supported by:
National Key R&D Program of China(2018YFB0505000);Key R&D and Promotion Special Projects of Henan Province(192102210124)

摘要/Abstract

摘要：

肺癌是最常见的恶性肿瘤之一,也是主要的肿瘤死因,河南省肺癌发病率和死亡率常年居恶性肿瘤首位,研究肺癌的空间分布格局及其与环境因子的关系对肺癌的相关防控工作意义重大。本文以2016—2018年河南省肺癌发病数据为研究对象,使用空间自相关分析方法研究河南省肺癌的空间分布格局,基于地理探测器量化各个环境因子及其两两交互作用对肺癌发病率的解释力。结果表明：空间上肺癌具有明显的集聚特征,高发区集中分布于豫中、豫东和豫南的平原和盆地地区。在所选的12种环境因子中,PM_2.5浓度、O₃浓度、年均风速、采矿业从业人员占比、人均GDP具有更高的决定力,人均GDP和医护人员占比则对多种要素的决定力均具有明显的非线性增强的作用。研究结果可以为河南省肺癌发病机理研究和相关防治工作提供科学支撑。

关键词: 肺癌, 空间分布格局, 环境因子, 地理探测器, 河南

Abstract:

Lung cancer is one of the most common malignant tumors and the main cause of death related with cancer. The incidence rate and mortality rate of lung cancer in Henan are the highest of the cancers. Therefore, it is of great significance to study the spatial distribution pattern of lung cancer and the effects of environmental factors on it for the prevention and control of lung cancer. Based on the data of lung cancer incidence in Henan from 2016 to 2018, the spatial distribution pattern of lung cancer in the province was studied by using spatial autocorrelation analysis. Using the software Geodetector, we quantified the explanatory power of each factor and its interactions on lung cancer incidence rate. The results showed that lung cancer has obvious characteristics of agglomeration, the high incidence areas are concentrated in the plains and basins of central, eastern and southern Henan. Among the 12 environmental factors selected, PM_2.5 concentration, O₃ concentration, annual average wind speed, proportion of employees in mining industry and per capita GDP have decisive power, while the per capita GDP and proportion of medical staff have a non-linear enhancement effect on the determination of various factors. The results can provide technical support for research on pathogenesis, prevention and treatment of lung cancer in Henan.

Key words: lung cancer, spatial distribution pattern, environmental factor, Geodetector, Henan

魏海涛, 刘岩, 田智慧, 王晓蕾, 赫晓慧, 韦晶. 河南省肺癌空间分布格局及环境因素影响[J]. 地理学报, 2022, 77(1): 245-258.

WEI Haitao, LIU Yan, TIAN Zhihui, WANG Xiaolei, HE Xiaohui, WEI Jing. Spatial distribution pattern and environmental impact of lung cancer in Henan[J]. Acta Geographica Sinica, 2022, 77(1): 245-258.

图/表 11

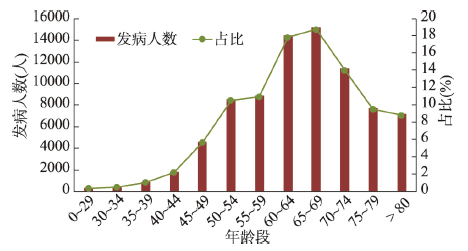

图1

图2

图3

图4

图5

表1

两个自变量对因变量交互作用的类型

判断依据	交互作用
$q X 1 ⋂ X 2 < Min q X 1, q X 2$	非线性减弱
$Min q X 1, q X 2 < q X 1 ⋂ X 2 < Max q X 1, q X 2$	单因子非线性减弱
$q X 1 ⋂ X 2 > Max q X 1, q X 2$	双因子增强
$q X 1 ⋂ X 2 = q X 1 + q X 2$	独立
$q X 1 ⋂ X 2 > q X 1 + q X 2$	非线性增强

表1

图6

表2

图7

表3

因子探测器结果

影响因子	$q$	影响因子	$q$
PM_2.5	0.156	NDVI	0.022
O₃	0.111	MIP	0.103
NO₂	0.099	MAP	0.040
PREC	0.046	CONP	0.052
TEMP	0.050	PGDP	0.113
WIND	0.131	MSP	0.048

表3

表4

参考文献 45

[1]	Li Rui, Li Qing, Xu Jian, et al. Regional air pollution process in winter over the Yangtze River Delta and its influence on typical northern cities. Environmental Science, 2020, 41(4): 1520-1534.
	[ 李瑞, 李清, 徐健, 等. 秋冬季区域性大气污染过程对长三角北部典型城市的影响. 环境科学, 2020, 41(4): 1520-1534.]
[2]	Freddie B, Jacques F, Isabelle S, et al. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA: A Cancer Journal for Clinicians, 2018, 68: 394-424. doi: 10.3322/caac.21492 pmid: 30207593
[3]	Wang Quan, Shen Qin, Zhang Zelin, et al. Prediction of gene mutation in lung cancer based on deep learning and histomorphology analysis. Journal of Biomedical Engineering, 2020, 37(1): 10-18. doi: 10.7507/1001-5515.201904018 pmid: 32096372
	[ 王荃, 沈勤, 张泽林, 等. 基于深度学习和组织形态分析的肺癌基因突变预测. 生物医学工程学杂志, 2020, 37(1): 10-18.] pmid: 32096372
[4]	Lu T, Yang X D, Huang Y W, et al. Trends in the incidence, treatment, and survival of patients with lung cancer in the last four decades. Cancer Management and Research, 2019, 11: 943-953. doi: 10.2147/CMAR
[5]	Cao M M, Chen W Q. Epidemiology of lung cancer in China. Thoracic Cancer, 2018, 10(1): 3-7. doi: 10.1111/tca.2019.10.issue-1
[6]	Chen X Y, Shao S, Tian Z H, et al. Impacts of air pollution and its spatial spillover effect on public health based on China's big data sample. Journal of Cleaner Production, 2017, 142: 915-925. doi: 10.1016/j.jclepro.2016.02.119
[7]	Liu M M, Huang Y N, Ma Z W, et al. Spatial and temporal trends in the mortality burden of air pollution in China: 2004-2012. Environment International, 2017, 98: 75-81. doi: 10.1016/j.envint.2016.10.003
[8]	Ferrando J, Palència L, Gotsens M, et al. Trends in cancer mortality in Spain: The influence of the financial crisis. Gaceta Sanitaria, 2019, 33(3): 229-234. doi: S0213-9111(18)30005-0 pmid: 29452751
[9]	Poinen-Rughooputh S, Rughooputh M S, Guo Y, et al. Occupational exposure to silica dust and risk of lung cancer: An updated meta-analysis of epidemiological studies. BMC Public Health, 2016, 16: 1137. DOI: 10.1186/s12889-016-3791-5. doi: 10.1186/s12889-016-3791-5 pmid: 27814719
[10]	Wang Qiangxiang, Tan Zhengying, Zhao Hui, et al. Species of iron in size-resolved particle emitted from Xuanwei coal combustion and their oxidative potential. Environmental Science, 2017, 38(6): 2273-2279.
	[ 王强翔, 谭正莹, 赵慧, 等. 宣威肺癌高发区燃煤排放颗粒物中铁的价态及其氧化性. 环境科学, 2017, 38(6): 2273-2279.]
[11]	Deng Anqi, Dong Zhaomin, Gao Qun, et al. Health risk assessment of arsenic in groundwater across China. China Environmental Science, 2017, 37(9): 3556-3565.
	[ 邓安琪, 董兆敏, 高群, 等. 中国地下水砷健康风险评价. 中国环境科学, 2017, 37(9): 3556-3565.]
[12]	Angelino D, Godos J, Ghelfi F, et al. Fruit and vegetable consumption and health outcomes: An umbrella review of observational studies. International Journal of Food Sciences and Nutrition, 2019, 70(6): 652-667. doi: 10.1080/09637486.2019.1571021 pmid: 30764679
[13]	Li J X, Lu X F, Liu F C, et al. Chronic effects of high fine particulate matter exposure on lung cancer in China. American Journal of Respiratory and Critical Care Medicine, 2020, 202(11): 1551-1559. doi: 10.1164/rccm.202001-0002OC
[14]	Liu X X, Zhou M G, Wang F, et al. Secular trend of cancer death and incidence in 29 cancer groups in China, 1990-2017: A joinpoint and age-period-cohort analysis. Cancer Management and Research, 2020, 12: 6221-6238. doi: 10.2147/CMAR.S247648
[15]	Chen W Q, Zheng R S, Baade P D, et al. Cancer statistics in China, 2015. CA: A Cancer Journal for Clinicians, 2016, 66(2): 115-132. doi: 10.3322/caac.21338
[16]	Tian Shuju, Liu Yuqin, Zhang Jie, et al. An analysis of the incidence of lung cancer in Lanzhou, 2009. China Cancer, 2015, 24(2): 93-96.
	[ 田淑菊, 刘玉琴, 张洁, 等. 兰州市2009年肺癌发病分析. 中国肿瘤, 2015, 24(2): 93-96.]
[17]	Xing D F, Xu C D, Liao X Y, et al. Spatial association between outdoor air pollution and lung cancer incidence in China. BMC Public Health, 2019, 19(1): 1377. DOI: 10.1186/s12889-019-7740-y. doi: 10.1186/s12889-019-7740-y pmid: 31655581
[18]	Valavanidis A, Vlachogianni T, Fiotakis K, et al. Pulmonary oxidative stress, inflammation and cancer: Respirable particulate matter, fibrous dusts and ozone as major causes of lung carcinogenesis through reactive oxygen species mechanisms. International Journal of Environmental Research and Public Health, 2013, 10(9): 3886-3907. doi: 10.3390/ijerph10093886 pmid: 23985773
[19]	Wei J, Li Z Q, Lyapustin A, et al. Reconstructing 1-km-resolution high-quality PM_2.5 data records from 2000 to 2018 in China: Spatiotemporal variations and policy implications. Remote Sensing of Environment, 2021, 252. DOI: 10.1016/j.rse.2020.112136. doi: 10.1016/j.rse.2020.112136
[20]	Liu Haimeng, Fang Chuanglin, Huang Jiejun, et al. The spatial-temporal characteristics and influencing factors of air pollution in Beijing-Tianjin-Hebei urban agglomeration. Acta Geographica Sinica, 2018, 73(1): 177-191. doi: 10.11821/dlxb201801015
	[ 刘海猛, 方创琳, 黄解军, 等. 京津冀城市群大气污染的时空特征与影响因素解析. 地理学报, 2018, 73(1): 177-191.]
[21]	He J, Yang K, Tang W J, et al. The first high-resolution meteorological forcing dataset for land process studies over China. Scientific Data, 2020, 7: 25. DOI: 10.1038/s41597-020-0369-y. doi: 10.1038/s41597-020-0369-y
[22]	Yang K, He J, Tang W J, et al. On downward shortwave and longwave radiations over high altitude regions: Observation and modeling in the Tibetan Plateau. Agricultural and Forest Meteorology, 2010, 150(1): 38-46. doi: 10.1016/j.agrformet.2009.08.004
[23]	Lin X L, Chen Y, Gong W W, et al. Geographic distribution and epidemiology of lung cancer during 2011 in Zhejiang Province of China. Asian Pacific Journal of Cancer Prevention, 2014, 15(13): 5299-5303. doi: 10.7314/APJCP.2014.15.13.5299
[24]	Marquès M, Domingo J L, Nadal M, et al. Health risks for the population living near petrochemical industrial complexes: 2. Adverse health outcomes other than cancer. Science of the Total Environment, 2020, 730: 139122. DOI: 10.1016/j.scitotenv.2020.139122. doi: 10.1016/j.scitotenv.2020.139122
[25]	Keramydas D, Bakakos P, Alchanatis M, et al. Investigation of the health effects on workers exposed to respirable crystalline silica during outdoor and underground construction projects. Experimental and Therapeutic Medicine, 2020, 20(2): 882-889. doi: 10.3892/etm
[26]	Hachem M, Saleh N, Paunescu A C, et al. Exposure to traffic air pollutants in taxicabs and acute adverse respiratory effects: A systematic review. Science of the Total Environment, 2019, 693: 133439. DOI: 10.1016/j.scitotenv.2019.07.245. doi: 10.1016/j.scitotenv.2019.07.245
[27]	You W P, Rühli F J, Henneberg R J, et al. Greater family size is associated with less cancer risk: An ecological analysis of 178 countries. BMC Cancer, 2018, 18(1): 924. DOI: 10.1186/s12885-018-4837-0. doi: 10.1186/s12885-018-4837-0
[28]	Wang S C, Sung W W, Kao Y L, et al. The gender difference and mortality-to-incidence ratio relate to health care disparities in bladder cancer: National estimates from 33 countries. Scientific Reports, 2017, 7(1): 4360. DOI: 10.1038/s41598-017-04083-z. doi: 10.1038/s41598-017-04083-z
[29]	Garten R J, Davis C T, Russell C A, et al. Antigenic and genetic characteristics of swine-origin 2009 A(H1N1) Influenza viruses circulating in humans. Science, 2009, 325(5937): 197-201. doi: 10.1126/science.1176225
[30]	Li Meifang, Ou Jinpei, Li Xia. Spatio-temporal analysis of influenza A (H1N1) in China during 2009-2013 based on GIS. Geographical Research, 2016, 35(11): 2139-2152. doi: 10.11821/dlyj201611011
	[ 李美芳, 欧金沛, 黎夏. 基于地理信息系统的2009—2013年甲型H1N1流感的时空分析. 地理研究, 2016, 35(11): 2139-2152.]
[31]	Wang J F, Li X H, Christakos G, et al. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. International Journal of Geographical Information Science, 2010, 24(1): 107-127. doi: 10.1080/13658810802443457
[32]	Wang J F, Zhang T L, Fu B J. A measure of spatial stratified heterogeneity. Ecological Indicators, 2016, 67: 250-256. doi: 10.1016/j.ecolind.2016.02.052
[33]	Wang Jinfeng, Xu Chengdong. Geodetector: Principle and prospective. Acta Geographica Sinica, 2017, 72(1): 116-134. doi: 10.11821/dlxb201701010
	[ 王劲峰, 徐成东. 地理探测器: 原理与展望. 地理学报, 2017, 72(1): 116-134.]
[34]	Li Hanqi, Jia Peng, Fei Teng. Geographical association between dietary tastes and chronic diseases in China: An exploratory study using crowdsourcing data mining techniques. Acta Geographica Sinica, 2019, 74(8): 1637-1649. doi: 10.11821/dlxb201908011
	[ 李瀚祺, 贾鹏, 费腾. 基于众源数据挖掘的中国饮食口味与慢性病的空间关联. 地理学报, 2019, 74(8): 1637-1649.]
[35]	Bai Ling, Luo Yibin, Jiang Lei, et al. Spatio-temporal characteristics and influencing factors of China's urban NO_x emissions: A spatial stratified heterogeneity perspective. Acta Scientiae Circumstantiae, 2020, 40(2): 687-696.
	[ 柏玲, 罗溢斌, 姜磊, 等. 中国城市NO_x排放的时空特征与驱动因素: 基于空间分异视角. 环境科学学报, 2020, 40(2): 687-696.]
[36]	Hu Kaiheng, Wei Li, Liu Shuang, et al. Spatial pattern of debris-flow catchments and the rainfall amount of triggering debris flows in the Hengduan Mountains region. Acta Geographica Sinica, 2019, 74(11): 2303-2313. doi: 10.11821/dlxb201911008
	[ 胡凯衡, 魏丽, 刘双, 等. 横断山区泥石流空间格局和激发雨量分异性研究. 地理学报, 2019, 74(11): 2303-2313.]
[37]	Li Jiaming, Lu Dadao, Xu Chengdong, et al. Spatial heterogeneity and its changes of population on the two sides of Hu Line. Acta Geographica Sinica, 2017, 72(1): 148-160. doi: 10.11821/dlxb201701012
	[ 李佳洺, 陆大道, 徐成东, 等. 胡焕庸线两侧人口的空间分异性及其变化. 地理学报, 2017, 72(1): 148-160.]
[38]	Wang Yuanlin, Li Jie, Li Ang, et al. Modeling study of surface PM_2.5 and its source apportionment over Henan in 2013-2014. Acta Scientiae Circumstantiae, 2016, 36(10): 3543-3553.
	[ 王媛林, 李杰, 李昂, 等. 2013—2014年河南省PM_2.5浓度及其来源模拟研究. 环境科学学报, 2016, 36(10): 3543-3553.]
[39]	Guo H G, Li W F, Wu J S. Ambient PM_2.5 and annual lung cancer incidence: A nationwide study in 295 Chinese counties. International Journal of Environmental Research and Public Health, 2020, 17(5): 1481. DOI: 10.3390/ijerph17051481. doi: 10.3390/ijerph17051481
[40]	Zheng Baoli, Liang Liutao, Li Mingming. Analysis of temporal and spatial patterns of PM_2.5 in prefecture-level cities of China from 1998 to 2016. China Environmental Science, 2019, 39(5): 1909-1919.
	[ 郑保利, 梁流涛, 李明明. 1998—2016年中国地级以上城市PM_2.5污染时空格局. 中国环境科学, 2019, 39(5): 1909-1919.]
[41]	Luo Pengfei, Lin Ping, Zhou Jinyi. Progress on epidemiological studies of the relationship between lung cancer and ambient air pollution. China Cancer, 2017, 26(10): 792-797.
	[ 罗鹏飞, 林萍, 周金意. 肺癌与大气污染关系的流行病学研究进展. 中国肿瘤, 2017, 26(10): 792-797.]
[42]	Lin Tingkun, Hong Linan, Huang Zhengchao, et al. Meteorological and pollution characteristics under atmospheric circulation types in autumn and winter in Beijing. China Environmental Science, 2019, 39(5): 1813-1822.
	[ 林廷坤, 洪礼楠, 黄争超, 等. 北京市秋冬季大气环流型下的气象和污染特征. 中国环境科学, 2019, 39(5): 1813-1822.]
[43]	Qi Yanjie, Yu Shijie, Yang Jian, et al. Analysis of characteristics and meteorological influence factors of ozone pollution in Henan Province. Environmental Science, 2020, 41(2): 587-599.
	[ 齐艳杰, 于世杰, 杨健, 等. 河南省臭氧污染特征与气象因子影响分析. 环境科学, 2020, 41(2): 587-599.]
[44]	Wang Yanchao, Jiang Chunlai, He Jinyu, et al. Analysis of air pollutants control in cement industry in and around Beijing-Tianjin-Hebei region. China Environmental Science, 2018, 38(10): 3683-3688.
	[ 王彦超, 蒋春来, 贺晋瑜. 京津冀及周边地区水泥工业大气污染控制分析. 中国环境科学, 2018, 38(10): 3683-3688.]
[45]	Wei O Y, Gao B, Cheng H G, et al. Exposure inequality assessment for PM_2.5 and the potential association with environmental health in Beijing. Science of the Total Environment, 2018, 635: 769-778. doi: 10.1016/j.scitotenv.2018.04.190

年份	Moran's I	Z值	显著性水平p	空间格局
2016年	0.459934	11.0450	0.001	聚集
2017年	0.304695	7.5622	0.001	聚集
2018年	0.509189	12.6958	0.001	强聚集
