区位因素影响下高铁站区产业结构特征——基于POI数据的实证分析

doi:10.11821/dlxb202108014

摘要/Abstract

摘要：

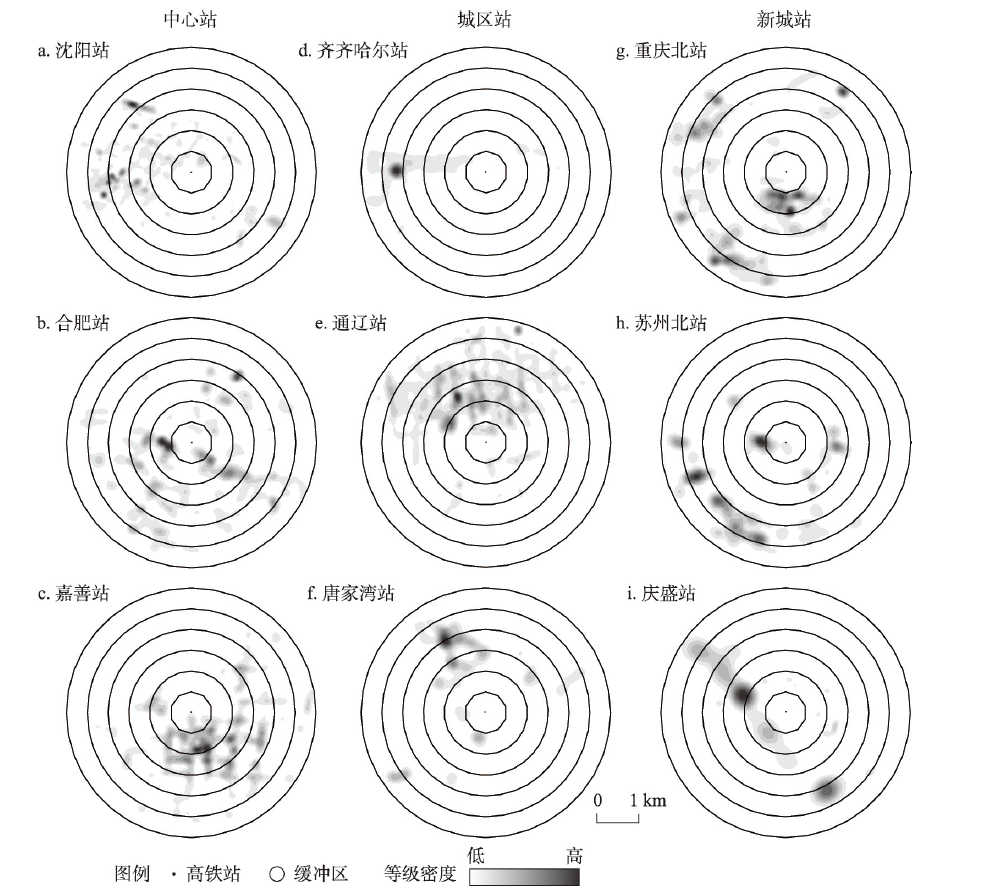

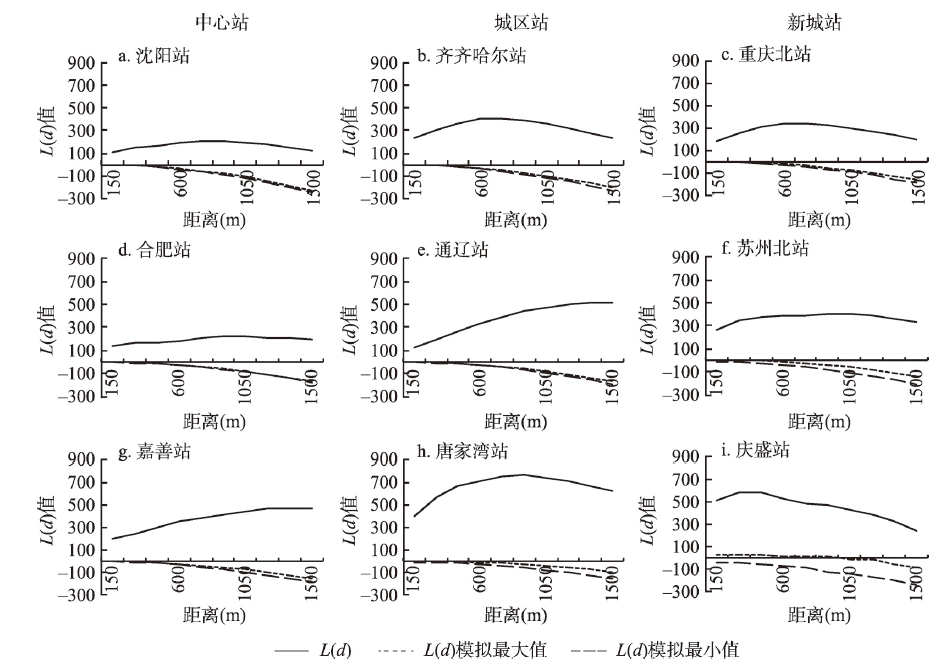

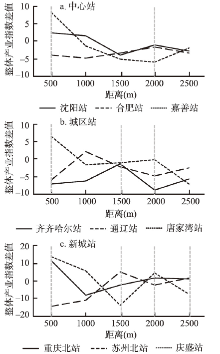

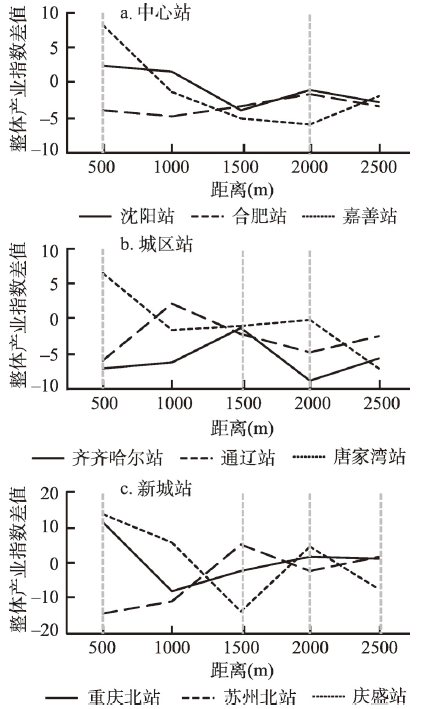

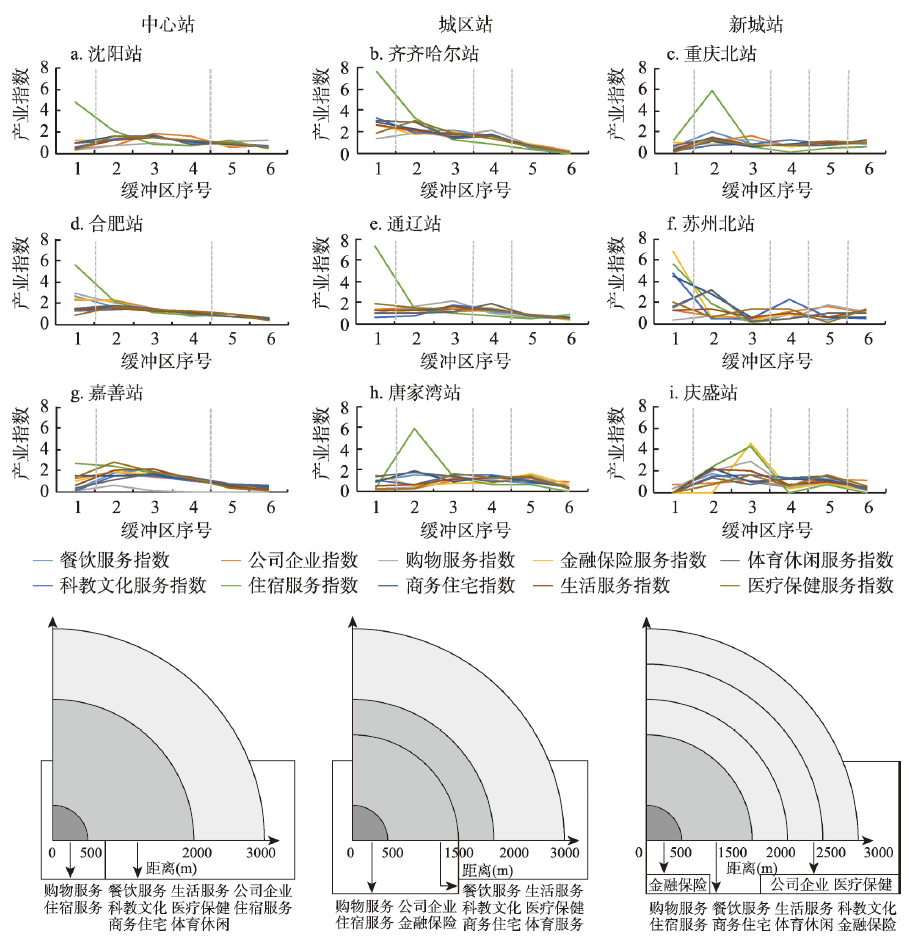

高铁站被视为拉动城市经济增长的新型空间,研究其周边产业结构对指导高铁站区的开发具有重要意义。本文选取了全国范围内9个不同区位、不同等级的高铁站为研究对象,以高铁站周边3000 m范围内10类产业的POI信息作为研究数据,通过Ripley's K函数、核密度估计和产业指数等方法探索不同区位下高铁站区的产业结构特征。研究发现：① 当高铁站的等级规模相同时,高铁站距离城市中心越远,站区内产业POI总数一般就越少。其中,购物服务、餐饮服务、生活服务和公司企业4类产业的POI数量显著高于其他产业。② 所有高铁站区的产业在1500 m的观测距离内均呈现出显著的集聚分布特征。其中,中心站产业集聚程度的变化较为平缓,城区站产业集聚程度最高,变化幅度也更大,而新城站的规律特征不明显。③ 中心站的产业集聚区域主要分布在高铁站周边0~2500 m的范围内,城区站的产业集聚现象在500~2500 m范围内较为明显,而新城站的产业集聚区域则集中在0~1500 m、2000~3000 m的范围以内。④ 基本服务产业和衍生服务产业主要集中于内圈层和中间圈层,相关服务产业则主要分布在中间圈层和外圈层,各圈层内产业复合特征明显,且高铁站越远离城市中心,其对产业的辐射作用越弱,产业衰减趋势也越明显。基于以上结论,本文认为未来高铁站区的产业开发更应关注土地开发集约化和产业发展复合化。

关键词: 高铁站区, 区位因素, POI数据, 产业结构, 合理开发

Abstract:

High-speed railway (HSR) station is regarded as a new type of space for driving urban economic growth, and studying its surrounding industrial structure is of great significance to guide the development of HSR station areas. In this paper, nine HSR stations with different locations and different levels in China are selected as the research object. The Point of Interest (POI) information data of 10 industries within 3000 m around the HSR station are used as the research basis. Based on the Ripley's K function, kernel density estimation and industrial indexes, the characteristics of industrial distribution of HSR station areas in different locations are explored. Our result indicates that when the grade of high-speed rail stations is the same, the farther the high-speed rail stations are from the city center, the smaller the total number of industrial POIs in the station area. Among 10 kinds of industries, the number of POIs in four types of industry, namely, shopping services, catering services, life services and companies, is much larger than that of other industries. Secondly, all industries in the HSR station areas show a significant agglomeration within an observation distance of 1500 m. In terms of the industrial agglomeration degree, the change of the central station is relatively gentle, the change of the urban station is the highest, and the change range is greater, and the regularity of new-town station is not obvious. Thirdly, the industrial agglomeration area of the central station is mainly distributed in the range of 0-2500 m around the high-speed rail station, the industrial agglomeration area of??the urban station is more obvious in the range of 500-2500 m, and the industrial agglomeration area of the new-town station is concentrated in the ranges of 0-1500 m and 2000-3000 m. Fourthly, the basic service industry and derivative service industry are mainly concentrated in the inner and the middle circle layers, and the related service industries are mainly distributed in the middle and the outer circle layers. The compound characteristics of the industries in each circle layer are obvious, and the farther away from the city center, the weaker the radiation effect on the industry, the more obviously the trend of industry decays. Finally, based on the research findings, it is believed that the government should pay more attention to the intensification of land development and the integration of industrial development while developing the industries in HSR station areas.

Key words: HSR station area, location, POI data, industrial structure, rational exploitation

王少剑, 莫惠敏, 吕慧妮, 许佩瑶, 殷海晴. 区位因素影响下高铁站区产业结构特征——基于POI数据的实证分析[J]. 地理学报, 2021, 76(8): 2016-2031.

WANG Shaojian, MO Huimin, LV Huini, XU Peiyao, YIN Haiqing. Industrial structure of high-speed railway station areas under the influence of location: Empirical evidences from POI data[J]. Acta Geographica Sinica, 2021, 76(8): 2016-2031.

图/表 10

图1

图2

图3

表1

表2

图4

图5

图6

图7

图8

参考文献 34

[1]	Wang Li, Liu Kewen, Cao Youhui. Research progress of spatial structure in regions of HSR stations home and abroad. Economic Geography, 2016, 36(8):120-126.
	[ 王丽, 刘可文, 曹有挥. 国内外高铁站区空间结构研究进展及启示. 经济地理, 2016, 36(8):120-126.]
[2]	Li Xiangmei, Liu Yazhou, Cao Liping. Research about the influence of population space of flow under the high-speed railway construction. China Population, Resources and Environment, 2014, 24(6):140-147.
	[ 李祥妹, 刘亚洲, 曹丽萍. 高速铁路建设对人口流动空间的影响研究. 中国人口·资源与环境, 2014, 24(6):140-147.]
[3]	Song Wenjie, Shi Yujin, Zhu Qing, et al. Evaluation on planning of high-speed rail station area based on Node-Place Model in Yangtze River Delta area. Economic Geography, 2016, 36(10):18-25, 38.
	[ 宋文杰, 史煜瑾, 朱青, 等. 基于节点—场所模型的高铁站点地区规划评价: 以长三角地区为例. 经济地理, 2016, 36(10):18-25, 38.]
[4]	Wang Lan. Research framework of high-speed railway impact on urban space. Planners, 2011, 27(7):13-19.
	[ 王兰. 高速铁路对城市空间影响的研究框架及实证. 规划师, 2011, 27(7):13-19.]
[5]	Yang Shiyuan. Study on the development of high-speed rail station economy: A case study on Quanzhou Station of Fuxia High-speed Rail. Science Technology and Industry, 2012, 12(10):4-8.
	[ 杨诗源. 高速铁路站场经济发展研究: 以福厦高铁泉州站为例. 科技和产业, 2012, 12(10):4-8.]
[6]	Jin Murakami, Robert Cervero. California high-speed rail and economic development: Station-area market profiles and public policy responses. Irvine: University of California Transportation Center, 2010.
[7]	Cao Xiaoshu, Zhang Kai, Ma Linbin, et al. Research on function combination and spatial structure of construction land in Guangzhou railway station and railway eastern station area. Geographical Research, 2007, 26(6):1265-1273.
	[ 曹小曙, 张凯, 马林兵, 等. 火车站地区建设用地功能组合及空间结构: 以广州站和广州东站为例. 地理研究, 2007, 26(6):1265-1273.]
[8]	Wang Teng, Lu Jiwei. Railway station complex and urban catalyst: Example of Shanghai South Railway Station. Urban Planning Forum, 2006(4):76-83.
	[ 王腾, 卢济威. 火车站综合体与城市催化: 以上海南站为例. 城市规划学刊, 2006(4):76-83.]
[9]	Loukaitou-Sideris A, Cuff D, Higgins T, et al. Impact of high speed rail stations on local development: A Delphi survey. Built Environment, 2012, 38(1):51-70. doi: 10.2148/benv.38.1.51
[10]	Diao M, Zhu Y, Zhu J R. Intra-City access to inter-City transport nodes: The implications of high-speed-rail station locations for the urban development of Chinese cities. Urban Studies, 2017, 54(10):2249-2267. doi: 10.1177/0042098016646686
[11]	Schütz E. Urban development by high-speed traffic. Heft 6, 1998: 369-383.
[12]	Pol Peter M J. A renaissance of stations, railways and cities: Economic effects, development strategies and organisational issues of European high-speed train stations [D]. Delf: DUP High-Speed Science, 2002.
[13]	Sorensen A. Land readjustment and metropolitan growth: An examination of suburban land development and urban sprawl in the Tokyo metropolitan area. Progress in Planning, 2000, 53(4):217-330. doi: 10.1016/S0305-9006(00)00002-7
[14]	Hao Zhiying. Space planning around high-speed rail stations. Urban Transport of China, 2008, 6(5):48-52.
	[ 郝之颖. 高速铁路站场地区空间规划. 城市交通, 2008, 6(5):48-52.]
[15]	Suo Chao, Zhang Hao. Influencing factors and development proposals of business space around hsr station: A case study of cities along Shanghai-Nanjing hsr with poi data. City Planning Review, 2015, 39(7):43-49.
	[ 索超, 张浩. 高铁站点周边商务空间的影响因素与发展建议: 基于沪宁沿线POI数据的实证. 城市规划, 2015, 39(7):43-49.]
[16]	Wu Hao, Li Ling. Analysis of development differences of HSR Station Area based on Gravity Model. Price: Theory & Practice, 2018(9):159-162.
	[ 吴昊, 李玲. 我国高铁站区发展差异性研究: 基于引力模型的分析. 价格理论与实践, 2018(9):159-162.]
[17]	Wang Li, Cao Youhui, Liu Kewen, et al. Spatial distribution and clusters of industry nearby high-speed rail station: The case of Nanjing Station, Shanghai-Nanjing Motor Train. Scientia Geographica Sinica, 2012, 32(3):301-307.
	[ 王丽, 曹有挥, 刘可文, 等. 高铁站区产业空间分布及集聚特征: 以沪宁城际高铁南京站为例. 地理科学, 2012, 32(3):301-307.]
[18]	Lin Chenhui. Research of impact factors of high-speed railways hub area development in China. Urban Planning International, 2011, 26(6):72-77.
	[ 林辰辉. 我国高铁枢纽站区开发的影响因素研究. 国际城市规划, 2011, 26(6):72-77.]
[19]	Zhao Qian, Chen Guowei. Influence of HSR station location on the development of surrounding areas: A case study of Beijing-Shanghai HSR and Wuhan-Guangzhou HSR. City Planning Review, 2015, 39(7):50-55.
	[ 赵倩, 陈国伟. 高铁站区位对周边地区开发的影响研究: 基于京沪线和武广线的实证分析. 城市规划, 2015, 39(7):50-55.]
[20]	Deng T T, Gan C, Perl A, et al. What caused differential impacts on high-speed railway station area development? Evidence from global nighttime light data. Cities, 2020, 97:102568. DOI: 10.1016/j.cities.2019.102568. doi: 10.1016/j.cities.2019.102568
[21]	Shen Y, Silva J D A E, Martínez L M. HSR station location choice and its local land use impacts on small cities: A case study of aveiro, Portugal. Procedia - Social and Behavioral Sciences, 2014, 111:470-479.
[22]	Ma Xiaoyi, Huang Jialing. Development and planning strategy for high-speed railway station area. Planners, 2017, 33(10):123-128.
	[ 马小毅, 黄嘉玲. 高铁站点周边地区发展与规划策略研究. 规划师, 2017, 33(10):123-128.]
[23]	Guo Xiucheng. Urban Transportation Planning. Nanjing: Southeast University Press, 2010.
	[ 过秀成. 城市交通规划. 南京: 东南大学出版社, 2010.]
[24]	Ding Jiayu, Guo Haodong. Rail passenger transport hub study on the impact on the development of peri-urban areas// Urban Planning Society of China. Annual National Planning Conference 2013. Beijing: China Architecture & Building Press, 2013: 565-574.
	[ 丁甲宇, 郭旭东. 高铁客运枢纽对城市周边地区发展影响研究//中国城市规划学会. 2013中国城市规划年会论文集. 北京: 中国建筑工业出版社, 2013: 565-574.]
[25]	Zhou Wenzhu, Yang Jianqiang. Space development mechanism of transit-oriented inter-City railway station area. City Planning Review, 2010, 34(11):88-92.
	[ 周文竹, 阳建强. 交通导向的城际铁路站场地区空间发展机制. 城市规划, 2010, 34(11):88-92.]
[26]	Lin Chenhui. Research of impact factors and function types of high-speed railways hub area development in China[D]. Beijing: China Academy of Urban Planning and Design, 2011.
	[ 林辰辉. 我国高铁枢纽站区开发的影响因素与功能类型研究[D]. 北京: 中国城市规划设计研究院, 2011.]
[27]	Wang Li. Space development mechanism of the industry in regions of HSR stations: Based on the characteristics of high-speed rail passengers. Economic Geography, 2015, 35(3):94-99.
	[ 王丽. 高铁站区产业空间发展机制: 基于高铁乘客特征的分析. 经济地理, 2015, 35(3):94-99.]
[28]	Okabe A, Yamada I. The K-function method on a network and its computational implementation. Geographical Analysis, 2001, 33(3):271-290. doi: 10.1111/gean.2001.33.issue-3
[29]	Gao Kai, Zhou Zhixiang, Yang Yuping, et al. Characteristics and changes of landscape pattern in Wuhan City based on Ripley's K function. Chinese Journal of Applied Ecology, 2010, 21(10):2621-2626. pmid: 21328952
	[ 高凯, 周志翔, 杨玉萍, 等. 基于Ripley K函数的武汉市景观格局特征及其变化. 应用生态学报, 2010, 21(10):2621-2626.] pmid: 21328952
[30]	Wang Yuanfei, He Honglin. Spatial Data Analysis Method. Beijing: Science Press, 2007.
	[ 王远飞, 何洪林. 空间数据分析方法. 北京: 科学出版社, 2007.]
[31]	Wang Li, Cao Youhui, Qiu Fangdao. Spatial change and driving mechanism of the industry in regions of HSR stations before and after the opening: A case study of Nanjing HSR station. Scientia Geographica Sinica, 2017, 37(1):19-27. doi: 10.13249/j.cnki.sgs.2017.01.003
	[ 王丽, 曹有挥, 仇方道. 高铁开通前后站区产业空间格局变动及驱动机制: 以沪宁城际南京站为例. 地理科学, 2017, 37(1):19-27.]
[32]	Liu Rui, Hu Weiping, Wang Hongliang, et al. The road network evolution of Guangzhou-Foshan metropolitan area based on kernel density estimation. Scientia Geographica Sinica, 2011, 31(1):81-86.
	[ 刘锐, 胡伟平, 王红亮, 等. 基于核密度估计的广佛都市区路网演变分析. 地理科学, 2011, 31(1):81-86.]
[33]	Duan Jin. National grand infrastructure construction and urban spatial development: A case study on high speed railway and urban comprehensive transport hub. Urban Planning Forum, 2009, 53(1):37-41.
	[ 段进. 国家大型基础设施建设与城市空间发展应对: 以高铁与城际综合交通枢纽为例. 城市规划学刊, 2009, 53(1):37-41.]
[34]	Xu Wenbo, Wang Xingping. A study on characteristics of spatial development and construction of high-speed railway station areas: An empirical analysis based on the case of Beijing-Shanghai High-speed Railway Line. Urban Planning Forum, 2016, 60(1):72-79.
	[ 许闻博, 王兴平. 高铁站点地区空间开发特征研究: 基于京沪高铁沿线案例的实证分析. 城市规划学刊, 2016, 60(1):72-79.]

产业类型	具体产业
基本服务产业	购物服务、餐饮服务、住宿服务、生活服务
衍生服务产业	公司企业、金融保险服务、商务住宅
相关服务产业	科教文化服务、医疗保健服务、体育休闲服务

区位	高铁站点	购物服务	餐饮服务	生活服务	公司企业	科教文化服务	医疗保健服务	住宿服务	商务住宅	体育休闲服务	金融保险服务	同一高铁站的 POI总数	同类区位高铁站的 POI总数
中心站	沈阳站	12699	8725	6341	2379	1790	1525	827	711	929	553	36479	96435
	合肥站	17543	7870	7530	4222	1514	1356	1555	1122	899	559	44170
	嘉善站	6730	2611	2594	1498	568	508	212	343	388	334	15786
城区站	齐齐哈尔站	5014	2319	2027	657	563	730	476	208	305	286	12585	44003
	通辽站	10171	5027	4600	1370	1349	1646	855	519	662	627	26826
	唐家湾站	1091	1306	568	551	272	135	256	214	133	66	4592
新城站	重庆北站	6159	5970	4018	1495	886	924	1439	647	545	435	22518	26943
	苏州北站	1470	389	558	854	83	36	69	135	64	53	3711
	庆盛站	118	101	76	313	31	17	5	21	18	14	714
产业POI总数		60995	34318	28312	13339	7056	6877	5694	3920	3943	2927	167381	167381
