中国近代城市体系的位序规模特征——基于1936年《中华民国邮政舆图》的分析

doi:10.11821/dlxb202108007

摘要/Abstract

摘要：

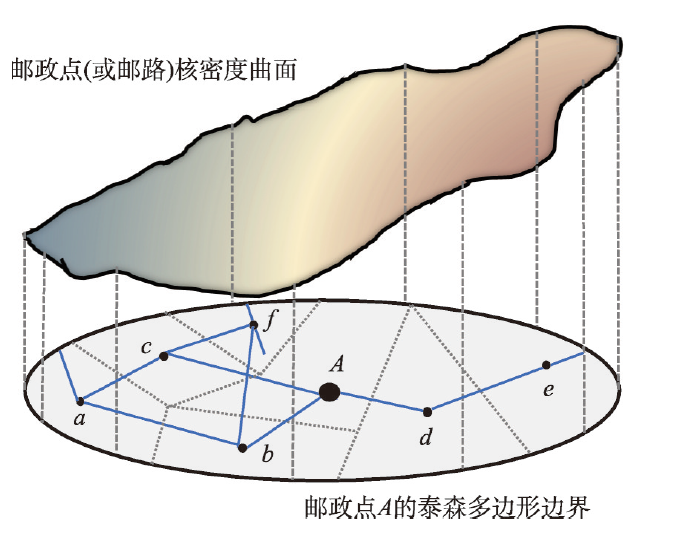

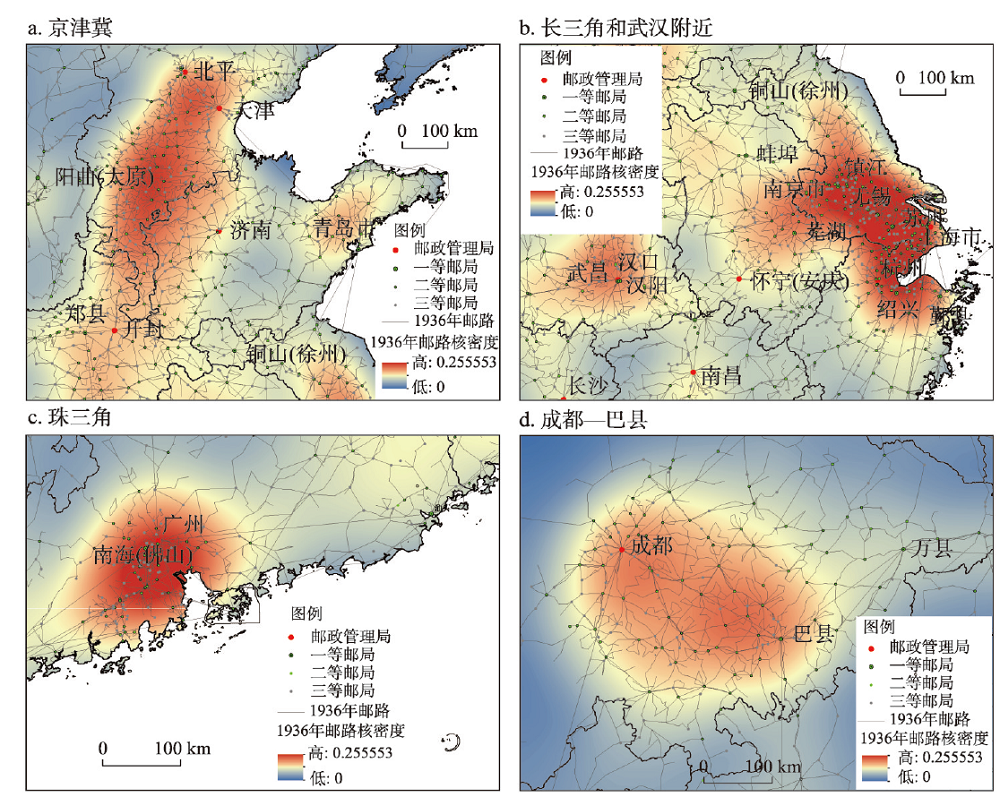

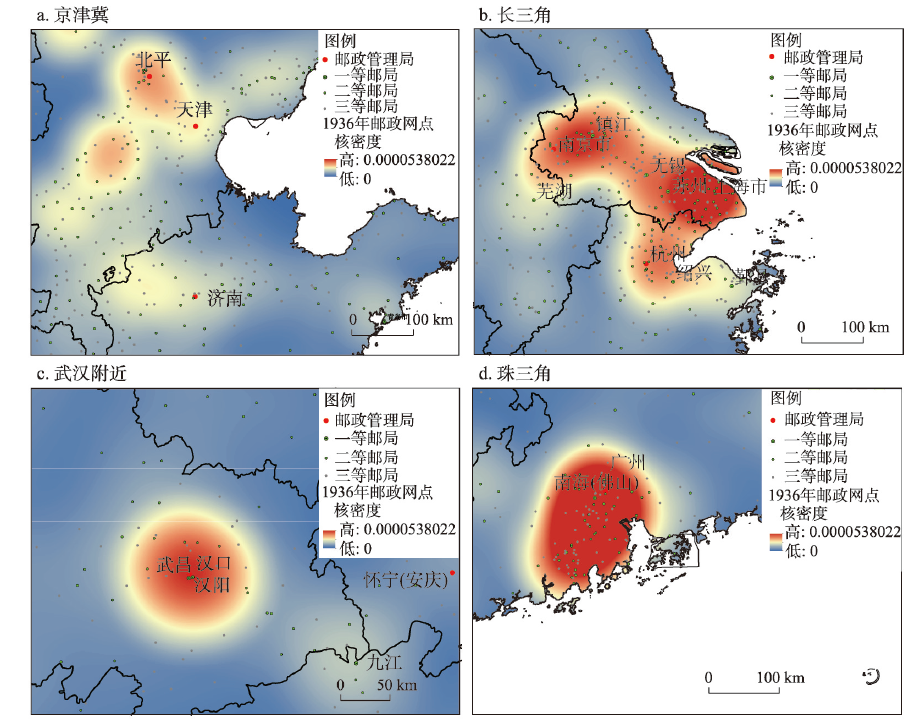

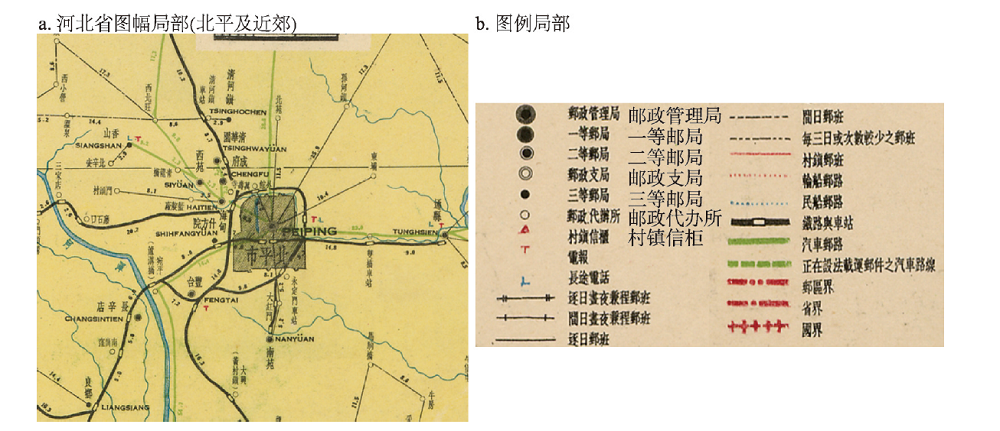

以往的中国历史时期城市体系的研究,受限于系统城市人口数据的缺失,无法进行定量化的城市体系位序规模分析。本文通过数字化1936年《中华民国邮政舆图》,在其13240个邮政网点和40余万km邮路的基础之上,分析得到了邮政网点和邮路核密度空间分布,利用泰森多边形和分区统计等GIS工具给近代中国城市的邮政能力T赋值。以T值作为城市规模的代用指标,进行城市体系的位序规模分析。结论显示：① 基于T值的近代中国城市位序规模分布符合齐普夫法则;② 1936年存在京津冀、长三角、珠三角、武汉和成都—巴县5个邮政聚集区;③ 1936年邮政网点和邮路空间分布存在“胡焕庸线”两侧的巨大空间分野,其西北半壁网点占比略少于人口占比,但高等级网点和邮路里程占比远高于人口占比;④ 本文将近代中国城市体系研究的样本量从以往的200左右（城市人口）提高到2360（T值）,第一次发现了1936年中国城市位序规模曲线独特的“中段凹陷”而导致的曲线整体“三段式”分布,迥异于同时期的美国和当下之中国,近代约50个左右城市的开埠通商是造成“头部”城市在城市规模上与中等规模城市拉开差距的关键因素;⑤ 邮政能力T值可视为近代中国城市规模的一个优秀代用指标。

关键词: 近代邮政舆图, 城市体系, 位序规模分布, 城市人口, 胡焕庸线, 中国

Abstract:

The lack of governmental and systematic urban population data limit the study progress in urban systems in China's historical period, which has great negative effect on quantitative analysis of urban system rank-size distribution. This paper digitized the "China Postal Atlas" in 1936, based on its 13240 postal points and more than 40000 km postal routes, and examined the spatial distribution of the kernel density of postal points and routes, using the Thiessen Polygon, Zonal Statistics and other GIS tools to give value to the postal capacity T of modern Chinese cities. T-value is used as a proxy for city size in modern China to analyze the rank-size rule. The conclusions are as follows. (1) The distribution of rank-size of cities in modern China based on the T-value was in accordance with Zipf's law. (2) In 1936, there were five postal aggregation areas in China: Beijing-Tianjin-Hebei region, the Yangtze River Delta, the Pearl River Delta, Wuhan and Chengdu-Baxian region, which is highly consistent with the current distribution of China's urban agglomerations. (3) In 1936, the spatial distribution of postal points and routes was very different on both sides of the "Hu Huangyong Line". The northwestern half to the line had a slightly smaller proportion of points than that of population, but a much higher proportion of high-grade points and routes than that of population. (4) In this paper, the sample size of urban system in modern China increased from about 200 (urban population) to 2360 (T-value). For the first time, the "three-stage" distribution caused by the unique "depression in the middle section" of the city size curve was found, which was quite different from that of the United States and China today. (5) The postal capacity T-value can be considered as a proxy for city size in urban geography studies in modern China.

Key words: China Postal Atlas, urban system, rank-size rule, urban population, Hu Huanyong Line, China

王哲, 郑法川. 中国近代城市体系的位序规模特征——基于1936年《中华民国邮政舆图》的分析[J]. 地理学报, 2021, 76(8): 1910-1923.

WANG Zhe, ZHENG Fachuan. Rank-size distribution of the modern China urban system based on the China Postal Atlas in 1936[J]. Acta Geographica Sinica, 2021, 76(8): 1910-1923.

图/表 13

图1

图2

表1

表2

图3

图4

图5

图6

图7

表3

图8

表4

图9

参考文献 44

[1]	Braudel F. Civilisation Matérielle, Économie et Capitalisme, XV^e-XVIII^e Siècle Tome 1: Les Structures du Quotidien: Le Possible et L'impossible. Gu Liang, Shi Kangqiang, trans. Beijing: The Commercial Press, 2017.
	[ 费尔南·布罗代尔. 十五至十八世纪的物质文明、经济和资本主义: 第一卷日常生活的结构: 可能和不可能. 顾良, 施康强, 译. 北京: 商务印书馆, 2017.]
[2]	Giddens A. Capitalism and Modern Social Theory: An Analysis of the Writings of Marx, Durkheim and Max Weber. Guo Zhonghua, Pan Hualing, trans. Shanghai: Shanghai Translation Publishing House, 2018.
	[ 安东尼·吉登斯. 资本主义与现代社会理论: 对马克思、涂尔干和韦伯著作的分析. 郭忠华, 潘华凌, 译. 上海: 上海译文出版社, 2018.]
[3]	Weber M. The Religion of China: Confucianism and Taoism. Kang Le, Jian Huimei, trans. Guilin: Guangxi Normal University Press, 2010.
	[ 马克斯·韦伯. 中国的宗教: 儒教与道教. 康乐, 简惠美, 译. 桂林: 广西师范大学出版社, 2010.]
[4]	Fujita M, Ogawa H, Thisse J F. A spatial competition approach to central place theory: Some basic principles. Journal of Regional Science, 1988, 28(4):477-494. doi: 10.1111/jors.1988.28.issue-4
[5]	Glaeser E L, Kallal H D, Scheinkman J A, et al. Growth in cities. Journal of Political Economy, 1992, 100(6):1126-1152. doi: 10.1086/261856
[6]	Glaeser E L. Triumph of the City: How Our Greatest Invention Makes Us Richer, Smarter, Greener, Healthier, and Happier. New York: The Penguin Press, 2011.
[7]	Ades A F, Glaeser E L. Trade and circuses: Explaining urban giants. The Quarterly Journal of Economics, 1995, 110(1):195-227. doi: 10.2307/2118515
[8]	Brakman S, Garretsen H, Van Marrewijk C, et al. The return of Zipf: Towards a further understanding of the rank-size distribution. Journal of Regional Science, 1999, 39(1):183-213. doi: 10.1111/1467-9787.00129
[9]	Gabaix X. Zipf's law for cities: An explanation. The Quarterly Journal of Economics, 1999, 114(3):739-767. doi: 10.1162/003355399556133
[10]	Long Y. Redefining Chinese city system with emerging new data. Applied Geography, 2016, 75:36-48. doi: 10.1016/j.apgeog.2016.08.002
[11]	Tan Minghong, Li Xiubin. The evolution of the urban system of the United States in the 20th century and its implications for China. Acta Geographica Sinica, 2010, 65(12):1488-1495. doi: 10.11821/xb201012005
	[ 谈明洪, 李秀彬. 20世纪美国城市体系的演变及其对中国的启示. 地理学报, 2010, 65(12):1488-1495.]
[12]	Brakman S, Garretsen H, Schramm M. The strategic bombing of German cities during World War II and its impact on city growth. Journal of Economic Geography, 2004, 4(2):201-218. doi: 10.1093/jeg/4.2.201
[13]	Davis D R, Weinstein D E. Bones, bombs, and break points: The geography of economic activity. American Economic Review, 2002, 92(5):1269-1289. doi: 10.1257/000282802762024502
[14]	Krugman P. Confronting the mystery of urban hierarchy. Journal of the Japanese and International Economies, 1996, 10(4):399-418. doi: 10.1006/jjie.1996.0023
[15]	Berry B J L. City size distributions and economic development. Economic Development and Cultural Change, 1961, 9(4):573-588. doi: 10.1086/449923
[16]	Gabaix X, Ioannides Y M. The evolution of city size distributions//Henderson V, Thisse J F. Handbook of Regional and Urban Economics, Vol. 4: Cities and Geography. Amsterdam: Elsevier, 2004: 2354.
[17]	Richardson H W. Theory of the distribution of city sizes: Review and prospects. Regional Studies, 1973, 7(3):239-251. doi: 10.1080/09595237300185241
[18]	Xue Junfei. Hierarchical structure and distribution pattern of Chinese urban system based on aviation network. Geographical Research, 2008, 27(1):23-32.
	[ 薛俊菲. 基于航空网络的中国城市体系等级结构与分布格局. 地理研究, 2008, 27(1):23-32.]
[19]	Zhong Yexi, Lu Yuqi. Hierarchical structure and distribution pattern of Chinese urban system based on railway network. Geographical Research, 2011, 30(5):785-794.
	[ 钟业喜, 陆玉麒. 基于铁路网络的中国城市等级体系与分布格局. 地理研究, 2011, 30(5):785-794.]
[20]	Zhen Feng, Wang Bo, Chen Yingxue. China's city network characteristics based on social network space: An empirical analysis of sina micro-blog. Acta Geographica Sinica, 2012, 67(8):1031-1043.
	[ 甄峰, 王波, 陈映雪. 基于网络社会空间的中国城市网络特征: 以新浪微博为例. 地理学报, 2012, 67(8):1031-1043.]
[21]	Jiao Jingjuan, Wang Jiao'e , Jin Fengjun , et al. Impact of high-speed rail on inter-city network based on the passenger train network in China, 2003-2013. Acta Geographica Sinica, 2016, 71(2):265-280. doi: 10.11821/dlxb201602007
	[ 焦敬娟, 王姣娥, 金凤君, 等. 高速铁路对城市网络结构的影响研究: 基于铁路客运班列分析. 地理学报, 2016, 71(2):265-280.]
[22]	Chen Wei, Liu Weidong, Ke Wenqian, et al. The spatial structures and organization patterns of China's city networks based on the highway passenger flows. Acta Geographica Sinica, 2017, 72(2):224-241.
	[ 陈伟, 刘卫东, 柯文前, 等. 基于公路客流的中国城市网络结构与空间组织模式. 地理学报, 2017, 72(2):224-241.]
[23]	Wang Jiao'e, Jing Yue. Comparison of spatial structure and organization mode of inter-city networks from the perspective of railway and air passenger flow. Acta Geographica Sinica, 2017, 72(8):1508-1519.
	[ 王姣娥, 景悦. 中国城市网络等级结构特征及组织模式: 基于铁路和航空流的比较. 地理学报, 2017, 72(8):1508-1519.]
[24]	Hu Guojian, Chen Chuanming, Jin Xingxing, et al. Research progress of networking of urban systems in China. Acta Geographica Sinica, 2019, 74(4):681-693. doi: 10.11821/dlxb201904005
	[ 胡国建, 陈传明, 金星星, 等. 中国城市体系网络化研究. 地理学报, 2019, 74(4):681-693.]
[25]	Wang Jiao'e, Du Delin, Jin Fengjun. Comparison of spatial structure and linkage systems and geographic constraints: A perspective of multiple traffic flows. Acta Geographica Sinica, 2019, 74(12):2482-2494. doi: 10.11821/dlxb201912005
	[ 王姣娥, 杜德林, 金凤君. 多元交通流视角下的空间级联系统比较与地理空间约束. 地理学报, 2019, 74(12):2482-2494.]
[26]	Gu Chaolin, Yu Taofang, Li Yuming, et al. China's Urbanization: Pattern, Process, and Mechanism. Beijing: Science Press, 2008.
	[ 顾朝林, 于涛方, 李王鸣, 等. 中国城市化: 格局·过程·机理. 北京: 科学出版社, 2008.]
[27]	Xiao Ailing. The Spatial Evolution of Western Han Urban System. Beijing: The Commercial Press, 2012.
	[ 肖爱玲. 西汉城市体系的空间演化. 北京: 商务印书馆, 2012.]
[28]	Xiao Ailing. An analysis of city grading and spatial distribution features of county areas in the early Western Han Dynasty: A study of bamboo slips unearthed from Han tomb in Zhangjiashan. Journal of Chinese Historical Geography, 2007, 22(4):60-70.
	[ 肖爱玲. 西汉初年汉郡区城市等级及空间分布特征探析: 张家山汉简研究. 中国历史地理论丛, 2007, 22(4):60-70.]
[29]	Acemoglu D, Moscona J, Robinson J A. State capacity and American technology: Evidence from the nineteenth century. American Economic Review, 2016, 106(5):61-67. doi: 10.1257/aer.p20161071
[30]	Cao Shuji. Study on the population of northern cities in Qing Dynasty: Discuss with G W Skinner. Chinese Journal of Population Science, 2001(4):15-28.
	[ 曹树基. 清代北方城市人口研究: 兼与施坚雅商榷. 中国人口科学, 2001(4):15-28.]
[31]	Zhang Qiyun. Progress of Chinese geography in the past two decades (Part 1). Acta Geographica Sinica, 1935, 2(3):93-132.
	[ 张其昀. 近二十年来中国地理学之进步(上). 地理学报, 1935, 2(3):93-132.]
[32]	Fairbank J K, Feuerwerker A. The Cambridge History of China, Vol. 13, Republican China, 1912-1949, Part 2. Liu Jingkun, Ye Zongyang, Zeng Jingzhong, et al. trans. Beijing: China Social Sciences Press, 1994: 175.
	[ 费正清, 费维恺. 剑桥中华民国史, 1912—1949(下). 刘敬坤, 叶宗敭, 曾景忠, 等, 译. 北京: 中国社会科学出版社, 1994: 175.]
[33]	Chang J K. Industrial development of China, 1912-1949. The Journal of Economic History, 1967, 27(1):56-81. doi: 10.1017/S0022050700070704
[34]	CHGIS, Version: 2.0. Cambridge, Version: 2.0. Cambridge, MA: Harvard Yenching Institute, 2003.
[35]	Zhang Liangren. China Post: Part 1. Shanghai: The Commercial Press, 1935: 78.
	[ 张樑任. 中国邮政(上). 上海: 商务印书馆, 1935: 78.]
[36]	US Census Bureau. Metropolitan Area Population: 1900-2000. [2020-08-27]. http://www.demographia.com/db-met1900.pdf.
[37]	Hou Yangfang. Chinese Population History, Vol. 6, 1910-1953. Shanghai: Fudan University Press, 2001: 477.
	[ 侯杨方. 中国人口史第六卷(1910—1953年). 上海: 复旦大学出版社, 2001: 477.]
[38]	Shen Rusheng. Distribution of Chinese cities. Acta Geographica Sinica, 1937, 4(1):915-935.
	[ 沈汝生. 中国都市之分布. 地理学报, 1937, 4(1):915-935.]
[39]	The Special Committee on Survey and Occupation China Continuation Committee. The Christian Occupation of China, Part 2. Cai Yongchun, Wen Yong, Duan Qi, et al. trans. Beijing: China Social Sciences Press, 2007: 1507-1512.
	[中华续行委办会调查特委会. 1901—1920年中国基督教调查资料(下卷). 蔡詠春, 文庸, 段琦, 等, 译. 北京: 中国社会科学出版社, 2007: 1507-1512.]
[40]	Perkins D H. Agriculture Development in China, 1368-1968. Song Haiwen, et al. trans. Shanghai: Shanghai Translation Publishing House, 1984: 386-395.
	[ 德怀特·珀金斯. 中国农业发展(1368—1968年). 宋海文, 等, 译. 上海: 上海译文出版社, 1984: 386-395.]
[41]	Skinner G W, Yue Z, Henderson M. China W-Cities,County Seats and Yamen Units (1820-1893), Harvard Dataverse, V2. UNF: 3: F3FTB3OM8GrAmXL4otsBVA==[fileUNF], 2008.
[42]	Hu Huanyong. Distribution of China's population: With statistical tables and density maps. Acta Geographica Sinica, 1935, 2(2):33-74. doi: 10.11821/xb193502002
	[ 胡焕庸. 中国人口之分布: 附统计表与密度图. 地理学报, 1935, 2(2):33-74.]
[43]	Chen Mingxing, Li Yang, Gong Yinghua, et al. The population distribution and trend of urbanization pattern on two sides of Hu Huanyong population line: A tentative response to Premier Li Keqiang. Acta Geographica Sinica, 2016, 71(2):179-193. doi: 10.11821/dlxb201602001
	[ 陈明星, 李扬, 龚颖华, 等. 胡焕庸线两侧的人口分布与城镇化格局趋势: 尝试回答李克强总理之问. 地理学报, 2016, 71(2):179-193.]
[44]	Huang Zhenguo, Li Pingri, Zhang Zhongying, et al. The Formation and Evolution of The Pearl Delta. Guangzhou: Guangzhou Branch of Science Popularization Press, 1982.
	[ 黄镇国, 李平日, 张仲英, 等. 珠江三角洲形成发育演变. 广州: 科学普及出版社广州分社, 1982.]

等级	数量(个)	官方设定标准
邮政管理局	29	省会或首都
一等邮局	47	营收5000元/月
支局	195	位于大城市内部;视同二等邮局
二等邮局	984	营收600元/月
三等邮局	1562	营收200元/月
邮政代办所	11536	营收27元/月
村镇信站	93	乡村邮递员所经村落

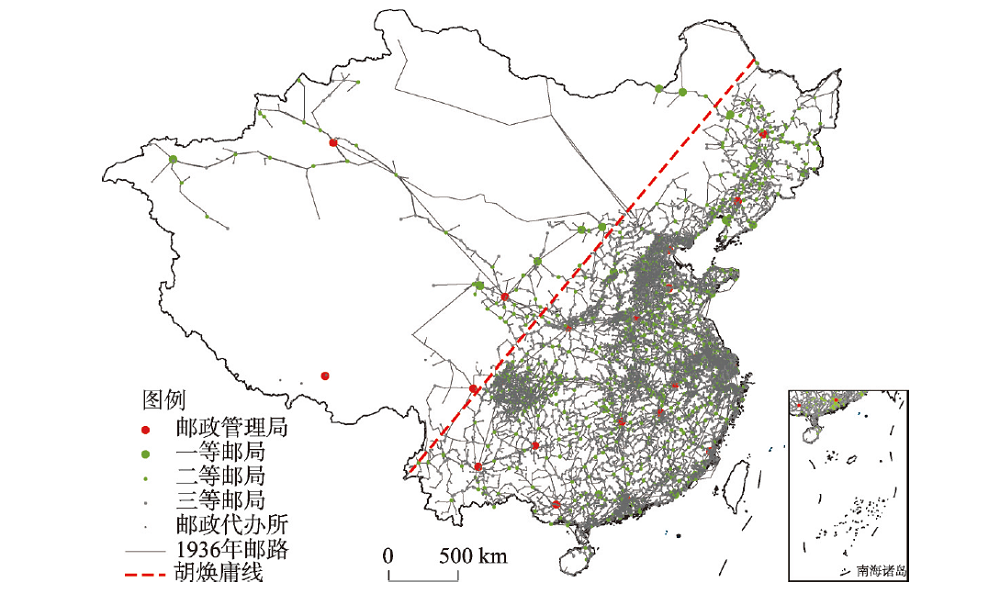

邮政等级	数量(个)	“胡焕庸线”西北半壁数量(个)	“胡焕庸线”西北半壁占比(%)
邮政管理局	29	5	17.2
一等邮局	47	10	21.3
支局	195	4	2.1
二等邮局	984	40	4.1
三等邮局	1562	66	4.2
邮政代办所	11536	272	2.4
村镇信站	93	18	19.4
邮路数	17604	613	3.5
邮路总里程(km)	407799	55776	13.7
合计	13240	415	3.1

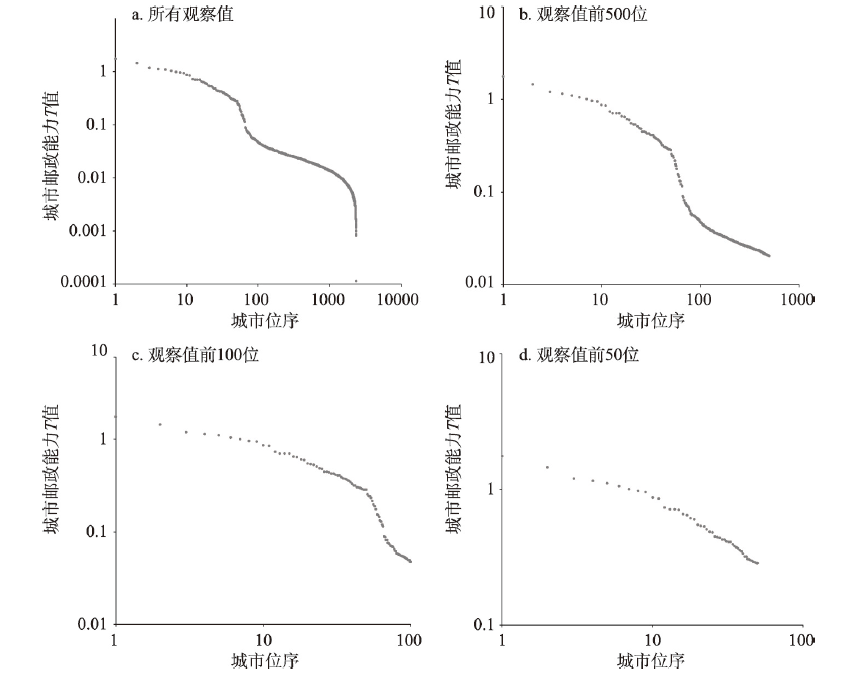

观察范围	q(斜率）	R(相关系数）
所有观察值	-0.85	-0.941
观察值前500位城市	-0.94	-0.953
观察值前100位城市	-1.02	-0.898
观察值前50位城市	-0.53	-0.974
1953年(中国前100位城市)	-0.91	-0.990
1963年(中国前100位城市)	-0.84	-0.992
1973年(中国前100位城市)	-0.81	-0.991

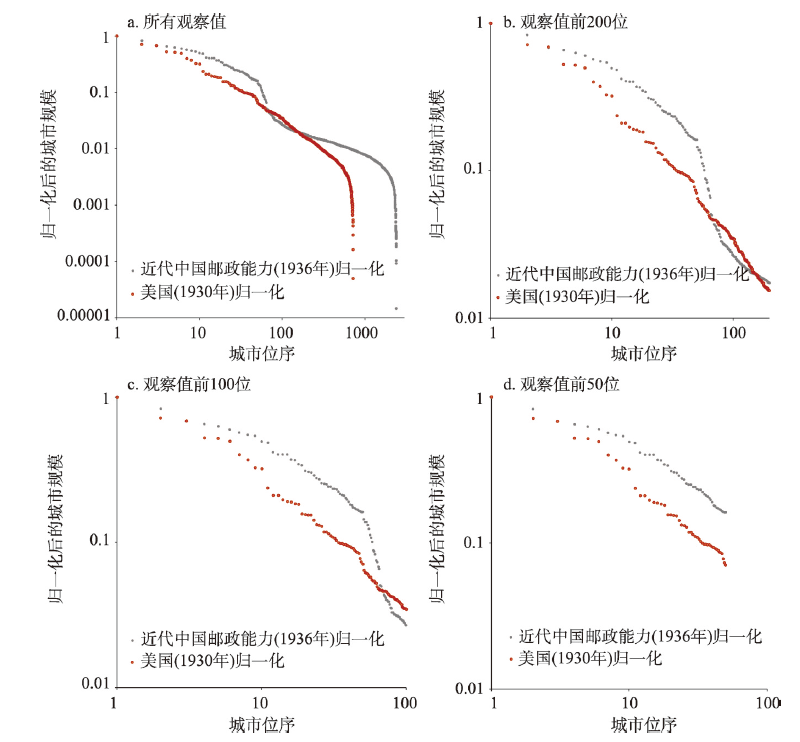

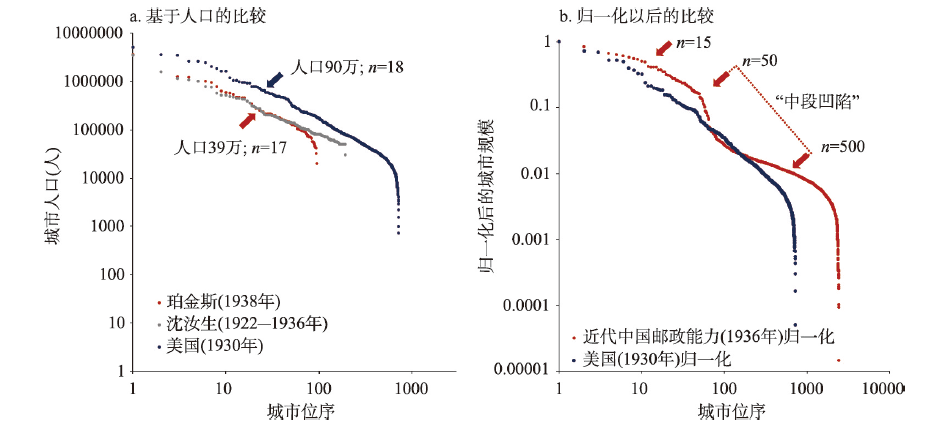

观察范围	q(斜率)	R(相关系数)
所有观察值(近代中国邮政)	-0.850	-0.9411
所有观察值(美国1930年)	-1.179	-0.9512
观察值前50位城市(近代中国邮政)	-0.531	-0.9736
观察值前50位城市(美国1930年)	-0.743	-0.9894
