东西伯利亚苔原—泰加林过渡带植被遥感物候时空特征及其对气温变化的响应

doi:10.11821/dlxb202107005

地理学报 ›› 2021, Vol. 76 ›› Issue (7): 1634-1648.doi: 10.11821/dlxb202107005

东西伯利亚苔原—泰加林过渡带植被遥感物候时空特征及其对气温变化的响应

李程¹^,²(), 庄大方¹, 何剑锋¹(), 文可戈¹^,²

1.中国科学院地理科学与资源研究所资源与环境信息系统国家重点实验室,北京 100101
2.中国科学院大学,北京 100049

收稿日期:2020-05-07 修回日期:2021-04-27 出版日期:2021-07-25 发布日期:2021-09-25
通讯作者: 何剑锋(1967-), 女, 湖南永州人, 副研究员, 主要从事国土资源遥感与GIS应用方面的研究。E-mail: hejianfeng@igsnrr.ac.cn
作者简介:李程(1991-), 男, 山东沾化人, 博士生, 主要从事植被物候变化遥感监测方面的研究。E-mail: licheng@lreis.ac.cn
基金资助:
高分辨率对地观测系统国家重大科技专项项目(30-Y20A07-9003-17/18)

Spatiotemporal variations in remote sensing phenology of vegetation and its responses to temperature change of boreal forest in tundra-taiga transitional zone in the Eastern Siberia

LI Cheng¹^,²(), ZHUANG Dafang¹, HE Jianfeng¹(), WEN Kege¹^,²

1. State Key Laboratory of Resources and Environment Information System, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China

Received:2020-05-07 Revised:2021-04-27 Published:2021-07-25 Online:2021-09-25
Supported by:
Major Projects of High Resolution Earth Observation(30-Y20A07-9003-17/18)

摘要/Abstract

摘要：

物候变化是气候变化的重要指示器,通过对植被物候时空变化的研究可以为进一步分析全球气候变化提供依据。基于2000—2017年MODIS-NDVI时间序列数据,利用不对称高斯函数和动态阈值法,提取、分析了东西伯利亚苔原—泰加林过渡带植被生长季起始期（SOS）、结束期（EOS）、中期（MOS）和长度（LOS）4种植被遥感物候参数的时空变化格局。同时结合同期CRU（Climate Research Unit）气温观测数据,分析了4种物候参数对气温变化的响应关系。结果表明：遥感物候参数可以直接、有效地反映气温的变化：研究区64°N以南区域4—5月气温升高,对应区域SOS提前5~15 d;64°N~72°N之间5—6月气温升高,对应区域SOS提前10~25 d;最北端北冰洋沿岸6月气温升高幅度较小且7月气温降低,对应区域SOS推后15~25 d;西北部8月、西南部9月气温降低,对应地区EOS提前15~30 d;67°N以南区域9—10月气温升高,对应区域EOS推后5~30 d;EOS的变化对气温变化较SOS更为敏感,较小的气温波动即引起EOS较大的变动;研究区内植被生长季整体呈前移趋势,且西北部LOS缩短,中部、南部LOS延长。

关键词: 遥感物候, 气候变化, 西伯利亚, 不对称高斯函数, MODIS-NDVI

Abstract:

Phenology is an important indicator of climate change. Studying spatiotemporal variations in remote sensing phenology of vegetation can provide a basis for further analysis of global climate change. Based on time series data of MODIS-NDVI from 2000 to 2017, we extracted and analyzed four remote sensing phenological parameters of vegetation, including the Start of Season (SOS), the End of Season (EOS), the Middle of Season (MOS) and the Length of Season (LOS), in tundra-taiga transitional zone in the East Siberia, using asymmetric Gaussian function and dynamic threshold methods. Meanwhile, we analyzed the responses of the four phenological parameters to the temperature change based on the temperature change data from Climate Research Unit (CRU). The results show that: in regions south of 64°N, with the rise of temperature in April and May, the SOS in the corresponding area was 5-15 days ahead of schedule; in the area between 64°N and 72°N, with the rise of temperature in May and June, the SOS in the corresponding area was 10-25 days ahead of schedule; in the northernmost of the study area on the coast of the Arctic Ocean, with the drop of temperature in May and June, the SOS in the corresponding area was 15-25 days behind schedule; in the northwest of the study area in August and the southwest in September, with the drop of temperature, the EOS in the corresponding areas was 15-30 days ahead of schedule; in regions south of 67°N, with the rise of temperature in September and October, the EOS in the corresponding area was 5-30 days behind schedule; the change of the EOS in autumn was more sensitive to the change of the SOS in spring, because the smaller temperature fluctuation can cause the larger change of the EOS; the growth season of vegetation in the study area was generally moving forward, and the LOS in the northwest was shortened, while the LOS in the middle and south of the study area was prolonged.

Key words: remote sensing phenology, climate change, Siberia, asymmetric Gaussian function, MODIS-NDVI

李程, 庄大方, 何剑锋, 文可戈. 东西伯利亚苔原—泰加林过渡带植被遥感物候时空特征及其对气温变化的响应[J]. 地理学报, 2021, 76(7): 1634-1648.

LI Cheng, ZHUANG Dafang, HE Jianfeng, WEN Kege. Spatiotemporal variations in remote sensing phenology of vegetation and its responses to temperature change of boreal forest in tundra-taiga transitional zone in the Eastern Siberia[J]. Acta Geographica Sinica, 2021, 76(7): 1634-1648.

图/表 8

图1

表1

图2

图3

图4

图6

图5

图7

参考文献 38

[1]	Zhu Kezhen, Wan Minwei. Phenology. Beijng: Science Press, 1975: 1-4.
	[ 竺可桢, 宛敏渭. 物候学. 北京: 科学出版社, 1975: 1-4.]
[2]	Harrison L. Phenology and Genecology of Woody Plants//Lieth H. (eds) Phenology and Seasonality Modeling. Ecological Studies: Analysis and Synthesis, vol 8. Berlin: Springer, 1974: 83-97.
[3]	Zheng J Y, Ge Q S, Hao Z X. Impacts of climate warming on plants phenophases in China for the last 40 years. Chinese Science Bulletin, 2002,47(21):1826-1831. doi: 10.1360/02tb9399
[4]	Li Xiaoting, Guo Wei, Ni Xiangnan, et al. Plant phenological responses to temperature variation in an alpine meadow. Acta Ecologica Sinica, 2019,39(18):6670-6680.
	[ 李晓婷, 郭伟, 倪向南, 等. 高寒草甸植物物候对温度变化的响应. 生态学报, 2019,39(18):6670-6680.]
[5]	Liu Yujie, Chen Qiaomin, Ge Quansheng, et al. Spatiotemporal differentiation of changes in wheat phenology in China under climate change from 1981 to 2010. Scientia Sinica: Terrae, 2018,48(7):888-898. doi: 10.1360/N072017-00100
	[ 刘玉洁, 陈巧敏, 葛全胜, 等. 气候变化背景下1981—2010中国小麦物候变化时空分异. 中国科学: 地球科学, 2018,48(7):888-898.]
[6]	Xu Yuqing, Lu Peiling, Yu Qiang. Response of tree phenology to climate change for recent 50 years in Beijing. Geographical Research, 2005,24(3):412-420.
	[ 徐雨晴, 陆佩玲, 于强. 近50年北京树木物候对气候变化的响应. 地理研究, 2005,24(3):412-420.]
[7]	Dai Junhu, Wang Huanjiong, Ge Quansheng. Changes of spring frost risks during the flowering period of woody plants in temperate monsoon area of China over the past 50 years. Acta Geographica Sinica, 2013,68(5):593-601.
	[ 戴君虎, 王焕炯, 葛全胜. 近50年中国温带季风区植物花期春季霜冻风险变化. 地理学报, 2013,68(5):593-601.]
[8]	Zhang Xiaodong, Zhu Wenbo, Zhang Jingjing, et al. Phenology of forest vegetation and its response to climate change in the Funiu Mountains. Acta Geographica Sinica, 2018,73(1):41-53. doi: 10.11821/dlxb201801004
	[ 张晓东, 朱文博, 张静静, 等. 伏牛山地森林植被物候及其对气候变化的响应. 地理学报, 2018,73(1):41-53.]
[9]	Zu Jiaxing, Yang Jian. Temporal variation of vegetation phenology in northeastern China. Acta Ecologica Sinica, 2016,36(7):2015-2023.
	[ 俎佳星, 杨健. 东北地区植被物候时序变化. 生态学报, 2016,36(7):2015-2023.]
[10]	Rupiya Xilaer, Yang Liao. Monitoring spatial-temporal change of cotton phenology in Xinjiang and its response to climate change. Remote Sensing Technology and Application, 2018,33(5):923-931.
	[ 茹皮亚·西拉尔, 杨辽. 新疆棉花物候时空变化遥感监测及气温影响分析. 遥感技术与应用, 2018,33(5):923-931.]
[11]	Ma Xiaofang, Chen Siyu, Deng Jie, et al. Vegetation phenology dynamics and its response to climate change on the Tibetan Plateau. Acta Prataculturae Sinica, 2016,25(1):13-21.
	[ 马晓芳, 陈思宇, 邓婕, 等. 青藏高原植被物候监测及其对气候变化的响应. 草业学报, 2016,25(1):13-21.]
[12]	Wan Minwei, Liu Xiuzhen. Methods of Phenological Observation in China. Beijng: Science Press, 1979.
	[ 宛敏渭, 刘秀珍. 中国物候观测方法. 北京: 科学出版社, 1979.]
[13]	Xia Chuanfu, Li Jing, Liu Qinhuo. Review of advances in vegetation phenology monitoring by remote sensing. Journal of Remote Sensing, 2013,17(1):1-16.
	[ 夏传福, 李静, 柳钦火. 植被物候遥感监测研究进展. 遥感学报, 2013,17(1):1-16.]
[14]	Zeng Linglin. Remote sensing for crop phenology detection: Taking corn and soybeans as examples[D]. Wuhan: Wuhan University, 2015.
	[ 曾玲琳. 作物物候期遥感监测研究: 以玉米与大豆为例[D]. 武汉: 武汉大学, 2015.]
[15]	Ebata M, Tateishi R. Phenological stage monitoring in Siberia by using NOAA/ AV HRR data. Singapore: The 22nd Asian Conference on Remote Sensing, 5-9 November 2001.
[16]	Li Lanhui, Liu Linshan, Zhang Yili, et al. Elevation-dependent alpine grassland and phenology on the Tibetan Plateau. Geographical Research, 2017,36(1):26-36.
	[ 李兰晖, 刘林山, 张镱锂, 等. 青藏高原高寒草地物候沿海拔梯度变化的差异分析. 地理研究, 2017,36(1):26-36.]
[17]	Xue B L, Guo Q H, Gong Y W, et al. The influence of meteorology and phenology on net ecosystem exchange in an eastern Siberian boreal larch forest. Journal of Plant Ecology, 2016,9(5):520-530. doi: 10.1093/jpe/rtv075
[18]	Chen Xiaoqiu, Wang Linhai. Progress in remote sensing phenological research. Progress in Geography, 2009,28(1):33-40. doi: 10.11820/dlkxjz.2009.01.005
	[ 陈效逑, 王林海. 遥感物候学研究进展. 地理科学进展, 2009,28(1):33-40.]
[19]	Huete A, Didan K, Miura T, et al. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sensing of Environment, 2002,83(1-2):195-213. doi: 10.1016/S0034-4257(02)00096-2
[20]	Varlamova E, Solovyev V. Study of NDVI vegetation index in East Siberia under global warming//International Society for Optics and Photonics. XXII International Symposium Atmospheric and Ocean Optics on Atmospheric Physics. 2016.
[21]	Guo Jian, Chen Shi, Xu Bin, et al. Remote sensing monitoring of grassland vegetation greenup based on SPOT-VGT in Xilingol League. Geographical Research, 2017,36(1):37-48.
	[ 郭剑, 陈实, 徐斌, 等. 基于SPOT-VGT数据的锡林郭勒盟草原返青期遥感监测. 地理研究, 2017,36(1):37-48.]
[22]	Zhang Xuexia, Ge Quansheng, Zheng Jingyun. Overview on the vegetation phenology using the remote sensing. Advances in Earth Science, 2003,18(4):534-544.
	[ 张学霞, 葛全胜, 郑景云. 遥感技术在植物物候研究中的应用综述. 地球科学进展, 2003,18(4):534-544.]
[23]	Wu Wenbin, Yang Peng, Tang Huajun, et al. Monitoring spatial patterns of cropland phenology in North China based on NOAA NDVI data. Scientia Agricultura Sinica, 2009,42(2):552-560.
	[ 吴文斌, 杨鹏, 唐华俊, 等. 基于NDVI数据的华北地区耕地物候空间格局. 中国农业科学, 2009,42(2):552-560.]
[24]	Liu Yujie, Ge Quansheng, Dai Junhu. Research progress in crop phenology under global climate change. Acta Geographica Sinica, 2020,75(1):14-24. doi: 10.11821/dlxb202001002
	[ 刘玉洁, 葛全胜, 戴君虎. 全球变化下作物物候研究进展. 地理学报, 2020,75(1):14-24.]
[25]	Justice C O, Townshend J R G, Holben B N, et al. Analysis of the phenology of global vegetation using meteorological satellite data. International Journal of Remote Sensing, 1985,6(8):1271-1318. doi: 10.1080/01431168508948281
[26]	Lloyd D. A phenological classification of terrestrial vegetation cover using shortwave vegetation index imagery. International Journal of Remote Sensing, 1990,11(12):2269-2279. doi: 10.1080/01431169008955174
[27]	Fischer A. A model for the seasonal variations of vegetation indices in coarse resolution data and its inversion to extract crop parameters. Remote Sensing of Environment, 1994,48(2):220-230. doi: 10.1016/0034-4257(94)90143-0
[28]	White M A, Thornton P E, Running S W. A continental phenology model for monitoring vegetation responses to interannual climatic variability. Global Biogeochemical Cycles, 1997,11(2):217-234. doi: 10.1029/97GB00330
[29]	Jönsson P, Eklundh L. TIMESAT: A program for analyzing time-series of satellite sensor data. Computers & Geosciences, 2004,30(8):833-845. doi: 10.1016/j.cageo.2004.05.006
[30]	Yu Xinfang, Zhuang Dafang. Monitoring forest phenophases of northeast China based on MODIS NDVI data. Resources Science, 2006,28(4):111-117.
	[ 于信芳, 庄大方. 基于MODIS NDVI数据的东北森林物候期监测. 资源科学, 2006,28(4):111-117.]
[31]	Picard G, Quegan S, Delbart N, et al. Bud‐burst modelling in Siberia and its impact on quantifying the carbon budget. Global Change Biology, 2005,11(12):2164-2176. doi: 10.1111/gcb.2005.11.issue-12
[32]	Liu R, Shang R, Liu Y, et al. Global evaluation of gap-filling approaches for seasonal NDVI with considering vegetation growth trajectory, protection of key point, noise resistance and curve stability. Remote Sensing of Environment, 2017,189:164-179. doi: 10.1016/j.rse.2016.11.023
[33]	Liu R G, Liu Y. Generation of new cloud masks from MODIS land surface reflectance products. Remote Sensing of Environment, 2013,133:21-37. doi: 10.1016/j.rse.2013.01.019
[34]	Liu R G. Compositing the minimum NDVI for MODIS Data. IEEE Transactions on Geoscience and Remote Sensing, 2017,55(3):1396-1406. doi: 10.1109/TGRS.2016.2623746
[35]	Reed B C, Brown J F, Vanderzee D, et al. Measuring phenological variability from satellite imagery. Journal of Vegetation Science, 1994,5(5):703-714. doi: 10.2307/3235884
[36]	Chen X, Tan Z J, Schwartz M D, et al. Determining the growing season of land vegetation on the basis of plant phenology and satellite data in northern China. International Journal of Biometeorology, 2000,44(2):97-101. pmid: 10993564
[37]	Wen Kege. Vegetation responses to climate change in northern high latitudes (2000-2013)[D]. Beijing: The University of Chinese Academy of Sciences, 2016.
	[ 文可戈. 北方高纬度地区植被的气候变化响应研究(2000—2013年)[D]. 北京: 中国科学院大学, 2016.]
[38]	Jonsson P, Eklundh L. Seasonality extraction by function fitting to time-series of satellite sensor data. IEEE Transactions on Geoscience and Remote Sensing, 2002,40(8):1824-1832. doi: 10.1109/TGRS.2002.802519

植被生长季参数	参数定义

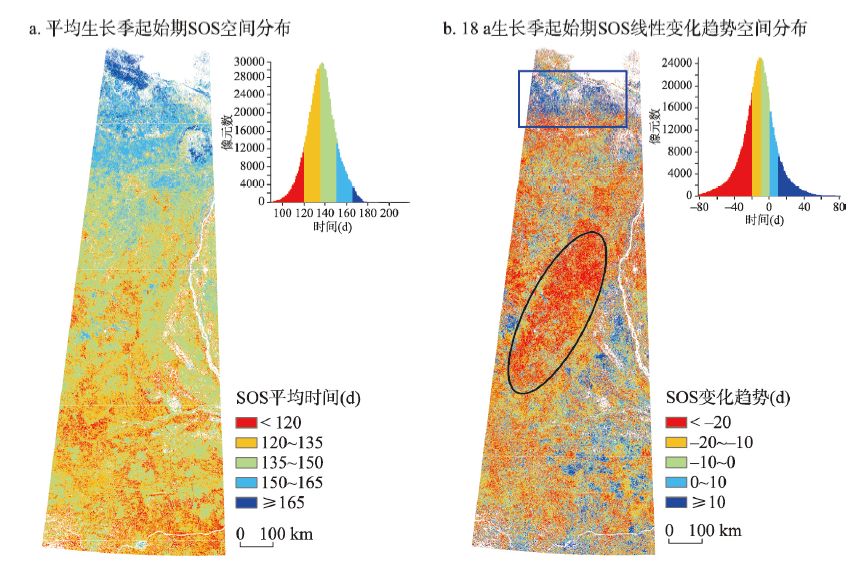

生长季起始期(SOS)	在NDVI生长曲线的左侧,当NDVI值从最小值上升到年际NDVI振幅的10%时所对应的天数

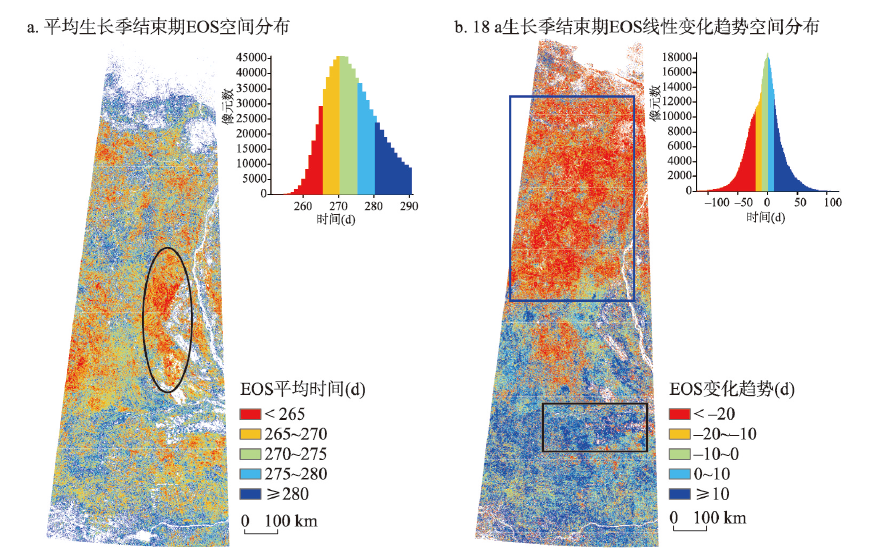

生长季结束期(EOS)	在NDVI生长曲线的右侧,当NDVI值从最大值下降到年际NDVI振幅的10%时所对应的天数

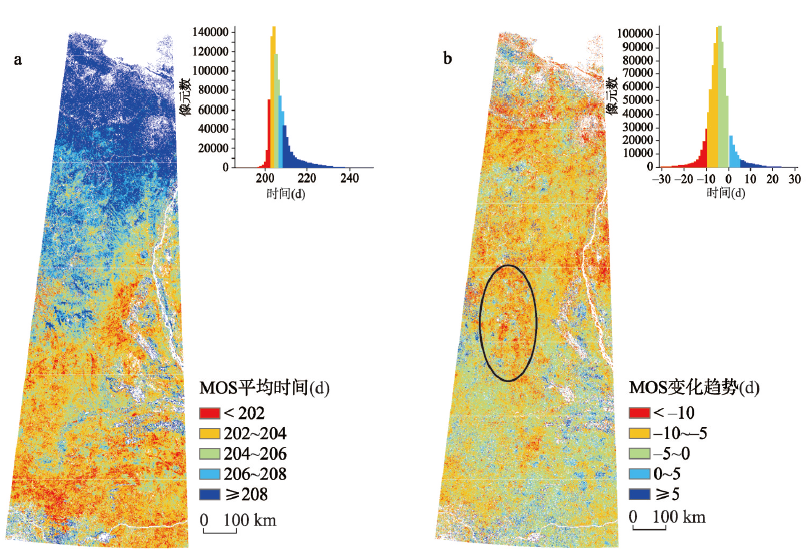

生长季中期(MOS)	曲线左侧NDVI上升到年际振幅80%时对应的天数到曲线右侧NDVI下降到年际振幅80%时对应的天数,之间天数的中点
生长季长度(LOS)	从生长季起始期到生长季结束期之间的天数
