基于信息扩散和混沌理论的西安市玉米生育期旱涝特征

doi:10.11821/dlxb202009006

摘要/Abstract

摘要：

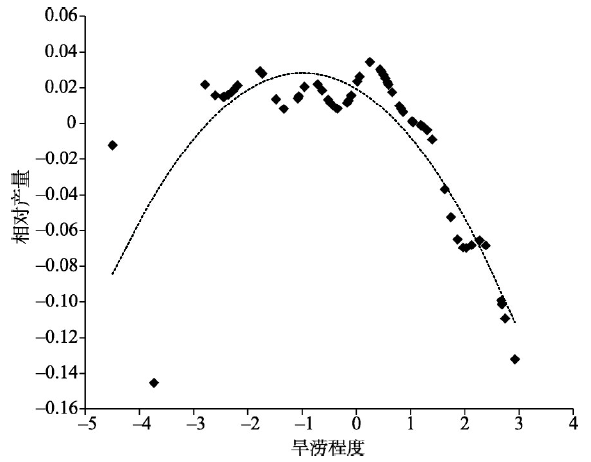

为研究区域旱涝特征以及对作物产量影响,在对比标准化降水蒸散指数和降水温度均一化指标的基础上,利用信息扩散和混沌时间序列分析技术,探讨作物各生育阶段的旱涝演化规律,以及不同生育阶段发生旱涝对产量的影响。以西安市为典型区域,将玉米作为研究对象,根据1951—2015年气象资料和玉米单产等数据,利用该文提出的方法进行分析。研究结果表明：① 西安市玉米各生育阶段的旱涝随时间变化的趋势呈现波峰、波谷交替起伏形式,表现出一定的周期性。2008年后各生育阶段均表现出向相对丰水方向发展的趋势。② 西安市玉米各生育阶段大多数处于正常状态,频率大约为45%。出苗—拔节阶段发生重旱的比例最大,达4.62%。拔节—抽雄阶段发生中涝（含）以上程度的频率最大,达15.39%。③ 玉米各生育阶段的旱涝时间序列的最大李雅普诺夫指数均大于0,各时间序列呈现一定程度的混沌特性。④ 拔节—抽雄阶段相对于其他生育阶段,产量和旱涝相关关系较明显,一定程度上反映出该阶段对水分的敏感性。

关键词: 旱涝, 作物, 气象, 混沌, 信息扩散, 李雅普诺夫指数

Abstract:

In order to study the characteristics of regional drought and flood and its impact on crop yield, this paper discusses the evolution law of drought and flood in each growth stage of crop and the impact of drought and flood in different growth stages on crop yield using the technology of information diffusion and chaotic time series analysis based on the comparison of SPEI and precipitation temperature homogenization index. With Xi'an as a typical region and corn as the research object, we analyzed the meteorological data and corn yield data from 1951 to 2015. The results show that: firstly, the trend of drought and flood in each growth stage of corn in Xi'an with time shows the form of wave crest and wavetrough alternately and a certain periodicity. Each growth stage of corn shows a trend of relative abundant water after 2008. Secondly, most of the growth stages of corn are in normal state, and the frequency is about 45%. The frequency maximum of severe drought is 4.62%, which occurred in emergence-jointing, and the frequency maximum of above moderate wetness is 15.39%, which occurred in the jointing-tasselling phase. Thirdly, the largest Lyapunov exponents of all growth phases are greater than 0. Time series of drought and flood indicate chaotic feature to a certain extent. Finally, the jointing-tasselling stage is compared with other growth stages, and the correlation between yield and drought and flood is obvious, which reflects the sensitivity of this stage to water to some extent. This research is of guiding implications to disaster prevention and yield reduction of corn in Xi'an city.

Key words: drought and flood, crops, meteorology, chaos, information diffusion, Lyapunov exponent

陈海涛, 邱林, 王文川, 陈晓楠, 段春青. 基于信息扩散和混沌理论的西安市玉米生育期旱涝特征[J]. 地理学报, 2020, 75(9): 1893-1906.

CHEN Haitao, QIU Lin, WANG Wenchuan, CHEN Xiaonan, DUAN Chunqing. Characteristics analysis of drought and flood for corn in Xi'an city based on information diffusion and chaos theory[J]. Acta Geographica Sinica, 2020, 75(9): 1893-1906.

图/表 11

图1

图2

图3

表1

图4

图5

图6

图7

图8

图9

图10

参考文献 30

[1]	Chen Shaodan, Zhang Liping, Tang Rouxin, et al. Analysis on temporal and spatial variation of drought in Henan Province based on SPEI and TVDI. Transactions of the Chinese Society of Agricultural Engineering, 2017,33(24):126-132.
	[ 陈少丹, 张利平, 汤柔馨, 等. 基于SPEI和TVDI的河南省干旱时空变化分析. 农业工程学报, 2017,33(24):126-132.]
[2]	Guo Meng, Zhang Qiying, Qian Hui, et al. Analysis on the drought temporal-spatial distribution characteristics of Shaanxi Province based on SPEI. Journal of Water Resources & Water Engineering, 2019,30(3):127-132.
	[ 郭梦, 张奇莹, 钱会, 等. 基于SPEI干旱指数的陕西省干旱时空分布特征分析. 水资源与水工程学报, 2019,30(3):127-132.]
[3]	Wang Jinsong, Guo Jiangyong, Zhou Yuewu, et al. Progress and prospect on drought indices research. Arid Land Geography, 2007,30(1):60-65.
	[ 王劲松, 郭江勇, 周跃武, 等. 干旱指标研究的进展与展望. 干旱区地理, 2007,30(1):60-65.]
[4]	Yao Yubi, Zhang Cunjie, Zheng Zhenyong, et al. Overview of meteorological and agricultural drought indices. Agricultural Research in the Arid Areas, 2007,25(1):185-189.
	[ 姚玉璧, 张存杰, 郑振镛, 等. 气象、农业干旱指标综述. 干旱地区农业研究, 2007,25(1):185-189.]
[5]	McKee T B, Doesken N J, Kleist J. The relationship of drought frequency and duration to time scales. California: Eighth Conference on Applied Climatology. American Meteorological Society, 1993: 179-184.
[6]	Vicenteserrano S M, Beguerìa S, Lópezmoreno J I. A multiscalar drought index sensitive to global warming: The standardized precipitation evapotranspiration index. Journal of Climate, 2010,23(7):1696-1718.
[7]	Li Baizhen, Zhou Guangsheng. Advance in the study on drought index. Acta Ecologica Sinica, 2014,34(1):1043-1052.
	[ 李柏贞, 周广胜. 干旱指标研究进展. 生态学报, 2014,34(5):1043-1052.]
[8]	Zhou Yuliang, Liu Li, Zhou Ping, et al. Identification of drought and frequency analysis of drought characteristics based on Palmer drought severity index model. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2014,30(23):174-184.
	[ 周玉良, 刘立, 周平, 等. 基于帕尔默旱度模式的干旱识别及其特征值频率分析. 农业工程学报, 2014,30(23):174-184.]
[9]	Gao C, Zhang Z T, Zhai J Q, et al. Research on meteorological thresholds of drought and flood disaster: A case study in the Huai River Basin, China. Stochastic Environmental Research and Risk Assessment, 2015,29(1):157-167.
[10]	Wang Xiaodong, Ma Xiaoqun, Xu Ying, et al. Temporal analysis of the crop water surplus deficit index for the whole growth period in the Huaihe Basin. Resources Science, 2013,35(3):665-672.
	[ 王晓东, 马晓群, 许莹, 等. 淮河流域主要农作物全生育期水分盈亏时空变化分析. 资源科学, 2013,35(3):665-672.]
[11]	Shi Shangyu, Wang Fei, Jin Kai, et al. Temporal and spatial characteristics of drought based on SPEI in northern China from 1981 to 2017. Agricultural Research in the Arid Areas, 2019,37(4):215-222.
	[ 史尚渝, 王飞, 金凯, 等. 基于SPEI的1981—2017年中国北方地区干旱时空分布特征. 干旱地区农业研究, 2019,37(4):215-222.]
[12]	Gao Chao, Yin Zhouxiang, Xu Ying. Space-time characteristics of drought and flood in main growing periods of winter wheat in Huaihe River Basin and its impact on yield. Transactions of the Chinese Society of Agricultural Engineering, 2017,33(22):103-111.
	[ 高超, 尹周祥, 许莹. 淮河流域冬小麦主要生育期旱涝时空特征及对产量影响. 农业工程学报, 2017,33(22):103-111.]
[13]	Shi Yinshan, Wang Yuzhen, Chi Juncheng, et al. Impact of climate change on winter wheat production in the Hebei Plain. Chinese Journal of Eco-Agriculture, 2008,16(6):1444-1447.
	[ 史印山, 王玉珍, 池俊成, 等. 河北平原气候变化对冬小麦产量的影响. 中国生态农业学报, 2008,16(6):1444-1447.]
[14]	Wang Yingying, Wang Zhiliang, Zhang Zezhong, et al., Evaluating the spatiotemporal evolution of drought in Guizhou Province using the SPEI index. Journal of Irrigation and Drainage, 2019,38(6):119-128.
	[ 王盈盈, 王志良, 张泽忠, 等. 基于SPEI的贵州省分区干旱时空演变特征. 灌溉排水学报, 2019,38(6):119-128.]
[15]	Qin Linlin, Song Yanhong. Temporal-spatial distribution of drought and flood in Henan Province during 1963-2013. Journal of Qufu Noraml University, 2019,45(1):28-32.
	[ 秦琳琳, 宋艳红. 河南省近53年旱涝变化特征分析. 曲阜师范大学学报, 2019,45(1):28-32.]
[16]	Sun Yi, Huang Xianfeng. Application of maximum Lyapunuov index-based chaotic forecasting method to real-time flood forecast. Water Resources and Hydropower Engineering, 2016,47(1):102-106.
	[ 孙义, 黄显峰. 基于最大Lyapunov指数的混沌预测在洪水实时预报中应用. 水利水电技术, 2016,47(1):102-106.]
[17]	Wang Shi, Sui Yongxi, Dong Yan, et al. LAN traffic flow prediction using improved small data method. Journal of Jilin University (Engineering and Technology Edition), 2016,46(4):1254-1260.
	[ 王石, 隋永新, 董琰, 等. 基于改进型小数据量法的局域网流量预测. 吉林大学学报(工学版), 2016,46(4):1254-1260.]
[18]	Lu Yu, Chen Yuhong, He Guoguang. The computing of maximum Lyapunov exponent in traffic flow applying the improved small-data method. Systems Engineering: Theory & Practices, 2007,27(1):86-90.
	[ 卢宇, 陈宇红, 贺国光. 应用改进型小数据量法计算交通流的最大Lyapunuov指数. 系统工程理论与实践, 2007,27(1):86-90.]
[19]	Huang Chongfu. Risk Assessment of Natural Disaster. Beijing: Science Press, 2001.
	[ 黄崇福. 自然灾害风险分析. 北京: 科学出版社, 2001.]
[20]	Wang Wenxiang. Analysis of regional drought characteristics based on information diffusion theory and multi-fractal theory[D]. Yangzhou: Yangzhou University, 2015.
	[ 王文祥. 基于信息扩散理论和多重分形理论的区域干旱特征分析. 扬州: 扬州大学, 2015.]
[21]	中国气象数据网[EB/OL]. http://data.cma.gov.cn, 2018-03-02.
[22]	Gong Zhuping. The calculating method of the average period of chaotic time series. System Engineering, 2010,28(12):111-113.
	[ 龚祝平. 混沌时间序列的平均周期计算方法. 系统工程, 2010,28(12):111-113.]
[23]	Han Min. Prediction Theory and Method of Chaotic Time Series. Beijing: China Water & Power Press, 2007.
	[ 韩敏. 混沌时间序列预测理论与方法. 北京: 中国水利水电出版社, 2007.]
[24]	Lv Jinhu, Lu Junan, Chen Shihua, et al. Chaotic Time Series Analysis and Its Application. Wuhan: Wuhan University Press, 2002.
	[ 吕金虎, 陆君安, 陈士华, 等. 混沌时间序列分析及其应用. 武汉: 武汉大学出版社, 2002.]
[25]	Tao Zhaolin, Chen Guohua. Computational Lyapunov exponents based on C-C method. Journal of Nanjing Institute of Meteorology, 2002,25(4):555-559.
	[ 陶诏灵, 陈国华. 基于C-C方法的Lyapunov指数计算. 南京气象学院学报, 2002,25(4):555-559.]
[26]	Li Hongmei, Fan Jianzhong. Characteristics of meteorological drought in the growth period of Guanzhong Summer Maize. Journal of Shaanxi Meteorology, 2015(4):1-5.
	[ 李红梅, 范建忠. 关中夏玉米生育期气象干旱特征分析. 陕西气象, 2015(4):1-5.]
[27]	Wu H, Hubbard K G, Wilhite D A. An agricultural drought risk-assessment model for corn and soybeans. International Journal of Climatology, 2004,24(6):723-741.
[28]	Zhao Xingkai, Li Zengyao, Zhu Qingke. Response of soil moisture on climate characteristics based on SPI and SPEI in loess region of northern Shaanxi. Transactions of the Chinese Society of Agricultural Machinery, 2016,47(8):155-163.
	[ 赵兴凯, 李增尧, 朱清科. 基于SPI和SPEI陕北黄土区土壤水分对气候特征的响应. 农业机械学报, 2016,47(8):155-163.]
[29]	Chen Xiaonan, Jia Qi, Gao Yu, et al. Analysis on wheat drought risk based on information diffusion technology in Xi'an city. Journal of North China Institute of Water Conservancy and Hydroelectric Power, 2012,33(3):20-22.
	[ 陈晓楠, 贾琦, 高宇, 等. 基于信息扩散技术的西安市小麦干旱风险分析. 华北水利水电大学学报, 2012,33(3):20-22.]
[30]	Li Yuanhua. Theory and Technology of Water Saving Irrigation. Wuhan: Wuhan University of Hydraulic and Electric Engineering Press, 1998.
	[ 李远华. 节水灌溉理论与技术. 武汉: 武汉水利电力大学出版社, 1998.]

旱涝等级	全生育期	播种—出苗	出苗—拔节	拔节—抽雄	抽雄—成熟
重涝	3.85	6.15	4.62	3.08	1.54
中涝	8.08	6.15	4.62	12.31	9.23
轻涝	15.38	12.31	20.00	9.23	20.00
正常	44.62	47.69	43.08	46.15	41.54
轻旱	15.77	15.38	15.38	16.92	15.38
中旱	10.77	12.31	7.69	12.31	10.77
重旱	1.54	0.00	4.62	0.00	1.54
