河流过程的累积现象和随机模型

doi:10.11821/dlxb202005014

摘要/Abstract

摘要：

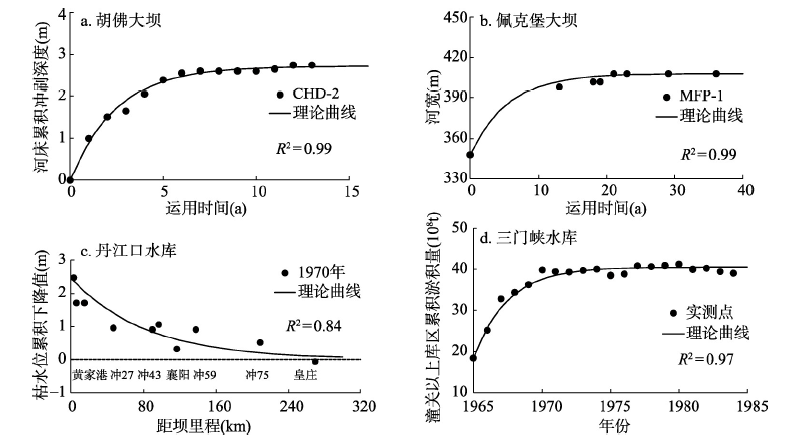

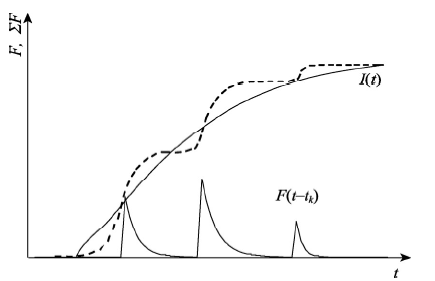

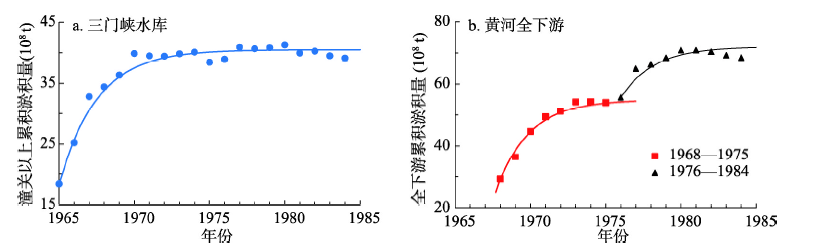

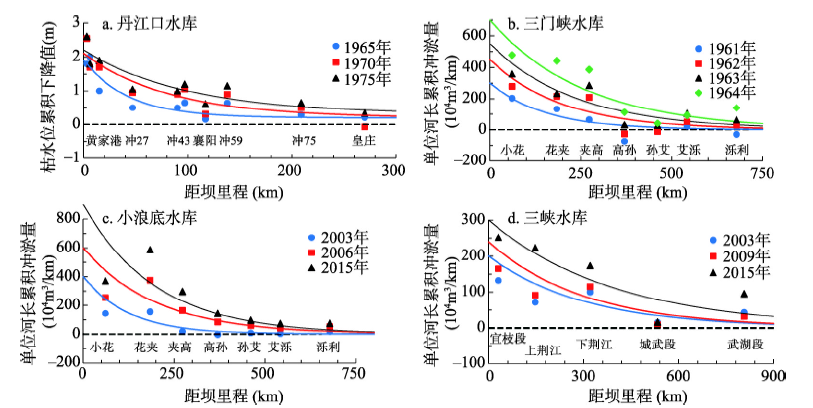

累积现象普遍存在于河流过程中,准确考虑前期水沙条件的累积影响对冲积河流河床演变规律的研究至关重要。为揭示累积现象的物理实质,本文对国内外多条典型冲积河流上枢纽修建后其上下游河道冲淤实测资料进行了分析。定义水沙条件变化为外部扰动,并假定其发生概率符合泊松分布及单个扰动引发的系统反馈强度随时间呈指数衰减。本文运用统计力学中的随机理论给出了冲积河流外部扰动诱发的内部反馈随时间的累积过程及其时空间演进的数学描述和理论模型,并将其应用于枢纽修建后其上下游河道形态时空调整过程的模拟。结果发现,从时间上看,断面垂向、横向及全河段的冲淤调整速率早期较快,之后迅速减缓,河床累积冲刷深度、河宽及河段累积淤积量随时间不断增大直至平衡,表现出典型的累积特性;从空间上看,坝下河段冲刷强度沿程非线性衰减直至消失,这种空间分布上的不平衡是外部扰动引发的系统反馈在空间传播的同时随时间衰减的综合结果,是河流过程累积特性的另一外在表现。模型应用结果表明,河道垂向、横向、纵向及全河段的时空冲淤调整过程均可用归一化公式来描述,计算值与实测值符合较好,相关系数R ²达0.92、0.93、0.76和0.95。本文模型同时考虑了河流过程的累积特性和系统反馈的空间传播特性,可为定量描述扰动后非平衡态河道的时空调整过程提供理论依据和新的计算方法。

关键词: 累积现象, 河流过程, 累积冲淤量, 累积冲刷深度, 河宽

Abstract:

The accumulation phenomenon commonly occurs in fluvial processes. Accurately considering the accumulation effects of previous water and sediment conditions is essential for the study of riverbed evolution. To reveal the physical dynamics of the accumulation phenomenon, herein various geometry observations upstream and downstream of dam on several domestic and overseas typical fluvial rivers were analyzed. To do this, the changes in water and sediment conditions were defined as external disturbances, based on assumptions that the probability of an external disturbance conforms to the Poisson distribution and the feedback intensity induced by an individual disturbance decays exponentially with time. In this paper, a mathematical description of the accumulation processes of internal feedback induced by external disturbances is given, and a corresponding theoretical model is proposed for simulating the spatio-temporal adjustment processes of river characteristic variables on the basis of the stochastic theory in statistical mechanics. Further, the above models were then applied to investigate the spatio-temporal adjustment processes of the upper and lower reaches of dams after their construction. Results revealed two key findings. (i) Temporally, the vertical, lateral, and whole reaches' adjustment rates over time are relatively fast in the early period following disturbances but then slow down rapidly, while the accumulated bed degradation, river width and accumulated sedimentation continuously increase until a new dynamic equilibrium state is attained; these phenomena reflect the representative accumulation characteristics of fluvial processes. (ii) Spatially, the erosion intensity downstream of dams decreases nonlinearly along the channel until it eventually diminishes. In fact, the unbalanced distribution of erosion intensity across space arises from the system feedback caused by external disturbances propagating in space yet decaying over time, which is another external manifestation of an accumulation characteristic in fluvial processes. Model applications indicate that the spatio-temporal adjustment processes of cross sections and channel reaches can be accurately described by the unified theoretical formula derived from equation deforming, since the model predictions show good agreement with observed field data: coefficient of determination (R ²) between them attained values of 0.92, 0.93, 0.76, and 0.95. The proposed theoretical models take both the accumulative characteristics of fluvial processes and the spatial propagation characteristics of system feedback into account synthetically. In demonstrating this approach, this study provides the theoretical basis and new calculation method for quantitatively describing the spatio-temporal adjustment processes of non-equilibrium fluvial channels following disturbances.

Key words: accumulation phenomenon, fluvial process, accumulated erosion and sedimentation, accumulated riverbed degradation, channel width

景唤, 钟德钰, 张红武, 石旭芳, 王彦君. 河流过程的累积现象和随机模型[J]. 地理学报, 2020, 75(5): 1079-1094.

JING Huan, ZHONG Deyu, ZHANG Hongwu, SHI Xufang, WANG Yanjun. The accumulation phenomenon and stochastic model in fluvial processes[J]. Acta Geographica Sinica, 2020, 75(5): 1079-1094.

图/表 11

表1

图1

图2

图3

图4

图5

表2

表3

图6

图7

图8

参考文献 42

[1]	Xie Jianheng. River Evolution and Renovation. Wuhan: Wuhan University Press, 2013: 7-10.
	[ 谢鉴衡 . 河床演变及整治. 武汉: 武汉大学出版社, 2013: 7-10.]
[2]	Qian Yiying, Wu Zhi, Zhu Cuixia . Preliminary analysis on maintaining effective storage capacity of reservoirs on heavy sediment-laden river//Compilation of Reservoir Sediment Reports. Communication Meeting about the Sediment Observation and Research Achievements of the Yellow River Reservoir. Zhengzhou: Yellow River Institute of Hydraulic Research, 1972: 102-111.
	[ 钱意颖, 吴知, 朱粹侠 . 关于在多沙河流上修建水库保持有效库容的初步分析//水库泥沙报告汇编. 黄河水库泥沙观测研究成果交流会. 郑州: 黄河水利科学研究院, 1972: 102-111.]
[3]	Zhang Hongwu, Liu Hailing, Jiang Enhui , et al. Study of evolution trend of wandering channel in the lower Yellow River during sediment storage period of Xiaolangdi Reservoir. Yellow River, 1998,20(11):5-7.
	[ 张红武, 刘海凌, 江恩惠 , 等. 小浪底水库拦沙期下游游荡性河段演变趋势研究. 人民黄河, 1998,20(11):5-7.]
[4]	Zhang Hongwu, Huang Yujie, Zhao Lianjun , et al. Mathematical model of river bed change downstream of Xiaolangdi Reservoir in early operation period. Journal of Hydroelectric Engineering, 2002(1):139-145.
	[ 张红武, 黄玉婕, 赵连军 , 等. 小浪底水库运用初期下游河道冲淤数学模型预测计算. 水力发电学报, 2002(1):139-145.]
[5]	Zhang Hongwu, Zhang Qing, Jiang Enhui . Calculation of dominated discharge in the lower Yellow River. Journal of Sediment Research, 1994(4):50-55.
	[ 张红武, 张清, 江恩惠 . 黄河下游河道造床流量的计算方法. 泥沙研究, 1994(4):50-55.]
[6]	Zhang Hongwu, Zhao Lianjun, Cao Fengsheng . Research of the cause of formation of wandering river model and its changes. Yellow River, 1996,18(10):11-15.
	[ 张红武, 赵连军, 曹丰生 . 游荡河型成因及其河型转化问题的研究. 人民黄河, 1996,18(10):11-15.]
[7]	Liang Zhiyong, Yang Lifeng, Feng Pulin . Relations of channel geometry to water and sediment rate for the lower Yellow River. Journal of Hydroelectric Engineering, 2005,24(6):68-71.
	[ 梁志勇, 杨丽丰, 冯普林 . 黄河下游平滩河槽形态与水沙搭配之关系. 水力发电学报, 2005,24(6):68-71.]
[8]	Xia Junqiang, Zong Quanli, Zhang Yi , et al. Prediction of recent bank retreat processes at typical sections in the Jingjiang Reach. Science China Technological Sciences, 2014,57(8):1490-1499.
[9]	Xia Junqiang, Li Xiaojuan, Li Tao , et al. Response of reach-scale bankfull channel geometry to the altered flow and sediment regime in the lower Yellow River. Geomorphology, 2014,213(4):255-265.
[10]	Chen Jianguo, Hu Chunhong, Dong Zhandi , et al. Change of bankfull and bed-forming discharges in the Lower Yellow River. Journal of Sediment Research, 2006(5):10-16.
	[ 陈建国, 胡春宏, 董占地 , 等. 黄河下游河道平滩流量与造床流量的变化过程研究. 泥沙研究, 2006(5):10-16.]
[11]	Wu Baosheng, Wang Guanqian, Xia Junqiang , et al. Response of bankfull discharge to discharge and sediment load in the Lower Yellow River. Geomorphology, 2008,100(3):366-376.
[12]	Wu Baosheng, You Tao . Theoretical model for delayed response of reservoir sedimentation. Journal of Hydraulic Engineering, 2008,39(5):627-632.
	[ 吴保生, 游涛 . 水库泥沙淤积滞后响应的理论模型. 水利学报, 2008,39(5):627-632.]
[13]	Wu Baosheng, Zheng Shan, Thorne C R . A general framework for using the rate law to simulate morphological response to disturbance in the fluvial system. Progress in Physical Geography, 2012,36(5):575-597.
[14]	Knighton D . Fluvial Forms and Processes: A New Perspective. London: Routledge, 2014: 279-289.
[15]	Jia Ruimin . Effect of bed erosion and fall of water at the lower reach of Danjiangkou Reservoir on the waterway. Journal of Waterway and Harbor, 1992(4):12-22.
	[ 贾锐敏 . 丹江口水库下游河床冲刷与水位降落对航道的影响. 水道港口, 1992(4):12-22.]
[16]	Yang Yunping, Zhang Mingjin, Sun Zhaohua , et al. The relationship between water level change and river channel geometry adjustment in the downstream of the Three Gorges Dam (TGD). Acta Geographica Sinica, 2017,72(5):776-789.
	[ 杨云平, 张明进, 孙昭华 , 等. 三峡大坝下游水位变化与河道形态调整关系研究. 地理学报, 2017,72(5):776-789.]
[17]	Wang Zhaoyin, Li Changzhi, Wang Feixin . Effect of Tongguan's elevation on the fluvial process of the lower Weihe River. Journal of Hydraulic Engineering, 2004,35(9):1-8.
	[ 王兆印, 李昌志, 王费新 . 潼关高程对渭河河床演变的影响. 水利学报, 2004,35(9):1-8.]
[18]	Li Changzhi, Wang Zhaoyin, Wu Baosheng , et al. Effect of descending Tongguan's elevation on flood defense situation of Weihe River. Journal of Hydraulic Engineering, 2005,36(2):147-154.
	[ 李昌志, 王兆印, 吴保生 , 等. 潼关高程下降对渭河下游防洪的影响. 水利学报, 2005,36(2):147-154.]
[19]	Williams G P, Wolman M G . Downstream Effects of Dams on Alluvial Rivers. United States Geological Survey Professional Paper 1286. Washington DC: U.S. Government Printing Office, 1984: 66-83.
[20]	Peng Tao, Yan Hao, Guo Jiali , et al. Impact of Danjiangkou Reservoir operation on downstream hydrological regime. Yangtze River, 2016,47(6):22-26.
	[ 彭涛, 严浩, 郭家力 , 等. 丹江口水库运用对下游水文情势影响研究. 人民长江, 2016,47(6):22-26.]
[21]	Chien Ning . Changes in river regime after the construction of upstream reservoirs. Earth Surface Processes and Landforms, 1985,10(2):143-159.
[22]	Qian Ning, Zhang Ren, Zhou Zhide. iverbed Evolution. Beijing: Science Press, 1987: 473-476.
	[ 钱宁, 张仁, 周志德 . 河床演变学. 北京: 科学出版社, 1987: 473-476.]
[23]	Rahn P H . Erosion below main stem dams on the Missouri River. Bulletin of the Association of Engineering Geologists, 1977,14(3):157-181.
[24]	Wang Suiji . Channel pattern specialities and the formation of the lower reaches of the Yellow River. Acta Geoscientica Sinica, 2003,24(1):73-78.
	[ 王随继 . 黄河下游河型的特性及成因探讨. 地球学报, 2003,24(1):73-78.]
[25]	Xu Jiongxin, Zhang Ouyang . Complicated fill-scour behaviors of the Huanghe River and the channel-forming processes. Acta Geographica Sinica, 2000,67(3):274-280.
	[ 许炯心, 张欧阳 . 黄河下游游荡段河床调整对于水沙组合的复杂响应. 地理学报, 2000,67(3):274-280.]
[26]	Chien Ning, Zhou Wenhao, Hong Roujia . The characteristics and genesis analysis of the braided stream of the lower Yellow River. Acta Geographica Sinica, 1961,28:1-27.
	[ 钱宁, 周文浩, 洪柔嘉 . 黄河下游游荡性河道的特性及其成因分析. 地理学报, 1961,28:1-27.]
[27]	Fu Renshou, Qi Meilan, Fang Hongwei , et al. Sediment transport characteristics of Yangtze River in river section from Yichang to Hankou. Journal of Hydraulic Engineering, 2005,36(1):35-41.
	[ 府仁寿, 齐梅兰, 方红卫 , 等. 长江宜昌至汉口河段输沙特性分析. 水利学报, 2005,36(1):35-41.]
[28]	Liu Ning . On the control of Tongguan elevation and operation mode of Sanmenxia Reservoir. Journal of Hydraulic Engineering, 2005,36(9):1019-1028.
	[ 刘宁 . 对潼关高程控制及三门峡水库运用方式研究的认识. 水利学报, 2005,36(9):1019-1028.]
[29]	Pang Jiazhen . Some observations on the management strategy of the lower Yellow River. Yellow River, 2005,27(1):3-4.
	[ 庞家珍 . 对黄河下游治理方略的几点思考. 人民黄河, 2005,27(1):3-4.]
[30]	Zhao Yean, Pan Xiandi, Fan Zuoying , et al. The basic law of souring and filling in the lower Yellow River//Li Baoru. Collected Scientific Research Papers (Sediment & Soil And Water Conservation). Zhengzhou: Henan Science and Technology Press, 1989: 13-15.
	[ 赵业安, 潘贤弟, 樊左英 , 等. 黄河下游河道冲淤情况及基本规律//李保如. 科学研究论文集 (泥沙·水土保持). 郑州: 河南科学技术出版社, 1989: 13-15.]
[31]	Gardiner C W. . Stochastic Methods. Vol. 4. Berlin: Springer, 2009: 14-18.
[32]	Wu Baosheng, Xia Junqiang, Fu Xudong , et al. Effect of altered flow regime on bankfull area of the Lower Yellow River, China. Earth Surface Processes and Landforms, 2008,33(10):1585-1601.
[33]	Graf W L . The rate law in fluvial geomorphology. American Journal of Science, 1977,277(2):178-191.
[34]	Hooke J M . River channel adjustment to meander cutoffs on the River Bollin and River Dane, northwest England. Geomorphology, 1995,14(3):235-253.
[35]	Simon A, Robbins C H . Man-induced gradient adjustment of the South Fork Forked Deer River, West Tennessee. Environmental Geology and Water Sciences, 1987,9(2):109-118.
[36]	Rinaldi M . Recent channel adjustments in alluvial rivers of Tuscany, Central Italy. Earth Surface Processes and Landforms: The Journal of the British Geomorphological Research Group, 2003,28(6):587-608.
[37]	Simon A, Thorne C R . Channel adjustment of an unstable coarse-grained stream: Opposing trends of boundary and critical shear stress, and the applicability of extremal hypotheses. Earth Surface Processes and Landforms, 1996,21(2):155-180.
[38]	Richard G A . Quantification and prediction of lateral channel adjustments downstream from Cochiti Dam, Rio Grande, NM[D]. Fort Collins: Colorado State University, 2001.
[39]	Richard G A, Julien P Y, Baird D C . Case study: modeling the lateral mobility of the Rio Grande below Cochiti Dam, New Mexico. Journal of Hydraulic Engineering, 2005,131(11):931-941.
[40]	Wang Zhaoyin, Wu Baosheng, Wang Guangqian . Fluvial processes and morphological response in the Yellow and Weihe rivers to closure and operation of Sanmenxia Dam. Geomorphology, 2007,91(1/2):65-79. doi: 10.1016/j.geomorph.2007.01.022
[41]	Wu Baosheng . Delayed response model for fluvial processes of alluvial rivers: Ⅱ Model applications. Journal of Sediment Research, 2008(6):30-37.
	[ 吴保生 . 冲积河流河床演变的滞后响应模型: Ⅱ. 模型应用. 泥沙研究, 2008(6):30-37.]
[42]	Wu Baosheng . Delayed response model for bankfull area of the Gaocun Station on the Lower Yellow River. Journal of Sediment Research, 2010(2):31-34.
	[ 吴保生 . 黄河下游高村站平滩面积的滞后响应模型. 泥沙研究, 2010(2):31-34.]

枢纽名称	所在河流	年平均流量(m³/s)		断面(河段) 编号	距坝里程 (km)	河流特征量	测试时段(a)	测量次数
枢纽名称	所在河流	建库前	建库后	断面(河段) 编号	距坝里程 (km)	河流特征量	测试时段(a)	测量次数

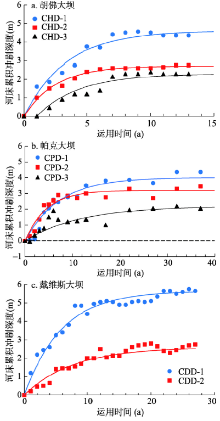

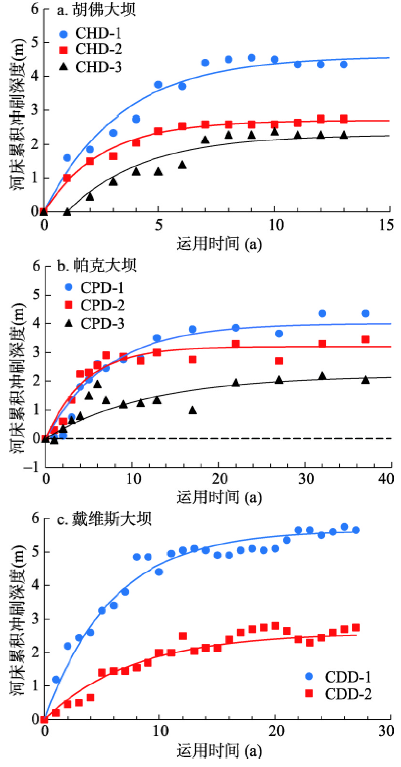

胡佛大坝	科罗拉多河	520	400	CHD-1—CHD-3	10~36	累积冲刷深度	1935—1948	15
帕克大坝		230	340	CPD-1—CPD-3	39~95		1938—1975	16
戴维斯大坝		400	340	CDD-1—CDD-2	1~9		1948—1975	28

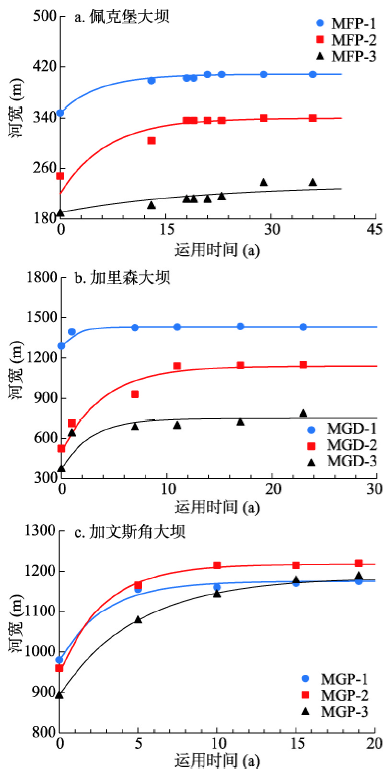

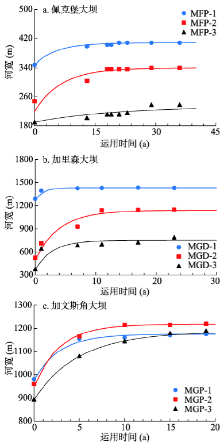

佩克堡大坝	密苏里河	200	280	MFP-1—MFP-3	9~75	河宽	1936—1973	8
加里森大坝		600	660	MGD-1—MGD-3	32~54		1949—1976	6
加文斯角大坝		930	740	MGP-1—MGP-3	7~48		1955—1974	5
丹江口水库	汉江	1335	1091	黄家港—皇庄	3~270	枯水位降低值	1960—1976	6
三门峡水库	黄河	1522	1412	小浪底—利津	61~678	冲淤量	1961—1984	21
三门峡水库	黄河	1522	1412	四站—潼关(库区)	-		1965—1984	20
小浪底水库	黄河	1266	807	小浪底—利津	61~678		2000—2015	16
三峡水库	长江	14027	12873	宜昌—湖口	30~807		2003—2016	14

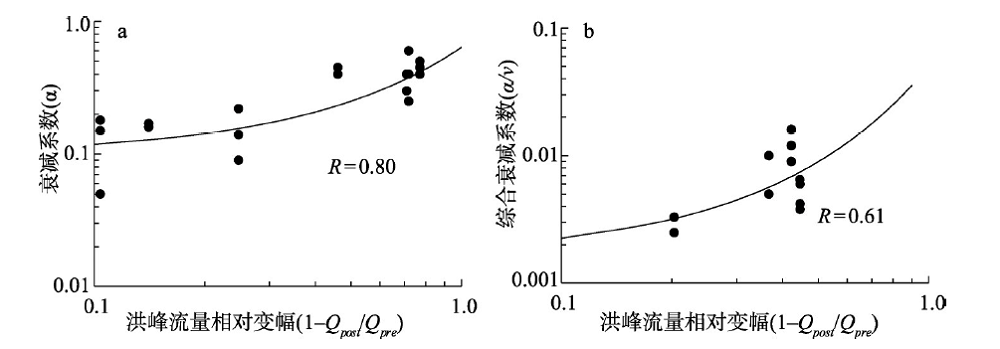

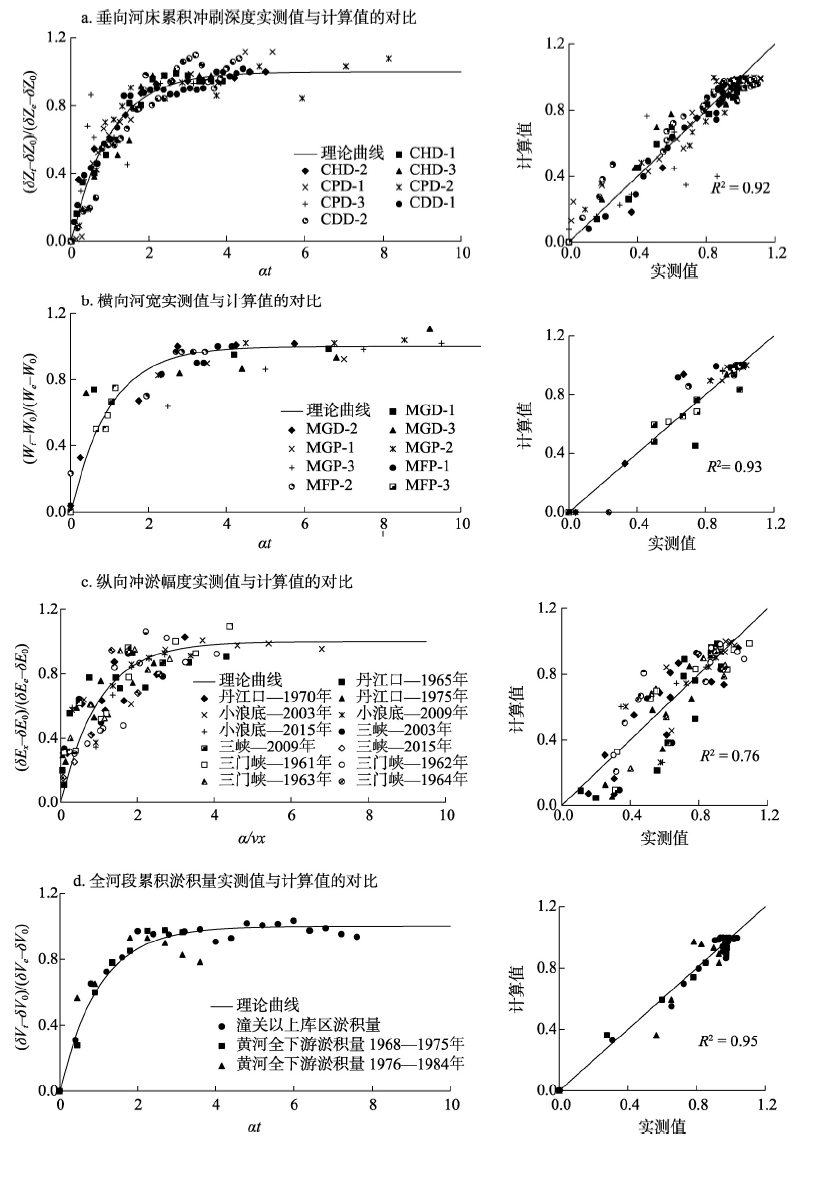

垂向调整	衰减系数α	横向调整	衰减系数α	全河段调整	衰减系数α
CHD-1—CHD-3	0.30, 0.40, 0.30	MGP-1—MGP-3	0.40, 0.45, 0.50	三门峡库区四站—潼关	0.40
CPD-1—CPD-3	0.14, 0.22, 0.09	MFP-1—MFP-3	0.18, 0.15, 0.05	黄河全下游(1968—1975年)	0.45
CDD-1—CDD-2	0.17, 0.16	MGD-1—MGD-3	0.60, 0.25, 0.40	黄河全下游(1976—1984年)	0.40

纵向调整	综合衰减系数α/v
黄家港—皇庄段(1965—1975)	0.0160, 0.0120, 0.0090
小浪底—利津段(1961—1964)	0.0065, 0.0060, 0.0042, 0.0038
小浪底—利津段(2003—2015)	0.0100, 0.0050, 0.0050
宜昌—湖口段(2003—2015)	0.0033, 0.0033, 0.0025
