上荆江枯水位对河床冲刷及水库调度的综合响应

doi:10.11821/dlxb201707005

摘要/Abstract

摘要：

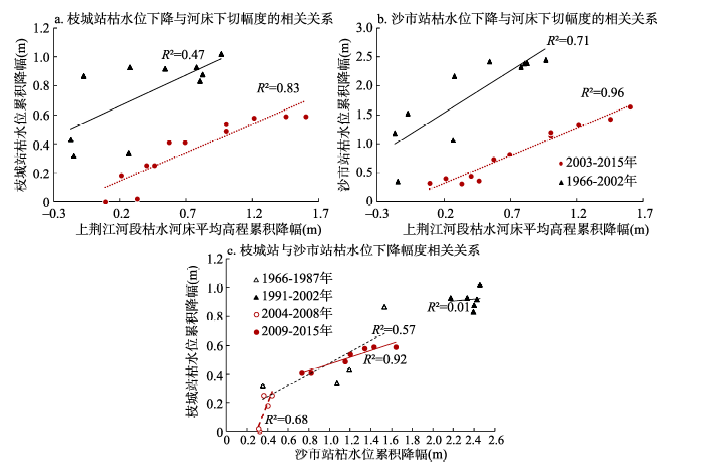

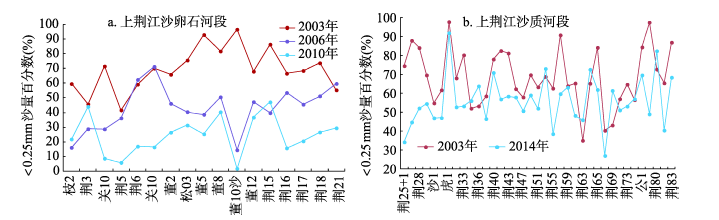

为系统揭示长江中游近期枯水情势及其对三峡水库蓄水的直接和间接响应,本文以冲刷剧烈、枯水位降幅最大的上荆江为例,通过统计其不同形式枯水位的变化特征,建立了水位下降与河床冲刷、水库不同运行方式的相关关系。结果表明,沙市站同流量枯水位几乎与枯水河槽河床平均高程等幅下降,枝城站枯水位下降幅度较小与本底河床形态、河床粗化及航道整治工程有关。上荆江汛前枯水位降幅、最低水位及极枯水位历时等枯水情势会受到三峡水库补水调度的影响,这种补水效应沿程递减,至沙市站补水调度仍然无法抵消河床下切对枯水位造成的影响。

关键词: 上荆江, 同流量枯水位, 枯期水位, 年最枯水位, 枯期补水调度

Abstract:

The upper Jingjiang reach, which is located at the beginning of sandy channel downstream from the Three Gorges Reservoir (TGR), is undergoing continuous erosion. As a response to riverbed erosion, there has been an obvious water level drop during the dry seasons in the past decades. And this phenomenon has drawn much attention because of its close connections with irrigation, navigation, water environment, dike safety, and so on. In this article, by using the reorganized data of the gauging stations, elaborate efforts were made to examine the characteristics of the low water level in upper Jingjiang reach, including the variations in the same discharge, the same stage and the annual minimum. Besides, the impacts of the TGR operation in dry seasons were also analyzed. This operation mainly refers to the increase of the water release from TGR when its water level almost reached 175 m, which was to ease the drought-prone downstream since 2009. The results show that: (1) the drop of the water level in the discharge of 7000 m³/s were 0.59 m and 1.64 m at Zhicheng and Shashi gauging stations from 2003 to 2015, respectively. On the contrary, the lowest water level has been raised, and the duration of extremely low water level has been reduced since the impoundment of TGR; (2) The drop of low water level was evidently affected by the river bed erosion at Shashi gauging station. The drop of its low water level and the erosion of the nearly river bed were found to be of almost the equal magnitude. However, a smaller drop of low water level at Zhicheng gauging station has arisen, under the comprehensive influences of channel morphology, river bed armoring and channel regulation works; (3) The compensation operation of TGR in dry seasons can raise the monthly-averaged water level from January to April by increasing its water release. In addition, the annual lowest water level was raised, and the extremely low water level duration has been reduced. However, such compensation still cannot eliminate the impact of river bed erosion at Shashi station, even if the compensating discharge reached 2000 m³/s.

Key words: upper Jingjiang reach, low water level for same discharge, low water level, annual lowest water level, compensation operation of TGR in dry season

朱玲玲, 杨霞, 许全喜. 上荆江枯水位对河床冲刷及水库调度的综合响应[J]. 地理学报, 2017, 72(7): 1184-1194.

Lingling ZHU, Xia YANG, Quanxi XU. Response of low water level change to bed erosion and the operation of Three Gorges Reservoir in upper Jingjiang reach[J]. Acta Geographica Sinica, 2017, 72(7): 1184-1194.

图/表 8

图1

图2

图3

表1

表2

表3

图4

图5

参考文献 20

[1]	SAAD M B A. Nile River morphology changes due to the construction of High Aswan Dam in Egypt. The Planning Sector Ministry of Water Resources and Irrigation, 2002.
[2]	Pinter Nicolae, Heine R A.Hydrodynamic and morph dynamic response to river engineering documented by fixed-discharge analysis, Lower Missouri River, USA. Journal of Hydrology, 2005, 302(1): 70-91. doi: 10.1016/j.jhydrol.2004.06.039
[3]	Williams G P, Wolman M G.Downstream effects of dams on alluvial rivers, U.S. Geological Survey Professional Paper, 1984: 1286, 38.
[4]	Sun Zhaohua, Li Yitian, Li Ming, et al.Effect of channel degradation on lower level in Yichang-Shashi reach in the Yangtze River. Hydro-Science and Engineering, 2007(4): 14-20.
	[孙昭华, 李义天, 李明, 等. 长江中游宜昌—沙市段河床冲淤与枯水位变化. 水利水运工程学报, 2007(4): 14-20.]
[5]	Jiang Ling, Li Yitian, Sun Zhaohua, et al.Channel evolution of Jingjiang reach and its influences on waterway after impoundment of the Three Gorges Project. Journal of Basic Science and Engineering, 2010, 18(1): 1-10. doi: 10.3969/j.issn.1005-0930.2010.01.001
	[江凌, 李义天, 孙昭华, 等. 三峡工程蓄水后荆江沙质河段河床演变及对航道的影响. 应用基础与工程科学学报, 2010, 18(1): 1-10.] doi: 10.3969/j.issn.1005-0930.2010.01.001
[6]	Chen Fei, Fu Zhongmin, Liu Huaihan, et al.Analysis of navigation conditions in gravel bed reach at initial impounding stage of Three Gorges Reservoir. Journal of Hydroelectric Engineering, 2012, 31(5): 127-132.
	[陈飞, 付中敏, 刘怀汉, 等. 三峡蓄水初期坝下沙卵石河段航道条件分析. 水力发电学报, 2012, 31(5): 127-132.]
[7]	Zhu Lingling, Li Yitian, Sun Zhaohua, et al.Preliminary analysis on the Zhijiang-Jiangkou channel evolution trend after the impoundment of Three Gorges Project. Journal of Sediment Research, 2009(2): 8-15.
	[朱玲玲, 李义天, 孙昭华, 等. 三峡蓄水后枝江—江口水道演变趋势初步分析. 泥沙研究, 2009(2): 8-15.]
[8]	Chen Zhongyuan, Wang Zhanghua, Finlayson Brian, et al.Implications of flow control by the Three Gorges Dam on sediment and channel dynamics of the Middle Yangtze (Changjiang) River, China. Geology, 2010, 38(11): 1043-1046. doi: 10.1130/G31271.1
[9]	Sun Zhaohua, Huang Ying, Cao Qixin, et al.Spatial and temporal variations of the low flow stage in the immediate downstream reach of the Three Georges Dam. Journal of Basic Science and Engineering, 2015, 23(4): 694-704.
	[孙昭华, 黄颖, 曹绮欣, 等. 三峡近坝段枯水位降幅的时空分异性及成因. 应用基础与工程科学学报, 2015, 23(4): 694-704.]
[10]	Yangtze River Academy.1-D mathematic model calculation and analysis of scour-silting for Yichang to Datong reach downstream the Three Gorges Project//Research on Sediment Problems of Three Gorges Reservoir Construction on Yangtze River. Vol.7. Beijing: Intellectual Property Publishing House, 2002: 258-311.
	[长江科学院. 三峡水库下游宜昌至大通河段冲淤一维数模计算分析(二)//长江三峡工程泥沙问题研究(第七卷). 北京: 知识产权出版社, 2002: 258-311.]
[11]	China Hydropower Engineering Research Academy. River scour-silting calculation downstream from TGP//Research on Sediment Problems of Three Gorges Reservoir Construction on Yangtze River. Vol.7. Beijing: Intellectual Property Publishing House, 2002: 149-210.
	[中国水利水电科学研究院. 三峡水库下游河道冲淤计算研究//长江三峡工程泥沙问题研究(第七卷). 北京: 知识产权出版社, 2002: 149-210.]
[12]	Xu Quanxi.Study of sediment deposition and erosion patterns in the middle and downstream Changjiang mainstream after impoundment of TGR. Journal of Hydroelectric Engineering, 2013, 32(2): 146-154.
	[许全喜. 三峡工程蓄水运用前后长江中下游干流河道冲淤规律研究. 水力发电学报, 2013, 32(2): 146-154.]
[13]	Han Jianqiao, Sun Zhaohua, Li Yitian, et al.Changes and caused of lower water level in Yichang-Chenglingji reach after impounding of Three Gorges Reservoir. Engineering Journal of Wuhan University, 2011, 44(6): 685-690.
	[韩剑桥, 孙昭华, 李义天, 等. 三峡水库蓄水后宜昌至城陵矶河段枯水位变化及成因. 武汉大学学报(工学版), 2011, 44(6): 685-690.]
[14]	Huang Yue, Yao Shiming, Lu Jinyou.Impact of TGP operation on the hydrologic regime in the downstream main channel of the dam. Journal of Yangtze River Scientific Research Institute, 2011, 28(7): 76-81.
	[黄悦, 姚仕明, 卢金友. 三峡水库运用对坝下游干流河道水文情势的影响研究. 长江科学院院报, 2011, 28(7): 76-81.]
[15]	Xia Junqiang, Zong Quanli, Deng Shanshan, et al.Adjustments in reach-scale bankfull channel geometry of Jingjiang reach after operation of Three Gorges Project. Journal of Zhejiang University (Engineering Science), 2015, 49(2): 238-245. doi: 10.3785/j.issn.1008-973X.2015.02.007
	[夏军强, 宗权利, 邓姗姗, 等. 三峡工程运用后荆江河段平滩河槽形态调整特点. 浙江大学学报(工学版), 2015, 49(2): 238-245.] doi: 10.3785/j.issn.1008-973X.2015.02.007
[16]	Lai Xijun, Jiang Jiahu, Huang Qun.Water storage effects of Three Gorges Project on water regime of Poyang Lake. Journal of Hydroelectric Engineering, 2012, 31(6): 132-148.
	[赖锡军, 姜加虎, 黄群. 三峡工程蓄水对鄱阳湖水情的影响格局及作用机制分析. 水力发电学报, 2012, 31(6): 132-148.]
[17]	Zhang Q, Li L, Wang Y G, et al.Has the Three-Gorges Dam made the Poyang Lake wetlands wetter and drier? Geophysical Research Letters, 2012, 39: L20402. doi: 10.1029/2012GL053431. doi: 10.1029/2012GL053431
[18]	Ou Chaoming, Li Jingbao, Zhou Yongqiang, et al.Evolution characters of water exchange abilities between Dongting Lake and Yangtze River. Journal of Geographical Sciences, 2014, 24(4): 731-745. doi: 10.1007/s11442-014-1116-0
[19]	Tao Jiayuan.The influence of straightening the Jingjiang River on it and the Dongting Lake. Journal of Central China Normal University (Natural Sciences), 1989, 23(2): 263-267.
	[陶家元. 荆江裁弯工程对荆江和洞庭湖的影响. 华中师范大学学报(自然科学版), 1989, 23(2): 263-267.]
[20]	Li Yitian, Ge Hua, Sun Zhaohua.Primary analysis of the bottle-neck reach impact on Yichang water level in dry season downstream from Gezhouba. Journal of Basic Science and Engineering, 2007, 15(4): 435-444.
	[李义天, 葛华, 孙昭华. 葛洲坝下游局部卡口对宜昌枯水位影响的初步分析. 应用基础与工程科学学报, 2007, 15(4): 435-444.]

控制站	时段	月平均水位(m)							月平均流量(m³/s)
控制站	时段	11月		12月	1月	2月	3月	4月	11月	12月	1月	2月	3月	4月
枝城站	1956-1990年	38.67	36.86	35.97	35.72	36.00	37.16		10 200	5 900	4 260	3 860	4 490	7 030
	1991-2002年	37.70	36.20	35.61	35.43	35.67	36.55		9 540	5 840	4 580	4 280	4 800	6 900
	2003-2008年	37.49	36.10	35.64	35.51	35.86	36.59		9 400	5 950	4 890	4 650	5 500	7 430
	2009-2015年	36.75	35.98	35.98	35.96	36.00	36.52		8 970	6 590	6 550	6 460	6 620	8 280
	2003-2015年	37.09	36.03	35.83	35.75	35.94	36.55		9 170	6 300	5 780	5 620	6 110	7 890
	差值1	-0.97	-0.66	-0.36	-0.29	-0.33	-0.61		-660	-60	320	420	310	-130
	差值2	-0.21	-0.1	0.03	0.08	0.19	0.04		-140	110	310	370	700	530
	差值3	-0.95	-0.22	0.37	0.53	0.33	-0.03		-570	750	1 970	2 180	1 820	1 380
	差值4	-0.61	-0.17	0.22	0.32	0.27	0		-370	460	1 200	1 340	1 310	990
沙市站	1956-1990年	33.82	31.99	30.98	30.61	30.95	32.26		9 520	5 870	4 300	3 870	4 380	6 460
	1991-2002年	32.39	30.46	29.55	29.21	29.63	30.96		9 680	6 230	4 900	4 480	5 050	6 990
	2003-2008年	31.84	29.86	29.05	28.77	29.46	30.59		9 290	6 140	5 030	4 750	5 680	7 440
	2009-2015年	30.65	29.21	29.30	29.20	29.33	30.25		8 690	6 520	6 550	6 440	6 620	8 040
	2003-2015年	31.20	29.51	29.18	29.00	29.39	30.41		8 970	6 340	5 850	5 660	6 180	7 760
	差值1	-1.43	-1.53	-1.43	-1.40	-1.32	-1.30		160	360	600	610	670	530
	差值2	-0.55	-0.6	-0.5	-0.44	-0.17	-0.37		-390	-90	130	270	630	450
	差值3	-1.74	-1.25	-0.25	-0.01	-0.3	-0.71		-990	290	1 650	1 960	1 570	1 050
	差值4	-1.19	-0.95	-0.37	-0.21	-0.24	-0.55		-710	110	950	1 180	1 130	770

统计项目	特征值	1956-1990年	1991-2002年	2003-2008年	2009-2015年	2003-2015年
枝城站水位低于35.5 m历时(d)	最大值	90	85	85	0	85
枝城站水位低于35.5 m历时(d)	平均值	16	47	28	0	13
沙市站水位低于29.0 m历时(d)	最大值	0	52	96	68	96
沙市站水位低于29.0 m历时(d)	平均值	0	18	48	31	39

控制站	流量(m³/s)	时段	1966	1970	1975	1980	1987	1991	1993	1996	1998	2001	2002	2003
枝城站	5000	相对于1966年水位累积降幅(m)	0	0.32	0.34	0.43	0.87	0.93	0.92	0.88	0.93	0.83	1.02	1.04
枝城站	7000		0	0.32	0.33	0.65	0.84	1.07	1.06	0.99	0.84	1.22	1.25	1.12
沙市站	6000		0	0.28	0.96	1.07	1.86	2.42	2.68	2.69	2.37	2.56	2.69	2.70
沙市站	7000	0		0.35	1.07	1.19	1.53	2.17	2.42	2.40	2.33	2.39	2.45	2.63
控制站	流量(m³/s)	时段	三峡水库初期运行期					三峡水库175 m试验性蓄水期
控制站	流量(m³/s)	时段	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015
枝城站	5000	相对于2003年水位累积降幅(m)	0.01	0	-0.10	-0.13	-0.13	-0.27	-0.29
枝城站	7000		0	-0.02	-0.18	-0.25	-0.25	-0.41	-0.41	-0.49	-0.54	-0.58	-0.59	-0.59
沙市站	6000		-0.31	-0.31	-0.44	-0.48	-0.43	-0.76	-1.01	-1.28	-1.30	-1.50	-1.60	-1.74
沙市站	7000	-0.32		-0.31	-0.40	-0.44	-0.36	-0.73	-0.82	-1.15	-1.20	-1.34	-1.43	-1.64
