转型期煤炭资源型城市空间重构——以淮南市、淮北市为例

doi:10.11821/dlxb201608005

摘要/Abstract

摘要：

以淮南市、淮北市4次城市规划中土地利用现状图为基础,运用ArcGIS软件对案例城市空间结构演化进程进行可视化表达和计量分析,揭示了煤炭资源型城市空间结构演化的过程、特征。通过对不同时点、不同用地类型的叠置分析,基于城市主要用地类型间的置换规模、频度、广度、强度及空间邻近关系,总结出商—居置换重构、商—工置换重构、居—工置换重构、工—居置换重构4种空间重构模式。当前,煤炭资源型城市以商—居置换重构和居—工置换重构为主,其空间置换面积大、频率高。最后,分析了经济发展、产业演替、体制改革、城市化、环境保护以及城市规划6个因素对煤炭资源型城市空间重构的影响,认为煤炭资源型城市内部空间重构是一种自我修复过程。

关键词: 空间重构, 模式, 煤炭资源型城市, 淮南市, 淮北市

Abstract:

Based on charts of four present urban planning land uses in Huainan city and Huaibei city, and with the aid of Arcgis software, the process and features of the urban spatial structural evolution in coal source-based cities are disclosed by performing visualization presentation and quantitative analysis on the process of spatial structural evolution in the two cities. By overlaying analysis on different time points and different types of land use, four spatial reconstruction patterns are summarized based on the replacement scales, frequencies, extents, intensities and spatial adjacent relations between the main types of land uses in the cities, i.e., replacement and reconstruction of commercial—residential lands, replacement and reconstruction of commercial—industrial lands, replacement and reconstruction of residential—industrial lands, and replacement and reconstruction of industrial—residential lands. It is indicated that the present coal source-based cities mainly focus on the replacements and reconstructions of commercial—residential lands and those of residential—industrial lands due to their large replacement areas and high frequencies. In conclusion, the influences on the spatial reconstructions in coal source-based cities have been analyzed in six aspects, i.e. economic development, industrial succession, system reformation, urbanization, environmental protection and urban planning. The internal spatial reconstruction is believed to be a self-repairment process for the coal source-based cities.

Key words: spatial reconstruction, patterns, coal source-based cities, Huainan city, Huaibei city

杨显明, 焦华富. 转型期煤炭资源型城市空间重构——以淮南市、淮北市为例[J]. 地理学报, 2016, 71(8): 1343-1356.

Xianming YANG, Huafu JIAO. Spatial reconstruction of the coal resource-based city during the transition period: A case study of Huainan city and Huaibei city[J]. Acta Geographica Sinica, 2016, 71(8): 1343-1356.

图/表 15

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

表2

图13

参考文献 32

[1]	Zhang Jingxiang, Luo Zhendong, He Jianyi.System Transformation and Urban Spatial Reconstruction in China.Nanjing: Southeast University Press, 2007: 31-34.
	[张京祥, 罗震东, 何建颐. 体制转型与中国城市空间重构. 南京: 东南大学出版社, 2007: 31-34.]
[2]	Ma Xueguang, Wang Aimin, Yan Xiaopei.A study on land use conflicts in the uran spatial recon-struction process: Acase study of Guangzhou city. Human Geophy, 2010, 25(3): 72-77.
	[马学广, 王爱民, 闫小培. 城市空间重构进程中的土地利用冲突研究: 以广州市为例, 人文地理, 2010, 25(3): 72-77.]
[3]	Chai Yanwei, Tana, Mao Zidan.Urban spatial reconstruction in cities in China: From the perspective of Danwei. Modern City Research, 2011(3): 5-9.
	[柴彦威, 塔娜, 毛子丹. 单位视角下的中国城市空间重构. 现代城市研究, 2011(3): 5-9.]
[4]	Jiao Huafu.Study on the evolution laws of the population natural structure of coal-dependent cities in China, 2001, 21(4): 423-426. doi: 10.3969/j.issn.1000-8462.2001.04.009
	[焦华富. 试论煤炭资源城市人口自然结构的演化特征: 以淮南、淮北市为例. 经济地理, 2001, 21(4): 423-426.] doi: 10.3969/j.issn.1000-8462.2001.04.009
[5]	Ma Qingyu.Study on the Rational Layout of cities and towns in Mining Area. City Planning Review, 1981(2): 20-31.
	[马清裕. 关于矿区城镇合理布局问题的探讨. 城市规划, 1981(2): 20-31.]
[6]	Jiao Huafu.Research on the development model of the coal resource-based city of China [D]. Beijing: Peking University, 1998.
	[焦华富. 中国煤矿城市发展模式研究[D]. 北京: 北京大学, 1998.]
[7]	Gao Yicheng, Shen Yuming, Qiu Ling.Study on the spatial structure evolution and reconstruction for Jincheng of Shanxi Province. Geographical Research, 2013, 32(7): 1231-1242.
	[高宜程, 申玉铭, 邱灵. 山西省晋城市空间结构演化与重构. 地理研究, 2013, 32(7): 1231-1242.]
[8]	Xu Jili, Jiao Huafu.Social spatial structure model of coal city in mature period: A case study of Huainan City in Anhui Province. Ecomomic Geography, 2014, 34(1): 61-68.
	[许吉黎, 焦华富. 成熟期煤炭资源城市社会空间结构研究: 以安徽省淮南市为例. 经济地理, 2014, 34(1): 61-68.]
[9]	Li He, Zhang Pingyu.Vulnerability of urban employment of mining cities in Northeast China. Geographical Research, 2009, 28(3): 751-760. doi: 10.3321/j.issn:0253-9993.2008.01.026
	[李鹤, 张平宇. 东北地区矿业城市社会就业脆弱性分析. 地理研究, 2009, 28(3): 751-760.] doi: 10.3321/j.issn:0253-9993.2008.01.026
[10]	Wei Ye, Zhang Zhe, Xiu Chunliang.Social space structure of coal city in transition: A case study of Fuxin City. Scientia Geographica Sinica, 2011, 31(7): 850-857.
	[魏冶, 张哲, 修春亮. 煤炭城市转型中的社会空间结构: 以阜新为例. 地理科学, 2011, 31(7): 850-857.]
[11]	Chen Xiaofang, Deng Fukang.The new mode of the integration development for Suzhou urban, town and the coal mine. Journal of Chifeng University (Natural Science Edition), 2014, 30(9): 39-41. doi: 10.3969/j.issn.1673-260X.2014.17.018
	[陈小芳, 邓福康. 探索宿州市城矿乡一体化发展的新模式. 赤峰学院学报(自然科学版), 2014, 30(9): 39-41.] doi: 10.3969/j.issn.1673-260X.2014.17.018
[12]	Bao Shobai, Hu Zhaoliang, Jiao Huafu, et al.The Model of the Professional Mining City's Development. Beijing: Science Press, 2000.
	[鲍寿柏, 胡兆量, 焦华富, 等. 专业性工矿城市发展模式. 北京: 科学出版社, 2000.]
[13]	Li Rong.From coal-mining city to shan-shui city: A case study spatial structure of Huainan city [D]. Nanjing: Dongnan University, 2003.
	[李荣. 从煤矿城市到山水城市: 淮南城市空间结构研究[D]. 南京: 东南大学, 2003.]
[14]	Fan Jialong.Theory and empirical study of urban spatial structure evolution in coal dependent city: A case study on Huainan [D]. Wuhu: Anhui Normal University, 2007.
	[樊家龙. 煤矿城市空间结构演化的理论与实证研究: 以淮南市为例[D]. 芜湖: 安徽师范大学, 2007.]
[15]	Yang Xianming, Jiao Huafu, Xu Jili.Study on the process, characteristics and influence factors of the Huainan city's spatial expansion from the embryology perspective. Scientia Geographica Sinica, 2014, 34(5): 563-570.
	[杨显明, 焦华富, 许吉黎. 基于发生学视角的淮南城市城市空间生长过程、特征及影响因素研究. 地理科学, 2014, 34(5): 563-570.]
[16]	Yang Xianming, Jiao Huafu, Xu Jili.A comparative study on the urban spatial structure evolution of different kinds of The coal resource-based cities: Taking Huainan and Huaibei as an example, Journal of Natural Resources, 2015, 30(1): 92-105. doi: 10.11849/zrzyxb.2015.01.008
	[杨显明, 焦华富, 许吉黎. 不同发展阶段煤炭资源型城市空间结构演化的对比研究: 以淮南、淮北为例. 自然资源学报, 2015, 30(1): 92-105.] doi: 10.11849/zrzyxb.2015.01.008
[17]	Yang Xianming, Jiao Huafu, Xu Jili.Study on the evolution model , process and influence factors of the coal resource-based cities' spatial structure: A case study of Huainan city. Geographical Research, 2015, 34(3): 513-524. doi: 10.11821/dlyj201503010
	[杨显明, 焦华富, 许吉黎. 煤炭资源型城市空间结构演化过程、模式及影响因素: 基于淮南市的实证研究. 地理研究, 2015, 34(3): 513-524.] doi: 10.11821/dlyj201503010
[18]	Mei Lin, Sun Chunnuan.A study on reconstruction of spatial structure of the coal resource cities in Northeast China: A case of Liaoyuan city. Economic Geography, 2006, 26(6): 949-952, 956. doi: 10.3969/j.issn.1000-8462.2006.06.013
	[梅林, 孙春暖. 东北地区煤炭资源型城市空间结构的重构: 以辽源市为例. 经济地理, 2006, 26(6): 949-952, 956.] doi: 10.3969/j.issn.1000-8462.2006.06.013
[19]	Zhang Yumin, Zhen Jiasu.Spatial restructuring pattern of coal resources based cities: A case study of Xiaoyi city of Shanxi province. City Planning Review, 2010, 34(9): 82-85.
	[张玉民, 郑甲苏. 煤炭资源型城市空间结构重组战略模式研究: 以山西省孝义市为例. 城市规划, 2010, 34(9): 82-85.]
[20]	The Urban Planning Bureau of Huainan. Huainan City Planning (Revision) (2011-2030). 2012.
	[淮南市城乡规划局. 淮南市城市规划(修编) (2011-2030). 2012.]
[21]	Huainan Bureau of Statistics. Huainan Statistical Yearbook (2011). Bejing: China Statistica Press, 2012.
	[淮南市统计局. 淮南市统计年鉴(2011). 北京: 中国统计出版社, 2012.]
[22]	The Local Chronicles Office of Huaibei. Huaibei Local Chronicles (Pressed in electronic draft). Beijing: FangZhi Press, 2012.
	[淮北地方志办公室. 淮北地方志(电子稿). 北京: 方志出版社, 2012.]
[23]	Huaibei Bureau of Statistics. Huaibei Statistical Yearbook (2011). Hefei: Huangshan Publishing House, 2012.
	[淮北市统计局. 淮北市统计年鉴(2011). 合肥: 黄山书社, 2012.]
[24]	Li Xiande, Bai Guangrun.Study on the dynamic mechanism of the reconstruction of urban space in Shanghai during the transformation period. Modern City Research, 2008(9): 11-18. doi: 10.3969/j.issn.1009-6000.2008.09.002
	[李仙德, 白光润. 转型期上海城市空间重构的动力机制探讨. 现代城市研究, 2008(9): 11-18.] doi: 10.3969/j.issn.1009-6000.2008.09.002
[25]	Miao Changhong, Wei Yehua, Lv Lachang. New Economic Geography.Beijing: Science Press, 2011.
	[苗长虹, 魏也华, 吕拉昌. 新经济地理学. 北京: 科学出版社, 2011.]
[26]	Chai Yanwei, et al.The Theory and Method of City Geography. Beijing: Science Press, 2012.
	[柴彦威, 等. 城市地理学思想与方法. 北京: 科学出版社, 2012.]
[27]	Harvey D.Social Justice and the City. Oxford: Bsil Blackwell, 1973: 181. doi: 10.2307/1958420
[28]	Cox K R, Johnston R J.Conflict, Politics and the Urban Scene. London: Longman, 1982: 13-25.
[29]	Wu Fulong.Urban restructuring in China's emerging market economy: Towards a framework for analysis. International Journal of Urban & Regional Research, 1997, 21(4): 640-663. doi: 10.1111/1468-2427.00106
[30]	Lefebvre H.The Production of Space. Oxford: Blackwell, 1997: 15-35.
[31]	Lv Weiguo, Chen Wen.Manufaturing industry enterpriss location choice and the urban spatial restructuring in Nanjing. Acta Geographica Sinica, 2009, 64(2): 142-145.
	[吕卫国, 陈雯. 制造业企业区位选择与南京城市空间重构. 地理学报, 2009, 64(2): 142-145.]
[32]	Wu Fulong, Li Zhigang.Sociospatial differentiation: Progress and space in subdistricts of Shanghai. Urban Geography, 2005, 26(2): 137-166. doi: 10.2747/0272-3638.26.2.137

城市	时间	项目	居住用地置换工业用地	居住用地置换仓储用地	商业及公共设施用地置换居住用地	商业及公共设施用地置换工业用地	商业及公共设施用地置换仓仓储用地	工业用地置换居住用地
淮南市	1960- 1984年	重构斑块数量	—	—	5	—	—	—
		最小斑块面积	—	—	0.0009	—	—	—
		最大斑块面积	—	—	0.0724	—	—	—
		重构面积	—	—	0.1033	—	—	—
		平均面积	—	—	0.0207	—	—	—
	1984- 1996年	重构斑块数量	—	—	103	6	—	—
		最小斑块面积	—	—	0	0.0001	—	—
		最大斑块面积	—	—	0.1010	0.0572	—	—
		重构面积	—	—	1.2549	0.0829	—	—
		平均面积	—	—	0.0122	0.0138	—	—
	1996- 2009年	重构斑块数量	46	6	110	28	6	46
		最小斑块面积	0	0	0	0	0	0
		最大斑块面积	0.0020	0.0010	0.0689	0.2115	0.0111	0.0020
		重构面积	0.0126	0.0013	1.1572	0.4935	0.0317	0.0126
		平均面积	0.0003	0.0002	0.0105	0.0176	0.0053	0.0003
淮北市	1962- 1980年	重构斑块数量	11	—	—	—	—	—
		最小斑块面积	0.0006	—	—	—	—	—
		最大斑块面积	0.0926	—	—	—	—	—
		重构面积	0.3262	—	—	—	—	—
		平均面积	0.0297	—	—	—	—	—
	1980- 1995年	重构斑块数量	4	1	77	8	2	4
		最小斑块面积	0	0.0002	0	0.0007	0.0020	0
		最大斑块面积	0.0030	0.0002	0.0079	0.0075	0.0289	0.0030
		重构面积	0.0034	0.0002	0.6822	0.0324	0.0486	0.0034
		平均面积	0.0008	0.0002	0.0089	0.0040	0.0243	0.0008
	1995- 2010年	重构斑块数量	137	31	116	64	19	47
		最小斑块面积	0	0	0	0	0.0001	0
		最大斑块面积	0.0794	0.0237	0.0432	0.1029	0.0320	0.0391
		重构面积	1.6170	0.2106	0.6317	0.6198	0.1334	0.4386
		平均面积	0.0118	0.0068	0.0054	0.0097	0.0070	0.0093

重构模式	性质	发生的空间位置	置换面积、频率	空间形态特征

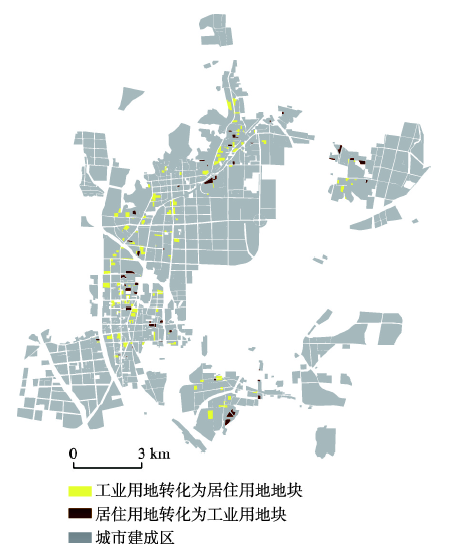

居—工置换重构模式	置换型重构	城市内部、外缘皆有以内部为主	置换面积大频率高	斑点状

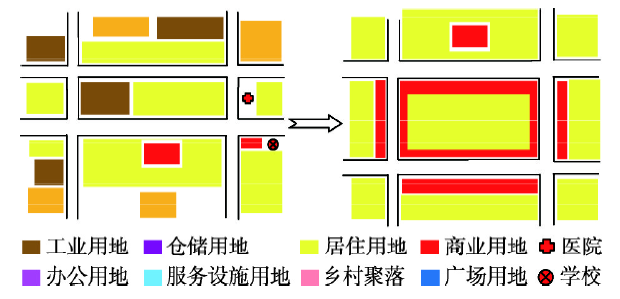

商—居置换重构模式	置换型重构	城市内部	置换面积较大、频率最高	块状、现状、点状

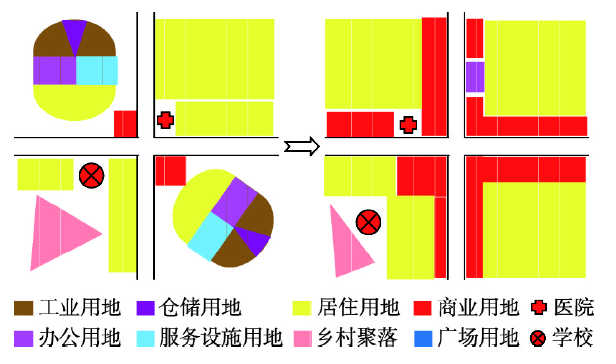

商—工置换重构模式	置换型重构	城市内部	置换面积小、频率低	点状、块状
工—居置换重构模式	扩张型重构	城市外缘为主、内部为辅	频率低	面状、点状
