基于VSD框架的半干旱地区社会—生态系统脆弱性演化与模拟

doi:10.11821/dlxb201607007

摘要/Abstract

摘要：

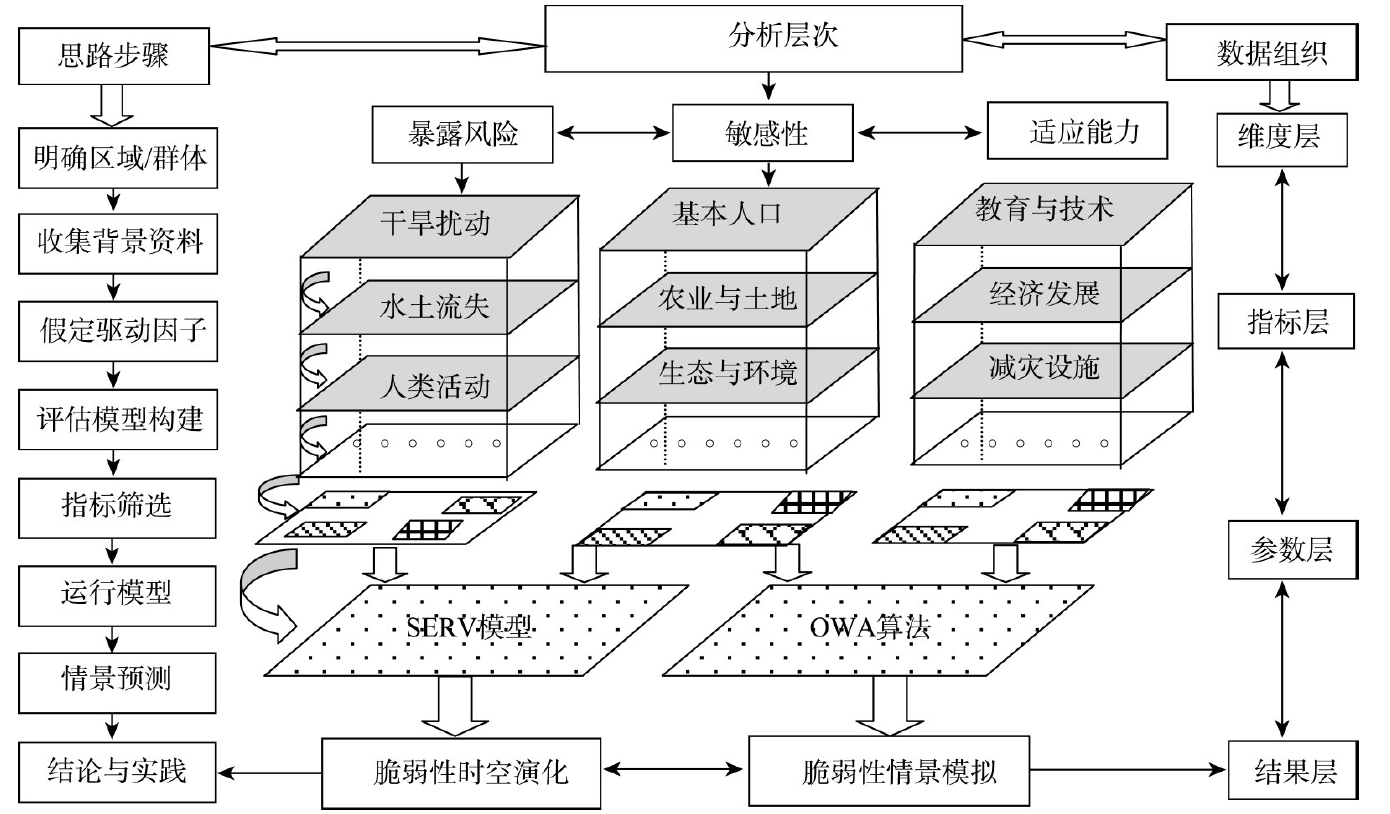

利用VSD（Vulnerability scoping diagram）评估框架,改进了针对县域尺度的脆弱性评估方法和技术;以黄土高原半干旱地区的榆林市为例,对VSD框架和SERV（Spatially Explicit Resilience-Vulnerability）模型进行整合,将系统脆弱性分解为暴露、敏感性、适应能力3个维度。应用SERV模型筛选脆弱性指标,在充分理解区域地理背景和暴露风险源的基础上,构建了符合当地生态环境特征的指标体系,运用RS与GIS空间技术,定量测度了榆林市2000-2011年社会—生态系统脆弱性空间分异特征及演化趋势,探讨了脆弱性时空演化内在原因。结果显示：榆林市社会—生态系统脆弱性呈现“西北东南高,长城沿线低”的空间格局,2000-2011年间系统脆弱性程度明显降低,系统发展趋势好转,但系统脆弱性与暴露风险空间差异显著;其中,暴露风险因子是系统脆弱性演化的关键因素,区域脆弱性与暴露风险空间异质受社会敏感性和经济适应能力等因子影响。最后,采用OWA多准则算法,基于决策者不确定性偏好,模拟了不同决策风险设置下区域脆弱性未来情景,并基于决策者理性风险区间,预测了不同发展导向下区域系统脆弱性差异,为研究区可持续性评估和降低脆弱性的风险预警机制建设提供决策参考。

关键词: 社会—生态系统（SESs）, VSD评估框架, 脆弱性, 榆林市

Abstract:

Taking the semi-arid area of Yulin City as an example, this study improves the vulnerability assessment methods and techniques on the county scale using VSD (Vulnerability Scoping Diagram) assessment framework, integrates the VSD framework and SERV (Spatially Explicit Resilience-Vulnerability) model, and decomposes the system vulnerability into three dimensions including exposure, sensitivity and adaptive capacity. Firstly, with the full understanding of the background and exposure risk source of the research area, the vulnerability indexes were screened out by the SERV model and the index system was constructed to assess the characteristics of the local eco-environment. Secondly, with the aid of RS and GIS, this study measured the spatial differentiation and evolution of social-ecological systems in Yulin City during the period 2000-2011 and explored intrinsic reasons for spatial-temporal evolution of vulnerability. The results are as follows: (1) The spatial pattern of Yulin City's SESs vulnerability is "high in northwest and southeast and low along the Great Wall", although the degree of system vulnerability reduced significantly during the period 2000-2011 and the system development trend is better, there is a sharp distinction in the spatial distribution between the system vulnerability and exposure risk; (2) The evolution of system vulnerability is influenced by the risk factors of exposure, and the regional vulnerability and the spatial heterogeneity of exposure risk are affected by the social sensitivity, economic adaptive capacity and other factors. Finally, according to the uncertainty of decision makers, the future scenarios of regional vulnerability are simulated under different decision risks by taking advantage of the OWA multi-criteria algorithm, and the vulnerability of regional system under different development directions was predicted based on the decision makers' rational risk interval.

Key words: social ecological system, VSD assessment framework, vulnerability, Yulin City

陈佳, 杨新军, 尹莎, 吴孔森. 基于VSD框架的半干旱地区社会—生态系统脆弱性演化与模拟[J]. 地理学报, 2016, 71(7): 1172-1188.

Jia CHEN, Xinjun YANG, Sha YIN, Kongsen WU. The vulnerability evolution and simulation of the social-ecological systems in the semi-arid area based on the VSD framework[J]. Acta Geographica Sinica, 2016, 71(7): 1172-1188.

图/表 12

图1

图2

表1

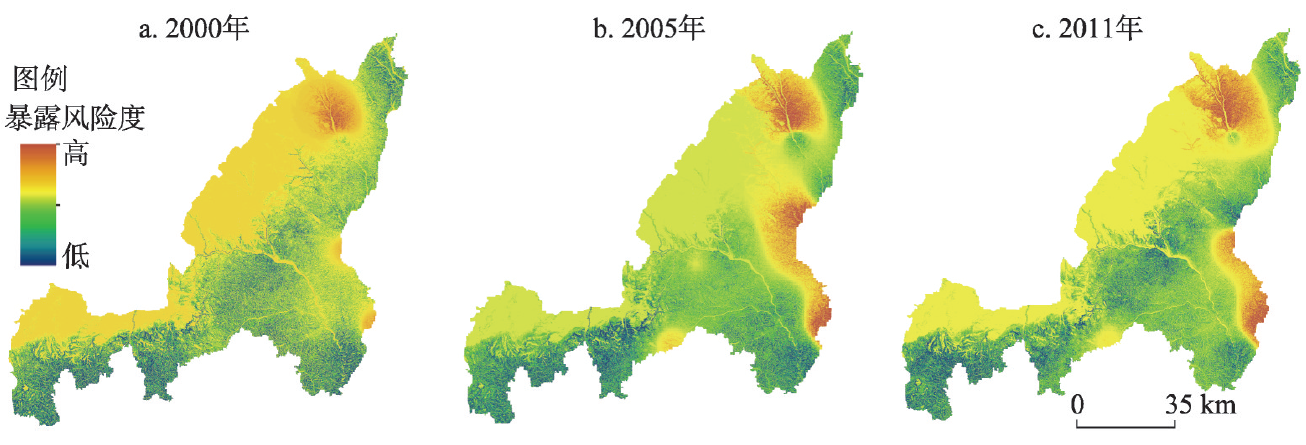

暴露风险评估指标体系

维度层	要素类型	指标层	权重	指标说明与计算
暴露	干旱 (0.4126)	标准化降水指数SPI	0.2751	SPI-SRI干旱状态模型,将气象和水文干旱指标结合,采用12个月时间尺度反应河流水位、水库等周期变化;
	干旱 (0.4126)	标准化径流指数SRI	0.1375	SPI-SRI干旱状态模型,将气象和水文干旱指标结合,采用12个月时间尺度反应河流水位、水库等周期变化;
	水土流失(0.3275)	降雨侵蚀力因子R	0.0345	采用美国通用土壤流失方程(USLE)表达式如下: A=R×K×LS×C×P 式中：A为土壤流失量;R为降雨侵蚀力因子;K为土壤可蚀性因子;LS为坡长坡度因子;C为植被覆盖因子;P为水土保持措施因子。
		土壤可侵蚀性因子K	0.0629
		坡度坡长因子LS	0.0307
		作物覆盖与经营因子C	0.0900
		水土保持措施因子P	0.1095
	人类活动 (0.2599)	城镇化率UB	0.1049	样区综合土地利用强度计算公式为^[38]： $L x = ∑ i = n 4 A i × S i / S$ 式中：L_x表示第x个样区土地利用程度综合指数;A_i为第i级土地利用程度分级指数;S_i为第i级土地利用面积;S为样区内土地总面积。
	人类活动 (0.2599)	土地利用强度LD	0.1550

表1

表2

敏感性/适应力指标因子筛选结果

维度层	主成分要素	普适指标		指标性质	特定指标		指标性质
敏感性	基本人口主成分	女性人口比重(%) 农业人口比重(%) 农林牧渔业从业人口比重(%) 人口自然增长率(‰) 劳动力平均受教育程度(年) 人口密度(人/km²)		+ * - + - +	采掘业职工从业人数(人)		*
	农业与土地主成分	常用耕地面积比重(%) 水田/水浇地面积比重(%) 房屋建筑施工面积增长率(%) 因灾废弃耕地面积比重(%) 单位面积粮食产量(hm²/公斤)		* * + + -	水产养殖面积(hm²) 主要经济作物产量(红枣等)(t)		* -
	生态与环境主成分	森林覆盖率(%) 有效灌溉面积比重(%) 水土保持林面积(千hm²) 能源消费总量(吨标准煤)		- - - *	工业废物/水排放总量(万t)		+
	经济发展主成分	人均国内生产总值(元) 农林牧渔业总产值比重(%) 产业结构依赖性指数恩格尔系数单位GDP综合能耗(万元/吨标准煤)		- - + + +	单位GDP工业用水量(t/万元)		+
适应能力	教育与技术主成分	万人拥有教师数量(人/万人) 在校学生比例(%) 每百户拥有通讯设备数量(部/百户) “三废”综合利用产品产值(万元) 财政教育支出比重(%)		+ + + + +	工业废水排放达标率(%) 节水灌溉类机械(套)/排灌动力机械(千瓦)		+ +
	社会基础设施主成分	万人拥有医疗床位数(人/万人) 卫生事业从业人员(人) 农林水事务财政支出(万元) 人均社会保障补助支出(万元/万人) 交通运输仓储邮政从业人员(人)		+ + + + +	/
	人口与经济主成分	农民人均纯收入(元) 社会固定资产投资密度(万元/km²) 农林牧渔业总产值(万元) 第三产业增加值占GDP比重(%) 地方财政支出(万元）产业结构多样化指数		+ + + + + +	/
	防灾减灾设施主成分	水库库容量(万m³) 抗旱基础设施密度(个/km²) 当年造林面积(hm²) 水土保持林面积(千hm²)		+ + + +	堤防长度(km)		+
敏感性主成分结果				适应能力主成分结果
年份	2000	2005	2011	年份	2000	2005	2011
最小特征值	1.070	1.139	1.330	最小特征值	1.202	1.062	1.351
累积贡献率(%)	91.94	90.75	89.99	累积贡献率(%)	88.30	89.53	88.75

表2

图3

表3

图4

图5

图6

表4

图7

图8

参考文献 41

[1]	Zhou Lei, Wu Jianjun, Zhang Jie.Remote sensing-based drought monitoring approach and research progress. Scientia Geographica Sincia, 2015, 35(5): 630-636.
	[周磊, 武建军, 张洁. 以遥感为基础的干旱监测方法研究进展. 地理科学,2015, 35(5): 630-636.]
[2]	Wang Ying, Wang Jinsong, Yao Yubi.Assessment and regionalization on meteorological drought disaster risk in the He dong area of Gansu province, China. Journal of Desert Research, 2014, 34(4): 1115-1124. doi: 10.7522/j.issn.1000-694X.2013.00358
	[王莺, 王劲松, 姚玉璧. 甘肃省河东地区气象干旱灾害风险评估与区划. 中国沙漠, 2014, 34(4): 1114-1125.] doi: 10.7522/j.issn.1000-694X.2013.00358
[3]	Xin Zhongbao, Xu Jiongxin, Yu Xinxiao.Temporal and spatial variability of sediment yield on the Loess Plateau in the past 50years. Acta Ecologica Sinica, 2009, 29(3): 1129-1139. doi: 10.3321/j.issn:1000-0933.2009.03.009
	[信忠保, 许炯心, 余新晓. 近50年黄土高原水土流失的时空变化. 生态学报, 2009, 29(3): 1129-1139.] doi: 10.3321/j.issn:1000-0933.2009.03.009
[4]	Yang Jinhu, Yang Qiguo, Yao Yubi, et al.Droug ht index in summer season of Northwest China. Resources Science, 2006, 28(3): 17-22. doi: 10.3321/j.issn:1007-7588.2006.03.003
	[杨金虎, 杨启国, 姚玉璧, 等. 中国西北夏季干旱指数研究. 资源科学, 2006, 28(3): 17-22.] doi: 10.3321/j.issn:1007-7588.2006.03.003
[5]	Lin Nianfeng, Tang Jie.Study on the environmental evolution and the causes of desertification in arid and semiarid regions in China. Scientia Geographica Sincia, 2001, 21(1): 24-29. doi: 10.3969/j.issn.1000-0690.2001.01.005
	[林年丰, 汤洁. 中国干旱半干旱区的环境演变与荒漠化的成因. 地理科学, 2001, 21(1): 24-29.] doi: 10.3969/j.issn.1000-0690.2001.01.005
[6]	Li Fengmin, Xu Jinzhang, Sun Guojun.Restoration of degraded ecosystems and development of water-harvesting ecological agriculture in the semi-arid Loess Plateau of China. Acta Ecologica Sinica, 2003, 23(9):1901-1909.
	[李凤民, 徐进章, 孙国钧. 半干旱黄土高原退化生态系统的修复与生态农业发展. 生态学报, 2003, 23(9): 1901-1909.]
[7]	Zhao Halin, Zhao Xueyong, Zhang Tonghui, et al.Desertification process and its spatial differentiation in arid areas of Northwest China. Journal of Desert Research, 2011, 31(1): 1-8.
	[赵哈林, 赵学勇, 张铜会, 等. 我国西北干旱区的荒漠化过程及其空间分异规律. 中国沙漠, 2011, 31(1): 1-8.]
[8]	Cheng Xu.Relationship between agriculture, ecological deterioration, restoration and reconstruction in Loess Plateau areas of Northwest China. Scientia Agricultura Sinica, 2001, 34(1): 84-90. doi: 10.3321/j.issn:0578-1752.2001.01.017
	[程序. 西北黄土高原区农业与生态恶化及恢复重建的关系. 中国农业科学, 2001, 34(1): 84-90.] doi: 10.3321/j.issn:0578-1752.2001.01.017
[9]	Wang Genxu, Liu Jinqi, Chen Ling.Comparison of spatial diversity of land use changes and the impact on two typical areas of Heihe River Basin. Acta Geographical Sinica, 2006, 61(4): 339-348. doi: 10.3321/j.issn:0375-5444.2006.04.001
	[王根绪, 刘进其, 陈玲. 黑河流域典型区土地利用格局变化及影响比较. 地理学报, 2006, 61(4): 339-348.] doi: 10.3321/j.issn:0375-5444.2006.04.001
[10]	Wang Genxu, Chen Guodong, Shen Yongping.Features of eco-environmental changes in Hexi Corridor region the last 50 years and comprehensive control strategies. Journal of Natural Resources, 2002, 17(1): 78-86. doi: 10.11849/zrzyxb.2002.01.012
	[王根绪, 程国栋, 沈永平. 近50年来河西走廊区域生态环境变化特征与综合防治对策. 自然资源学报, 2002, 17(1): 78-86.] doi: 10.11849/zrzyxb.2002.01.012
[11]	Lu Chengpeng, Chen Xingpeng, Wang Hongjuan, et al.A study on dynamic simulation of human-natural relationship evolution in northwest ethnic minority. Journal of Natural Resources, 2013, 28(7): 1255-1263. doi: 10.11849/zrzyxb.2013.07.017
	[逯承鹏, 陈兴鹏, 王红娟, 等. 西北少数民族地区人地关系演变动态仿真研究. 自然资源学报, 2013, 28(7): 1255-1263.] doi: 10.11849/zrzyxb.2013.07.017
[12]	Tian Yaping, Xiang Qingcheng, Wang Peng.Regional coupled human-natural systems vulnerability and its evaluation indexes. Geographical Research, 2013, 32(1): 55-63. doi: 10.11821/yj2013010006
	[田亚平, 向清成, 王鹏. 区域人地耦合系统脆弱性及其评价指标体系. 地理研究, 2013, 32(1): 55-63.] doi: 10.11821/yj2013010006
[13]	Wang Jun, Yang Xinjun, Liu Wenzhao.A quantitative research on the resilience of social-ecological system to drought in the semiarid area. Progress in Geography, 2010, 29(11): 1385-1390. doi: 10.11820/dlkxjz.2010.11.028
	[王俊, 杨新军, 刘文兆. 半干旱区社会—生态系统干旱恢复力的定量化研究. 地理科学进展, 2010, 29(11): 1385-1390.] doi: 10.11820/dlkxjz.2010.11.028
[14]	Zhang Xianglong, Yang Xinjun, Wang Jun, et al.The adaptive cycle of social-ecological system based on the quantitative resilience: A case study of the northern highlands area of Yuzhong County. Journal of Northwest University(Natural Science Edition), 2013, 43(6): 952-956. doi: 10.3969/j.issn.1000-274X.2013.06.021
	[张向龙, 杨新军, 王俊, 等. 基于恢复力定量测度的社会—生态系统适应性循环研究: 以榆中县北部山区为例. 西北大学学报(自然科学版), 2013, 43(6): 952-956.] doi: 10.3969/j.issn.1000-274X.2013.06.021
[15]	Liu Xuelu.Landscape ecological mechanism on system coupling of the meta-ecosystem consisted of mountain, desert and oasis in Hexi Corridor, Gansu, China. Chinese Journal of Applied Ecology, 2002, 13(8): 979-984.
	[刘学录. 河西走廊山地—绿洲—荒漠复合系统耦合的景观生态学机制. 应用生态学报, 2002, 13(8): 979-984.]
[16]	Speranza C I, Wiesmann U, Rist S.An indicator framework for assessing livelihood resilience in the context of social-ecological dynamics. Global Environmental Change, 2014, 28(1): 109-119. doi: 10.1016/j.gloenvcha.2014.06.005
[17]	Cumming G S.Spatial Resilience in Social-Ecological System. University of Cape Town: Springer Press, 2011.
[18]	Turner B L, Kasperson R E, Matson P A.A frame work for vulnerability analysis in sustainability science//Proceedings of the National Academy of Sciences of the United States of America, 2003: 8074-8079. doi: 10.1073/pnas.1231335100 pmid: 12792023
[19]	Yang Xinjun, Shi Yuzhong, Wang Ziqiao.Exploring the impacts of road construction on a local social-ecological system in Qinling mountainous area. Acta Geographica Sinica, 2015, 70(8): 1313-1326. doi: 10.11821/dlxb201508010
	[杨新军, 石育中, 王子侨. 道路建设对秦岭山区社会—生态系统的影响. 地理学报, 2015, 70(8): 1313-1326.] doi: 10.11821/dlxb201508010
[20]	Shi Peijun, Wang Ming, Hu Xiaobing, et al.Integrated risk governance consilience mode of social-ecological systems. Acta Geographica Sinica, 2014, 69(6): 863-876. doi: 10.11821/dlxb201406012
	[史培军, 汪明, 胡小兵, 等. 社会—生态系统综合风险防范的凝聚力模式. 地理学报, 2014, 69(6): 863-876.] doi: 10.11821/dlxb201406012
[21]	Chen Jia, Yang Xinjun, Wang Ziqiao, et al.Vulnerability and influence mechanisms of rural tourism socio-ecological systems. Tourism Tribune, 2015, 30(3): 64-75. doi: 10.3969/j.issn.1002-5006.2015.03.007
	[陈佳, 杨新军, 王子侨, 等. 乡村旅游社会—生态系统脆弱性及影响机理. 旅游学刊, 2015, 30(3): 64-75.] doi: 10.3969/j.issn.1002-5006.2015.03.007
[22]	Polsky C, Neff R, Yarnal B.Building comparable global change vulnerability assessments: The vulnerability Sco-ping Diagram. Global Environmental Change, 2007, 17(34): 472-485. doi: 10.1016/j.gloenvcha.2007.01.005
[23]	Acosta-Michlik L, Espaldon V.Assessing vulnerability of selected farming communities in the Philippines based on a behavioural model of agent's adaptation to global environmental change. Global Environmental Change, 2008, 18(4):554-563. doi: 10.1016/j.gloenvcha.2008.08.006
[24]	Patterson T, Guldenb T, Cousins K, et al.Integrating environmental, social and economic systems: A dynamic model of tourism in Dominica. Ecological Modelling, 2004, 175: 121-136. doi: 10.1016/j.ecolmodel.2003.09.033
[25]	Frazier T G, Thompson C M, Dezzani R J, et al.A framework for the development of the SERV model: A spatially explicit resilience-vulnerability model. Applied Geography, 2014, 51: 158-172. doi: 10.1016/j.apgeog.2014.04.004
[26]	Yager R R.On ordered weighted averaging aggregation operators in multi-criteria decision making. IEEE Transactions on Systems, Man and Cybernetics, 1988, 18(1): 183-190. doi: 10.1109/21.87068
[27]	Yager R R.Quantifier guided aggregation using OWA operators. International Journal of Intelligent Systems, 1996, 11(1): 49-73. doi: 10.1002/(SICI)1098-111X(199601)11:13.0.CO;2-Z
[28]	Huang Jianyi, Liu Yi, Ma Li, et al.Review on the theoretical model and assessment framework of foreign vulnerability research. Areal Research and Development, 2012, 31(5): 1-15. doi: 10.3969/j.issn.1003-2363.2012.05.001
	[黄建毅, 刘毅, 马丽, 等. 国外脆弱性理论模型与评估框架研究评述. 地域研究与开发, 2012, 31(5): 1-15.] doi: 10.3969/j.issn.1003-2363.2012.05.001
[29]	Roberts M G, Yang G A.The international progress of sustainable development research: A comparison of vulnerability analysis and the sustainable livelihoods approach. Progress in Geography, 2003, 22(1): 11-21. doi: 10.11820/dlkxjz.2003.01.002
[30]	Adger W N.Vulnerability. Global Environmental Change, 2006, 16: 268-281. doi: 10.1016/j.gloenvcha.2006.02.006
[31]	Smit B, Wandel J.Adaptation, adaptive capacity and vulnerability. Global Environmental Change, 2006, 16(3): 282-292. doi: 10.1016/j.gloenvcha.2006.03.008
[32]	Chen Ping, Chen Xiaoling.Summary on research of coupled human-environment system vulnerability under global environmental change. Progress in Geography, 2010, 29(4): 454-462. doi: 10.1109/76.894278
	[陈萍, 陈晓玲. 全球环境变化下人—环境耦合系统的脆弱性研究综述. 地理科学进展, 2010, 29(4): 454-462.] doi: 10.1109/76.894278
[33]	Sun Peng, Zhang Qiang, Bai Yungang, et al.Transitional behaviors of hydrometeorological droughts in Xinjiang using the Markov chain model. Geographical Research, 2014, 33(9): 1647-1657. doi: 10.11821/dlyj201409006
	[孙鹏, 张强, 白云岗, 等. 基于马尔科夫模型的新疆水文气象干旱研究. 地理研究, 2014, 33(9): 1647-1657.] doi: 10.11821/dlyj201409006
[34]	Zhang Jianxiang, Zhang Bo, Zhang Hua, et al.Landscape pattern change and soil erosion research: Take Malian River Basin in Loess Plateau as an example. Journal of Natural Resources, 2011, 26(9): 1513-1525. doi: 10.11849/zrzyxb.2011.09.007
	[张建香, 张勃, 张华, 等. 黄土高原的景观格局变化与水土流失研究: 以黄土高原马莲河流域为例. 自然资源学报, 2011, 26(9): 1513-1525.] doi: 10.11849/zrzyxb.2011.09.007
[35]	Qin Wei, Zhu Qingke, Zhang Yan.Soil erosion assessment of small watershed in Loess Plateau based on GIS and RUSLE. Transactions of the CSAE, 2009, 25(8): 157-163. doi: 10.3969/j.issn.1002-6819.2009.08.029
	[秦伟, 朱清科, 张岩. 基于GIS和RUSLE的黄土高原小流域土壤侵蚀评估. 农业工程学报, 2009, 25(8): 157-163.] doi: 10.3969/j.issn.1002-6819.2009.08.029
[36]	Jones B, Andrey J.Vulnerability index construction: Methodological choices and their influence on identifying vulnerable neighbourhoods. International Journal of Emergency Management, 2007, 4(2): 269-295. doi: 10.1504/IJEM.2007.013994
[37]	Frazier T G, Thompson C M, Dezzani R J, et al.Spatial and temporal quantification of resilience at the community scale. Applied Geography, 2013, 42: 95-107. doi: 10.1016/j.apgeog.2013.05.004
[38]	Wang Guojie, Liao Shangang.Spatial heterogeneity of land use intensity. Chinese Journal of Applied Ecology, 2006, 17(4): 611-614.
	[王国杰, 廖善刚. 土地利用强度变化的空间异质性研究. 应用生态学报, 2006, 17(4): 611-614.]
[39]	Duan Che.Regional sustainable development evaluation index system and comprehensive evaluation. Technoeconomics & Management Research, 2005(3): 27-28. doi: 10.3969/j.issn.1004-292X.2005.03.013
	[段澈. 区域可持续发展评价指标体系及综合评价. 技术经济与管理研究, 2005(3): 27-28.] doi: 10.3969/j.issn.1004-292X.2005.03.013
[40]	Chen Caocao, Xie Gaodi, Zhen Lin, et al.Analysis of Jing he watershed vegetation dynamics and evaluation of its relation to precipitation. Acta Ecologica Sinica, 2008, 28(3): 925-938. doi: 10.3321/j.issn:1000-0933.2008.03.004
	[陈操操, 谢高地, 甄霖, 等. 泾河流域植被覆盖动态变化特征及其与降雨的关系. 生态学报, 2008, 28(3): 925-938.] doi: 10.3321/j.issn:1000-0933.2008.03.004
[41]	Liu Yanxu,Peng Jian, Han Yinan, et al.Suitability assessment for building land consolidation on gentle hillside based on OWA operator, China. Acta Ecologica Sinica, 2014, 34(12): 3188-3197.
	[刘焱序, 彭建, 韩忆楠, 等. 基于OWA的低丘缓坡建设开发适宜性评价. 生态学报, 2014, 34(12): 3188-3197.]

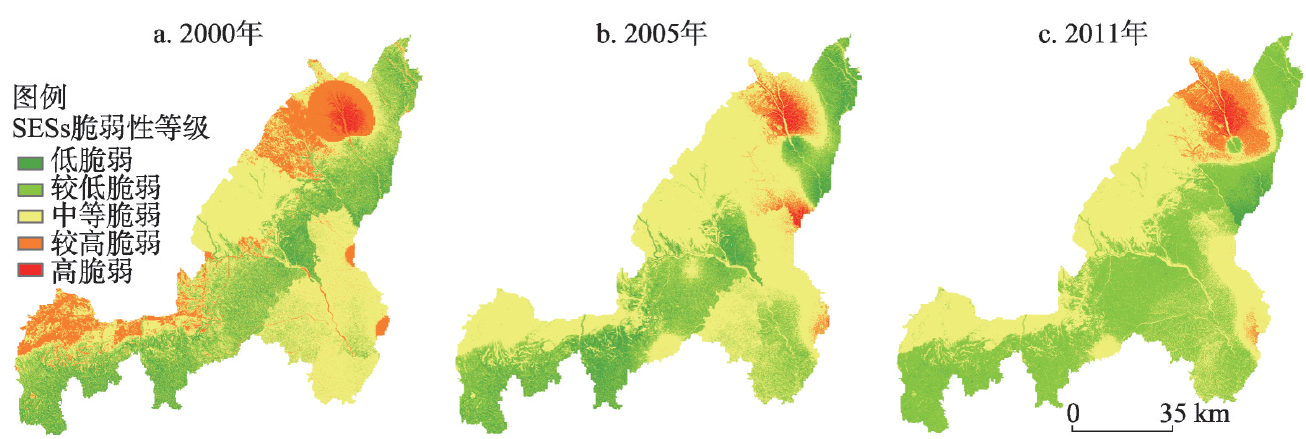

年份	类型	高脆弱	较高脆弱	中等脆弱	较低脆弱	低脆弱	中等以上脆弱
2000	比重(%)	1.098	16.116	49.373	21.459	11.951	66.587
2000	面积(km²)	478.836	7023.390	21515.901	9351.638	5208.232	29018.127
2005	比重(%)	1.791	2.679	57.833	25.471	12.224	62.303
2005	面积(km²)	780.551	1167.519	25202.816	11099.949	5327.163	27150.886
2011	比重(%)	1.460	5.644	44.871	45.863	2.160	51.975
2011	面积(km²)	636.319	2459.650	19553.933	19986.428	941.668	22649.902

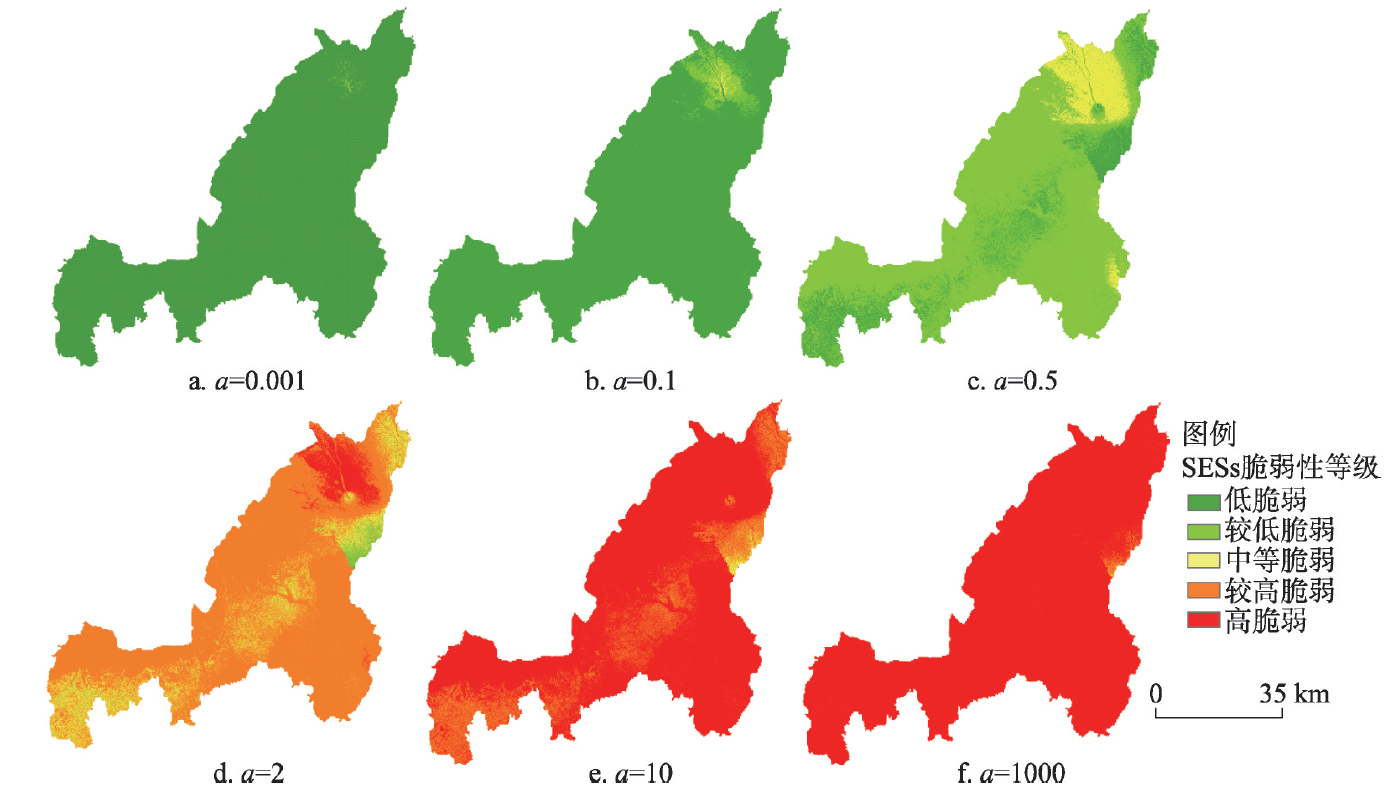

决策风险系数决策者风险态度		a=0.0001 极乐观	a=0.1 乐观	a=0.5 较乐观	a=1 无偏好	a=2 较悲观	a=10 悲观	a=1000 极悲观
OWA 次序权重	环境与技术	1.000	0.786	0.301	0.090	0.008	0.000	0.000
	社会资源	0.000	0.056	0.124	0.090	0.024	0.000	0.000
	经济发展	0.000	0.034	0.095	0.090	0.041	0.000	0.000
	防灾减灾资源	0.000	0.025	0.080	0.090	0.057	0.000	0.000
	基本人口	0.000	0.020	0.071	0.090	0.074	0.000	0.000
	土地与农业	0.000	0.017	0.064	0.090	0.090	0.002	0.000
	生态环境	0.000	0.014	0.059	0.090	0.107	0.008	0.000
	经济资源	0.000	0.012	0.055	0.090	0.124	0.030	0.000
	干旱	0.000	0.011	0.051	0.090	0.140	0.093	0.000
	水土流失	0.000	0.010	0.048	0.090	0.157	0.251	0.000
	人类活动	0.000	0.009	0.046	0.090	0.173	0.614	1.000
