蓄意攻击下全球集装箱海运网络脆弱性变化

doi:10.11821/dlxb201602009

摘要/Abstract

摘要：

为探究近年来全球集装箱海运网络脆弱性的变化趋势,提出了研究网络脆弱性变化度的分析思路和量化方法.基于2004和2014年两个年度的世界主要集装箱班轮公司航线分布数据,将相关港口按节点度大小排序后以1%~10%的比例逐步删除,选择删除前后的网络平均度,网络聚类系数,网络孤立节点比例,网络平均距离和网络效率等特征值的变化率作为量化指标;提出了网络压力测试方法,由此求出各特征值对网络脆弱性的影响权重及贡献值,进而得到了在设定攻击规模内集装箱海运网络脆弱性变化的量化值.研究结果表明:在蓄意攻击下,近10年的全球集装箱海运网络的脆弱性呈变差趋势;当攻击规模为整体网络的10%以内时,网络脆弱性的变差幅度约为6.1%.研究成果对于深化港口地理学研究具有重要意义,其分析思路和方法对其他领域的网络脆弱性变化趋势研究也可提供借鉴.

关键词: 集装箱, 海运, 网络, 蓄意攻击, 脆弱性

Abstract:

To explore the current trend of the global container shipping network vulnerability, the analytical approach and quantitative methods were put forward for researching the change rate of the network vulnerability. We chose the routes distribution data from the world's main container liner companies in 2004 and 2014 as the study foundation. Sorted by the node degrees, the ports were gradually removed at a proportion from 1% to 10%. The quantitative foundation was the change rates of the eigenvalues before and after node removal, including the eigenvalues of network average degree, network clustering coefficient, network isolated-node proportion, network average shortest-path length and network efficiency. With the proposed pressure test, we calculated the weights and the values that each network eigenvalue has influence on the network vulnerability. Then we obtained the values of the change on the container shipping network vulnerability within the range of setting attack strength. The result shows that the vulnerability of the global container shipping network has the trend of becoming weaker in recent 10 years under intentional attack. When the scale of attack is less than 10% of the whole network, the vulnerability of the container shipping network has weakened by about 6.1%. The research conclusion in this paper has an important significance for deepening the research of port geography, and the analytical approach and method also provide reference to network characteristics analysis in other fields.

Key words: container, shipping, network, intentional attack, vulnerability

王诺, 董玲玲, 吴暖, 颜华锟. 蓄意攻击下全球集装箱海运网络脆弱性变化[J]. 地理学报, 2016, 71(2): 293.

Nuo WANG, Lingling DONG, Nuan WU, Huakun YAN. The change of global container shipping network vulnerability under intentional attack[J]. Acta Geographica Sinica, 2016, 71(2): 293-.

图/表 10

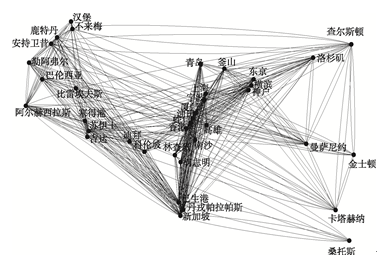

图1

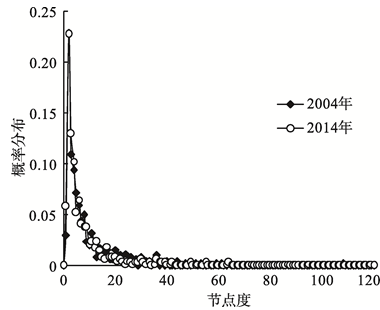

图2

表1

图3

表2

表3

表4

表5

表6

2004年与2014年各网络特征值平均变化率(%)

特征值指标	$U s ˉ 2004$	$U s ˉ 2014$	$Δ U s ˉ$
网络平均度	39.38	45.69	6.31
网络聚类系数	32.29	39.99	7.70
网络孤立节点比例	7.79	9.37	1.58
网络平均距离	24.28	31.16	6.87
网络效率	31.44	40.68	9.24

表6

表7

蓄意攻击下集装箱海运网络脆弱性变化度分析

特征值指标	网络平均度	网络聚类系数	网络孤立节点比例	网络平均距离	网络效率	合计

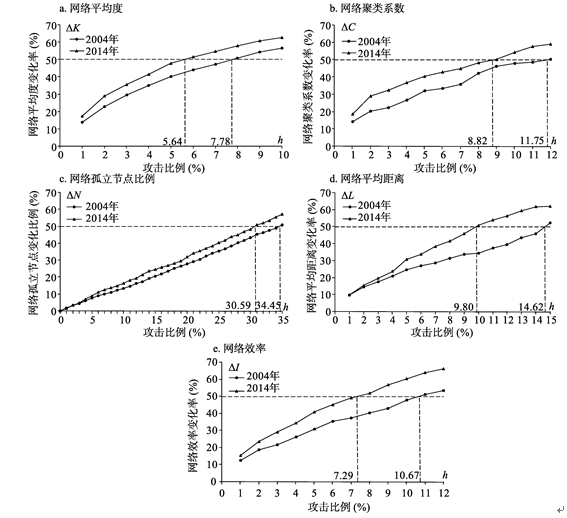

2004年半衰度G_s(%)	7.78	11.75	34.45	14.62	10.67	-
2014年半衰度G_s(%)	5.64	8.82	30.59	9.80	7.29	-
敏感系数O_s	0.73	0.75	0.89	0.67	0.68	3.72
影响权重Q_s	0.20	0.20	0.24	0.18	0.18	1
变化率均值差 $Δ U ? s$ (%)	6.31	7.70	1.58	6.87	9.24	-
网络脆弱性变化度F(%)	1.23	1.56	0.38	1.24	1.70	6.10

表7

参考文献 30

[1]	Tian Yaping, Chang Hao.Bibliometric analysis of research progress on ecological vulnerability in China. Acta Geographica Sinica, 2012, 67(11): 1515-1525. doi: 10.11821/xb201211008
	[田亚平, 常昊. 中国生态脆弱性研究进展的文献计量分析. 地理学报, 2012, 67(11): 1515-1525.] doi: 10.11821/xb201211008
[2]	Zhao Dongsheng, Wu Shaohong.Responses of vulnerability for natural ecosystem to climate change in China. Acta Geographica Sinica, 2013, 68(5): 602-610. doi: 10.11821/xb201305003
	[赵东升, 吴绍洪. 气候变化情景下中国自然生态系统脆弱性研究. 地理学报, 2013, 68(5): 602-610.] doi: 10.11821/xb201305003
[3]	Liu Yi, Huang Jianyi, Ma Li.The assessment of regional vulnerability to natural disasters in China based on DEA model. Geographical Research, 2010, 29(7): 1153-1162.
	[刘毅, 黄建毅, 马丽. 基于DEA模型的我国自然灾害区域脆弱性评价. 地理研究, 2010, 29(7): 1153-1162.]
[4]	Su Fei, Zhang Pingyu, Li He.Vulnerability assessment of coal-mining cities' economic systems in China. Geographical Research, 2008, 27(4): 907-916.
	[苏飞, 张平宇, 李鹤. 中国煤矿城市经济系统脆弱性评价. 地理研究, 2008, 27(4):907-916.]
[5]	Tian Yaping, Xiang Qingcheng, Wang Peng.Regional coupled human-natural systems vulnerability and its evaluation indexes. Geographical Research, 2013, 32(1): 55-63. doi: 10.11821/yj2013010006
	[田亚平, 向清成, 王鹏. 区域人地耦合系统脆弱性及其评价指标体系. 地理研究, 2013, 32(1): 55-63.] doi: 10.11821/yj2013010006
[6]	Fang Chuanglin, Wang Yan.A comprehensive assessment of urban vulnerability and its spatial differentiation in China. Acta Geographica Sinica, 2015, 70(2): 234-247. doi: 10.11821/dlxb201502005
	[方创琳, 王岩. 中国城市脆弱性的综合测度与空间分异特征. 地理学报, 2015, 70(2): 234-247.] doi: 10.11821/dlxb201502005
[7]	Albert R, Jeong H, Barabasi A.Error and attack tolerance of complex networks. Nature, 2000, 406: 378-382. doi: 10.1038/35019019 pmid: 9778065
[8]	Crucitti P, Latora V, Marciori M et al. Error and attack tolerance of complex networks. Physica A, 2004, 340: 388-394.
[9]	Freeman L.Centrality in social networks conceptual clarification. Social Networks, 1979(3): 215-239. doi: 10.1016/0378-8733(78)90021-7
[10]	Barrat A, Barthelemy M, Pastor-sa-torras, et al. The architecture of complex weighted networks. Proceedings of the National Academy of Sciences USA, 2004, 101: 3747-3752. doi: 10.1073/pnas.0400087101 pmid: 15007165
[11]	Latora V, Marciori M.Is the Boston subway a small-world network. Physica A, 2002, 314: 109-113. doi: 10.1016/S0378-4371(02)01089-0
[12]	LatoraV, Marciori M. How the science of complex networks can help developing strategies against terrorism. Physica A, 2004, 340: 388-394. doi: 10.1016/S0960-0779(03)00429-6
[13]	Wu Hongrun, Qin Jun, Zheng Bojin.Anti attack ability based on costs in complex network. Computer Science. 2012, 39(8): 224-227. doi: 10.3969/j.issn.1002-137X.2012.08.048
	[吴泓润, 覃俊, 郑波尽. 基于代价的复杂网络抗攻击性研究. 计算机科学, 2012, 39(8): 224-227.] doi: 10.3969/j.issn.1002-137X.2012.08.048
[14]	Duan Dongli, Wu Jun, Deng Hongzhong, et al.Cascading failure model of complex networks based on tunable load redistribution. Systems Engineering: Theory & Practice, 2013, 33(1): 203-208.
	[段东立, 吴俊, 邓宏钟, 等. 基于可调负载重分配的复杂网络级联失效模型. 系统工程理论与实践, 2013, 33(1): 203-208.]
[15]	Xie Feng, Cheng Suqi, Chen Dongqing, et al.Cascade based attack vulnerability in complex network. Journal of Tsinghua University (Science & Technology), 2011, 51(10): 1252-1257.
	[谢丰, 程苏琦, 陈冬青, 等. 基于级联失效的复杂网络抗毁性. 清华大学学报(自然科学版), 2011, 51(10): 1252-1257.]
[16]	Liu Zhiqian, Song Rui.Reliability analysis of Guangzhou rail transit with complex network theory. Journal of Transportation Systems Engineering and Information Technology, 2010, 10(5): 194-200. doi: 10.3969/j.issn.1009-6744.2010.05.029
	[刘志谦, 宋瑞. 基于复杂网络理论的广州轨道交通网络可靠性研究. 交通运输系统工程与信息, 2010, 10(5): 194-200.] doi: 10.3969/j.issn.1009-6744.2010.05.029
[17]	Ye Qing.Vulnerability analysis of rail transit based on complex network theory. China Safety Science Journal, 2012, 22(2): 122-126.
	[叶青. 基于复杂网络理论的轨道交通网络脆弱性分析. 中国安全科学学报, 2012, 22(2): 122-126.]
[18]	Jenelius E.Network structure and travel patterns: Explaining the geographical disparities of road network vulnerability. Journal of Transport Geography, 2009, 17: 234-244. doi: 10.1016/j.jtrangeo.2008.06.002
[19]	Tu Yingfei, Yang Chao, Chen Xiaohong.Analysis of road network topology vulnerability and critical links. Journal of Tongji University (Natural Science), 2010, 38(3): 364-367. doi: 10.3969/j.issn.0253-374x.2010.03.009
	[涂颖菲, 杨超, 陈晓鸿. 路网拓扑脆弱性及关键路段分析. 同济大学学报(自然科学版), 2010, 38(3): 364-367.] doi: 10.3969/j.issn.0253-374x.2010.03.009
[20]	Wang Jie, Li Xue, Wang Xiaobin.Complex network evolution of different scale shipping based on improved BA Model. Journal of Transportation Systems Engineering and Information Technology, 2013, 13(2): 103-110. doi: 10.3969/j.issn.1009-6744.2013.02.015
	[王杰, 李雪, 王晓斌. 基于改进BA模型的不同规模海运复杂网络演化研究. 交通运输系统工程与信息, 2013, 13(2): 103-110.] doi: 10.3969/j.issn.1009-6744.2013.02.015
[21]	Mou Xiangwei, Chen Yan, Yang Ming, et al.Topological features of liner shipping network. Journal of Dalian Maritime University, 2009, 35(2): 34-37.
	[牟向伟, 陈燕, 杨明, 等. 班轮航运网络拓扑特性. 大连海事大学学报, 2009, 35(2): 34-37.]
[22]	Wu Peijian, Deng Guishi, Tian Wei.Research on topology character of container shipping network. Journal of Wuhan University of Technology (Transportation Science & Engineering), 2008, 32(4): 665-668. doi: 10.3963/j.issn.2095-3844.2008.04.024
	[武佩剑, 邓贵仕, 田炜. 集装箱航运网络拓扑特性研究. 武汉理工大学学报(交通科学与工程版), 2008, 32(4): 665-668.] doi: 10.3963/j.issn.2095-3844.2008.04.024
[23]	Tian Wei, Deng Guishi, Wu Peijian.Analysis of complexity in global shipping network. Journal of Dalian University of Technology, 2007, 47(4): 605-609.
	[田炜, 邓贵仕, 武佩剑, 等. 世界航运网络复杂性分析. 大连理工大学学报, 2007, 47(4): 605-609.]
[24]	Tian Wei, Deng Guishi, Wu Peijian.Analysis of network effect in port and shipping system characterized by scale-free network. Chinese Journal of Management, 2008, 5(3): 380-385. doi: 10.3969/j.issn.1672-884X.2008.03.013
	[田炜, 邓贵仕, 武佩剑. 具有无标度特性的港航系统网络效应分析. 管理学报, 2008, 5(3): 380-385.] doi: 10.3969/j.issn.1672-884X.2008.03.013
[25]	Deng Guishi, Wu Peijian, Tian Wei.Research on robustness and vulnerability of global shipping network. Journal of Dalian University of Technology, 2008, 48(5): 765-768.
	[邓贵仕, 武佩剑, 田炜. 全球航运网络鲁棒性和脆弱性研究. 大连理工大学学报, 2008, 48(5): 765-768.]
[26]	Xu Hua, Jin Fengjun, Wang Chengjin.Optimization of the locations of hub-ports in round-the-world container service. Acta Geographica Sinica, 2008, 63(6): 593-602.
	[徐骅, 金凤君, 王成金. 集装箱环球航线的枢纽区位优化. 地理学报, 2008, 63(6): 593-602.]
[27]	An Xiaopeng, Han Zenglin, Yang Yinkai.A study on the formation & evolvement mechanism and development mode of international container load center. Geographical Research, 2000, 19(4): 383-390.
	[安筱鹏, 韩增林, 杨荫凯. 国际集装箱枢纽港的形成演化机理与发展模式研究. 地理研究, 2000, 19(4): 383-390.]
[28]	Cao Youhui, Cao Weidong, Jin Shisheng, et al.The evolution mechanism of the coastal container port system of China. Acta Geographica Sinica, 2003, 58(3): 424-432.
	[曹有挥, 曹卫东, 金世胜, 等. 中国沿海集装箱港口体系的形成演化机理. 地理学报, 2003, 58(3): 424-432.]
[29]	Wang Cheng-jin, Yu Liang.Formation and evolution of world container ports system and coupling mechanism with international trade networks. Geographical Research, 2007, 26(3): 557-568.
	[王成金,于良. 世界集装箱港的形成演化及与国际贸易的耦合机制. 地理研究, 2007, 26(3): 557-568.]
[30]	Newman M E J. Assortative mixing in networks. Physical Review Letters, 2002, 89(20): 208701/1-4.

蓄意攻击比例h(%)	0	1	2	3	4	5	6	7	8	9	10
2004年网络平均度K	9.21	7.94	7.11	6.49	6.00	5.52	5.15	4.86	4.53	4.21	4.01
2014年网络平均度K	8.61	7.12	6.12	5.56	5.05	4.51	4.19	3.92	3.64	3.40	3.23
2004年变化率ΔK(%)	-	13.78	22.82	29.50	34.89	40.02	44.07	47.19	50.79	54.24	56.47
2014年变化率ΔK(%)	-	17.29	28.86	35.38	41.27	47.57	51.34	54.50	57.70	60.53	62.43

蓄意攻击比例h(%)	0	1	2	3	4	5	6	7	8	9	10
2004年网络聚类系数C	0.40	0.34	0.32	0.31	0.29	0.27	0.26	0.25	0.23	0.21	0.21
2014年网络聚类系数C	0.38	0.31	0.27	0.26	0.24	0.23	0.22	0.21	0.20	0.19	0.17
2004年变化率ΔC(%)	-	14.30	20.55	22.55	26.80	32.25	33.55	36.02	42.46	46.42	47.98
2014年变化率ΔC(%)	-	18.84	29.22	32.68	37.00	40.58	43.16	45.11	48.49	50.33	54.50

蓄意攻击比例h(%)	0	1	2	3	4	5	6	7	8	9	10
2004年比例ΔN(%)	0.00	1.79	3.18	4.17	5.96	7.55	8.95	9.94	10.93	12.13	13.32
2014年比例ΔN(%)	0.00	1.42	3.31	4.73	6.94	8.83	11.04	12.46	13.72	14.83	16.40

蓄意攻击比例h(%)	0	1	2	3	4	5	6	7	8	9	10
2004年网络平均距离L	3.34	3.70	3.90	4.06	4.23	4.43	4.57	4.70	4.87	5.04	5.09
2014年网络平均距离L	3.41	3.78	4.04	4.25	4.48	4.94	5.16	5.54	5.85	6.33	6.95
2004年变化率ΔL(%)	-	9.80	14.42	17.69	21.00	24.56	26.91	28.90	31.37	33.77	34.40
2004年变化率ΔL(%)	-	9.95	15.54	19.79	23.94	30.98	34.01	38.51	41.77	46.14	50.94

蓄意攻击比例h(%)	0	1	2	3	4	5	6	7	8	9	10
2004年网络效率I	0.33	0.29	0.27	0.26	0.24	0.23	0.21	0.21	0.20	0.19	0.17
2014年网络效率I	0.32	0.27	0.25	0.23	0.21	0.19	0.18	0.16	0.16	0.14	0.13
2004年变化率ΔI(%)	-	12.63	18.85	21.90	26.41	30.95	35.52	37.32	40.34	42.83	47.68
2014年变化率ΔI(%)	-	15.43	23.48	29.09	34.42	40.90	45.10	49.18	51.97	56.85	60.40
