Acta Geographica Sinica ›› 2019, Vol. 74 ›› Issue (9): 1803-1820.doi: 10.11821/dlxb201909008
• Climate Change • Previous Articles Next Articles
LIU Xiaoqiong1,2,WU Zezhou2,LIU Yansui3,ZHAO Xinzheng1,2,RUI Yang1,2,ZHANG Jian2,4()
Received:
2018-05-31
Revised:
2019-08-18
Online:
2019-09-25
Published:
2019-09-25
Contact:
ZHANG Jian
E-mail:zhangjian@nwu.edu.cn
Supported by:
LIU Xiaoqiong, WU Zezhou, LIU Yansui, ZHAO Xinzheng, RUI Yang, ZHANG Jian. Spatial-temporal characteristics of precipitation from 1960 to 2015 in the Three Rivers' Headstream Region, Qinghai, China[J].Acta Geographica Sinica, 2019, 74(9): 1803-1820.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Tab. 1
The average, maximum, minimum value and range value of precipitation in different ages in the Three Rivers' Headstream Region (mm)
多年平均值 | 20世纪60年代 | 20世纪70年代 | 20世纪80年代 | 20世纪90年代 | 21世纪初10年 | 2010-2015年 | ||
---|---|---|---|---|---|---|---|---|
降水量 平均值 | 澜沧江源区 黄河源区 长江源区 | 537.40 500.43 445.71 | 514.95 516.82 430.41 | 517.34 508.89 429.25 | 553.71 530.25 462.60 | 523.55 490.69 419.48 | 561.02 515.71 454.08 | 551.33 522.01 488.65 |
降水量 最高值 | 澜沧江源区 黄河源区 长江源区 | 672.30 643.70 562.80 | 613.50 667.63 479.51 | 672.30 603.98 474.40 | 656.15 635.07 562.80 | 626.45 546.85 472.40 | 666.40 613.90 560.22 | 638.40 582.17 557.57 |
降水量 最低值 | 澜沧江源区 黄河源区 长江源区 | 394.10 395.22 352.37 | 421.70 414.58 374.97 | 424.05 427.35 395.03 | 424.90 462.18 352.37 | 394.10 440.40 361.93 | 431.30 409.78 392.93 | 456.40 458.80 376.12 |
降水量 极差 | 澜沧江源区 黄河源区 长江源区 | 278.20 248.48 210.43 | 191.80 253.06 104.54 | 248.25 176.63 79.37 | 231.25 172.88 210.43 | 232.35 106.45 110.47 | 235.10 204.12 167.28 | 182.00 123.37 181.45 |
Tab. 2
The increase amplitude of precipitation in the Three Rivers' Headstream Region and its surrounding areas
区域 | 研究时段 | 增湿幅度(mm/10a) | 区域 | 研究时段 | 增湿幅度(mm/10a) |
---|---|---|---|---|---|
三江源全区 | 1960-2015年 | 20.048 | 青海湖南部地区[ | 1961-2013年 | 4.42 |
澜沧江源区 | 1960-2015年 | 7.524 | 青藏高原[ | 1961-2010年 | 9.329 |
黄河源区 | 1960-2015年 | 4.403 | 西北地区[ | 1961-2014年 | 4.87 |
长江源区 | 1960-2015年 | 8.031 | 西南地区 | 1960-2016年 | -7.61 |
Tab. 3
Synthetic diagnosis results about catastrophe point of precipitation series in Three Rivers' Headstream Region during 1960-2015
检验方法 | 年际突变点 | 四季突变点 | ||||
---|---|---|---|---|---|---|
澜沧江源区 | 黄河源区 | 长江源区 | 澜沧江源区 | 黄河源区 | 长江源区 | |
累计距 平分析 | 1965、1979 1993、1997 | 1968、1980 1989、2002 | 1979、1989 2003 | 春:1989; 夏:1966、1980、1998; 秋:1971、1991、2008; 冬:1971、1986、1996; | 春:1984、1998、2008; 夏:1978、1989、2002; 秋:1983、2001; 冬:1986、1997; | 春:1975、1996; 夏:1967、1978、2002; 秋:1970、1989、2007; 冬:1986; |
M-K法 | - | - | - | 春:1989**;夏:-; 秋:-;冬:1969**; | 春:1985**、1992**;夏:-; 秋:-;冬:1982**; | 春:1997**;夏:-; 秋:-;冬:1974**; |
滑动t检验法 | 25a、20a、 15a、10a、 5a子序列: -; | 25a、20a、 15a子序 列:-;10a子序 列:2002**;5a子序列:2004*; | 25a、20a、 15a、5a子 序列:-;10a子序 列:1973**、 2004**; | 春:25a子序列:1988***;20a子序列:1988**;15a子序列:1988*、1993*、1998**;10a子序列:1988*;5a子序列:1970**、1978**; 夏:25a、20a、15a、10a、5a子序列:-; 秋:25a、20a、15a、10a子序列:-; 5a子序列:1970*、1989*; 冬:25a子序列:1985*;20a子序列:1981*、1984*;15a子序列:-;10a子序列:1970***、1985*、1995*;5a子序列:1969*、1985**; | 春:25a、20a、10a、5a子序列:-; 15a子序列:1984*; 夏:25a、20a、15a:-; 10a子序列:2002*;5a子序列:2004**; 秋:25a、20a、15a、10a、5a子序列:-; 冬:25a、20a、15a子序列:1986***; 10a子序列:1986**、1996**; 5a子序列:1986**、1997*; | 春:25a子序列:-;20a子序列:1980*; 15a子序列:-;10a子序列:1972*; 5a子序列:1996*、2008*; 夏:25a、20a、15a、5a子序列:-10a子序列:2003**; 秋:25a、20a、15a、10a、5a子序列:-; 冬:25a子序列:1986**;20a子序列:1981***;15a子序列:1986***;10a子序列:1973**、1986**、1996**;5a子序列:1973**、1986*、1997*; |
Lepage法 | 25a、20a、 15a、10a、 5a子序列:-; | 25a、20a、 15a子序 列:-; 10a子序 列:2002*; 5a子序列: 1998*; | 25a、20a 15a、5a子 序列:-; 10a子序 列:1990*、 2004**; | 春:25a子序列:1988**;20a子序列:1988**;15a子序列:1998*;10a子序列:1988*、2002*;5a子序列:1970*; 夏:25a、20a、15a、10a、5a子序列:-; 秋:25a、20a、15a、10a、5a子序列:-; 冬:25a、20a、15a、5a子序列:1985*; 10a子序列:1985*; | 春:25a、20a、15a、10a子序列:-; 5a子序列:1991*、1995*; 夏:25a、20a、15a、5a子序列:-; 10a子序列:2002** 秋:25a、20a、5a子序列:-;15a子序列:1989*;10a子序列:1994*、2004*; 冬:25a、20a、15a子序列:1986**;10a子序列:1996*、1986**;5a子序列:1970*、1986*; | 春:25a、20a、5a子序列:-;15a子序列:1975*;10a子序列:1972*; 夏:25a、20a子序列:-;15a子序列:1997*;10a子序列:1997*、2002*;5a子序列:1965*; 秋:25a、20a、15、10a子序列:-;5a子序列:1968*-1969* 冬:25a、15a子序列:1986**;20a子序列:1981**;10a子序列:1973*、1986**、1996**;5a子序列:1973*、1995*、1997*; |
BG分割算法 | - | - | 2008* | 春:1989**;夏:-; 秋:-;冬:1970**; | 春:-;夏:-; 秋:-;冬:1986**; | 春:1972*、2007**;夏:-; 秋:-;冬:1986*; |
改进的有序聚类分析 | - | - | - | 春:1988*、1998***;夏:-; 秋:-;冬:1970**; | 春:1980***;夏:-; 秋:-;冬:1986***; | 春:1972***;夏:2014*; 秋:-;冬:-; |

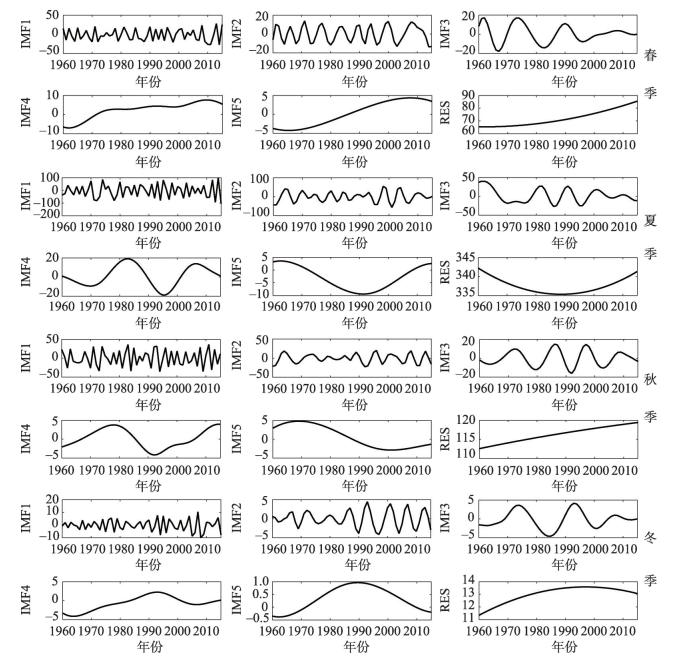

Tab. 4
The period, correlation coefficient and the variance contribution rate of the annual precipitation in Three Rivers’ Headstream Region during 1960-2015
周期(a) | 相关系数 | 方差贡献率(%) | |||||||
---|---|---|---|---|---|---|---|---|---|
澜沧江 | 黄河 | 长江 | 澜沧江 | 黄河 | 长江 | 澜沧江 | 黄河 | 长江 | |
IMF1 | 2.88 | 2.84 | 2.44 | 0.83*** | 0.79*** | 0.75*** | 72.59 | 59.60 | 57.34 |
IMF2 | 5.03 | 8.60 | 4.19 | 0.41*** | 0.47*** | 0.49*** | 16.21 | 20.19 | 18.58 |
IMF3 | 13.56 | 14.29 | 7.69 | 0.23** | 0.25** | 0.30*** | 6.65 | 9.65 | 5.71 |
IMF4 | 27.59 | 33.33 | 32.00 | 0.22** | 0.32*** | 0.45*** | 3.70 | 5.53 | 13.98 |
IMF5 | 32.00 | 66.67 | 100 | 0.20* | -0.04 | 0.32*** | 0.08 | 2.25 | 0.18 |
RES | / | / | / | 0.17* | 0.14 | 0.33*** | 0.78 | 2.77 | 4.21 |
[1] | Yao Tandong, Liu Xiaodong, Wang Ninglian . The range of climate change in the Qinghai Tibet Plateau. Chinese Science Bulletin, 2000,45(1):98-106. |
[ 姚檀栋, 刘晓东, 王宁练 . 青藏高原地区的气候变化幅度问题. 科学通报, 2000,45(1):98-106.] | |
[2] | Ding Yihui, Zhang Li . Intercomparison of the time for climate abrupt change between the Tibetan Plateau and other regions in China. Chinese Journal of Atmospheric Sciences, 2008 , 32(4):794-805. |
[ 丁一汇, 张莉 . 青藏高原与中国其他地区气候突变时间的比较. 大气科学, 2008,32(4):794-805.] | |
[3] | Wu Shaohong, Yin Yunhe, Zheng Du , et al. Climate changes in the Tibetan Plateau during the last three decades. Acta Geographica Sinica, 2005,60(1):3-11. |
[ 吴绍洪, 尹云鹤, 郑度 , 等. 青藏高原近三十年气候变化趋势. 地理学报, 2005,60(1):3-11.] | |
[4] | Lin Zhenyao, Zhao Xinyi . Spatial characters of temperature and precipitation in the Tibetan Plateau. Science in China (Series D: Earth Science), 1996,26(4):354-358. |
[ 林振耀, 赵昕奕 . 青藏高原气温降水变化的空间特征. 中国科学( D辑: 地球科学), 1996,26(4):354-358.] | |
[5] | Lu Heli, Shao Quanqin, Liu Jiyuan , et al. Temporo-spatial and distribution of summer precipitation over the Qinghai-Tibetan Plateau during the last 44 years. Acta Geographica Sinica, 2007,62(9):946-958. |
[ 卢鹤立, 邵全琴, 刘纪远 , 等. 近44年来青藏高原夏季降水的时空分布特征. 地理学报, 2007,62(9):946-958.] | |
[6] | The third national assessment report on climate change, compiling group . The Third National Assessment Report on Climate Change. Beijing: Science Press, 2015. |
[ 《第三次气候变化国家评估报告》编写组. 第三次气候变化国家评估报告. 北京: 科学出版社, 2015.] | |
[7] | Yang Jianchu, Tao Shiyan, Ye Duzheng , et al. Meteorology in Qinghai-Xizang Plateau. Beijing: Science Press, 1960. |
[ 杨鉴初, 陶诗言, 叶笃正 , 等. 西藏高原气象学. 北京: 科学出版社, 1960.] | |
[8] | Wu Guoxiong, Liu Yimin, Liu Xin , et al. How the heating over the Tibetan Plateau affects the Asian climate in summer. Chinese Journal of Atmospheric Sciences, 2005, 29(1): 47-56, 167-168. |
[ 吴国雄, 刘屹岷, 刘新 , 等. 青藏高原加热如何影响亚洲夏季的气候格局. 大气科学, 2005, 29(1): 47-56, 167-168.] | |
[9] | Pan Baotian, Li Jijun . Qjinghai-Tibetan Plateau: A driver and amplifier of the global climate change - Ⅲ. The impact of climate change on the Qinghai-Tibet Plateau's uplift. Journal of Lan Zhou University (Natural Sciences), 1996,32(1):108-115. |
[ 潘保田, 李吉均 . 青藏高原:全球气候变化的驱动机与放大器─Ⅲ. 青藏高原隆起对气候变化的影响. 兰州大学学报(自然科学版本), 1996,32(1):108-115.] | |
[10] | Feng Song, Tang Maocang, Wang Dongmei . New evidence for the Qinghai-Xizang (Tibet) Plateau as a pilot region of climatic fluctuation in China. Chinese Science Bulletin, 1998,43(6):633-636. |
[ 冯松, 汤懋苍, 王冬梅 . 青藏高原是我国气候变化启动区的新证据. 科学通报, 1998,43(6):633-636.] | |
[11] | Wei Zhigang, Huang Ronghui, Dong Wenjie . Interannual and interdecadal variations of air temperature and precipitation over the Tibetan Plateau. Chinese Journal of Atmospheric Sciences, 2003,27(2):157-170. |
[ 韦志刚, 黄荣辉, 董文杰 . 青藏高原气温和降水的年际和年代际变化. 大气科学, 2003,27(2):157-170.] | |
[12] | Yang Wei, He Jinhai, Wang Panxing , et al. Inhomogeneity characteristics of intra-annual precipitation over the Tibetan Plateau in recent 42 years. Acta Geographica Sinica, 2011,66(3):376-384. |
[ 杨玮, 何金海, 王盘兴 , 等. 近42年来青藏高原年内降水时空不均匀性特征分析. 地理学报, 2011,66(3):376-384.] | |
[13] | Xu Yinlong, Zhang Yingxian, Lin Wantao , et al. Analyses on the climate change scenarios over the Three Rivers' Headstream Region in China. Climatic and Environmental Research, 2007,12(5):667-675. |
[ 许吟隆, 张颖娴, 林万涛 , 等. “三江源”地区未来气候变化的模拟分析. 气候与环境研究, 2007,12(5):667-675.] | |
[14] |
Yi X S, Li G S, Yin Y Y . Spatio-temporal variation of precipitation in the Three-River Head- water Region from 1961 to 2010. Journal of Geographical Sciences, 2013,23(3):447-464.
doi: 10.1007/s11442-013-1021-y |
[15] | Wang Genxu, Li Qi, Cheng Guodong , et al. Climate change and its impact on the eco-environment in the source regions of the Yangtze and Yellow Rivers in recent 40 years. Journal of Glaciology and Geocryology, 2001,23(4):346-352. |
[ 王根绪, 李琪, 程国栋 , 等. 40a来江河源区的气候变化特征及其生态环境效应. 冰川冻土, 2001,23(4):346-352.] | |
[16] | Qian Shuan, Fu Yang, Pan F F . Climate change tendency and grassland vegetation response during the growth season in Three-River Source Region. Science China Earth Science, 2010,40(10):1439-1445. |
[ 钱拴, 伏洋 , Pan F F. 三江源地区生长季气候变化趋势及草地植被响应. 中国科学: 地球科学, 2010,40(10):1439-1445.] | |
[17] | Ge Sang, Tang Xiaoping, Lu Hongya . Climatic characteristics of rainfall and rainy days during the last 35 years over the Qinghai-Xizang Plateau. Acta Geographica Sinica, 2008,63(9):924-930. |
[ 格桑, 唐小萍, 路红亚 . 近35 年青藏高原雨量和雨日的变化特征. 地理学报, 2008,63(9):924-930.] | |
[18] | Li Zhanjie, Yu Jingshan . Analysis on precipitation cycles in the Yellow River Basin. Journal of Beijing Normal University (Natural Science), 2010,46(3):401-404. |
[ 李占杰, 鱼京善 . 黄河流域降水要素的周期特征分析. 北京师范大学学报(自然科学版), 2010,46(3):401-404.] | |
[19] | Li Lin, Li Fengxia, Guo Anhong , et al. Study on the climate change trend and its catastrophe over Sanjiangyuan Region in recent 43 years. Journal of Natural Resources, 2006,21(1):79-85. |
[ 李林, 李凤霞, 郭安红 , 等. 近43 年来“三江源”地区气候变化趋势及其突变研究. 自然资源学报, 2006,21(1):79-85.] | |
[20] | Li Lin, Li Fengxia, Zhu Xide , et al. Study on the evolution law and cause of the extreme climatic events over the source region of the three rivers. Journal of Natural Resources, 2007,22(4):656-663. |
[ 李林, 李凤霞, 朱西德 , 等. 三江源地区极端气候事件演变事实及其成因探究. 自然资源学报, 2007,22(4):656-663.] | |
[21] | Zhang Shifeng, Hua Dong, Meng Xiujing , et al. Climate change and its driving effect on the runoff in the Three-River Headwaters Region. Acta Geographica Sinica, 2011,66(1):13-24. |
[ 张士锋, 华东, 孟秀敬 , 等. 三江源气候变化及其对径流的驱动分析. 地理学报, 2011,66(1):13-24.] | |
[22] | Yang Jianping, Ding Yongjian, Shen Yongping , et al. Climatic features of eco-environment change in the source regions of the Yangtze and Yellow Rivers in recent 40 years. Journal of Glaciology and Geocryology, 2004,26(1):7-16. |
[ 杨建平, 丁永建, 沈永平 , 等. 近40a来江河源区生态环境变化的气候特征分析. 冰川冻土, 2004,26(1):7-16.] | |
[23] | Tan Jianbo, Li Ainong, Lei Guangbin . Contrast on anusplin and cokriging meteorological spatial interpolation in southeastern margin of Qinghai-Xizang Plateau. Plateau Meteorology, 2016,35(4):875-886. |
[ 谭剑波, 李爱农, 雷光斌 . 青藏高原东南缘气象要素Anusplin 和Cokriging空间插值对比分析. 高原气象, 2016,35(4):875-886.] | |
[24] | Tang Hongyu, Yang Xiaodan, Wang Xijuan , et al. Analyses of precipitation change in the source regions of three rivers during 1956-2004. Plateau Meteorology, 2007,26(1):47-54. |
[ 唐红玉, 杨小丹, 王希娟 , 等. 三江源地区近50年降水变化分析. 高原气象, 2007,26(1):47-54.] | |
[25] | Xu Xinliang, Liu Jiyuan, Shao Quanqin , et al. The dynamic changes of ecosystem spatial pattern and structure in the Three-River Headwaters Region in Qinghai province during recent 30 years. Geographical Research, 2008,27(4):829-838, 974. |
[ 徐新良, 刘纪远, 邵全琴 , 等. 30年来青海三江源生态系统格局和空间结构动态变化. 地理研究, 2008,27(4):829-838, 974.] | |
[26] | Sun Honglie, Zheng Du, Yao Tandong , et al. Protection and construction of the national ecological security shelter zone on Tibetan Plateau. Acta Geographica Sinica, 2012,67(1):3-12. |
[ 孙鸿烈, 郑度, 姚檀栋 , 等. 青藏高原国家生态安全屏障保护与建设. 地理学报, 2012,67(1):3-12.] | |
[27] | Shao Quanqin, Liu Jiyuan, Huang Lin , et al. Integrated assessment on the effectiveness of ecological conservation in Sanjiangyuan National Nature Reserve from 2005 to 2009. Geographical Research. 2013,32(9):1645-1656. |
[ 邵全琴, 刘纪远, 黄麟 等. 2005-2009年三江源自然保护区生态保护和建设工程生态成效综合评估. 地理研究, 2013,32(9):1645-1656.] | |
[28] | Wei Fengying. Statistical Diagnosis and Prediction of Modern Climate. Beijing: China Meteorological Press, 2007: 57-63. |
[ 魏凤英 . 现代气候统计诊断与预测技术. 北京: 气象出版社, 2007: 57-63.] | |
[29] | Feng Guolin, Gong Zhiqiang, Dong Wenjie , et al. Abrupt climate change detection based on heuristic segmentation algorithm. Acta Physica Sinica, 2005,54(11):5494-5499. |
[ 封国林, 龚志强, 董文杰 , 等. 基于启发式分割算法的气候突变检测研究. 物理学报, 2005,54(11):5494-5499.] | |
[30] | Huang N E, Shen Z, Long S , et al. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 1998,454(1971):903-995. |
[31] | Lei Yaguo . Machinery fault diagnosis based on improved Hilbert-Huang transform. Journal of Mechanical Engineering, 2011,47(5):71-77. |
[ 雷亚国 . 基于改进Hilbert-Huang变换的机械故障诊断. 机械工程学报, 2011,47(5):71-77.] | |
[32] | Rehmnan S . Study of Saudi Arabian climatic conditions using Hurst exponent and climatic predictability index. Chaos Solitons & Fractals, 2009,39(2):499-509. |
[33] | Shi Yafeng, Shen Yongping, Li Dongliang , et al. Discussion on the present climate change from warm-dry to warm-wet in Northwest China. Quaternary Sciences, 2003,23(2):152-164. |
[ 施雅风, 沈永平, 李栋梁 , 等. 中国西北气候由暖干向暖湿转型的特征和趋势探讨. 第四纪研究, 2003,23(2):152-164.] | |
[34] | Yan Rong, Guo Shousheng, An Guanghui , et al. 1961-2013 precipitation variation characteristics in the southern part of Qinghai Lake. China Agronomy Bulletin, 2015,31(22):248-255. |
[ 闫蓉, 郭守生, 安光辉 , 等. 1961-2013年青海湖南部地区降水变化特征分析. 中国农学通报, 2015,31(22):248-255.] | |
[35] | Lin Houbo, You Qinglong, Jiao Yang , et al. Temporal and spatial variability of precipitation over the Qinghai-Tibet Plateau based on high resolution lattice observation data. Journal of Natural Resources, 2015,30(2):271-281. |
[ 林厚博, 游庆龙, 焦洋 , 等. 基于高分辨率格点观测数据的青藏高原降水时空变化特征. 自然资源学报, 2015,30(2):271-281.] | |
[36] | Shang Shasha, Lian Lishu, Ma Ting , et al. Temporal and spatial variations of temperature and precipitation in Northwest China during the last 65a. Study on Arid Zone, 2018,35(1):68-76. |
[ 商沙沙, 廉丽姝, 马婷 , 等. 近54a中国西北地区气温和降水的时空变化特征. 干旱区研究, 2018,35(1):68-76.] |
