中国中世纪气候异常期温度的多尺度变化特征及区域差异

doi:10.11821/dlxb201907001

Abstract

Abstract:

Medieval Climate Anomaly (MCA, 950-1250 A.D.) was the most recent and lasting hundreds of years warm period, which has aroused more attention from climate scholars, because MCA provided similar patterns to research on the impact and adaption of global and regional warming. In this study, we investigate the characteristics of temperature variation on inter-decadal to centennial scale during MCA in four regions (including Northeast, Northwest, Central-east and Tibetan Plateau) in China based on high-resolution temperature reconstructions longer than 1000 years and related warm-cold records from historical documents. Ensemble empirical mode decomposition method is used to analyze the cycles and fluctuations of four regional temperature series. The results show that the longest warm period during the last 2000 years occurred in the 10th-13th centuries over the whole country, although there existed several cold decadal intervals in the mid to late 12th century, different starting-ending warming periods and warming magnitudes in four regions. On quasi-30-year scale, regional temperature variations were similar during 950-1130 A.D. while their amplitudes became smaller and the phases did not match well each other in 1130-1250 A.D. On centennial scale, all the four regions began a warm period in the early 10th century and experienced two cold intervals during MCA. However, temperature variations of Northwest and Central-east kept in phase each other, but out phase in Northeast and Tibetan Plateau, where the ending of the warm period was earlier about 40-50 years than that of Northwest and Central-east. On multi-centennial scale, the mean temperature difference between MCA and Little Ice Age in Northeast and Central-east is significant, but did not appear in Northwest and Tibetan Plateau. Compared with the mean temperature of the 20th century, Central-east had a comparable warming level, Northeast was a little cooler, and both Northwest and Tibetan Plateau had significantly lower temperatures in MCA.

Key words: Medieval Climate Anomaly, temperature, mlulti-scale, regional differences, China

ZHENG Jingyun,LIU Yang,WU Maowei,ZHANG Xuezhen,HAO Zhixin. Evidences and regional differences on multi-scales in Medieval Climate Anomaly over China[J].Acta Geographica Sinica, 2019, 74(7): 1281-1291.

Figures/Tables 4

Tab. 1

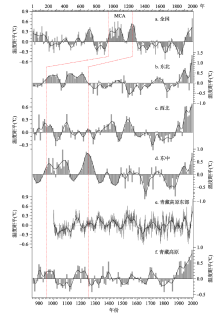

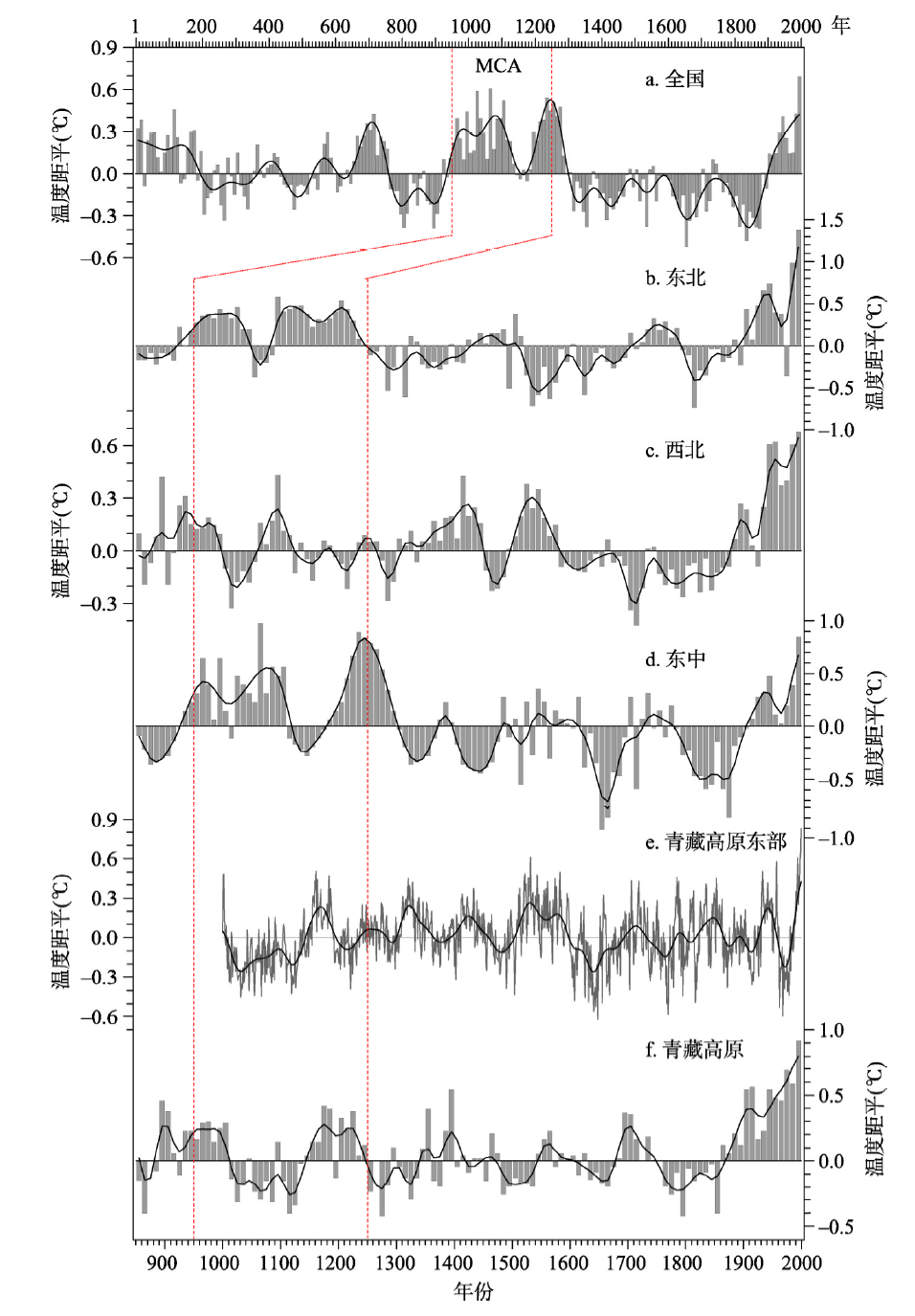

Fig. 1

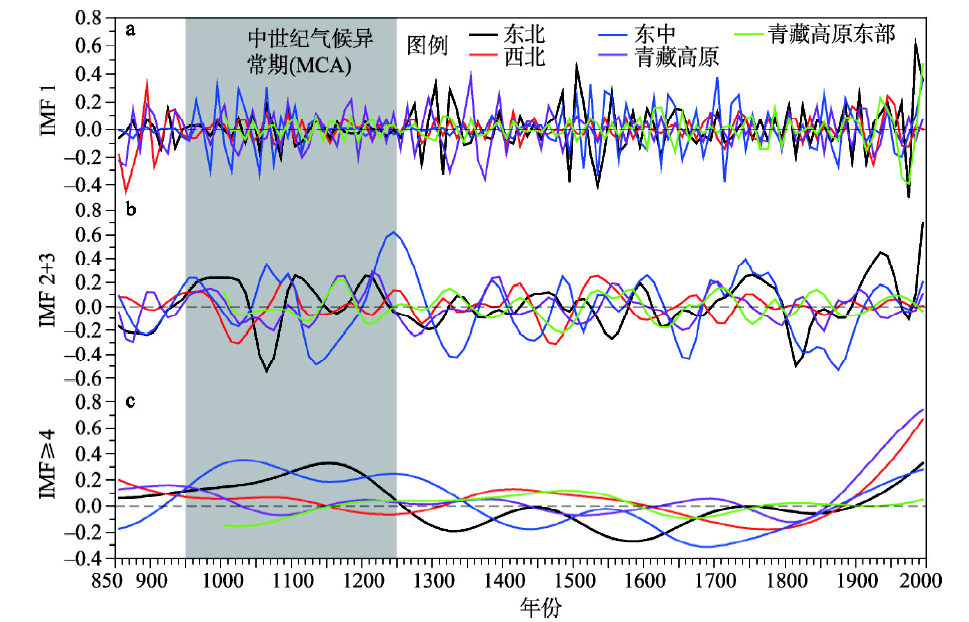

Fig. 2

Tab. 2

References 43

[1]	IPCC. Summary for Policymakers//Climate Change 2014: Impacts, Adaptation, and Vulnerability. Part A: Global and Sectoral Aspects. Contribution of Working Group II to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge, UK and New York, NY, USA: Cambridge University Press, 2014: 1-32.
[2]	IPCC. Managing the Risks of Extreme Events and Disasters to Advance Climate Change Adaptation. A Special Report of Working Groups I and II of the Intergovernmental Panel on Climate Change. Cambridge, UK, and New York, NY, USA: Cambridge University Press, 2012: 1-582.
[3]	Qin Dahe . Climate change science and sustainable development. Progress in Geography, 2014,33(7):874-883. doi: 10.11820/dlkxjz.2014.07.002
	[ 秦大河 . 气候变化科学与人类可持续发展. 地理科学进展, 2014,33(7):874-883.] doi: 10.11820/dlkxjz.2014.07.002
[4]	Crowley T J, Lowery T S . How warm was the medieval warm period? AMBIO: A Journal of the Human Environment, 2000,29(1):51-54. doi: 10.1579/0044-7447-29.1.51
[5]	Bradley R S, Hughes M K, Diaz H F . Climate in medieval time. Science, 2003,302:404-405. doi: 10.1126/science.1090372
[6]	PAGES. Science Plan and Implementation Strategy. IGBP Report No.57. Stockholm: IGBP Secretariat, 2009: 1-67.
[7]	PAGES. PAGES Restructured. Past Global Changes Magazine, 2014,22(1):3. doi: 10.22498/pages
[8]	Hughes M K, Diaz H F . Was there a 'medieval warm period', and if so, where and when? Climatic Change, 1994,26:109-142. doi: 10.1007/BF01092410
[9]	Diaz H F, Trigo R, Hughes M K , et al. Spatial and temporal characteristics of climate in medieval times revisited. Bulletin of the American Meteorological Society, 2011,92(11):1487-1500. doi: 10.1175/BAMS-D-10-05003.1
[10]	Steffen W . Preface of Chinese Edition, in Global Change and the Earth System: A Planet Under Pressure. Chen Panqin, Lin Hai, Ge Quansheng, et al. trans. Beijing: IGBP, 2003: 1-2.
	[ Steffen W. 中文版前言//全球变化与地球系统: 一颗重负之下的行星. 陈泮勤, 林海, 葛全胜, 等译. 北京: 国际地圈生物圈计划中国委员会(IGBP), 2003: 1-2.]
[11]	Bradley R S . High Resolution Records of Past Climate from Monsoon Asia: The Last 2000 Years and Beyond: Recommendations for Research. Bern, Switzerland: IGBP PAGES Workshop Report Series 93-1, 1993: 1-32.
[12]	Ge Quansheng, Zheng Jingyun, Hao Zhixin , et al. State-of-the-arts in the study of climate changes over China for the past 2000 years. Acta Geographica Sinica, 2014,69(9):1248-1258.
	[ 葛全胜, 郑景云, 郝志新 , 等. 过去2000年中国气候变化研究的新进展. 地理学报, 2014,69(9):1248-1258.]
[13]	Ge Q S, Zheng J Y, Hao Z X , et al. Recent advances on reconstruction of climate and extreme events in China for the past 2000 years. Journal of Geographical Sciences, 2016,26(7):827-854. doi: 10.1007/s11442-016-1301-4
[14]	Ge Quansheng, Liu Jian, Fang Xiuqi , et al. General characteristics of temperature change and centennial warm periods during the past 2000 years. Acta Geographica Sinica, 2013,68(5):579-592.
	[ 葛全胜, 刘健, 方修琦 , 等. 过去2000年冷暖变化的基本特征与主要暖期. 地理学报, 2013,68(5):579-592.]
[15]	Ge Quansheng, Hua Zhong, Zheng Jingyun , et al. Forcing and impacts of warm periods in the past 2000 years. Chinese Science Bulletin, 2015,60(18):1727-1734. doi: 10.1360/n972014-01298
	[ 葛全胜, 华中, 郑景云 , 等. 过去2000年全球典型暖期的形成机制及其影响. 科学通报, 2015,60(18):1727-1734.] doi: 10.1360/n972014-01298
[16]	Ge Q S, Liu H L, Ma X , et al. Characteristics of temperature change in China over the last 2000 years and spatial patterns of dryness/wetness during cold and warm periods. Advances in Atmospheric Sciences, 2017,34(8):941-951. doi: 10.1007/s00376-017-6238-8
[17]	Ge Q S, Hao Z X, Zheng J Y , et al. Temperature changes over the past 2000 yr in China and comparison with the Northern Hemisphere. Climate of the Past, 2013,9(3):1153-1160. doi: 10.5194/cp-9-1153-2013
[18]	Wang J L, Yang B, Ljungqvist F C . A millennial summer temperature reconstruction for the eastern Tibetan Plateau from tree-ring width. Journal of Climate, 2015,28(13):5289-5304. doi: 10.1175/JCLI-D-14-00738.1
[19]	Huang N E, Shen Z, Long S R , et al. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis . Proceedings of the Royal Society of London A: Mathematical, Physical and Engineering Sciences, 1998,454(1971):903-995. doi: 10.1098/rspa.1998.0193
[20]	Huang N E, Wu Z . A review on Hilbert‐Huang transform: Method and its applications to geophysical studies. Reviews of Geophysics, 2008, 46(2):RG2006.
[21]	Wu Z, Huang N E, Long S R , et al. On the trend, detrending, and variability of nonlinear and nonstationary time series. Proceedings of the National Academy of Sciences, 2007,104(38):14889-14894. doi: 10.1073/pnas.0701020104
[22]	Ayenu-Prah A Y, Attoh-Okine N O . Comparative study of Hilbert-Huang transform, Fourier transform and wavelet transform in pavement profile analysis. Vehicle System Dynamics, 2009,47(4):437-456. doi: 10.1080/00423110802167466
[23]	Wang Bing, Li Xiaodong . Multi-scale fluctuation of European temperature revealed by EEMD analysis. Acta Scientiarum Naturalium Universitatis Pekinensis, 2011,47(4):627-635.
	[ 王兵, 李晓东 . 基于EEMD分解的欧洲温度序列的多尺度分析. 北京大学学报: 自然科学版, 2011,47(4):627-635.]
[24]	Wei Meng, Qiao Fangli . Attribution analysis for the failure of CMIP5 climate models to simulate the recent global warming hiatus. Science China Earth Sciences, 2016,46(12):1675-1688.
	[ 魏萌, 乔方利 . CMIP5气候模式模拟的1850-2014年全球温度变化的集合经验模态分解. 中国科学: 地球科学, 2016,46(12):1675-1688.]
[25]	Zhao Ke . Research for the time that Su Song picked up Liao envoy and his first visit to Liao, a correction for chronology of Su Song. The Northern Forum, 1992(4):58-59.
	[ 赵克 . 苏颂接伴辽使及首次使辽时间考证: 《苏颂年表》正误一则. 北方论丛, 1992(4):58-59.]
[26]	Chen Zibin, Qi Jingzhi . Annotation of Su Song's Ambassador-to-Liao Poetry, a friendly journey of thousands kilometers. Journal of Chengde Teachers College for Nationalities, 1993(2):1-38.
	[ 陈子彬, 齐敬之 . 苏颂《使辽诗》注释: 友好睦邻千里行: 读苏颂《使辽诗》. 承德民族师专学报, 1993(2):1-38.]
[27]	Wan Minwei. Selected Natural Calendars of China. Beijing: Science Press, 1986: 1-39.
	[ 宛敏渭 . 中国自然历选编. 北京: 科学出版社, 1986: 1-39.]
[28]	Guo Hao, Li Peng, Tai Xinhe . Research of Liao River. History and Geography of Northeast China, 2012(6):35-39.
	[ 郭浩, 李鹏, 邰新河 . 辽水、辽泽、辽河考释. 东北史地, 2012(6):35-39.]
[29]	Wang Shaowu, Wen Xinyu, Luo Yong , et al. Reconstruction of temperature series of China for the last 1000 years. Chinese Science Bulletin, 2007,52(8):958-964.
	[ 王绍武, 闻新宇, 罗勇 , 等. 近千年中国温度序列的建立. 科学通报, 2007,52(8):958-964.]
[30]	Hao Zhixin, Ge Quansheng, Zheng Jingyun . Temperature variations during the Song and Yuan Dynasties (960~1368 A. D.) in the eastern part of North West China. Quaternary Sciences, 2009,29(5):871-879.
	[ 郝志新, 葛全胜, 郑景云 . 宋元时期中国西北东部的冷暖变化. 第四纪研究, 2009,29(5):871-879.]
[31]	Yang B, Qin C, Wang J , et al. A 3,500-year tree-ring record of annual precipitation on the northeastern Tibetan Plateau. Proceedings of the National Academy of Sciences, 2014,111(8):2903-2908. doi: 10.1073/pnas.1319238111
[32]	Shao X, Xu Y, Yin Z Y , et al. Climatic implications of a 3585-year tree-ring width chronology from the northeastern Qinghai-Tibetan Plateau. Quaternary Science Reviews, 2010,29(17):2111-2122. doi: 10.1016/j.quascirev.2010.05.005
[33]	Ge Quansheng. Climate Change in Chinese Dynasties. Beijing: Science Press, 2011: 665.
	[ 葛全胜 . 中国历朝气候变化. 北京: 科学出版社, 2011: 665.]
[34]	Man Zhimin. Climate Change Research in Chinese history. Jinan: Shandong Education Press, 2009: 229-235.
	[ 满志敏 . 中国历史时期气候变化研究. 济南: 山东教育出版社, 2009: 229-235.]
[35]	Man Zhimin . Relationship between geographic northern bounds of orange cultivation in Chinese history and the climatic changes. Fudan Journal (Social Sciences), 1999,41(5):72-77.
	[ 满志敏 . 历史时期柑橘种植北界与气候变化的关系. 复旦学报(社会科学版), 1999,41(5):72-77.]
[36]	Zheng J, Ding L, Hao Z , et al. Extreme cold winter events in southern China during AD 1650-2000. Boreas, 2012,41:1-12. doi: 10.1111/bor.2012.41.issue-1
[37]	Zhang De'er . A study on the medieval warm period in China. Quaternary Sciences, 1993,13(1):7-15.
	[ 张德二 . 我国“中世纪温暖期”气候的初步推断. 第四纪研究, 1993,13(1):7-15.]
[38]	Shiyatov S G . The upper timberline dynamics during the last 1100 years in the Polar-Ural mountains//Oscillations of the Alpine and Polar Tree Limits in the Holocene. Stuttgart: Gustav Fischer Verlag, 1993: 195-203.
[39]	Bradley R S . Past global changes and their significance for the future. Quaternary Science Reviews, 2000,19:391-402. doi: 10.1016/S0277-3791(99)00071-2
[40]	Shiyatov S G, Mazepa V S . Contemporary expansion of Siberian larch into the mountain tundra of the Polar Urals. Russian Journal of Ecology, 2015,46(6):495-502. doi: 10.1134/S1067413615060168
[41]	Thompson L G, Mosley-Thompson E, Brecher H , et al. Abrupt tropical climate change: Past and present. Proceedings of the National Academy of Sciences, 2006,103(28):10536-10543. doi: 10.1073/pnas.0603900103
[42]	Chen D L, Xu B Q, Yao T D , et al. Assessment of past, present and future environmental changes on the Tibetan Plateau (in Chinese). China Science Bulletin, 2015,60:3025-3035.
	[ 陈德亮, 徐柏青, 姚檀栋 , 等. 青藏高原环境变化科学评估: 过去、现在与未来. 科学通报, 2015,60:3025-3035.]
[43]	Ge Q S, Zheng J Y, Tian Y Y , et al. Coherence of climatic reconstruction from historical documents in China by different studies. International Journal of Climatology, 2008,28(8):1007-1024. doi: 10.1002/(ISSN)1097-0088

地区/点	代用证据	区域范围或样点经纬度及海拔	重建指标	重建时段	时间分辨率	文献编号
东北部	泥炭δ¹⁸O、湖泊纹层长链烯酮(long-chain alkenone)、石笋微层厚度、历史冷暖记载;5条序列集成	约110°E~130°E、36oN~50°N	年平均温度	1-2000 AD	10年	[17]
西北部	树轮宽度;祁连山北坡2条序列合成	约80°E~110oE、38oN以北至国境	年平均温度	850-2000 AD	10年	[17]
东中部	历史冷暖记载;3条(1380年后)和8条(1470年后)序列集成	约105°E~122oE、24oN~36oN	年平均温度	1-2000 AD	10年	[17]
青藏高原	冰芯δ¹⁸O,树轮宽度,湖泊沉积物有机碳(Total Organic Carbon)、长链烯酮;8条序列集成	约80°E~102oE、25oN~38oN	年平均温度	1-2000 AD	10年	[17]
青藏高原东部	树轮宽度;12个年表集成	87°E~102oE、27oN~38oN, 海拔3100~4500 m	6-8月平均气温	1000-2005 AD	1年	[18]

本征模函数(IMFs)	东北(%)	西北(%)	东中(%)	青藏高原(%)	青藏高原东部(%)
IMF1	29.5	24.5	11.3	31.5	42.7
IMF2+IMF3	29.1	28.6	40.7	25.9	38.0
IMF ≥ 4	21.9	46.7	29.7	34.3	18.7
