基于MODIS的2006-2016年西藏生态质量综合评价及其时空变化

doi:10.11821/dlxb201907012

Abstract

Abstract:

In view of the lack of research on the screening and comprehensive evaluation of vegetation ecological parameters based on remotely sensed date products, this paper firstly proposes a method to evaluate the vegetation eco-environmental quality in Tibet by PCA (principal component analysis). Based on five indicators, including fractional vegetation coverage (FVC), leaf area index (LAI), gross primary productivity (GPP), land surface temperature (LST) and modified wet (Wet) from MODIS satellite data, the law and mechanism of spatial-temporal changes of eco-environmental quality in Tibet in the last 10 years are explored. The experimental results show that: (1) The comprehensive quality of the eco-environmental quality in Tibet is relatively fragile, and the spatial difference in eco-environmental quality is significant. It is excellent in the southeast but poor in the northwest. (2) During the period from 2006 to 2016, the eco-environmental quality in Tibet shows a trend of improving overall. In terms of time series, the proportion of areas improved and degraded in the past 10 years was 31.88% and 4.13% respectively. In terms of spatial distribution, the improved areas are distributed in the northwestwen, central and eastern parts, but but the degraded areas are distributed in the southeastern parts. (3) Improvements in hydrothermal conditions (especially the increase in precipitation) and human protection policies have led to improvements in the eco-environmental quality in the western and central Tibet. The strengthening of social and economic activities is the main reason for the deterioration of the eco-environmental quality in the southeast of Tibet.

Key words: Tibet, MODIS date products, eco-environmental quality, principal component analysis, spatial-temporal changes

WU Yijin,ZHAO Xingshuang,XI Yue,LIU Hui,LI Chang. Comprehensive evaluation and spatial-temporal changes of eco-environmental quality based on MODIS in Tibet during 2006-2016[J].Acta Geographica Sinica, 2019, 74(7): 1438-1449.

Figures/Tables 11

Fig. 1

Tab. 1

Fig. 2

Fig. 3

Tab. 2

Fig. 4

Tab. 4

Fig. 5

Fig. 6

Fig. 7

References 42

[1]	Sun Ruyong . Basic Ecology. Beijing: Higher Education Press, 2002.
	[ 孙儒泳 . 基础生态学. 北京: 高等教育出版社, 2002.]
[2]	Xu Yan, Zhou Huarong . A preliminary study on advances in assessment of eco-environmental quality in China. Arid Land Geography, 2003,26(2):166-172.
	[ 徐燕, 周华荣 . 初论我国生态环境质量评价研究进展. 干旱区地理, 2003,26(2):166-172.]
[3]	Zhou Huarong . Study on ecological environmental quality as assessment index system of Xinjiang. China Environmental Science, 2000,20(2):150-153.
	[ 周华荣 . 新疆生态环境质量评价指标体系研究. 中国环境科学, 2000,20(2):150-153.]
[4]	Ren Zhiyuan, Huang Qing, Li Jing . Quantitative analysis of dynamic change and spatial difference of the ecological safety: The case of Shaanxi province. Acta Geographica Sinica, 2005,60(4):597-606.
	[ 任志远, 黄青, 李晶 . 陕西省生态安全及空间差异定量分析. 地理学报, 2005,60(4):597-606.]
[5]	Xiao Jianhong, Yu Qingdong, Liu Kang , et al. Evaluation of the ecological security of island tourist destination and island tourist sustainable development: A case study of Zhoushan Islands. Acta Geographica Sinica, 2011,66(6):842-852.
	[ 肖建红, 于庆东, 刘康 , 等. 海岛旅游地生态安全与可持续发展评估: 以舟山群岛为例. 地理学报, 2011,66(6):842-852.]
[6]	Jiang Weiguo, Pan Yingzi, Hou Peng , et al. Assessment and analysis of wetland ecosystem health in Dongting Lake. Geographical Research, 2009,28(6):1665-1672.
	[ 蒋卫国, 潘英姿, 侯鹏 , 等. 洞庭湖区湿地生态系统健康综合评价. 地理研究, 2009,28(6):1665-1672.]
[7]	Wolfslehner B, Vacik H . Evaluating sustainable forest management strategies with the analytic network process in a pressure-state-response framework. Journal of Environmental Management, 2008,88(1):1-10.
[8]	Yu Feng, Li Xiaobing, Wang Hong , et al. Land use change and eco-security assessment of Huangfuchuan Watershed. Acta Geographica Sinica, 2006,61(6):645-653.
	[ 喻锋, 李晓兵, 王宏 , 等. 皇甫川流域土地利用变化与生态安全评价. 地理学报, 2006,61(6):645-653.]
[9]	Ni Xiaojiao, Nan Ying, Zhu Weihong , et al. Study on comprehensive assessment of ecological security in Changbai Mountain region based on multi-hazard natural disasters risk. Geographical Research, 2014,33(7):1348-1360.
	[ 倪晓娇, 南颖, 朱卫红 , 等. 基于多灾种自然灾害风险的长白山地区生态安全综合评价. 地理研究, 2014,33(7):1348-1360.]
[10]	Zhang Z, Lu W X, Zhao Y , et al. Development tendency analysis and evaluation of the water ecological carrying capacity in the Siping area of Jilin Province in China based on system dynamics and analytic hierarchy process. Ecological Modelling, 2014,275(10):9-21. doi: 10.1016/j.ecolmodel.2013.11.031
[11]	Huang Heping, Peng Xiaolin, Kong Fanbin , et al. Evaluation of ecological economy index in the Poyang Lake ecological economic zone. Acta Ecologica Sinica, 2014,34(11):3107-3144. doi: 10.5846/stxb201306101571
	[ 黄和平, 彭小琳, 孔凡斌 , 等. 鄱阳湖生态经济区生态经济指数评价. 生态学报, 2014,34(11):3107-3114.] doi: 10.5846/stxb201306101571
[12]	Yang Shengtian, Liu Changming, Yang Zhifeng , et al. Natural eco-environmental evaluation of west route area of interbasin water transfer project. Acta Geographica Sinica, 2002,57(1):11-18.
	[ 杨胜天, 刘昌明, 杨志峰 , 等. 南水北调西线调水工程区的自然生态环境评价. 地理学报, 2002,57(1):11-18.]
[13]	Xu Hanqiu . A remote sensing index for assessment of regional ecological changes. China Environmental Science, 2013,33(5):889-897. doi: 10.3969/j.issn.1000-6923.2013.05.019
	[ 徐涵秋 . 区域生态环境变化的遥感评价指数. 中国环境科学, 2013,33(5):889-897.] doi: 10.3969/j.issn.1000-6923.2013.05.019
[14]	De Araujo Barbosa C C Atkinson P M , et al. Remote sensing of ecosystem services: A systematic review. Ecological Indicators, 2015,52:430-443. doi: 10.1016/j.ecolind.2015.01.007
[15]	Zhu Jiawei, Xie Xiaotong, Li Xinhui . A solution to the problem of ecological environmental carrying capacity evaluation: A case study of Henan Province. Acta Ecologica Sinica, 2017,37(21):7039-7047.
	[ 朱嘉伟, 谢晓彤, 李心慧 . 生态环境承载力评价研究: 以河南省为例. 生态学报, 2017,37(21):7039-7047.]
[16]	Liu Rui, Wang Shixin, Zhou Yi , et al. Ecological environment condition evaluation mode of county region based on remote sensing techniques. China Environmental Science, 2012,32(1):181-186.
	[ 刘瑞, 王世新, 周艺 , 等. 基于遥感技术的县级区域环境质量评价模型研究. 中国环境科学, 2012,32(1):181-186.]
[17]	Zhi Yingbiao, Wang Zailan, Ma Zhong , et al. Research on Ningxia's resource and environmental performance and changing trends. Acta Ecologica Sinica, 2009,29(12):6490-6498.
	[ 智颖飙, 王再岚, 马中 , 等. 宁夏资源环境绩效及其变动态势. 生态学报, 2009,29(12):6490-6498.]
[18]	Gao Jiangbo, Hou Wenjuan, Zhao Dongsheng . Comprehensive assessment of natural ecosystem vulnerability in Tibetan Plateau based on satellite-derived datasets. Scientia Geographica Sinica, 2016,36(4):580-587. doi: 10.13249/j.cnki.sgs.2016.04.012
	[ 高江波, 侯文娟, 赵东升 . 基于遥感数据的西藏高原自然生态系统脆弱性评估. 地理科学, 2016,36(4):580-587.] doi: 10.13249/j.cnki.sgs.2016.04.012
[19]	He Baozhong, Ding Jianli, Zhang Zhe , et al. Experimental analysis of spatial and temporal dynamics of fractional vegetation cover in Xinjiang. Acta Geographica Sinica, 2016,71(11):1948-1966.
	[ 何宝忠, 丁建丽, 张喆 , 等. 新疆植被覆盖度趋势演变实验性分析. 地理学报, 2016,71(11):1948-1966.]
[20]	Tibet Autonomous Region Statistics Bureau. Tibet Statistical Yearbook. Beijing: China Statistics Press, 2006-2016.
	[ 西藏自治区统计局. 西藏统计年鉴. 北京: 中国统计出版社, 2006-2016.]
[21]	Mu Shaojie, Li Jianlong, Chen Yizhao , et al. Spatial differences of variations of vegetation coverage in Inner Mongolia during 2001-2010. Acta Geographica Sinica, 2012,67(9):1255-1268.
	[ 穆少杰, 李建龙, 陈奕兆 , 等. 2001-2010年内蒙古植被覆盖度时空变化特征. 地理学报, 2012,67(9):1255-1268.]
[22]	Zhou Wei, Gang Chengcheng, Li Jianlong , et al. Spatial-temporal dynamics of grassland coverage and its response to climate change in China during 1982-2010. Acta Geographica Sinica, 2014,69(1):15-30.
	[ 周伟, 刚成诚, 李建龙 , 等. 1982-2010年中国草地覆盖度的时空动态及其对气候变化的响应. 地理学报, 2014,69(1):15-30.]
[23]	Li Shuangshuang, Yan Junping, Wan Jia . The spatial-temporal changes of vegetation restoration on Loess Plateau in Shaanxi-Gansu-Ningxia region. Acta Geographica Sinica, 2012,67(7):960-970.
	[ 李双双, 延军平, 万佳 . 近10年陕甘宁黄土高原区植被覆盖时空变化特征. 地理学报, 2012,67(7):960-970.]
[24]	Wang Q, Tenhunen J, Dinh N Q , et al. Similarities in ground- and satellite-based NDVI time series and their relationship to physiological activity of a Scots pine forest in Finland. Remote Sensing of Environment, 2004,93(1/2):225-237. doi: 10.1016/j.rse.2004.07.006
[25]	Zhang G L, Zhang Y J, Dong J W , et al. Green-up dates in the Tibetan Plateau have continuously advanced from 1982 to 2011. Proceedings of the National Academy of Sciences of the United States of America, 2013,110(11):4309-4314. doi: 10.1073/pnas.1210423110
[26]	Shen M G, Piao S L, Jeong S J , et al. Evaporative cooling over the Tibetan Plateau induced by vegetation growth. Proceedings of the National Academy of Sciences of the United States of America, 2015,112(30):9299-9304. doi: 10.1073/pnas.1504418112
[27]	Leprieur C, Verstraete M M, Pinty B . Evaluation of the performance of various vegetation indices to retrieve vegetation cover from AVHRR data. Remote Sensing Reviews, 1994,10(4):265-284. doi: 10.1080/02757259409532250
[28]	Fensholt R, Sandholt I, Rasmussen M S . Evaluation of MODIS LAI, fAPAR and the relation between fAPAR and NDVI in a semi-arid environment using in situ measurements. Remote Sensing of Environment, 2004,91(3):490-507. doi: 10.1016/j.rse.2004.04.009
[29]	Jensen J L R, Humes K S, Hudak A T , et al. Evaluation of the MODIS LAI product using independent lidar-derived LAI: A case study in mixed conifer forest. Remote Sensing of Environment, 2011,115(12):3625-3639. doi: 10.1016/j.rse.2011.08.023
[30]	Liao Yanran, Gai Yingying, Yao Yanjuan , et al. Validation methods of LAI products on the basis of scaling effect. Journal of Remote Sensing, 2015,19(1):143-152.
	[ 廖嫣然, 盖颖颖, 姚延娟 , 等. 尺度效应的叶面积指数产品真实性检验方法. 遥感学报, 2015,19(1):143-152.]
[31]	Wang Xunfeng, Ma Mingguo, Li Xin , et al. Comparison of remote sensing based GPP modelsat an alpine meadow site. Journal of Remote Sensing, 2012,16(4):751-763. doi: 10.11834/jrs.20121206
	[ 王旭峰, 马明国, 李新 , 等. 遥感GPP模型在高寒草甸的应用比较. 遥感学报, 2012,16(4):751-763.] doi: 10.11834/jrs.20121206
[32]	Mo Xingguo, Liu Suxia, Lin Zhonghui , et al. Patterns of evapotranspiration and GPP and their responses to climate variations over the North China Plain. Acta Geographica Sinica, 2011,66(5):589-598.
	[ 莫兴国, 刘苏峡, 林忠辉 , 等. 华北平原蒸散和GPP格局及其对气候波动的响应. 地理学报, 2011,66(5):589-598.]
[33]	Li Z, Yu G, Xiao X , et al. Modeling gross primary production of alpine ecosystems in the Tibetan Plateau using Modis images and climate data. Remote Sensing of Environment, 2007,107(3):510-519. doi: 10.1016/j.rse.2006.10.003
[34]	Zhao Maosheng, Fu Congbin, Yan Xiaodong , et al. Study on the relationship between different ecosystems and climate in China using NOAA/AVHRR date. Acta Geographica Sinica, 2001(3):287-296.
	[ 赵茂盛, 符淙斌, 延晓冬 , 等. 应用遥感数据研究中国植被生态系统与气候的关系. 地理学报, 2001(3):287-296.]
[35]	Zhang G Q, Yao T D, Xie H J , et al. Estimating surface temperature changes of lakes in the Tibetan Plateau using MODIS LST data. Journal of Geophysical Reaserch: Atmospheres, 2014,119:8552-8567. doi: 10.1002/2014JD021615
[36]	Zhang X Y, Schaaf C B, Friedl M A , et al. MODIS tasseled cap transformation and its utility. Proceedings of the International Geoscience and Remote Sensing Symposium (IGARSS), 2002,2:1149-1151. doi: 10.1109/IGARSS.2002.1025804
[37]	Lobser S E, Cohen W B . MODIS tasseled cap: Land cover characteristics expressed through transformed MODIS date. International Journal of Remote Sensing, 2007,28(22):5079-5101. doi: 10.1080/01431160701253303
[38]	Xu Jianhua . Quantitative Geography. Beijing: Higher Education Press, 2006.
	[ 徐建华 . 计量地理学. 北京: 高等教育出版社, 2006.]
[39]	Zhang Guoping, Zhang Zengxiang, Liu Jiyuan . Spatial distribution of aeolian erosion of soil and its driving factors in China. Acta Geographica Sinica, 2001,56(2):146-158.
	[ 张国平, 张增祥, 刘纪远 . 中国土壤风力侵蚀空间格局及驱动因子分析. 地理学报, 2001,56(2):146-158.]
[40]	Liu Ming, Liu Chun, Wang Kelin . Eco-security in Dongting Lake watershed: Its changes and relevant driving forces. Chinese Journal of Ecology, 2007(8):1271-1276.
	[ 刘明, 刘淳, 王克林 . 洞庭湖流域生态安全状态变化及其驱动力分析. 生态学杂志, 2007(8):1271-1276.]
[41]	Zhou Sha, Huang Yuefei, Wang Guangqian . Changes in the ecological environment and there determining factors in the middle Heihe River Basin. China Environmental Science, 2014,34(3):766-773. doi: 10.3969/j.issn.1000-6923.2014.03.042
	[ 周沙, 黄跃飞, 王光谦 . 黑河流域中游地区生态环境变化特征及驱动力. 中国环境科学, 2014,34(3):766-773.] doi: 10.3969/j.issn.1000-6923.2014.03.042
[42]	Lin Houbo, You Qinglong, Jiao Yang , et al. Spatial and temporal characteristics of the precipitation over the Tibetan Plateau from 1961 to 2010 based on high resolution grid-observation dataset. Journal of Natural Resources, 2015,30(2):271-281.
	[ 林厚博, 游庆龙, 焦洋 , 等. 基于高分辨率格点观测数据的青藏高原降水时空变化特征. 自然资源学报. 2015,30(2):271-281.]

指标	产品	时间分辨率(d)	空间分辨率(m)	等级
FVC	MOD13A2 (归一化植被指数)	16	1000	L3
LAI	MOD15A2H	8	500	L4
GPP	MOD17A2H	8	500	L4
LST	MOD11A2	8	1000	L3
Wet	MOD09A1 (地表反射率)	8	500	L3

指标	2006年		2016年
指标	PC1	PC2	PC1	PC2
FVC	0.932	0.001	0.880	0.051
LAI	0.954	0.028	0.912	0.927
GPP	0.981	0.011	0.924	0.938
LST	0.349	-0.758	0.219	0.154
Wet	0.281	0.802	0.478	0.494
特征值	2.941	1.219	2.782	1.227
方差贡献率(%)	58.822	24.384	55.638	24.528
累计贡献率(%)	58.822	83.206	55.638	80.165

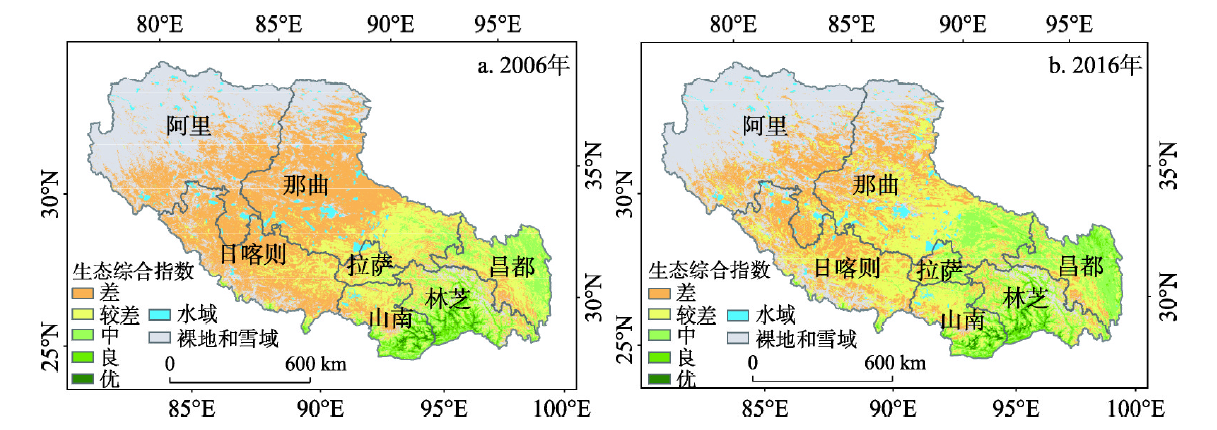

生态综合指数等级	2006年		2016
生态综合指数等级	面积(km²)	百分比(%)	面积(km²)	百分比(%)
差(0.0~0.2)	536545	57.63	319410	35.45
较差(0.2~0.4)	251186	26.98	379048	42.07
中等(0.4~0.6)	105307	11.31	161781	17.96
良(0.6~0.8)	30960	3.33	35122	3.90
优(0.8~1.0)	7051	0.76	5567	0.62

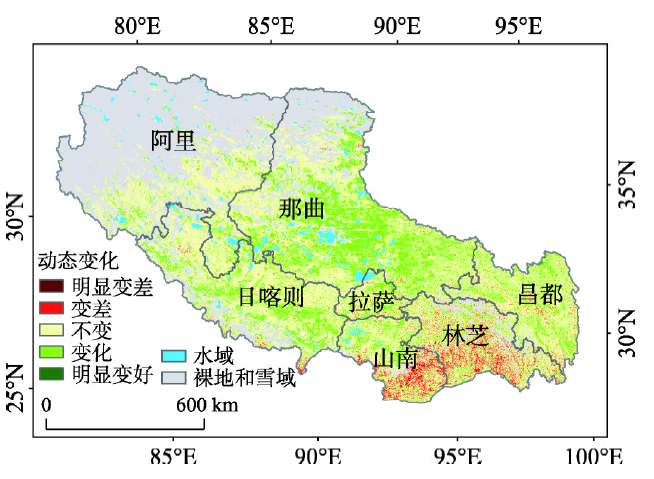

类别	类别	面积(km²)	级别百分比(%)	类别百分比(%)
变差	明显变差(-2)	947	0.11	4.13
变差	变差 (-1)	35939	4.03	4.13
不变	不变 (0)	571302	63.99	63.99
变好	变好 (+1)	284112	31.82	31.88
变好	明显变好(+2)	470	0.05	31.88
