Acta Geographica Sinica ›› 2015, Vol. 70 ›› Issue (1): 97-109.doi: 10.11821/dlxb201501008
• Orginal Article • Previous Articles Next Articles
Xiaokang LIU(), Zhiguo RAO(
), Xiaojian ZHANG, Wei HUANG, Jianhui CHEN, Fahu CHEN
Received:
2014-09-12
Revised:
2014-11-11
Online:
2015-01-20
Published:
2015-01-20
Supported by:
Xiaokang LIU, Zhiguo RAO, Xiaojian ZHANG, Wei HUANG, Jianhui CHEN, Fahu CHEN. Variations in the oxygen isotopic composition of precipitation in the Tianshan Mountains region and their significance for the Westerly circulation[J].Acta Geographica Sinica, 2015, 70(1): 97-109.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

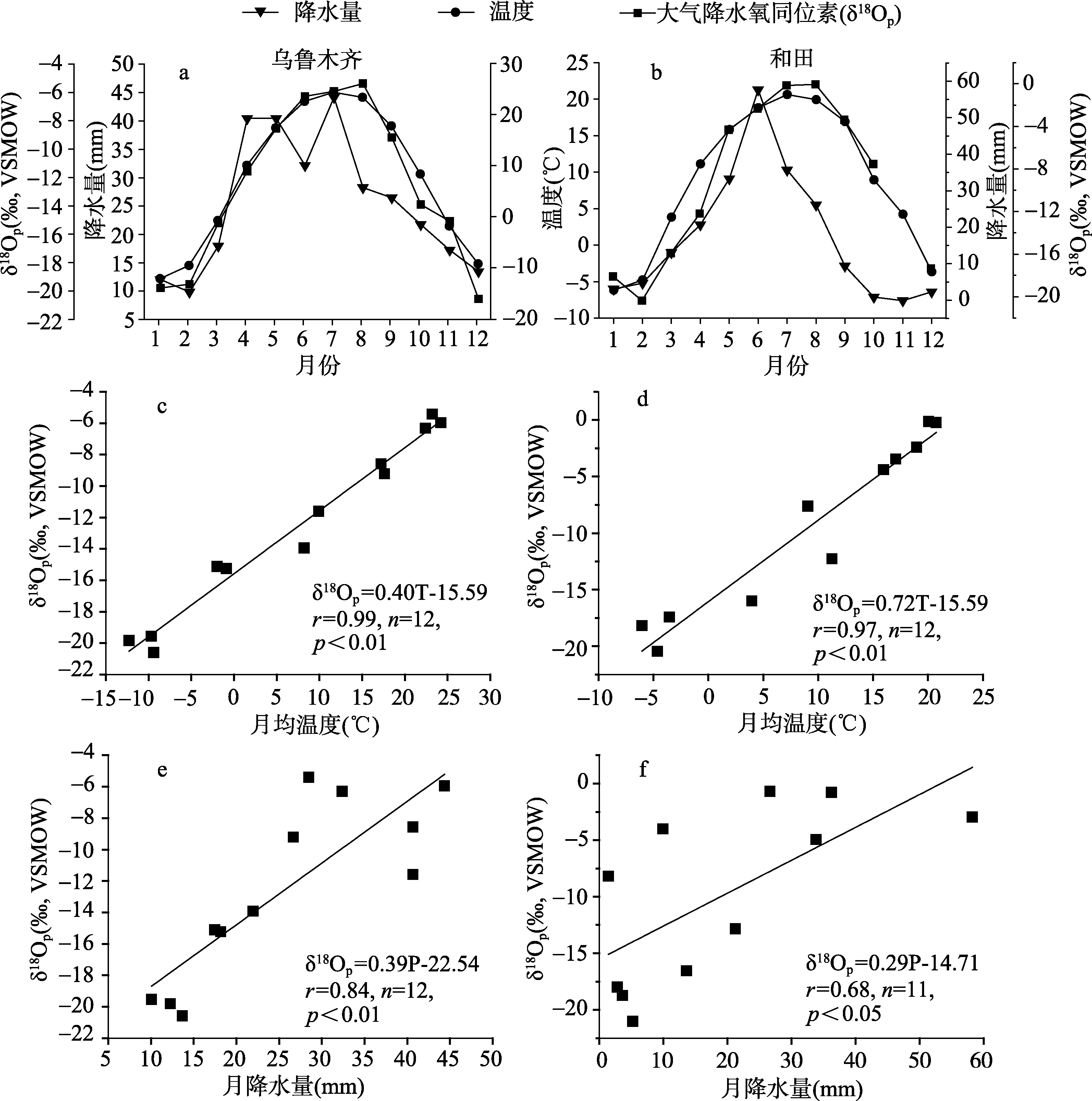

Fig. 2
Variations of monthly δ18Op, temperature and precipitation amount at Urumqi (a) and Hotan (b) stations; linear correlations between monthly δ18Op and temperature at Urumqi (c) and Hotan (d) stations; and linear correlations between monthly δ18Op and precipitation amount at Urumqi (e) and Hotan (f) stations
Tab. 1
Information about the localities and precipitation δ18O (δ18Op) data of 14 GNIP stations in the Eurasian continent and their weighted average warm season (May to September) δ18Op values in 1997 and 1988
站点编号 | 站点名称 | 所处国家 | 纬度(°N) | 经度(°E) | 观测年份 | 1997年加权平均暖季δ18Op (‰, VSMOW) | 有同位素数据月份 | 1988年加权平均暖季δ18Op (‰, VSMOW) | 有同位素数据月份 |
---|---|---|---|---|---|---|---|---|---|
1713000 | 安卡拉 | 土耳其 | 39.95 | 32.88 | 1963-2009 | -5.78 | 5-8月 | -5.88 | 5-8月 |
2221700 | 坎达拉克沙湾 | 俄罗斯 | 67.15 | 32.35 | 1996-2000 | -12.10 | 5-9月 | - | - |
2606300 | 圣彼得堡 | 俄罗斯 | 59.97 | 30.30 | 1980-1990 | - | - | -10.70 | 5-9月 |
2642200 | 里加 | 拉脱维亚 | 56.97 | 24.07 | 1969-1989 | - | - | -6.35 | 5-9月 |
2719600 | 基洛夫 | 俄罗斯 | 58.65 | 49.62 | 1980-2000 | -9.53 | 5-9月 | - | - |
2740200 | 卡里宁 | 俄罗斯 | 56.90 | 35.90 | 1980-1989 | - | - | -7.61 | 5-9月 |
2822500 | 彼尔姆 | 俄罗斯 | 58.01 | 56.18 | 1973-1990 | - | - | -9.17 | 5-7月 |
2961200 | 巴拉宾斯克 | 俄罗斯 | 55.33 | 78.37 | 1996-2000 | -8.90 | 5-7,9月 | - | - |
3400900 | 库尔斯克 | 俄罗斯 | 51.73 | 36.27 | 1996-2000 | -9.75 | 7-9月 | - | - |
3488000 | 阿斯特拉罕 | 俄罗斯 | 46.25 | 48.03 | 1980-2000 | -5.06 | 5-7,9月 | -4.99 | 5-9月 |
3748400 | 巴统 | 格鲁吉亚 | 41.65 | 41.63 | 1980-1990 | - | - | -5.20 | 8-9月 |
4094900 | 喀布尔 | 阿富汗 | 34.57 | 69.21 | 1962-1991 | - | - | 0.07 | 5, 6, 8月 |
5182800 | 和田 | 中国 | 37.13 | 79.93 | 1988-1992 | - | - | -3.04 | 5-9月 |
5182801 | 乌鲁木齐 | 中国 | 43.78 | 87.62 | 1986-2003 | -8.64 | 5-8月 | -6.39 | 5-9月 |

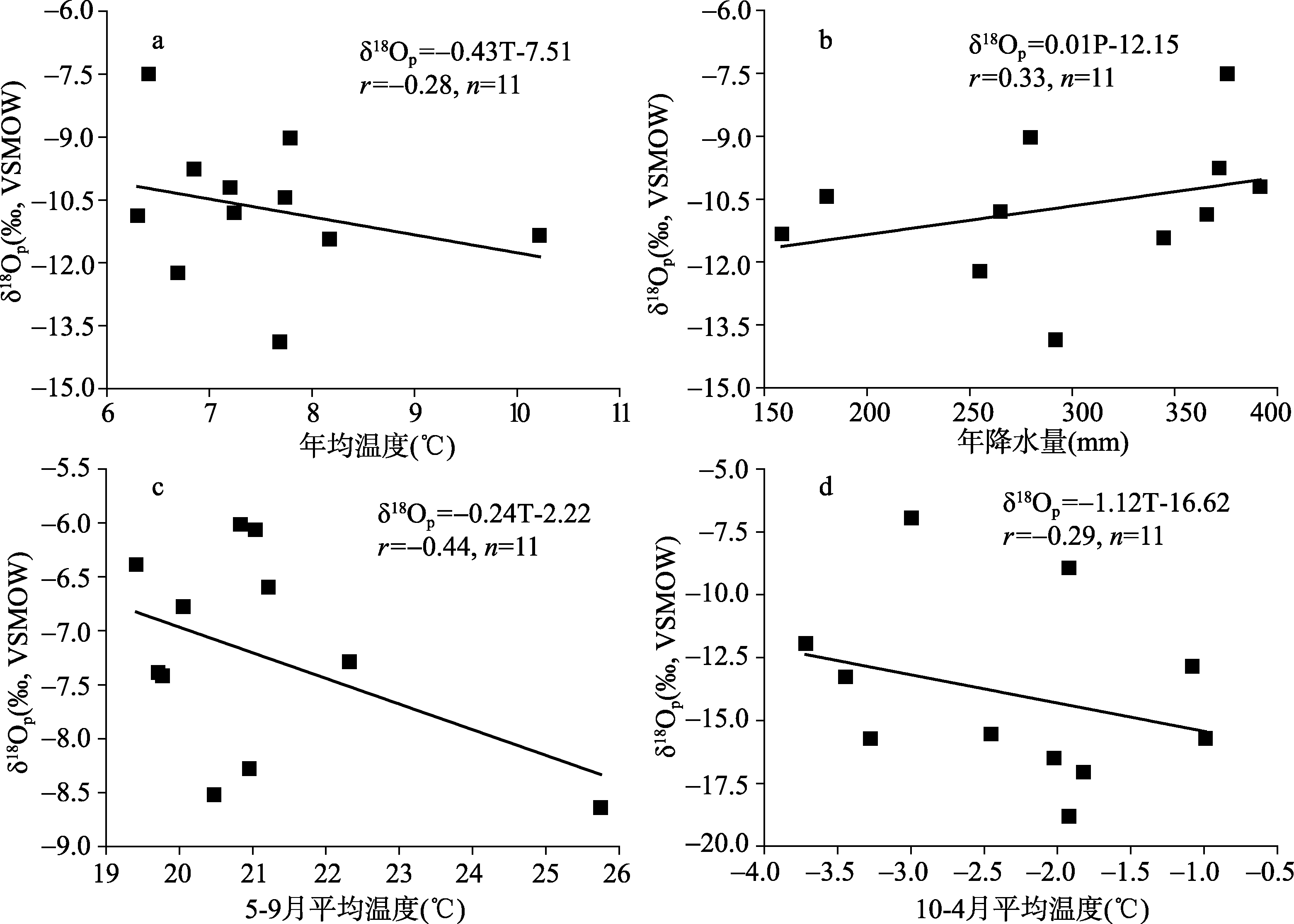

Fig. 3
The linear correlations between weighted average annual δ18Op and mean annual temperature (a), weighted average annual δ18Op and annual precipitation amount (b), weighted average warm season (May to September) δ18Op and warm season average temperature (c), weighted average cold season (October to April) δ18Op and cold season average temperature (d) at Urumqi station

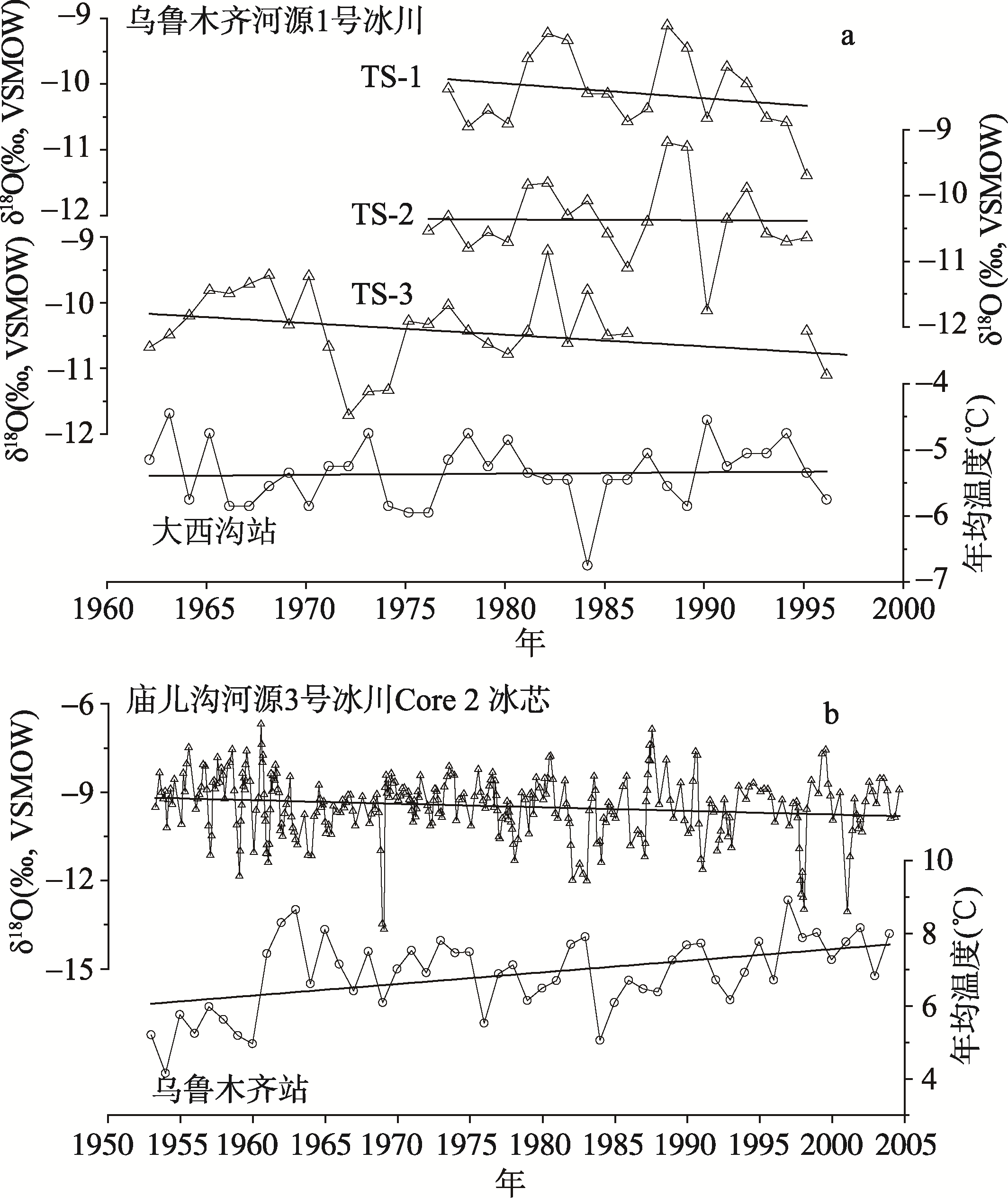

Fig. 4
Comparisons of δ18O records of three ice cores (TS-1, TS-2, TS-3) from No.1 Glacier in middle Tianshan Mountains with annual average temperature data from the nearby Daxigou Meteorological Station (a, original data from references [34, 36]); comparison of Miaoergou ice core δ18O record in eastern Tianshan Mountains (original data from reference [38]) with annual average temperature data from Urumqi Station (b, original data from China Surface Climate Dataset (Monthly)) (The bold lines indicate the long-term trends of each dataset)

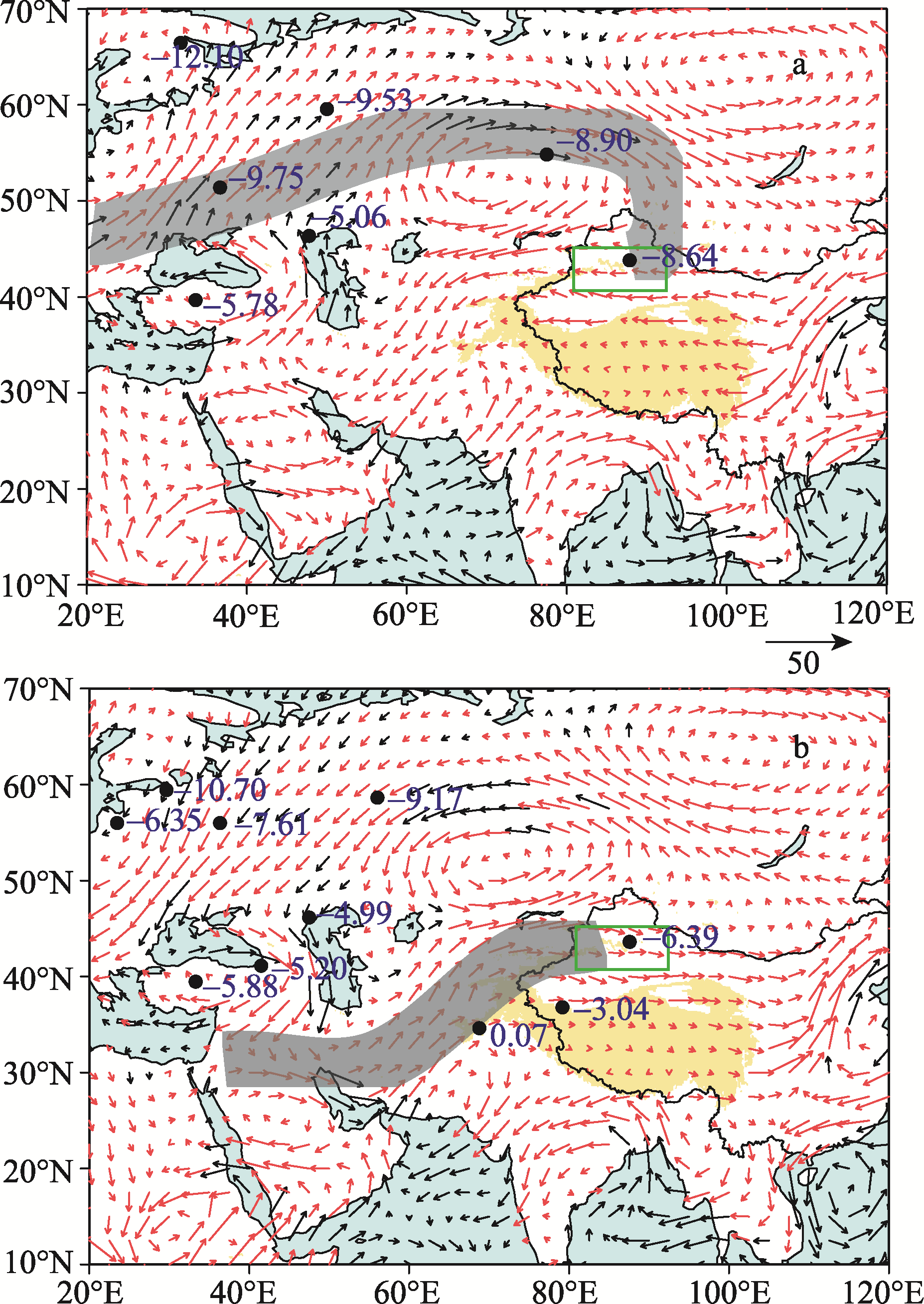

Fig. 5
The differences of water vapor sources of Tianshan Mountains region between warm season of 1997 (warm year) and 1988 (cold year) and the corresponding weighted average warm season δ18Op values of 14 GNIP stations in Eurasia Continent (a. warm season water vapor flux of 1997 minus that of 1988; b. warm season water vapor flux of 1988 minus that of 1997; red arrows demonstrate the relative water vapor changes that passed 99% significant testing, the grey bands indicate the main pathways of relative water vapor sources, the black dots indicate the GNIP stations, the blue numbers indicate the weighted average warm season δ18Op values in 1997 and 1988 (data are shown in Tab. 1 and Tab. 2), and the green boxes indicate the locations of Tianshan Mountains region in this study)
Tab. 2
Annual precipitation amount, mean annual and warm season (May to September) average temperature, and weighted average annual and warm season δ18Op values at Urumqi station in 1997 and 1988
年份 | 年降水量(mm) | 年均温度(°C) | 加权平均年δ18Op (‰, VSMOW) | 暖季均温 (°C) | 加权平均暖季δ18Op (‰, VSMOW) |
---|---|---|---|---|---|
1997 | 156 | 10.13 | -11.33 | 25.72 | -8.64 |
1988 | 374 | 6.33 | -7.49 | 19.40 | -6.39 |
[1] | Rhodes T E, Gasse F, Lin R et al. A Late Pleistocene-Holocene lacustrine record from Lake Manas, Zunggar (northern Xinjiang, western China). Palaeogeography, Palaeoclimatology, Palaeoecology, 1996, 120(1/2): 105-121. |
[2] | Herzschuh U.Palaeo-moisture evolution in monsoonal Central Asia during the last 50,000 years. Quaternary Science Reviews, 2006, 25: 163-178. |
[3] | Chen Fahu, Yu Zicheng, Yang Meilin et al. Holocene moisture evolution in arid central Asia and its out-of-phase relationship with Asian monsoon history. Quaternary Science Reviews, 2008, 27(3/4): 351-364. |
[4] | Chen Fahu, Chen Jianhui, Holmes J et al. Moisture changes over the last millennium in arid central Asia: A review, synthesis and comparison with monsoon region. Quaternary Science Reviews, 2010, 29(7/8): 1055-1068. |
[5] | Yang Xiaoping, Scuderi L, Paillou P et al. Quaternary environmental changes in the drylands of China: A critical review. Quaternary Science Reviews, 2011, 30: 3219-3233. |
[6] | Huang Wei, Chen Fahu, Feng Song et al. Interannual precipitation variations in the mid-latitude Asia and their association with large-scale atmospheric circulation. Chinese Science Bulletin, 2013, 58(32): 3962-3968. |
[7] | Chen Jianhui, Chen Fahu, Feng Song ,et al. Hydroclimatic changes in China and surrounding areas during the Medieval Climate Anomaly and Little Ice Age: Spatial patterns and possible mechanisms. Quaternary Science Reviews, 2015, 107: 98-111. |
[8] | Chen Fahu, Chen Jianhui, Huang Wei.A discussion on the westerly-dominated climate model in mid-latitude Asia during the modern interglacial period. Earth Science Frontiers, 2009, 16(6): 23-32. |
[陈发虎, 陈建徽, 黄伟. 中纬度亚洲现代间冰期气候变化的“西风模式”讨论. 地学前缘, 2009, 16(6): 23-32.] | |
[9] | Thompson L G, Yao Tandong, Davis M E et al. Tropical climate instability: The Last Glacial Cycle from a Qinghai-Tibetan ice core. Science, 1997, 276: 1821-1825. |
[10] | Wang Yongjin, Cheng Hai, Edwards R L et al. A high-resolution absolute-dated Late Pleistocene Monsoon Record from Hulu Cave, China. Science, 2001, 294: 2345-2348. |
[11] | McCarroll D, Loader N J. Stable isotopes in tree rings. Quaternary Science Reviews, 2004, 23: 771-801. |
[12] | Leng M J, Marshall J D.Palaeoclimate interpretation of stable isotope data from lake sediment archives. Quaternary Science Reviews, 2004, 23: 811-831. |
[13] | Zheng Shuhui, Hou Fagao, Ni Baoling.Hydrogen and oxygen isotopes compositions of atmospheric precipitation in China. Chinese Science Bulletin, 1983, 13: 801-806. |
[郑淑蕙, 侯发高, 倪葆龄. 中国大气降水中的氢氧同位素研究. 科学通报, 1983, 13: 801-806.] | |
[14] | Wei Keqin, Lin Ruifen.The influence of the monsoon climate on the isotopic composition of precipitation in China. Geochemica, 1994, 23(1): 33-41. |
[卫克勤, 林瑞芬. 论季风气候对我国雨水同位素组成的影响. 地球化学, 1994, 23(1): 33-41.] | |
[15] | Yao Tandong, Masson V, Jouzel J et al. Relationships between 18O in precipitation and surface air temperature in the Urumqi River Basin, east Tianshan Mountains, China. Geophysical Research Letters, 1999, 26(23): 3473-3476. |
[16] | Liu Zhongfang, Tian Lide, Yao Tandong.Spatial distribution of δ18O in precipitation over China. Chinese Science Bulletin, 2009, 54(6): 804-811. |
[刘忠方, 田立德, 姚檀栋等. 中国大气降水中δ18O的空间分布. 科学通报, 2009, 54(6): 804-811.] | |
[17] | Cheng Hai, Zhang Pingzhong, Spöt Cet al. The climatic cyclicity in semiarid-arid central Asia over the past 500,000 years. Geophysical Research Letters, 2012, 39: L01705. |
[18] | Wang Wei, Feng Zhaodong.Holocene moisture evolution across the Mongolian Plateau and its surrounding areas: A synthesis of climatic records. Earth-Science Reviews, 2013, 122: 38-57. |
[19] | Hong Bing, Gasse F, Uchida M et al. Increasing summer rainfall in arid eastern-central Asia over the past 8500 years. Scientific Reports, 2013, 4(5279): 1-10. |
[20] | Long Hao, Shen Ji,Tsukamoto S et al. Dry early Holocene revealed by sand dune accumulation chronology in Bayanbulak Basin (Xinjiang, NW China). The Holocene, 2014, 24(5): 614-626. |
[21] | Johnson K R, Ingram B L.Spatial and temporal variability in the stable isotope systematics of modern precipitation in China: implications for paleoclimate reconstructions. Earth and Planetary Science Letters, 2004, 220: 365-377. |
[22] | Luo Weijun, Wang Shijie.Transmission of oxygen isotope signals of precipitation-soil water-drip water and its implications in Liangfeng Cave of Guizhou, China. Chinese Science Bulletin, 2008, 53(21): 3364-3370. |
[23] | Tan Ming.Trade-wind driven inverse coupling between stalagmite δ18O from monsoon region of China and large scale temperature: Circulation effect on decadal to precessional timescales. Quaternary Sciences, 2011, 31(6): 1086-1097. |
[谭明. 信风驱动的中国季风区石笋δ18O与大尺度温度场负耦合: 从年代际变率到岁差周期的环流效应. 第四纪研究, 2011, 31(6): 1086-1097.] | |
[24] | Genty D, Labuhn I, Hoffmann G et al. Rainfall and cave water isotopic relationships in two South-France sites. Geochimica et Cosmochimica Acta, 2014, 131: 323-343. |
[25] | Yang Lianmei.Climate change of extreme precipitation in Xinjiang. Acta Geographica Sinica, 2003, 58(4): 577-583. |
[杨莲梅. 新疆极端降水的气候变化. 地理学报, 2003, 58(4):577-583.] | |
[26] | Dai Xingang, Ren Yiyong, Chen Hongwu.Multi-scale feature of climate and climate shift in Xinjiang over the past 50 years. Acta Meteorologica Sinica, 2007, 65(6): 1003-1010. |
[戴新刚, 任宜勇, 陈洪武. 近50年新疆温度降水配置演变及其尺度特征. 气象学报, 2007, 65(6): 1003-1010.] | |
[27] | Shi Yafeng, Shen Yongping, Kang Ersi et al. Recent and future climate change in Northwest China. Climatic Change, 2007, 80: 379-393. |
[28] | Dai Xingang, Li Weijing, Ma Zhuguo.The variation characteristics of water vapor source in Xinjiang in recent decades. Progress in Natural Science, 2006, 16(12): 1651-1656. |
[戴新刚, 李维京, 马柱国. 近几十年新疆水汽源地变化特征. 自然科学进展, 2006, 16(12): 1651-1656.] | |
[29] | Tian Lide, Yao Tandong, MacClune K et al. Stable isotopic variations in west China: A consideration of moisture sources. Journal of Geophysical Research, 2007, 112: D10112, doi: 10.1029/2006JD007718. |
[30] | Li Hui, Zhou Hongfei.Variation characteristics of δD and δ18O stable isotopes in the precipitation of Urumqi. Journal of Arid Land Resources and Environment, 2007, 21(9): 46-50. |
[李晖, 周宏飞. 乌鲁木齐地区大气降水中δD和δ18O的变化特征. 干旱区资源与环境, 2007, 21(9): 46-50.] | |
[31] | Aizen V B, Aizen E M,Joswlak D R et al. Climatic and atmospheric circulation pattern variability from ice-core isotope/geochemistry records (Altai, Tien Shan and Tibet). Annals of Glaciology, 2006, 43: 49-60. |
[32] | Hou Shugui, Qin Dahe, Mayewski P A et al. Climatological significance of δ18O in precipitation and ice core: A case study at the head of the Urumqi River, Tien Shan, China. Journal of Glaciology, 1999, 45(151): 517-523. |
[33] | Feng Fang, Li Zhongqing, hang Mingjun et al. ZDeuterium and oxygen 18 in precipitation and atmospheric moisture in the upper Urumqi River Basin, eastern Tianshan Mountains. Environmental Earth Sciences, 2013, 68(4): 1199-1209. |
[34] | Hou Shugui, Ren Jiawen, Qin Dahe.Modification of three ice core δ18O records from area of high melt. Annals of Glaciology, 2006, 43: 172-176. |
[35] | Wang Jiao, Ren Yiyong.Study on the change of precipitation and general circulation in Xinjiang. Arid Zone Research, 2005, 22(3): 326-331. |
[王娇, 任宜勇. 新疆降水与环流场演变研究. 干旱区研究, 2005, 22(3): 326-331.] | |
[36] | Hou Shugui, Qin Dahe, Li Zhongqin et al. Present environment processes of ice core δ18O records of the No.1 glaciers at the headwater of Urumqi River, Xinjiang, China. Geochemica, 1998, 27(2): 108-116. |
[侯书贵, 秦大河, 李忠勤等. 乌鲁木齐河源1号冰川冰芯δ18O记录的现代环境过程分析. 地球化学, 1998, 27(2): 108-116.] | |
[37] | Zhao Chuancheng, Wang Yan, Ding Yongjian et al. Spatial-temporal variations of temperature and precipitation in northern China in recent 50 years. Plateau Meteorology, 2011, 30(2): 385-390. |
[赵传成, 王雁, 丁永建等. 西北地区近50年气温及降水的时空变化. 高原气象, 2011, 30(2): 385-390.] | |
[38] | Song Linlin, Hou Shugui, Liu Yaping.δ18O record of the Miaoergou ice core from the Karlik mountains of the east Tienshan since 1953. Journal of Lanzhou University: Natural Sciences, 2011, 47(5): 36-41. |
[宋琳琳, 侯书贵, 刘亚平. 天山东部哈尔里克山庙儿沟冰芯1953年以来的δ18O记录. 兰州大学学报: 自然科学版, 2011, 47(5): 36-41.] | |
[39] | Chen Fahu, Wang Jinsong, Jin Liya et al. Rapid warming in mid-latitude central Asia for the past 100 years. Frontier of Earth Science in China, 2009, 3(1): 42-50. |
[40] | Cheng Hai, Edwards R L, Wang Xianfeng et al. Oxygen isotope records of the stalagmites from southern China. Quaternary Sciences, 2005, 25(2): 157-163. |
[程海, 艾思本, 王先锋等. 中国南方石笋氧同位素记录的重要意义. 第四纪研究, 2005, 25(2): 157-163.] | |
[41] | Wang Xu, Wang Tie, Ma Yu.Characteristics of water vapour transfer in upper-middle troposphere over Xinjiang. Xinjiang Meteorology, 2001, 24(2): 1-3. |
[王旭, 王铁, 马禹. 新疆对流层中上部水汽输送特征研究. 新疆气象, 2001, 24(2): 1-3.] | |
[42] | Liu Rui, Yang Qing.Calculation and analysis of water vapor transportation and its net income in Xinjiang. Journal of Desert Research, 2010, 30(5): 1221-1228. |
[刘蕊, 杨青. 新疆大气水汽通量及其净收支的计算和分析. 中国沙漠, 2010, 30(5): 1221-1228.] | |
[43] | Shi Yuguang, Sun Zhaobo.Climate characteristics of water vapor transportation and its variation over Xinjiang. Plateau Meteorology, 2008, 27(2): 310-319. |
[史玉光, 孙照渤. 新疆水汽输送的气候特征及其变化. 高原气象, 2008, 27(2): 310-319.] | |
[44] | Marcott A S, Shakun J D, Clark P U et al. A reconstruction of regional and global temperature for the past 11,300 years. Science, 2013, 339: 1198-1201. |
[45] | Tan Ming.Circulation effect: response of precipitation δ18O to the ENSO cycle in monsoon regions of China. Climate Dynamics, 2014, 42: 1067-1077. |
[46] | Dayem K E, Molnar P, Battisti D S et al. Lessons learned from oxygen isotopes in modern precipitation applied to interpretation of speleothem records of paleoclimate from eastern Asia. Earth and Planetary Science Letters, 2010, 295: 219-230. |
[47] | Yang Xunlin, Liu Jianbao, Liang Fuyuan et al. Holocene stalagmite δ18O records in the East Asian monsoon region and their correlation with those in the Indian monsoon region. The Holocene, 2014, 24(12): 1657-1664. |
[48] | Chen Fahu, Chen Xuemei, Chen Jianhui et al. Holocene vegetation history, precipitation changes and Indian Summer Monsoon evolution documented from sediments of Xingyun Lake, south-west China. Journal of Quaternary Science, 2014, 29(7): 661-674. |
[49] | Rao Zhiguo, Liu Xiaokang, Hua Hui et al. Evolving history of the East Asian summer monsoon intensity during the MIS5: inconsistent records from Chinese stalagmites and loess deposits. Environmental Earth Sciences, 2014, 24(12): 1657-1664. doi: 10.1007/s12665-014-3681-z. |
[50] | Krklec K, Domínguez-Villar D.Quantification of the impact of moisture source regions on the oxygen isotope composition of precipitation over Eagle Cave, central Spain. Geochimica et Cosmochimica Acta, 2014, 134: 39-54. |
