调水调沙以来黄河尾闾河道冲淤演变及其影响因素

doi:10.11821/dlxb202101011

Abstract

Abstract:

The implementation of the Water-Sediment Regulation Scheme (WSRS) since 2002 has changed the water and sediment entering the Yellow River Estuary, which may lead to adjustment of the estuarine channel. Based on the elevation data of 41 transects from 2002 to 2017 in the estuarine channel downstream from Lijin, we established a digital elevation model (DEM) based on curved orthogonal grids to investigate the spatiotemporal characteristics of channel erosion and deposition, and further analyzed its controlling factors combining the morphological changes of river mouth and water-sediment data. The results show that the Yellow River estuarine channel has undergone significant erosion with a total sediment volume of 62.4×10 ⁶ m ³ since 2002. The channel evolution process can be divided into three stages according to the rates of erosion or deposition, namely: rapid erosion (2002-2005), slow erosion (2006-2014), and slow deposition (2015-2017). Approximately 80% of the total eroded sediment was depleted in the first stage. The erosion flux has shown a significant decreasing trend after 2006, and the overall characteristic of the channel transferred from erosion into deposition afterwards. On a seasonal scale, the estuarine channel was eroded in the flood seasons and deposited in the non-flood seasons; from the spatial perspective, the erosion intensity decreased in the downstream direction. The operation of the WSRS changed the distribution of water and sediment entering into the sea during a year, most of which was delivered in a short time (no more than 20 days), thus caused the continuous erosion of channel as well as the morphological adjustments of the estuarine channel. As a result of the intensive erosion in the first stage, the estuarine channel riverbed has lowered so much, and accompanied by the impact of the extension of river mouth, the erosion efficiency decreased continuously. Besides, the channel reach near the mouth has undergone significant siltation after the first stage causing the decline of riverbed longitudinal slope, which increased the instability of the estuarine channel.

Key words: water and sediment regulation scheme, estuarine channel, erosion and deposition, DEM

LIU Qinglan, CHEN Junqing, CHEN Shenliang. Spatiotemporal evolution of Yellow River estuarine channel and its influencing factors since the water-sediment regulation scheme[J].Acta Geographica Sinica, 2021, 76(1): 139-152.

Figures/Tables 23

Fig. 1

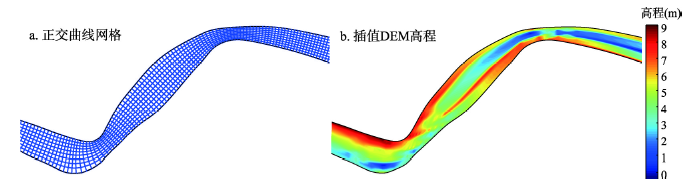

Fig. 2

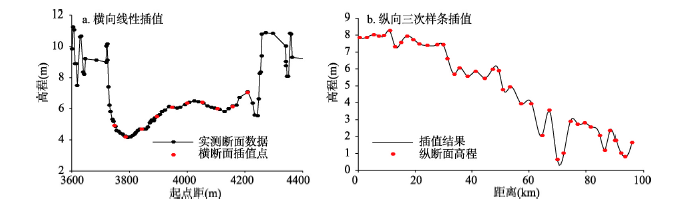

Fig. 3

Fig. 4

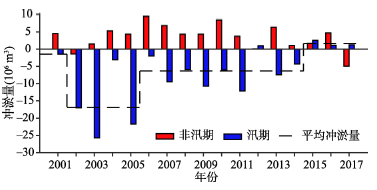

Fig. 5

Tab. 1

Fig. 6

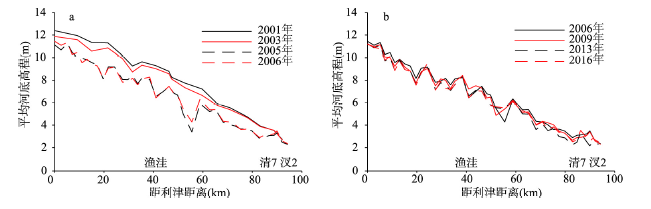

Fig. 7

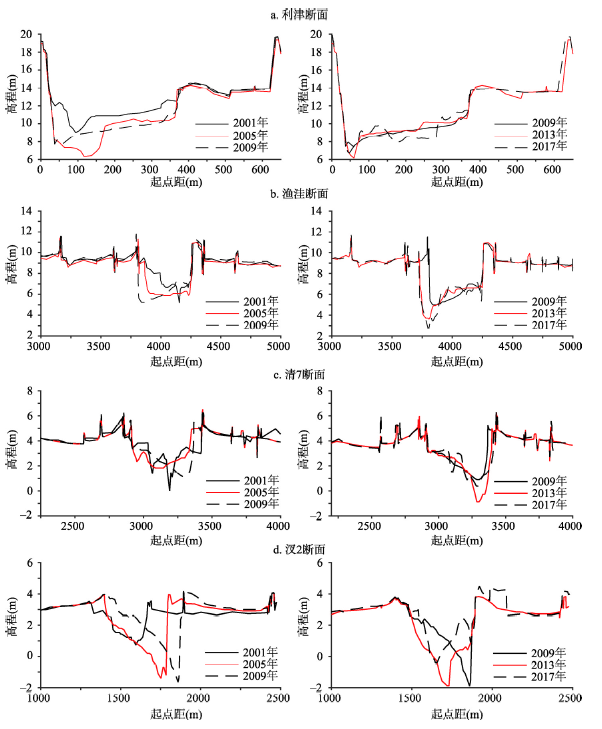

Fig. 8

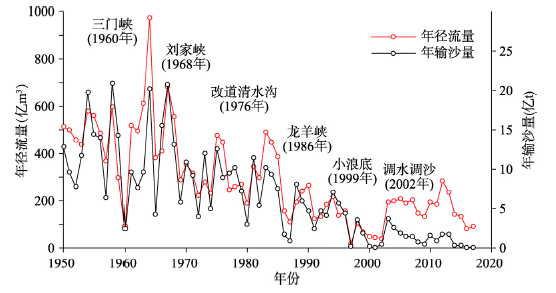

Fig. 9

Fig.10

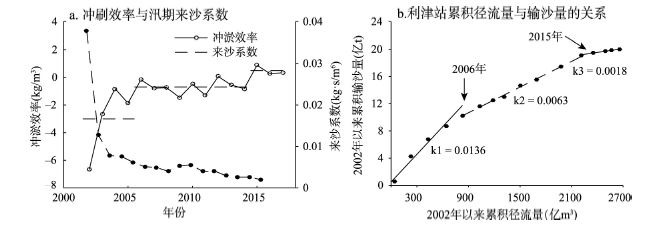

Fig. 11

Tab. 2

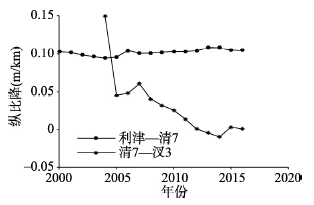

Fig.12

Fig. 13

Fig. 14

References 28

[1]	Xu Congliang, Chen Shenliang, Chen Junqing. Evolution mode of channel bifurcation delta system at the Yellow River Estuary under the new situation. Coastal Engineering, 2018,37(4):35-43.
	[ 徐丛亮, 陈沈良, 陈俊卿. 新情势下黄河口出汊流路三角洲体系的演化模式. 海岸工程, 2018,37(4):35-43.]
[2]	Yu Xin, Zhang Yuanfeng, Yu Shoubing, et al. Study on both morphological changes of Yellow River estuarine course and integrated management for its stability. Yellow River, 2018,40(3):1-6.
	[ 余欣, 张原锋, 于守兵, 等. 黄河口演变与流路稳定综合治理研究. 人民黄河, 2018,40(3):1-6.]
[3]	Xu Congliang, Li Jinping, Li Guangxue, et al. Evolution processes and mechanisms of the Yellow River Delta and its deltaic channel. Yellow River, 2013,35(4):3-5.
	[ 徐丛亮, 李金萍, 李广雪, 等. 黄河河口尾闾与三角洲演变过程机制解析. 人民黄河, 2013,35(4):3-5.]
[4]	Miao C Y, Kong D X, Wu J W, et al. Functional degradation of the water-sediment regulation scheme in the lower Yellow River: Spatial and temporal analyses. Science of the Total Environment, 2016,551/552:16-22.
[5]	Zhang Zhihao, Hu Chunhong. Variation of flow and sediment and atrophy response of tail channels in the Yellow River Estuary. Journal of Sediment Research, 2005(5):13-21.
	[ 张治昊, 胡春宏. 黄河口水沙变异及尾闾河道的萎缩响应. 泥沙研究, 2005(5):13-21.]
[6]	Xia J Q, Li X J, Li T, et al. Response of reach-scale bankfull channel geometry to the altered flow and sediment regime in the lower Yellow River. Geomorphology, 2014,213:255-265.
[7]	Bi N S, Sun Z Q, Wang H J, et al. Response of channel scouring and deposition to the regulation of large reservoirs: A case study of the lower reaches of the Yellow River (Huanghe). Journal of Hydrology, 2019,568:972-984.
[8]	Ji H Y, Chen S L, Pan S Q, et al. Morphological variability of the active Yellow River mouth under the new regime of riverine delivery. Journal of Hydrology, 2018,564:329-341.
[9]	Fan Y S, Chen S L, Zhao B, et al. Shoreline dynamics of the active Yellow River Delta since the implementation of Water-Sediment Regulation Scheme: A remote-sensing and statistics-based approach. Estuarine, Coastal and Shelf Science, 2018,200:406-419.
[10]	Chen Shenliang, Gu Shuo, Ji Hongyu, et al. Processes of the Yellow River Mouth on new water and sediment condition. Journal of Sediment Research, 2019,44(5):61-67.
	[ 陈沈良, 谷硕, 姬泓宇, 等. 新入海水沙情势下黄河口的地貌演变. 泥沙研究, 2019,44(5):61-67.]
[11]	Zheng S, Wu B S, Wang K R, et al. Evolution of the Yellow River Delta, China: Impacts of channel avulsion and progradation. International Journal of Sediment Research, 2017,32(1):34-44.
[12]	Yuan Yuan, Zhang Xiaofeng, Duan Guanglei. Effect of riverbed form on error in calculation of channel erosion and deposition volumes by cross-section method. Journal of Hydroelectric Engineering, 2015,34(1):131-138, 182.
	[ 元媛, 张小峰, 段光磊. 河道床面形态对断面法计算冲淤量误差的影响. 水力发电学报, 2015,34(1):131-138, 182.]
[13]	Shu Caiwen, Tan Guangming. Advances in calculation methods for river sedimentation. Journal of Sediment Research, 2009(4):68-73.
	[ 舒彩文, 谈广鸣. 河道冲淤量计算方法研究进展. 泥沙研究, 2009(4):68-73.]
[14]	Duan Guanglei, Peng Yanbo, Guo Manjiao. Comparative analysis on riverbed erosion and deposition amount calculated by different methods. Journal of Yangtze River Scientific Research Institute, 2014,31(2):108-113, 118.
	[ 段光磊, 彭严波, 郭满姣. 河道实测冲淤量不同计算方法结果比较分析. 长江科学院院报, 2014,31(2):108-113, 118.]
[15]	Shen Guanqing, Jiang Naiqian, Zhang Yuanfeng, et al. Comparison of the calculated sedimentation amount by different methods in the lower Yellow River. Journal of Sediment Research, 2006(1):32-37.
	[ 申冠卿, 姜乃迁, 张原锋, 等. 黄河下游断面法与沙量法冲淤计算成果比较及输沙率资料修正. 泥沙研究, 2006(1):32-37.]
[16]	Sun Zhongqiang, Gu Shuo, Wang Houjie, et al. A method for the calculation of erosion and accumulation in the river channel using bathymetric data of river cross section: Based on orthogonal-curvilinear-grid DEM. Periodical of Ocean University of China, 2018,48(9):90-99.
	[ 孙中强, 谷硕, 王厚杰, 等. 一种基于断面高程数据的河道冲淤计算方法: 曲线正交网格地形法. 中国海洋大学学报, 2018,48(9):90-99.]
[17]	Merwade V M, Maidment D R, Goff JA. Anisotropic considerations while interpolating river channel bathymetry. Journal of Hydrology, 2006,331(3/4):731-741.
[18]	Schäppi B, Perona P, Schneider P, et al. Integrating river cross section measurements with digital terrain models for improved flow modelling applications. Computers & Geosciences, 2010,36(6):707-716.
[19]	Legleiter C J, Kyriakidis P C. Spatial prediction of river channel topography by kriging. Earth Surface Processes and Landforms, 2008,33(6):841-867.
[20]	Yuan Yuan, Zhang Xiaofeng, Duan Guanglei. Influence of grid dimensions on erosion-deposition amount by grid method in straight channels. Journal of Sediment Research, 2014,39(2):55-61.
	[ 元媛, 张小峰, 段光磊. 网格尺寸对顺直河段计算冲淤量的敏感性分析. 泥沙研究, 2014,39(2):55-61.]
[21]	Hou Zhijun, You Baohong, Li Shiguo. Erosion and deposition characteristic analysis of tail reaches in the Yellow River Estuary in recent years. Journal of Sediment Research, 2009,34(1):48-53.
	[ 侯志军, 由宝宏, 李士国. 近年来黄河尾闾河道冲淤特性分析. 泥沙研究, 2009,34(1):48-53.]
[22]	Wang Wanzhan, Zhang Junhua. Discussion on law of river course evolution at Yellow River estuary. Advances in Science and Technology of Water Resources, 2006,26(2):5-9, 20.
	[ 王万战, 张俊华. 黄河口河道演变规律探讨. 水利水电科技进展, 2006,26(2):5-9, 20.]
[23]	Yu Xin, Wang Wanzhan, Li Yan, et al. Processes of the Yellow River Estuary since operation of the Xiaolangdi Reservoir. Journal of Sediment Research, 2016,41(6):8-11.
	[ 余欣, 王万战, 李岩, 等. 小浪底水库运行以来黄河口演变分析. 泥沙研究, 2016,41(6):8-11.]
[24]	Zhang Shiyuan, Xia Junqiang, Wan Zhanwei, et al. Variations in planform and cross-sectional geometries of Qingshuigou channel in the Yellow River Estuary (1976-2016). Journal of Hydroelectric Engineering, 2019,38(1):63-74.
	[ 张诗媛, 夏军强, 万占伟, 等. 黄河口尾闾河道近40年河床断面及平面形态调整特点. 水力发电学报, 2019,38(1):63-74.]
[25]	Li G X, Wei H L, Yue S H, et al. Sedimentation in the Yellow River Delta (Part II): Suspended sediment dispersal and deposition on the subaqueous delta. Marine Geology, 1998,149(1-4):113-131.
[26]	Wu Baosheng, Shen Guanqing. Discussion on the physical significance of the coefficient of coming sediment. Yellow River, 2008,30(4):15-16.
	[ 吴保生, 申冠卿. 来沙系数物理意义的探讨. 人民黄河, 2008,30(4):15-16.]
[27]	Wang Kaichen. Understandings of erosion and deposition in the lower Yellow River. Yellow River, 2012,34(7):20-24.
	[ 王恺忱. 对黄河下游河道冲淤问题的认识. 人民黄河, 2012,34(7):20-24.]
[28]	Shi C X, Zhou Y Y, Liu X F, et al. River base level change in mouth channel evolution: The case of the Yellow River Delta, China. Catena, 2019,183:104193. DOI: 10.1016/j.catena.2019.104193.

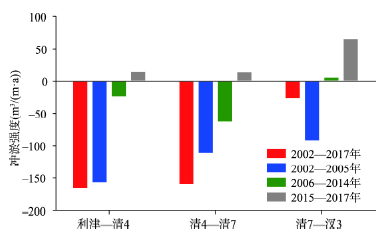

年份	利津—清4 (71.52 km)		清4—清7 (12.70 km)		清7—汊3 (11.85 km)
年份	冲淤体积 (10⁶m³)	冲淤强度 (m³/(m·a))	冲淤体积 (10⁶ m³)	冲淤强度 (m³/(m·a))	冲淤体积 (10⁶ m³)	冲淤强度 (m³/(m·a))
2002—2005	-45.16	-157.86	-5.68	-111.92	-4.40	-92.88
2006—1014	-6.93	-24.22	-3.22	-63.39	0.03	6.43
2015—2017	4.33	15.14	0.75	14.69	2.83	66.30
2002—2017	-47.75	-166.89	-8.16	-160.63	-1.27	-26.79

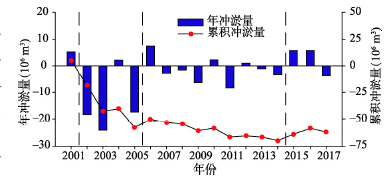

年份	年来水量(亿m3)	年来沙量(亿t)	年冲淤量(10⁶t)	冲淤占比(%)	汛期冲淤量(10⁶t)	汛期冲刷效率(kg/m³)
2002	41.9	0.54	-23.88	-43.98	-22.10	-6.67
2003	192.7	3.69	-31.51	-8.54	-33.45	-2.66
2004	198.8	2.58	2.85	1.11	-12.57	-0.82
2005	206.8	1.91	-22.59	-11.83	-28.23	-1.87
平均	160.1	2.18	14.46	-15.81	-24.089	-3.00
2006	191.7	1.49	9.65	6.48	-2.565	-0.17
2007	204.0	1.47	-3.51	-2.39	-12.335	-0.78
2008	145.6	0.77	-1.99	-2.59	-7.68	-0.75
2009	132.9	0.56	-8.21	-14.63	-13.86	-1.45
2010	193.0	1.67	2.97	1.78	-7.88	-0.49
2011	184.2	0.93	-10.86	-11.73	-15.75	-1.29
2012	282.5	1.83	1.36	0.74	1.28	0.06
2013	236.9	2.73	-1.43	-0.52	-9.67	-0.55
2014	114.3	0.30	-4.25	-14.12	-5.59	-0.82
平均	187.2	1.31	-1.39	-4.12	-8.23	-0.69
2015	133.6	0.31	7.58	24.14	7.44	0.88
2016	81.9	0.11	7.56	71.32	1.42	0.27
2017	89.6	0.08	-4.86	-63.14	1.59	0.33
平均	101.7	0.17	2.64	10.77	3.48	0.50

年份	年来水量(亿m3)	年来沙量(亿t)	年冲淤量(10⁶t)	冲淤占比(%)	汛期冲淤量(10⁶t)	汛期冲刷效率(kg/m³)
2002	41.9	0.54	-23.88	-43.98	-22.10	-6.67
2003	192.7	3.69	-31.51	-8.54	-33.45	-2.66
2004	198.8	2.58	2.85	1.11	-12.57	-0.82
2005	206.8	1.91	-22.59	-11.83	-28.23	-1.87
平均	160.1	2.18	14.46	-15.81	-24.089	-3.00
2006	191.7	1.49	9.65	6.48	-2.565	-0.17
2007	204.0	1.47	-3.51	-2.39	-12.335	-0.78
2008	145.6	0.77	-1.99	-2.59	-7.68	-0.75
2009	132.9	0.56	-8.21	-14.63	-13.86	-1.45
2010	193.0	1.67	2.97	1.78	-7.88	-0.49
2011	184.2	0.93	-10.86	-11.73	-15.75	-1.29
2012	282.5	1.83	1.36	0.74	1.28	0.06
2013	236.9	2.73	-1.43	-0.52	-9.67	-0.55
2014	114.3	0.30	-4.25	-14.12	-5.59	-0.82
平均	187.2	1.31	-1.39	-4.12	-8.23	-0.69
2015	133.6	0.31	7.58	24.14	7.44	0.88
2016	81.9	0.11	7.56	71.32	1.42	0.27
2017	89.6	0.08	-4.86	-63.14	1.59	0.33
平均	101.7	0.17	2.64	10.77	3.48	0.50
