长江中游荆江河段同流量—水位演化特征及驱动成因

doi:10.11821/dlxb202101008

Abstract

Abstract:

Water and sediment transport processes have been changed by the operation of larger scale reservoirs, which can result in the adjustments of river topography and water levels. The polynomial fitting method was applied to analyze the variation characteristics of the water levels under different characteristic water discharges in the Jingjiang reach of the Yangtze River during 1991-2016. The segregation variable method was used to estimate the contributions of the varied riverbed evaluation, the downstream controlled water level and the comprehensive roughness on the altered water level at the same flow. The results obtained are as follows: (1)The low water level in the Jingjiang reach of the Yangtze River during 1991-2016 presented a significant downward trend, and this trend intensified since 2009; riverbed scouring was the dominant factor for the reduced low water level, while the increased roughness alleviated this reduction. (2) During 1991-2016, the high water level decreased firstly and then increased. The variation characteristic of "high flood discharge with high water level" before 2003 transformed into "average flood discharge with high water level" since 2009. The increased comprehensive roughness was the main reason for the increased high water level, while the river scouring alleviated this increase. For navigation conditions and flood control, the intensifying riverbed scouring of the sandy reaches downstream dams enhanced the effects of the downstream water level on the upstream water level. (3) This led to the insufficient water depth in the reaches below dams, which should arouse great attention. The variation characteristics of high water level increased the flood pressure in the middle reaches of the Yangtze River.

Key words: water level at the same flow, spatio-temporal evolution, channel geomorphology, middle reaches of the Yangtze River

CHAI Yuanfang, DENG Jinyun, YANG Yunping, SUN Zhaohua, LI Yitian, ZHU Lingling. Evolution characteristics and driving factors of the water level at the same discharge in the Jingjiang reach of Yangtze River[J].Acta Geographica Sinica, 2021, 76(1): 101-113.

Figures/Tables 12

Fig. 1

Fig. 2

Tab. 2

Fig. 3

Fig. 4

Tab. 3

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Tab. 4

Fig. 9

References 32

[1]	Burns A, Walker K F. Effects of water level regulation on algal biofilms in the River Murray, South Australia. River Research and Applications, 2015,16(5):433-444.
[2]	Yang Yunping, Zhang Mingjin, Liu Wanli, et al. Relationships between waterway depth and low-flow water levels in reaches below the Three Gorges Dam. Journal of Waterway, Port, Coastal, and Ocean Engineering, 2019,145(1):04018032.DOI: 10.1061/(ASCE)WW.1943-5460.0000482.
[3]	Gabriel A O. Impacts, perceptions, and management of shoreline hazards and water levels on a fluctuating reservoir: A case study of the Winnebago System, Wisconsin. Lake and Reservoir Management, 2004,20(3):197-210.
[4]	Surian N, Ziliani L, Comiti F, et al. Channel adjustments and alteration of sediment fluxes in gravel-bed rivers of North-Eastern Italy: Potentials and limitations for channel recovery. River Research & Applications, 2009,25(5):551-567.
[5]	Shields J R F D, Simon A, Steffen L J. Reservoir effects on downstream river channel migration. Environmental Conservation, 2000,27(1):54-66.
[6]	Topping D J, Schmidt J C, Vierra L E. Computation and analysis of theinstantaneous discharge for the Colorado River at Lees Ferry, Arizona. US Geological Survey Professional Paper, 2003: 30-33.
[7]	Lu Jinyou. Variation of stage-discharge relationship of downstream of hydro-junction. Hydro-Science and Engineering, 1994(1/2):109-117.
	[ 卢金友. 水利枢纽下游河道水位流量关系的变化. 水利水运科学研究, 1994(1/2):109-117.]
[8]	Lai Xijun., Jiang Jiahu, Yang Guishan, et al. Should the Three Gorges Dam be blamed for the extremely low water levels in the middle-lower Yangtze River? Hydrological Processes, 2014,28(1):150-160.
[9]	Yang Yunping, Zhang Mingjin, Sun Zhaohua, et al. The relationship between water level change and river channel geometry adjustment in the downstream of the Three Gorges Dam. Journal of Geographical Sciences, 2018,28(12):1975-1993.
[10]	Yang Yunping, Zhang Mingjin, Sun Zhaohua, et al. The relationship between water level change and river channel geometry adjustment in the downstream of the Three Gorges Dam (TGD). Acta Geographica Sinica, 2017,72(5):776-789. doi: 10.11821/dlxb201705002
	[ 杨云平, 张明进, 孙昭华, 等. 三峡大坝下游水位变化与河道形态调整关系研究. 地理学报, 2017,72(5):776-789.]
[11]	Han Jianqiao, Sun Zhaohua, Li Yitian, et al. Combined effects of multiple large-scale hydraulic engineering on water stages in the middle Yangtze River. Geomorphology, 2017,298:31-40.
[12]	Yang Yunping, Zhang Mingjin, Zhu Lingling, et al. Influence of large reservoir operation on water-levels and flows in reaches below dam: Case study of the Three Gorges Reservoir. Scientific Reports, 2017,7:15640. DOI: 10.1038/s41598-017-15677-y.
[13]	Bormann H, Pinter N, Elfert S. Hydrological signatures of flood trends on German rivers: Flood frequencies, flood heights and specific stages. Journal of Hydrology, 2011,404(1-2):50-66.
[14]	Carle M V, Sasser C E, Roberts H H. Accretion and vegetation community change in the Wax Lake Delta following the historic 2011 Mississippi River Flood. Journal Coastal Research, 2015,313(3):569-587.
[15]	Zhang Man, Zhou Jianjun, Huang Guoxian. Flood control problems in middle reaches of Yangtze River and countermeasures. Water Resources Protection, 2016,32(4):1-10.
	[ 张曼, 周建军, 黄国鲜. 长江中游防洪问题与对策. 水资源保护, 2016,32(4):1-10.]
[16]	Mei Xuefei, Dai Zhijun, Du Jinzhou, et al. Linkage between Three Gorges Dam impacts and the dramatic recessions in China's largest freshwater lake, Poyang Lake. Scientific Reports, 2016,5:18197. DOI: 10.1038/srep18197. pmid: 26657816
[17]	Huang Xinlong, Zhu Minghua, Zuo Jichang, et al. "2016.7" flood last danger analysis and revelation in the middle and lower reaches of the Yangtze River. China Flood & Drought Management, 2016(5):47-49.
	[ 黄先龙, 褚明华, 左吉昌, 等. “2016.7”长江中下游洪水防御工作及启示. 中国防汛抗旱, 2016(5):47-49.]
[18]	Moshe L B, Haviv I, Enzel Y, et al. Incision of alluvial channels in response to a continuous base level fall: Field characterization, modeling, and validation along the Dead Sea. Geomorphology, 2008,93(3/4):524-536.
[19]	Greene S L, Knox J C. Coupling legacy geomorphic surface facies to riparian vegetation: Assessing red cedar invasion along the Missouri River downstream of Gavins Point Dam, South Dakota. Geomorphology, 2014,204(1):277-286.
[20]	Han Jianqiao, Sun Zhaohua, Yang Yunping. Flood and low stage adjustment in the middle Yangtze River after impoundment of the Three Gorges Reservoir (TGR). Journal of Lake Sciences, 2017,29(5):1217-1226.
	[ 韩剑桥, 孙昭华, 杨云平. 三峡水库运行后长江中游洪、枯水位变化特征. 湖泊科学, 2017,29(5):1217-1226.]
[21]	Guo Yi, Sun Zhaohua, Luo Fangbing. Time-variation characteristics and causes of Yichang low-water level since impoundment of Three Gorges Reservoir. Hydro-Science and Engineering, 2017(4):35-42.
	[ 郭怡, 孙昭华, 罗方冰. 三峡水库蓄水后宜昌枯水位的时变特征及成因. 水利水运工程学报, 2017(4):35-42.]
[22]	Han Jianqiao, Sun Zhaohua, Li Yitian, et al. Changes and causes of lower water level in Yichang-Chenglingji reach after impounding of Three Gorges Reservoir. Engineering Journal of Wuhan University, 2011,44(6):685-690, 895.
	[ 韩剑桥, 孙昭华, 李义天, 等. 三峡水库蓄水后宜昌至城陵矶河段枯水位变化及成因. 武汉大学学报(工学版), 2011,44(6):685-690, 895.]
[23]	Sun Zhaohua, Huang Ying, Cao Qixin, et al. Spatial and temporal variations of the low flow stage in the immediate downstream reach of the Three Georges Dam. Journal of Basic Science and Engineering, 2015,23(4):694-704.
	[ 孙昭华, 黄颖, 曹绮欣, 等. 三峡近坝段枯水位降幅的时空分异性及成因. 应用基础与工程科学学报, 2015,23(4):694-704.]
[24]	Zhang Xibing, Lu Jinyou, Lin Qiusheng. Preliminary study on accumulated influence of the bankline use on flood control in the middle and lower reaches of the Yangtze River. Resources and Environment in the Yangtze Basin, 2011,20(9):1138-1142.
	[ 张细兵, 卢金友, 蔺秋生. 长江中下游岸线利用对防洪累积影响初步研究. 长江流域资源与环境, 2011,20(9):1138-1142.]
[25]	Chai Yuanfang, Li Yitian, Yang Yunping, et al. Water level variation characteristics under the impacts of extreme drought and the operation of the Three Gorges Dam. Frontiers Earth Science, 2019,13(3):510-522.
[26]	Yuan Weihao, Yin Daowei, Finlayson B, et al. Assessing the potential for change in the middle Yangtze River channel following impoundment of the Three Gorges Dam. Geomorphology, 2012,147/148:27-34.
[27]	Li Yunzhong. Change in Yangtze water level along Yichang stretch in dry season. China Three Gorges Construction, 2002,9(5):12-14.
	[ 李云中. 长江宜昌河段低水位变化研究. 中国三峡建设, 2002,9(5):12-14.]
[28]	Dai Shuiping, Yan Jinbo, Zou Tao, et al. A study of the impact of bottle-neck reach evolution downstream from Gezhouba on Yichang's low water level. Express Water Resources & Hydropower Information, 2012,33(7):40-44.
	[ 代水平, 闫金波, 邹涛, 等. 葛洲坝下游沿程节点演变对宜昌枯水位影响研究. 水利水电快报, 2012,33(7):40-44.]
[29]	Cheng Jinhai, Xiang Rong, Qiu Xiaofeng, et al. Analysis of the impact on roughness of riverbed erosion downstream the Three Georges Project. Express Water Resources & Hydropower Information, 2012,33(7):59-63.
	[ 成金海, 向荣, 邱晓峰, 等. 三峡水库运行初期坝下近坝段河道冲刷对河床糙率影响分析. 水利水电快报, 2012,33(7):59-63.]
[30]	Yang Yunping, Zhang Mingjin, Li Yitian, et al. Suspended sediment recovery and bedsand compensation mechanism affected by the Three Gorges Project. Acta Geographica Sinica, 2016,71(7):1241-1254.
	[ 杨云平, 张明进, 李义天, 等. 长江三峡水坝下游河道悬沙恢复和床沙补给机制. 地理学报, 2016,71(7):1241-1254.]
[31]	Zhang Wei, Yang Yunping, Zhang Mingjin, et al. Mechanisms of suspended sediment restoration and bed level compensation in downstream reaches of the Three Gorges Projects (TGP). Journal of Geographical Sciences, 2017,27(4):463-480.
[32]	Li Yitian, Sun Zhaohua, Liu Yun, et al. Channel degradation downstream from the Three Gorges Project and its impacts on flood level. Journal of Hydraulic Engineering, 2009,135(9):718-728.

代表流量	宜昌	枝城	沙市	监利	螺山
枯水流量	6190	6490	6460	6490	8460
洪水流量	46500	46400	37600	34500	45800

统计时段	河槽特征	△B > 0 m	△B > 20 m	△B > 50 m
2003—2009年	枯水河槽	68.8	41.6	28.9
	平滩河槽	71.7	27.2	16.2
	洪水河槽	74.6	22.0	6.36
2009—2016年	枯水河槽	70.5	46.8	31.8
	平滩河槽	57.8	25.4	17.3
	洪水河槽	38.7	14.5	6.94
2003—2016年	枯水河槽	71.7	57.8	43.9
	平滩河槽	60.1	34.1	23.1
	洪水河槽	55.5	16.8	6.94

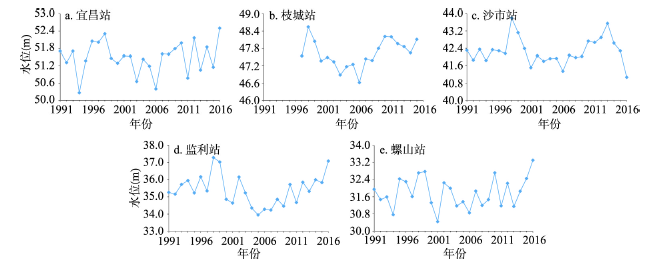

水文站	时段
水文站	1991—2003年	2003—2009年	2009—2016年
宜昌站	51.48	51.24	51.66
枝城站	47.60	47.22	47.97
沙市站	42.29	41.87	42.48
监利站	35.69	34.48	35.61
螺山站	31.87	31.47	32.05
