基于高分辨率格点数据的1961-2013年青藏高原雪雨比变化

doi:10.11821/dlxb201601011

Abstract

Abstract:

Based on the daily precipitation and temperature from a 0.5°×0.5° gridded dataset and meteorological stations during 1961-2013 released by the National Meteorological Information Center, the spatial and temporal changes of annual precipitation, rainfall, snowfall and snowfall/rainfall ratio (S/R) in the Tibetan Plateau in recent 53 years were analyzed by using Sen slope, Mann-Kendall mutation test, IDW (inverse distance-weighted) interpolation and Morlet wavelet. The results indicated that: (1) Generally, precipitation and rainfall show increasing trends by 0.6 mm·a^-1 (p < 0.05) and 1.3 mm·a^-1 (p < 0.001), respectively, while snowfall and S/R show decreasing trends by 0.6 mm·a^-1 (p < 0.01) and 0.5%·a^-1 (p < 0.001), respectively. (2) Precipitation and rainfall show increasing trends, but snowfall shows a decreasing trend in most parts of the Tibetan Plateau. On this basis, S/R shows a decreasing trend. (3) Abrupt and cycle analysis shows that the abrupt changes of the precipitation, rainfall, snowfall and S/R occurred in 2005, 2004, 1996 and 1998, respectively. The precipitation, rainfall, snowfall and S/R present cycles of approximately 5 years, 10 years, 16 years and 20 years, respectively. (4) As elevation increases, the trend magnitude for precipitation and rainfall shows a decrease-to-increase trend, and that for snowfall and S/R shows a decreasing trend.

Key words: Tibetan Plateau, gridded dataset, snowfall/rainfall ratio, trend

WANG Jie,ZHANG Mingjun,WANG Shengjie,REN Zhengguo,CHE Yanjun,ZHANG Fuxian. Change of snowfall/rainfall ratio in the Tibetan Plateau based on a gridded dataset with high resolution during 1961-2013[J].Acta Geographica Sinica, 2016, 71(1): 142-152.

Figures/Tables 10

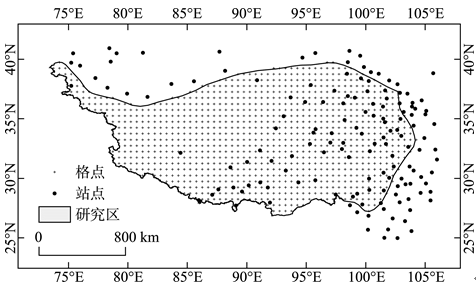

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Tab. 1

Fig. 5

Tab. 2

Fig. 6

Fig. 7

Fig. 8

References 38

[1]	Dingman S L. Physical Hydrology.Waveland Press, 2015.
[2]	Mizukami N, Koren V, Smith M et al. The impact of precipitation type discrimination on hydrologic simulation. Journal of Hydrometeorology, 2013, 14(4): 1139-1158.
[3]	Scipión D E, Mott R, Lehning M, et al.Seasonal small-scale spatial variability in alpine snowfall and snow accumulation. Water Resources Research, 2013, 49(3): 1446-1457.
[4]	Berghuijs W R, Woods R A, Hrachowitz M.A precipitation shift from snow towards rain leads to a decrease in streamflow. Nature Climate Change, 2014, 4(7): 583-586.
[5]	Screen J A, Simmonds I.Declining summer snowfall in the Arctic. Climate Dynamics, 2012, 38(11/12): 2243-2256.
[6]	Mernild S H, Malmros J K, Yde J C, et al.Albedo decline on greenland's Mittivakkat Gletscher in a warming climate. International Journal of Climatology, 2015, 35(9): 2294-2307.
[7]	Huntington T G, Hodgkins G A, Keim B D, et al.Changes in the proportion of precipitation occurring as snow in New England (1949-2000). Journal of Climate, 2004, 17(13): 2626-2636.
[8]	Serquet G, Marty C, Dulex J P, et al.Seasonal trends and temperature dependence of the snowfall/precipitation-day ratio in Switzerland. Geophysical Research Letters, 2011, 38(7). doi: 10.1029/2011GL046976.
[9]	Feng S, Hu Q.Changes in the agro-meteorological indicators in the contiguous United States: 1951-2000. Theoretical and Applied Climatology, 2004, 78(4): 247-264.
[10]	Guo L, Li L.Variation of the proportion of precipitation occurring as snow in the Tian Shan Mountains, China. International Journal of Climatology, 2015, 35(7): 1379-1393.
[11]	Wang T, Peng S, Lin X, et al.Declining snow cover may affect spring phenological trend on the Tibetan Plateau. Proceedings of the National Academy of Sciences, 2013, 110(31): E2854-E2855.
[12]	Wu Z, Jiang Z, Li J, et al.Possible association of the western Tibetan Plateau snow cover with the decadal to interdecadal variations of northern China heatwave frequency. Climate Dynamics, 2012, 39(9/10): 2393-2402.
[13]	Yao Tandong, Zhu Liping.The response of environmental changes on Tibetan Plateau to global changes and adaptation strategy. Advances in Earth Science, 2006, 21(5): 459-464.
	[姚檀栋, 朱立平. 青藏高原环境变化对全球变化的响应及其适应对策. 地球科学进展, 2006, 21(5): 459-464.]
[14]	Zhang Yili, Li Bingyuan, Zheng Du.A discussion on the boundary and area of the Tibetan Plateau in China. Geographical Research, 2002, 21(1): 1-8.
	[张镱锂, 李炳元, 郑度. 论青藏高原范围与面积. 地理研究, 2002, 21(1): 1-8.]
[15]	Wang Jing'ai. China Geography Tutorial. Beijing: Higher Education Press, 2007.
	[王静爱. 中国地理教程. 北京: 高等教育出版社, 2007.]
[16]	Li Chaoliu, Kang Shichang.Review of the studies on climate change since the last inter-glacial period on the Tibetan Plateau. Acta Geographica Sinica, 2006, 61(3): 327-335.
	[李潮流, 康世昌. 青藏高原不同时段气候变化的研究综述. 地理学报, 2006, 61(3): 327-335.]
[17]	Zhao Yufei, Zhu Jiang, Xu Yan.Establishment and assessment of the gird precipitation datasets in China for recent 50 years. Journal of the Meteorological Sciences, 2014, 34(4): 414-420.
	[赵煜飞, 朱江, 许艳. 近50a中国降水格点数据集的建立及质量评估. 气象科学, 2014, 34(4): 414-420.]
[18]	Xu Zhuling.Meteorology. Beijing: China Meteorological Press, 1994.
	[徐祝龄. 气象学. 北京:气象出版社, 1994.]
[19]	Rauber R M, Olthoff L S, Ramamurthy M K.Further investigation of a physically based, nondimensional parameter for discriminating between locations of freezing rain and ice pellets. Weather and Forecasting, 2001, 16(1): 185-191.
[20]	Gustafsson D, Stähli M, Jansson P E.The surface energy balance of a snow cover: Comparing measurements to two different simulation models. Theoretical and Applied Climatology, 2001, 70(1-4): 81-96.
[21]	Yang Z L, Dickinson R E, Robock A, et al.Validation of the snow submodel of the biosphere-atmosphere transfer scheme with Russian snow cover and meteorological observational data. Journal of Climate, 1997, 10(2): 353-373.
[22]	Kang Ersi, Ohmura A.Energy, water and mass balance and runoff models in Tianshan glacier affected area. Science in China (Series B), 1994, 24(9): 983-991.
	[康尔泗, Ohmura A.天山冰川作用流域能量,水量和物质平衡及其径流模型. 中国科学(B辑), 1994, 24(9): 983-991.]
[23]	Han Chuntan, Chen Rensheng.A discuss of the separating solid and liquid precipitations. Journal of Glaciology and Geocryology, 2010, 32(2): 249-256.
	[韩春坛, 陈仁升. 固液态降水分离方法探讨. 冰川冻土, 2010, 32(2): 249-256.]
[24]	Chen R, Liu J.Precipitation type estimation and validation in China. Journal of Mountain Science, 2014, 11(4): 917-925.
[25]	Chen Rensheng.Some knowledge on and parameter of China's alpine hydrology. Advances in Water Science, 2014, 25(3): 307-316.
	[陈仁升. 中国高寒区水文学中的一些认识和参数. 水科学进展, 2014, 25(3): 307-316.]
[26]	Sen P K.Estimates of the regression coefficient based on Kendall's Tau. Journal of American Statistical Association, 1968, 39: 1379-1389.
[27]	Lin Houbo, You Qinglong.Spatial and temporal characteristics of the precipitation over the Tibetan Plateau from 1961 to 2010 based on high resolution grid-observation dataset. Journal of Natural Resources, 2015, 30(2): 271-281.
	[林厚博, 游庆龙. 基于高分辨率格点观测数据的青藏高原降水时空变化特征. 自然资源学报, 2015, 30(2): 271-281.]
[28]	Hu Haoran, Liang Ling.Temporal and spatial variations of rainfall at the east of Qinghai-Tibet Plateau in last 50 years. Plateau and Mountain Meteorology Research, 2013, 33(4): 1-7.
	[胡豪然, 梁玲. 近50年青藏高原东部降水的时空变化特征. 高原山地气象研究, 2013, 33(4): 1-7.]
[29]	Tong K, Su F, Yang D, et al.Tibetan Plateau precipitation as depicted by gauge observations, reanalysis and satellite retrievals. International Journal of Climatology, 2014, 34(2): 265-285.
[30]	You Q, Min J, Zhang W, et al.Comparison of multiple datasets with gridded precipitation observations over the Tibetan Plateau. Climate Dynamics, 2015, 45(3): 791-806.
[31]	Mountain Research Initiative EDW Working Group. Elevation-dependent warming in mountain regions of the world. Nature Climate Change, 2015, 5(5): 424-430.
[32]	Feng Song, Tang Maocang, Wang Dongmei.New evidence for the Qinghai Xizang (Tibet) Plateau as a pilot region of climatic fluctuation in China. Chinese Science Bulletin, 1998, 43(6): 633-636.
	[冯松, 汤懋苍, 王冬梅. 青藏高原是我国气候变化启动区的新证据. 科学通报, 1998, 43(6): 633-636.]
[33]	Yan L, Liu X.Has climatic warming over the Tibetan Plateau paused or continued in recent years. Journal of Earth, Ocean and Atmospheric Sciences, 2014, 1(1): 13-28.
[34]	Liu Zongxiang, Su Zhen, Yao Tandong, et al.Resources and distribution of glaciers on the Tibetan Plateau. Resources Science, 2000, 22(5): 49-52.
	[刘宗香, 苏珍, 姚檀栋, 等. 青藏高原冰川资源及其分布特征. 资源科学, 2000, 22(5): 49-52.]
[35]	Yang Z L, Dickinson R E, Robock A, et al.Validation of the snow submodel of the biosphere-atmosphere transfer scheme with Russian snow cover and meteorological observational data. Journal of Climate, 1997, 10(2): 353-373.
[36]	Loth B, Graf H F, Oberhuber J M.Snow cover model for global climate simulations. Journal of Geophysical Research: Atmospheres, 1993, 98(D6): 10451-10464.
[37]	Wigmosta M S, Vail L W, Lettenmaier D P.A distributed hydrology-vegetation model for complex terrain. Water Resources Research, 1994, 30(6): 1665-1679.
[38]	Lindström G, Johansson B, Persson M, et al.Development and test of the distributed HBV-96 hydrological model. Journal of Hydrology, 1997, 201(1): 272-288.

	倾向率变化区间(mm·a^-1或a^-1)	格点的百分率(%)
	倾向率变化区间(mm·a^-1或a^-1)	正趋势	显著正趋势	负趋势	显著负趋势
降水量	-12.1~14.1	76.9	45.1	23.1	20.9
降雨量	-4.6~14.0	87.2	65.1	12.8	14.9
降雪量	-12.1~3.3	25.2	13.6	74.8	41.8
雪雨比	-6.2~13.1	8.6	10.5	91.4	59.1

	突变年份	突变前均值	突变后均值	突变后与突变前数值差
降水量(mm)	2005	433.4	469.3	35.9
降雨量(mm)	2004	266.4	318.8	52.4
降雪量(mm)	1996	172.1	151.8	-20.3
雪雨比(%)	1998	70	50	-20

Change of snowfall/rainfall ratio in the Tibetan Plateau based on a gridded dataset with high resolution during 1961-2013
