Acta Geographica Sinica ›› 2019, Vol. 74 ›› Issue (10): 2011-2026.doi: 10.11821/dlxb201910005
• Rural Revitalization and Regional Development • Previous Articles Next Articles
LU Shasha1,2,LIU Yansui2(),QIN Fan1
Received:
2018-04-10
Revised:
2019-07-10
Online:
2019-10-25
Published:
2019-10-29
Contact:
LIU Yansui
E-mail:liuys@igsnrr.ac.cn
Supported by:
LU Shasha, LIU Yansui, QIN Fan. Spatio-temporal differentiation of agricultural regional function and its impact factors in the Bohai Rim region of China[J].Acta Geographica Sinica, 2019, 74(10): 2011-2026.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Tab. 1
Evaluation index system of agricultural region function in the Bohai Rim region
功能层 | 指标层 | 计算方法 | 权重 |
---|---|---|---|
农产品供给(APF) | C1垦殖指数 | 耕地面积/区域土地总面积 | 0.213 |
C2粮食单产 | 粮食总产量/粮食作物播种面积 | 0.221 | |
C3人均粮食占有量 | 粮食总产量/区域总人口 | 0.258 | |
C4粮食商品率 | (粮食总产量-400×区域农业人口)/粮食总产量 | 0.223 | |
C5人均非粮产品占有量 | (肉类+油料+棉花+蔬菜+水果产量)/区域总人口 | 0.085 | |
就业与社会保障(LEF) | C6农业人口占乡村总人口比例 | 区域农业人口/区域乡村总人口 | 0.147 |
C7农业劳动力占乡村总劳动力比例 | 区域农业劳动力/乡村总劳动力 | 0.211 | |
C8耕地承载劳动力数量 | 区域农业劳动力/耕地面积 | 0.195 | |
C9劳均农业总产值 | 区域农业总产值/农业劳动力 | 0.130 | |
C10农业总产值占GDP的比例 | 区域农业总产值/GDP | 0.191 | |
C11农民人均纯收入 | 年内农村居民人均纯收入 | 0.126 | |
生态保育 (ECF) | C12地区生态服务价值总量 | 根据Costanza、谢高地等提出的方法计算 | 0.335 |
C13地均生态服务价值量 | 生态服务价值总量/区域土地总面积 | 0.332 | |
C14森林覆盖率 | 森林覆盖面积/区域土地总面积 | 0.333 | |
文化传承与休闲(CRF) | C15农业文化遗产数 | 县域主要农业文化遗产个数 | 0.355 |
C16县市周围100 km范围内地级以上城市人口总数 | 在ArcGIS中用Point Distance工具模块计算后,导入 Excel,借助Vlookup、Sumif和Countif函数计算获取 | 0.159 | |
C17县市周边100 km范围的地级以上城市人口人均年收入 | 同上 | 0.358 | |
C18休闲农业资源禀赋 | 专家打分法定性评价与赋权重 | 0.128 |
Tab. 2
Descriptive statistics and spatial concentration index of four functions in the Bohai Rim region
年份 | APF | LEF | ECF | CRF | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
1996年 | 2015年 | 1996年 | 2015年 | 1996年 | 2015年 | 1996年 | 2015年 | ||||
最大值 | 0.797 | 0.865 | 0.726 | 0.666 | 0.799 | 0.553 | 0.821 | 0.825 | |||
最小值 | 0.074 | 0.028 | 0.090 | 0.116 | 0.002 | 0.006 | 0.001 | 0.025 | |||
平均值 | 0.470 | 0.489 | 0.272 | 0.279 | 0.137 | 0.133 | 0.314 | 0.379 | |||
变异系数 | 0.316 | 0.310 | 0.241 | 0.225 | 1.115 | 1.565 | 0.541 | 0.187 | |||
空间集中度 | 0.125 | 0.121 | 0.102 | 0.113 | 0.405 | 0.479 | 0.223 | 0.174 |
Tab. 3

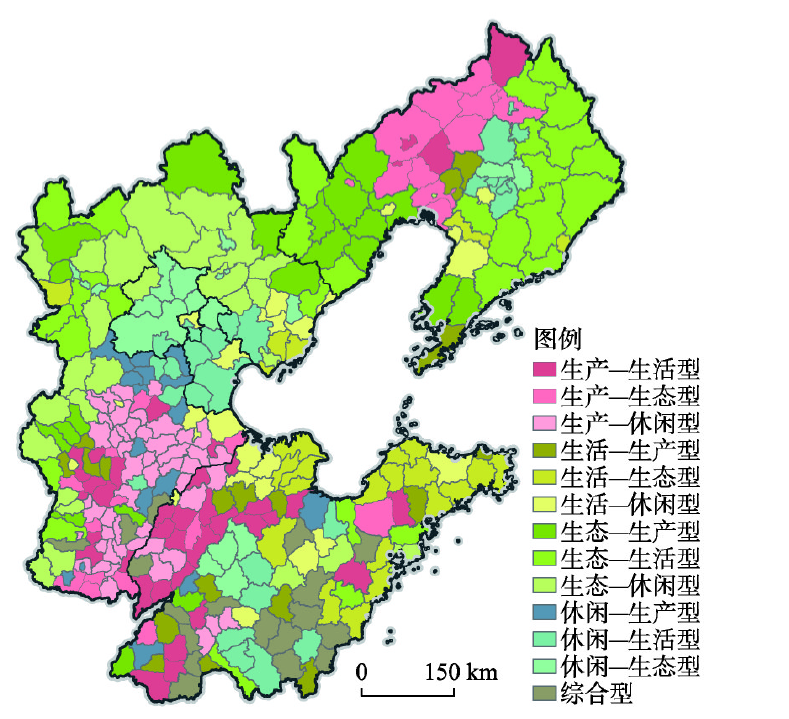

Basic features and development orientation of 13 kinds of county functional types in the Bohai Rim region
主导 功能 | 功能 类型 | 县域 数量 | 人均粮食产量(kg) | 人均 GDP(元) | 农民人均 纯收入(元) | 城镇化率(%) | 基本特征 | 发展导向 |
---|---|---|---|---|---|---|---|---|
APF | 生产— 生活型 | 37 | 639 | 34700 | 9250 | 53.0 | 该类型区多为传统粮棉生产基地,农业生产受水资源匮乏和土壤盐碱的限制;地区工业化、城镇化迟缓,社会保障功能弱,农民人均纯收入普遍处于低水平。 | 未来应围绕国家粮食战略工程重点区域开发,提升农业生产规模与产业化水平,建设高质量农产品种植基地、技术研发基地、农产品深加工基地、现期货交易和商品流通平台,不断提升农产品供给能力与农业内部增产潜能。 |
生产— 生态型 | 25 | 722 | 37214 | 9365 | 51.2 | |||
生产— 休闲型 | 49 | 734 | 24713 | 8965 | 56.6 | |||
LEF | 生活— 生产型 | 18 | 332 | 59184 | 9690 | 67.4 | 该类型区多为沿海地区,特色农产品供给优势明显,经济发展水平较高,就业和社会保障功能强,但水资源匮乏,盐渍化严重,生态环境脆弱。 | 未来应紧紧围绕农业供给侧结构性改革主线,推进农产品品种和结构的调整创新,强化农业高新技术培育、示范带动、服务辐射等服务功能,进一步提升沿海地域农业就业保障能力与生态屏障功能。 |
生活— 生态型 | 23 | 481 | 62759 | 11007 | 63.1 | |||
生活— 休闲型 | 24 | 173 | 94282 | 12543 | 55.0 | |||
ECF | 生态— 生产型 | 21 | 528 | 44745 | 9278 | 62.6 | 该类型区地势起伏大,森林蓄积量较大;耕地质量差,农业生产水平落后;人口密度较小,二三产业欠发达,保障生活的功能弱。 | 未来要以生态文明建设为契机,加快实施重大生态工程和农业生态保护修复工程,合理构建生态补偿机制;立足贫困山区资源禀赋,构建支撑农业绿色发展的科技创新体系,推进特色产业精准扶贫,引导贫困农户脱贫致富。 |
生态— 生活型 | 30 | 466 | 51826 | 9340 | 53.7 | |||
生态— 休闲型 | 27 | 171 | 90335 | 12633 | 60.9 | |||
CRF | 休闲— 生产型 | 15 | 341 | 62393 | 11670 | 69.1 | 该类型区凭借特色资源和优越区位条件,农业休闲旅游业蓬勃发展,但空间布局杂乱无序,开发项目单一且缺乏特色,基础设施落后且服务水平低。 | 未来需结合该区物质与文化资源集聚的特有优势,引导农林业与文化、教育、疗养、观光等新业态深入融合,促进农村休闲观光业态多元化、产业规模化、主体多样化、设备现代化和服务专业化,使之成为兴村富民的新型支柱产业。 |
休闲— 生活型 | 25 | 493 | 130657 | 12310 | 59.2 | |||
休闲— 生态型 | 15 | 212 | 60167 | 12070 | 67.7 | |||
综合型 | 4项功能值均偏低 | 18 | 536 | 20180 | 8368 | 32.2 | 鲁中南地区农业生态调节功能较弱,水土流失多发,土壤肥力低下;鲁西南平原是传统粮棉主产区,产业发展水平低,经济建设基础薄弱。 | 未来鲁中南地区需因地制宜发展特色高效农业,并构建水土流失综合治理与防护体系;鲁西南粮棉种植应向优质、专用、特供方向发展,培育粮食深加工与物流,推进农产品在产业循环链条中互补增值,带动农民就业增收和精准脱贫。 |
Tab. 4
Analysis of influencing factors of four functions
影响因子 | APF | LEF | ECF | CRF | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OLS | SLM | SEM | OLS | OLS | SLM | SEM | OLS | SLM | SEM | ||||
系数 | 系数 | 系数 | 系数 | 系数 | 系数 | 系数 | 系数 | 系数 | 系数 | ||||
x1 | -0.061*** | -0.057** | -0.054*** | -0.029*** | 0.012*** | 9.63e-03*** | 9.37e-03*** | -3.63e-04 | -4.21e-03 | -3.82e-03 | |||
x2 | -1.47e-05 | -6.62e-06 | -3.76e-06 | 1.66e-05 | -1.85e-05*** | -1.22e-05*** | -1.32e-05*** | -2.49e-06 | 3.76e-06 | -1.96e-05 | |||
x3 | -2.85e-06*** | -2.91e-06** | -2.43e-06** | -7.86e-07* | -5.25e-07*** | -1.91e-07* | -2.83e-07** | 2.50e-06 | 1.83e-07 | 6.24e-07 | |||
x4 | 5.88e-05** | 4.54e-05** | 5.56e-05** | -8.28e-06 | -5.84e-06*** | 4.01e-06** | -3.57e-06** | -7.73e-06 | 6.73e-06 | 6.23e-06 | |||
x5 | -0.057** | -0.056 | -0.051 | 0.001 | -5.13e-03 | -1.68e-03 | 2.82e-03 | 0.055 | 0.041 | 0.048* | |||
x6 | 0.037*** | 0.025*** | 0.038*** | -0.065*** | 1.12e-03 | 1.15e-03 | 1.54e-03 | -0.017* | -1.34e-03* | -2.96e-03 | |||
x7 | -7.10e-07** | -7.20e-07** | -6.63e-07*** | -4.25e-08 | -2.46e-08 | -3.19e-08 | -2.92e-08 | -6.81e-07*** | -4.95e-07** | -5.76e-07* | |||
x8 | -8.86e-08 | 8.31e-09 | -7.83e-08 | 1.14e-07 | -4.43e-08 | -5.41e-08* | -3.90e-08 | 5.72e-07*** | 1.12e-07** | 6.89e-08** | |||
x9 | -2.96e-03 | -2.73e-03 | -2.87e-03 | -4.20e-03* | 3.97e-04 | 373e-04 | 3.45e-04 | 1.89e-03 | 2.24e-03 | 2.71e-03 | |||
x10 | -9.71e-09 | -2.09e-08 | -1.72e-08 | -1.48e-08 | 5.81e-09 | 8.25e-09 | 5.40e-09 | -4.85e-08 | -2.31e-08 | -3.37e-08 | |||
x11 | -2.13e-03 | -2.19e-03 | -2.16e-03 | -2.32e-04 | 1.17e-04 | 7.31e-05 | 1.35e-05 | -1.54e-03 | -1.65e-03* | -1.86e-03 | |||
x12 | 1.98e-07* | 2.80e-07** | 2.83e-07* | -8.06e-08 | -3.22e-08* | -3.54e-08* | -2.75e-08* | 5.30e-08 | 6.56e-08 | 7.67e-08 | |||
x13 | -7.98e-07 | -7.22e-08 | -3.89e-07 | 1.97e-06* | 3.15e-07** | 3.39e-07*** | 2.57e-07** | 6.85e-07 | 7.523e-07 | 5.82e-07 | |||
x14 | 2.04e-07* | 4.03e-09 | 3.63e-07 | 3.75e-07 | -8.96e-09 | -3.65e-08 | -3.24e-09 | 1.89e-07 | 3.01e-07 | 4.03e-07 | |||
x15 | -4.69e-03 | -1.89e-02 | -5.88e-03 | -0.037* | 3.94e-03 | 7.35e-03 | 5.20e-03 | 0.086*** | 0.076* | 0.036* | |||
x16 | 4.21e-03*** | 4.35e-03** | 4.42e-03** | 1.71e-03 | 2.53e-04 | 4.33e-04 | 3.49e-04 | -6.225e-04 | -5.23e-04 | -3.67e-04 | |||
x18 | 1.16e-03 | 6.83e-04 | -3.68e-04 | -2.07e-03 | 3.45e-04 | 1.96e-04 | 1.64e-04 | 2.53e-03 | 2.08e-03 | 4.53e-03 | |||
x19 | -1.91e-07* | -1.79e-07*** | -1.56e-07*** | -3.78e-08 | 8.07e-09 | 1.35e-09 | 9.53e-09 | -1.78e-08* | -2.43e-08* | 1.67e-08* | |||
C | 0.311** | 0.643** | 0.238** | 0.164*** | 0.037*** | 0.014* | 0.013 | -0.039* | -0.061* | -0.046 | |||
p(空间滞后项)/ λ(空间误差项) | 0.330*** (2.93) | 0.291*** (5.56) | 0.427*** (5.60) | 0.031*** (3.12) | 0.877*** (21.38) | -0.089 (-1.64) | |||||||
统计检验 | |||||||||||||
R2 | 0.671 | 0.676 | 0.682 | 0.565 | 0.674 | 0.721 | 0.727 | 0.693 | 0.747 | 0.753 | |||
调整R2 | 0.667 | 0.554 | 0.641 | 0.679 | |||||||||
F | 24.182 | 17.075 | 27.177 | 6.642 | |||||||||
LogL | 640.51 | 641.89 | 1154.71 | 1161.13 | 757.16 | 763.92 | |||||||
AIC | -1240.31 | -1241.10 | -2203.36 | -2207.75 | -1464.11 | -1471.80 | |||||||
SC | -1160.73 | -1165.85 | -2127.80 | -2135.78 | -1393.67 | -1396.81 | |||||||
空间依赖性检验 | |||||||||||||
Moran's I (error) | 4.761*** | 0.826 | 7.73*** | 7.89*** | |||||||||
LMLAG | 23.749*** | 0.013 | 35.33*** | 37.01*** | |||||||||
R-LMLAG | 9.823*** | 0.079 | 0.12 | 0.13 | |||||||||
LMERR | 16.960*** | 0.024 | 45.34*** | 45.89*** | |||||||||
R-LMERR | 0.476 | 0.090 | 10.13*** | 11.73*** |
[1] | Lu Dadao, Fan Jie. Regional Development in China in 2050. Beijing: Science Press, 2009. |
[ 陆大道, 樊杰 . 2050: 中国的区域发展. 北京: 科学出版社, 2009.] | |
[2] | Liu Y, Long H, Chen Y , et al. Progress of research on urban-rural transformation and rural development in China in the past decade and future prospects. Journal of Geographical Sciences, 2016,26(8):1117-1132. |
[3] | Long Hualou, Liu Yansui, Zou Jian . Assessment of rural development types and their rurality in eastern coastal China. Acta Geographica Sinica, 2008,64(4):426-434. |
[ 龙花楼, 刘彦随, 邹健 . 中国东部沿海地区乡村发展类型及其乡村性评价. 地理学报, 2009,64(4):426-434.] | |
[4] | Liu Y, Li Y . Revitalize the world's countryside. Nature, 2017,548(7667):275-277. |
[5] | Cai Yunlong, Wang Yong, Li Yuping . Study on changing relationship of demand and supply of cultivated land in China. China Land Science, 2009,23(3):11-18. |
[ 蔡运龙, 汪涌, 李玉平 . 中国耕地供需变化规律研究. 中国土地科学, 2009,23(3):11-18.] | |
[6] | Zhang Xiaolin . On discrimination of rural definitions. Acta Geographica Sinica, 1998,53(4):365-371. |
[ 张小林 . 乡村概念辨析. 地理学报, 1998,53(4):365-371.] | |
[7] | Liu Yansui, Liu Yu, Chen Yufu . Territorial multi-functionality evaluation and decision-making mechanism at county scale in China. Acta Geographica Sinica, 2011,66(10):1379-1389. |
[ 刘彦随, 刘玉, 陈玉福 . 中国地域多功能性评价及其决策机制. 地理学报, 2011,66(10):1379-1389.] | |
[8] | Lu Shasha, Liu Yansui, Guan Xingliang . Study on agricultural comprehensive regionalization under the background of urban rural transformation in China: Taking the typical transect area along the 106 national highway as an example. Scientia Geographica Sinica, 2013,33(8):909-917. |
[ 鲁莎莎, 刘彦随, 关兴良 . 中国城乡转型背景下农业综合区划研究: 以106国道沿线典型样带区为例. 地理科学, 2013,33(8):909-917.] | |
[9] | Wu Chuanjun. Economic Geography of China. Beijing: Science Press, 2007. |
[ 吴传钧 . 中国经济地理. 北京: 科学出版社, 2007.] | |
[10] | Liu Yansui, Zhang Ziwen, Wang Jieyong . Regional differentiation and comprehensive regionalization scheme of modern agriculture in China. Acta Geographica Sinica, 2018,73(2):203-219. |
[ 刘彦随, 张紫雯, 王介勇 . 中国农业地域分异与现代农业区划方案. 地理学报, 2018,73(2):203-219.] | |
[11] | Vanslembrouck I, Huylenbroeck G, Meensel J . Impact of agriculture on rural tourism: A hedonic pricing approach. Journal of Agricultural Economics, 2005,56(1):17-30. |
[12] | Randall A . Valuating the outputs of multifunctional agriculture. European Review of Agricultural Economics, 2002,29(3):289-307. |
[13] | Zhu Qirong, Yan Guohong, Wang Shengli . Multiprupose agriculture in the trade liberalization process. Journal of International Trade, 2003(6):20-24. |
[ 朱启荣, 闫国宏, 王胜利 . 贸易自由化进程中的农业多功能性问题. 国际贸易问题, 2003(6):20-24.] | |
[14] |
Lv Yao, Zhang Yushu . Identification, evaluation and internalization of externalities of agriculture. Progress in Geography, 2007,26(1):123-132.
doi: 10.11820/dlkxjz.2007.01.013 |
[ 吕耀, 章予舒 . 农业外部性识别、评价及其内部化. 地理科学进展, 2007,26(1):123-132.]
doi: 10.11820/dlkxjz.2007.01.013 |
|
[15] | Zhang Hongyu, Zhao Ge . Multi- functions of agriculture should be displayed in new rural construction. Rural Economy, 2006(5):29-32. |
[ 张红宇, 赵革 . 新农村建设要充分释放农业的多重功能. 农村经济, 2006(5):29-32.] | |
[16] | Luo Qiyou, Tao Tao, Jiang Wenlai , et al. Research on agricultural functions regionalization in Northeast China. Research of Agricultural Modernization, 2005,26(6):9-14. |
[ 罗其友, 陶陶, 姜文来 , 等. 我国东北地区农业功能区划研究. 农业现代化研究, 2005,26(6):9-14.] | |
[17] | Zhao Hongbo, Ma Yanji . Spatial-temporal pattern and obstacle factors of cultivated land ecological security in major grain producing areas of Northeast China: A case study in Jilin Province. Chinese Journal of Applied Ecology, 2014,25(2):515-524. |
[ 赵宏波, 马延吉 . 东北粮食主产区耕地生态安全的时空格局及障碍因子: 以吉林省为例. 应用生态学报, 2014,25(2):515-524.] | |
[18] | Zou Xiuqing . Measurement of farmland safeguard function and its regional difference: Based on 506 farm household survey in Zhejiang, Jiangxi and Guangxi provinces. Resources Science, 2012,24(10):1898-1904. |
[ 邹秀清 . 农地保障功能测度及其区域差异: 基于浙、赣、桂三省506份农户调查. 资源科学, 2012,24(10):1898-1904.] | |
[19] | Sun Caizhi, Zhang Lei . Changes in spatial and temporal differences of agricultural product virtual water versus cultivated land in China. Resources Science, 2009,31(1):84-93. |
[ 孙才志, 张蕾 . 中国农产品虚拟水-耕地资源区域时空差异演变. 资源科学, 2009,31(1):84-93.] | |
[20] | Xiao Junze . Develop Entertainment agriculture and exploit and expand agricultural function. Research of Agricultural Modernization, 2009(4):453-456. |
[ 肖君泽 . 发展休闲农业开发和拓展农业功能. 农业现代化研究, 2009(4):453-456.] | |
[21] | Li Pingxing, Chen Cheng, Chen Jianglong . Spatial differentiation and influencing factors of rural territorial multifunctions in developed regions: A case study of Jiangsu province. Acta Geographica Sinica, 2015,35(7):845-851. |
[ 李平星, 陈诚, 陈江龙 . 乡村地域多功能时空格局演变及影响因素研究: 以江苏省为例. 地理学报, 2015,35(7):845-851.] | |
[22] | Deng Jingzhong . Some views of division of the national agriculture status. Acta Geographica Sinica, 1963,29(4):265-280. |
[ 邓静中 . 全国农业现状区划的初步探讨. 地理学报, 1963,29(4):265-280.] | |
[23] | Cheng Hong . A preliminary study on the agricultural types in Ganzi Aba area. Acta Ecologica Sinica, 1963,29(2):156-169. |
[ 程鸿 . 甘孜阿坝地区农业类型的初步研究. 地理学报, 1963,29(2):156-169.] | |
[24] | Guo Huancheng, Yao Jianqu, Ren Guozhu . A preliminary study of agricultural types in China. Acta Geographica Sinica, 1992,59(6):507-515. |
[ 郭焕成, 姚建衢, 任国柱 . 中国农业类型划分的初步研究. 地理学报, 1992,59(6):507-515.] | |
[25] | Zhou Lisan . Research on the formation, evolution, internal structure and division system of agricultural area. Acta Geographica Sinica, 1964,30(1):14-22. |
[ 周立三 . 试论农业区域的形成演变、内部结构及其区划体系. 地理学报, 1964,30(1):14-22.] | |
[26] | Liu Yansui, Yang Ren . The spatial pattern measure of urban-rural development transformation in the Bohai Rim region in China. Acta Geographica Sinica, 2015,70(2):248-256. |
[ 刘彦随, 杨忍 . 中国环渤海地区城乡发展转型格局测度. 地理学报, 2015,70(2):248-256.] | |
[27] | Tang Huajun, Luo Qiyou. Introduction to the Development of Agricultural Regional Studies. Beijing: Science Press, 2008: 18-20. |
[ 唐华俊, 罗其友 . 农业区域发展学导论. 北京: 科学出版社, 2008: 18-20.] | |
[28] | Costanza R, Arge R, Groot R , et al. The value of the world's ecosystem services and natural capital. Nature, 1997,386:253-260. |
[29] | Du Hongliang, Chen Baiming, Yang Ke . Spatial temporal distribution of the corrected ecological function values in Hebei province. Acta Ecologica Sinica, 2010,30(9):2361-2370. |
[ 杜红亮, 陈百明, 杨克 . 河北省生态功能修正价值的时空分布. 生态学报, 2010,30(9):2361-2370.] | |
[30] |
Xie Gaodi, Zhang Yili, Lu Chunxia , et al. Study on valuation of rangeland ecosystem services of China. Journal of Natural Resources, 2001,16(1):47-53.
doi: 10.11849/zrzyxb.2001.01.008 |
[ 谢高地, 张钇锂, 鲁春霞 , 等. 中国自然草地生态系统服务价值. 自然资源学报, 2001,16(1):47-53.]
doi: 10.11849/zrzyxb.2001.01.008 |
|
[31] | Lv Yanwei, Li Ping . A clustering analysis method of weighted principal component distance. Statistical Research, 2016,33(11):102-108. |
[ 吕岩威, 李平 . 一种加权主成分距离的聚类分析方法. 统计研究, 2016,33(11):102-108.] | |
[32] | Lv Jingtang, Lv Daming, Zhang Hao . A cluster district method for agriculture function based on SPSS. Chinese Journal of Agricultural Resources and Regional Planning, 2010(1):68-74. |
[ 吕敬堂, 吕大明, 张浩 . 基于SPSS的农业功能聚类分区方法. 中国农业资源与区划, 2010(1):68-74.] | |
[33] | Feng Zhiming, Tang Yan, Yang Yanzhao , et al. The relief degree of land surface in China and its correlation with population distribution. Acta Geographica Sinica, 2007,62(10):1073-1082. |
[ 封志明, 唐焰, 杨艳昭 , 等. 中国地形起伏度及其与人口分布的相关性. 地理学报, 2007,62(10):1073-1082.] |
