秦岭中部山地降水的垂直变化研究

doi:10.11821/dlxb202207013

Abstract

Abstract:

A clear understanding of the precipitation variation patterns at high altitudes of the Qinling Mountains is a prerequisite for an in-depth understanding of the characteristics of this mountain range as China's north-south transitional zone and its important role of water resources in the Middle Route of South-North Water Transfer Project. However, understanding the precipitation changes in the mountainous areas of the Qinling Mountains has been hindered by limited effective precipitation observation data in these mountainous areas. An analysis of precipitation data measured from June 1, 2018, to May 31, 2019, at an altitude of 3760 m at the Mount Taibai of the Qinling Mountains revealed that the annual precipitation at this altitude can reach 1300 mm, which is much more than the 600-800 mm annual precipitation recorded in the Hanjiang Basin and the Guanzhong Plain. On this basis, the persistence of annual and seasonal precipitation patterns in the Qinling Mountains was examined by kriging, inverse distance weighted interpolation, and ANUSPLIN methods, as well as GPM-corrected data (GPM-cal) and ERA5 reanalysis data. Accurate high-altitude precipitation values could not be obtained using kriging and IDW. However, GPM-cal, ANUSPLIN, and ERA5 data could more accurately portray the variation of annual precipitation with topography in the Qinling Mountains. An analysis of water vapor fluxes showed that the Mount Taibai has significant blocking, forcing, and intercepting effects on southward moist airflow below the 600 hPa height owing to its high terrains, making its southern slope a regional center of high precipitation values. Combining high mountain precipitation observations, ANUSPLIN, multi-source grid point information, and data correction methods is an effective way to understand precipitation formation and variation in the Qinling Mountains.

Key words: Qinling Mountains, precipitation, ANUSPLIN, GPM, ERA5

LI Dawei, DUAN Keqin, SHI Peihong, LI Shuangshuang, SHANG Wei, ZHANG Zhaopeng. Vertical variation of precipitation in the central Qinling Mountains[J].Acta Geographica Sinica, 2022, 77(7): 1762-1774.

Figures/Tables 8

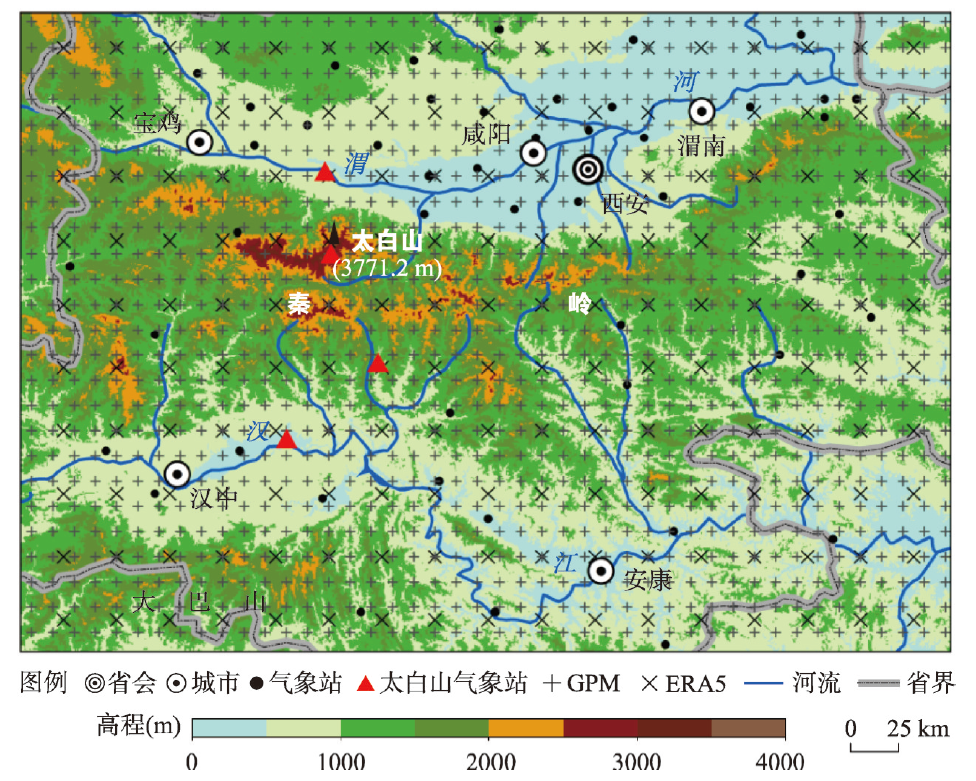

Fig. 1

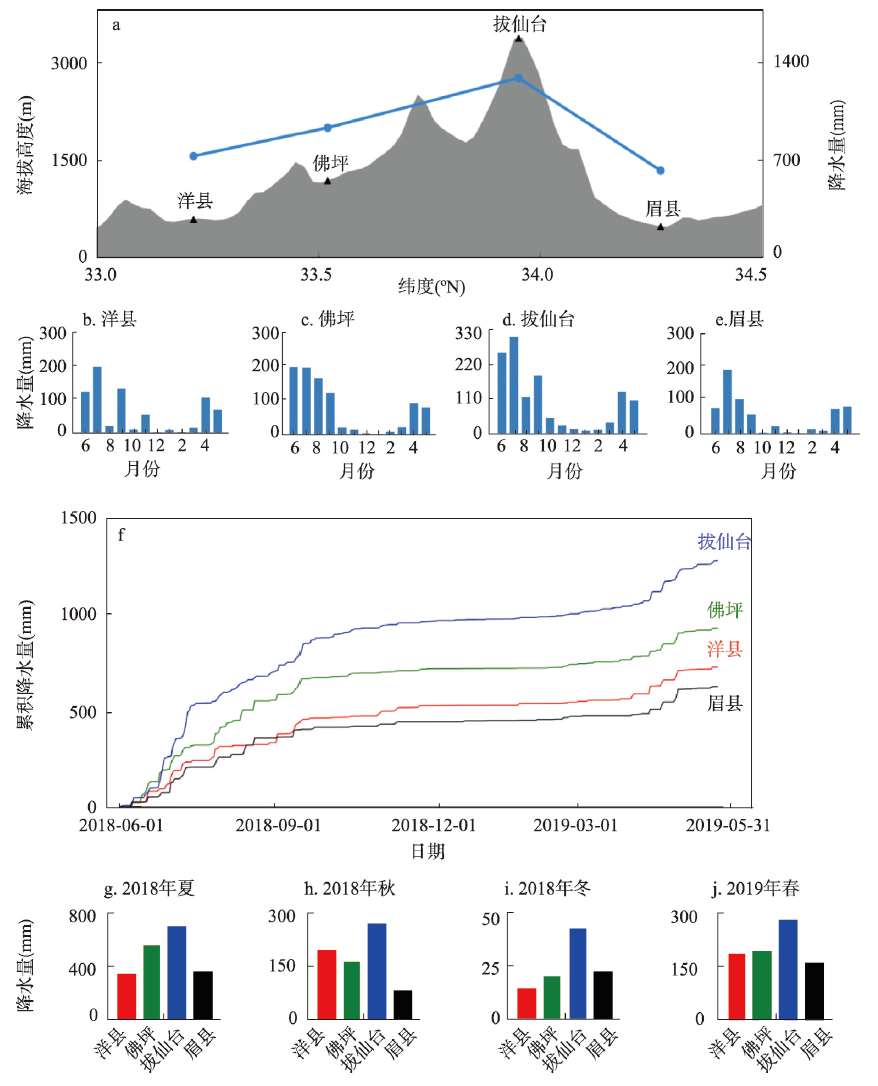

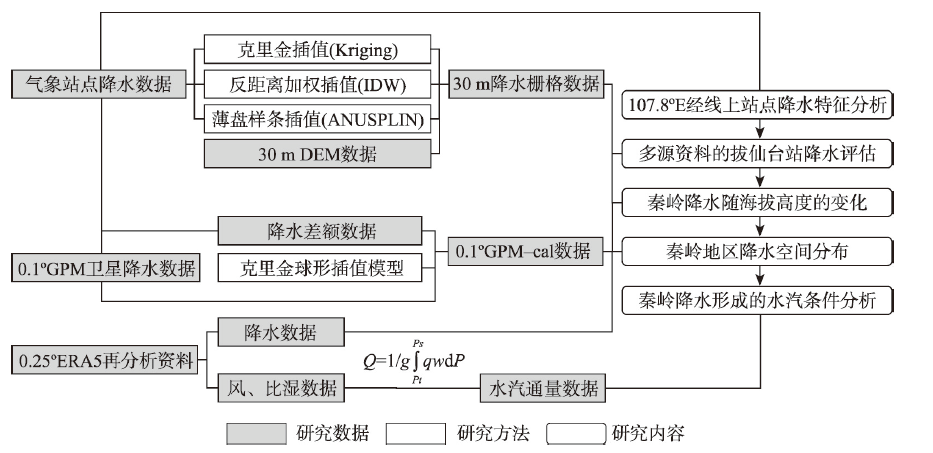

Fig. 2

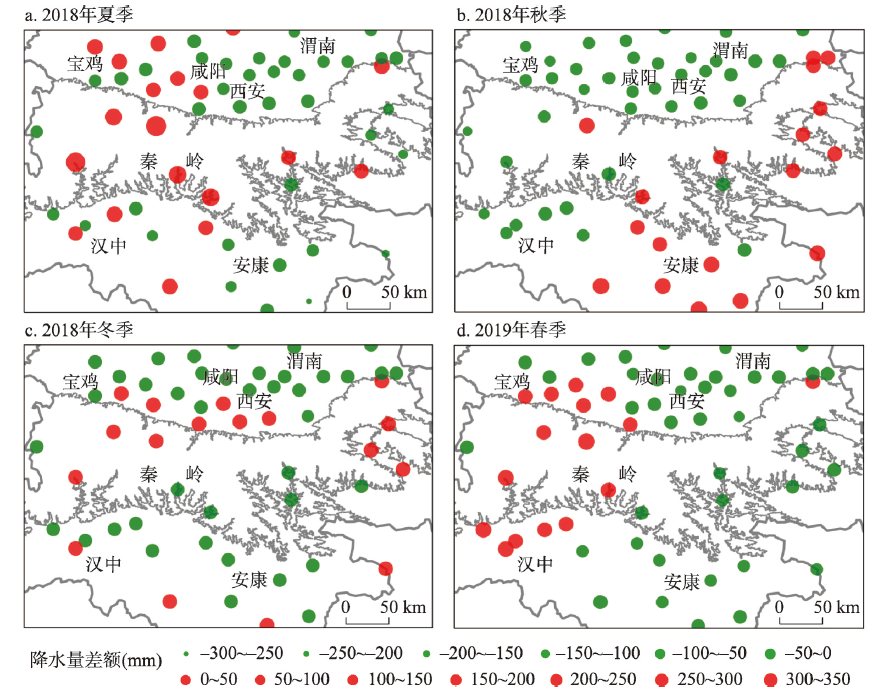

Fig. 3

Fig. 4

Tab. 1

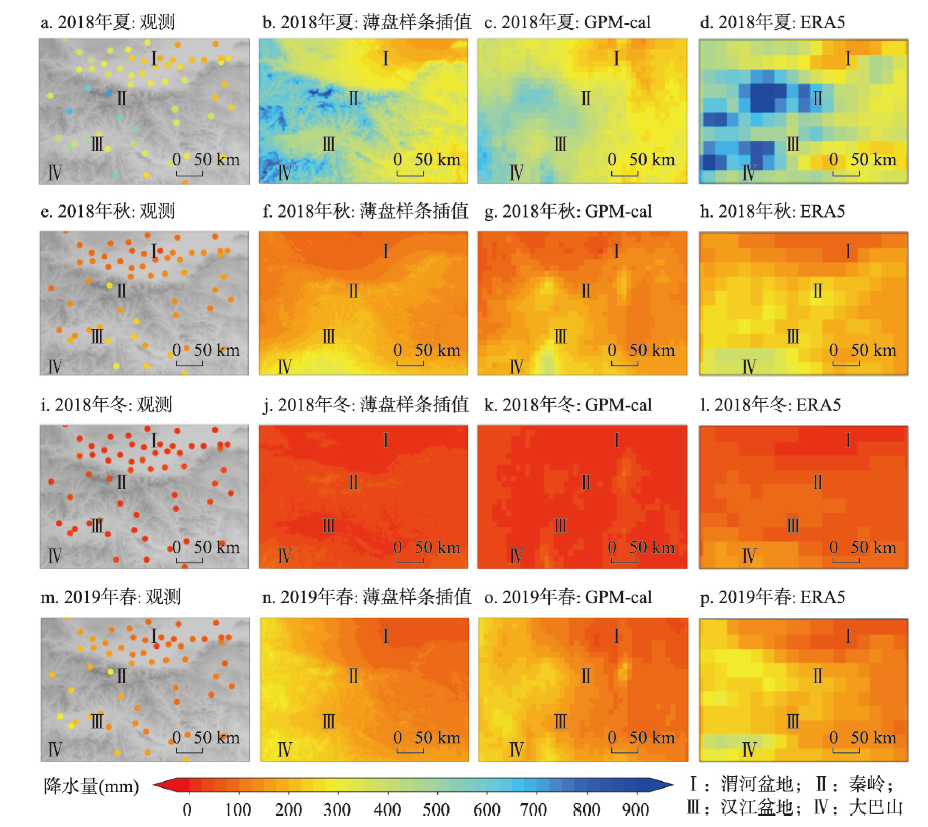

Fig. 5

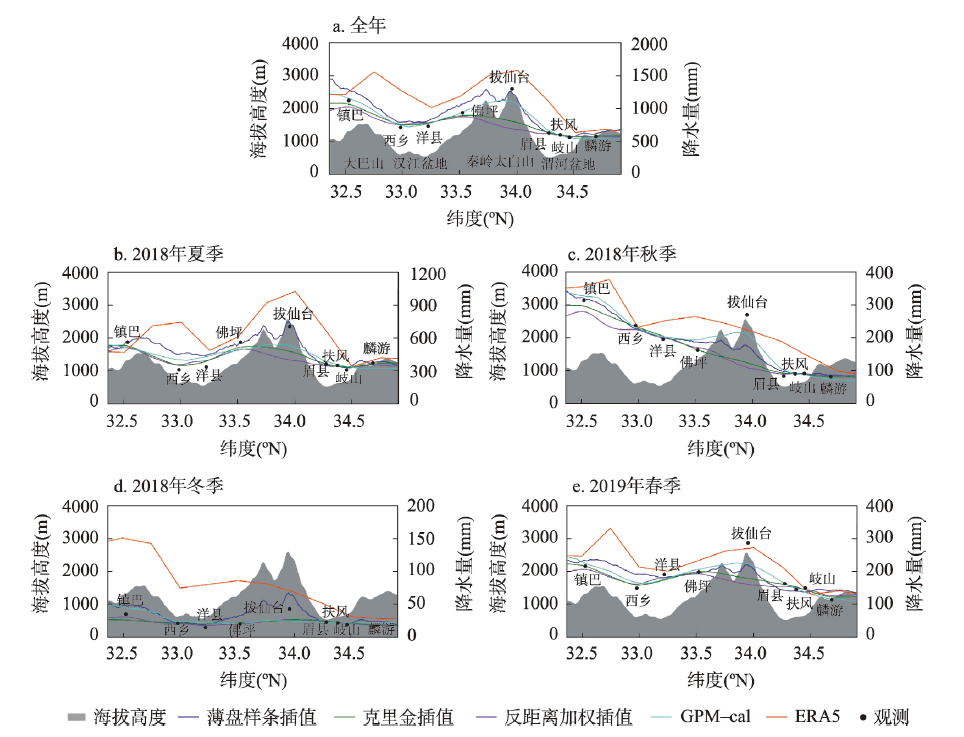

Fig. 6

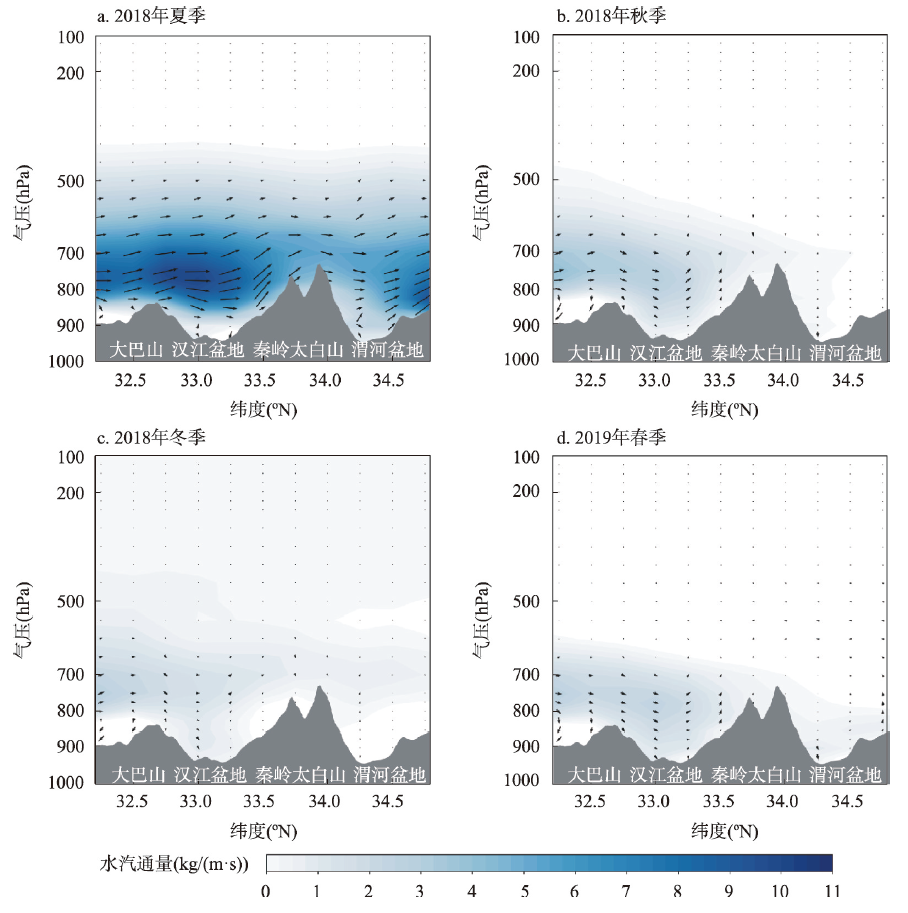

Fig. 7

References 28

[1]	Zhu Kezhen. Subtropics of China. Chinese Science Bulletin, 1958, 9(17): 524-528.
	[ 竺可桢. 中国的亚热带. 科学通报, 1958, 9(17): 524-528.]
[2]	Meng Qingren. Origin of the Qinling Mountains. Scientia Sinica: Terrae, 2017, 47(2): 412-420.
	[ 孟庆任. 秦岭的由来. 中国科学: 地球科学, 2017, 47(2): 412-420.]
[3]	Zhang Baiping. Ten major scientific issues concerning the study of China's north-south transitional zone. Progress in Geography, 2019, 38(3): 305-311. doi: 10.18306/dlkxjz.2019.03.001
	[ 张百平. 中国南北过渡带研究的十大科学问题. 地理科学进展, 2019, 38(3): 305-311.] doi: 10.18306/dlkxjz.2019.03.001
[4]	Pan Liujie, Zhang Hongfang, Chen Xiaoting, et al. Dominant modes of summer precipitation in Qinling and surrounding areas. Transactions of Atmospheric Sciences, 2018, 41(3): 377-387.
	[ 潘留杰, 张宏芳, 陈小婷, 等. 秦岭及周边地区夏季降水的主模态分析. 大气科学学报, 2018, 41(3): 377-387.]
[5]	Fu Baopu, Yu Jingming, Li Zhaoyuan. Characteristics of the summer microclimate in Mt. Taibai of Qinling Mountains. Acta Geographica Sinica, 1982, 37(1): 88-97. doi: 10.11821/xb198201010
	[ 傅抱璞, 虞静明, 李兆元. 秦岭太白山夏季的小气候特点. 地理学报, 1982, 37(1): 88-97.] doi: 10.11821/xb198201010
[6]	He Jun, Yao Xuanping . Some characteristics of precipitation in the Qinling Mountains. Shaanxi Meteorology, 1996(5): 22-23.
	[ 何军, 姚选平. 秦岭山地降水的若干特征. 陕西气象, 1996(5): 22-23.]
[7]	Lu Fuzhi, Lu Huayu. A high-resolution grid dataset of air temperature and precipitation for Qinling-Daba Mountains in central China and its implications for regional climate. Acta Geographica Sinica, 2019, 74(5): 875-888. doi: 10.11821/dlxb201905003
	[ 陆福志, 鹿化煜. 秦岭-大巴山高分辨率气温和降水格点数据集的建立及其对区域气候的指示. 地理学报, 2019, 74(5): 875-888.] doi: 10.11821/dlxb201905003
[8]	Meng Qing, Bai Hongying, Guo Shaozhuang. Spatial-temporal variation of precipitation in Qinling area in recent 50 years based on Anusplin. Research of Soil and Water Conservation, 2020, 27(2): 206-212.
	[ 孟清, 白红英, 郭少壮. 基于Anusplin秦岭地区近50多年来的降水时空变化. 水土保持研究, 2020, 27(2): 206-212.]
[9]	Li Shuangshuang, Wang Chengbo, Yan Junping, et al. Variability of the event-based extreme precipitation in the south and north Qinling Mountains. Acta Geographica Sinica, 2020, 75(5): 989-1007. doi: 10.11821/dlxb202005008
	[ 李双双, 汪成博, 延军平, 等. 面向事件过程的秦岭南北极端降水时空变化特征. 地理学报, 2020, 75(5): 989-1007.] doi: 10.11821/dlxb202005008
[10]	Zhang Y N, Liang C. Analysis of annual and seasonal precipitation variation in the Qinba Mountain area, China. Scientific Reports, 2020, 10: 961. DOI: 10.1038/s41598-020-57743-y. doi: 10.1038/s41598-020-57743-y
[11]	Wang Nan, Zhao Qiang, Jing Yu, et al. Causation analysis of a short-time strong rainfall triggered by cold front at the northern piedmont. Plateau Meteorology, 2018, 37(5): 1277-1288.
	[ 王楠, 赵强, 井宇, 等. 秦岭北麓一次冷锋触发的短时强降水成因分析. 高原气象, 2018, 37(5): 1277-1288.] doi: 10.7522/j.issn.1000-0534.2017.00070
[12]	Bai Xiaoping, Wang Shigong, Zhao Lu, et al. Conceptual models of short-time heavy rainfall in the east of Northwest China. Plateau Meteorology, 2016, 35(5): 1248-1256. doi: 10.7522/j.issn.1000-0534.2015.00102
	[ 白晓平, 王式功, 赵璐, 等. 西北地区东部短时强降水概念模型. 高原气象, 2016, 35(5): 1248-1256.] doi: 10.7522/j.issn.1000-0534.2015.00102
[13]	Yang Q Y, Yu Z B, Wei J H, et al. Performance of the WRF model in simulating intense precipitation events over the Hanjiang River Basin, China: A multi-physics ensemble approach. Atmospheric Research, 2021, 248: 105206. DOI: 10.1016/j.atmosres.2020.105206. doi: 10.1016/j.atmosres.2020.105206
[14]	Zhao T, Bai H Y, Yuan Y, et al. Spatio-temporal differentiation of climate warming (1959-2016) in the middle Qinling Mountains of China. Journal of Geographical Sciences, 2020, 30(4): 657-668.
[15]	Yao Yonghui, Kou Zhixiang, Hu Yufan, et al. Spatial distribution patterns of Pinus tabulaeformis forest and Pinus massoniana forest in Qinling-Daba Mountains and the boundary of subtropical and warm temperate zones. Acta Geographica Sinica, 2020, 75(11): 2298-2306. doi: 10.11821/dlxb202011002
	[ 姚永慧, 寇志翔, 胡宇凡, 等. 秦巴山区马尾松林和油松林的空间分布及亚热带与暖温带界线划分. 地理学报, 2020, 75(11): 2298-2306.] doi: 10.11821/dlxb202011002
[16]	Li X Y, Sungmin O, Wang N, et al. Evaluation of the GPM IMERG V06 products for light rain over mainland of China. Atmospheric Research, 2021, 253: 105519. DOI: 10.1016/j.atmosres.2021.105510. doi: 10.1016/j.atmosres.2021.105510
[17]	Li Z, Tang G Q, Hong Z, et al. Two-decades of GPM IMERG early and final run products intercomparison: Similarity and difference in climatology, rates, and extremes. Journal of Hydrology, 2021, 594: 125975. DOI: 10.1016/j.jhydrol.2021.125975. doi: 10.1016/j.jhydrol.2021.125975
[18]	Pradhan A, Nair A S, Indu J, et al. Impact of sampling of GPM orbital data on streamflow simulations. Journal of Hydrology, 2021, 593: 125798. DOI: 10.1016/j.jhydrol.2020.125798. doi: 10.1016/j.jhydrol.2020.125798
[19]	Huffman G J, Stocker E F, Bolvin D T, et al. GPM IMERG final precipitation L3 1 month 0.1 degree x 0.1 degree V06, Greenbelt, MD, Goddard Earth Sciences Data and Information Services Center (GES DISC), 2019. DOI: 10.5067/GPM/IMERG/3B-MONTH/06. doi: 10.5067/GPM/IMERG/3B-MONTH/06
[20]	Qi Wenwen, Zhang Baiping, Pang Yu, et al. TRMM-data-based spatial and seasonal patterns of precipitation in the Qinghai-Tibet plateau. Scientia Geographica Sinica, 2013, 33(8): 999-1005. doi: 10.13249/j.cnki.sgs.2013.08.999
	[ 齐文文, 张百平, 庞宇, 等. 基于TRMM数据的青藏高原降水的空间和季节分布特征. 地理科学, 2013, 33(8): 999-1005.] doi: 10.13249/j.cnki.sgs.2013.08.999
[21]	Zhang Yi, Chen Junhui, Tang Binyan, et al. Numerical simulation of meteorological elements of a pollution episode in Sichuan Basin based on two reanalysis datasets. Acta Scientiae Circumstantiae, 2020, 40(9): 3093-3102.
	[ 张懿, 陈军辉, 唐斌雁, 等. 基于两种再分析资料的一次四川盆地大气污染过程气象要素数值模拟研究. 环境科学学报, 2020, 40(9): 3093-3102.]
[22]	Hutchinson M. ANUSPLIN Version 4.2 User Guide. Canberra: Australian National University, 2001.
[23]	Hutchinson M F. Interpolating mean rainfall using thin plate smoothing splines. International Journal of Geographical Information Systems, 1995, 9(4): 385-403.
[24]	Zhuo Jing, Zhu Yannian. Spatial interpolation methods of annual average precipitation on Qinling Mountains. Arid Land Geography, 2017, 40(3): 555-563.
	[ 卓静, 朱延年. 秦岭主脊区年降水量空间插值最优方法研究. 干旱区地理, 2017, 40(3): 555-563.]
[25]	Ding Yu, Li Hongbing, Shao Aimei. Effects of different combinations of WRF parameterization schemes on 2 m temperature, precipitation simulation in Qinba Mountain area. Gansu Science and Technology. 2019, 35(9): 39-43, 46.
	[ 丁煜, 李洪兵, Shao Aimei. 基于WRF模式的不同参数化方案组合对秦巴山区2 m温度、降水模拟研究. 甘肃科技, 2019, 35(9): 39-43, 46.]
[26]	Li G P, Yu Z B, Wang W G, et al. Analysis of the spatial distribution of precipitation and topography with GPM data in the Tibetan Plateau. Atmospheric Research, 2021, 247: 105259. DOI: 10.1016/j.atmosres.2020.105259. doi: 10.1016/j.atmosres.2020.105259
[27]	Zhang F L, Li G P, Yue J. The moisture sources and transport processes for a sudden rainstorm associated with double low-level jets in the northeast Sichuan Basin of China. Atmosphere, 2019, 10(3): 160. DOI: 10.3390/atmos10030160. doi: 10.3390/atmos10030160
[28]	Li Guoping. Progress and prospects in research of mountain meteorology in China during the past 25 years. Advances in Meteorological Science and Technology, 2016, 6(3): 115-122.
	[ 李国平. 近25年来中国山地气象研究进展. 气象科技进展, 2016, 6(3): 115-122.]

指标	方案	全年	2018年夏季	2018年秋季	2018年冬季	2019年春季
降水量(mm)	观测	1298.7	700.6	269.8	42.7	285.6
	薄盘样条插值	1468.6	923.6	202.2	89.6	250.8
	克里金插值	814.4	482.0	124.1	26.4	178.7
	反距离加权插值	678.2	387.3	106.6	25.9	158.4
	GPM-cal	1287.8	583.4	265.3	26.1	246.3
	ERA5	1578.9	983.0	247.0	76.0	272.9
相对偏差(%)	薄盘样条插值	13.1	31.8	-25.1	109.8	-12.2
	克里金插值	-37.3	-31.2	-54.0	-38.1	-37.4
	反距离加权插值	-47.8	-44.7	-60.5	-39.3	-44.5
	GPM-cal	-0.8	-16.7	-1.7	-38.9	-13.7
	ERA5	21.6	40.3	-8.5	78.0	-4.4

Vertical variation of precipitation in the central Qinling Mountains
