黄土高原东部夏半年降水稳定同位素特征及水汽来源分析

doi:10.11821/dlxb202207012

Abstract

Abstract:

The composition of hydrogen and oxygen stable isotopes of atmospheric precipitation can indicate the climatic and environmental changes of precipitation process. It is of great significance to analyze and understand the changes of stable isotopes of atmospheric precipitation and examine the hydrological cycle process under current and past climatic conditions. Based on the determination of δ²H and δ¹⁸O in 152 precipitation samples collected from 8 stations in the eastern Loess Plateau in the summer of 2019 (April-October), the spatial and temporal distribution characteristics of δ²H and δ¹⁸O and their relationship with meteorological parameters and sub-cloud evaporation were systematically analyzed. The HYSPLIT model was used to analyze the source and migration path of water vapor. The results show that: (1) δ²H and δ¹⁸O of summer precipitation in the study area have obvious seasonal variation, which gradually enriched from May to July and gradually depleted from August to September; the precipitation δ²H and δ¹⁸O also showed significant spatial differences, with a gradual increase from southeast to northwest. (2) The results of regional atmospheric precipitation line show that the overall precipitation in this area is significantly affected by the sub-cloud evaporation, but the precipitation process in the basin area (Zhaocheng, Yangquan, and Changzhi) is significantly affected by the local circulation. (3) δ¹⁸O in the precipitation of this region did not show significant indigenous temperature effect and precipitation effect. The temperature effect only existed in the Jiexiu station of the Fenhe river basin valley, while the precipitation effect existed at the Jiexiu and Linfen stations. (4) The sub-cloud evaporation has a significant influence on the Yangquan station in the middle of the rocky areas of Taihang Mountains, the Datong station in the north and the Linfen station in the Fenhe river basin valley. The hydrogen and oxygen stable isotopes of the cloud bottom and surface precipitation are significantly different. (5) The results of water vapor source analysis show that the main sources of summer precipitation in the region are near the ground and the Bohai Sea in the southeast direction, and the water vapor content of the western path in the long distance is relatively small. The results of this study are of great significance to improve the understanding of regional water cycle and the rational allocation of water resources.

Key words: precipitation, hydrogen and oxygen isotopes, spatial and temporal distribution, water vapor source, Loess Plateau

ZHOU Sijie, SUN Congjian, CHEN Wei, ZHANG Xin. Precipitation isotope characteristics and water vapor sources in summer in eastern Loess Plateau[J].Acta Geographica Sinica, 2022, 77(7): 1745-1761.

Figures/Tables 13

Fig. 1

Tab. 1

Tab. 2

Fig. 2

Fig. 3

Fig. 4

Tab. 3

Fig. 5

Fig. 6

Tab. 4

Fig. 7

Tab. 5

Fig. 8

References 40

[1]	Zhu G F, Guo H W, Qin D H, et al. Contribution of recycled moisture to precipitation in the monsoon marginal zone: Estimate based on stable isotope data. Journal of Hydrology, 2019, 569: 423-435.
[2]	Galewsky J, Steen-Larsen H C, Field R D, et al. Stable isotopes in atmospheric water vapor and applications to the hydrologic cycle. Reviews of Geophysics, 2016, 54(4): 809-865. doi: 10.1002/2015rg000512 pmid: 32661517
[3]	Guo Zhengsheng, Zheng Guozhang, Zhao Pei, et al. Effect of variation in water source area on stable isotopes in precipitation in the middle reach of the Yellow River Basin. Journal of Natural Resources, 2018, 33(11): 1979-1991.
	[ 郭政昇, 郑国璋, 赵培, 等. 水汽源区变化对黄河中游降水稳定同位素的影响. 自然资源学报, 2018, 33(11): 1979-1991.]
[4]	Zhao Minghua. Spatial distribution of stable isotopes in precipitation and source analysis of water vapor in Loess Plateau[D]. Yangling: Northwest A&F University, 2020.
	[ 赵明华. 黄土高原降水稳定同位素空间分布及水汽来源分析[D]. 杨凌: 西北农林科技大学, 2020.]
[5]	Chen Yaning, Li Zhi, Fang Gonghuan, et al. Impact of climate change on water resources in the Tianshan Mountians, Central Asia. Acta Geographica Sinica, 2017, 72(1): 18-26. doi: 10.11821/dlxb201701002
	[ 陈亚宁, 李稚, 方功焕, 等. 气候变化对中亚天山山区水资源影响研究. 地理学报, 2017, 72(1): 18-26.] doi: 10.11821/dlxb201701002
[6]	Corcoran M C, Thomas E K, Boutt D F. Event-based precipitation isotopes in the Laurentian Great Lakes region reveal spatio-temporal patterns in moisture recycling. Journal of Geophysical Research: Atmospheres, 2019, 124(10): 5463-5478.
[7]	Cluett A A, Thomas E K, Evans S M, et al. Seasonal variations in moisture origin explain spatial contrast in precipitation isotope seasonality on coastal western Greenland. Journal of Geophysical Research: Atmospheres, 2021, 126(11). DOI: 10.1029/2020JD033543. doi: 10.1029/2020JD033543
[8]	Loader N J, Young G H F, McCarroll D, et al. Summer precipitation for the England and Wales region, 1201-2000 CE, from stable oxygen isotopes in oak tree rings. Journal of Quaternary Science, 2020, 35(6): 731-736.
[9]	Lone S A, Jeelani G, Deshpande R D, et al. Stable isotope (δ¹⁸O and δD) dynamics of precipitation in a high altitude Himalayan cold desert and its surroundings in Indus River basin, Ladakh. Atmospheric Research, 2019, 221: 46-57.
[10]	Laonamsai J, Ichiyanagi K, Kamdee K. Geographic effects on stable isotopic composition of precipitation across Thailand. Isotopes in Environmental and Health Studies, 2020, 56(2): 111-121.
[11]	Zeng Di, Wu Jinkui, Li Hongyuan, et al. Hydrogen and oxygen isotopes in precipitation in the arid regions of Northwest China: A review. Arid Zone Research, 2020, 37(4): 857-869.
	[ 曾帝, 吴锦奎, 李洪源, 等. 西北干旱区降水中氢氧同位素研究进展. 干旱区研究, 2020, 37(4): 857-869.]
[12]	Pang Shuoguang, Zhao Shikun, Wen Rong, et al. Spatial and temporal variation of stable isotopes in precipitation in the Haihe River basin. Chinese Science Bulletin, 2015, 60(13): 1218-1226.
	[ 庞朔光, 赵诗坤, 文蓉, 等. 海河流域大气降水中稳定同位素的时空变化. 科学通报, 2015, 60(13): 1218-1226.]
[13]	Zhao P P, Tan L C, Zhang P, et al. Stable isotopic characteristics and influencing factors in precipitation in the monsoon marginal region of northern China. Atmosphere, 2018, 9(3): 97. DOI: 10.3390/atmos9030097. doi: 10.3390/atmos9030097
[14]	Chen F L, Zhang M J, Wu X X, et al. A stable isotope approach for estimating the contribution of recycled moisture to precipitation in Lanzhou City, China. Water, 2021, 13(13): 1783. DOI: 10.3390/w13131783. doi: 10.3390/w13131783
[15]	Sun C J, Shen Y J, Chen Y N, et al. Quantitative evaluation of the rainfall influence on streamflow in an inland mountainous river basin within Central Asia. Hydrological Sciences Journal, 2018, 63(1): 17-30.
[16]	Liu Xiaokang, Rao Zhiguo, Zhang Xiaojian, et al. Variations in the oxygen isotopic composition of precipitation in the Tianshan Mountains region and their significance for the Westerly circulation. Acta Geographica Sinica, 2015, 70(1): 97-109. doi: 10.11821/dlxb201501008
	[ 刘小康, 饶志国, 张肖剑, 等. 天山地区大气降水氧同位素的影响因素及其对西风环流变化的指示意义. 地理学报, 2015, 70(1): 97-109.] doi: 10.11821/dlxb201501008
[17]	Song Xianfang, Tang Yu, Zhang Yinghua, et al. Using stable isotopes to study vapor transport of continuous precipitation in Beijing. Advances in Water Science, 2017, 28(4): 488-495.
	[ 宋献方, 唐瑜, 张应华, 等. 北京连续降水水汽输送差异的同位素示踪. 水科学进展, 2017, 28(4): 488-495.]
[18]	Meng Hongfei, Zhang Mingjun, Wang Shengjie, et al. Precipitation isotope characteristics and water vapor source analysis in the upper reaches of the Heihe River. Journal of Glaciology and Geocryology, 2020, 42(3): 937-951. doi: 10.7522/j.issn.1000-0240.2020.0068
	[ 孟鸿飞, 张明军, 王圣杰, 等. 黑河上游降水同位素特征及其水汽来源分析. 冰川冻土, 2020, 42(3): 937-951.] doi: 10.7522/j.issn.1000-0240.2020.0068
[19]	Du Kang, Zhang Beiying. Stable isotope characteristics and water vapor sources of precipitation in the Pearl River Basin. Journal of China Hydrology, 2020, 40(6): 75-82.
	[ 杜康, 张北赢. 珠江流域降水稳定同位素特征及水汽来源. 水文, 2020, 40(6): 75-82.]
[20]	Zhou Hui. The multi-temporal scale changes and influencing factors of stable isotopes in atmospheric precipitation in China[D]. Changsha: Hunan Normal University, 2019.
	[ 周慧. 我国大气降水中稳定同位素的多时空尺度变化及影响因素分析[D]. 长沙: 湖南师范大学, 2019.]
[21]	Sun Congjian, Zheng Zhenjing, Li Xinong, et al. Spatio-temporal distribution of the potential evapotranspiration and its controlling factors in the tableland protected region of the Loess Plateau. Journal of Natural Resources, 2020, 35(4): 857-868.
	[ 孙从建, 郑振婧, 李新功, 等. 黄土塬面保护区潜在蒸发量时空变化及其与气象、环流因子关系分析. 自然资源学报, 2020, 35(4): 857-868.]
[22]	Liang Xiao, Yang Pingguo, Yao Jiao, et al. Environmental magnetic record of East Asian summer monsoon variability on the Chinese Loess Plateau since 16 ka BP. Acta Geographica Sinica, 2021, 76(3): 539-549.
	[ 梁潇, 杨萍果, 姚娇, 等. 16 ka以来黄土高原东亚夏季风变化的环境磁学记录. 地理学报, 2021, 76(3): 539-549.] doi: 10.11821/dlxb202103004
[23]	Stewart M K. Stable isotope fractionation due to evaporation and isotopic exchange of falling waterdrops: Applications to atmospheric processes and evaporation of lakes. Journal of Geophysical Research: Atmospheres, 1975, 80(9): 1133-1146.
[24]	Wang S J, Zhang M J, Che Y, et al. Influence of below-cloud evaporation on deuterium excess in precipitation of arid central Asia and its meteorological controls. Journal of Hydrometeorology, 2016, 17(7): 1973-1984.
[25]	Wang S J, Jiao R, Zhang M J, et al. Changes in below-cloud evaporation affect precipitation isotopes during five decades of warming across China. Journal of Geophysical Research: Atmospheres, 2021, 126(7). DOI: 10.1029/2020JD033075. doi: 10.1029/2020JD033075
[26]	Xiao H Y, Zhang M J, Zhang Y, et al. Sub-cloud secondary evaporation in precipitation stable isotopes based on the Stewart Model in Yangtze River Basin. Atmosphere, 2021, 12(5): 575. DOI: 10.3390/atmos12050575. doi: 10.3390/atmos12050575
[27]	Kong Yanlong. Quantifying recycled moisture fraction in precipitation of an arid region using deuterium excess[D]. Beijing: University of Chinese Academy of Sciences, 2013.
	[ 孔彦龙. 基于氚盈余的内陆干旱区水汽再循环研究[D]. 北京: 中国科学院大学, 2013.]
[28]	Salamalikis V, Argiriou A A, Dotsika E. Isotopic modeling of the sub-cloud evaporation effect in precipitation. Science of the Total Environment, 2016, 544: 1059-1072.
[29]	Wang S J, Du M X, Zhang M J, et al. Precipitation isotopes associated with the duration and distance of moisture trajectory in a westerly-dominant setting. Water, 2019, 11(12): 2434. DOI: 10.3390/w11122434. doi: 10.3390/w11122434
[30]	Che Cunwei, Zhang Mingjun, Wang Shengjie, et al. Influence of sub-cloud secondary evaporation on stable isotope composition in precipitation in the Yellow River Basin. Arid Land Geography, 2019, 42(4): 790-798.
	[ 车存伟, 张明军, 王圣杰, 等. 黄河流域降水稳定同位素的云下二次蒸发效应. 干旱区地理, 2019, 42(4): 790-798.]
[31]	Huang Yimin, Sun Jia, Huang Yibin, et al. Spatial-temporal distribution of δD in atmospheric water vapor by using TES retrievals over middle to low latitudes in Asia. Acta Geographica Sinica, 2014, 69(11): 1661-1672.
	[ 黄一民, 孙葭, 黄一斌, 等. 基于TES反演数据的亚洲中低纬度地区大气水汽δD的时空分布. 地理学报, 2014, 69(11): 1661-1672.] doi: 10.11821/dlxb201411007
[32]	Yang Z F, Huang W Y, Qiu T P, et al. Interannual variation and regime shift of the evaporative moisture sources for winter time precipitation over southern China. Journal of Geophysical Research: Atmospheres, 2018, 123(23): 13168-13185.
[33]	Zheng Shuhui, Hou Fagao, Ni Baoling. Hydrogen and oxygen stable isotopes of atmospheric precipitation in China. Chinese Science Bulletin, 1983, 28(13): 801-806.
	[ 郑淑蕙, 侯发高, 倪葆龄. 我国大气降水的氢氧稳定同位素研究. 科学通报, 1983, 28(13): 801-806.]
[34]	Liu Jianrong, Song Xianfang, Yuan Guofu, et al. Characteristics of δ¹⁸O in precipitation over Northwest China and its water vapor sources. Acta Geographica Sinica, 2008, 63(1): 12-22.
	[ 柳鉴容, 宋献方, 袁国富, 等. 西北地区大气降水 δ¹⁸O的特征及水汽来源. 地理学报, 2008, 63(1): 12-22.]
[35]	Xu Xiuting, Jia Wenxiong, Zhu Guofeng, et al. Stable isotope characteristics and vapor source of precipitation in the south and north slopes of Wushaoling Mountain. Environmental Science, 2020, 41(1): 155-165.
	[ 徐秀婷, 贾文雄, 朱国锋, 等. 乌鞘岭南、北坡降水稳定同位素特征及水汽来源对比. 环境科学, 2020, 41(1): 155-165.]
[36]	Dansgaard W. Stable isotopes in precipitation. Tellus, 1964, 16(4): 436-468.
[37]	Jin Xiaogang, Zhang Mingjun, Wang Shengjie, et al. Effect of below-cloud secondary evaporation in precipitations over the Loess Plateau based on the stable isotopes of hydrogen and oxygen. Environmental Science, 2015, 36(4): 1241-1248.
	[ 靳晓刚, 张明军, 王圣杰, 等. 基于氢氧稳定同位素的黄土高原云下二次蒸发效应. 环境科学, 2015, 36(4): 1241-1248.]
[38]	Song Yang, Wang Shengjie, Zhang Mingjun, et al. Precipitation stable isotope characteristics and water vapor sources in eastern Tarim River Basin. Environmental Science, 2022, 43(1): 199-209.
	[ 宋洋, 王圣杰, 张明军, 等. 塔里木河流域东部降水稳定同位素特征与水汽来源. 环境科学, 2022, 43(1): 199-209.]
[39]	Xie Linhuan, Jiang Tao, Cao Yingjie, et al. Characteristics of hydrogen and oxygen isotopes in precipitation and runoff and flood hydrograph separation in an urbanized catchment. Acta Geographica Sinica, 2019, 74(9): 1733-1744. doi: 10.11821/dlxb201909003
	[ 谢林环, 江涛, 曹英杰, 等. 城镇化流域降水径流氢氧同位素特征及洪水径流分割. 地理学报, 2019, 74(9): 1733-1744.] doi: 10.11821/dlxb201909003
[40]	Xiao Hanyu, Zhang Mingjun, Wang Shengjie, et al. Sub-cloud secondary evaporation effect of precipitation isotope in Shaanxi-Gansu-Ningxia region, China. Chinese Journal of Applied Ecology, 2020, 31(11): 3814-3822. doi: 10.13287/j.1001-9332.202011.013
	[ 肖涵余, 张明军, 王圣杰, 等. 陕甘宁地区降水同位素云下二次蒸发效应. 应用生态学报, 2020, 31(11): 3814-3822.] doi: 10.13287/j.1001-9332.202011.013

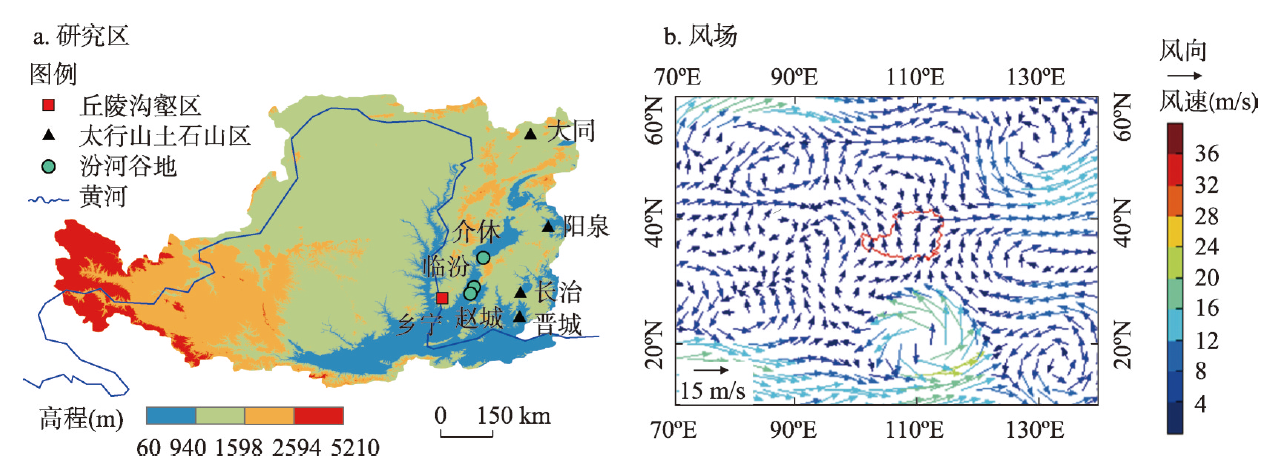

站点	纬度(°N)	经度(°E)	高程(m)	样本数(个)	气温(℃)	日降水量(mm)	相对湿度(%)
介休	37.02	111.91	740	46	17.02	20.12	82
赵城	36.25	111.67	430	15	18.8	15.97	90
临汾	36.07	111.57	451	13	22.5	20.12	82
大同	40.25	113.14	1044	39	22.12	8.05	72
阳泉	37.84	113.60	672	11	21.55	20.41	77
晋城	35.50	112.85	650	11	20.49	11.79	71
长治	36.12	112.87	1000	11	18.02	20.40	77
乡宁	35.97	110.84	900	6	21.87	11.05	89

区域	站点	δ²H			δ¹⁸O			d-excess
区域	站点	最大值	最小值	平均值	最大值	最小值	平均值	最大值	最小值	平均值
研究区		-2.99	-122.60	-58.50	-0.46	-16.36	-11.78	17.26	-12.57	8.83
汾河谷地	介休	-7.80	-104.96	-58.11	-0.46	-14.76	-7.90	15.57	-12.57	5.08
	赵城	-58.72	-121.76	-105.06	-8.95	-16.36	-14.35	14.35	6.78	9.77
	临汾	-65.56	-116.82	-86.62	-9.61	-15.77	-11.90	17.26	-1.37	8.57
太行山土石地区	大同	-24.65	-122.60	-96.40	-3.44	-16.36	-12.90	12.30	-2.69	6.80
	阳泉	-36.67	-121.60	-74.44	-6.04	-16.09	-10.65	12.98	6.67	10.73
	晋城	-92.92	-120.69	-107.60	-12.96	-16.18	-14.48	10.79	2.17	8.26
	长治	-2.99	-121.67	-71.67	-2.21	-16.14	-10.11	16.85	2.62	9.22
丘陵沟壑区	乡宁	-53.77	-96.70	-83.28	-7.40	-14.06	-11.93	15.78	5.38	12.19

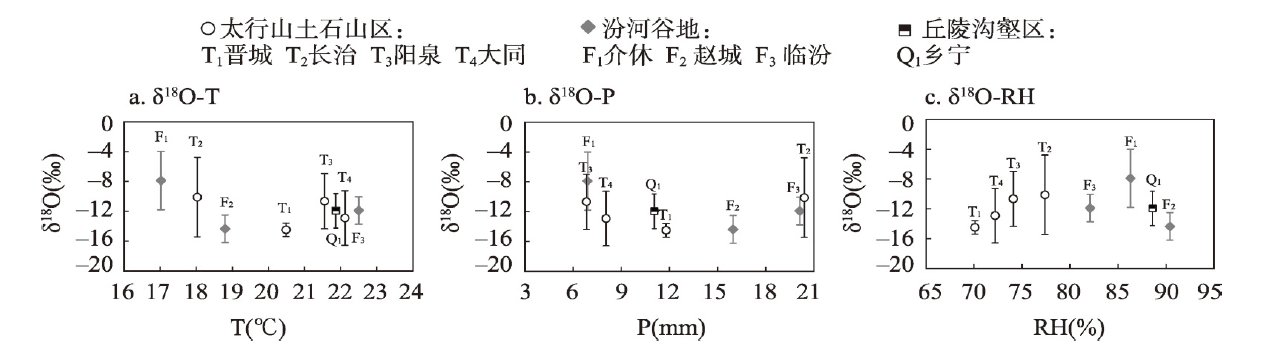

区域	站点	δ¹⁸O-T		δ¹⁸O-P		δ¹⁸O-RH
区域	站点	斜率	R²	斜率	R²	斜率	R²
汾河谷地	介休	0.38	0.31^*	-0.12	0.13^*	-3.08	0.002
	赵城	-0.02	0.004	-0.05	0.12	-9.06	0.25
	临汾	-0.16	0.24	-0.07	0.36^*	-5.62	0.18
太行山土石山区	大同	0.35	0.07	-0.13	0.08	-15.10	0.11^*
	阳泉	0.39	0.13	0.33	0.04	-4.73	0.02
	晋城	-0.09	0.20	-0.03	0.15	-6.40	0.55^*
	长治	-0.28	0.08	-0.09	0.28	8.56	0.03
丘陵沟壑区	乡宁	0.07	0.004	0.06	0.02	37.56	0.37

站点	要素(‰)		4月	5月	6月	7月	8月	9月	4—9月平均
介休站	δ¹⁸O	地表	-12.73	-9.93	-9.77	-5.38	-4.78	-8.14	-8.46
		云下	-14.47	-14.51	-12.54	-7.71	-6.75	-9.20	-10.86
	d-excess	地表	11.51	-2.57	3.57	1.10	8.40	5.14	4.53
		云下	23.87	22.08	22.14	18.12	22.91	12.49	20.27
赵城站	δ¹⁸O	地表	-14.10	-	-12.84	-15.70	-14.72	-13.46	-14.16
		云下	-16.55	-	-13.19	-16.07	-15.11	-14.16	-15.02
	d-excess	地表	11.59	-	11.62	8.30	9.57	9.06	10.03
		云下	28.15	-	14.22	10.83	10.72	14.38	15.66
临汾站	δ¹⁸O	地表	-10.70	-11.15	-11.47	-13.36	-12.66	-15.77	-12.52
		云下	-14.72	-12.07	-12.34	-14.95	-13.89	-15.98	-13.99
	d-excess	地表	8.90	8.76	9.06	4.80	8.55	9.33	8.23
		云下	37.86	15.55	15.45	16.49	17.72	10.90	19.00
大同站	δ¹⁸O	地表	-	-	-12.94	-11.27	-14.90	-15.09	-13.55
		云下	-	-	-16.19	-16.82	-18.85	-18.63	-17.62
	d-excess	地表	-	-	8.12	5.89	6.92	8.05	7.25
		云下	-	-	31.52	44.83	32.43	31.67	35.11
阳泉站	δ¹⁸O	地表	-	-10.42	-8.57	-11.24	-12.48	-	-10.68
		云下	-	-14.54	-11.92	-13.68	-15.48	-	-13.91
	d-excess	地表	-	11.80	12.07	9.72	9.63	-	10.81
		云下	-	42.62	37.03	27.37	32.23	-	34.81
晋城站	δ¹⁸O	地表	-13.51	-14.13	-14.82	-15.24	-14.89	-	-14.52
		云下	-17.47	-20.91	-17.97	-17.64	-16.98	-	-18.19
	d-excess	地表	10.58	5.00	7.39	8.82	9.30	-	8.22
		云下	39.04	46.47	28.29	26.02	24.33	-	32.83
长治站	δ¹⁸O	地表	-5.80	-	-3.79	-13.92	-14.22	-15.13	-10.57
		云下	-7.93	-	-6.18	-17.86	-14.72	-16.15	-12.57
	d-excess	地表	11.29	-	8.65	8.15	9.23	7.46	8.96
		云下	27.65	-	27.28	36.68	12.93	7.51	22.41
乡宁站	δ¹⁸O	地表	-	-	-	-	-11.93	-	-11.93
		云下	-	-	-	-	-13.21	-	-13.21
	d-excess	地表	-	-	-	-	12.19	-	12.19
		云下	-	-	-	-	21.40	-	21.40

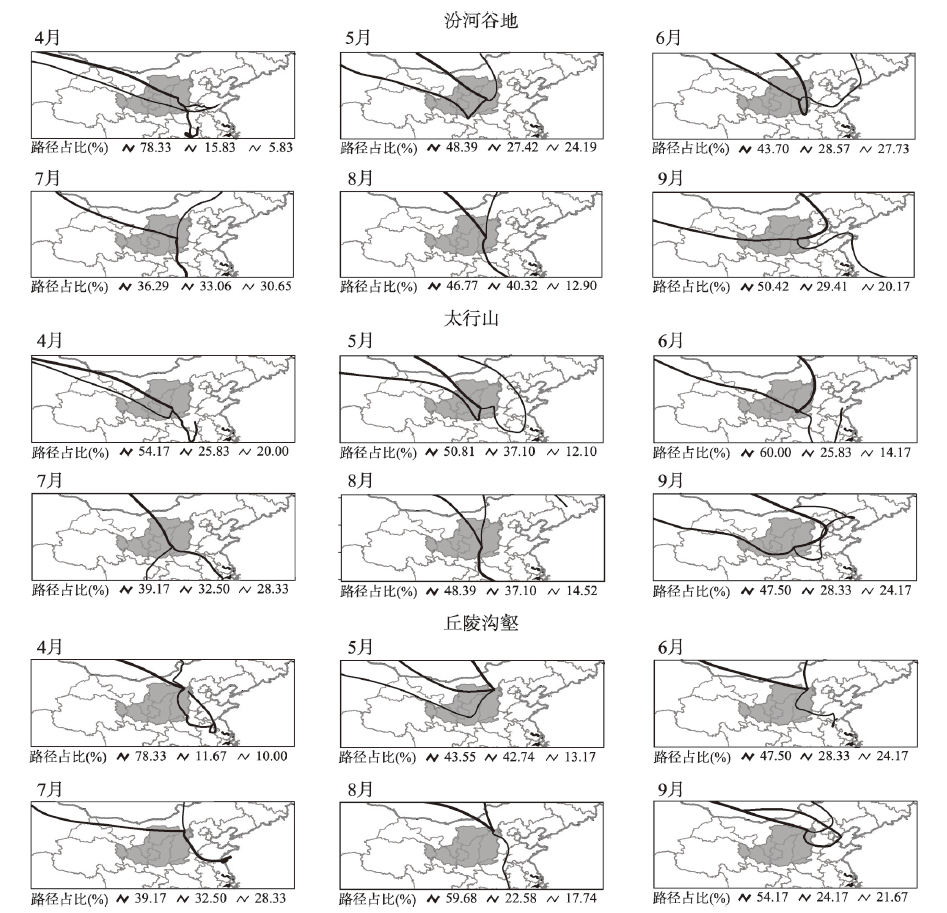

区域	海拔(m)	纬度/经度	夏半年大气降水水汽输送路径及其占比(%)
区域	海拔(m)	纬度/经度	4月	5月	6月	7月	8月	9月
汾河谷地	740	37.02°N/111.91°E	78.33西北 15.83东南 5.83正西	48.39西北 27.42正西24.19正北	43.70西北 28.57正西 27.73东北	36.29东南 33.06西北 30.65东北	46.77西北 40.32东南 12.90正北	50.42西北 29.41正西 20.17东南
太行山	1044	40.25°N/113.14°E	78.33西北 11.67正北 10.00东南	43.55正北 42.74西北 13.71正西	47.50西北 28.33正北 24.17东南	39.17东南 32.50正西 28.33西北	59.68西北 22.58正北 17.74东南	54.17西北 24.17正西 21.67正北
丘陵沟壑	900	35.97°N/110.84°E	80.00西北 20.00东南	62.90西北 37.10正西	60.00西北 25.83正西 14.17东南	45.97西北 37.10东南 16.94西南	48.39东南 37.10西北 14.52正北	47.50正西 28.33西北 24.17东北
