黑土保护与粮食安全背景下齐齐哈尔市国土空间优化调控路径

doi:10.11821/dlxb202207007

Abstract

Abstract:

In China, the national spatial planning system is built largely upon prefectural plans, a critical part of which in many prefecture-level cities would be agricultural planning. When we develop such plans for the black soil regions in Northeast China, much effort is needed to guarantee both the black soil conservation and food security, given the rarity and importance of the black soil to agricultural use. In this research, we took Qiqihar as a case to establish an evaluation index system of land space function in the black soil areas that integrated grid-scale and administrative regional-scale. We analyzed the spatio-temporal evolution features of the production-living-ecological space (PLES) in the study area and evaluated their coupling coordination. Based on this analysis, we put forward an optimal strategy for spatial planning regulation to meet the requirement of the diversified regional development and social demands in Qiqihar in the context of prioritizing black soil preservation and food security. The main conclusions can be drawn as follows: regarding the production-life-ecology function, the mildly imbalanced and barely coordinated areas increased from 2010 to 2018, when the production and living space grew to a certain extent. The low coordination of PLES, the regionally varied conflict between different functional spaces, and the potential risks of unsustainable development of black soil resources jointly constituted the conflict arising from its spatial planning. Eventually, we constructed a configuration model for optimizing spatial planning under the constraint of conflict between PLES on multiple scales. It is our suggestion that the enhancement of functional spatial planning at the prefecture level should drive the priority on which the national food security is based, by which the black soil preservation is oriented, and on which the allocation of "human-water-land" resources depends. To achieve such enhancement with the advantages of our prosperous industry, we should wisely channel the advantages of particular regions toward better development, promote the accelerated development of the critical cities and towns, improve the utilization efficiency of black soil resources, and encourage effective land use of towns in harmony with that of counties.

Key words: production-living-ecological function, suitability evaluation, sustainable evaluation, multi-scale integration, scenario simulation

FU Jingying, GAO Qiang, JIANG Dong, LIN Gang. Optimal regulation of spatial planning in the context of black soil preservation and food security in Qiqihar[J].Acta Geographica Sinica, 2022, 77(7): 1662-1680.

Figures/Tables 11

Fig. 1

Fig. 2

Tab. 1

Tab. 2

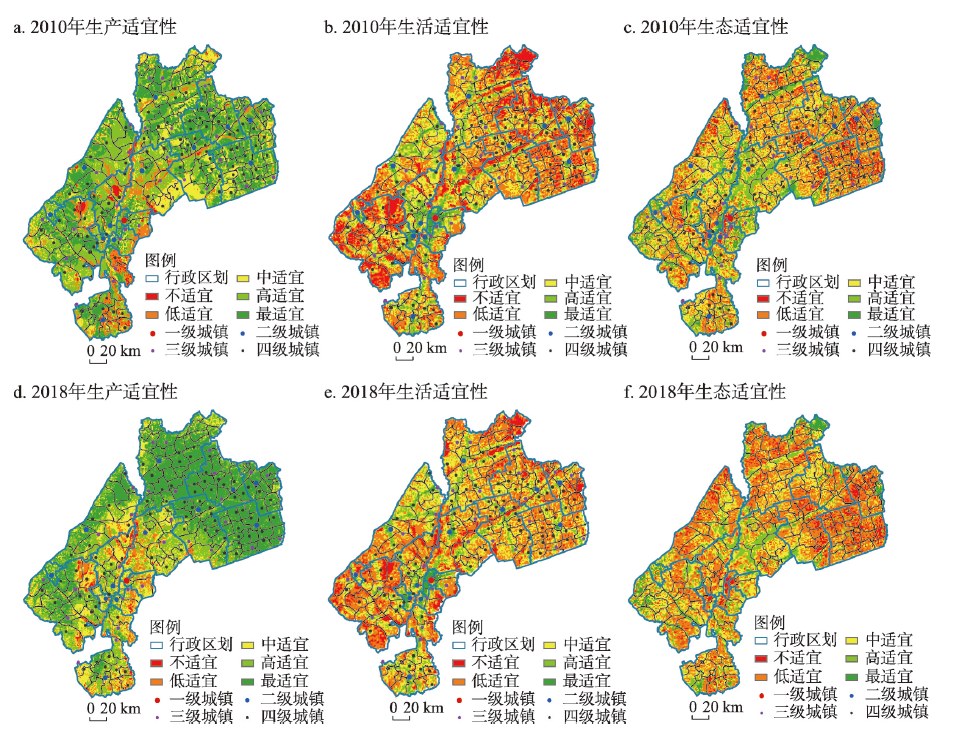

Index system of production-living-ecological space suitability evaluation

空间类型	指标		指标分级和打分
空间类型	指标	权重	100	80	60	40
生产空间	土地利用类型	0.1664	耕地	建设用地草地、沟渠	林地	其他
	高程(m)	0.0526	< 180	[180, 240)	[240, 300)	≥ 300
	坡度(°)	0.0665	< 3	[3, 8)	[8, 15)	≥ 15
	年平均气温(℃)	0.0326	≥ 4	[3, 4)	[2, 3)	< 2
	年降雨量(mm)	0.0326	≥ 550	[500, 550)	[450, 500)	< 450
	土地全钾(g/kg)	0.0998	> 15	[10, 15)	[3, 10)	< 3
	土地全磷(g/kg)	0.0998	> 0.2	[0.1, 0.2)	[0.05, 0.1)	< 0.05
	有机质(g/kg)	0.0998	> 100	[60, 100)	[30, 60)	< 30
	PH值	0.1331	[6.5, 7.5)	[6.0, 6.5)	[7.5, 8.0)	≥ 8.0
	距沟渠距离(m)	0.0665	< 50	[50, 100)	[100, 150)	≥ 150
	土壤水力侵蚀	0.0665	≤ 1	[1, 2)	[2, 3)	≥ 3
	路网密度	0.0832	≥ 0.148	[0.083, 0.148)	[0.035, 0.083)	< 0.035
生活空间	土地利用类型	0.2083	城镇、农村	耕地、草地沟渠	林地	其他
	夜间灯光亮度	0.1042	≥ 35	[15, 35)	[0, 15)	< 0
	距主要道路距离(m)	0.1667	< 500	[500, 1500)	[1500, 3000)	≥ 3000
	距居民点距离(m)	0.125	< 300	[300, 600)	[600, 900)	≥ 900
	距地质灾害距离(m)	0.125	≥ 9000	[6000, 9000)	[2500, 6000)	≥ 2500
	高程(m)	0.0417	< 180	[180, 240)	[240, 300)	≥ 300
	坡度(°)	0.0417	< 8	[8, 15)	[15, 25)	≥ 25
	人口密度 (人/km²)	0.0833	≥ 2500	[1000, 2500)	[300, 1000)	< 300
	经济密度 (万元/km²)	0.1041	≥ 2000	[1000, 2000)	[500, 1000)	< 500
生态空间	土地利用类型	0.2382	林地、草地	河流、湖泊、水库坑塘、湿地	水田、旱地、未利用地	其他
	高程(m)	0.0714	≥ 300	[240, 300)	[180, 240)	< 180
	坡度(°)	0.0714	≥ 25	[15, 25)	[8, 15)	[0, 8)
	NDVI	0.1428	> 0.5	[0.25, 0.5)	[0.15, 0.25)	< 0.15
	土壤水力侵蚀	0.1428	≤ 1	[1, 2)	[2, 3)	≥ 3
	距水体的距离(m)	0.0953	> 6000	[4000, 6000)	[2000, 4000)	< 2000
	距工矿用地距离(m)	0.1428	≥ 3000	[1500, 3000)	[500, 1500)	< 500
	景观破碎度	0.0953	规则性好	规则性较好	规则性一般	规则性差

Tab. 2

Tab. 3

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 37

[1]	Zhao Yuming, Cheng Liping, Liang Yahong, et al. Developing history and defining boundary of the black soil regions in Northeast China. Chinese Journal of Soil Science, 2019, 50(4): 765-775.
	[ 赵玉明, 程立平, 梁亚红, 等. 东北黑土区演化历程及范围界定研究. 土壤通报, 2019, 50(4): 765-775.]
[2]	Han Xiaozeng, Li Na. Research progress of black soil in Northeast China. Scientia Geographica Sinica, 2018, 38(7): 1032-1041. doi: 10.13249/j.cnki.sgs.2018.07.004
	[ 韩晓增, 李娜. 中国东北黑土地研究进展与展望. 地理科学, 2018, 38(7): 1032-1041.] doi: 10.13249/j.cnki.sgs.2018.07.004
[3]	Liang Aizhen, Li Lujun, Zhu Hui. Protection and utilization of black land and making concerted and unremitting efforts for safeguarding food security promoted by sci-tech innovation: Countermeasures in conservation and rational utilization of black land. Bulletin of Chinese Academy of Sciences, 2021, 36(5): 557-564.
	[ 梁爱珍, 李禄军, 祝惠. 科技创新推进黑土地保护与利用, 齐力维护国家粮食安全: 用好养好黑土地的对策建议. 中国科学院院刊, 2021, 36(5): 557-564.]
[4]	Cui M, Cai Q G, Zhu A X, et al. Soil erosion along a long slope in the gentle hilly areas of black soil region in Northeast China. Journal of Geographical Sciences, 2007, 17(3): 375-383.
[5]	Jiang Haitao, Liu Wenhuan, Fang Yufeng, et al. Research on soil types and utilization status in Tsitsihar. Protection Forest Science and Technology, 2014(5): 95-96.
	[ 姜海涛, 刘文环, 方玉凤, 等. 齐齐哈尔市土壤类型及利用状况的研究. 防护林科技, 2014(5): 95-96.]
[6]	Zhao R, Li J Y, Wu K N, et al. Cultivated land use zoning based on soil function evaluation from the perspective of black soil protection. Land, 2021, 605. DOI: 10.3390/land10060605. doi: 10.3390/land10060605
[7]	Zhang Libin. Measures to strengthen the protection of black soil resources from the perspective of land resources management. Agriculture of Jilin, 2018(23): 61.
	[ 张立彬. 从国土资源管理角度加强对黑土资源保护的措施. 吉林农业, 2018(23): 61.]
[8]	Huang Jinchuan, Lin Haoxi, Qi Xiaoxiao. A literature review on optimization of spatial development pattern based on ecological-production-living space. Progress in Geography, 2017, 36(3): 378-391. doi: 10.18306/dlkxjz.2017.03.014
	[ 黄金川, 林浩曦, 漆潇潇. 面向国土空间优化的三生空间研究进展. 地理科学进展, 2017, 36(3): 378-391.] doi: 10.18306/dlkxjz.2017.03.014
[9]	Huang An, Xu Yueqing, Lu Longhui, et al. Research progress of the identification and optimization of production-living-ecological spaces. Progress in Geography, 2020, 39(3): 503-518.
	[ 黄安, 许月卿, 卢龙辉, 等. “生产-生活-生态”空间识别与优化研究进展. 地理科学进展, 2020, 39(3): 503-518.] doi: 10.18306/dlkxjz.2020.03.014
[10]	Jiang Dong, Lin Gang, Fu Jingying. Discussion on scientific foundation and approach for the overall optimization of "production-living-ecological" space. Journal of Natural Resources, 2021, 36(5): 1085-1101.
	[ 江东, 林刚, 付晶莹. “三生空间”统筹的科学基础与优化途径探析. 自然资源学报, 2021, 36(5): 1085-1101.]
[11]	Zhou Peng. Research on the optimization of land space pattern and functional improvement path in the Taihang Mountains[D]. Chengdu: University of Chinese Academy of Sciences, 2020.
	[ 周鹏. 太行山区国土空间格局优化与功能提升路径研究[D]. 成都: 中国科学院大学, 2020.]
[12]	Wu Zhanyun, Shan Jingjing. Research on the evolution of urban "production-living-ecological space" pattern and optimization strategies. City, 2019(10): 15-26.
	[ 武占云, 单菁菁. 城市“三生空间”格局演化与优化对策研究. 城市, 2019(10): 15-26.]
[13]	Lin Jia, Song Ge, Zhang Ying. Research on the co-evolution mechanism of the "production-living-ecological" function of the land space system: Taking Fuxin as an example. China Land Science, 2019, 33(4): 9-17.
	[ 林佳, 宋戈, 张莹. 国土空间系统“三生”功能协同演化机制研究: 以阜新市为例. 中国土地科学, 2019, 33(4): 9-17.]
[14]	Han Bo, Jin Xiaobin, Sun Rui, et al. Evaluation of sustainability of land use based on conflict-fitting perspective. Acta Geographica Sinica, 2021, 76(7): 1763-1777.
	[ 韩博, 金晓斌, 孙瑞, 等. 基于冲突-适配视角的土地利用可持续性评价. 地理学报, 2021, 76(7): 1763-1777.] doi: 10.11821/dlxb202107014
[15]	Zhang Lei, Chen Xiaoqin, Dong Xiaocui, et al. Spatial layout optimization of industrial land from the perspective of production-living-ecological mutual exclusion: Taking Tianjin as an example. Geography and Geo-Information Science, 2019, 35(3): 112-119.
	[ 张磊, 陈晓琴, 董晓翠, 等. 三生互斥视角下工业用地空间布局优化: 以天津市为例. 地理与地理信息科学, 2019, 35(3): 112-119.]
[16]	He Xiangyu. Study on the delimitation and optimal control of production-life-ecology space in the city area: A case study of Hebi City[D]. Beijing: China University of Geosciences (Beijing), 2020.
	[ 何翔宇. 市域“三生”空间划定与优化调控研究[D]. 北京: 中国地质大学(北京), 2020.]
[17]	Xu Lei. Research on the optimization of the land space pattern of the urban agglomeration in the middle reaches of the Yangtze River based on the function of "production-living-ecological space"[D]. Wuhan: Huazhong Agricultural University, 2017.
	[ 徐磊. 基于“三生”功能的长江中游城市群国土空间格局优化研究[D]. 武汉: 华中农业大学, 2017.]
[18]	Lin G, Jiang D, Fu J Y, et al. Spatial conflict of production-living-ecological space and sustainable-development scenario simulation in Yangtze River Delta agglomerations. Sustainability, 2020, 12(6): 2175. DOI: 10.3390/su12062175. doi: 10.3390/su12062175
[19]	Sun Yingying. Research on the optimization of rural space pattern in Qing'an County based on the coordination of production-living-ecology[D]. Shengyang: Northeast Agricultural University, 2019.
	[ 孙莹莹. 基于“三生”协调的庆安县乡村空间格局优化研究[D]. 沈阳: 东北农业大学, 2019.]
[20]	Chen Zenghao. Research on space optimization of fishing villages on the islands of eastern Zhejiang based on the integration of "production-living-ecological space"[D]. Suzhou: Suzhou University of Science and Technology, 2019.
	[ 陈增浩. 基于“三生”共融的浙东海岛渔村空间优化研究[D]. 苏州: 苏州科技大学, 2019.]
[21]	Lin Jiao. The research on the dynamic changes and optimization of "production-living-ecological" space in Western Sichuan Plateau: Take Luhuo County as an example[D]. Chengdu: Sichuan Normal University, 2018.
	[ 林娇. 川西高原地区的“三生”空间动态变化与优化研究: 以炉霍县为例[D]. 成都: 四川师范大学, 2018.]
[22]	Shi Dan, Guo Xinying, Wang Ji. Research on the optimization of production-living-ecological space in tourist towns based on the perspective of residents' satisfaction. Journal of Jilin Normal University (Natural Science Edition), 2021, 42(1): 134-140.
	[ 石丹, 郭新影, 王吉. 基于居民满意度视角的旅游型城镇三生空间优化研究. 吉林师范大学学报(自然科学版), 2021, 42(1): 134-140.]
[23]	Liu Baiping, Ye Yang, Ren Ping, et al. Research on the spatial optimization of tourist towns from the perspective of "production-living-ecological space" fusion. Journal of Hefei University (Comprehensive Edition), 2019, 36(6): 77-82.
	[ 柳百萍, 叶旸, 任平, 等. “三生”空间融合视域下的旅游小镇空间优化研究. 合肥学院学报(综合版), 2019, 36(6): 77-82.]
[24]	You Shang, Jiang Jingfeng, Xie Yunyi. Reconstruction and optimization of the "production-living-ecological space" of rural homestay settlements from the perspective of self-organization theory: Taking the representative shared farms in Hainan Province as an example. Southeast Academic, 2019(3): 71-80.
	[ 游上, 江景峰, 谢蕴怡. 自组织理论视角下乡村民宿聚落“三生”空间的重构优化: 以海南省代表性共享农庄为例. 东南学术, 2019(3): 71-80.]
[25]	Dai Zhiyong. "Production-living-ecological space" land use characteristics and conflict evaluation in hilly and mountainous areas[D]. Chongqing: Southwest University, 2019.
	[ 戴智勇. 丘陵山区“三生”空间土地利用特征及其冲突评价[D]. 重庆: 西南大学, 2019.]
[26]	He Sheng. The formation mechanism and regulation path of spatial conflict in Chang-Zhu-Tan urban agglomeration[D]. Changsha: Hunan Normal University, 2014.
	[ 何胜. 长株潭城市群空间冲突的形成机理及调控路径[D]. 长沙: 湖南师范大学, 2014.]
[27]	Hu Yinglong. Analysis of the spatial division of the Pearl River Delta urban agglomeration and the spatial conflict effect of land use[D]. Guangzhou: Guangzhou University, 2019.
	[ 胡应龙. 珠三角城市群空间分区与土地利用空间冲突效应分析[D]. 广州: 广州大学, 2019.]
[28]	Shi Shuqin, Cao Qiwen, Li Zhengguo, et al. Spatial heterogeneity analysis of the influence of climate and socio-economic factors on soil organic matter: Taking the central region of Heilongjiang Province as an example. Chinese Journal of Eco-Agriculture, 2014, 22(9): 1102-1112.
	[ 石淑芹, 曹祺文, 李正国, 等. 气候与社会经济因素对土壤有机质影响的空间异质性分析: 以黑龙江省中部地区为例. 中国生态农业学报, 2014, 22(9): 1102-1112.]
[29]	Yang Yu. Analysis of Qiqihar's industrial development process and achievements after the founding of new China. Theoretical Observation, 2021(3): 91-93.
	[ 杨宇. 新中国建立后齐齐哈尔工业发展历程及成就探析. 理论观察, 2021(3): 91-93.]
[30]	Jing Ying. Research on identification and optimization strategy of low-efficiency industrial land in built-up areas of shrinking cities[D]. Harbin: Harbin Institute of Technology, 2019.
	[ 荆莹. 收缩城市建成区低效工业用地识别与优化策略研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.]
[31]	Ran Na. "Production-living-ecological" function evaluation and analysis of coupling coordination characteristics of land space in Jiangsu Province[D]. Nanjing: Nanjing University, 2018.
	[ 冉娜. 江苏省国土空间“三生”功能评价及耦合协调特征分析[D]. 南京: 南京大学, 2018.]
[32]	Liu Jilai, Liu Yansui, Li Yurui. Classification evaluation and analysis of spatio-temporal pattern of China's "production-living-ecological space". Acta Geographica Sinica, 2017, 72(7): 1290-1304. doi: 10.11821/dlxb201707013
	[ 刘继来, 刘彦随, 李裕瑞. 中国“三生空间”分类评价与时空格局分析. 地理学报, 2017, 72(7): 1290-1304.] doi: 10.11821/dlxb201707013
[33]	Liu Chao, Xu Yueqing, Liu Yanxu, et al. Research on multifunctional classification and evaluation index system of land use based on system theory. Journal of Peking University (Natural Science Edition), 2018, 54(1): 181-188.
	[ 刘超, 许月卿, 刘焱序, 等. 基于系统论的土地利用多功能分类及评价指标体系研究. 北京大学学报(自然科学版), 2018, 54(1): 181-188.]
[34]	Wang Jianping, Yu Dun, Lu Yiqian, et al. Recognition and analysis of land use conflicts in counties based on the suitability of "production-living-ecological space". Journal of Natural Resources, 2021, 36(5): 1238-1251.
	[ 王检萍, 余敦, 卢一乾, 等. 基于“三生”适宜性的县域土地利用冲突识别与分析. 自然资源学报, 2021, 36(5): 1238-1251.]
[35]	Li X, Chen G Z, Liu X P, et al. A new global land-use and land-cover change product at a 1-km resolution for 2010 to 2100 based on human-environment interactions. Annals of the American Association of Geographers, 2017, 107(5): 1040-1059.
[36]	Wang Shujia, Kong Wei, Ren Liang, et al. Research on misuses and modification of coupling coordination degree model in China. Journal of Natural Resources, 2021, 36(3): 793-810.
	[ 王淑佳, 孔伟, 任亮, 等. 国内耦合协调度模型的误区及修正. 自然资源学报, 2021, 36(3): 793-810.]
[37]	Cao Xiaoshu. Reconstruction of land and space based on the man-land coupling system. Journal of Natural Resources, 2019, 34(10): 2051-2059.
	[ 曹小曙. 基于人地耦合系统的国土空间重塑. 自然资源学报, 2019, 34(10): 2051-2059.]

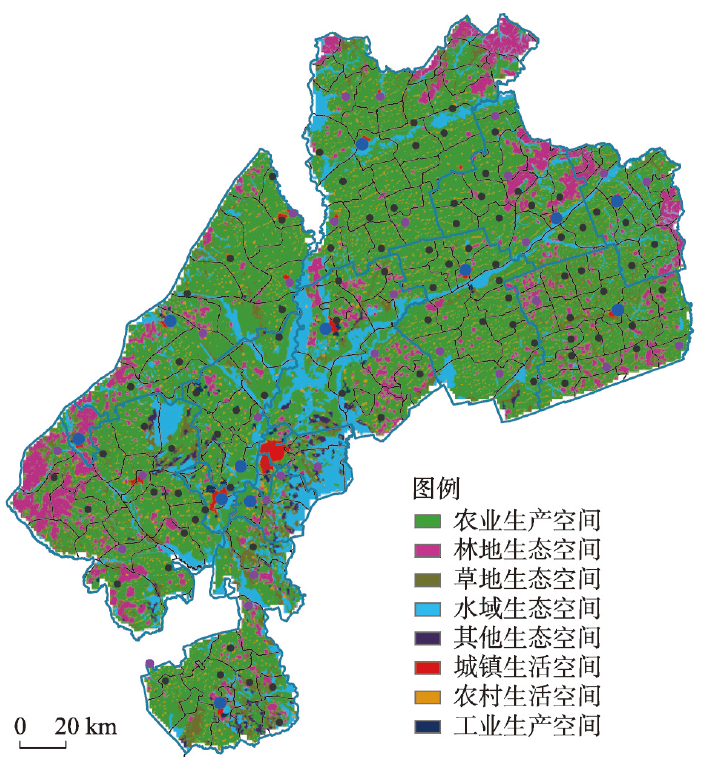

“三生”空间		土地利用类型	属性说明
一级分类	二级分类	土地利用类型	属性说明
生产空间	农业生产空间	水田、旱地	水田和旱地为人类提供直接的农产品
生产空间	工业生产空间	工矿、交通建设用地	工厂、矿石场、交通道路等为人类提供产品或服务
生活空间	城镇生活空间	城镇建设用地	包括住宅用地、公共管理及服务用地等,城市居民的生活空间
生活空间	农村生活空间	农村居民点用地	建成区之外的人类生活空间
生态空间	林地生态空间	有林地、灌木林地、其他林地	林地、草地可以保持水土、保证生态循环,维持生态系统平衡
	草地生态空间	高、中、低覆盖度草地	林地、草地可以保持水土、保证生态循环,维持生态系统平衡
	水域生态空间	河流、湖泊、水库坑塘、湿地、滩涂	水体稳定区域温度,具有自我环境净化能力,是重要的生态用地
	其他生态空间	沙地、裸地、盐碱地、未利用地	沙地、未利用地等用地,难以开发利用故维持其生态服务功能

一级功能	二级功能	指标	权重	数据获取
生产功能	农业供给功能	耕地面积比重	0.013	耕地面积/行政单元总面积
		粮食人均占有量	0.070	粮食产量/人口数
		粮食产出率	0.037	粮食产量/耕地面积
	非农业供给功能	二三产业用地面积比重	0.009	二三产业用地/总面积
		二三产业比重	0.011	二三产业产值/总产值
		土地产出率	0.276	总产值/行政单元总面积
生活功能	居住承载功能	生活用地面积比重	0.074	生活用地面积/行政单元总面积
		人口密度	0.056	总人口/行政单元总面积
		人均医院床位	0.127	总床位数/总人口
	社会保障功能	路网通达性	0.013	道路长度/行政单元总面积
		人均消费水平	0.062	人均可支配收入
		城镇化水平	0.083	城镇人口/总人口
生态功能	生态维持功能	生态用地比重	0.044	生态用地/行政单元总面积
		植被覆盖率	0.028	林地面积/行政单元总面积
		水域覆盖率	0.103	水域面积/行政单元总面积
	环境治理能力	空气质量	0.060	空气质量指数
