河湟地区乡村聚落位序累积规模模型的实证研究

doi:10.11821/dlxb202106012

Abstract

Abstract:

Scientific determination of rural settlement system is one of the keys to implement the strategy of rural revitalization and promote the modernization of agriculture and rural areas. Meanwhile, understanding the distribution law of rural settlement size is helpful for the optimization of rural settlements. In order to provide a reliable theoretical basis for the study of rural settlement size distribution and the optimization of rural settlement system, this article took the Hehuang area as an example, and explored a more accurate expression and law of Rank Cumulative Size Model based on the original Rank Cumulative Size Model. Then we examined the applicability and accuracy of the model in rural settlement size distribution compared with the Rural Rank-Size Rule. We also studied the characteristics and evolution law of rural settlement size distribution in the study area. The results show that: (1) Rank Cumulative Size Model is a monotonously increasing concave function (P ≥ 1), and its expression varies with the change of the Pareto coefficient of rural settlements. When 1 ≤ P < 1.20225, S_i = aln(N_i) + b, there is a positive correlation between the fitting coefficient a and the size of first settlements. When P ≥ 1.20225, $S_i=be^{aln(N_i)}$ the coefficient of variation of settlement size and the size of the first settlements are negatively correlated with the fitting coefficient a, and positively correlated with the fitting coefficient b. (2) Rank Cumulative Size Model is more suitable for the study of rural settlement size distribution in Hehuang as it has better applicability and accuracy; while the Rural Rank-size Rule is not applicable. (3) The rural settlement size in Hehuang nearly shows the equilibrium distribution pattern of Pareto coefficient 2 and tends to be more concentrated. In the future, the rural settlements should be concentrated in areas with superior natural and socio-economic conditions, and the layout of regional rural settlements and villages should be planned reasonably. Based on this, we can develop a rural revitalization path with the harmonious coexistence between human and nature, as well as between urban and rural development.

Key words: rural settlements, size distribution, Rank Cumulative Size Model, Rural Rank-Size Rule, Hehuang area

HUANG Wanzhuang, SHI Peiji. An empirical study on rank cumulative size model of rural settlements in the Hehuang area[J].Acta Geographica Sinica, 2021, 76(6): 1489-.

Figures/Tables 10

Tab. 1

Fig. 1

Fig. 2

Fig. 3

Tab. 2

Tab. 3

Fig. 4

Fig. 5

Tab. 4

Fig. 6

References 26

[1]	Sun Bindong, Li Wan . City size distribution and economic performance: Evidence from city-regions in China. Scientia Geographica Sinica, 2016,36(3):328-334. doi: 10.13249/j.cnki.sgs.2016.03.002
	[ 孙斌栋, 李琬 . 城市规模分布的经济绩效: 基于中国市域数据的实证研究. 地理科学, 2016,36(3):328-334.]
[2]	Wei Chunjiang, Zhu Jiguang, Li Xiaojian , et al. A rethink of the rank-size rule for rural settlement in traditional agricultural areas: A case study of Zhoukou City. Economic Geography, 2017,37(3):158-165.
	[ 卫春江, 朱纪广, 李小建 , 等. 传统农区村落位序—规模法则的实证研究: 以周口市为例. 经济地理, 2017,37(3):158-165.]
[3]	Li L, Li X J, Hai B B , et al. Evolution of rural settlement in an inland nonmetropolitan region of China at a time of rapid urbanisation: The case of Gongyi. Journal of Rural Studies, 2020,79:45-56. doi: 10.1016/j.jrurstud.2020.08.003
[4]	Liu Y, Li Y . Revitalize the world's countryside. Nature, 2017,548(7667):275-277. doi: 10.1038/548275a
[5]	Lu M Q, Wei L Y, Ge D Z , et al. Spatial optimization of rural settlements based on the perspective of appropriateness-domination: A case of Xinyi City. Habitat International, 2020,98:102148. DOI: 10.1016/j.habitatint.2020.102148. doi: 10.1016/j.habitatint.2020.102148
[6]	Liu Yansui . The basic theory and methodology of rural revitalization planning in China. Acta Geographica Sinica, 2020,75(6):1120-1133.
	[ 刘彦随 . 中国乡村振兴规划的基础理论与方法论. 地理学报, 2020,75(6):1120-1133.]
[7]	Anderson G, Ge Y . The size distribution of Chinese cities. Regional Science and Urban Economics, 2005,35(6):756-776. doi: 10.1016/j.regsciurbeco.2005.01.003
[8]	Newman M . Power laws, Pareto distributions and Zipf's law. Contemporary Physics, 2005,46(5):323-351. doi: 10.1080/00107510500052444
[9]	Batty M . A theory of City size. Science, 2013,340(6139):1418-1419. doi: 10.1126/science.1239870
[10]	Rybski D, Arcaute E, Batty M . Urban scaling laws. Environment and Planning B: Urban Analytics and City Science, 2019,46(9):1605-1610. doi: 10.1177/2399808319886125
[11]	Mao Guangxiong, Cao Lei, Ding Jinhong , et al. Spatio-temporal dynamics of City-size distribution in Jiangsu Province based on both traditional statistical standard and the fifth national census statistical standard. Economic Geography, 2009,29(11):1833-1838.
	[ 毛广雄, 曹蕾, 丁金宏 , 等. 基于传统和五普口径的江苏省城市规模分布时空演变研究. 经济地理, 2009,29(11):1833-1838.]
[12]	Cheng Kaiming, Zhuang Yanjie . Spatial econometric analysis of the rank-size rule for urban system: A case of prefectural-level cities in China's middle area. Scientia Geographica Sinica, 2012,32(8):905-912.
	[ 程开明, 庄燕杰 . 城市体系位序—规模特征的空间计量分析: 以中部地区地级以上城市为例. 地理科学, 2012,32(8):905-912.]
[13]	Sonis M, Grossman D . Rank-size rule for rural settlements. Socio-Economic Planning Sciences, 1984,18(6):373-380. doi: 10.1016/0038-0121(84)90046-6
[14]	Grossman D, Sonis M . A reinterpretation of the rank-size rule: Examples from England and the land of Israel. Geographical Research Forum, 1989(9):67-108.
[15]	Luo Qing, Yang Huimin, Li Xiaojian . Change of settlement size in the less development agricultural plain area under the background of rapid urbanization. Economic Geography, 2018,38(10):170-179.
	[ 罗庆, 杨慧敏, 李小建 . 快速城镇化下欠发达平原农区的聚落规模变化. 经济地理, 2018,38(10):170-179.]
[16]	Ye Hao, Zhuang Dachang . A new method for analyzing the size structure of urban system: Rank cumulative size model. Scientia Geographica Sinica, 2017,37(6):825-832. doi: 10.13249/j.cnki.sgs.2017.06.003
	[ 叶浩, 庄大昌 . 城市体系规模结构研究的新方法: 位序累积规模模型. 地理科学, 2017,37(6):825-832.]
[17]	Ma Xiaodong, Li Quanlin, Shen Yi . Morphological difference and regional types of rural settlements in Jiangsu Province. Acta Geographica Sinica, 2012,67(4):516-525.
	[ 马晓冬, 李全林, 沈一 . 江苏省乡村聚落的形态分异及地域类型. 地理学报, 2012,67(4):516-525.]
[18]	Liu Jiyuan, Ning Jia, Kuang Wenhui , et al. Spatio-temporal patterns and characteristics of land-use change in China during 2010-2015. Acta Geographica Sinica, 2018,73(5):789-802.
	[ 刘纪远, 宁佳, 匡文慧 , 等. 2010—2015年中国土地利用变化的时空格局与新特征. 地理学报, 2018,73(5):789-802.]
[19]	Zhao Xueyan . Surveying and thinking on the ecological immigrant and the herdsmen settlement in the high cold pasturing area: A case of Gannan pasturing area. Chinese Journal of Grassland, 2007,29(2):94-101.
	[ 赵雪雁 . 高寒牧区生态移民、牧民定居的调查与思考: 以甘南牧区为例. 中国草地学报, 2007,29(2):94-101.]
[20]	Jia Dameng . Reflect on village relocation and rural development planning under the background of urbanization. Rural Discovery in China, 2014(2):62-66.
	[ 贾大猛 . 反思城镇化背景下村庄迁并与乡村发展规划. 中国乡村发现, 2014(2):62-66.]
[21]	Zhao Sidong, Yang Yongchun, Wan Li , et al. Study on integrated urban-rural development patterns of valley cities in Western China: A case study on Lanzhou. City Planning Review, 2012,36(6):9-16.
	[ 赵四东, 杨永春, 万里 , 等. 中国西部河谷型城市城乡统筹模式研究: 以兰州市为例. 城市规划, 2012,36(6):9-16.]
[22]	Wu Guangzhou, Yang Jiawen . The empirical study of Chinese city rank-size power law distribution. Economic Geography, 2017,37(1):59-65, 97.
	[ 吴光周, 杨家文 . 中国城市规模幂律分布实证研究. 经济地理, 2017,37(1):59-65,97.]
[23]	Sun Bindong, Jin Xiaoxi, Lin Jie . China's new pattern of urbanization toward coordinated development of large, medium and small cities: Evolution and determinants of city size distribution since 1952. Geographical Research, 2019,38(1):75-84.
	[ 孙斌栋, 金晓溪, 林杰 . 走向大中小城市协调发展的中国新型城镇化格局: 1952年以来中国城市规模分布演化与影响因素. 地理研究, 2019,38(1):75-84.]
[24]	Wu Lei, Liu Yiming, Li Guicai , et al. City size: An interactive study based on economics and geography. Urban Development Studies, 2020,27(5):41-49.
	[ 吴磊, 刘一鸣, 李贵才 , 等. 城市规模:基于经济学与地理学的交互研究. 城市发展研究, 2020,27(5):41-49.]
[25]	Zhu Jiguang, Li Xiaojian . Study on the evolution characteristics of the hierarchy and size structure of rural settlements in traditional agricultural areas: A case of Zhoukou in Henan Province. Areal Research and Development, 2020,39(3):133-137.
	[ 朱纪广, 李小建 . 传统农区乡村聚落等级规模演变特征研究: 以河南省周口市为例. 地域研究与开发, 2020,39(3):133-137.]
[26]	Li Xiaojian, Xu Jiawei, Hai Beibei . The changing distribution patterns of rural settlements during the process of urbanization: The case of Gongyi (1929-2013), China. Acta Geographica Sinica, 2015,70(12):1870-1883.
	[ 李小建, 许家伟, 海贝贝 . 县域聚落分布格局演变分析: 基于1929—2013年河南巩义的实证研究. 地理学报, 2015,70(12):1870-1883.]

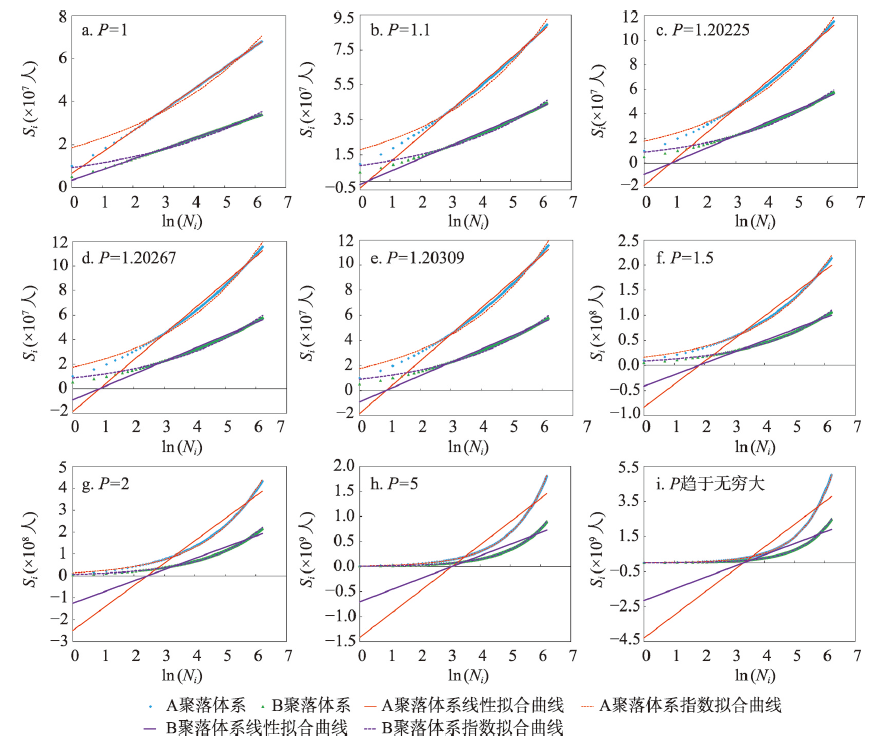

假设分布特征	聚落规模的变异系数	拟合曲线形式	聚落体系	拟合曲线表达	R²
P=1	4.1032	线性	A	y=1E+07x+7E+06	0.9996
		线性	B	y=5E+06x+3E+06	0.9996
		指数	A	y=2E+07e^0.2148^x	0.9567
		指数	B	y=9E+06e^0.2148^x	0.9567
P=1.1	3.2589	线性	A	y=1E+07x-4E+06	0.9931
		线性	B	y=7E+06x-2E+06	0.9931
		指数	A	y=2E+07e^0.2625^x	0.9726
		指数	B	y=9E+06e^0.2625^x	0.9726
P=1.20225	2.6325	线性	A	y=2E+07x-2E+07	0.9819
		线性	B	y=1E+07x-9E+06
		指数	A	y=2E+07e^0.3082^x
		指数	B	y=9E+06e^0.3082^x
1.20225 < P < 1.20309	2.6325~2.6281	线性	A	y=2E+07x-2E+07	0.9819
		线性	B	y=1E+07x-9E+06
		指数	A	y=2E+07e^{(0.3082~0.3086)}^x
		指数	B	y=9E+06e^{(0.3082~0.3086)}^x
P=1.20309	2.6281	线性	A	y=2E+07x-2E+07	0.9819
		线性	B	y=1E+07x-9E+06
		指数	A	y=2E+07e^0.3086^x
		指数	B	y=9E+06e^0.3086^x
P=1.5	1.5917	线性	A	y=5E+07x-8E+07	0.9469
		线性	B	y=2E+07x-4E+07	0.9469
		指数	A	y=2E+07e^0.4206^x	0.9931
		指数	B	y=8E+06e^0.4206^x	0.9931
P=2	0.9025	直线	A	y=1E+08x-2E+08	0.9034
		直线	B	y=5E+07x-1E+08	0.9034
		指数	A	y=1E+07e^0.5509^x	0.9977
		指数	B	y=7E+06e^0.5509^x	0.9977
P=5	0.2385	直线	A	y=5E+08x-1E+09	0.8215
		直线	B	y=2E+08x-7E+08	0.8215
		指数	A	y=1E+07e^0.8136^x	0.9999
		指数	B	y=6E+06e^0.8136^x	0.9999
P趋于正无穷大	0	指数	A	y=1E+07e¹^x	1
P趋于正无穷大	0	指数	B	y=5E+06e¹^x	1

指标	1995	2005	2015	2018
聚落个数(个)	10364	12467	13138	12730
聚落总规模(km²)	1294.59	1504.80	1500.84	1487.09
平均聚落规模(km²)	0.1249	0.1207	0.1142	0.1168
首位聚落规模(km²)	2.0198	2.6728	2.3854	2.6293
最小聚落规模(km²)	0.0097	0.0097	0.0097	0.0097
聚落规模的变异系数	1.0161	1.0739	1.0437	1.0517

方程式	y = be^ax
系数	1995	2005	2015	2018
a	0.5487	0.5355	0.5452	0.5423
b	896.49	1057.20	934.26	967.38
R²	0.9860	0.9891	0.9907	0.9902

方程式	y = -ax+b
系数	1995	2005	2015	2018
a(10^-4)	2	2	2	2
b	3.4383	3.3897	3.3341	3.3505
R²	0.9408	0.9338	0.9327	0.9322
平均δ	0.9994	0.9995	0.9995	0.9995
