湖南省凤凰县城雨洪管控路径

doi:10.11821/dlxb202101012

Abstract

Abstract:

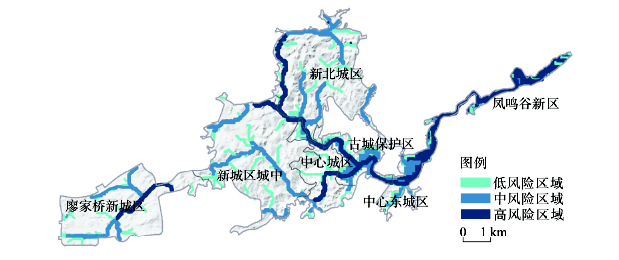

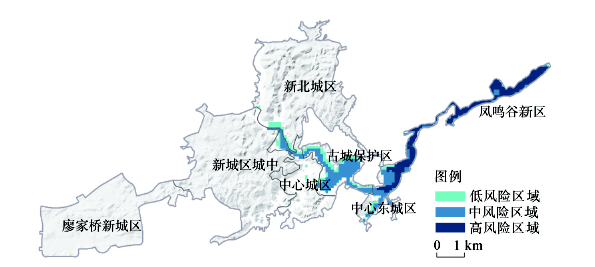

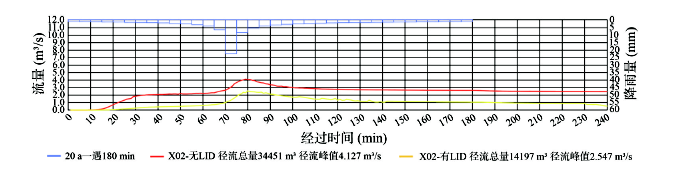

Practices in developed countries reveal that low impact development based on rainfall flooding control measures can effectively alleviate rainfall flooding. Focusing on the relevance of new and old towns in the development of sponge cities in China, we try to put forward a stormwater management path of "present situation appraisal - decomposition of low impact development indicators - simulation and verification of construction result". A case study is unfolded on Fenghuang County, Hunan Province. On the basis of urban waterlogging model, the rainfall flooding risk evaluation and renewal feasibility evaluation is conducted on the new and old towns; based on the evaluation of the present situation, a low impact development control indicator decomposition system is established accordingly to implement low impact development conceptually and technically from macro control strategy to detailed planning, and the validity of this path is verified through simulation of the water accumulating volume of the stagnant point. The results indicate that the old towns of Fenghuang County have a higher rainfall flooding risk and an evidently lower current annual runoff volume control rate than the new towns, however, the old towns have a much lower transformation feasibility than the new towns due to large historical and cultural preservation areas and a lower terrain. From the perspective of the integrity of new and old towns, more runoff discharge and peak runoff can be reduced by establishing a three-level (Proper-Block-Plot) indicator decomposition system so as to lighten the pressure of flood disaster in the lower old towns. However, under the circumstance of heavy rainstorm, it is still very difficult to solve the problem of waterlogging only by low impact development facilities, and grey infrastructures based on water accumulating volume calculation are also needed in order to efficiently control water logging caused by short intense rainfall.

Key words: new and old towns, sponge city, low impact development, stormwater management

CHEN Na, REN Anzhi, MA Bo, LI Jingyu, XIANG Hui. Stormwater management path in Fenghuang, Hunan[J].Acta Geographica Sinica, 2021, 76(1): 153-166.

Figures/Tables 15

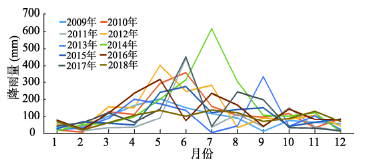

Fig. 1

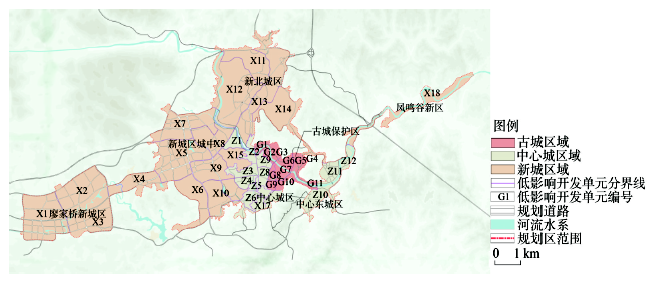

Fig. 2

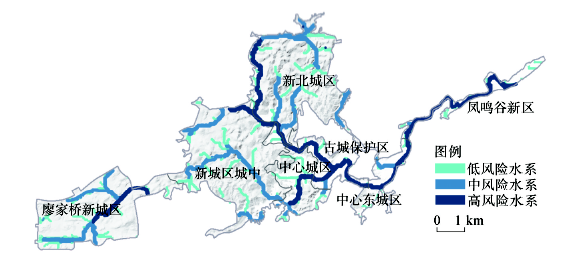

Fig. 3

Fig. 4

Fig. 5

Tab. 1

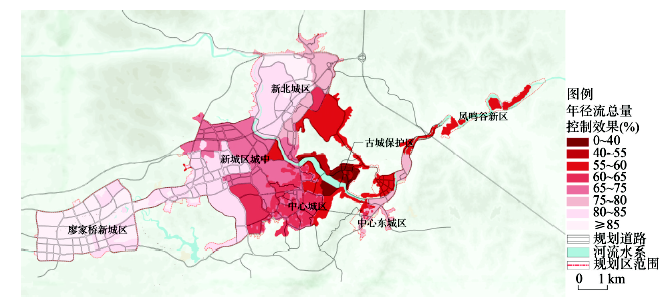

Fig. 6

Tab. 2

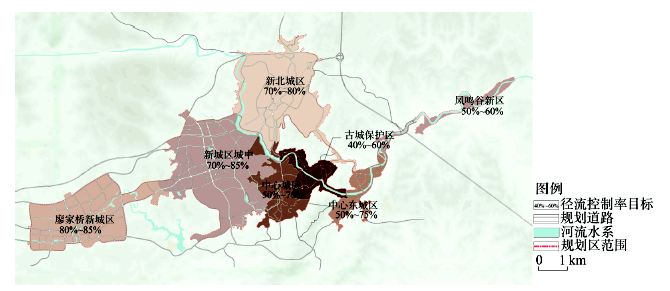

Fig. 7

Fig. 8

Tab. 3

Fig. 9

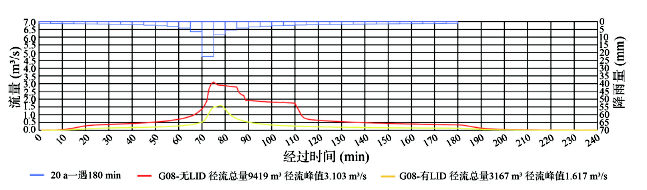

Fig. 10

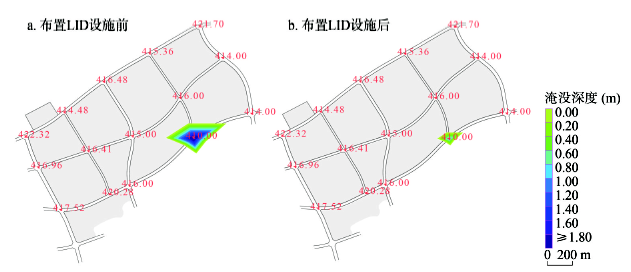

Fig. 11

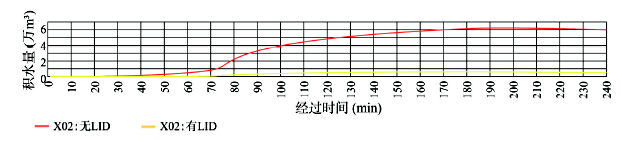

Fig. 12

References 36

[1]	Su Weizhong, Ru Jingjing, Yang Guishan. Modelling stormwater management based on infiltration capacity of land use in the watershed scale. Acta Geographica Sinica, 2019,74(5):948-961.
	[ 苏伟忠, 汝静静, 杨桂山. 流域尺度土地利用调蓄视角的雨洪管理探析. 地理学报, 2019,74(5):948-961.]
[2]	The State Flood Control and Drought Relief Headquarters. Report on Flood and Drought Disasters in China, 2017.
	[ 国家防汛抗旱总指挥部. 中国水旱灾害报告, 2017.]
[3]	Du X D, Jin X B, Yang X L, et al. Spatial-temporal pattern changes of main agriculture natural disasters in China during 1990-2011. Journal of Geographical Sciences, 2015,25(4):387-398.
[4]	Zhou Y, Li N, Wu W X, et al. Exploring the characteristics of major natural disasters in China and their impacts during the past decades. Natural Hazards, 2013,69(1):829-843.
[5]	Ministry of Housing and Urban Rural Development. Sponge City Construction Evaluation Standard(GB/T 51345-2018), 2019.
	[ 住房和城乡建设部. 海绵城市建设评价标准(GB/T 51345-2018), 2019.]
[6]	United States Environmental Protection Agency. Low Impact Development(LID): A Literature Review. EPA-841-B-00-005. Washington D C: Office of Water, 2000.
[7]	Hinman C. Low Impact Development: Technical Guidance Manual for Puget Sound. Olympia: Puget Sound Action Team, Washington State University, Pierce County Extension, 2005: 1-3.
[8]	Metropolitan Service District. Green Streets: Innovative Solutions for Stormwater and Stream Crossings. Portland: Metro, 2002.
[9]	American Society of Landscape Architects. Integrating Stormwater into the Urban Fabric. Portland: Oregon Chapter, 1996: 1-99.
[10]	Water Sensitive Urban Design Research Group. Water Sensitive Residential Design: An Investigation into Its Purpose and Potential in the Perth Metropolitan Region. Leederville: Western Australian Water Resources Council, 1990: 1-20.
[11]	van Roon M R, Greenaway A, Dixon J E, et al. Low impact urban design and development: Scope, founding principles and collaborative learning. 7th International Conference on Urban Drainage Modelling, Monash University, 2006: 531-538.
[12]	Ellis J B, Viavattene C. Sustainable urban drainage system modeling for managing urban surface water flood risk. Clean Soil, Air, Water, 2014,42(2):153-159.
[13]	Zhou Hongjian, Shi Peijun, Wang Jing'ai, et al. River network change and its ecological effects in Shenzhen region in recent 30 years. Acta Geographica Sinica, 2008,63(9):969-980.
	[ 周洪建, 史培军, 王静爱, 等. 近30年来深圳河网变化及其生态效应分析. 地理学报, 2008,63(9):969-980.]
[14]	Mao Xiyan, Meng Jijun. Impacts of land use changes on water resources: A literature review. Acta Scientiarum Naturalium Universitatis Pekinensis, 2013,49(5):928-936.
	[ 毛熙彦, 蒙吉军. 土地利用变化的水文效应研究进展. 北京大学学报(自然科学版), 2013,49(5):928-936.]
[15]	Su Weizhong, Yang Guishan, Chen Shuang. An empirical analysis of urbanization spatial process and its ecological effect in western Taihu Lake Watershed of China. Acta Ecologica Sinica, 2008,28(9):4306-4312.
	[ 苏伟忠, 杨桂山, 陈爽. 太湖流域湖西区城市化空间过程及其生态效应. 生态学报, 2008,28(9):4306-4312.]
[16]	Gao Junfeng, Wen Yuhua. Impact of land use change on runoff of Taihu Basin. Acta Geographica Sinica, 2002,57(2):194-200.
	[ 高俊峰, 闻余华. 太湖流域土地利用变化对流域产水量的影响. 地理学报, 2002,57(2):194-200.]
[17]	Zheng Jing, Fang Weihua, Shi Peijun, et al. Modeling the impacts of land use change on hydrological processes in fast urbanizing region: A case study of the Buji watershed in Shenzhen city, China. Journal of Natural Resources, 2009,24(9):1560-1572.
	[ 郑璟, 方伟华, 史培军, 等. 快速城市化地区土地利用变化对流域水文过程影响的模拟研究: 以深圳市布吉河流域为例. 自然资源学报, 2009,24(9):1560-1572.]
[18]	Su Weizhong, Yang Guishan, Zhen Feng. Ecological land fragmentation and its connectivity with urbanization in the Yangtze River Delta. Acta Geographica Sinica, 2007,62(12):1309-1317.
	[ 苏伟忠, 杨桂山, 甄峰. 长江三角洲生态用地破碎度及其城市化关联. 地理学报, 2007,62(12):1309-1317.]
[19]	Yuan Yi, Shi Peijun, Liu Yinghui, et al. Impact of land use change on urban flood disaster. Journal of Natural Disasters, 2003,12(3):6-13.
	[ 袁艺, 史培军, 刘颖慧, 等. 土地利用变化对城市洪涝灾害的影响. 自然灾害学报, 2003,12(3):6-13.]
[20]	Su Weizhong, Yang Guishan, Chen Shuang. The impact of urban spatial expansion on regional environment of flood hazards gestation: A case study in Jiangning district of Nanjing city. Resources Science, 2012,34(5):933-939.
	[ 苏伟忠, 杨桂山, 陈爽. 城市空间扩展对区域洪涝孕灾环境的影响. 资源科学, 2012,34(5):933-939.]
[21]	Wu Jiansheng, Zhang Puhua. The effect of urban landscape pattern on urban waterlogging. Acta Geographica Sinica, 2017,72(3):444-456.
	[ 吴健生, 张朴华. 城市景观格局对城市内涝的影响研究: 以深圳市为例. 地理学报, 2017,72(3):444-456.]
[22]	Wang Qiongshan, Liu Xiaomei, Zhao Dongquan. Selection of low impact development techniques and analysis of suitable construction area. China Water & Wastewater, 2014,30(3):96-100.
	[ 王琼珊, 刘晓梅, 赵冬泉. 低影响开发措施比选及适建区域分析. 中国给水排水, 2014,30(3):96-100.]
[23]	Jiang Yong, Chen Xiongzhi, Hong Yueju. Sponge city planning control method and technology exploration in Wuhan. China Water & Wastewater, 2018,34(2):1-6.
	[ 姜勇, 陈雄志, 洪月菊. 武汉市建设项目的海绵城市规划管控方法与技术探索. 中国给水排水, 2018,34(2):1-6.]
[24]	Fu Yunchao, Wang Jialiang, Zhou Bo, et al. Planning indices system for low impact development in Chengdu Tianfu new area. Planners, 2017,33(10):95-100.
	[ 付韵潮, 王家良, 周波, 等. 四川天府新区成都直管区低影响开发规划指标体系构建. 规划师, 2017,33(10):95-100.]
[25]	Wei Ting, Ruan Chen, Fu Yunchao. Regulatory planning response for sponge city in Shuangliu county, Chengdu city. Planners, 2017,33(9):58-63.
	[ 魏婷, 阮晨, 付韵潮. 成都市双流县海绵城市建设的控制性详细规划响应. 规划师, 2017,33(9):58-63.]
[26]	Zhang Wei, Wang Jiazhuo, Che Han, et al. Experience of sponge city master plan: A case study of Nanning city. City Planning Review, 2016,40(8):44-52.
	[ 张伟, 王家卓, 车晗, 等. 海绵城市总体规划经验探索: 以南宁市为例. 城市规划, 2016,40(8):44-52.]
[27]	Sun Li, Jin Linqiang. Study on the path of the construction of the sponge city in the urban and rural planning. China Population, Resources and Environment, 2017,27(Suppl.1):101-104.
	[ 孙立, 靳林强. 城乡规划层面落实海绵城市建设的路径研究. 中国人口·资源与环境, 2017,27(Suppl.1):101-104.]
[28]	Ying Jun, Zhang Qingping. Research on application urban permeable pavement based on the concept of sponge city. Modern Urban Research, 2016,31(7):41-46.
	[ 应君, 张青萍. 海绵城市理念下城市透水性铺装的应用研究. 现代城市研究, 2016,31(7):41-46.]
[29]	Hu Aibing, Ren Xinxin, Yu Shaowu, et al. Exploration for creating low impact development stormwater management demonstration area in Shenzhen. China Water & Wastewater, 2010,26(20):69-72.
	[ 胡爱兵, 任心欣, 俞绍武, 等. 深圳市创建低影响开发雨水综合利用示范区. 中国给水排水, 2010,26(20):69-72.]
[30]	Dai Yanjiao, Jiao Sheng, Ding Guosheng, et al. Review and prospect of sponge city construction in recent ten years. Modern Urban Research, 2018(8):77-87.
	[ 戴妍娇, 焦胜, 丁国胜, 等. 近十年海绵城市建设研究评述与展望. 现代城市研究, 2018(8):77-87.]
[31]	Li Jingsi, Li Shan, Li Zhilu, et al. Simulation study on urban stormwater reduction effect based on synergistic transformation concept. Journal of Natural Disasters, 2019,28(4):79-89.
	[ 李静思, 李山, 李智录, 等. 基于协同改造理念的城市雨洪削减效果模拟研究. 自然灾害学报, 2019,28(4):79-89.]
[32]	Government Portal Site of Fenghuang County. http://www.fhzf.gov.cn/zjfh/fhgk/201706/t20170601695714.html.
	[ 凤凰县政府门户网站. http://www.fhzf.gov.cn/zjfh/fhgk/201706/t20170601695714.html.]
[33]	Sun Chao, Zhong Shaobo, Deng Yu. Scenario deduction based emergency rescue plan assessment and decision optimization of urban rainstorm water-logging: A case study of Beijing. Acta Geographica Sinica, 2017,72(5):804-816.
	[ 孙超, 钟少波, 邓羽. 基于暴雨内涝灾害情景推演的北京市应急救援方案评估与决策优化. 地理学报, 2017,72(5):804-816.]
[34]	Wu Tinghai. A discussion on urban planning in spatial planning system. City Planning Review, 2019,43(8):9-17.
	[ 武廷海. 国土空间规划体系中的城市规划初论. 城市规划, 2019,43(8):9-17.]
[35]	Ministry of Housing and Urban Rural Development. Sponge City Construction Guide, 2014.
	[ 住房与城乡建设部. 海棉城市建设指南, 2014.]
[36]	Zhu Zheng, Zheng Bohong, He Qingyun. Study on effect degree and counter measures again urban rainstorm disasters: A case of Changsha city. Journal of Natural Disasters, 2011,20(3):105-112.
	[ 朱政, 郑伯红, 贺清云. 城市暴雨灾害的影响程度及对策研究: 以长沙市为例. 自然灾害学报, 2011,20(3):105-112.]

编号	所在片区	面积 (km²)	综合雨量径流系数	总降雨量(万m3/h) P = 5年	管网排水能力比	现状年径流总量控制率(%)
G	古城保护区	1.98	0.72	10.43	0.69	30
ZX	中心城区	2.44	0.35	10.6	0.59	35
ZD	中心东城区	1.65	0.35	5.46	0.32	42
XB	城北新城区	8.61	0.09	36.38	0.27	60
XX	新城区城中	10.76	O.12	53.91	0.47	45
XL	廖家桥新城区	6.34	0.28	30.9	0.22	55
XF	风鸣谷新城区	1.35	0.54	2.35	—	45

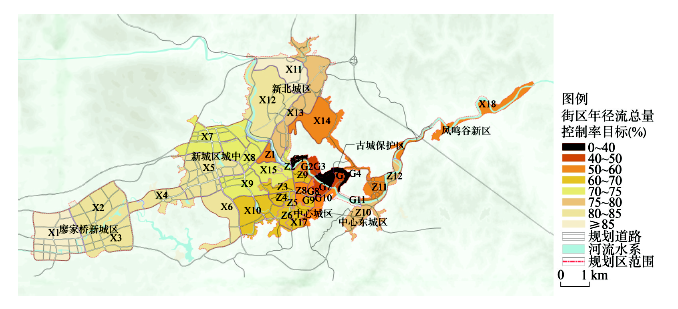

街区编号	现状年径流总量控制率(%)	地块面积(hm²)	下垫面综合雨量径流系数	LID设计调蓄容积(m³)	年径流总量控制率(%)
街区编号	现状年径流总量控制率(%)	地块面积(hm²)	下垫面综合雨量径流系数	LID设计调蓄容积(m³)	最小值	最大值
G-01	30	3.83	0.59	160.33	35	40
G-02	30	21.77	0.48	144.09	50	60
G-03	30	23.12	0.54	309.42	40	50
G-04	30	9.40	0.72	329.61	35	40
G-05	30	11.74	0.49	300.12	40	50
G-06	30	13.91	0.67	710.31	35	40
G-07	30	17.47	0.53	207.16	40	50
G-08	30	9.34	0.49	92.57	50	60
G-09	30	21.90	0.5	258.22	60	70
G-10	30	4.76	0.52	50.79	50	60

编号			透水混凝土路面(hm²)	绿化平屋面(hm²)	透水铺装有机动车(hm²)	透水铺装无机动车(hm²)	生物滞留设施(hm²)	植草沟 (hm²)	下沉式绿地(hm²)	综合径流系数	单位面积控制容积(m³)	LID 调蓄容积(m³)	最大年径流控制率(%)
X2-1	W	17.05	1.28	2.45					1.28	0.57	177.78	2657.26	84.5
X2-2	M	7.74	1.93	3.71					0.1	0.24	75.37	200.97	85.0
X2-3	B	0.67	0.02	0.03					0.06	0.44	138.57	121.06	85.0
X2-4	M	20.88	5.22	10.02					0.26	0.24	75.37	542.48	85.0
X2-5	G	0.34					0.01			0.26	82.02	36.02	85.0
X2-6	R	15.72	0.31	0.94	0.44	0.5		0.13	0.63	0.5	151.30	1960.59	83.9
…
X2-28	U	0.6	0.02	0.03					0.05	0.44	138.57	109.67	85.0
X2-29	G	0.44					0.01		0.01	0.26	82.02	47.28	85.0
…
X2-32	A	0.47	0.01	0.02					0.03	0.42	121.21	68.93	82.5
