三峡水库175 m蓄水后库尾河段减淤调度控制指标研究

doi:10.11821/dlxb202101009

Abstract

Abstract:

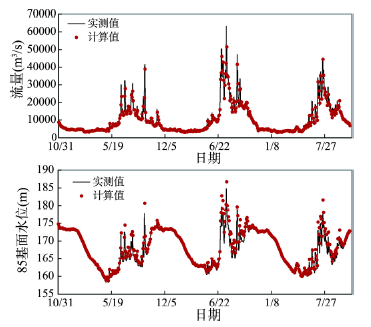

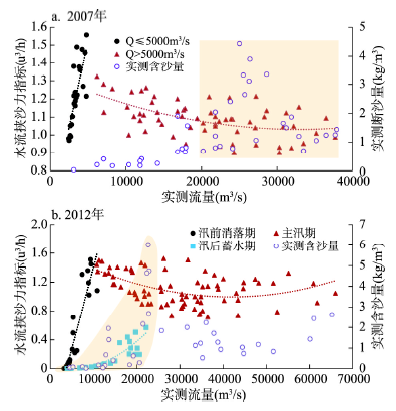

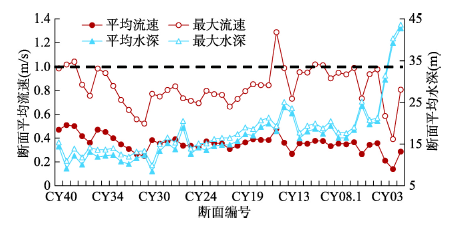

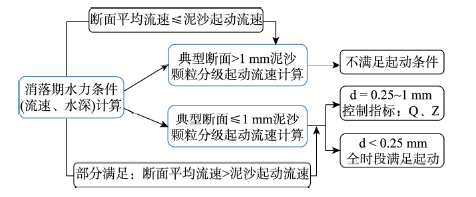

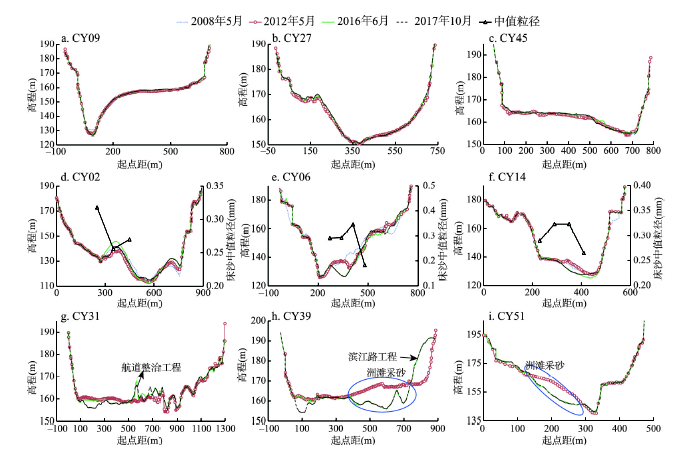

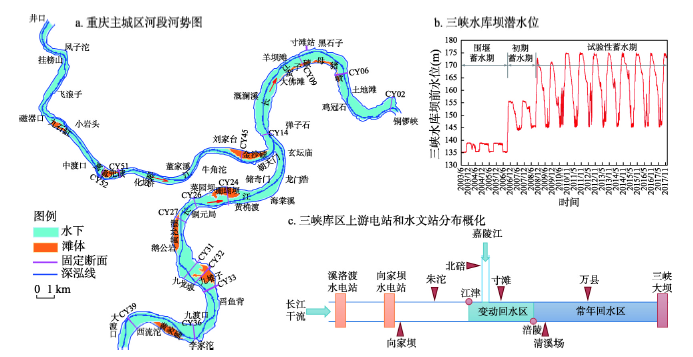

Chongqing reach is located in the fluctuating backwater zone of the Three Gorges Reservoir (TGR). Sediment deposition and erosion of Chongqing reach is related to flood control, shipping and wharf operation. It has become one of the key problems the TGR faces. In this paper, based on the prototype observation data, the sediment scouring and silting law of Chongqing reach before and after the 175 m experimental impoundment of the TGR was investigated for the first time. In addition, combined with the analysis of river bed composition and the one-dimensional mathematical model, the scouring conditions of suspended sediment in Chongqing reach were calculated and analyzed. Furthermore, the basic conditions of sediment transport in the study reach were applied to the practice of sediment reduction of the TGR. The following conclusions can be drawn as follows: (1) From 2008 to 2012, when the water storage level of TGR reached 175 m, the erosion intensity of the river bed in Chongqing reach started to decline, and the main souring period of suspended load was postponed from the water-impoundment stage to the pre-flood stage. After 2013, Xiluodu and Xiangjiaba hydropower stations in the lower reaches of Jinsha River was completed and put into operation. The sediment of Jinsha River was intercepted and the sediment entering the Three Gorges was greatly reduced, which led to another increase of the river bed scouring intensity of Chongqing reach. (2) When the inflow in front of the Three Gorges Dam (TGD) is greater than 4000 m ³/s and the water level is lower than 167 m, the suspended load on the river bed in Chongqing reach begins to scour. When the inflow exceeds 5000 m ³/s, the water level in front of the TGD drops to 163 m, and the scouring intensity of suspended load increases obviously. Increasing the drawdown rate of water level from 163 m before the TGD to 30 cm per day can avoid the cumulative sedimentation in the Chongqing reach.

Key words: Chongqing reach, main souring period of suspended load, scouring conditions of suspended sediment, optimized operation for deposition reduction

ZHU Lingling, GE Hua, DONG Bingjiang, YANG Chenggang. Control index of sediment reduction dispatching in Chongqing reach after the storage level of TGR reaching 175 m[J].Acta Geographica Sinica, 2021, 76(1): 114-126.

Figures/Tables 14

Fig. 1

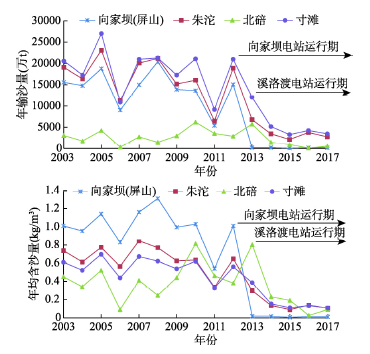

Fig. 2

Fig. 3

Tab. 1

Fig. 4

Fig. 5

Fig.6

Fig. 7

Fig. 8

Fig. 9

Tab. 3

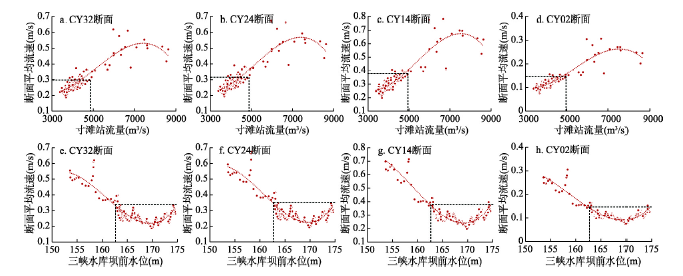

Fig. 10

Tab. 4

References 20

[1]	Sedimentation Panel of TGP. Research on Sedimentation in the TGR (2001-2005). Beijing: Intellectual Property Press, 2008.
	[ 三峡工程泥沙专家组. 三峡水库泥沙淤积研究(2001-2005). 北京: 知识产权出版社, 2008.]
[2]	Zhang Xujin, Mu Dewei, Zhao Shiqiang. Sediment aggregation and regulation for Chongqing reach of the fluctuating backwater district in Three Georges Reservoir. Journal of Chongqing Jianzhu University, 2006,28(5):13-17.
	[ 张绪进, 母德伟, 赵世强. 三峡水库回水变动区重庆河段泥沙淤积影响及治理. 重庆建筑大学学报, 2006,28(5):13-17.]
[3]	Huang Yue, Huang Yuling. Effect of Xiluodu hydropower station on sediment silting in Three Gorges Reservoir. China Three Gorges Construction, 2002(9):16-18, 48.
	[ 黄悦, 黄煜龄. 溪洛渡水库对三峡水库泥沙淤积影响预估. 中国三峡建设, 2002(9):16-18, 48.]
[4]	Lu Yongjun, Zuo Liqin, Ji Rongyao, et al. Changes of sediment deposition and erosion at Chongqing reach in backwater area of Three Gorges Project after reservoir adjusting of the upstream in the Yangtze River. Advances in Water Science, 2009,20(3):318-324.
	[ 陆永军, 左利钦, 季荣耀, 等. 水沙调节后三峡工程变动回水区泥沙冲淤变化. 水科学进展, 2009,20(3):318-324.]
[5]	Liu Zhaocun, Zhao Jian, Zhao Shiqiang. Experiment study on effects of backwater variation of Three Gorges Reservoir on sediment transport of urban reach of Chongqing. Chinese Journal of Hydrodynamics, 2012,27(4):388-393.
	[ 刘兆存, 赵健, 赵世强. 三峡回水变动区重庆主城区河段泥沙冲淤变化试验研究. 水动力学研究与进展A辑, 2012,27(4):388-393.]
[6]	Zhu Lingling, Li Jun, Yuan Jing. Sediment erosion and deposition in the tail area of Three Gorges Reservoir. Journal of Yangtze River Scientific Research Institute, 2018,35(5):142-146, 156.
	[ 朱玲玲, 李俊, 袁晶. 三峡水库库尾重庆主城区河段冲淤特性. 长江科学院院报, 2018,35(5):142-146, 156.]
[7]	Li Wenjie, Yang Shengfa, Fu Xuhui, et al. Sedimentation characteristics in the Three Gorges Reservoir during the initial operation stage. Advances in Water Science, 2015,26(5):676-685.
	[ 李文杰, 杨胜发, 付旭辉, 等. 三峡水库运行初期的泥沙淤积特点. 水科学进展, 2015,26(5):676-685.]
[8]	Yuan Jing, Xu Quanxi. Sediment trapping effect by reservoirs in the Jinsha River basin. Advances in Water Science, 2018,29(4):482-491.
	[ 袁晶, 许全喜. 金沙江流域水库拦沙效应. 水科学进展, 2018,29(4):482-491.]
[9]	Zhu Lingling, Dong Xianyong, Chen Zefang. Sediment deposition of cascade reservoir in the Lower Jinsha River and its impact on Three Gorges Reservoir. Journal of Yangtze River Scientific Research Institute, 2016,34(3):1-7.
	[ 朱玲玲, 董先勇, 陈泽方. 金沙江下游梯级水库淤积及其对三峡水库影响研究. 长江科学院院报, 2016,34(3):1-7.]
[10]	Zhang Xujin, He Jinchao, Mu Dewei. Impact of incoming runoff and sediment on sediment deposition along the Chongqing reach. Hydro-science and Engineering, 2010(1):23-29.
	[ 张绪进, 何进朝, 母德伟. 上游来水来沙变化及对重庆河段泥沙淤积的影响. 水利水运工程学报, 2010(1):23-29.]
[11]	Wang Yangui, Zeng Xian, Su Jialin, et al. Study on scour and deposition characteristics in Chongqing reach after Three Gorges Reservoir operation. Journal of Sediment Research, 2017,42(4):1-8.
	[ 王延贵, 曾险, 苏佳林, 等. 三峡水库蓄水后重庆河段冲淤特性研究. 泥沙研究, 2017,42(4):1-8.]
[12]	Yuan Jing, Xu Quanxi, Dong Bingjiang, et al. Study on sediment erosion and deposition characteristics in fluctuating backwater area of Three Gorges Reservoir in the drawdown period. Journal of Sediment Research, 2015(3):15-20.
	[ 袁晶, 许全喜, 董炳江, 等. 消落期三峡水库库尾泥沙冲淤特性研究. 泥沙研究, 2015(3):15-20.]
[13]	Zhou Man, Huang Renyong, Xu Tao. Study and practice of the Three Gorges Reservoir regulations for sedimentation reduction in its tail region. Journal of Hydroelectric Engineering, 2015,34(4):98-104.
	[ 周曼, 黄仁勇, 徐涛. 三峡水库库尾泥沙减淤调度研究与实践. 水力发电学报, 2015,34(4):98-104.]
[14]	Liu Dechun, Li Longcheng, Cheng Ping, et al. On boundary condition of Chongqing reach. Yangtze River, 2007,38(9):132-135.
	[ 刘德春, 李龙成, 程平, 等. 重庆主城区河段河床边界条件研究. 人民长江, 2007,38(9):132-135.]
[15]	Zhu Lingling, Yuan Jing, Xu Quanxi. Study of flood level and its influence factors in Chongqing reach in upper Yangtze River. Journal of Sediment Research, 2013(6):53-59.
	[ 朱玲玲, 袁晶, 许全喜. 铜锣峡卡口对重庆主城区河段洪水位的影响分析. 泥沙研究, 2013(6):53-59.]
[16]	Lu Jinyou, Huang Yue. Comparison of sedimentation in Three Gorges Reservoir between calculated prediction and prototype measurement. Journal of Yangtze River Scientific Research Institute, 2013,30(12):1-6, 27.
	[ 卢金友, 黄悦. 三峡水库淤积计算预测与原型实测结果比较分析. 长江科学院院报, 2013,30(12):1-6, 27.]
[17]	Xu Quanxi, Zhang Xiaofeng, Tan Guangming. The research of non-uniform sediment graded incipient motion. Journal of Hydrodynamics, 1999,14(2):135-141.
	[ 许全喜, 张小峰, 谈广鸣. 非均匀沙起动问题研究A辑. 水动力学研究与进展, 1999,14(2):135-141.]
[18]	Dong Bingjiang, Chen Xianwei, Xu Quanxi. Investigations and considerations on peak sediment regulation of Three Georges Reservoir. Yangtze River, 2014,45(19):1-5.
	[ 董炳江, 陈显维, 许全喜. 三峡水库沙峰调度试验研究与思考. 人民长江, 2014,45(19):1-5.]
[19]	Xu Quanxi. Research on the variation of sediment transport regularity and affecting factors in the Upper Changjiang River[D]. Wuhan: Wuhan University, 2007.
	[ 许全喜. 长江上游河流输沙规律变化及其影响因素研究[D]. 武汉: 武汉大学, 2007.]
[20]	Zhu Lingling, Xu Quanxi, Yan Lili. Sediment deposition of Modao Creek and Xiangxi River mouth section since the impoundment of the Three Gorges Reservoir. Acta Geographica Sinica, 2019,74(1):131-145.
	[ 朱玲玲, 许全喜, 鄢丽丽. 三峡水库不同类型支流河口泥沙淤积成因及趋势. 地理学报, 2019,74(1):131-145.]

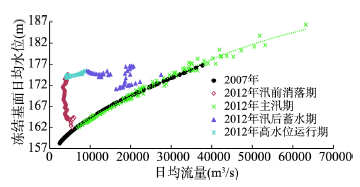

年份	时段(月)	寸滩站		坝前水位(m)	水面比降
年份	时段(月)	流量 (m³/s)	断面平均流速(m/s)	坝前水位(m)	长江干流 (朝天门以上)(‰)	< 0.25‰ 历时(d)	长江干流 (朝天门以下)(‰)	< 0.15‰ 历时(d)	嘉陵江段(‰)	< 0.15‰ 历时(d)
2007	1―5	3910	1.76	151.74	0.313	0	0.145	98	0.236	13
	6―9	18800	2.39	144.67	0.224	74	0.154	50	0.085	91
	10―12	7900	2.08	154.69	0.286	15	0.132	88	0.170	30
2012	1―5	4860	0.792	166.08	0.109	132	0.030	152	0.053	133
	6―9	23300	2.53	154.53	0.203	90	0.138	92	0.060	107
	10―12	8400	0.806	173.80	0.029	92	0.015	92	0	92

时期	消落期			汛期			蓄水期
时期	长江干流	嘉陵江	全河段	长江干流	嘉陵江	全河段	长江干流	嘉陵江	全河段
2003年				294	75.6	370	108	-135	-27.0
2004年	-541	-23.4	-564	658	66.3	725	-527	-143	-670
2005年	-95.3	42.9	-52.4	407	153	560	-555	-258	-812
2006年	-63.8	40.7	-23.1	116	-68.8	47.5	-26.9	13.1	-13.8
2007年	-120	36.1	-84.0	19.1	-67.2	-48.1	49.9	-27.3	22.6
2008年	185	24.1	209	224	57.6	281	-62.0	-66.8	-129
2009年	-107	-18.2	-125	-17.3	57.0	39.7	-5.50	-72.2	-77.7
2010年	86.5	94.3	181	114	-154	-40.4	65.8	139	205
2011年	-198	-65.9	-264	0.800	16.8	17.6	66.3	19.4	85.7
2012年	-230	-72.6	-302	198	91.8	289	-127	18.9	-108
2013年	-273	-57.0	-330	-86.1	-53.8	-140	-185	8.1	-177
2014年	-232	-78.0	-310	148	-3.3	145	-328	-7.00	-335
2015年	-198	-53.7	-251	192	84.6	277	-162	-46.6	-209
2016年	46.4	-43.8	2.6	-132	-1.4	-133	11.4	22.6	34.0
2017年	-87.0	-17.0	-104	-90.0	29.0	-62.0	40.0	-10.0	30.0
2003年5月―2008年9月 (三峡水库初期运行期)	-635	120	-515	1720	216	1940	-951	-550	-1500
2008年9月―2017年12月 (三峡水库试验性蓄水期)	-1190	-312	-1500	328	66	393	-685	5.7	-679
2012年10月―2017年12月(金沙江下游梯级电站运行后)	-742	-250	-992	33	55	87	-623	-33	-656

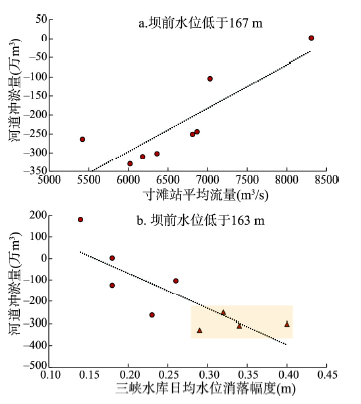

年份	三峡水库坝前167 m水位以下						三峡水库坝前163 m水位以下						泥沙冲淤量 (万t)
年份	消落期历时 (d)	日均消落幅度(m)	平均流量 (m³/s)	最小流量 (m³/s)	平均含沙量 (kg/m³)	< 4000 m³/s 持续时间(d)	消落期历时 (d)	日均消落幅度(m)	平均流量 (m³/s)	最小流量 (m³/s)	平均含沙量 (kg/m³)	< 4000 m³/s 持续时间(d)	泥沙冲淤量 (万t)
2009	110	0.19	5250	3220	0.068	38	93	0.18	5510	3220	0.072	21	-125
2010	147	0.15	5190	2770	0.112	82	125	0.14	5640	2780	0.119	61	181
2011	109	0.20	5420	3870	0.071	2	76	0.23	5880	4030	0.078	0	-264
2012	102	0.21	6360	3750	0.121	17	43	0.40	9330	5180	0.160	0	-302
2013	124	0.18	6020	3600	0.125	23	62	0.29	7630	4100	0.167	0	-330
2014	131	0.16	6180	3360	0.083	6	50	0.34	7640	5240	0.146	0	-310
2015	105	0.21	6810	4530	0.042	0	54	0.32	7400	5860	0.048	0	-251
2016	111	0.19	8310	4580	0.243	0	73	0.18	12300	6310	0.252	0	2.6
2017	102	0.21	7030	4110	0.036	0	68	0.26	7810	4110	0.042	0	-104

起止时间	三峡坝前水位(m)		水位消落幅度(m)	水位日均消落幅度(m/d)	寸滩站平均流量(m³/s)	冲刷量 (10⁴m³)
起止时间	调度前	调度后	水位消落幅度(m)	水位日均消落幅度(m/d)	寸滩站平均流量(m³/s)	冲刷量 (10⁴m³)
2009.04.11—05.11	159.80	156.05	3.75	0.13	5590	48.3
2009.05.11—06.11	156.05	146.26	9.79	0.33	7460	-22.0
2010.05.11—05.25	156.18	151.81	4.37	0.29	7860	45.8
2011.04.22—05.18	158.56	154.53	4.03	0.16	5310	76.3
2012.05.07—05.24 (减淤调度期)	161.92	154.05	7.87	0.46	7570	-101
2013.05.13—05.20 (减淤调度期)	160.17	156.12	4.05	0.58	6320	-33.3
