基于景观生态学的城市化背景下洪灾风险评估

doi:10.11821/dlxb202009008

Abstract

Abstract:

This paper used HEC-HMS hydrological model and statistical analysis method to examine the relationship between flood eigenvalues (i.e. flood volume, peak flow) and landscape pattern indexes of different landscapes. And on the basis of the above relationships, this paper constructed a flood ecological risk index to quantitatively calculate the basin's flood-landscape ecological risk. Then, the spatio-temporal risk change analysis of the whole basin and comparative risk analysis between selected sub-basins were performed. The Qinhuai River basin was selected as the study area, and two historical landscape distributions (2003 and 2017) were used in this study. The results showed that, for different landscapes, there are certain relationships between landscape patterns and flood eigenvalues, for different landscapes, the response indexes and degrees are different. From 2003 to 2017, the flood-landscape ecological risk increased and showed significant spatial differences. Landscape patterns have significant impacts on regional floods. In urbanization process, avoiding forming large-scale landscape patches, increasing landscape abundance of landscapes, and increasing contact area between different types of landscape patches can be helpful to reduce the negative effects of the increase of urban landscape area on flood.

Key words: landscape pattern, Spearman rank correlation analysis, multiple linear regression analysis, HEC-HMS hydrological model, kriging interpolation, flood-landscape ecological risk index

YUAN Yu, FANG Guohua, LU Chengxuan, YAN Min. Flood risk assessment under the background of urbanization based on landscape ecology[J].Acta Geographica Sinica, 2020, 75(9): 1921-1933.

Figures/Tables 10

Fig. 1

Tab. 1

Fig. 2

Fig. 3

Tab. 2

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 28

[1]	Zlotnik H. World Urbanization: Trends and Prospects. New Forms of Urbanization. London, New York: Routledge. 2017: 43-64.
[2]	Lee Y C, Ahern J, Yen C T. Ecosystem services in peri-urban landscapes: The effects of agricultural landscape change on ecosystem services in Taiwan's western coastal plain. Landscape and Urban Planning, 2015,139:137-148.
[3]	Dadashpoor H, Azizi P, Moghadasi M. Land use change, urbanization, and change in landscape pattern in a metropolitan area. Science of The Total Environment, 2019,655:707-719. doi: 10.1016/j.scitotenv.2018.11.267 pmid: 30476851
[4]	Fend Y, Liu Y, Tong X. Spatiotemporal variation of landscape patterns and their spatial determinants in Shanghai, China. Ecological Indicators, 2018,87:22-32.
[5]	Du J K, Li Q, Rui H, et al. Assessing the effects of urbanization on annual runoff and flood events using an integrated hydrological modeling system for Qinhuai River basin, China. Journal of Hydrology, 2012,464/465(5):127-139.
[6]	Zhou F, Xu Y P, Chen Y, et al. Hydrological response to urbanization at different spatio-temporal scales simulated by coupling of CLUE-S and the SWAT model in the Yangtze River Delta region. Journal of Hydrology, 2013,485:113-125.
[7]	Salvadore E, Bronders J, Batelaan O. Hydrological modelling of urbanized catchments: A review and future directions. Journal of Hydrology, 2015,529:62-81.
[8]	Zhang W, Villarini G, Vecchi G A, et al. Urbanization exacerbated the rainfall and flooding caused by hurricane Harvey in Houston. Nature, 2018,563(7731):384-388. doi: 10.1038/s41586-018-0676-z pmid: 30429551
[9]	Zhou Z, Li J. The correlation analysis on the landscape pattern index and hydrological processes in the Yanhe watershed, China. Journal of Hydrology, 2015,524:417-426.
[10]	Pend Y, Wang Q, Wang H, et al. Does landscape pattern influence the intensity of drought and flood? Ecological Indicators, 2019,103:173-181.
[11]	Lin Bingqing, Chen Xingwei, Chen Yin, et al. Simulations and analysis on the effects of landscape pattern change on flood and low flow based on SWAT model. Acta Ecologica Sinica, 2014,34(7):1772-1780.
	[ 林炳青, 陈兴伟, 陈莹, 等. 流域景观格局变化对洪枯径流影响的SWAT模型模拟分析. 生态学报, 2014,34(7):1772-1780.]
[12]	Jiang Song, Meng Jijun, Chen Yiyun. Analysis of hydrological effects of land use and landscape pattern in the middle reaches of Heihe River. Science of Soil and Water Conservation, 2019,17(1):64-73.
	[ 江颂, 蒙吉军, 陈亦云. 黑河中游土地利用与景观格局的水文效应分析. 中国水土保持科学, 2019,17(1):64-73.]
[13]	Kim H W, Park Y. Urban green infrastructure and local flooding: The impact of landscape patterns on peak runoff in four Texas MSAs. Applied Geography, 2016,77:72-81.
[14]	Li C, Zhang Y, Kharel G, et al. Impact of climate variability and landscape patterns on water budget and nutrient loads in a peri-urban watershed: A coupled analysis using process-based hydrological model and landscape indices. Environmental Management, 2018,61(6):954-967. doi: 10.1007/s00267-018-1019-4 pmid: 29523918
[15]	Xue Xinghua, Qian Hua. Advance and current core issues in riverscape ecology. Advances in Water Sciences, 2018,29(6):887-897.
	[ 薛兴华, 钱华. 河流景观生态学的发展与当前核心议题. 水科学进展, 2018,29(6):887-897.]
[16]	Chen Feng, Li Hongbo, Zhang Anlu. Ecological risk assessment based on terrestrial ecosystem services in China. Acta Geographica Sinica, 2019,74(3):432-445.
	[ 陈峰, 李红波, 张安录. 基于生态系统服务的中国陆地生态风险评价. 地理学报, 2019,74(3):432-445.]
[17]	Peng J, Pan Y, Liu Y, et al. Linking ecological degradation risk to identify ecological security patterns in a rapidly urbanizing landscape. Habitat International, 2018,71:110-124.
[18]	Jin X, Jin Y, Mao X. Ecological risk assessment of cities on the Tibetan Plateau based on land use/land cover changes-Case study of Delingha City. Ecological Indicators, 2019,101:185-191. doi: 10.1016/j.ecolind.2018.12.050
[19]	Hu Hebing, Liu Hongyu, Hao Jingfeng, et al. The urbanization effects on watershed landscape structure and their ecological risk assessment. Acta Ecologica Sinica, 2011,31(12):3432-3440.
	[ 胡和兵, 刘红玉, 郝敬锋, 等. 流域景观结构的城市化影响与生态风险评价. 生态学报, 2011,31(12):3432-3440.]
[20]	Xue L, Zhu B, Wu Y, et al. Dynamic projection of ecological risk in the Manas River basin based on terrain gradients. Science of the Total Environment, 2019,653:283-293. doi: 10.1016/j.scitotenv.2018.10.382 pmid: 30412873
[21]	Luo Xian, Xu Youpeng. A bivariate analysis of flood risk in the middle reaches of Qinhuai River Basin. Journal of Natural Disasters, 2011,20(4):126-130.
	[ 罗贤, 许有鹏. 秦淮河流域中游地区两变量洪水风险分析. 自然灾害学报, 2011,20(4):126-130.]
[22]	Gao Yuqin, Ye Liu, Lai Lijuan. Analysis of flood risk in Qinhuai River Basin based on G-H copula. Journal of Water Resources and Water Engineering, 2018,29(1):172-177.
	[ 高玉琴, 叶柳, 赖丽娟. 基于G-H copula函数的秦淮河流域洪水风险分析. 水资源与水工程学报, 2018,29(1):172-177.]
[23]	Fang G H, Yuan Y, Gao Y Q, et al. Assessing the effects of urbanization on flood events with urban agglomeration polders type of flood control pattern using the HEC-HMS model in the Qinhuai River Basin, China. Water, 2018,10(8):1003. Doi: 10.3390/w10081003.
[24]	Mcgarigal K. FRAGSTATS Help. Documentation for FRAGSTATS, 2014. 04.
[25]	Gao Y Q, Yuan Y, Wang H Z, et al. Examining the effects of urban agglomeration polders on flood events in Qinhuai River basin, China with HEC-HMS model. Water Science and Technology, 2017,75(9):2130-2138.
[26]	Yang Yuting, Shang Songhao, Li Chao. Correcting the smoothing effect of ordinary kriging estimates in soil moisture interpolation. Advances in Water Sciences, 2010,21(2):208-213.
	[ 杨雨亭, 尚松浩, 李超. 土壤水分空间插值的克里金平滑效应修正方法. 水科学进展, 2010,21(2):208-213.]
[27]	Ernstson H. The social production of ecosystem services: A framework for studying environmental justice and ecological complexity in urbanized landscapes. Landscape and Urban Planning, 2013,109(1):7-17. doi: 10.1016/j.landurbplan.2012.10.005
[28]	Su M, Zheng Y, Hao Y, et al. The influence of landscape pattern on the risk of urban water-logging and flood disaster. Ecological Indicators, 2018,92:133-140. doi: 10.1016/j.ecolind.2017.03.008

数据类型	时间(年份)	精度	来源
降雨	1986—2016	1 d	资源环境数据云平台(http://www.resdc.cn), 南京气象局
流量	1986—2016	1 d
太阳辐射、气温	1986—2016	1 d
土壤	2009	1 km	世界和谐土壤数据库HWSD 1.1
数字高程	2009	30 m	中国科学院计算机网络信息中心地理空间数据云平台(http://www.gscloud.cn)
遥感影像	1988, 1994, 1999, 2003, 2010, 2017	30 m	中国科学院计算机网络信息中心地理空间数据云平台(http://www.gscloud.cn)

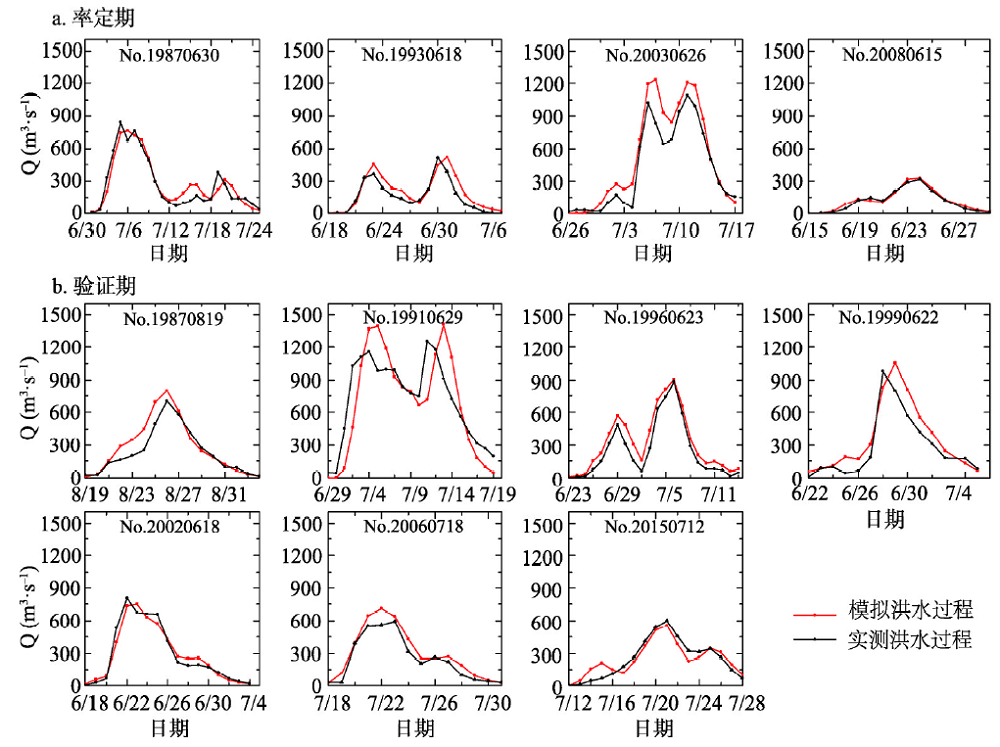

	洪号	景观分布年份	R	NSE	D_v(%)	D_p(%)
率定期	19870630	1988	0.96	0.91	3.53	-9.23
	19930618	1994	0.94	0.86	25.44	0.39
	20030626	2003	0.98	0.87	22.88	12.84
	20080615	2010	0.99	0.99	7.66	3.85
验证期	19870819	1988	0.95	0.81	18.27	13.64
	19910629	1988	0.83	0.80	-3.81	20.21
	19960623	1994	0.99	0.89	29.32	2.60
	19990622	1999	0.95	0.82	29.25	7.87
	20020618	2003	0.98	0.96	-0.29	-6.95
	20060718	2003	0.98	0.89	21.11	19.50
	20150712	2017	0.95	0.88	0.77	-7.36
