基于个体移动轨迹的多中心城市引力模型验证

doi:10.11821/dlxb202002005

Abstract

Abstract:

Due to the lack of empirical studies of scale variables and distance exponents, the effective application of the gravity model in urban study is challenging. With the development of multi-centralized Chinese cities, the gravity model must be validated because several relevant external conditions have changed. The purpose of this study is to validate Huff's Gravity Model using an individual mobile trajectory of mobile communication user in 2015. We follow Huff's two-step validation method: variable validation and parameter correction. Our main conclusions are as follows. First, attractions of commercial and employment centres conform to the law of the gravity model in which the attraction is proportional to the scale of a centre and inversely proportional to the distance from a centre. Second, in the spatial scale of Shanghai central city with spatial units in a 200-m grid, the mean distance exponent for commercial centres is 2.5 and that for employment centres is 3.0. The distance decay for commuting is greater than that for shopping trips, which means commuting is more sensitive to distance. Third, the gravity model can be used to predict the influence areas of adjusted commercial and employment centres based on validated variables and corrected parameters. Our results indicate that the prediction accuracies can reach 78.5% and 71.9% for the commercial and employment centres, respectively. The prediction accuracy for employment centres is slightly lower. This is because the attraction of employment centres is influenced not only by distance but also by factors such as family and housing prices, which will affect the prediction results. Lastly, in this study, we verify the spatial stratified heterogeneity of distance decay and determine that the distance exponent is not a unique constant because it has different values in different areas. Factors such as accessibility, distance to each centre, distance to a subway station and population density will affect distance decay.

Key words: gravity model, multi-centre, model validation, distance decay, spatial stratified heterogeneity, individual mobile trajectory

DING Liang, NIU Xinyi, SONG Xiaodong. Validating gravity model in multi-centre city: A study based on individual mobile trajectory[J].Acta Geographica Sinica, 2020, 75(2): 268-285.

Figures/Tables 21

Fig. 1

Fig. 2

Tab. 1

Fig. 3

Tab. 2

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Tab. 3

Fig. 8

Tab. 4

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Tab. 5

Tab. 6

Tab. 7

Tab. 8

References 49

[1]	Huff D L . The delineation of a national system of planning regions on the basis of urban spheres of influence. Regional Studies, 1973,7(3):323-329.
[2]	Huff D L, Lutz J M . Ireland's urban system. Economic Geography, 1979,55(3):196-212.
[1]	Wang De, Zhao Jinhua . HAP: A computer assisted hinterland division system, its development and application. City Planning Review, 2000,24(12):37-41.
	[ 王德, 赵锦华 . 城镇势力圈划分计算机系统的开发研究与应用. 城市规划, 2000,24(12):37-41.]
[4]	Liu Jisheng, Chen Yanguang . The gravitational models of franctal cities: Theoretical basis and applied methods. Scientia Geographica Sinica, 2000,20(6):528-533.
	[ 刘继生, 陈彦光 . 分形城市引力模型的一般形式和应用方法: 关于城市体系空间作用的引力理论探讨. 地理科学, 2000,20(6):528-533.]
[5]	Wang De, Guo Jie . Hinterland and its dynamic changes in Hu-Ning-Hang Region. Urban Planning Forum, 2003(6):6-11, 95.
	[ 王德, 郭洁 . 沪宁杭地区城市影响腹地的划分及其动态变化研究. 城市规划汇刊, 2003(6):6-11, 95.]
[6]	Pan Jinghu, Shi Peiji, Dong Xiaofeng . Measurements for urban hinterland area of cities at prefecture level or above in China. Acta Geographica Sinica, 2008,63(6):635-645.
	[ 潘竟虎, 石培基, 董晓峰 . 中国地级以上城市腹地的测度分析. 地理学报, 2008,63(6):635-645.]
[7]	Gu Chaolin, Pang Haifeng , Study on spatial relation of Chinese urban system: Gravity model approach. Geographical Research, 2008,27(1):1-12.
	[ 顾朝林, 庞海峰 . 基于重力模型的中国城市体系空间联系与层域划分. 地理研究, 2008,27(1):1-12.]
[8]	Qiu Yue, Wei Suqiong, Chen Jindong . Spatial pattern of urban hinterlands of cities at prefecture level or above in the economic zone on the western coast of the Taiwan Straits based on field-strength model. Geographical Research, 2011,30(5):795-803.
	[ 邱岳, 韦素琼, 陈进栋 . 基于场强模型的海西区地级及以上城市影响腹地的空间格局. 地理研究, 2011,30(5):795-803.]
[9]	Zhong Yexi, Lu Yuqi . Measuring method of urban hinterland based on spatial linkage: A case of Jiangsu province. Scientia Geographica Sinica, 2012,32(5):536-543.
	[ 钟业喜, 陆玉麒 . 基于空间联系的城市腹地范围划分: 以江苏省为例. 地理科学, 2012,32(5):536-543.]
[10]	Reilly W J . Methods for the Study of Retail Relationship. University of Texas Bulletin, 1929.
[11]	Converse P D . New laws of retail gravitation. Journal of Marketing, 1949,14(3):379-384.
[12]	Huff D L . Determination of intra-urban retail trade areas. Los Angeles, Real Estate Research Program, Graduate Schools of Business Administration,University of California, 1962.
[13]	Xu Xueqiang, Zhou Yixing, Ning Yuemin . Urban Geography. Beijing: Higher Education Press, 1999.
	[ 许学强, 周一星, 宁越敏 . 城市地理学. 北京: 高等教育出版社, 1999.]
[14]	Calabrese F, Di L G, Liu L , et al. Estimating origin-destination flows using mobile phone location data. IEEE Pervasive Computing, 2011,10(4):36-44.
[15]	Krings G, Calabrese F, Ratti C , et al. Urban Gravity: A model for intercity telecommunication flows. Journal of Statistical Mechanics Theory & Experiment, 2009,L07003:1-8.
[16]	Kang C G, Zhang Y, Ma X J , et al. Inferring properties and revealing geographical impacts of intercity mobile communication network of China using a subnet data set. International Journal of Geographical Information Science, 2013,27(3):431-448.
[17]	Gao S, Liu Y, Wang Y L , et al. Discovering spatial interaction communities from mobile phone data. Transactions in GIS, 2013,17(3):463-481.
[18]	Zhou Suhong, Hao Xinhua, Liu Lin . Validation of spatial decay law caused by urban commercial center's mutual attraction in polycentric city: Spatio-temporal data mining of floating cars' GPS data in Shenzhen. Acta Geographica Sinica, 2014,69(12):1810-1820.
	[ 周素红, 郝新华, 柳林 . 多中心化下的城市商业中心空间吸引衰减率验证: 深圳市浮动车GPS时空数据挖掘. 地理学报, 2014,69(12):1810-1820.]
[19]	Wei Ye, Xiu Chunliang, Wang Qi . An empirical study on polycentric urban spatial structure of Shenyang in the perspective of spatial association. Human Geography, 2014,29(3):83-88.
	[ 魏冶, 修春亮, 王绮 . 空间联系视角的沈阳市多中心城市结构研究. 人文地理, 2014,29(3):83-88.]
[20]	Ahas R, Silm S, Järv O , et al. Using mobile positioning data to model locations meaningful to users of mobile phones. Journal of Urban Technology, 2010,17(1):3-27.
[21]	Becker R A, Caceres R, Hanson K , et al. A tale of one city: Using cellular network data for urban planning. IEEE Pervasive Computing, 2011,10(4):18-26.
[22]	Xu Y, Shaw S L, Zhao Z , et al. Understanding aggregate human mobility patterns using passive mobile phone location data: A home-based approach. Transportation, 2015,42(4):625-646.
[23]	Ding Liang, Niu Xinyi, Song Xiaodong . Measuring the employment center system in Shanghai Central City: A study using mobile phone signaling data. Acta Geographica Sinica, 2016,71(3):484-499.
	[ 丁亮, 钮心毅, 宋小冬 . 上海中心城就业中心体系测度: 基于手机信令数据的研究. 地理学报, 2016,71(3):484-499.]
[24]	Ding Liang, Niu Xinyi, Song Xiaodong . A study on spatial characteristics of commercial centers in Shanghai Central City. Urban Planning Forum, 2017(2):63-70.
	[ 丁亮, 钮心毅, 宋小冬 . 上海中心城区商业中心空间特征研究. 城市规划学刊, 2017(2):63-70.]
[25]	Ratti C, Frenchman D, Pulselli R M , et al. Mobile landscapes: Using location data from cell phones for urban analysis. Environment and Planning B-Planning & Design, 2006,33(5):727-748.
[26]	Manfredini F, Pucci P, Tagliolato P . Toward a systemic use of manifold cell phone network data for urban analysis and planning. Journal of Urban Technology, 2014,21(2):39-59.
[27]	Niu Xinyi, Ding Liang, Song Xiaodong . Understanding urban spatial structure of Shanghai Central City based on mobile phone data. Urban Planning Forum, 2014(6):61-67.
	[ 钮心毅, 丁亮, 宋小冬 . 基于手机数据识别上海中心城的城市空间结构. 城市规划学刊, 2014(6):61-67.]
[28]	Wang De, Wang Can, Xie Dongcan , et al. Comparison of retail trade areas of retail centers with different hierarchical levels: A case study of East Nanjing road, Wujiaochang, Anshan road in Shanghai. Urban Planning Forum, 2015(3):50-60.
	[ 王德, 王灿, 谢栋灿 , 等. 基于手机信令数据的上海市不同等级商业中心商圈的比较: 以南京东路、五角场、鞍山路为例. 城市规划学刊, 2015(3):50-60.]
[29]	Yan Longxu, Zhang Shangwu, Wang De , et al. Identification and evaluation of living centers system in Shanghai. Urban Planning Forum, 2016(6):65-71.
	[ 晏龙旭, 张尚武, 王德 , 等. 上海城市生活中心体系的识别与评估. 城市规划学刊, 2016(6):65-71.]
[30]	Zhong Weijing, Wang De, Xie Dongcan , et al. Dynamic characteristics of Shanghai's population distribution using cell phone signaling data. Geographical Research, 2017,36(5):972-984.
	[ 钟炜菁, 王德, 谢栋灿 , 等. 上海市人口分布与空间活动的动态特征研究: 基于手机信令数据的探索. 地理研究, 2017,36(5):972-984.]
[31]	Vasanen A . Functional polycentricity: Examining metropolitan spatial structure through the connectivity of urban sub-centers. Urban Studies, 2012,49(16):3627-3644.
[32]	Mcmillen D P, Mcdonald J F . Population density in suburban Chicago: A bid-rent approach. Urban Studies, 1998,55(7):1119-1130.
[33]	Meng Xiaochen, Wu Jing, Shen Fanpu . The study review of urban jobs-housing balance. Urban Development Studies, 2009,16(6):23-28, 35.
	[ 孟晓晨, 吴静, 沈凡卜 . 职住平衡的研究回顾及观点综述. 城市发展研究, 2009,16(6):23-28, 35.]
[34]	Chai Yanwei, Zhang Yan, Liu Zhilin . Spatial differences of home-work separation and the impacts of housing policy and urban sprawl: Evidence from household survey data in Beijing. Acta Geographica Sinica, 2011,66(2):157-166.
	[ 柴彦威, 张艳, 刘志林 . 职住分离的空间差异性及其影响因素研究. 地理学报, 2011,66(2):157-166.]
[35]	Wang J F, Zhang T L, Fu B J . A measure of spatial stratified heterogeneity. Ecological Indicators, 2016,67:250-256.
[36]	Wang Jinfeng, Xu Chengdong . Geodetector: Principle and prospective. Acta Geographica Sinica, 2017,72(1):116-134.
	[ 王劲峰, 徐成东 . 地理探测器: 原理与展望. 地理学报, 2017,72(1):116-134.]
[37]	Wang J F, Li X H, Christakos G , et al. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun region, China. International Journal of Geographical Information Science, 2010,24(1):107-127.
[38]	Wang J F, Hu Y . Environmental health risk detection with GeogDetector. Environmental Modelling & Software, 2012,33:114-115.
[39]	Ding Yue, Cai Jianming, Ren Zhoupeng , et al. Spatial disparities of economic growth rate of China's national-level ETDZs and their determinants based on geographical detector analysis. Progress in Geography, 2014,33(5):657-666.
	[ 丁悦, 蔡建明, 任周鹏 , 等. 基于地理探测器的国家级经济技术开发区经济增长率空间分异及影响因素. 地理科学进展, 2014,33(5):657-666.]
[40]	Huang J X, Wang J F, Bo Y C , et al. Identification of health risks of hand, foot and mouth disease in China using the geographical detector technique. International Journal of Environmental Research and Public Health, 2014,11:3407-3423.
[41]	Zhan Donsheng, Zhang Wenzhong, Yu Jianhui , et al. Analysis of influencing mechanism of residents' livability satisfaction in Beijing using geographical detector. Progress in Geography, 2015,34(8):966-975.
	[ 湛东升, 张文忠, 余建辉 , 等. 基于地理探测器的北京市居民宜居满意度影响机理. 地理科学进展, 2015,34(8):966-975.]
[42]	Ju H R, Zhang Z X, Zuo L J , et al. Driving forces and their interactions of built-up land expansion based on the geographical detector: A case study of Beijing, China. International Journal of Geographical Information Science, 2016,30(11):2188-2207.
[43]	Li Jiaming, Lu Dadao, Xu Chengdong , et al. Spatial heterogeneity and its changes of population on the two sides of Hu Line. Acta Geographica Sinica, 2017,72(1):148-160.
	[ 李佳洺, 陆大道, 徐成东 , 等. 胡焕庸线两侧人口的空间分层异质性及其变化. 地理学报, 2017,72(1):148-160.]
[44]	Liu Yansui, Li Jintao . Geographic detection and optimizing decision of the differentiation mechanism of rural poverty in China. Acta Geographica Sinica, 2017,72(1):163-173.
	[ 刘彦随, 李进涛 . 中国县域农村贫困化分异机制的地理探测与优化决策. 地理学报, 2017,72(1):163-173.]
[45]	Yang Siqi, Xing Xiaoyue, Dong Weihua , et al. The spatio-temporal response of influenza A (H1N1) to meteorological factors in Beijing. Acta Geographica Sinica, 2018,73(3):460-473.
	[ 杨斯棋, 邢潇月, 董卫华 , 等. 北京市甲型H1N1流感对气象因子的时空响应. 地理学报, 2018,73(3):460-473.]
[46]	Li Pinghua, Lu Yuqi . Review and prospectation of accessibility research. Progress in Geography, 2005,24(3):69-78.
	[ 李平华, 陆玉麒 . 可达性研究的回顾与展望. 地理科学进展, 2005,24(3):69-78.]
[47]	Chen Jie, Lu Feng, Cheng Changxiu . Advance in accessibility evaluation approaches and applications. Progress in Geography, 2007,26(5):100-110.
	[ 陈洁, 陆锋, 程昌秀 . 可达性度量方法及应用研究进展评述. 地理科学进展, 2007,26(5):100-110.]
[48]	Song Xiaodong, Niu Xinyi . The computer-aided evaluation on accessibility. Urban Planning Forum, 2000(3): 18-22,75-79.
	[ 宋小冬, 钮心毅 . 再论居民出行可达性的计算机辅助评价. 城市规划汇刊, 2000(3): 18-22,75-79.]
[49]	Long Guoqiang . Further discussion of the method to determine the influence area of city. Urban Problems, 1988(1):12-16.
	[ 隆国强 . 确定城市吸引范围方法的进一步探讨. 城市问题, 1988(1):12-16.]

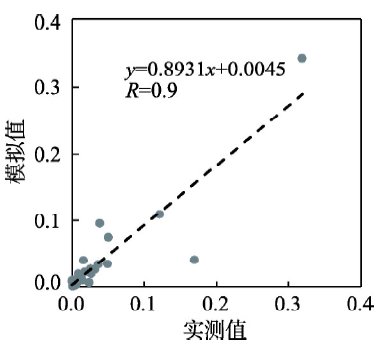

商业中心	实测值	模拟值	商业中心	实测值	模拟值	商业中心	实测值	模拟值	商业中心	模拟值
大宁	0.32	0.34	环球港	0.04	0.04	四川北路	0.02	0.02	七宝	0.00
不夜城	0.17	0.04	中山公园	0.03	0.03	徐家汇	0.02	0.04	张杨路	0.01
南京西路	0.12	0.11	淮海中路	0.03	0.02	中环	0.01	0.01	打浦桥	0.01
虹口龙之梦	0.05	0.08	长寿	0.03	0.03	陆家嘴	0.01	0.01	南方	0.00
五角场	0.05	0.04	大华	0.03	0.03	淮海路	0.01	0.02	莘庄	0.00
南京东路外滩	0.04	0.10	龙阳路	0.02	0.01	天山	0.01	0.00	豫园	0.01

就业中心	面积(hm²)	就业中心	面积(hm²)	就业中心	面积(hm²)	就业中心	面积(hm²)
南京西路	480	南京东路外滩	224	淮海中路	116	大柏树	48
徐家汇	460	曹杨路	220	淮海路	92	张江	48
张杨路	408	四川北路	196	打浦桥	80	豫园	36
长寿	400	陆家嘴	188	浦东软件园	76	外高桥	32
漕河泾经济技术开发区	380	五角场	184	唐镇	68	虹口龙之梦	28
中山公园	372	不夜城	172	虹桥临空经济园区	60	陆家浜	28
虹桥涉外贸易中心	264	苏河湾	148	江浦	52	曹安	24

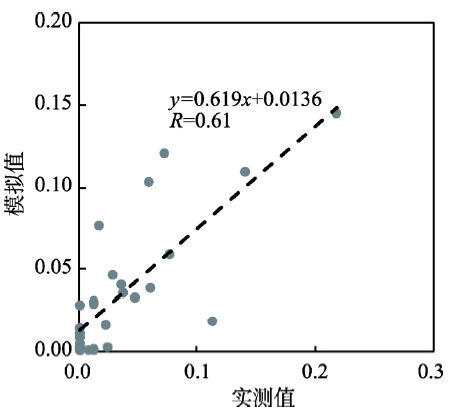

就业中心	实测值	模拟值	就业中心	实测值	模拟值	就业中心	实测值	模拟值	就业中心	模拟值
南京西路	0.22	0.15	大柏树	0.05	0.03	虹口龙之梦	0.01	0.03	打浦桥	0.01
不夜城	0.14	0.11	五角场	0.04	0.04	浦东软件园	0.01	0.00	淮海路	0.01
苏河湾	0.08	0.06	张杨路	0.04	0.04	徐家汇	0.01	0.03	江浦	0.01
长寿	0.07	0.12	曹杨路	0.03	0.05	张江	0.01	0.00	陆家浜	0.00
中山公园	0.06	0.04	淮海中路	0.02	0.02	外高桥	0.01	0.00	陆家嘴	0.03
四川北路	0.06	0.10	南京东路外滩	0.02	0.08	曹安	0.00	0.00	唐镇	0.00
虹桥涉外贸易中心	0.11	0.02	虹桥临空经济园区	0.02	0.00	漕河泾经济技术开发区	0.00	0.01	豫园	0.01

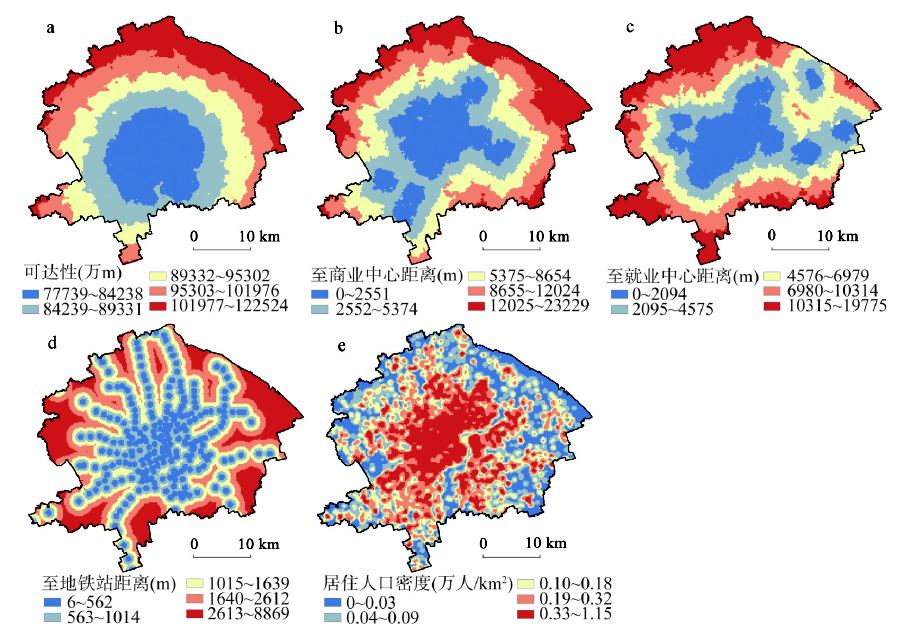

	可达性	至商业中心距离	至地铁站距离	居住人口密度
q值	0.303	0.325	0.086	0.082
p值	0.000	0.000	0.000	0.000

	可达性	至就业中心距离	至地铁站距离	居住人口密度
q值	0.036	0.037	0.015	0.032
p值	0.000	0.000	0.000	0.000
