青海喇家遗址土壤序列及史前山洪泥流灾难释光测年研究

doi:10.11821/dlxb201911013

Abstract

Abstract:

Environmental change and human-land relationship evolution over the Qinghai-Tibet Plateau are the frontiers of global change science. The Lajia Ruins in the Guanting Basin situated in the northeast margin of the Qinghai-Tibet Plateau has preserved many records of the Holocene environmental change, human activities, complex surface process evolution and abrupt catastrophic events. Therefore, the Lajia Ruins has received extensive attention from scientists from different fields, and has also attracted attention from world media. It is still quite controversial about the causation and age of the prehistoric catastrophe. After extensive field works over the years, a complete pedo-stratigraphy profile of soil and sediments has been found in the northern part of the Lajia Ruins. On the basis of field pedo-sedimentological observation and description, as well as physic-chemical analysis and OSL dating on the soil and sediment samples taken from the profile, a pedo-stratigraphic sequence and related chronology have been established in the Lajia Ruins. The results show that the profile has been developed from 12000 a BP. The pedo-stratigraphic sequence includes the Late Pleistocene Malan loess (L_1-1), Holocene transitional loess (L_t), the Middle Holocene palaeosol (S₀), the recent loess (L₀) and the modern topsoil (MS). The Middle Holocene palaeosol (S₀) is separated by three layers of red clay, which were deposited by large flash floods and mudflows during 3960-3650 a BP. These catastrophic events occurred at about 3850 a BP, 3800 a BP and 3600 a BP, respectively. The first mudflow event overflowed the gully channel and spread over a large area on the Yellow River terrace, and covered the eastern part of the large settlement of the Qijia Culture at 3850 a BP. All these facts indicate that the Lajia Ruins was destroyed by earthquakes in combination with large flash floods and mudflows coming along the gullies that originated from the hills of the Tertiary Red Formation. These results are very important in understanding environmental change and human-land relationship evolution, formation of the settlement of the Qijia Culture, pre-historical human impact and causation of catastrophe in the Guanting Basin.

Key words: Lajia Ruins, prehistoric catastrophe, mudflow event, stratigraphic sequence, OSL dating

CUAN Yuda, HUANG Chunchang, PANG Jiangli, ZHOU Yali, ZHANG Yuzhu, GUO Yongqiang, WANG Haiyan, ZHAO Qiqi. OSL dating of the pedo-stratigraphic sequence and the prehistoric flash floods and mudflows over the Lajia Ruins of Qinghai Province[J].Acta Geographica Sinica, 2019, 74(11): 2371-2384.

Figures/Tables 11

Fig. 1

Fig. 2

Fig. 3

Tab. 1

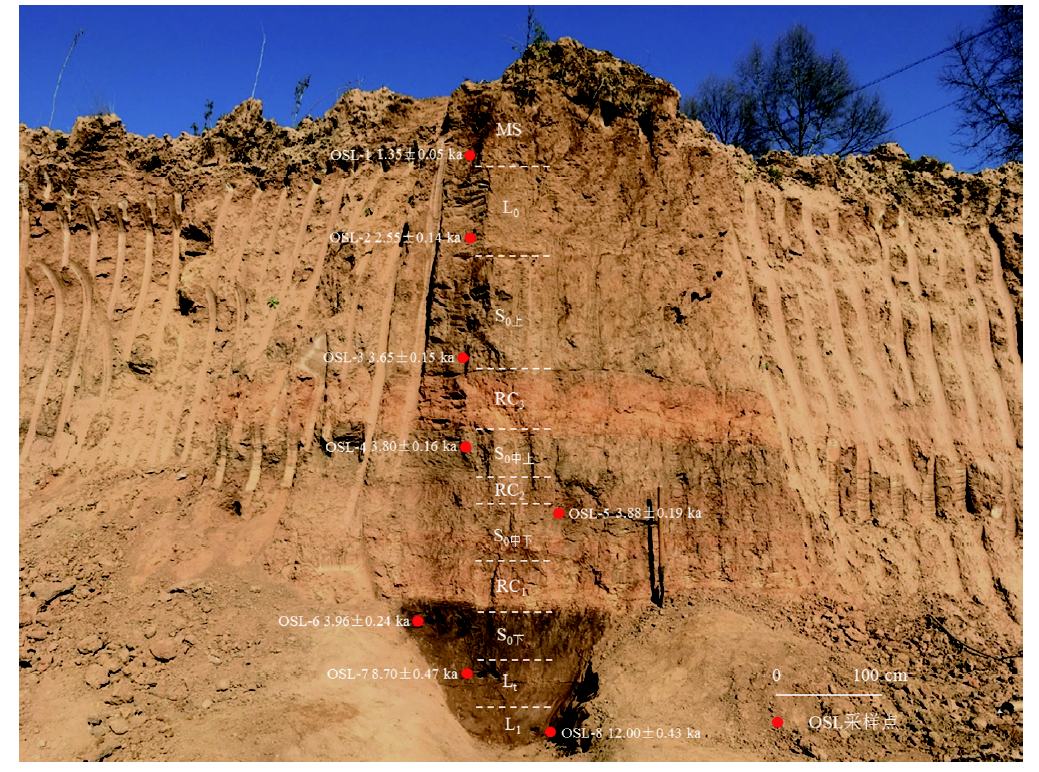

Pedo-stratigaphic subdivision and description of the Shanglajia profile (SLJ) in the Lajia Ruins within the Guanting Basin

地层深度	地层层位与符号	土壤学与沉积学宏观特征描述
0~60 cm	现代土壤(MS)	棕色(7.5YR4/6),粉砂质地,团粒构造,含有个别小石子,比较坚硬,多蚯蚓孔和粪团,多植物根系。
60~120 cm	全新世晚期风成黄土(L₀)	浊橙色(7.5YR6/4),粉砂质地,团块—块状构造,比较疏松,含有少量蚯蚓孔和粪团,受到一定程度的成壤改造。
120~180 cm	全新世中期古土壤层上段(S_0上)	浊红棕色(5YR5/3),粉砂质地,团粒构造,比较疏松,多蚯蚓孔和粪团,结构面有白色可溶盐粉霜沉淀,为发育成熟度很高的黑垆土,该底部对应于卡约/辛店文化时期(3600-3400 a BP)人类活动扰动层,局部可见断续的灰烬透镜体薄层。
180~222 cm	红色粘土质泥流沉积层(RC₃)	橙色(2.5YR6/6),下部粉砂质粘土质地,块状构造,比较疏松,上部多砂,松散,出现山洪砂土与砂砾质透镜体夹层。
222~265 cm	全新世中期古土壤层中上段(S_0中上)	灰棕色(5YR6/2),粉砂质地,团粒—块状构造,比较疏松,含有木炭屑,属于黑垆土。
265~288 cm	红色粘土质泥流沉积层(RC₂)	上部浊红棕色(2.5YR5/4),下部橙色(2.5YR6/6),粉砂质粘土质地,比较坚硬,团块块状构造。
288~298 cm	全新世中期古土壤层中下段(S_0中下)	灰棕色(5YR6/2),粉砂质地,团粒—块状构造,属于黑垆土。
298~346 cm	红色粘土质泥流沉积层(RC₁)	橙色(2.5YR6/6),粉砂质粘土质地,团块—块状构造,比较坚硬。所夹暗色层为灰棕色(5YR6/2),比较坚硬。
346~390 cm	全新世中期古土壤层下段(S_0下)	灰棕色(5YR5/2),粉砂质地,团粒—团块状构造,比较疏松,裂隙和结构面含有白色可溶盐类粉霜,属于黑垆土。其顶面为喇家遗址齐家文化时期(4150-3850 a BP)聚落和人类生产生活的古地面。
390~430 cm	全新世早期过渡性风成黄土(L_t)	浊棕色(7.5YR6/3),粗粉砂质地,块状构造,疏松,受到较弱的成壤改造。
> 430 cm	晚更新世晚期马兰黄土(L_1-1)	浊黄橙色(10YR7/3),粗粉砂质地,均质块状构造,致密而疏松,含有蜗牛壳,多细小孔隙,其中有灰白色可溶盐类沉淀,向下夹有山洪砂质透镜体薄层。

Tab. 1

Fig. 4

Fig. 5

Fig. 6

Tab. 2

Fig. 7

Fig. 8

Fig. 9

References 40

[1]	Hou Guangliang, Liu Fenggui . Pre-history and climate change of eastern Qinghai. Acta Geographica Sinica, 2004,59(6):841-846.
	[ 侯光良, 刘峰贵 . 青海东部史前文化对气候变化的响应. 地理学报, 2004,59(6):841-846.]
[2]	Timmermann A, Friedrich T . Late Pleistocene climate drivers of early human migration. Nature, 2016,538:92-95.
[3]	Ren Xiaoyan, Wang Guodao, Cai Linhai . Excavation on the Lajia Site in Minhe county, Qinghai, in 2000. Archaeology, 2002(12):12-25.
	[ 任小燕, 王国道, 蔡林海 , 等. 喇家遗址2000年发掘简报. 考古, 2002(12):12-25.]
[4]	Xia Zhengkai, Yang Xiaoyan, Ye Maolin . Prehistoric disaster at the lajia Ruins in Qinghai Province. Chinese Science Bulletin, 2003,48(11):1200-1204.
	[ 夏正楷, 杨晓燕, 叶茂林 . 青海喇家遗址史前灾难事件. 科学通报, 2003,48(11):1200-1204.]
[5]	Wu Qinglong, Zhang Peizhen, Zhang Huiping , et al. A palaeo-earthquake induced damming and bursting of the Yellow River and the abnormal flood that destroyed Liajia Relics. Science in China (Series D): Earth Sciences, 2009,39(8):1148-1159.
	[ 吴庆龙, 张培震, 张会平 , 等. 黄河上游积石峡古地震堰塞溃决事件与喇家遗址异常古洪水灾害. 中国科学: 地球科学, 2009,39(8):1148-1159.]
[6]	Huang C C, Zhou Y L, Zhang Y Z , et al. Comment on "Outburst flood at 1920 BCE supports historicity of China's great flood and the Xia Dynasty". Science, 2017,355(6332):1382.
[7]	Zhou Qiang, Zhang Yuzhu . Exploration and analysis of the reasons for pre-historical catastrophes in the Lajia Ruins, Qinghai Province, Acta Geographica Sinica, 2015,70(11):1774-1787.
	[ 周强, 张玉柱 . 青海喇家遗址史前灾难成因的探索与辨析. 地理学报, 2015,70(11):1774-1787.]
[8]	Zhang Yuzhu, Huang Chunchang, Zhou Yali , et al. Chronology research of landslide and dammed lake in Jishi Xia, Upper Yellow River. Science China Earth Sciences, 2017,47(11):1357-1370.
	[ 张玉柱, 黄春长, 周亚利 , 等. 黄河上游积石峡史前滑坡堰塞湖形成年代与发展演变研究. 中国科学: 地球科学, 2017,47(11):1357-1370.]
[9]	Cui Yifu, Liu Yujia, Ma Minmin . Spatial and temporal evolution of settlement in Neolithic-Bronze Age in Guanting Basin, northeast of Qinghai-Tibet Plateau. Science China Earth Sciences, 2018,48(2):152-164.
	[ 崔一付, 刘雨嘉, 马敏敏 . 青藏高原东北部官亭盆地新石器—青铜时代聚落时空演变及其影响因素. 中国科学: 地球科学, 2018,48(2):152-164.]
[10]	Yuan Daoyang, Zhang Peizhen, Lei Zhongsheng , et al. A preliminary study on the new activity features of the Lajishan mountain fault zone in Qinghai Province. Earthquake Research in China, 2005,21(1):93-102.
	[ 袁道阳, 张培震, 雷中生 , 等. 青海拉脊山断裂带新活动特征的初步研究. 中国地震, 2005,21(1):93-102.]
[11]	Chen Yun, Li Qiang, Li Zechun . Climatic characteristics of heavy rainfall in the northeast Tibetan Plateau. Journal of Applied Meteorological Science, 2006,17(8):98-103.
	[ 谌芸, 李强, 李泽椿 . 青藏高原东北部强降水天气过程的气候特征分析. 应用气象学报, 2006,17(8):98-103.]
[12]	Zheng Dewen, Zhang Peizhen, Wan Jinglin , et al. Tectonic events, climate and conglomerate: example from Jishishan mountain and Linxia basin. Quaternary Sciences, 2006,26(1):63-69.
	[ 郑德文, 张培震, 万景林 , 等. 构造、气候与砾岩: 以积石山和临夏盆地为例. 第四纪研究, 2006,26(1):63-69.]
[13]	Yin Zhiqiang. Landslide and Debris Flow in the Upper Yellow River: Evolution and Triggering Mechanism. Beijing: Science Press, 2016: 177-189.
	[ 殷志强 . 黄河上游滑坡泥石流时空演化及触发机制. 北京: 科学出版社, 2016: 177-189.]
[14]	Xie Duanju. Prehistoric Archaeology in Gansu and Qinghai Provinces. Beijing: Cultural Relics Press, 2002: 111-130.
	[ 谢端琚 . 甘青地区史前考古. 北京: 文物出版社, 2002: 111-130.]
[15]	Lai Zhongping, Ou Xianjiao . Basic procedures of optically stimulated luminescence (OSL) dating. Progress in Geography, 2013,32(5):683-693. doi: 10.11820/dlkxjz.2013.05.001
	[ 赖忠平, 欧先交 . 光释光测年基本流程. 地理科学进展, 2013,32(5):683-693.] doi: 10.11820/dlkxjz.2013.05.001
[16]	Wintle A G, Murray A S . A review of quartz optically stimulated luminescence characteristics and their relevance in single-aliquot regeneration dating protocols. Radiation Measurements, 2006,41(4):369-391.
[17]	Cunningham A C, Wallinga J . Selection of integration time intervals for quartz OSL decay curves. Quaternary Geochronology, 2010,5(6):657-666.
[18]	Aitken M J. An Introduction to Optical Dating. Oxford: Oxford University Press, 1998: 35-46, 193-198.
[19]	Prescott J R, Stephan L G . The contribution of cosmic radiation to the environmental dose for thermoluminescence dating. Latitude, altitude and depth dependences. Pact, 1982,6:17-25.
[20]	Zhao Zhichong, Wang Jinmin, Wang Junpeng . Study on a status of soil water and crop utilization of dry land in shallow mountain area. Agricultural Research in the Arid Areas, 2004,22(4):97-100.
	[ 赵之重, 王晋民, 王俊鹏 . 青海东部浅山旱地土壤水分状况及其作物利用研究. 干旱地区农业研究, 2004,22(4):97-100.]
[21]	Yang Wenzhi, Shao Mingan. Soil Moisture in the Loess Plateau. Beijing: Science Press, 2000: 34-38.
	[ 杨文治, 邵明安 . 黄土高原土壤水分研究. 北京: 科学出版社, 2000: 34-38.]
[22]	Durcan J A, King G E, Duller G A T . DRAC: Dose rate and age calculator for trapped charge dating. Quaternary Geochronology, 2015,28:54-61.
[23]	Murray A S, Wintle A G . Luminescence dating of quartz using an improved single-aliquot regenerative-dose protocol. Radiation Measurements, 2000,32(1):57-73.
[24]	Fuchs M, Wagner G A . Recognition of insufficient bleaching by small aliquots of quartz for reconstructing soil erosion in Greece. Quaternary Science Reviews, 2003,22(10):1161-1167.
[25]	Bailey R M, Arnold L J . Statistical modelling of single grain quartz De distributions and an assessment of procedures for estimating burial dose. Quaternary Science Reviews, 2006,25(19):2475-2502.
[26]	Galbraith R F, Roberts R G, Laslett G M , et al. Optical dating of single and multiple grains of quartz from Jinmium rock shelter, Northern Australia: Part I, Experimental design and statistical models. Archaeometry, 2010,41(2):339-364.
[27]	Chen Fahu, Ma Yuzhen, Li Jijun . High resolution record of Malan loess in the Longxi Loess Plateau and rapid climate changes during the Last Glaciation. Journal of Glaciolgy And Geocryology, 1996,18(2):111-118.
	[ 陈发虎, 马玉贞, 李吉均 . 陇西黄土高原马兰黄土划分与末次冰期气候快速变化研究. 冰川冻土, 1996,18(2):111-118.]
[28]	Zhang Yuzhu, Huang Chunchang, Pang Jiangli , et al. OSL dating of the sediment stratigraphy of the Lajia Ruins in the Guanting basin in the Upper Yellow River basin. Acta Geographica Sinica, 2013,68(5):626-639.
	[ 张玉柱, 黄春长, 庞奖励 , 等. 黄河上游官亭盆地喇家遗址地层光释光测年研究. 地理学报, 2013,68(5):626-639.]
[29]	Huang C C, Pang J L, Zhou Q Y , et al. Holocene pedogenic change and the emergence and decline of rain-fed cereal agriculture on the Chinese loess plateau. Quaternary Science Reviews, 2004,23(23):2525-2535.
[30]	Maher B A, Yu H, Roberts H M , et al. Holocene loess accumulation and soil development at the western edge of the Chinese Loess plateau: Implications for magnetic proxies of palaeorainfall. Quaternary Science Reviews, 2003,22(5-7), 445-451.
[31]	Yin Zhiqiang, Qin Xiaoguang, Zhao Wuji , et al. Reexploration on the formation mechanism of the red clay layer in the Guanting Basin of the upper reaches of Yellow River. Quaternary Sciences, 2013,33(5):995-1004. doi: 10.3969/j.issn.1001-7410.2013.05.17
	[ 殷志强, 秦小光, 赵无忌 , 等. 黄河上官亭盆地红粘土层成因机制再探讨. 第四纪研究, 2013,33(5):995-1004.] doi: 10.3969/j.issn.1001-7410.2013.05.17
[32]	Zheng Zixing, Huang Chunchang, Zhao Hui , et al. Geochemical characteristics of the Mid-Holocene palaeosol and mudflow deposits in the Lajia Ruins of Qinghai Province. Journal of Mountain Research, 2018,36(1):1-12.
	[ 郑紫星, 黄春长, 赵辉 , 等. 青海喇家遗址全新世中期土壤与泥流沉积物地球化学特征. 山地学报, 2018,36(1):1-12.]
[33]	Ye Maolin . The excavation of the Lajia site in Minhe, Qinghai. Archaeology, 2002(7):3-5.
	[ 叶茂林 . 青海民和喇家史前遗址的发掘. 考古, 2002(7):3-5.]
[34]	Zhang Xuelian, Ye Maolin, Qiu Shihua , et al. Radiation carbon dating in Lajia Ruins, Minghe county. Archaeology, 2014(11):91-104.
	[ 张雪莲, 叶茂林, 仇士华 , 等. 民和喇家遗址碳十四测年及初步分析. 考古, 2014(11):91-104.]
[35]	Dong Guanghui, Zhang Fanyu, Liu Fengwen , et al. Prehistoric disaster at the Lajia site has no relation with the Yellow River flood. Science China Earth Sciences, 2018,48(4):467-475.
	[ 董广辉, 张帆宇, 刘峰文 , 等. 喇家遗址史前灾害与黄河大洪水无关. 中国科学: 地球科学, 2018,48(4):467-475.]
[36]	Zhao Y, Yu Z C . Vegetation response to Holocene climate change in East Asian monsoon-margin region. Earth-Science Reviews, 2012,113(1/2):1-13.
[37]	Zhang Dongju, Dong Guanghui, Wang Hui , et al. History and possible mechanisms of prehistoric human migration to the Tibetan plateau. Science China Earth Sciences, 2016,46(8):1007-1023.
	[ 张东菊, 董广辉, 王辉 , 等. 史前人类向青藏高原扩散的历史过程和可能驱动机制. 中国科学: 地球科学, 2016,46(8):1007-1023.]
[38]	Chen F H, Dong G H, Zhang D J , et al. Agriculture facilitated permanent human occupation of the Tibetan plateau after 3600 BP. Science, 2015,348(6237):248.
[39]	Ren Kezhou . Xindian culture burials at Lajia site in Minhe County, Qinghai. Archaeology, 2015,3:115-120.
	[ 何克洲 . 青海民和县喇家遗址的辛店文化墓葬. 考古, 2015,3:115-120.]
[40]	Ren Ruibo . Excavator revealed five burials be attributed to Kayue culture, in Lajia site. Archaeology, 2017(5):114-120.
	[ 任瑞波 . 论喇家遗址“辛店文化”墓葬的文化归属. 考古, 2017(5):114-120.]

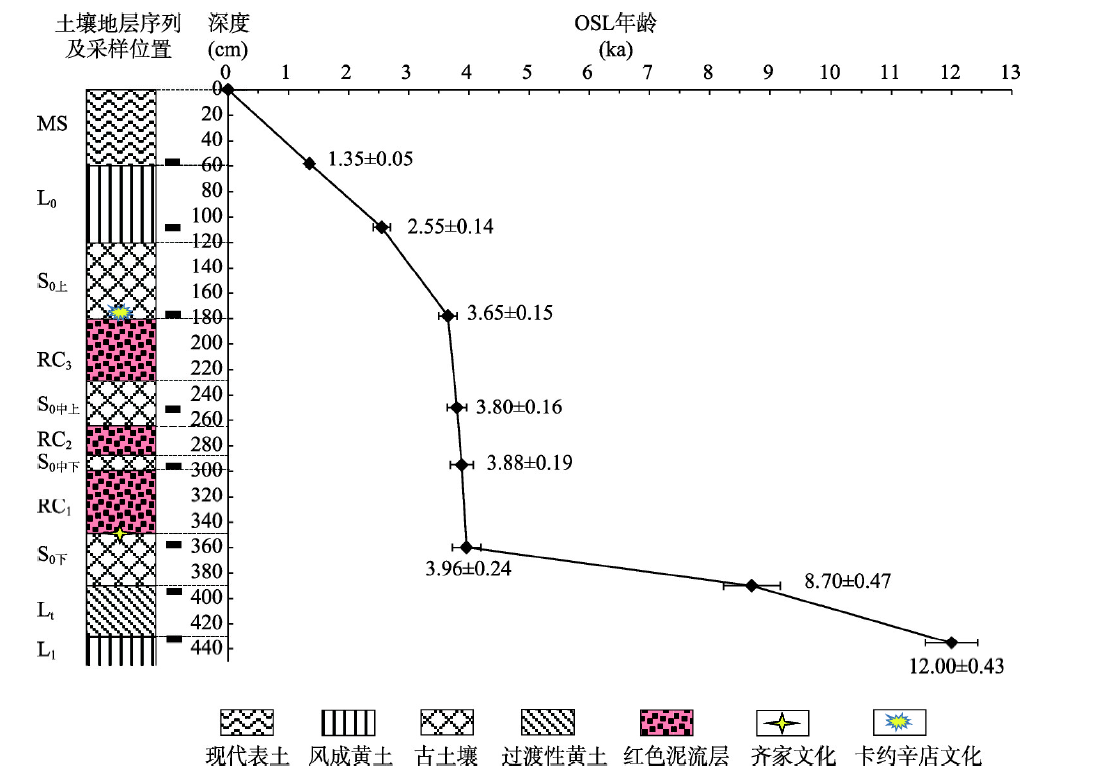

样品编号	深度(cm)	含水量(%)	U(ppm)	Th(ppm)	K(%)	年剂量(Gy/ka)	等效剂量(Gy)	年龄(ka)
SLJ-1	55-60	20±2	2.50±0.10	9.93±0.30	1.92±0.06	2.71±0.07	3.64±0.08	1.35±0.05
SLJ-2	105-110	18±2	2.79±0.11	11.5±0.32	2.11±0.06	2.98±0.08	7.61±0.35	2.55±0.14
SLJ-3	180-185	15±2	2.42±0.10	9.94±0.30	2.05±0.06	3.07±0.15	11.20±0.32	3.65±0.15
SLJ-4	240-245	15±2	2.48±0.10	11.6±0.32	2.36±0.07	3.67±0.12	13.95±0.51	3.80±0.16
SLJ-5	290-295	13±2	2.62±0.10	11.9±0.32	2.16±0.06	3.35±0.19	12.99±0.53	3.88±0.19
SLJ-6	355-360	15±2	3.45±0.13	12.6±0.35	2.35±0.07	3.56±0.14	14.08±0.68	3.96±0.24
SLJ-7	390-395	18±2	2.77±0.11	11.1±0.31	1.98±0.06	3.09±0.10	26.82±1.22	8.70±0.47
SLJ-8	430-435	18±2	3.05±0.12	11.2±0.31	1.89±0.06	2.92±0.08	34.94±0.83	12.00±0.43
