基于气象旱涝指数的旱涝急转事件识别方法

doi:10.11821/dlxb201911012

Abstract

Abstract:

A new method was proposed to identify drought-flood transition events by combining a drought-flood index (Standard Weighted Average Precipitation, SWAP) with the multi-threshold theory. This method was tested in the Yangtze River Basin using daily precipitation data from 212 stations for the 1961-2017 period. With this method, the meteorological drought and rainstorm flood in the representative station were identified, and representative regional drought-flood transition events and spatiotemporal patterns of drought-flood transition were analyzed. The results show that: SWAP is an effective index to identify the meteorological drought and rainstorm flood. K-means clustering can classify similar drought-flood transition events into one cluster. The drought event plays a dominate role in drought-flood transition events for the middle and lower reaches of the Yangtze River Basin in 2011, and the drought lasts for a much longer duration than the flood during the drought-flood transition event. Drought-flood transition events show an obvious regional pattern for the Yangtze River Basin with low frequency for the upper reaches and high frequency for the middle and lower reaches. In addition, the drought-flood transition frequency presents an increasing trend recently for most parts of the Yangtze River Basin. Overall, the results imply that the proposed method combining meteorological drought index with multi-threshold theory is capable of identifying drought-flood transition events, and can be further used for predicting drought-flood transition events.

Key words: drought-flood transition, Standard Weighted Average Precipitation, multi-threshold theory, clustering

YANG Jiawei, CHEN Hua, HOU Yukun, ZHAO Ying, CHEN Qihui, XU Chongyu, CHEN Jie. A method to identify the drought-flood transition based on the meteorological drought index[J].Acta Geographica Sinica, 2019, 74(11): 2358-2370.

Figures/Tables 14

Fig. 1

Tab. 1

Tab. 2

Tab. 3

Tab. 4

Tab.5

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig.7

Fig. 8

Fig. 9

References 32

[1]	Office of State Flood Control and Drought Relief Headquarters. Bulletin of Flood and Drought Disaster in China 2017. Beijing: SinoMaps Press, 2018.
	[ 国家防汛抗旱总指挥部. 中国水旱灾害公报2017. 北京: 中国地图出版社, 2018.]
[2]	Feng Guolin, Yang Hanwei, Zhang Shixuan , et al. A preliminary research on the reason of a sharp turn from drought to flood in the middle and lower reaches of the Yangtze River Basin in late spring and early summer of 2011. Chinese Journal of Atmospheric Sciences, 2012,36(5):1009-1026. doi: 10.3878/j.issn.1006-9895.2012.11220
	[ 封国林, 杨涵洧, 张世轩 , 等. 2011年春末夏初长江中下游地区旱涝急转成因初探. 大气科学, 2012,36(5):1009-1026.] doi: 10.3878/j.issn.1006-9895.2012.11220
[3]	Mallet J, Fortin G, Germain D . Extreme weather events in northeastern New Brunswick (Canada) for the period 1950-2012: Comparison of newspaper archive and weather station data. Canadian Geographer, 2018,62(2):130-143.
[4]	Rahmani V, Hutchinson S L, Harrington J A , et al. Analysis of frequency and magnitude of extreme rainfall events with potential impacts on flooding: A case study from the central United States. International Journal of Climatology, 2016,36(10):3578-3587.
[5]	Fu G, Yu J, Yu X , et al. Temporal variation of extreme rainfall events in China, 1961-2009. Journal of Hydrology, 2013,487:48-59.
[6]	Yang S, Wu B, Zhang R , et al. Relationship between an abrupt drought-flood transition over mid-low reaches of the Yangtze River in 2011 and the intraseasonal oscillation over mid-high latitudes of East Asia. Acta Meteorologica Sinica, 2013,27(2):129-143.
[7]	Ma Y, Yang Y, Wang C . How essential of the balance between large and small scale features to reproduce precipitation during a sudden sharp turn from drought to flood. Climate Dynamics, 2019,52(7):5013-5029.
[8]	Tang Huifang, Han Jiangang . An overview of disaster in summer of 1994 in China. Disaster Reduction in China, 1994,4(4):6-8.
	[ 唐惠芳, 韩建钢 . 1994年夏季我国灾害性天气概述. 中国减灾, 1994,4(4):6-8.]
[9]	Li Xun, Yuan Dongmin, Yin Zhicong , et al. Preliminary analysis of sudden turn of drought and flood in the middle and lower reaches of the Yangtze River Basin in 2011. Climatic and Environmental Research, 2014,19(1):41-50.
	[ 李迅, 袁东敏, 尹志聪 , 等. 2011年长江中下游旱涝急转成因初步分析. 气候与环境研究, 2014,19(1):41-50.]
[10]	Wu Z W, Li J P, He J H , et al. Occurrence of droughts and floods during the normal summer monsoons in the mid and lower reaches of the Yangtze River. Geophysical Research Letters, 2006,33(5):L05813. Doi: 10.1029/2005GL024487.
[11]	Zong H F, Cholaw B, Chen L T , et al. A typical mode of seasonal circulation transition: A climatic view of the abrupt transition from drought to flood over the middle and lower reaches of the Yangtze River Valley in the late spring and early summer of 2011. Atmospheric and Oceanic Science Letters, 2012,5(5):349-354.
[12]	Shan Lijie, Zhang Liping, Zhang Yanjun , et al. Characteristics of dry-wet abrupt alternation events in the middle and lower reaches of the Yangtze River Basin and the relationship with ENSO. Acta Geographica Sinica, 2018,73(1):25-40.
	[ 闪丽洁, 张利平, 张艳军 , 等. 长江中下游流域旱涝急转事件特征分析及其与ENSO的关系. 地理学报, 2018,73(1):25-40.]
[13]	Lu E . Determining the start, duration, and strength of flood and drought with daily precipitation: Rationale. Geophysical Research Letters, 2009,36:L12707. Doi: 10.1029/2009GL038817.
[14]	Lu E, Cai W Y, Jiang Z H , et al. The day-to-day monitoring of the 2011 severe drought in China. Climate Dynamics, 2014,43(1/2):1-9.
[15]	Song Yanling, Cai Wenyue, Liu Yanju , et al. The variation of droughts in southwestern China and its impact on rice yield in Guizhou. Journal of Applied Meteorological Science, 2014,25(5):550-558.
	[ 宋艳玲, 蔡雯悦, 柳艳菊 , 等. 我国西南地区干旱变化及对贵州水稻产量影响. 应用气象学报, 2014,25(5):550-558.]
[16]	Moyé L A, Kapadia A S . Predictions of drought length extreme order statistics using run theory. Journal of Hydrology, 1995,169(s1-4):95-110.
[17]	Shiau J T . Fitting drought duration and severity with two-dimensional copulas. Water Resources Management, 2006,20(5):795-815.
[18]	Chang Jiang Water Resources Commission of the Ministry of Water Resources. Flood and Drought Disaster in the Yangtze River Basin. Beijing: China Water & Power Press, 2002.
	[ 水利部长江水利委员会. 长江流域水旱灾害. 北京: 中国水利水电出版社, 2002.]
[19]	Office of State Flood Control and Drought Relief Headquarters, Hydrology and Water Resources Department. Flood and Drought Disaster in China. Beijing: China Water & Power Press, 1997.
	[ 国家防汛抗旱总指挥部, 水利部南京水文水资源研究所. 中国水旱灾害. 北京: 中国水利水电出版社, 1997.]
[20]	Zhang Q, Xu C Y, Zhang Z Z . Observed changes of drought/wetness episodes in the Pearl River basin, China, using the standardized precipitation index and aridity index. Theoretical & Applied Climatology, 2009,98(1/2):89-99.
[21]	Stagge J H, Tallaksen L M, Gudmundsson L , et al. Candidate distributions for climatological drought indices (SPI and SPEI). International Journal of Climatology, 2015,35(13):4027-4040.
[22]	Soláková T, Michele C D, Vezzoli R , et al. Comparison between parametric and nonparametric approaches for the calculation of two drought indices: SPI and SSI. Journal of Hydrologic Engineering, 2014,19(9):04014010. Doi: 10.1061/(ASCE)HE.1943-5584.0000942.
[23]	He J, Yang X H, Li J Q , et al. Spatiotemporal variation of meteorological droughts based on the daily comprehensive drought index in the Haihe River Basin, China. Natural Hazards, 2015,75(2):199-217.
[24]	Deo R C, Byun H R, Adamowski J F , et al. A real-time flood monitoring index based on daily effective precipitation and its application to Brisbane and Lockyer valley flood events. Water Resources Management, 2015,29(11):4075-4093.
[25]	Zhang Qiang, Zou Xukai, Xiao Fengjin , et al. Classification of Meteorological Drought, GB/T2048l-2006. Beijing: China Standard Press, 2006.
	[ 张强, 邹旭恺, 肖风劲 , 等. 气象干早等级, GB/T2048l-2006. 北京: 中国标准出版社, 2006.]
[26]	Zou Xukai, Ren Guoyu, Zhang Qiang . Droughts variations in China based on a compound index of meteorological drought. Climatic and Environmental Research, 2010,15(4):371-378.
	[ 邹旭恺, 任国玉, 张强 . 基于综合气象干旱指数的中国干旱变化趋势研究. 气候与环境研究, 2010,15(4):371-378.]
[27]	Macqueen J B. Some methods for classification and analysis of multivariate observations//Proceedings of 5th Berkeley Symposium on Mathematical Statistics and Probability. California: University of California Press, 1967: 281-297.
[28]	Rad A M, Khalili D . Appropriateness of clustered raingauge stations for spatio-temporal meteorological drought applications. Water Resources Management, 2015,29(11):4157-4171.
[29]	Jiang Hairu, Yang Baisong, Wu Shijing , et al. Complete Book of Meteorological Disasters in China: Hubei Volume. Beijing: China Meteorological Press, 2007.
	[ 姜海如, 杨柏松, 吴世经 , 等. 中国气象灾害大典: 湖北卷. 北京: 气象出版社, 2007.]
[30]	Qiao Shengxi. Climate Record of Hubei. Wuhan: Hubei People's Publishing House, 1989.
	[ 乔盛西 . 湖北省气候志. 武汉: 湖北人民出版社, 1989.]
[31]	Xiang Hua . Characteristics of weather and climate and major meteorological disasters in Hubei Province 2001. Rainstorm Disasters, 2002,21(1):42-44.
	[ 向华 . 2001年湖北省天气气候特点及主要气象灾害. 暴雨灾害, 2002,21(1):42-44.]
[32]	Office of State Flood Control and Drought Relief Headquarters. Bulletin of Flood and Drought Disaster in China 2011. Beijing: China Water & Power Press, 2012.
	[ 国家防汛抗旱总指挥部. 2011年中国水旱灾害公报. 北京: 中国水利水电出版社, 2012.]

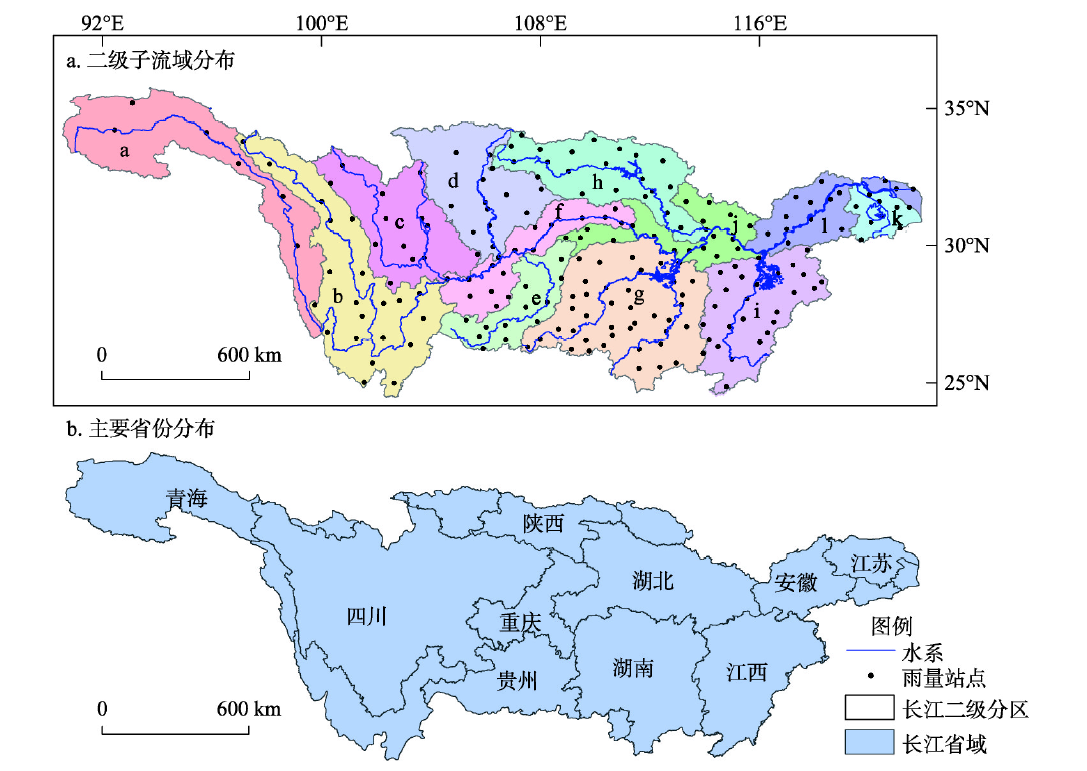

区域	编号	二级子流域分区	面积(万km²)	气象站点数（个）
长江上游	a	金沙江石鼓上游	20.83	7
	b	金沙江石鼓下游	23.71	20
	c	岷沱江	16.48	14
	d	嘉陵江	15.88	13
	e	乌江	8.7	11
	f	上游干流区	12.02	15
长江中游	g	洞庭湖	26.23	42
	h	汉江	15.55	23
	i	鄱阳湖	16.23	25
	j	中游干流区	9.67	19
长江下游	k	三角洲平原区	3.75	9
长江下游	l	下游干流区	9.25	14

旱涝等级	SWAP	概率(%)
特涝	2.0 ≤ SWAP	2.3
重涝	1.5 ≤ SWAP < 2.0	4.4
中涝	1.0 ≤ SWAP < 1.5	9.2
轻涝	0.5 ≤ SWAP < 1.0	15
正常	-0.5 < SWAP < 0.5	38.2
轻旱	-1.0 < SWAP ≤ -0.5	15
中旱	-1.5 < SWAP ≤ -1.0	9.2
重旱	-2.0 < SWAP ≤ -1.5	4.4
特旱	SWAP≤-2.0	2.3

旱涝急转强度	K
轻度	1.0 ≤ K < 2.0
中度	2.0 ≤ K < 3.0
重度	3.0 ≤ K

干旱起始	干旱结束	持续天数(d)	历史记载	来源
1961/7/12	1961/9/2	52	严重伏秋连旱	1、2
1966/3/22	1966/11/13	236	轻度春旱,严重伏秋连旱	1、2
1972/6/8	1972/9/12	96	严重伏秋连旱	1、2
1976/7/23	1976/10/22	91	严重伏秋连旱	1、2
1978/7/7	1978/10/26	111	特大伏秋连旱	1、2
1981/5/1	1981/6/27	57	严重春夏连旱	1
1992/8/11	1993/1/3	145	严重伏秋连旱	1
1994/5/2	1994/7/13	72	严重夏旱	1
2001/5/15	2001/11/29	198	严重春夏秋连旱	3

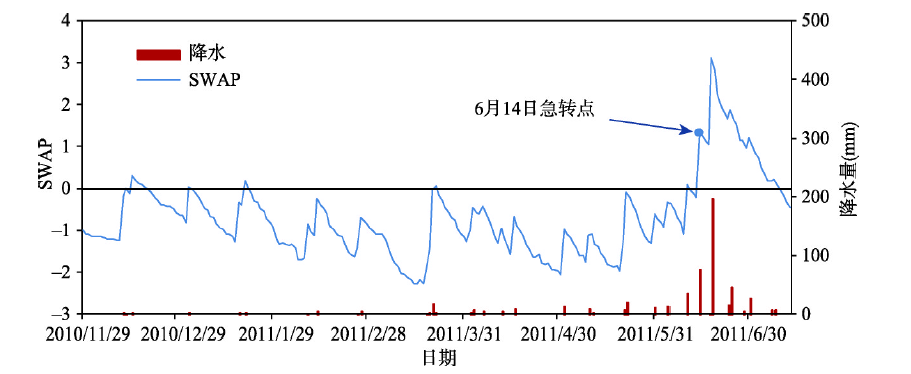

2010/11/29	2011/6/14	197	严重春夏连旱	4

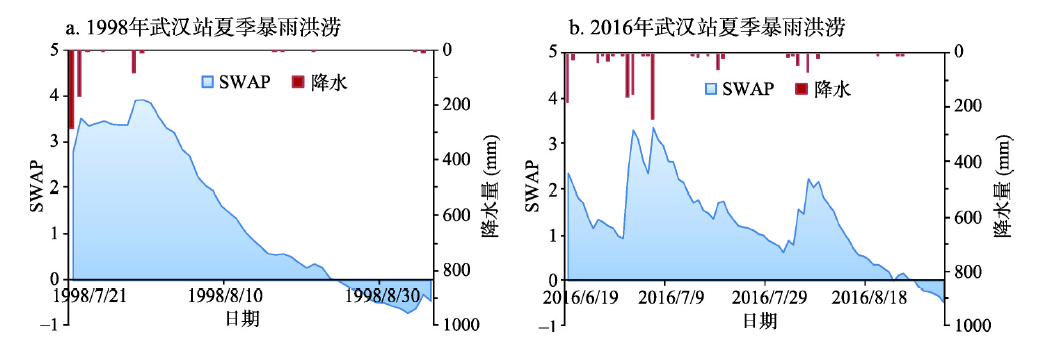

日期	单日降水(mm)	暴雨洪涝起始	暴雨洪涝结束
1982/6/20	298.5	1982/6/20	1982/10/7
1998/7/21	285.7	1998/7/21	1998/9/5
1969/8/23	261.7	1969/7/7	1969/10/10
2016/7/6	241.5	2016/6/19	2016/9/2
1961/6/8	214.5	1961/6/8	1961/6/25
1991/7/9	209.8	1991/5/21	1991/8/22
1962/7/4	198.0	1962/7/4	1962/10/20
2011/6/18	197.9	2011/6/14	2011/7/13
1962/8/23	180.9	1962/7/4	1962/10/14
2016/6/19	180.0	2016/6/19	2016/9/2
