基于水环境化学及稳定同位素联合示踪的土地利用类型对地下水体氮素归趋影响

doi:10.11821/dlxb201909013

Abstract

Abstract:

Identifying the sources and fate of nitrogen in groundwater is challenging in areas with diverse land use types and multiple potential inputs. The Abujiaohe river basin in China's Sanjiang Plain, which has mixed land use types, including forestland, upland, paddy fields, and residential areas, was selected as the study area. Multiple environmental tracers, including hydrochemical and stable isotopes of nitrate (δ ¹⁵N-NO₃ ^- and δ ¹⁸O-NO₃ ^-) from groundwater, were examined. A biplot approach (δ ¹⁵N-NO₃ ^- and δ ¹⁸O-NO₃ ^-) combined with multivariate statistical analysis of hydrochemical data was used to investigate the sources and fate of nitrogen in groundwater. The results showed that severe nitrogen pollution—the highest concentration found in this study exceeded the national limit by four times—was present in both towns and agricultural areas. Land use was not only the dominant determining factor of nitrogen concentration and groundwater chemistry type, but also had a key impact on the regional nitrogen cycle and nitrogen sources. In the forestland, dominant nitrate was mainly derived from organic nitrogen nitrification in the soil. In residential areas, excessive NO₃ ^- with high Cl ^- concentrations derived from manure and septic waste, which was controlled by the nitrification process. In paddy fields, low NO₃ ^-, combined with high NH₄ ⁺ and stable isotopes of nitrate concentrations, was observed. The linear relationship between δ ¹⁵N-NO₃ ^- and δ ¹⁸O-NO₃ ^-indicated that the occurrence of significant denitrification led to the limited presence of isotopic tracer. The uplands, affected by multiple factors such as rainfall and denitrification, had a more complex N cyclic process. Ultimately, multivariate statistical analysis results showed that the reduction of nitrogen fertilizer input was the main reason for nitrogen pollution. Therefore, the combined approach of using nitrogen isotopic ratios and conventional multivariate statistical analysis allowed for the more reliable separation of nitrogen sources in groundwater. This approach can help us to initiate more targeted remediation strategies.

Key words: nitrogen in groundwater, land use, stable isotopes, sources and fate, multivariate statistical analysis

LU Lu, DAI Erfu, CHENG Qianding, WU Zhenzhen. The sources and fate of nitrogen in groundwater under different land use types: Stable isotope combined with a hydrochemical approach[J].Acta Geographica Sinica, 2019, 74(9): 1878-1889.

Figures/Tables 10

Fig. 1

Tab. 1

Tab. 2

Fig. 2

Tab. 3

Tab. 4

Fig. 3

Fig. 4

Tab. 5

Fig. 5

References 31

[1]	Jiang Y, Yuan D, Xie S , et al. Groundwater quality and land use change in a typical karst agricultural region: A case study of Xiao jiang watershed, Yunnan. Journal of Geographical Sciences, 2006,16(4):405-414. doi: 10.1007/s11442-006-0403-9
[2]	Song K S, Liu D W, Wang Z M , et al. Land use change in Sanjiang Plain and its driving forces analysis since 1954. Acta Geographica Sinica, 2008,63(1):93-104.
	[ 宋开山, 刘殿伟, 王宗明 , 等. 1954年以来三江平原土地利用变化及驱动力. 地理学报, 2008,63(1):93-104.]
[3]	Dan W, Wei H, Shuwen Z , et al. Processes and prediction of land use/land cover changes (LUCC) driven by farm construction: The case of Naoli River Basin in Sanjiang Plain. Environmental earth sciences, 2015,73(8):4841-4851.
[4]	Cao Y, Tang C, Song X , et al. Characteristics of nitrate in major rivers and aquifers of the Sanjiang Plain, China. Journal of Environmental Monitoring, 2012,14(10):2624-2633.
[5]	Lu L, Cheng H G, Pu X , et al. Identifying organic matter sources using isotopic ratios in a watershed impacted by intensive agricultural activities in Northeast China . Agriculture, Ecosystems & Environment, 2016,222:48-59.
[6]	Pan Xiaofeng, Yan Baixing, Zhu Hui , et al. Iron species and output flux in the agricultural irrigation drainage system in the Sanjiang Plain. Acta Scientiae Circumstantiae, 2010,30(5):1087-1092.
	[ 潘晓峰, 阎百兴, 祝惠 , 等. 三江平原水田灌溉-排水过程中铁形态变化及输出贡献. 环境科学学报, 2010,30(5):1087-1092.]
[7]	Zou Yuanchun, Yu Xiaofei, Huo Lili , et al. Waterborne iron migration by groundwater irrigation pumping in a typical irrigation district of Sanjiang Plain. Environmental Science, 2012,33(4):1209-1215.
	[ 邹元春, 于晓菲, 霍莉莉 , 等. 三江平原典型灌区井灌地下水中铁的随水迁移特征. 环境科学, 2012,33(4):1209-1215.]
[8]	Li Qiao, Zhou Jinglong, Jia Ruiliang . Research status and prospect on agricultural non-point source pollution of groundwater. Groundwater, 2011,33(2):73-76.
	[ 李巧, 周金龙, 贾瑞亮 . 地下水农业面源污染研究现状与展望. 地下水, 2011,33(2):73-76.]
[9]	Balestrini R, Sacchi E, Tidili D , et al. Factors affecting agricultural nitrogen removal in riparian strips: Examples from groundwater-dependent ecosystems of the Po Valley (Northern Italy). Agriculture, Ecosystems & Environment, 2016,221:132-144.
[10]	Lawniczak A E, Zbierska J, Nowak B , et al. Impact of agriculture and land use on nitrate contamination in groundwater and running waters in central-west Poland. Environmental monitoring and assessment, 2016,188(3):1-10.
[11]	Matiatos I . Nitrate source identification in groundwater of multiple land-use areas by combining isotopes and multivariate statistical analysis: A case study of Asopos Basin (Central Greece). Science of the Total Environment, 2016,541:802-814.
[12]	Wang S, Zheng W, Currell M , et al. Relationship between land-use and sources and fate of nitrate in groundwater in a typical recharge area of the North China Plain. Science of the Total Environment, 2017,609:607-620.
[13]	Kendall C, Elliott E M, Wankel S D . Tracing anthropogenic inputs of nitrogen to ecosystems//Michener R H, Lajtha K. Stable Isotopes in Ecology and Environmental Science. Malden: Blackwell, 2007: 375-449.
[14]	Xue D, Botte J, De Baets B , et al. Present limitations and future prospects of stable isotope methods for nitrate source identification in surface-and groundwater. Water Research, 2009,43(5):1159-1170. doi: 10.1016/j.watres.2008.12.048
[15]	Wang X L, Li J S, Li S M , et al. A study on removing nitrogen from paddy field rainfall runoff by an ecological ditch-zeolite barrier system. Environmental Science and Pollution Research, 2017,24(35):27090-27103.
[16]	Cheong J, Hamm S, Lee J , et al. Groundwater nitrate contamination and risk assessment in an agricultural area, South Korea. Environmental Earth Sciences, 2012,66(4):1127-1136. doi: 10.1007/s12665-011-1320-5
[17]	Amano H, Nakagawa K, Berndtsson R . Groundwater geochemistry of a nitrate-contaminated agricultural site. Environmental Earth Sciences, 2016,75(15):1145.
[18]	Mao Xumei, Luo Zejiao, Li Yongyong , et al. Bacterial denitrification: A new method for nitrogen isotopic analysis of nitrate in groundwater. Acta Geoscientica Sinica, 2005,26(B09):44-47.
	[ 毛绪美, 罗泽娇, 李永勇 , 等. 地下水硝酸盐氮同位素分析最新方法: 细菌反硝化法. 地球学报, 2005,26(B09):44-47.]
[19]	Hosono T, Tokunaga T, Kagabu M , et al. The use of δ ¹⁵N and δ ¹⁸O tracers with an understanding of groundwater flow dynamics for evaluating the origins and attenuation mechanisms of nitrate pollution . Water Research, 2013,47(8):2661-2675.
[20]	Townsend M A . Use of the nitrogen-15 isotope natural abundance method and chemical ratios to determine sources of potential nitrate contamination of ground water, northeastern kansas. Geological Society of America Abstracts with Programs, 2009,41(4):67.
[21]	Du Y, Ma T, Deng Y , et al. Sources and fate of high levels of ammonium in surface water and shallow groundwater of the Jianghan Plain, Central China. Environmental Science: Processes & Impacts, 2017,19(2):161-172.
[22]	Liang T, Zhang X, Zhang S . Nitrogen elements transferring processes and fluxes under different land use in West Tiaoxi Catchment. Acta Geographica Sinica, 2002,57(4):389-396.
	[ 梁涛, 张秀梅, 章申 , 等. 西苕溪流域不同土地类型下氮元素输移过程. 地理学报, 2002,57(4):389-396.]
[23]	Xu Zhiwei, Zhang Xinyu, Yu Guirui , et al. Review of dual stable isotope technique for nitrate source identification in surface- and ground water in China. Environmental Science, 2014,35(8):3230-3238.
	[ 徐志伟, 张心昱, 于贵瑞 , 等. 中国水体硝酸盐氮氧双稳定同位素溯源研究进展. 环境科学, 2014,35(8):3230-3238.]
[24]	Lu L, Cheng H G, Pu X , et al. Nitrate behaviors and source apportionment in an aquatic system from a watershed with intensive agricultural activities. Environmental Science: Processes & Impacts, 2015,17(1):131-144.
[25]	Ding J T, Xi B, Gao R , et al. Identifying diffused nitrate sources in a stream in an agricultural field using a dual isotopic approach. Science of the Total Environment, 2014,484(24):10-18.
[26]	Barnes R T, Raymond P A . Land-use controls on sources and processing of nitrate in small watersheds: Insights from dual isotopic analysis. Ecological Applications, 2010,20(7):1961-1978.
[27]	Nestler A, Berglund M, Accoe F , et al. Isotopes for improved management of nitrate pollution in aqueous resources: review of surface water field studies. Environmental Science and Pollution Research, 2011,18(4):519-533. doi: 10.1007/s11356-010-0422-z
[28]	Minet E, Coxon C E, Goodhue R , et al. Evaluating the utility of δ ¹⁵N and δ ¹⁸O isotope abundance analyses to identify nitrate sources: A soil zone study . Water Research, 2012,46(12):3723-3736. doi: 10.1016/j.watres.2012.03.004
[29]	Kim H, Kaown D, Mayer B , et al. Identifying the sources of nitrate contamination of groundwater in an agricultural area (Haean Basin, Korea) using isotope and microbial community analyses. Science of the Total Environment, 2015,533:566-575.
[30]	Yin Juan, Wang Nanjiang, Mian Shaoping . Experiment study of the nitrogen transportation and transformation regularity in the rice field of Yin nan Irrigation District. Journal of Irrigation and Drainage, 2005,24(3):5-7.
	[ 尹娟, 王南江, 勉韶平 . 稻田土壤中氮素运移转化规律的试验研究. 灌溉排水学报, 2005,24(3):5-7.]
[31]	Song X, Wang S, Wang Y , et al. Addition of Fe ²+ increase nitrate removal in vertical subsurface flow constructed wetlands . Ecological Engineering, 2016,91:487-494.

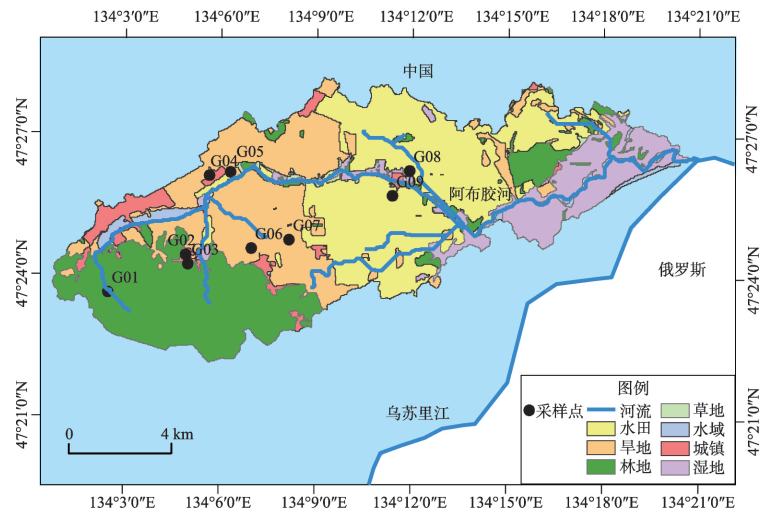

采样点	井深(m)	使用目的	土地利用类型	采样时间
G01	-	泉水	森林	共计3次采样： 2015年4月10日; 2015年8月2日; 2015年11月6日;
G02	20	饮用	城镇
G03	23	饮用	城镇
G04	25	饮用	城镇
G05	78	饮用	城镇
G06	106	灌溉	玉米地
G07	32	灌溉	玉米地
G08	30	饮用、灌溉	水稻田
G09	27	饮用、灌溉	水稻田

统计量	NO₃^-	NH₄⁺	NO₂^-
极小值	0.04	Null^a	0.006
极大值	57.18	1.93	0.013
均值	14.56	0.30	0.01
标准差	16.55	0.63	0.002
质量标准	20^b	0.5^b	0.02^b

统计量	极小值	极大值	均值	标准差
Na⁺	1.69	101.83	30.75	26.56
K⁺	0.31	10.2	1.74	2.45
Mg²⁺	2	40.56	15.97	10.47
Ca²⁺	6.2	51.54	24.73	12.38
Cl^-	0.11	58.28	21.56	23.34
SO₄^2-	0.04	52.48	12.29	14.39
HCO₃^-	7.86	75.72	49.67	22.18
Fe²⁺	Null^a	6.69	1.3	2.42
Mn²⁺	Null^a	1.44	0.3	0.44

变量	成分矩阵		旋转成分矩阵^a
变量	主成分1	主成分2	主成分1	主成分2
SO₄^2-	0.907	0.200	0.931	-0.099
Mg²⁺	0.873	0.338	0.898	-0.237
NO₃^-	0.861	-0.062	0.861	-0.189
Cl^-	0.853	-0.126	0.844	0.031
Na⁺	0.852	0.226	0.770	-0.076
K⁺	0.737	0.414	0.738	-0.449
Ca²⁺	0.719	0.285	0.701	-0.502
HCO₃^-	0.102	0.782	-0.257	0.861
NH₄⁺	-0.578	0.664	-0.211	0.855
Fe²⁺	-0.622	0.648	-0.212	0.760
Mn²⁺	-0.536	0.579	0.449	0.649
累积贡献率(%)	53.275	74.056	46.481	74.056

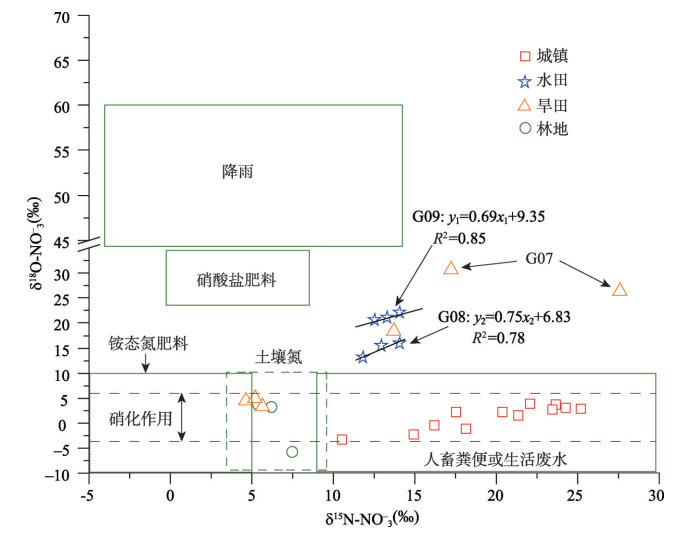

来源	δ¹⁵N-NO₃^-(‰)	δ¹⁸O-NO₃^-(‰)
降雨	-13~13	25~75
粪便及废水	4~25	-5~10
土壤氮	-3~8	-10~10
还原性氮肥	-6~6	-10~10
