Acta Geographica Sinica ›› 2019, Vol. 74 ›› Issue (6): 1236-1251.doi: 10.11821/dlxb201906012
• Transport Geography • Previous Articles Next Articles
YANG Qingqing1,LIU Qian1,YIN Sha1,ZHANG Jian1,YANG Xinjun1,GAO Yanhui2()
Received:
2018-03-30
Revised:
2019-03-02
Online:
2019-06-25
Published:
2019-06-20
Contact:
GAO Yanhui
E-mail:rwdl_gyh@163.com
Supported by:
YANG Qingqing,LIU Qian,YIN Sha,ZHANG Jian,YANG Xinjun,GAO Yanhui. Vulnerability and influencing factors of rural transportation environment in Qinling-Daba mountainous areas: A case study of Luonan county in Shaanxi province[J].Acta Geographica Sinica, 2019, 74(6): 1236-1251.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Tab. 1

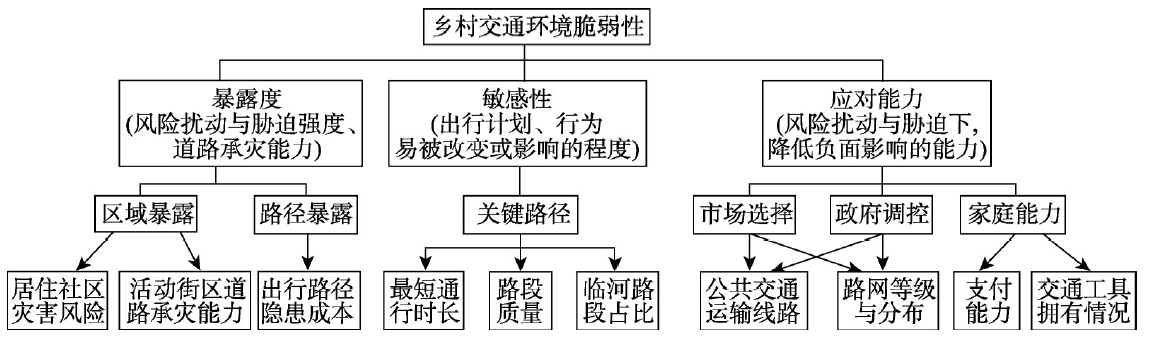

Evaluation index system of rural transportation environment vulnerability in mountainous areas
准则层 | 指标层 | 指标计算说明 | 指标方向 |
---|---|---|---|
暴露度 (E) | E1地形起伏度 | 基于精度为30 m的DEM数据,通过均值变点法寻找最佳统计单元为0.29 km2,地形起伏度为该单元内最高点与最低点之高程差 | + |
E2地质灾害风险等级 | 基于《洛南县地质灾害分布及易发程度分区图》,将地质灾害低、中、高易发等级依次赋分1~3分 | + | |
E3暴雨风险等级 | 基于《洛南县暴雨风险区划图》,根据暴雨等值线梯度依次赋分1~4分 | + | |
E4未铺装公路里程比 | 镇域范围内,未铺装公路里程与全部公路里程之比 | + | |
E5关键路径隐患成本 | 根据《洛南县农村公路安全隐患表》,依据不同类型的危害程度,将地质类、水毁类、积水或缺口类道路隐患点依次赋值1~3分,并将得分叠加至车行路网 | + | |
敏感性 (S) | S1关键路径最短通行时长 | 基于已有成果、研究区交通状况,将道路行车速度设为国道70 km/h,省道50 km/h,县道30 km/h,乡道25 km/h,其他或无道路通过区域设定为15 km/h[ | + |
S2关键路径临河长度 | 将河道风险缓冲区内路段视为临河路段。按照河道等级建立河道风险缓冲区,即一级河道200 m,二级河道150 m,三级及以下河道95 m[ | + | |
S3关键路径单位道路质量 | 以公路技术水平表征道路质量,依次将等外公路、四级、三级、二级赋权1~4分 | - | |
应对能力(RC) | R1村庄客运班线拥 有数 | 依据洛南县境内农村客运班线明细图表,统计各行政村客运班线拥有数量 | + |
R2农村家庭交通工具拥有数 | 农村家庭户均拥有主要交通工具(电动自行车、摩托车、民用汽车)数量,依次将电动自行车、摩托车、民用汽车赋权重1~3分 | + | |
R3农村人均纯收入 | 数值型变量 | + | |
R4加权路网密度 | 根据公路技术等级差异,依次将等外公路、四级、三级、二级赋权1~4分 | + |
Tab. 2
Estimation and diagnosis results of OLS model
解释变量 | 系数 | 标准差 | T值 | P值 | VIF | OLS诊断 | |
---|---|---|---|---|---|---|---|
常数项 | 0.406 | 0.090 | 4.485 | 0.000*** | - | R2 | 0.176 |
地形高程 | -0.247 | 0.064 | -3.868 | 0.000*** | 1.260 | 校正R2 | 0.147 |
耕地拥有量 | 0.139 | 0.083 | 1.664 | 0.097* | 1.129 | 联合F统计量/P值 | 0.000*** |
老龄化程度 | -0.205 | 0.085 | -2.419 | 0.016** | 1.185 | 多重共线性条件数 | 23.728 |
受教育程度 | 0.235 | 0.091 | 2.582 | 0.011** | 1.108 | Koenker(BP)统计量/P值 | 0.731 |
家庭规模 | 0.141 | 0.075 | 1.882 | 0.061* | 1.065 | 残差平方和 | 4.850 |
村庄规模 | -0.019 | 0.066 | -0.294 | 0.768 | 1.050 | 赤池信息准则(AICc) | -166.850 |
村庄资产 | -0.003 | 0.058 | -0.055 | 0.955 | 1.035 | Sigma | 0.157 |
Tab. 4

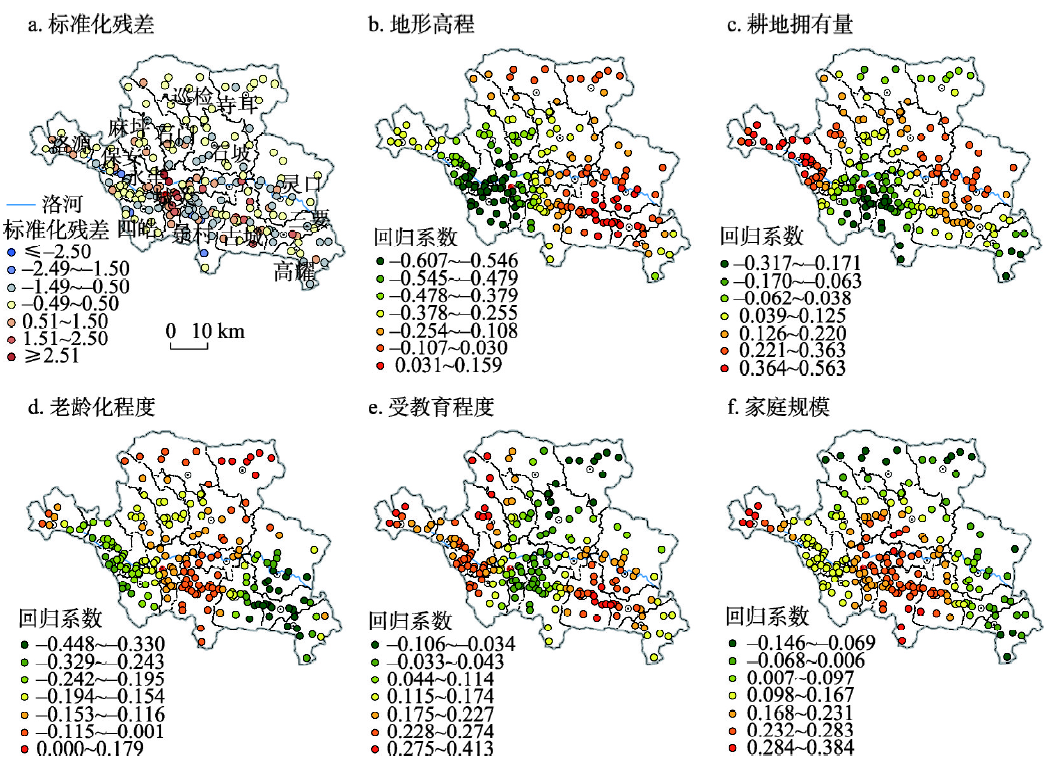

Descriptive statistics of the regression coefficient of GWR model
解释变量 | 最小值 | 上四分位值 | 中位值 | 下四分位值 | 最大值 | 平均值 |
---|---|---|---|---|---|---|
地形高程 | -0.607 | -0.490 | -0.324 | -0.066 | 0.159 | -0.277 |
耕地拥有量 | -0.317 | -0.046 | 0.104 | 0.232 | 0.563 | 0.092 |
老龄化程度 | -0.448 | -0.230 | -0.162 | -0.114 | 0.179 | -0.179 |
受教育程度 | -0.106 | 0.049 | 0.182 | 0.242 | 0.413 | 0.151 |
家庭规模 | -0.146 | 0.082 | 0.161 | 0.236 | 0.384 | 0.143 |
[1] |
Adger W N . Vulnerability. Global Environmental Change, 2006,16(3):268-281.
doi: 10.1016/j.gloenvcha.2006.02.006 |
[2] |
Nicholson A, Du Z P . Degradable transportation systems: An integrated equilibrium model. Transportation Research Part B: Methodological, 1997,31(3):209-223.
doi: 10.1016/S0191-2615(96)00022-7 |
[3] |
Berdica K . An introduction to road vulnerability: What has been done, is done and should be done. Transport Policy, 2002,9(2):117-127.
doi: 10.1016/S0967-070X(02)00011-2 |
[4] | Duan Y, Feng L . Robustness of city road networks at different granularities. Physica A Statistical Mechanics & Its Applications, 2014,411:21-34. |
[5] | Mattsson L G, Jenelius E . Vulnerability and resilience of transport systems: A discussion of recent research. Transportation Research Part A: Policy&Practice, 2015,81:16-34. |
[6] | Yin Hongying, Xu Liqun . Vulnerability assessment of transportation road networks. Journal of Transportation Systems Engineering and Information Technology, 2010,10(3):7-13. |
[ 尹洪英, 徐丽群 . 道路交通网络脆弱性评估研究现状与展望. 交通运输系统工程与信息, 2010,10(3):7-13.] | |
[7] | Murray A T, Matisziw T C, Grubesic T H . A methodological overview of network vulnerability analysis. Growth & Change, 2008,39(4):573-592. |
[8] |
Scott D M, Novak D C, Aultman-Hall L , et al. Network robustness index: A new method for identifying critical links and evaluating the performance of transportation networks. Journal of Transport Geography, 2006,14(3):215-227.
doi: 10.1016/j.jtrangeo.2005.10.003 |
[9] | Jenelius E, Petersen T, Mattsson L G . Importance and exposure in road network vulnerability analysis. Transportation Research Part A: Policy & Practice, 2006,40(7):537-560. |
[10] | Rupi F, Bernardi S, Rossi G , et al. The evaluation of road network vulnerability in mountainous areas: A case study. Networks & Spatial Economics, 2015,15(2):397-411. |
[11] | Yang Luping, Qian Dalin . Vulnerability analysis of road networks. Journal of Transportation Systems Engineering and Information Technology, 2012,12(1):105-110. |
[ 杨露萍, 钱大琳 . 道路交通网络脆弱性研究. 交通运输系统工程与信息, 2012,12(1):105-110.] | |
[12] |
He X, Liu H X . Modeling the day-to-day traffic evolution process after an unexpected network disruption. Transportation Research Part B: Methodological, 2012,46(1):50-71.
doi: 10.1016/j.trb.2011.07.012 |
[13] |
Alexakis D D, Agapiou A, Tzouvaras M , et al. Integrated use of GIS and remote sensing for monitoring landslides in transportation pavements: The case study of Paphos area in Cyprus. Natural Hazards, 2014,72(1):119-141.
doi: 10.1007/s11069-013-0770-3 |
[14] | Jin Cheng, Lu Yuqi, Zhang Li , et al. An analysis of accessibility of scenic spots based on land traffic network: A case study of Nanjing. Geographical Research, 2009,28(1):246-258. |
[ 靳诚, 陆玉麒, 张莉 , 等. 基于路网结构的旅游景点可达性分析: 以南京市区为例. 地理研究, 2009,28(1):246-258.] | |
[15] | Li Yiman, Xiu Chunliang, Sun Pingjun . Analyzing spatial pattern and accessibility of comprehensive transport in Zhejiang province. Human Geography, 2014,29(4):155-160. |
[ 李一曼, 修春亮, 孙平军 . 基于加权平均旅行时间的浙江省交通可达性时空格局研究. 人文地理, 2014,29(4):155-160.] | |
[16] | Chen Bowen, Lu Yuqi, Ke Wenqian , et al. Analysis on the measuring of the relationship between transportation accessibility and level of regional economic growth in Jiangsu: Based on spatial econometric perspective. Geographical Research, 2015,34(12):2283-2294. |
[ 陈博文, 陆玉麒, 柯文前 , 等. 江苏交通可达性与区域经济发展水平关系测度: 基于空间计量视角. 地理研究, 2015,34(12):2283-2294.] | |
[17] | Yin Jiangbin, Huang Xiaoyan, Hong Guozhi , et al. The effect of transport accessibility on urban growth convergence in China: A spatial econometric analysis. Acta Geographica Sinica, 2016,71(10):1767-1783. |
[ 殷江滨, 黄晓燕, 洪国志 , 等. 交通通达性对中国城市增长趋同影响的空间计量分析. 地理学报, 2016,71(10):1767-1783.] | |
[18] | Yang Xinjun, Shi Yuzhong, Wang Ziqiao . Exploring the impacts of road construction on a local social-ecological system in Qinling mountainous area. Acta Geographica Sinica, 2015,70(8):1313-1326. |
[ 杨新军, 石育中, 王子侨 . 道路建设对秦岭山区社会—生态系统的影响: 一个社区恢复力的视角. 地理学报, 2015,70(8):1313-1326.] | |
[19] | Tan Zhangzhi, Li Shaoyin, Li Xia , et al. Spatio-temporal effects of urban rail transit on complex land-use change. Acta Geographica Sinica, 2017,72(5):850-862. |
[ 谭章智, 李少英, 黎夏 , 等. 城市轨道交通对土地利用变化的时空效应. 地理学报, 2017,72(5):850-862.] | |
[20] |
Jenelius E . Network structure and travel patterns: Explaining the geographical disparities of road network vulnerability. Journal of Transport Geography, 2009,17(3):234-244.
doi: 10.1016/j.jtrangeo.2008.06.002 |
[21] | Jenelius E, Mattsson L G . Road network vulnerability analysis: Conceptualization, implementation and application. Computers Environment & Urban Systems, 2015,49:136-147. |
[22] | Taylor M A P, Susilawati . Remoteness and accessibility in the vulnerability analysis of regional road networks. Transportation Research Part A, 2012,46(5):761-771. |
[23] |
Nyberg R, Johansson M . Indicators of road network vulnerability to storm-felled trees. Natural Hazards, 2013,69(1):185-199.
doi: 10.1007/s11069-013-0693-z |
[24] |
Yang J, Sun H, Wang L , et al. Vulnerability evaluation of the highway transportation system against meteorological disasters. Procedia: Social and Behavioral Sciences, 2013,96:280-293.
doi: 10.1016/j.sbspro.2013.08.035 |
[25] |
Angeon V, Bates S . Reviewing composite vulnerability and resilience indexes: A sustainable approach and application. World Development, 2015,72:140-162.
doi: 10.1016/j.worlddev.2015.02.011 |
[26] | Luo Rihong, Huang Jinlin, Tang Zaozao . Study on freshet disaster risk zonation at small mountainous watershed base on AHP and GIS. Journal of Catastrophology, 2018,33(2):64-69. |
[ 罗日洪, 黄锦林, 唐造造 . 基于AHP和GIS的山区小流域山洪灾害风险区划研究. 灾害学, 2018,33(2):64-69.] | |
[27] |
Anselin L, Kelejian H H . Testing for spatial error autocorrelation in the presence of endogenous regressors. International Regional Science Review, 1997,20(1/2):153-182.
doi: 10.1177/016001769702000109 |
[28] | Anselin L . The local indicators of spatial association: LISA. Geographical Analysis, 1995,27(2):93-115. |
[29] | Brunsdon C, Fotheringham S, Charlton M . Geographically weighted regression-modelling spatial non-stationarity. Journal of the Royal Statistical Society, 1998,47(3):431-443. |
[30] | Liu Weidong, Liu Hongguang, Fan Xiaomei , et al. Sector-specific spatial statistic model for estimating inter-regional trade flows: A case study of agricultural, chemical and electronic sectors in China. Acta Geographica Sinica, 2012,67(2):147-156. |
[ 刘卫东, 刘红光, 范晓梅 , 等. 地区间贸易流量的产业—空间模型构建与应用. 地理学报, 2012,67(2):147-156.] | |
[31] | Zeng Juxin, Yang Qingqing, Liu Yajing , et al. Research on evolution and influential mechanism for rural human settlement in national key ecological function areas: A case of Lichuan. Human Geography, 2016,31(1):81-88. |
[ 曾菊新, 杨晴青, 刘亚晶 , 等. 国家重点生态功能区乡村人居环境演变及影响机制: 以湖北省利川市为例. 人文地理, 2016,31(1):81-88.] | |
[32] | Yang Qingqing, Chen Jia, Li Bohua , et al. Evolution and driving force detection of urban human settlement environment at urban agglomeration in the middle reaches of the Yangtze River. Scientia Geographica Sinica, 2018,38(2):195-205. |
[ 杨晴青, 陈佳, 李伯华 , 等. 长江中游城市群城市人居环境演变及驱动力研究. 地理科学, 2018,38(2):195-205.] | |
[33] |
Maru Y T, Smith M S, Sparrow A , et al. A linked vulnerability and resilience framework for adaptation pathways in remote disadvantaged communities. Global Environmental Change, 2014,28(1):337-350.
doi: 10.1016/j.gloenvcha.2013.12.007 |
