Acta Geographica Sinica ›› 2019, Vol. 74 ›› Issue (5): 935-947.doi: 10.11821/dlxb201905008
• Climate Change and Surface Processes • Previous Articles Next Articles
YAN Xin1,SUN Zhaohua1(),XIE Cuisong2,XIA Junqiang1
Received:
2017-08-07
Revised:
2019-03-31
Online:
2019-05-25
Published:
2019-05-24
Contact:
SUN Zhaohua
E-mail:Lnszh@126.com
Supported by:
YAN Xin,SUN Zhaohua,XIE Cuisong,XIA Junqiang. Estimation of critical discharge for saltwater intrusion in the upper south branch of the Yangtze River Estuary using empirical models[J].Acta Geographica Sinica, 2019, 74(5): 935-947.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks
Tab. 3
The statistical features of serious saltwater intrusion in the upper reach of south branch in the Yangtze Estuary
发生时间 | 监测点 | 超标天数(d) | 超标时段内大通流量均值(m3/s) | 资料来源 |
---|---|---|---|---|
1978年冬-1979年春 | 吴淞水厂 | 64 | 7256 | 文献[ |
1987年2-3月 | 陈行水库 | 13 | 8467 | 文献[10, 12, 19] |
1999年2-3月 | 25 | 9487 | 文献[ | |
2004年2月 | 9.8 | 9479 | 文献[ | |
2006年10月 | 9 | 14300 | 文献[ | |
2014年2月 | 19 | 10900 | 文献[ | |
2009年11月3-12日 | 东风西沙 | 10 | 14030 | 上海水务局 |
2013年11月15-24日 | 10 | 12240 | ||
2013年12月3-11日 | 9 | 12500 | ||
2013年12月17-25日 | 9 | 11356 | ||
2014年1月2-10日 | 9 | 12144 | ||
2014年1月30日-2月22日 | 24 | 11138 |
Tab. 7

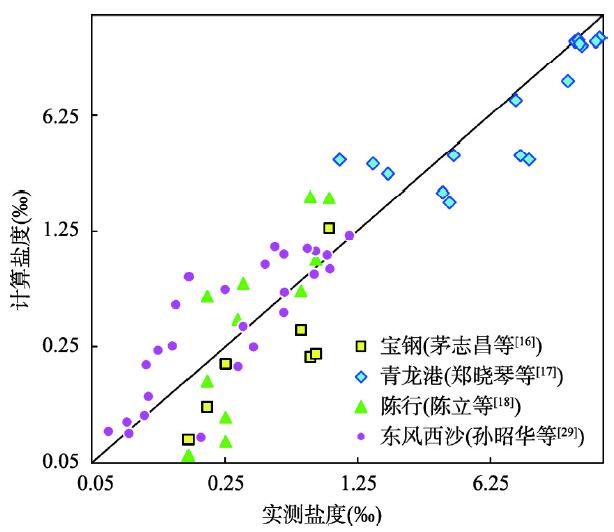

The correlation coefficient between measured salinity and calculated salinity using tidal range patterns B and C
序号 | 模型 | 潮差估算模式 | 计算和实测值决定系数R2 | 潮差估算模式 | 计算和实测值决定系数R2 |
---|---|---|---|---|---|
1 | 茅志昌等[ | 青龙港B线 | 0.45 | 青龙港C线 | 0.51 |
2 | 郑晓琴等[ | 青龙港B线 | 0.85 | 青龙港C线 | 0.88 |
3 | 陈立等[ | 青龙港B线 | 0.7 | 青龙港C线 | 0.74 |
4 | 孙昭华等[ | 徐六泾B线 | 0.8 | 徐六泾C线 | 0.81 |
[1] | Tang Jianhua, Xu Jianyi, Zhao Shengwei , et al. Research on saltwater intrusion of the south branch of the Changjiang Estuary based on measured data. Resources and Environment in the Yangtze Basin, 2011,20(6):677-684. |
[ 唐建华, 徐建益, 赵升伟 , 等. 基于实测资料的长江河口南支河段盐水入侵规律分析. 长江流域资源与环境, 2011,20(6):677-684.] | |
[2] | Xiao Chengyou, Shen Huanting . The analysis of factors affecting the saltwater intrusion in Changjiang Estuary. Journal of East China Normal University, 1998(3):74-80. |
[ 肖成猷, 沈焕庭 . 长江河口盐水入侵影响因子分析. 华东师范大学学报(自然科学版), 1998(3):74-80.] | |
[3] |
Zhang E F, Savenije H H G, Wu H , et al. Analytical solution in the Yangtze Estuary, China. Estuarine, Costal and Shelf Science, 2011,91(4):492-501.
doi: 10.1016/j.ecss.2010.11.008 |
[4] |
An Q, Wu Y Q, Taylor S , et al. Influence of the Three Project Gorges on saltwater intrusion in the Yangtze River. Environmental Geology, 2009,56(8):1679-1686.
doi: 10.1007/s00254-008-1266-4 |
[5] | Chen Zujun . Saltwater intrusion into water source zone in Yangtze Estuary in post-Three Gorges engineering era and countermeasures. Water Resources Protection, 2014,30(3):19-24. |
[ 陈祖军 . 后三峡工程时代长江口水源地盐水入侵规律及其应对措施. 水资源保护, 2014,30(3):19-24.] | |
[6] | Chen Jiyu, He Qing. The Research on Water Resources Safety in Shanghai under the Exceptionally Low Water Discharge in 2006. Beijing: China Ocean Press, 2009: 22- 36, 97-98. |
[ 陈吉余, 何青 . 2006年长江特枯水情对上海水资源安全的影响研究. 北京: 海洋出版社, 2009: 22- 36, 97-98.] | |
[7] | Chen Minjie, Hu Yajie, Ma Jing , et al. Diffusion response function and preliminary application of saltwater intrusion in the Yangtze River Estuary. Advances in Water Science, 2017,28(2):203-212. |
[ 陈敏捷, 胡雅杰, 马静 等. 长江口咸潮入侵扩散响应函数及初步应用. 水科学进展, 2017,28(2):203-212.] | |
[8] | Changjiang Water Resources Commission of the Ministry of Water Resources. Report of the comprehensive improvement and development planning of Yangtze River Estuary. Wuhan: Changjiang Water Resources Comission of the Ministry of Water Resources, 2005. |
[ 水利部长江水利委员会. 长江口综合整治开发规划报告. 武汉: 水利部长江水利委员会, 2005.] | |
[9] | Shen Huanting, Mao Zhichang, Gu Yuliang . Impacts of South-North water transfer (east route) on saltwater intrusion in the Changjiang Estuary with consideration of its countermeasures. Resources and Environment in the Yangtze Basin, 2002,11(2):150-154. |
[ 沈焕庭, 茅志昌, 顾玉亮 . 东线南水北调工程对长江口咸水入侵影响及对策. 长江流域资源与环境, 2002,11(2):150-154.] | |
[10] | Gu Yuliang, Wu Shoupei, Le Qin . Numerical simulation of flow field in upstream back water area of bridge and aqueduct. Yangtze River, 2003,34(4):1-3, 16. |
[ 顾玉亮, 吴守培, 乐勤 . 北支盐水入侵对长江口水源地影响研究. 人民长江, 2003,34(4):1-3, 16.] | |
[11] | Zhu Jianrong, Wu Hui, Li Lu , et al. Saltwater intrusion in the Changjiang Estuary in the extremely drought hydrologic year 2006. Journal of East China Normal University (Natural Science), 2010(4):1-6, 25. |
[ 朱建荣, 吴辉, 李路 , 等 . 极端干旱水文年(2016)中长江河口的盐水入侵. 华东师范大学学报(自然科学版), 2010(4):1-6, 25.] | |
[12] | Chen Qingjiang, Xu Jianyi, Zhu Jianrong , et al. Determination of critical flow for saline water intrusion into water source area of Yangtze River Estuary and guarantee measures. Yangtze River, 2011,42(18):68-72. |
[ 陈庆江, 徐建益, 朱建荣 , 等. 长江口水源地咸潮控制临界流量确定及保障措施. 人民长江, 2011,42(18):68-72.] | |
[13] | Li Yaping, Wu Sanchao, Lei Jing , et al. Research on lowest water level of water supply for main cities in mid-lower Yangtze River. Yangtze River, 2013,44(4):18-20. |
[ 李亚平, 吴三潮, 雷静 , 等. 长江中下游主要城市供水保证水位(流量)研究. 人民长江, 2013,44(4):18-20.] | |
[14] | Wang Wei . The research on the influence of the change of river discharge at Datong on the saltwater intrusion in Yangtze Estuary. Science Technology and Engineering, 2016,16(3):106-111. |
[ 王伟 . 上游大通径流量对长江盐水入侵影响研究. 科学技术与工程, 2016,16(3):106-111.] | |
[15] | Hou Chengcheng, Zhu Jianrong . The response time of saltwater intrusion in the Changjiang River Estuary to the change of river discharge in dry season. Acta Oceanologica Sinica, 2013,35(4):29-35. |
[ 侯成程, 朱建荣 . 长江河口盐水入侵对大通枯季径流量变化的响应时间. 海洋学报, 2013,35(4):29-35.] | |
[16] | Mao Zhichang, Shen Huanting, Yao Yunda . Analysis of sources of saltwater intrusion along south bank of south branch of Yangtze River Estuary. Marine Science Bullutin, 1993,12(3):17-25. |
[ 茅志昌, 沈焕庭, 姚运达 . 长江口南支南岸水域盐水入侵来源分析. 海洋通报, 1993,12(3):17-25.] | |
[17] | Zheng Xiaoqin, Xiao Wenjun, Yu Yun , et al. Statistical prediction study of runoff and tide on Changjiang River saltwater intrusion. Marine Forecast, 2014,31(4):18-23. |
[ 郑晓琴, 肖文军, 于芸 , 等. 基于径流和潮汐的长江口盐水入侵统计预测研究. 海洋预报, 2014,31(4):18-23.] | |
[18] | Chen Li, Zhu Jianrong, Wang Biao . The statistical model of saltwater intrusion at Chenghang reservior in Yangtze Estuary. Water & Wastewater Engineering, 2013,39(7):162-165. |
[ 陈立, 朱建荣, 王彪 . 长江河口陈行水库盐水入侵统计模型研究. 给水排水, 2013,39(7):162-165.] | |
[19] | Xu Jianyi, Yuan Jianzhong . The research on salt-water intrusion into the south branch of the Yangtze Estuary. Hydrology, 1994(5):1-6. |
[ 徐建益, 袁建忠 . 长江口南支河段盐水入侵规律的研究. 水文, 1994(5):1-6.] | |
[20] | Zhao Shengwei, Tang Jianhua, Tao Jing , et al. Impacts of Three Gorges project on the Yangtze River's discharge into the sea and the water supply in Shanghai. Journal of Hydroelectric Engineering, 2012,31(6):62-69. |
[ 赵升伟, 唐建华, 陶静 , 等. 三峡运行对长江入海流量及上海市供水的影响. 水力发电学报, 2012,31(6):62-69.] | |
[21] | Zhang Erfeng, Chen Xiqing . Changes of water discharge between Datong and the Changjiang River Estuary during the dry season. Acta Geographica Sinica, 2003,58(2):231-238. |
[ 张二凤, 陈西庆 . 长江大通—河口段枯季的径流量变化. 地理学报, 2003,58(2):231-238.] | |
[22] | Tang Jianhua, Liu Weiyi, Zhao Shengwei . Discharge relationships between Xuliujing of Yangtze River estuary and Datong. Water Resources and Power. 2011,29(7):4-7. |
[ 唐建华, 刘玮祎, 赵升伟 . 长江口徐六泾流量与大通流量间关系的探讨. 水电能源科学, 2011,29(7):4-7.] | |
[23] | He Songlin, Ding Pingxing, Kong Yazhen . Changes of salinity in south branch of the Yangtze estuary in dry seasons and the saltwater intrusion from north branch. Advances in Natural Science, 2006,16(5):584-589. |
[ 贺松林, 丁平兴, 孔亚珍 . 长江口南支河段枯季盐度变异与北支咸水倒灌. 自然科学进展. 2006,16(5):584-589.] | |
[24] |
Parsa J, Amir E. S . An empirical model for salinity intrusion in alluvial estuaries. Ocean Dynamics, 2011,61(10):1619-1628.
doi: 10.1007/s10236-011-0457-9 |
[25] | Chen Shangwei, Jin Zhaosen . The study about the method of tidal level forecast in Yangtze river. Journal of Hydraulic Engineering, 1989,20(6):41-47. |
[ 陈尚渭, 金兆森 . 长江潮位预报方法的研究. 水利学报, 1989,20(6):41-47.] | |
[26] |
Horrevoets A, Savenije H H G, Schuurman J , et al. The influence of river discharge on tidal damping in alluvial estuaries. Journal of Hydrology, 2004,294:213-228.
doi: 10.1016/j.jhydrol.2004.02.012 |
[27] | Lu Chuanteng, Luo Xiaofeng, Chen Zhichang . Influence of different runoffs on tidal wave propagation at Yangtze River Estuary. Yangtze River, 2010,41(12):45-48. |
[ 路川藤, 罗小峰, 陈志昌 . 长江口不同径流量对潮波传播的影响. 人民长江, 2010,41(12):45-48.] | |
[28] | State Environmental Protection Administration of China. Standard of Surface Water Environmental Quality (GB3838-2002). Beijing: China Environmental Science Press, 2002. |
[ 中华人民共和国国家环境保护总局. GB3838-2002地表水环境质量标准. 北京: 中国环境科学出版社, 2002.] | |
[29] | Sun Zhaohua, Yan Xin, Xie Cuisong , et al. An empirical predictive model for saltwater intrusion in the south branch influenced by tidal flow from the north branch in the Yangtze River Estuary. Advances in Water Science, 2017,28(2):213-222. |
[ 孙昭华, 严鑫, 谢翠松 , 等. 长江口北支倒灌影响区域盐度预测经验模型. 水科学进展, 2017,28(2):213-222.] | |
[30] |
Cheng X Q, Zong Y Q, Zhang E F , et al. Human impacts on the Changjaing (Yangtze) River basin, China, with special reference to the impacts on the dry season water discharge into the sea. Geomorphology, 2001,41(2/3):111-123.
doi: 10.1016/S0169-555X(01)00109-X |
[31] |
Chen D, Michel W, Brian F , et al. The impact of water transfer from the lower Yangtze River on water security in Shanghai. Applied Geography, 2013,45:303-310.
doi: 10.1016/j.apgeog.2013.09.025 |
