水系连通变异下荆南三口河系水文干旱识别与特征分析

doi:10.11821/dlxb201903012

Abstract

Abstract:

Based on the monthly runoff data of five stations in three outlets of Jingjiang river from 1956 to 2016, hydrologic drought characteristic variables were identified by run length theory. The probability distribution functions of drought duration, drought intensity and peak value were selected by Kolmogorow-Smirnov's goodness test. A Copulas function was constructed to deeply study the river hydrologic drought characteristics after the river connectivity variation in this region. The results showed that: (1) The year 1989 was the break point of the river system connectivity in three outlets of Jingjiang river (1956-2016). (2) The hydrologic drought characteristics changed significantly before and after river system connectivity break point. The frequency, duration, intensity and peak value of hydrologic drought increased. (3) The two-dimensional joint recurrence periods under the same single variable recurrence period in the pre-variation era in each site were much longer than those in the post-variation era but the two-dimensional co-occurrences return periods of pre-variation were shorter than those of post-variation. (4) The hydrologic drought duration, drought intensity and peak value in river system of the three outlets in Jingjiang river showed an increasing trend after river system connectivity variation. Under the same single variable recurrence period, the drought duration was longer, the drought intensity was greater and the peak value was higher. (5) The magnitude of hydrologic drought characteristics was different before and after variation of river system connectivity, and the variation ranges of hydrologic drought characteristics were different in different river systems.

Key words: hydrologic drought, drought characteristics, Archimedean Copulas function, river system connectivity variation, three outlets of Jingjiang river

Wen DAI, Dianqing LU, Jingbao LI, Jinfeng WANG, Zengyou ZHAO. Identification of hydrologic drought characteristics under water system connectivity variation in river system of three outlets of Jingjiang river[J].Acta Geographica Sinica, 2019, 74(3): 557-571.

Figures/Tables 7

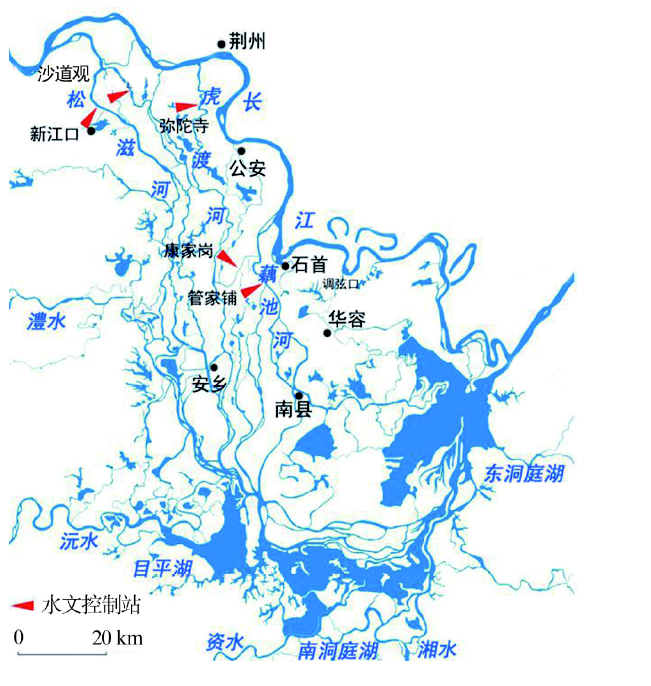

Fig. 1

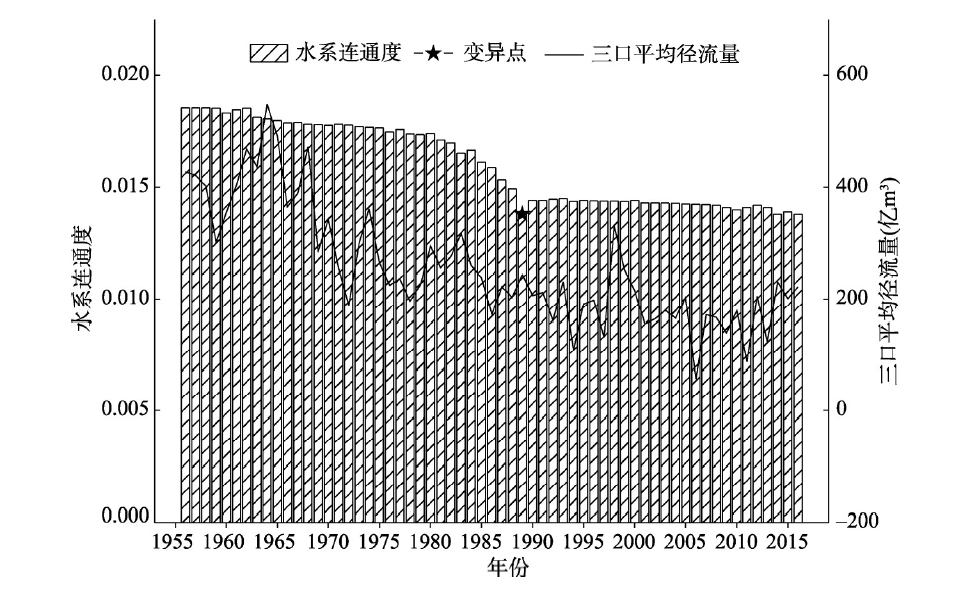

Fig. 2

Tab. 1

Tab. 2

Tab. 3

Tab. 4

Two- and three-dimensional joint return period and co-occurrences return period under the same univariate recurrence period for each hydrologic station after river system connectivity variation

水文站点	时间系列	单变量重现期(a)	联合重现期T_o(a)					同现重现期T_a(a)
水文站点	时间系列	单变量重现期(a)	ds	dp	sp	dsp		ds	dp	sp	dsp
新江口	1956-1989	2	1.34	1.34	1.34	1.10		3.95	3.95	3.96	6.04
		5	2.89	2.89	2.88	2.17		18.80	18.80	18.77	47.06
		10	5.40	5.40	5.40	3.86		66.81	66.81	66.99	275.14
	1990-2016	2	1.19	1.19	1.19	0.91		6.27	6.27	6.26	13.55
		5	2.71	2.71	2.70	1.94		33.15		33.15	33.07	134.92
		10	5.21	5.21	5.21	3.61		124.06		124.06	124.11	898.99
沙道观	1956-1989	2	1.45	1.45	1.45	1.26		3.20	3.20	3.20	4.28
		5	3.01	3.01	3.02	2.34		14.49	14.49		14.54	30.24
		10	5.54	5.54	5.55	4.05	50.80	50.80		50.82	169.15
	1990-2016	2	1.23	3.61	3.58	1.50	5.35		5.17	5.16	8.53
		5	2.74	2.74	2.75	1.99	27.71	27.71		27.80	99.84
		10	5.25	5.25	5.25	3.67	103.55	103.56		103.78	658.33
弥陀寺	1956-1989	2	1.35	1.35	1.35	1.12	3.85	3.85	3.86	5.96
		5	2.88	2.88	2.88	2.16	19.05	19.05		19.07	50.67
		10	5.39	5.39	5.39	3.85	69.51	69.51		69.42	313.55
	1990-2016	2	1.17	1.17	1.17	0.89	6.80		6.80	6.80	16.44
		5	2.68	2.68	2.68	1.90	37.46	37.46		37.40	180.87
		10	5.19	5.19	5.18	3.58	142.94	142.94		142.73	1264.12
康家岗	1956-1989	2	1.50	1.50	1.50	1.32	2.99	2.99	2.99	3.87
		5	3.05	3.05	3.05	2.39	13.86	13.86		13.89	28.71
		10	5.57	5.57	5.57	4.08	49.08	49.09		49.11	164.94
	1990-2016	2	1.30	1.30	1.30	1.06	4.36		4.36	4.36	7.46
		5	2.82	2.82	2.81	2.08	22.49	22.48		22.40	69.71
		10	5.24	5.24	5.26	3.67	101.39	101.40		101.95	696.56
管家铺	1956-1989	2	1.29	1.29	1.29	1.05	4.45	4.45	4.44	7.91
		5	2.80	2.80	2.80	2.06	23.63	23.63		23.53	79.52
		10	5.30	5.30	5.30	3.73	88.50	88.50		88.49	531.82
	1990-2016	2	1.15	1.15	1.15	0.86	7.80		7.80	7.81	22.25
		5	2.65	2.65	2.65	1.87	44.70	44.71		44.55	270.38
		10	5.15	5.15	5.15	3.53	172.38	172.38		172.56	1960.93

Tab. 4

Tab. 5

References 22

[1]	Heim J, Richard R.A review of twentieth-century drought indices used in the United States. Bulletin of the American Meteorological Society, 2002, 83(8): 1149-1165. doi: 10.1175/1520-0477(2002)083<1149:arotdi>2.3.co;2
[2]	Van Loon A F, Laaha G. Hydrological drought severity explained by climate and catchment characteristics. Journal of Hydrology, 2015, 526(7): 3-14. doi: 10.1016/j.jhydrol.2014.10.059
[3]	Wu J, Chen X, Yao H, et al.Non-linear relationship of hydrological drought responding to meteorological drought and impact of a large reservoir. Journal of Hydrology, 2017, 551(8): 495-507. doi: 10.1016/j.jhydrol.2017.06.029
[4]	Dong Qianjin, Xie Ping.Research progress on hydrological drought. Hydrology, 2014, 34(4): 1-7.
	[董前进, 谢平. 水文干旱研究进展. 水文, 2014, 34(4): 1-7.]
[5]	Li Yungang, He Jiaonan, Li Xue.Hydrological and meteorological droughts in the Red River Basin of Yunnan Province based on SPEI and SDI indices. Progress in Geography, 2016, 35(6): 758-767. doi: 10.18306/dlkxjz.2016.06.009
	[李运刚, 何娇楠, 李雪. 基于SPEI和SDI指数的云南红河流域气象水文干旱演变分析. 地理科学进展, 2016, 35(6): 758-767.] doi: 10.18306/dlkxjz.2016.06.009
[6]	Lu Guihua, Yan Guixia, Wu Zhiyong, et al.A method of regional drought analysis based on Copula function. Journal of Water Science, 2010, 21(2): 188-193.
	[陆桂华, 闫桂霞, 吴志勇, 等. 基于Copula函数的区域干旱分析方法. 水科学进展, 2010, 21(2): 188-193.]
[7]	Liu C L, Zhang Q, Singh V P, et al.Copula-based evaluations of drought variations in Guangdong, South China. Natural Hazards, 2011, 59(3): 1533-1546. doi: 10.1007/s11069-011-9850-4
[8]	Xiao Mingzhong, Zhang Qiang, Chen Xiaohong.Study on drought characteristics in the Pearl River Basin based on multivariate probability analysis. Acta Geographica Sinica, 2012, 67(1): 83-92. doi: 10.1007/s11783-011-0280-z
	[肖名忠, 张强, 陈晓宏. 基于多变量概率分析的珠江流域干旱特征研究. 地理学报, 2012, 67(1): 83-92.] doi: 10.1007/s11783-011-0280-z
[9]	Li Jingbao, He Xia, Yang Bo, et al.Temporal evolution of dried up days and the influencing mechanisms at Three Outlets along Jingjiang in the middle reach of Yangtze River. Chinese Journal of Natural Resources, 2016, 31(10): 1713-1725.
	[李景保, 何霞, 杨波, 等. 长江中游荆南三口断流时间演变特征及其影响机制. 自然资源学报, 2016, 31(10): 1713-1725.]
[10]	Li Jingbao, Chang Jiang, Lv Dianqing, et al.Hydrological effects between Jingjiang River and Dongting Lake during initial operation of Three Gorges Reservoir. Acta Geographica Sinica, 2009, 64(11): 1342-1352. doi: 10.3321/j.issn:0375-5444.2009.11.006
	[李景保, 常疆, 吕殿青, 等. 三峡水库调度运行初期荆江与洞庭湖区的水文效应. 地理学报, 2009, 64(11): 1342-1352.] doi: 10.3321/j.issn:0375-5444.2009.11.006
[11]	Freeman M C, Pringle C M, Jackson C R.Hydrologic connectivity and the contribution of stream headwaters to ecological integrity at regional scales. Journal of the American Water Resources Association, 2007, 43(1): 5-14. doi: 10.1111/j.1752-1688.2007.00002.x
[12]	Meng Huifang, Xu Youpeng, Xu Guanglai, et al.Research on river connectivity of plain river network area. Resources and Environment in the Yangtze River Basin, 2014, 23(5): 626-631. doi: 10.11870/cjlyzyyhj201405005
	[孟慧芳, 许有鹏, 徐光来, 等. 平原河网区河流连通性评价研究. 长江流域资源与环境, 2014, 23(5): 626-631.] doi: 10.11870/cjlyzyyhj201405005
[13]	Xu Guanglai, Xu Youpeng, Wang Liuyan.Computation of river network connectivity based on water flow resistance and graph theory. Journal of Water Science, 2012, 23(6): 776-781.
	[徐光来, 许有鹏, 王柳艳. 基于水流阻力与图论的河网连通性评价. 水科学进展, 2012, 23(6): 776-781.]
[14]	Xia Jihong, Chen Yongming, Zhou Ziye, et al.Research on mechanism and calculation method of river system connectivity. Progress in Water Science, 2017, 28(5): 780-787. doi: 10.14042/j.cnki.32.1309.2017.05.016
	[夏继红, 陈永明, 周子晔, 等. 河流水系连通性机制及计算方法综述. 水科学进展, 2017, 28(5): 780-787.] doi: 10.14042/j.cnki.32.1309.2017.05.016
[15]	Ru Biao, Chen Xing, Zhang Qicheng, et al.Evaluation of connectivity of drainage system in plain river network area. Hydropower Energy Science, 2013, 31(5): 9-12.
	[茹彪, 陈星, 张其成, 等. 平原河网区水系结构连通性评价. 水电能源科学, 2013, 31(5): 9-12.]
[16]	Yevjevich V.Objective approach to definitions and investigations of continental hydrologic droughts [D]. Fort Collins: Colorado State University, 1967.
[17]	Tallaksen L M, Madsen H, Clausen B.On the definition and modelling of streamflow drought duration and deficit volume. Hydrological Sciences Journal, 1997, 42(1): 15-33. doi: 10.1080/02626669709492003
[18]	Chen Yongqin, Sun Peng, Zhang Qiang, et al.Analysis of hydrological drought frequency in Poyang Lake Basin based on Copula. Journal of Natural Disaster, 2013, 22(1): 75-84.
	[陈永勤, 孙鹏, 张强, 等. 基于Copula的鄱阳湖流域水文干旱频率分析. 自然灾害学报, 2013, 22(1): 75-84.]
[19]	Nelsen B.An Introduction to Copulas. New York: Springer, 1998.
[20]	Wang Zhonggen, Li Zongli, Liu Changming, et al.A theoretical discussion on the connectivity of rivers and lakes. Chinese Journal of Natural Resources, 2011, 26(3): 523-529. doi: 10.11849/zrzyxb.2011.03.019
	[王中根, 李宗礼, 刘昌明, 等. 河湖水系连通的理论探. 自然资源学报, 2011, 26(3): 523-529.] doi: 10.11849/zrzyxb.2011.03.019
[21]	Zhang Yu, Song Songbo.Research on three-dimensional joint distribution of drought characteristic variables based on Archimedean Copula. China Rural Water and Hydropower, 2011(1): 65-68.
	[张雨, 宋松柏. 基于Archimedean Copula的三维干旱特征变量联合分布研究. 中国农村水利水电, 2011(1): 65-68.]
[22]	Dai Wen, Lv Dianqing, Li Jingbao, et al.The effect of climate change and human activities on runoff in the middle reaches of the Yangtze River. Journal of Glaciology and Geocryology, 2016, 38(2): 488-497. doi: 10.7522/j.issn.1000-0240.2016.0055
	[代稳, 吕殿青, 李景保, 等. 气候变化和人类活动对长江中游径流量变化影响分析. 冰川冻土, 2016, 38(2): 488-497.] doi: 10.7522/j.issn.1000-0240.2016.0055

水文站点	统计特征	1956-1989年				1990-2016年
水文站点	统计特征	干旱历时 (月)	干旱强度 (亿m³)	峰值 (亿m³/月)		干旱历时 (月)	干旱强度 (亿m³)	峰值 (亿m³/月)
新江口	最大值	7	186.06	164.30		9	1344.00	407.76
	最小值	1	0.04	0.04		1	0.22	0.18
	平均值	2	53.06	44.31		2	157.59	85.72
	中位数	1	15.76	14.66		2	47.95	40.84
沙道观	最大值	9	105.86	79.79		13	563.02	171.98
	最小值	1	0.39	0.10		1		0.10	0.10
	平均值	3	20.72	18.08		4		78.30	43.93
	中位数	3	0.99	0.79		4		15.07	14.53
弥陀寺	最大值	9	136.55	80.42	11	792.79	259.73
	最小值	1	0.30	0.30	1		0.30	0.25
	平均值	3	26.87	18.08	4		107.62	55.40
	中位数	3	1.24	0.35	3		29.64	29.64
康家岗	最大值	13	24.22	12.55	19	107.91	55.41
	最小值	1	0.07	0.07	1		0.21	0.21
	平均值	6	3.02	1.97	7		21.17	11.25
	中位数	6	0.46	0.07	7		3.02	1.66
管家铺	最大值	8	281.18	211.00	13	978.05	343.88
	最小值	1	0.32	0.32	1		0.05	0.05
	平均值	3	38.11	28.88	4		144.02	75.94
	中位数	3	1.30	0.32	3		17.50	17.50

水文站点	参数	y₀	A	R₀	R²	p值
新江口	干旱历时	0.9967	-2.81	-1.04	0.9995	0.029
	干旱强度	0.9988	-0.68	-0.002	0.9947	0.012
	峰值	1.0097	-0.69	-0.003	0.9955	0.011
沙道观	干旱历时	0.992	-2.49	-0.91	0.9964	0.033
	干旱强度	1.011	-0.79	-0.003	0.9973	0.025
	峰值	1.7861	-1.49	-0.001	0.9899	0.054
弥陀寺	干旱历时	0.9894	-2.6	-0.97	0.9996	0.032
	干旱强度	0.9881	0.77	-0.003	0.9891	0.015
	峰值	1.0494	-0.83	-0.003	0.9922	0.033
康家岗	干旱历时	1.009	-3.18	-1.15	0.9997	0.026
	干旱强度	1.0209	-1.2	-0.005	0.9823	0.193
	峰值	1.0386	-1.35	-0.06	0.9837	0.087
管家铺	干旱历时	1.008	-2.59	-0.94	0.9983	0.029
	干旱强度	1.0105	-0.88	-0.002	0.9964	0.080
	峰值	1.1264	-0.96	-0.002	0.9880	0.011

水文站点	函数类型	参数θ	RMSE	AIC	Bias
新江口	ClaytonCopula	4.7530	0.1495	-103.6713	62.8178
	Gumbel-HougaardCopula	0.1840	0.1504	-103.3249	63.2674
	FrankCopula	8.3250	0.1562	-101.1413	65.7073
	Ali-Mikhail-HaqCopula	361.9520	0.1576	-100.6264	66.2962
沙道观	ClaytonCopula	3.000	0.0425	-176.2557	17.8781
	Gumbel-HougaardCopula	0.1610	0.0439	-174.3854	18.4670
	FrankCopula	5.4890	0.0434	-175.0464	18.2567
	Ali-Mikhail-HaqCopula	999.9990	0.0948	-129.9588	39.8787
弥陀寺	ClaytonCopula	2.245	0.0159	-232.9932	6.6885
	Gumbel-HougaardCopula	0.1850	0.0161	-232.2718	6.7726
	FrankCopula	3.7490	0.0172	-228.4579	7.2354
	Ali-Mikhail-HaqCopula	53.2650	0.1301	-111.6923	54.7280
康家岗	ClaytonCopula	1.9013	0.0249	-207.1084	10.4745
	Gumbel-HougaardCopula	0.2020	0.0308	-194.8370	12.9564
	FrankCopula	3.7050	0.0324	-191.9145	13.6294
	Ali-Mikhail-HaqCopula	999.9990	0.0434	-175.0464	18.2567
管家铺	ClaytonCopula	1.3080	0.0180	-225.8344	7.5719
	Gumbel-HougaardCopula	0.1620	0.0196	-220.9201	8.2450
	FrankCopula	1.9320	0.0185	-224.2532	7.7822
	Ali-Mikhail-HaqCopula	419.3740	0.1351	-109.5160	56.8313

水文站点	时间系列	单变量重现期(a)	干旱历时(月)	干旱强度(亿m³)	峰值(亿m³/月)
新江口	1956-1989	2	2.85	767.10	1477.01
		5	3.77	1231.42	2305.05
		10	4.49	1588.46	2866.35
	1990-2016	2	3.53	1110.37	2097.58
		5	4.48	1580.86	2855.34
		10	5.27	1948.71	3329.89
沙道观	1956-1989	2	2.40	323.71	327.17
		5	3.45	611.25	502.63
		10	4.30	814.45	568.70
	1990-2016	2	3.32	574.88	786.62
		5	4.43	843.37	575.49
		10	5.41	1020.72	606.96
弥陀寺	1956-1989	2	2.47	396.34	343.94
		5	3.49	728.17	574.85
		10	4.34	1008.45	709.86
	1990-2016	2	3.33	675.29	542.87
		5	4.45	1045.17	723.30
		10	5.54	1422.62	814.51
康家岗	1956-1989	2	1.77	207.29	18.60
		5	2.54	376.33	31.83
		10	3.10	493.31	40.45
	1990-2016	2	2.27	317.03	27.27
		5	3.02	476.29	39.23
		10	3.54	580.39	46.41
管家铺	1956-1989	2	2.41	586.99	453.04
		5	3.34	1016.99	712.22
		10	4.00	1319.92	840.59
	1990-2016	2	3.12	918.04	660.47
		5	4.01	1322.99	841.67
		10	4.61	1591.83	920.34
