黄河玛曲砾质网状河段河间湿地形态特征及发育程度

doi:10.11821/dlxb201707006

Abstract

Abstract:

Interchannel wetlands as well as multiple channels are crucial geomorphologic units in an anastomosing river system. Planform characteristics and developing level of interchannel wetlands and multiple channels have effect on anastomosing rivers. To understand the role that interchannel wetlands play in the development of the anastomosing river, a study was carried out at the Maqu reach of the Yellow River, a gravel-bed anastomosing river characterized by highly developed interchannel wetlands and anabranches. Geomorphologic units in the study reach were extracted from high resolution satellite imagery in Google Earth, size distribution of interchannel wetlands and interchannel wetland clusters (special combination of interchannel wetlands and anabranches) were investigated, and geomorphologic parameters including ratio of interchannel wetland area to interchannel wetland cluster area (P), shoreline density (D_l) and node density (D_n) were used to examine planform characteristics of interchannel wetland clusters and the development level of multiple channels in the study reach. The results suggest that interchannel wetlands with small or medium size and interchannel wetland clusters with large or mega size are more common in the study reach. The area of interchannel wetland cluster (S_u) is highly related to other geomorphologic parameters, P increases with the increase of S_u, with 80% of P value being basically the upper limit, indicating that the development of interchannel wetlands and anabranches in an interchannel wetland cluster has entered a equilibrium stage. In contrast, D_l and D_n show a tendency to decrease with the increase of S_u due to evolution processes diversity in interchannel wetland clusters with different sizes. There are three main reasons for the formation of interchannel wetland clusters: stream power diversity caused by the meadering principal channel; development of river corridor due to the weakening of geologic structure control; and high stability of interchannel wetlands due to conservation by shoreline vegetation.

Key words: channel planform, gravel-bed anastomosing river, interchannel wetland, geomorphologic parameter, Yellow River

Boyi LIU, Suiji WANG. Planform characteristics and developing level of interchannel wetlands in a gravel-bed anastomosing river, Maqu Reach of the Upper Yellow River[J].Acta Geographica Sinica, 2017, 72(7): 1195-1206.

Figures/Tables 11

Fig. 1

Fig. 2

Fig. 3

Tab. 1

Tab. 2

Tab. 3

Tab. 4

Fig. 4

Tab. 5

Fig. 5

Tab. 6

References 44

[1]	Schumm S A.Speculations concerning paleohydrologic controls of terrestrial sedimentation. Geological Society of America Bulletin, 1968, 79(11): 1573-1588. doi: 10.1130/0016-7606(1968)79[1573:SCPCOT]2.0.CO;2
[2]	Miall A D.A review of the braided river depositional environment. Earth Science Reviews, 1977, 13(1): 1-62. doi: 10.1016/0012-8252(77)90055-1
[3]	Rust B R.A classification of alluvial channel systems//Miall A D. Fluvial Sedimentology. Canada Calgary: Canadian Society of Petroleum Geologists, 1978: 187-198.
[4]	Smith D G, Smith N D.Sedimentation in anastomosed river systems: Examples from alluvial valley near Bannf, Alberta. Journal of Sedimentary Research, 1980, 50(1): 157-164. doi: 10.1306/212F7991-2B24-11D7-8648000102C1865D
[5]	Wang S, Chen Z, Smith D G.2005. Anastomosing river system along the middle Yangtze River Basin, Southern China. Catena, 60(2): 147-163. doi: 10.1016/j.catena.2004.11.007
[6]	Wang Suiji, Ren Mingda.A new classification of fluvial rivers according to channel planform and sediment characteristics. Acta Sedimentologica Sinica, 1999, 17(2): 240-246.
	[王随继, 任明达. 根据河道形态和沉积物特征的河流新分类. 沉积学报, 1999, 17(2): 240-246.]
[7]	Yin Shoupeng, Xie Qingbin, Guan Shourui.Study on anastomosed river with comparative sedimentology. Acta Sedimentologica Sinica, 2000, 18(2): 221-226.
	[尹寿鹏, 谢庆宾, 管守锐. 网状河比较沉积学研究. 沉积学报, 2000, 18(2): 221-226.]
[8]	Makaske B.Anastomosing rivers: A review of their classification, origin and sedimentary products. Earth Science Reviews, 2001, 53(3): 149-196. doi: 10.1016/S0012-8252(00)00038-6
[9]	Wang Suiji, Yin Shoupeng.Discussion on channel patterns of anastomosing and anabranched river. Earth Science Frontiers, 2000, 7(B08): 79-86.
	[王随继, 尹寿鹏. 网状河流的分汊河流的河型归属讨论. 地学前缘, 2000, 7(B08): 79-86.]
[10]	Wang Suiji.Comparison of formation model and channel stability between two different sorts of multiple channel river patterns. Acta Geoscientia Sinica, 2002, 23(1): 89-93. doi: 10.3321/j.issn:1006-3021.2002.01.016
	[王随继. 两类多河道河流的形式模式及河道稳定性比较. 地球学报, 2002, 23(1): 89-93.] doi: 10.3321/j.issn:1006-3021.2002.01.016
[11]	Wang Suiji.Architectures, relationships between discharges and width/depth ratios of stream cross profiles, and stream powers of anastomosing rivers. Acta Sedimentologica Sinica, 2003, 21(4): 565-570.
	[王随继. 网状河流的构型、流量—宽深比关系和能耗率. 沉积学报, 2003, 21(4): 565-570.]
[12]	Wang S, Ni J, Wang G, et al.Hydrological processes of an anastomosing river system on the Zhujiang River delta, China. Journal of Coastal Research, 2004, 43: 124-133.
[13]	Miller J R.Development of anastomosing channels in south-central Indiana. Geomorphology, 1991, 4: 221-229. doi: 10.1016/0169-555X(91)90005-U
[14]	Bryant M, Falk P, Paola C.Experimental study of avulsion frequency and rate of deposition. Geology, 1995, 23(4): 365-368. doi: 10.1130/0091-7613(1995)0232.3.CO;2
[15]	Tabata K K, Hickin E J.Interchannel hydraulic geometry and hydraulic efficiency of the anastomosing Columbia River, southeastern British Columbia, Canada. Earth Surface Processes and Landforms, 2003, 28(8): 837-852. doi: 10.1002/esp.497
[16]	Wang S.Simulation experiment of anastomosing multiple channel formation//Hu C, Tan Y. Proceedings of the Ninth International Symposium on River Sedimentation. Beijing: Tsinghua University Press, 2004: 1747-1753.
[17]	Abbado D, Slingerland R, Smith N D.Origin of anastomosis in the Upper Columbia River, British Columbia, Canada//Blum M D, Marriott S B, Leclair S F. Fluvial Sedimentology VII. Oxford, UK: Blackwell Publishing Ltd., 2005: 1-15.
[18]	Jones L S, Schumm S A.Causes of avulsion: An overview//Smith N D, Rogers J. Fluvial Sedimentology VI. Oxford, UK: Blackwell Publishing Ltd., 1999: 171-178.
[19]	Rozo M G, Nogueira A C R, Truckenbrodt W. The anastomosing pattern and the extensively distributed scroll bars in the middle Amazon River. Earth Surface Processes and Landforms, 2012, 37(14): 1471-1488. doi: 10.1002/esp.3249
[20]	Brice J C.Channel patterns and terraces of the Loup Rivers in Nebraska. U.S. Geological Survey Professional Paper 422-D, Washington DC, 1964.
[21]	Friend P F, Sinha R.Braiding and meandering parameters//Best J L, Bristow C S. Braided Rivers. London, UK: Geological Society of London, 1993, 75: 105-111.
[22]	Makaske B, Smith D G, Berendsen H J A. Avulsions, channel evolution and floodplain sedimentation rates of the anastomosing upper Columbia River, British Columbia, Canada. Sedimentology, 2002, 49(5): 1049-1071. doi: 10.1046/j.1365-3091.2002.00489.x
[23]	Belletti B, Dufour S, Piégay H.What is the relative effect of space and time to explain the braided river width and island patterns at a regional scale? River Research and Applications, 2015, 31(1): 1-15. doi: 10.1002/rra.2714
[24]	Hooke J M, Yorke L.Channel bar dynamics on multi-decadal timescales in an active meandering river. Earth Surface Processes and Landforms, 2011, 36(14): 1910-1928. doi: 10.1002/esp.2214
[25]	Osterkamp W R.Processes of fluvial island formation, with examples from Plum Creek, Colorado and Snake River, Idaho. Wetlands, 1998, 18(4): 530-545. doi: 10.1007/BF03161670
[26]	Wyrick J R, Klingeman P C.Proposed fluvial island classification scheme and its use for river restoration. River Research and Applications, 2011, 27(7): 814-825. doi: 10.1002/rra.1395
[27]	Zanoni L, Gurnell A, Drake N, et al.Island dynamics in a braided river from analysis of historical maps and air photographs. River Research and Applications, 2008, 24(8): 1141-1159. doi: 10.1002/rra.1086
[28]	Church M, Rice S P.Form and growth of bars in a wandering gravel-bed river. Earth Surface Processes and Landforms, 2009, 34(10): 1422-1432. doi: 10.1002/esp.1831
[29]	Picco L, Mao L, Rainato R, et al.Medium-term fluvial island evolution in a disturbed gravel-bed river (Piave River, Northeastern Italian Alps). Geografiska Annaler: Series A, Physical Geography, 2014, 96(1): 83-97. doi: 10.1111/geoa.12034
[30]	Mikuś P, Wyżga B, Kaczka R J, et al.Islands in a European mountain river: Linkages with large wood deposition, flood flows and plant diversity. Geomorphology, 2013, 202: 115-127. doi: 10.1016/j.geomorph.2012.09.016
[31]	Wang Suiji.Analysis of river pattern transformations in the Yellow River Basin. Progress in Geography, 2008, 27(2): 10-17. doi: 10.11820/dlkxjz.2008.02.002
	[王随继. 黄河流域河型转化现象初探. 地理科学进展, 2008, 27(2): 10-17.] doi: 10.11820/dlkxjz.2008.02.002
[32]	Li Z, Wang Z, Pan B, et al.Analysis of controls upon channel planform at the First Great Bend of the Upper Yellow River, Qinghai-Tibet Plateau. Journal of Geographical Sciences, 2013, 23(5): 833-848. doi: 10.1007/s11442-013-1047-1
[33]	Li Zhiwei, Wang Zhaoyin, Yu Guo'an, et al. River pattern transition and its causes along Maqu reach of Yellow River source region. Journal of Sediment Research, 2013, 31(3): 51-58. doi: 10.3969/j.issn.0468-155X.2013.03.010
	[李志威, 王兆印, 余国安, 等. 黄河源玛曲河段河型沿程变化及其原因. 泥沙研究, 2013, 31(3): 51-58.] doi: 10.3969/j.issn.0468-155X.2013.03.010
[34]	Yu G, Liu L, Li Z, et al.Fluvial diversity in relation to valley setting in the source region of the Yangtze and Yellow Rivers. Journal of Geographical Sciences, 2013, 23(5): 817-832. doi: 10.1007/s11442-013-1046-2
[35]	Yu G, Brierley G, Huang H Q, et al.An environmental gradient of vegetative controls upon channel planform in the source region of the Yangtze and Yellow rivers. Catena, 2014, 119: 143-153. doi: 10.1016/j.catena2014.02.010
[36]	Kidová A, Lehotský M, Rusnák M.Geomorphic diversity in the braided-wandering Belá River, Slovak Carpathians, as a response to flood variability and environmental changes. Geomorphology, 2016, 272: 137-149. doi: 10.1016/j.geomorph.2016.01.002
[37]	Bertoldi W, Zanoni L, Tubino M.Planform dynamics of braided streams. Earth Surface Processes and Landforms, 2009, 34(4): 547-557. doi: 10.1002/esp.1755
[38]	Qi Dengchen, Li Guangyu.Status, causes and protection counter measures of wetland degradation in Maqu County in the Upper Yellow River. Wetland Science, 2008, 5(4): 341-347.
	[戚登臣, 李广宇. 黄河上游玛曲湿地退化现状、成因及保护对策. 湿地科学, 2008, 5(4): 341-347.]
[39]	Chu Lin, Huang Chong, Liu Gaohuan, et al.Changes in ecological patterns of Maqu alpine wetland in Yellow River Source Area during 2000-2010. Progress in Geography, 2014, 33(3): 326-335. doi: 10.11820/dlkxjz.2014.03.004
	[褚琳, 黄翀, 刘高焕, 等. 2000-2010年黄河源玛曲高寒湿地生态格局变化. 地理科学进展, 2014, 33(3): 326-335.] doi: 10.11820/dlkxjz.2014.03.004
[40]	Jiang Shizhong.Analysis on variety trend of runoff between Dari and Maqu in the headwater region of Yellow River in the past 50 years. Geographical Research, 2008, 27(1): 221-228.
	[姜世中. 黄河源区达日至玛曲段近50年径流量变化趋势分析. 地理研究, 2008, 27(1): 221-228.]
[41]	Liu Hujun, Xu Xianying, Wang Jihe, et al.Type and distribution of aeolian geomorphology at Marqu Region of Upstream Yellow River. Arid Land Geography, 2012, 35(3): 348-357.
	[刘虎俊, 徐先英, 王继和, 等. 黄河上游玛曲地区风沙地貌的类型及其分布. 干旱区地理, 2012, 35(3): 348-357.]
[42]	Singh M, Evans D, Friess D, et al.Mapping above-ground biomass in a tropical forest in Cambodia using canopy textures derived from Google Earth. Remote Sensing, 2015, 7(5): 5057-5076. doi: 10.3390/rs70505057
[43]	Rice S P, Church M, Wooldridge C L, et al.Morphology and evolution of bars in a wandering gravel-bed river; lower Fraser river, British Columbia, Canada. Sedimentology, 2009, 56(3): 709-736. doi: 10.1111/j.1365-3091.2008.00994.x
[44]	Gurnell A M, Petts G E, Hannah D M, et al.Riparian vegetation and island formation along the gravel-bed Fiume Tagliamento, Italy. Earth Surface Processes and Landforms, 2001, 26(1): 31-62.

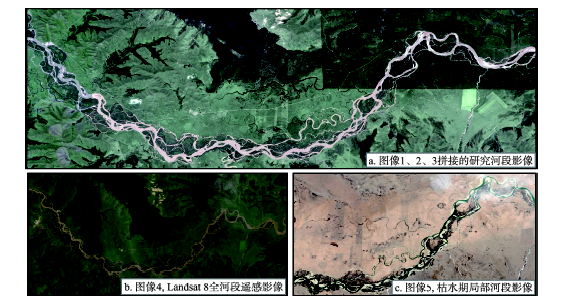

图像	卫星	获取日期	覆盖河段(km)	流量(m3/s)
1	WV02	2011.08.27	0~13.34	627
2	GE01	2013.07.29	13.41~45.18	1640
3	GE01	2013.08.01	45.18~64.81	1920
4	Landsat8	2013.07.23	0~64.81	1610
5	WV02	2011.03.08	25.25~59.81	113

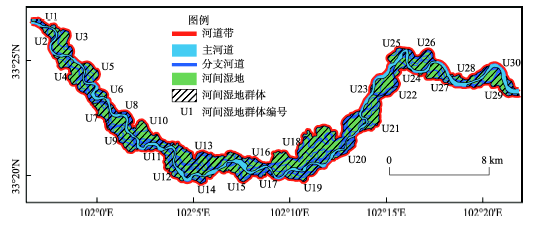

微地貌单元	定义
河道带	网状河中所有河道发育的范围,河道体系最外侧河道及其之间所有河道与河间湿地的集合
主河道	网状河中,常年有活动水流,一般情况下为河道体系中最宽的河道
分支河道	网状河中主河道以外的所有河道
河间湿地(岛屿)	汛期能够出露的由植被覆盖的河道间高地
河间湿地群体	位置相邻,发育上具有连续性的河间湿地与分割这些河间湿地的分支河道的群体

名称	面积 S_u (hm²)	湿地数 I (个)	河间湿地面积占比P (%)	岸线长度 L_i (km)	岸线密度 D_l (km/km²)	分汊点个数 N (个)	分汊点密度 D_n(个/km²)
U1	28.58	5	44.89	4.32	15.13	7	24.49
U2	63.51	16	65.40	8.08	12.72	33	51.96
U3	250.27	22	77.32	19.50	7.79	41	16.38
U4	404.15	47	73.51	43.70	10.81	83	20.54
U5	136.88	17	74.15	14.73	10.76	29	21.19
U6	44.21	15	66.02	6.93	15.67	24	54.29
U7	128.55	16	81.96	13.62	10.59	28	21.78
U8	25.31	9	37.56	3.94	15.58	12	47.42
U9	345.31	53	75.80	39.65	11.48	65	18.82
U10	331.36	44	71.27	32.82	9.90	64	19.31
U11	27.77	8	40.83	3.64	13.12	11	39.61
U12	163.57	28	73.58	21.67	13.25	36	22.01
U13	672.94	85	79.12	71.11	10.57	143	21.25
U14	54.45	14	50.81	7.75	14.23	28	51.42
U15	170.26	27	74.86	17.73	10.41	31	18.21
U16	119.13	15	70.07	13.97	11.73	16	13.43
U17	67.94	20	50.52	10.00	14.72	31	45.63
U18	1336.17	131	79.24	110.94	8.30	202	15.12
U19	177.93	48	63.95	24.47	13.75	56	31.47
U20	95.34	41	57.09	17.20	18.04	63	66.08
U21	321.44	54	78.85	35.77	11.13	67	20.84
U22	239.77	12	73.98	14.48	6.04	15	6.26
U23	6.46	2	33.25	0.82	12.66	3	46.47
U24	96.14	13	78.33	11.31	11.76	21	21.84
U25	70.64	4	71.70	5.92	8.37	7	9.91
U26	243.44	18	71.57	22.62	9.29	32	13.15
U27	183.42	26	83.21	18.86	10.28	45	24.53
U28	114.00	14	55.55	11.24	9.86	22	19.30
U29	260.51	29	73.11	20.06	7.70	40	15.35
U30	25.73	4	52.71	3.54	13.77	7	27.21

面积(hm²)	描述	湿地数 (个)	湿地数占比 (%)	总面积(hm²)	总面积占比(%)
< 0.1	微型	231	27.24	8.70	0.19
0.1~1	小型	284	33.49	108.92	2.36
1~10	中型	232	27.36	808.19	17.54
10~100	大型	97	11.44	2988.96	64.87
≥ 100	巨型	4	0.47	692.67	15.03

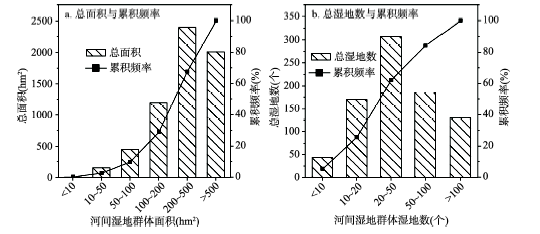

面积(hm²)	描述	群体数	总面积(hm²)	总面积占比(%)	河间湿地数	群体数	总湿地数占比(%)
< 10	小型	1	6.46	0.10	< 10	6	5.14
10~50		5	151.59	2.44	10~20*	10	20.31
50~100		6	448.02	7.22	20~50	10	36.80
100~200	中型	8	1193.74	19.24	50~100	3	22.10
200~500	大型	8	2396.24	38.62	> 100	1	15.65
> 500	巨型	2	2009.11	32.38

Planform characteristics and developing level of interchannel wetlands in a gravel-bed anastomosing river, Maqu Reach of the Upper Yellow River

RichHTML

PDF (PC)

Like

Knowledge

Cited

Abstract

Cite this article

share this article

Figures/Tables 11

References 44

Related Articles 15

Metrics

Comments

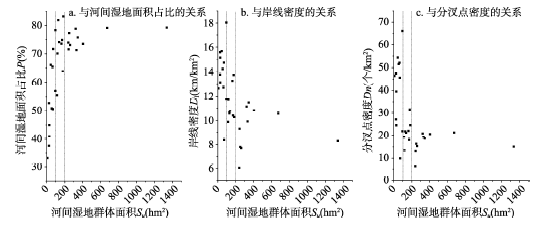

面积(hm²)	河间湿地面积占比P (%)			岸线密度D_l(km/km²)			分汊点密度D_n (个/km²)
面积(hm²)	均值	最小	最大	均值	最小	最大	均值	最小	最大
< 10	33.25			12.66			46.47
10~50	48.40	37.56	66.02	14.65	13.12	15.67	38.60	24.49	54.29
50~100	62.31	50.52	78.33	13.31	8.37	18.04	41.14	9.91	66.08
100~200	72.17	55.55	83.21	11.33	9.86	13.75	21.49	13.43	31.47
200~500	74.46	71.27	78.85	9.27	6.04	11.48	16.33	6.26	20.84
> 500	79.18	79.12	79.24	9.43	8.30	10.57	18.18	15.12	21.25
