河北雄安新区建设的区域地表本底特征与生态管控

doi:10.11821/dlxb201706001

Abstract

Abstract:

Development of Xiong'an New District (XND) is integral to the implementation of the Beijing-Tianjin-Hebei (BTH) Integration Initiative. It is intended to ease the non-capital functions of Beijing, optimize regional spatial patterns, and enhance ecosystem services and living environment in this urban agglomeration. Applying multi-stage remote sensing (RS) images, land use/cover change (LULC) data, ecosystem services assessment data, and high-precision urban land-cover information, we reveal the regional land-cover characteristics of this new district as well as across the planned area of the entire BTH urban agglomeration. Corresponding ecological protection and management strategies are also proposed. Results indicated that built-up areas were rapidly expanding, leading to a continuous impervious surface at high density. Urban and impervious surface areas (ISAs) grew at rates 1.27 and 1.43 times higher than that in 2000, respectively, seriously affecting about 15% area of the sub-basins. Construction of XND mainly encompasses Xiongxian, Rongcheng, and Anxin counties, areas which predominantly comprise farmland, townships and rural settlements, water, and wetland ecosystems. The development and construction of XND should ease the non-capital functions of Beijing, as well as moderately control population and industrial growth. Thus, this development should be included within the national 'sponge city' construction pilot area in early planning stages, and reference should be made to international low-impact development modes in order to strengthen urban green infrastructural construction. Early stage planning based on the existing characteristics of the underlying surface should consider the construction of green ecological patches and ecological corridors between XND and the cities of Baoding, Beijing, and Tianjin. The proportion of impervious surfaces should not exceed 60%, while that of the core area should not exceed 70%. The development of XND needs to initiate the concept of 'planning a city according to water resource amount' and incorporate rainwater collection and recycling.

Key words: Xiong'an New District, urban land use, urban impervious surface, Beijing-Tianjin-Hebei urban agglomeration, ecological protection strategies

Wenhui KUANG, Tianrong YANG, Fengqin YAN. Regional urban land-cover characteristics and ecological regulation during the construction of Xiong'an New District, Hebei Province, China[J].Acta Geographica Sinica, 2017, 72(6): 947-959.

Figures/Tables 9

Tab. 1

Fig. 1

Fig. 2

Fig. 3

Tab. 2

Fig. 4

Tab. 3

Fig. 5

Tab. 4

The eco-environment potential impact and protection strategy for Xiong'an New District construction

新区建设预期影响与调控指标	近期新区建设	中期新区建设		远期新区建设
新区建设预期影响与调控指标	预期到2020年	预期到2025年	预期到2030年	预期到2050年
城市建成区人口规模	50~100万人	100~200万人	200~500万人	500万人以上
城市建成区用地规模	60~120 km²	120~240 km²	240~600 km²	600 km²以上
城市土地利用与产业调控模式	以疏解北京非首都功能承载人口和产业为主,除此以外需适度控制		加强边缘区生态隔离带建设,严控连绵集聚蔓延式增长
地面硬化不透水地表控制	建成区硬化不透水地表占比控制在60% 以内		建成区硬化不透水地表面积占比控制在50%~60%,城市绿化率高于40%
土地利用	以占用耕地和乡镇农村居民点为主,构建城区与白洋淀湖泊生态保护隔离带		加强与保定、北京和天津城市之间绿化生态斑块和生态廊道管控、防止沿交通轴线连续成片发展
城市热岛	城市热岛空间范围扩展,但通过城市生态结构管控,热岛强度应控制在1℃		城市热岛空间范围继续扩展,通过科学规划,热岛强度应控制在1~1.5℃
生态潜在影响与控制策略	地势低洼,易受暴雨洪水的影响;建筑、人口、产业等集聚会降低生态系统水源涵养等服务功能		城市硬化不透水地表连绵式扩展,加之地势较低,会增加洪水等灾害的风险性。必须考虑生态斑块和廊道镶嵌式的生态城市规划设计
环境潜在影响与控制策略	地势低洼平坦,高楼等建筑会影响局地大气扩散能力,会加剧灰霾等污染,除点源污染外,城市不透水地表会造成城市面源污染,影响白洋淀淡水水质。必须严格制定产业准入制度,高标准处理“三废”		所在子流域不透水地表面积比例超过15%~25%比例,严重影响流域生态系统健康状况,甚至对白洋淀水质产生严重影响。必须制定城市绿色发展路线图,指导“一张蓝图绘到底”的生态城市建设

Tab. 4

References 42

[1]	Grimm N B, Faeth S H, Golubiewski N E, et al.Global change and the ecology of cities. Science, 2008, 319(5864): 756-760. doi: 10.1126/science.1150195 pmid: 18258902
[2]	Pickett S T A, McGrath B, Cadenasso M L, et al. Ecological resilience and resilient cities. Building Research & Information, 2014, 42(2): 143-157. doi: 10.1080/09613218.2014.850600
[3]	Ouyang Z Y, Zheng H, Xiao Y, et al.Improvements in ecosystem services from investments in natural capital. Science, 2016, 352(6292): 1455-1459. doi: 10.1126/science.aaf2295 pmid: 27313045
[4]	Kuang W H, Chi W F, Lu D S, et al.A comparative analysis of megacity expansions in China and the U.S.: Patterns, rates and driving forces. Landscape and Urban Planning, 2014, 132: 121-135. doi: 10.1016/j.landurbplan.2014.08.015
[5]	Kuang W H, Liu J Y, Dong J W, et al.The rapid and massive urban and industrial land expansions in China between 1990 and 2010: A CLUD-based analysis of their trajectories, patterns, and drivers. Landscape and Urban Planning, 2016, 145: 21-33. doi: 10.1016/j.landurbplan.2015.10.001
[6]	Kuang W H, Dou Y Y, Zhang C, et al.Quantifying the heat flux regulation of metropolitan land use/land cover components by coupling remote sensing modeling with in situ measurement. Journal of Geophysical Research: Atmospheres, 2015, 120(1): 113-130. doi: 10.1002/2014JD022249
[7]	Jones B, O'Neill B C, McDaniel L, et al. Future population exposure to US heat extremes. Nature Climate Change, 2015, 5(7): 652-655. doi: 10.1038/nclimate2631
[8]	Lelieveld J, Evans J S, Fnais M, et al.The contribution of outdoor air pollution sources to premature mortality on a global scale. Nature, 2015, 525(7569): 367-371. doi: 10.1038/nature15371 pmid: 26381985
[9]	Jha A, Lamond J, Proverbs D, et al.Cities and flooding: A guide to integrated urban flood risk management for the 21st century. General Information, 2012, 52(5): 885-887. doi: 10.1111/jors.12006_6
[10]	Leichenko R.Climate change and urban resilience. Current Opinion in Environmental Sustainability, 2011, 3(3): 164-168. doi: 10.1016/j.cosust.2010.12.014
[11]	Jones H P, Hole D G, Zavaleta E S.Harnessing nature to help people adapt to climate change. Nature Climate Change, 2012, 2(7): 504-509. doi: 10.1038/nclimate1463
[12]	Holling C S.Resilience and stability of ecological systems. Annual Review of Ecology and Systematics, 1973, 4(1): 1-23. doi: 10.1146/annurev.es.04.110173.000245
[13]	Holling C S, Gunderson L H.Panarchy: Understanding Transformations in Systems of Humans and Nature. Resilience and Adaptive Cycles. Washington: Island Press, 2002: 25-62.
[14]	Meerow S, Newell J P, Stults M.Defining urban resilience: A review. Landscape and Urban Planning, 2016, 147: 38-49. doi: 10.1016/j.landurbplan.2015.11.011
[15]	Lu Dadao.The regional developing strategy, tendency and the development of Jing-Jin-Ji. Social Science of Beijing, 2008(6): 4-7. doi: 10.3969/j.issn.1002-3054.2008.06.001
	[陆大道. 我国区域发展的战略、态势及京津冀协调发展分析. 北京社会科学, 2008(6): 4-7.] doi: 10.3969/j.issn.1002-3054.2008.06.001
[16]	Guo Rongchao, Miao Changhong, Xia Baolin, et al.Research on the model of optimization and reorganization of eco-spatial structure in urban agglomeration region and its application: A case study of the urban agglomeration in Central Plains Region. Progress in Geography, 2010, 29(3): 363-369. doi: 10.11820/dlkxjz.2010.03.016
	[郭荣朝, 苗长虹, 夏保林, 等. 城市群生态空间结构优化组合模式及对策: 以中原城市群为例. 地理科学进展, 2010, 29(3): 363-369.] doi: 10.11820/dlkxjz.2010.03.016
[17]	Gu Chaolin.Study on urban agglomeration: Progress and prospects. Geographical Research, 2011, 30(5): 82-88. doi: 10.11821/yj2011050001
	[顾朝林. 城市群研究进展与展望. 地理研究, 2011, 30(5): 82-88.] doi: 10.11821/yj2011050001
[18]	Fang Chuanglin.Progress and the future direction of research into urban agglomeration in China. Acta Geographica Sinica, 2014, 69(8): 1130-1144.
	[方创琳. 中国城市群研究取得的重要进展与未来发展方向. 地理学报, 2014, 69(8): 1130-1144.]
[19]	Fang Chuanglin, Zhou Chenghu, Gu Chaolin, et al.Theoretical analysis of interactive coupled effects between urbanization and eco-environment in mega-urban agglomerations. Acta Geographica Sinica, 2016, 71(4): 531-550. doi: 10.11821/dlxb201604001
	[方创琳, 周成虎, 顾朝林, 等. 特大城市群地区城镇化与生态环境交互耦合效应解析的理论框架及技术路径. 地理学报, 2016, 71(4): 531-550.] doi: 10.11821/dlxb201604001
[20]	Peng J, Liu Y X, Shen H, et al.Using impervious surfaces to detect urban expansion in Beijing of China in 2000s. Chinese Geographical Science, 2016, 26(2): 229-243. doi: 10.1007/s11769-016-0802-5
[21]	Weng Q H, Lu D S.Landscape as a continuum: An examination of the urban landscape structures and dynamics of Indianapolis City, 1991-2000, by using satellite images. International Journal of Remote Sensing, 2009, 30(10): 2547-2577. doi: 10.1080/01431160802552777
[22]	Wu J G, Jenerette G D, Buyantuyev A, et al.Quantifying spatiotemporal patterns of urbanization: The case of the two fastest growing metropolitan regions in the United States. Ecological Complexity, 2011, 8(1): 1-8. doi: 10.1016/j.ecocom.2010.03.002
[23]	Liu Zhenhuan, Wang Yanglin, Peng Jian.Quatifying spatiotemporal patterns dynamics of impervious surface in Shenzhen. Geographical Research, 2012, 31(8): 1535-1545. doi: 10.11821/yj2012080017
	[刘珍环, 王仰麟, 彭建. 深圳市不透水表面的遥感监测与时空格局. 地理研究, 2012, 31(8): 1535-1545.] doi: 10.11821/yj2012080017
[24]	Kuang Wenhui, Chi Wenfeng, Lu Dengsheng, et al.Remote Sensing Analysis and Ecological Control of Urban Surface Thermal Environment. Beijing: Science Press, 2015: 109.
	[匡文慧, 迟文峰, 陆灯盛, 等. 市地表热环境遥感分析与生态调控. 北京: 科学出版社. 2015: 109.]
[25]	Liu Jiyuan, Liu Mingliang, Zhuang Dafang, et al.Study on spatial pattern of land-use change in China during 1995-2000. Science in China: Series D, 2002, 32(12): 1031-1040. doi: 10.3321/j.issn:1006-9267.2002.12.008
	[刘纪远, 刘明亮, 庄大方, 等. 中国近期土地利用变化的空间格局分析. 中国科学(D辑), 2002, 32(12): 1031-1040.] doi: 10.3321/j.issn:1006-9267.2002.12.008
[26]	Liu J Y, Zhang Z X, Xu X L, et al.Spatial patterns and driving forces of land use change in China during the early 21st century. Journal of Geographical Sciences, 2010, 20(4): 483-494. doi: 10.1007/s11442-010-0483-4
[27]	Lu D S, Tian H Q, Zhou G M, et al.Regional mapping of human settlements in southeastern China with multi-sensor remotely sensed data. Remote Sensing of Environment, 2008, 112(9): 3668-3679. doi: 10.1016/j.rse.2008.05.009
[28]	Kuang Wenhui, Liu Jiyuan, Lu Dengsheng.Pattern of impervious surface change and its effect on water environment in the Beijing-Tianjin-Tangshan Metropolitan Area. Acta Geographica Sinica, 2011, 66(11): 1486-1496. doi: 10.11821/xb201111005
	[匡文慧, 刘纪远, 陆灯盛. 京津唐城市群不透水地表增长格局以及水环境效应. 地理学报, 2011, 66(11): 1486-1496.] doi: 10.11821/xb201111005
[29]	Kuang W H, Chen L J, Liu J Y, et al.Remote sensing-based artificial surface cover classification in Asia and spatial pattern analysis. Science China: Earth Sciences, 2016, 59(9): 1720-1737. doi: 10.1007/s11430-016-5295-7
[30]	Kuang W H, Liu J Y, Zhang Z X, et al.Spatiotemporal dynamics of impervious surface areas across China during the early 21st century. Chinese Science Bulletin, 2013, 58(14): 1691-1701. doi: 10.1007/s11434-012-5568-2
[31]	Xiao X M, Zhang Q Y, Braswell B, et al.Modeling gross primary production of temperate deciduous broadleaf forest using satellite images and climate data. Remote Sensing of Environment, 2004, 91(2): 256-270. doi: 10.1016/j.rse.2004.03.010
[32]	Yan Huimin, Liu Jiyuan, Cao Mingkui.Spatial pattern and topographic control of China's agricultural productivity variability. Acta Geographica Sinica, 2007, 62(2): 171-180.
	[闫慧敏, 刘纪远, 曹明奎. 中国农田生产力变化的空间格局及地形控制作用. 地理学报, 2007, 62(2): 171-180.]
[33]	Chen Jingqing, Yan Huimin, Wang Shaoqiang, et al.Estimation of gross primary productivity in Chinese terrestrial ecosystems by using VPM Model. Quaternary Sciences, 2014, 34(4): 732-742. doi: 10.3969/j.issn.1001-7410.2014.04.05
	[陈静清, 闫慧敏, 王绍强, 等. 中国陆地生态系统总初级生产力VPM遥感模型估算. 第四纪研究, 2014, 34(4): 732-742.] doi: 10.3969/j.issn.1001-7410.2014.04.05
[34]	Zhang Zengxiang, Zhao Xiaoli, Wang Xiao, et al.Remote Sensing Monitoring of Soil Erosion in China. Beijing: Planet Map Press, 2014: 23-30.
	[张增祥, 赵晓丽, 汪潇, 等. 中国土壤侵蚀遥感监测. 北京: 星球地图出版社, 2014: 23-30.]
[35]	Elvidge C D, Tuttle B T, Sutton P C, et al.Global distribution and density of constructed impervious surfaces. Sensor, 2007, 7(9): 1962-1979. doi: 10.3390/s7091962 pmid: 3841857
[36]	Griffin D M, Grizzard T J, Randall C W, et al.Analysis of non-point pollution export from small catchments. Journal (Water Pollution Control Federation), 1980, 52(4): 780-790. doi: 10.2118/7561-PA
[37]	Peng J, Liu Y X, Wu J S, et al.Linking ecosystem services and landscape patterns to assess urban ecosystem health: A case study in Shenzhen City, China. Landscape and Urban Planning, 2015, 143: 56-68. doi: 10.1016/j.landurbplan.2015.06.007
[38]	Schueler T K.Controlling Urban Runoff: A Practical Manual for Planning and Designing Urban BMPs. Washington: MWCOG, 1987: 1-10.
[39]	Schueler T K.The importance of imperviousness. Watershed Protection Techniques, 1994, 1: 100-101. doi: 10.9774/GLEAF.978-1-909493-38-4_2
[40]	Carpenter S, Walker B, Anderies J M, et al.From metaphor to measurement: Resilience of what to what? Ecosystems, 2001, 4(8): 765-781. doi: 10.1007/s10021-001-0045-9
[41]	Bierwagen B G, Theobald D T, Pyke C R, et al.National housing and impervious surface scenarios for integrated climate impact assessments. Proceedings of the National Academy of Sciences, 2010, 107(49): 20887-20892.
[42]	Kuang W H, Yang T R, Liu A L, et al.An EcoCity model for regulating urban land cover structure and thermal environment: Taking Beijing as an example. Science China Earth Sciences, 2017, 60(6): 1098-1109. doi: 10.1007/s11430-016-9032-9

县名称	行政区划面积(km²)	人口状况(万人)				经济状况(亿元)
县名称	行政区划面积(km²)	户籍总人口		农业人口	非农业人口	地区生产总值	第一产业增加值	第二产业增加值	第三产业增加值
容城县	314	27.31	13.73	13.58		57.75	9.71	34.15	13.89
安新县	729	46.30	32.35	13.95		62.56	8.85	36.04	17.67
雄县	514	39.41	26.12	13.29		90.75	10.13	63.56	17.06
总计	1557	113.02	72.20	40.82		211.06	28.69	133.75	48.62

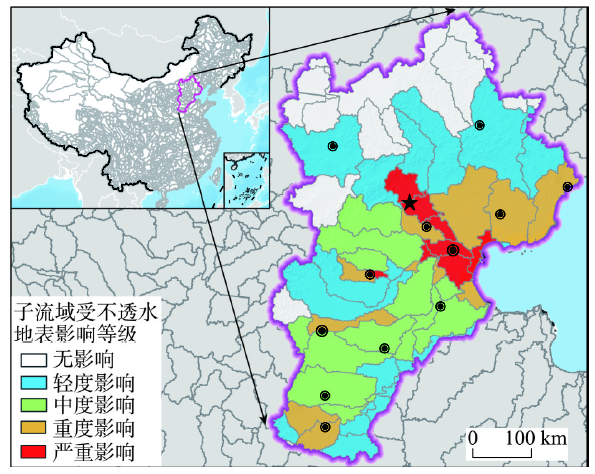

影响等级	子流域内不透水地表面积比例(%)	子流域状况
影响等级	子流域内不透水地表面积比例(%)	数量(个)	数量比例(%)	面积(km²)	面积比例(%)
无影响	0.0~1.0	36	39.13	47049.57	21.85
轻度影响	1.0~5.0	16	17.39	71577.27	33.25
中度影响	5.0~10.0	14	15.22	51203.34	23.78
重度影响	10.0~25.0	12	13.04	34548.59	16.05
严重影响	25.0~100.0	14	15.22	10920.65	5.07
总计		92	100.00	215299.4	100.00

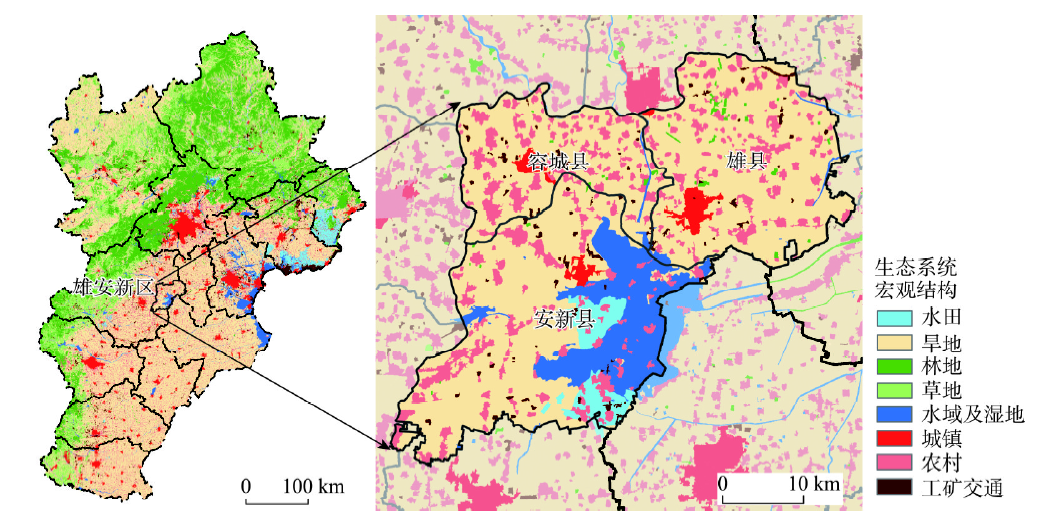

县名称	农田		林地	水域及湿地	城镇和乡村聚落
县名称	水田		林地	旱地	城镇建成区	乡镇及农村聚落	独立工矿
容城县	0.00	224.72	1.59	5.70	9.22	67.29	5.22
雄县	51.56	391.61	1.02	163.90	7.56	99.79	10.55
安新县	0.00	399.90	6.51	5.48	17.58	79.74	6.42
总计	51.56	1016.23	9.12	175.08	34.37	246.82	22.20
