1977年以来黄河临河段河岸冲淤变化及河道萎缩速率

doi:10.11821/dlxb201609004

Abstract

Abstract:

Taking the Linhe reach of the Yellow River with a channel length of 213 km as an example, this paper evaluated the area changes of channel bank erosion/accretion in four sub-reaches (S1, S2, S3 and S4) during 19 different periods on the basis of remote sensing images since 1977. Furthermore, the mean channel shrinkage rate for the whole river reach was obtained. The results show that the left and right banks of the Linhe reach were dominant in lateral net accretion during the period 1977-2014. For the left bank of the four sub-reaches, the accumulative lateral accretion areas during 1977-2014 were 33.16 km², 49.59 km², 29.52 km² and 30.85 km², respectively, while the lateral accretion areas during 1995-2000 accounted for 85.5%, 51.2%, 47.2% and 104.6% of the accumulative values, respectively. For the right bank of the four sub-reaches, the accumulative lateral accretion areas in 1977-2014 were 30.83 km², 8.74 km², 26.44 km² and 18.76 km², respectively, while the lateral accretion areas during the period 1995-2000 accounted for 57.2%, 111.9%, 65.7% and 61.6% of the accumulative values, respectively. The channel area of the Linhe reach was characterized by a reduction tendency from 1977 to 2001, and alternate erosion and accretion after 2001. The channel mean shrinkage rate of the Linhe reach was 6.16 km²/yr during the period 1977-2014. The most remarkable change of channel planform of the Linhe reach also occurred in the 1990s. Compared with 1995, the channel length and sinuosity increased by 5.8% and 6.6% and the channel area and mean width decreased by 39.4% and 42.8% in 2000, respectively. Significant channel planform changes and channel shrinkage for the Linhe reach occurred in the 1990s, which was mainly influenced by the joint-operation of the Longyangxia and Liujiaxia reservoirs since 1986, which resulted in substantial reductions of runoff and sediment fluxes in flooding season in a year. In addition, the bankerosion-accretion for the the four sub-reaches was also affected by the physical properties of local bank, protection engineering of channel bank and hydrodynamic differences. With the implementation of integrated river management measures since 2000, these changes have been significantly weakened and the river's health has been restored.

Key words: channel planform geometry, riverbank, erosion-accretion variation, channel shrinkage, Yellow River

Yanguo MEI, Suiji WANG. Variation of channel lateral erosion/accretion and channel shrinkage rate in the Linhe Reach of the Yellow River since 1977[J].Acta Geographica Sinica, 2016, 71(9): 1509-1519.

Figures/Tables 10

Fig. 1

Tab. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Tab. 2

Fig. 7

Fig. 8

References 26

[1]	Wang Suiji, Li Ling.Lateral shift rate variation of the river banks in the Yinchuan Plain reach of the Yellow River and its causes. Acta Geographica Sinica, 2014, 69(3): 399-408. doi: 10.11821/dlxb201403011
	[王随继, 李玲. 黄河银川平原段河岸摆动速率变化及原因. 地理学报, 2014, 69(3): 399-408.] doi: 10.11821/dlxb201403011
[2]	Zhao Wenlin, Cheng Xiuwen, Hou Suzhen, et al.Analysis of scouring and sedimentation in the channel from Ningxia to Inner Mongolia in the upper Yellow River. Yellow River, 1999, 21(6): 11-14.
	[赵文林, 程秀文, 侯素珍, 等. 黄河上游宁蒙河道冲淤变化分析. 人民黄河, 1999, 21(6): 11-14.]
[3]	Yang Zhongmin, Ren Hongbin.Preliminary study on scour-silt ing and water-sand relationship with Ningxia-Inner Mongolia reach of Yellow River. Northwest Hydropower, 2004(3): 50-55. doi: 10.3969/j.issn.1006-2610.2004.03.009
	[杨忠敏, 任宏斌. 黄河水沙浅析及宁蒙河段冲淤与水沙关系初步研究. 西北水电, 2004(3): 50-55.] doi: 10.3969/j.issn.1006-2610.2004.03.009
[4]	Shen Guanqing, Zhang Yuanfeng, Hou Suzhen, et al.Impact of water and sediment regulation by reservoirs in the upper Yellow River on Inner-Mongolia reaches. Journal of sediment research, 2007(1): 67-75. doi: 10.3321/j.issn:0468-155X.2007.01.010
	[申冠卿, 张原锋, 侯素珍, 等.黄河上游干流水库调节水沙对宁蒙河道的影响. 泥沙研究, 2007(1): 67-75.] doi: 10.3321/j.issn:0468-155X.2007.01.010
[5]	Ran Lishan, Wang Suiji.Study on channel evolution and hydraulic geometry in the Inner Mongolia reach of the Yellow River. Journal of Sediment Research, 2010(4): 61-67.
	[冉立山, 王随继. 黄河内蒙古河段河道演变及水力几何形态研究. 泥沙研究, 2010(4): 61-67.]
[6]	Liu Xiaoyan, Hou Suzhen, Chang Wenhua.Cause of main channel shrinkage occurred to the Inner-Mongolia reaches of Yellow River. Journal of Hydraulic Engineering, 2009, 40(9): 1048-1054.
	[刘晓燕, 侯素珍, 常温花. 黄河内蒙古河段主槽萎缩原因和对策. 水利学报, 2009, 40(9): 1048-1054.]
[7]	Wang S, Yan M, Yan Y, et al.Contributions of climate change and human activities to the changes in runoff increment in different sections of the Yellow River. Quaternary International, 2012: 66-77. doi: 10.1016/j.quaint.2012.07.011
[8]	Li Binyuan, Ge Quansheng, Zheng Jingyun.Evolution of the Yellow River in the Houtao Plain of Inner Mongolia in the past 2000 years. Acta Geographica Sinica, 2003, 58(2): 239-246.
	[李炳元, 葛全胜, 郑景云. 近2000年来内蒙后套平原黄河河道演变. 地理学报, 2003, 58(2): 239-246.]
[9]	Yang Gensheng, Ta Wanquan, Dai Fengnian, et al.Contribution of sand sources to the silting of riverbed in Inner Mongolia section of Huanghe River. Journal of Desert Research, 2003, 23(2): 152-159.
	[杨根生, 拓万全, 戴丰年, 等. 风沙对黄河内蒙古河段河道泥沙淤积的影响. 中国沙漠, 2003, 23(2): 152-159.]
[10]	Yao Z Y, Ta W Q, Jia X P, et al.Bank erosion and accretion along the Ningxia-Inner Mongolia reaches of the Yellow River from 1958 to 2008. Geomorphology, 2011, 127: 99-106. doi: 10.1016/j.geomorph.2010.12.010
[11]	Yao Z, Xiao J, Ta W, et al.Planform channel dynamics along the Ningxia-Inner Mongolia reaches of the Yellow River from 1958 to 2008: Analysis using Landsat images and topographic maps. Environmental Earth Sciences, 2012, 70(1): 97-106.
[12]	Wang Yancheng, Feng Xuewu, Wang Lunping, et al.Influence of reserviors in the stream of the Upper Yellow River on the reach within Inner Mongolia Autonomous region. Yellow River, 1996(1): 5-10.
	[王彦成, 冯学武, 王伦平, 等. 黄河上游干流水库对内蒙古河段的影响. 人民黄河, 1996(1): 5-10.]
[13]	Su Teng, Wang Suiji, Mei Yanguo.Impact of joint operation of reservoirs on the change ratio of downstream cross-sectional geometry parameters. Acta Geographica Sinica, 2015, 70(3): 488-500. doi: 10.11821/dlxb201503011
	[苏腾, 王随继, 梅艳国.水库联合运行对库下汛期河道过水断面形态参数变化率的影响. 地理学报, 2015, 70(3): 488-500.] doi: 10.11821/dlxb201503011
[14]	Yang Leifei.Analysis of the thaw flood discharge in the Ningxia-Neimenggu reach of the Yellow River. Journal of Sediment Research, 1992(6): 62-68.
	[杨赉斐. 黄河宁蒙河段凌汛洪水流量分析研究. 泥沙研究, 1992(6): 62-68.]
[15]	Wu Jiamin, Wang Runsheng, Yao Jianhua.Remote sensing. monitoring and study on the change of the Yellow River course in Yinchuan Plain sector. Remote Sensing for Land & Resources. 2006(4): 36-39. doi: 10.3969/j.issn.1001-070X.2006.04.009
	[吴加敏, 王润生, 姚建华. 黄河银川平原段河道演变的遥感监测与研究. 国土资源遥感, 2006(4): 36-39.] doi: 10.3969/j.issn.1001-070X.2006.04.009
[16]	Wang Suiji.Analysis of river pattern transformations in the Yellow River Basin. Progress in Geography, 2008, 27(2):10-17. doi: 10.11820/dlkxjz.2008.02.002
	[王随继. 黄河流域河型转化现象初探. 地理科学进展, 2008, 27(2): 10-17.] doi: 10.11820/dlkxjz.2008.02.002
[17]	Ran Lishan, Wang Suiji, Fan Xiaoli, et al.River channel change at Toudaoguai Section and its response to water and sediment supply of the upper Yellow River. Acta Geographica Sinica, 2009, 64(5): 531-540.
	[冉立山, 王随继, 范小黎, 等. 黄河内蒙古头道拐断面形态变化及其对水沙的响应. 地理学报, 2009, 64(5): 531-540.]
[18]	Qin Yi, Zhang Xiaofang, Wang Fenglong, et al.Scour and silting evolution and its influencing factors in Inner Mongolia reach. Acta Geographica Sinica, 2011, 66(3): 324-330.
	[秦毅, 张晓芳, 王凤龙, 等. 黄河内蒙古河段冲淤演变及其影响因素. 地理学报, 2011, 66(3): 324-330.]
[19]	Li Qiuyan, Cai Qiangguo, Fang Haiyan.Channel evolvement and influence factors in Ningxia-Inner Mongolia reach of the Yellow River. Journal of Arid Land Resources and Environment, 2012, 26(2): 68-73.
	[李秋艳, 蔡强国, 方海燕. 黄河宁蒙河段河道演变过程及影响因素研究. 干旱区资源与环境, 2012, 26(2): 68-73.]
[20]	Fan Xiaoli, Wang Suiji, Ran Lishan.Analysis of the channel evolution and influence factors in Ningxia reach of the Yellow River. Journal of Water Resources & Water Engineering, 2010, 21(1): 5-11.
	[范小黎, 王随继, 冉立山. 黄河宁夏河段河道演变及其影响因素分析. 水资源与水工程学报, 2010, 21(1): 5-11.]
[21]	Shi Changxing, Fan Xiaoli, Shao Wenwei, et al.Channel change of the Inner Mongolian reach of the Yellow River and its causes. Geographical Research, 2013, 32(5): 787-796. doi: 10.11821/yj2013050002
	[师长兴, 范小黎, 邵文伟, 等. 黄河内蒙河段河床冲淤演变特征及原因. 地理研究, 2013, 32(5): 787-796.] doi: 10.11821/yj2013050002
[22]	Nicoll T J, Hickin E J.Planform geometry and channel migration of confined meandering rivers on the Canadian prairies. Geomorphology, 2010, 116: 37-47. doi: 10.1016/j.geomorph.2009.10.005
[23]	Zhong Kaiwen, Liu Wanxia.A riverway evolution analysis based on remote sensing technique. Remote Sensing for Land & Resources, 2006(3): 69-73. doi: 10.3969/j.issn.1001-070X.2006.03.016
	[钟凯文, 刘万侠.河道演变的遥感分析研究. 国土资源遥感, 2006(3): 69-73.] doi: 10.3969/j.issn.1001-070X.2006.03.016
[24]	Kang Qing, Wang Xingling.Application of remote sensing technology in riverbed changes. Acta Scientiarum Naturalium Universitatis Sunyatseni, 1999, 38(5): 109-113. doi: 10.3321/j.issn:0529-6579.1999.05.024
	[亢庆, 王兴玲. 河道演变的遥感研究方法及应用. 中山大学学报(自然科学版), 1999, 38(5): 109-113.] doi: 10.3321/j.issn:0529-6579.1999.05.024
[25]	Winterbottom S.Medium and short-term channel planform changes of the Rivers Tay and Tummel, Scotland. Geomorphology, 2000, 34: 195-208.
[26]	Gurnell A M.Channel change on the River Dee meanders, 1946-1992, from the analysis of air photographs. Regulated Rivers-Research & Management, 1997, 12: 13-26.

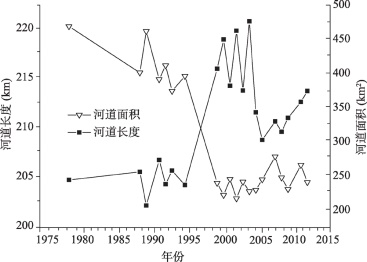

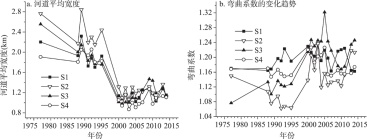

年份	河道长度 (km)	河道面积 (km²)	河道平均宽度 (km)	弯曲系数
1977	204.82	469.11	2.29	1.07
1988	205.63	401.44	1.95	1.07
1989	202.23	462.03	2.28	1.05
1991	206.84	391.67	1.89	1.08
1992	204.39	411.88	2.02	1.07
1993	205.75	374.60	1.82	1.07
1995	204.30	396.42	1.94	1.06
2000	216.07	240.18	1.11	1.13
2001	219.04	222.40	1.02	1.14
2002	214.35	245.71	1.15	1.12
2003	219.92	217.39	0.99	1.15
2004	213.87	241.69	1.13	1.11
2005	220.88	227.83	1.03	1.15
2006	211.65	229.91	1.09	1.10
2007	208.87	245.14	1.17	1.09
2009	210.74	278.79	1.32	1.10
2010	209.70	248.01	1.18	1.09
2011	211.10	230.92	1.09	1.10
2013	212.71	266.21	1.25	1.11
2014	213.82	241.22	1.13	1.11

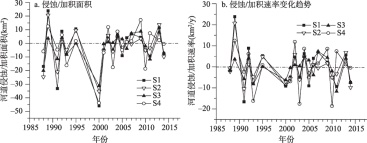

影像年份	冲淤面积(km²)						冲淤速率(km²/y)
影像年份	S1段		S2段	S3段	S4段	临河段	S1段	S2段	S3段	S4段	临河段
1977-1988年	-16.97	-24.60	-20.16	-5.93	-67.67		-1.54	-2.24	-1.83	-0.54	-6.15
1988-1989年	23.80	20.78	3.61	12.40	60.59		23.80	20.78	3.61	12.40	60.59
1989-1991年	-33.22	-20.98	-11.46	-4.69	-70.35		-16.61	-10.49	-5.73	-2.35	-35.18
1991-1992年	8.83	1.27	4.02	6.08	20.20		8.83	1.27	4.02	6.08	20.20
1992-1993年	-8.10	-4.76	-8.22	-16.20	-37.28		-8.10	-4.76	-8.22	-16.20	-37.28
1993-1995年	10.63	9.62	-0.05	1.62	21.83		5.32	4.81	-0.02	0.81	10.91
1995-2000年	-45.98	-35.15	-31.28	-43.83	-156.25		-9.20	-7.03	-6.26	-8.77	-31.25
2000-2001年	-4.82	-5.53	-0.49	-6.94	-17.78		-4.82	-5.53	-0.49	-6.94	-17.78
2001-2002年	4.76	5.84	0.85	11.85	23.31		4.76	5.84	0.85	11.85	23.31
2002-2003年	-4.96	-6.06	0.32	-17.63	-28.32		-4.96	-6.06	0.32	-17.63	-28.32
2003-2004年	6.21	4.69	4.79	8.61	24.30		6.21	4.69	4.79	8.61	24.30
2004-2005年	-9.07	-2.96	3.16	-4.98	-13.86		-9.07	-2.96	3.16	-4.98	-13.86
2005-2006年	4.04	1.02	-3.91	0.94	2.08		4.04	1.02	-3.91	0.94	2.08
2006-2007年	6.91	-0.57	7.34	1.56	15.23		6.91	-0.57	7.34	1.56	15.23
2007-2009年	4.37	3.49	8.69	17.10	33.65		2.19	1.74	4.34	8.55	16.82
2009-2010年	-4.97	-5.02	-2.12	-18.67	-30.78		-4.97	-5.02	-2.12	-18.67	-30.78
2010-2011年	-9.37	-3.38	-11.71	7.37	-17.10		-9.37	-3.38	-11.71	7.37	-17.10
2011-2013年	11.35	13.72	8.01	2.22	35.29		5.67	6.86	4.00	1.11	17.65
2013-2014年	-7.42	-9.76	-7.33	-0.47	-24.99		-7.42	-9.76	-7.33	-0.47	-24.99
1977-2014年	-63.98	-58.34	-55.96	-49.61	-227.89		-1.73	-1.58	-1.51	-1.34	-6.16
