基于社会地图的东莞市社会空间研究

doi:10.11821/dlxb201608001

Abstract

Abstract:

Social area analysis is a conventional approach of studying social division and social structure in urban area. However, it mainly focused on the interpretation of demographic indicators, but neglected spatial dimension, thus it is generally difficult to discover the diversity of social space in different cities by such way. Taking the methods of social atlas for reference, this paper primarily attempts to present a series of social maps based on the Sixth National Census and POI data from electronic map. And then, from the characteristics of the maps, an improved index system of social space is brought forward, which includes "demographic properties", "social facilities" and "organization" . With a cluster analysis based on this system, 11 types of social areas are identified in Dongguan, namely (1) old city center, (2) high-rise residential and commercial areas, (3) general residential areas, (4) sub-commercial center, (5) administration center, (6) industrial community areas, (7) low density suburban areas, (8) historical culture areas, (9) new residential areas, (10) agricultural areas, and (11) old age community. Furthermore, it can be concluded into 3 kinds of social space: urban community, rural community, and rural migrant workers community, which demonstrated that Dongguan shows a Triad Spatial Structure model. In the end, this research declares that social atlas is an advanced research method for social space analysis in urban area, as it effectively help to understand the complexity of social space, and reconstruct the research framework of social space in China.

Key words: social atlas, social space, social element, social area, Dongguan city

Yungang LIU, Haiyu SU. Social space analysis based on social atlas: A case study of Dongguan city[J].Acta Geographica Sinica, 2016, 71(8): 1283-1301.

Figures/Tables 16

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Tab. 1

Tab. 2

Tab. 3

Fig. 10

Tab. 4

Fig. 11

Fig. 12

References 43

[1]	Shevky E, Bell W.Social Area Analysis: Theory, Illustrative Application, and Computational Procedures. Redwood City, CA: Stanford University Press, 1955.
[2]	Yu Wei.A study and planning of urban social spatial structure. City Planning Review, 1986(6): 25-28.
	[虞蔚. 城市社会空间结构研究与规划. 城市规划, 1986(6): 25-28.]
[3]	Li Zhigang, Wu Fulong.Sociospatial differentiation in transitional Shanghai. Acta Geographica Sinica, 2006, 61(2): 199-211. doi: 10.3321/j.issn:0375-5444.2006.02.009
	[李志刚, 吴缚龙. 转型期上海社会空间分异研究. 地理学报, 2006, 61(2): 199-211.] doi: 10.3321/j.issn:0375-5444.2006.02.009
[4]	Xu Xueqiang, Hu Huaying.A factorial ecological of social spatial structure in Guangzhou. Acta Geographica Sinica, 1989, 44(4): 385-399.
	[许学强, 胡华颖. 广州市社会空间结构因子生态分析. 地理学报, 1989, 44(4): 385-399.]
[5]	Zheng Jing, Xu Xuejing, Chen Haoguang.An ecological reanalysis on the factors related to social spatial structure in Guangzhou City. Geographical Reasearch, 1995, 14(2): 15-26. doi: 10.11821/yj1995020003
	[郑静, 许学强, 陈浩光. 广州市社会空间的因子生态再分析. 地理研究, 1995, 14(2): 15-26.] doi: 10.11821/yj1995020003
[6]	Zhou Chunshan, Liu Yang, Zhu Hong.Analysis on social areas of Guangzhou City during the economic system transformation. Acta Geographica Sinica, 2006, 61(10): 1046-1056. doi: 10.3321/j.issn:0375-5444.2006.10.004
	[周春山, 刘洋, 朱红. 转型时期广州市社会区分析. 地理学报, 2006, 61(10): 1046-1056.] doi: 10.3321/j.issn:0375-5444.2006.10.004
[7]	Gu Chaolin.Study on urban social areas in Beijing. Acta Geographica Sinica, 2003, 58(6): 917-926. doi: 10.3321/j.issn:0375-5444.2003.06.015
	[顾朝林. 北京城市社会区分析. 地理学报, 2003, 58(6): 917-926.] doi: 10.3321/j.issn:0375-5444.2003.06.015
[8]	Feng Jian, Zhou Yixing.The social spatial structure of Beijing Metropolitan Area and its evolution: 1982-2000. Geographical Research, 2003, 22(4): 465-483. doi: 10.3321/j.issn:1000-0585.2003.04.009
	[冯健, 周一星. 北京都市区社会空间结构及其演化(1982-2000). 地理研究, 2003, 22(4): 465-483.] doi: 10.3321/j.issn:1000-0585.2003.04.009
[9]	Xue Desheng, Cao Xiaoshu, Cao Fenglin.Social areas of a resource-oriented large city in mountain area: classification, characteristics and influential factors: A case study of Shaoguan City, Guangdong Province. Geographical Research, 2006, 25(1): 141-150. doi: 10.3321/j.issn:1000-0585.2006.01.017
	[薛德升, 曹小曙, 曹丰林. 山区资源型大城市社区分类特征与影响因素: 以广东省韶关市为例. 地理研究, 2006, 25(1): 141-150.] doi: 10.3321/j.issn:1000-0585.2006.01.017
[10]	Xu Di, Wang Zhu, Zhu Xigang, et al.The urban social areas in Nanjing: Analysis of the data based on the Fifth National Population Census. Geographical Research, 2009, 28(2): 484-498. doi: 10.11821/yj2009020022
	[徐旳, 汪珠, 朱喜钢, 等. 南京城市社会区空间结构: 基于第五次人口普查数据的因子生态分析. 地理研究, 2009, 28(2): 484-498.] doi: 10.11821/yj2009020022
[11]	Zhang Li, Lei Jun, Zhang Xiaolei, et al.Analysis of the urban social areas in Urumqi. Acta Geographica Sinica, 2012, 67(6): 817-828. doi: 10.11821/xb201206009
	[张利, 雷军, 张小雷, 等. 乌鲁木齐城市社会区分析. 地理学报, 2012, 67(6): 817-828.] doi: 10.11821/xb201206009
[12]	Li Haichen.Thematic Maps and Altas Compilation. Beijing: Higher Education Press, 1984.
	[李海晨. 专题地图与地图集编制. 北京: 高等教育出版社, 1984.]
[13]	Liu Yungang, Su Haiyu.A review of social atlas research. Progress in Geography, 2015, 34(7): 800-808. doi: 10.18306/dlkxjz.2015.07.002
	[刘云刚, 苏海宇. 社会地图研究综述与展望. 地理科学进展, 2015, 34(7): 800-808.] doi: 10.18306/dlkxjz.2015.07.002
[14]	Booth C.Life and Labour of the people in London. New York, NY: Macmillan Publishing Company, 1903.
[15]	Shepherd J, Westaway J, Lee T.A Social Atlas of London. London, UK: Clarendon Press, 1974.
[16]	Davis J R, Spearritt P.Sydney at the census, 1971: A social atlas. Canberra, Australia: Australian National University, 1974. doi: 10.2307/27508184
[17]	Kanasawa S.Social Atlas of Tokyo. Tokyo, Japan: University of Tokyo Press, 1986.
	[倉沢進. 東京の社会地图. 東京: 東京大学出版会, 1986.]
[18]	Kurasawa S, Asakawa T.New Social Atlas of Metropolitan Tokyo, 1975-90. Tokyo, Japan: University of Tokyo Press, 2004.
	[倉沢進, 浅川達人. 新编東京圈の社会地图(1975-90). 東京: 東京大学出版会, 2004.]
[19]	Poulsen M, Spearritt P.Sydney: A Social and Political Atlas. Sydney, Australia: George Allen & Unwin Pty, 1981. doi: 10.2307/633190
[20]	Gibson A, Fast T.The Women's Atlas of the United States. New York, NY: Facts on File Publications, 1986. doi: 10.1007/BF00779943
[21]	Timothy H, Fast C C.The Women's Atlas of the United States. New York, NY: Facts on File, 1995. doi: 10.1007/BF00779943
[22]	Andrews A C, Fonseca J W, Chapman J.The Atlas of American Society. New York, NY: New York University Press, 1996.
[23]	Shinagawa L H, Jang M.Atlas of American Diversity. Walnut Creek, CA: Altamira Press, 1998.
[24]	Brewer C A, Suchan T A.Mapping Census 2000: The Geography of US Diversity. Redlands, CA: Esri Press, 2001.
[25]	Benson T D.Malawi: an atlas of social statistics. Washington, D C: International Food Policy Research Institute, 2002.
[26]	Tennant S, Hetzel D, Glover J.A Social Health Atlas of Young South Australia. 2nd ed. Adelaide, Australia: Public Health Information Development Unit, 2003.
[27]	Glover J, Harris K, Tennant S.A social health atlas of Australia. Adelaide, Australia: The University of Adelaide, 1999.
[28]	Glover J, Hetzel D, Glover L, et al.A Social Health Atlas of South Australia. 3rd ed. Adelaide, Australia: The University of Adelaide, 2006.
[29]	Oswalt P, Rieniets T.Atlas of Shrinking Cities. Ostfildern, Germany: Hatje Cantz Verlag, 2006.
[30]	Morrill R L.Regional demographic structure of the United States. The Professional Geographer, 1990, 42(1): 38-53. doi: 10.1111/j.0033-0124.1990.00038.x
[31]	Dorling D, Thomas B.Bankrupt Britain: An Atlas of Social Change. Bristol, UK: The Policy Press, 2011.
[32]	Ballas D, Dorling D, Hennig B D.The Social Atlas of Europe. Bristol, UK: Policy Press, 2014.
[33]	Halman L, Sieben I, Van Zundert M.Atlas of European Values: Trends and Traditions at the Turn of the Century. Leiden, Netherlands: Koninklijke Brill NV, 2012.
[34]	Lefebvre H.The Production of Space. Oxford, UK: Blackwell Ltd., 1991.
[35]	Xu Zhen.Communities and Community Development. Taipei: Cheng Chung Book, 1990.
	[徐震. 社区与社区发展. 台北: 正中书局, 1990.]
[36]	Zhao Min, Zhao Wei.Community Planning: Theory and Practice. Beijing: China Architecture & Building Press, 2003.
	[赵民, 赵蔚. 社区发展规划: 理论与实践. 北京: 中国建筑工业出版社, 2003.]
[37]	Liu Jiayan.Foreign urban social planning development review and its revelation. Urban Planning Overseas, 2006, 21(2): 51-55. doi: 10.3969/j.issn.1673-9493.2006.02.010
	[刘佳燕. 国外城市社会规划的发展回顾及启示. 国外城市规划, 2006, 21(2): 51-55.] doi: 10.3969/j.issn.1673-9493.2006.02.010
[38]	Zhu Dajian.Managing Urban Development: Models of Sustainable Development in Urban Management. Shanghai: Tongji University Press, 2004.
	[诸大建. 管理城市发展:探讨可持续发展的城市管理模式. 上海: 同济大学出版社, 2004.]
[39]	Yang Xiaohuan, Liu Yesen, Jiang Dong, et al.An enhanced method for spatial distributing census data: Re-classifying of rural residential land. Progress in Geography, 2006, 25(3): 62-69. doi: 10.11820/dlkxjz.2006.03.008
	[杨小唤, 刘业森, 江东, 等. 一种改进人口数据空间化的方法: 农村居住地重分类. 地理科学进展, 2006, 25(3): 62-69.] doi: 10.11820/dlkxjz.2006.03.008
[40]	Bai Zhongqiang, Wang Juanle, Yang Fei.Research progress in spatialization of population data. Progress in Geography, 2013, 32(11): 1692-1702. doi: 10.11820/dlkxjz.2013.11.012
	[柏中强, 王卷乐, 杨飞. 人口资料空间化研究综述. 地理科学进展, 2013, 32(11): 1692-1702.] doi: 10.11820/dlkxjz.2013.11.012
[41]	Lin Lijie, Lin Guangfa, Yan Xiaoxia, et al.Spatialization models of census data: A review. Journal of Subtropical Resources and Environment, 2010, 5(4): 10-16. doi: 10.3969/j.issn.1673-7105.2010.04.002
	[林丽洁, 林广发, 颜小霞, 等. 人口统计数据空间化模型综述. 亚热带资源与环境学报, 2010, 5(4): 10-16.] doi: 10.3969/j.issn.1673-7105.2010.04.002
[42]	Liu Y, Liu X, Gao S, et al.Social sensing: A new approach to understanding our socioeconomic environments. Annals of the Association of American Geographers, 2015, (ahead-of-print): 1-19. doi: 10.1080/00045608.2015.1018773
[43]	Chai Yanwei, Shen Yue, Xiao Zuopeng, et al.Review for space-time behavior research: Theory frontiers and application in the future. Progress in Geography, 2012, 31(6): 667-675. doi: 10.11820/dlkxjz.2012.06.001
	[柴彦威, 申悦, 肖作鹏, 等. 时空间行为研究动态及其实践应用前景. 地理科学进展, 2012, 31(6): 667-675.] doi: 10.11820/dlkxjz.2012.06.001

编号	因子命名	特征根	解释指标
1	社会精英人口	23.326 (34.303%)	非农业人口(0.765)、工作调动人口(0.748)、随迁家属(0.772)、拆迁搬家迁移人口(0.813)、婚姻嫁娶迁移人口(0.764)、人均住房面积50~69 km²(0.778)、人均住房面积70 km²以上(0.751)、购买商品房(0.829)、专业学历(0.862)、本科学历(0.922)、研究生学历(0.954)、信息软件业从业人口(0.849)、金融业从业人员(0.851)、商务服务业从业人员(0.849)、科学技术研究人员(0.703)、教育行业人员(0.823)、社会保障福利业从业人员(0.737)、公共管理与社会组织人员(0.786)、国家机关和企事业单位负责人(0.781)、专业技术人员(0.837)
2	外来务工人员	14.845 (21.832%)	15~59岁人口(0.796)、农业户口人口(0.920)、外来人口(0.848)、务工经商迁移人口(0.929)、家庭一代户(0.860)、人均住房面积12 km²以下(0.910)、人均住房面积13~29 km²(0.780)、住房月租200元以下(0.718)、住房月租200~1000元(0.741)、初中学历(0.922)、制造业从业人员(0.970)、生产运输设备操作人员(0.964)
3	低学历老年人	11.678 (17.173%)	60岁以上人口(0.810)、户籍人口(0.832)、自建住房(0.774)、未上过学(0.812)、文盲人口(0.829)
4	商业服务人员	4.029 (5.925%)	住宿餐饮业从业人员(0.613)、住房月租2000~3000元(0.580)、文化体育和娱乐业从人员(0.509)
5	农林渔牧业人口	2.081 (3.060%)	农林牧渔业从业人口(0.982)、农林牧渔业生产人员(0.983)

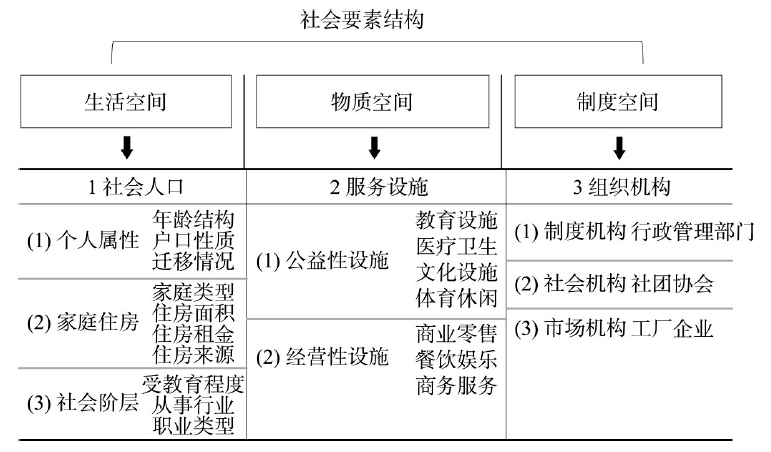

	大类	中类	小类
人口	社会精英人口		非农业人口、家庭型迁移人口、大面积住房、商品住房、高学历人口、商贸服务从业人口、公共管理和社会事业从业人员、教育人员、科学技术人员
	外来务工人员		劳动年龄人口、农业户口人口、外来人口、经济型迁移人口、一代户家庭、小面积住房、廉价租金住房、低学历人口、制造业从业人员
	低学历老年人		老年人口、户籍人口、自建住房、低学历人口
	商业服务人员		住宿餐饮从业者、中等租金住房、文体娱乐从业者
	农林渔牧业人口		农林牧渔业从业人口
设施	公益性设施	教育设施	幼儿园、中小学、中专、大专
		医疗设施	综合医院、社区医院
		文体设施	图书馆、博物馆、文化馆、文体广场、公园
	经营性设施	零售设施	百货商店、超市、农贸市场
		娱乐设施	餐饮店、茶楼咖啡厅、电影院、酒吧、夜总会、KTV、网吧
		商务设施	银行、邮局、写字楼、酒店、会展
机构	行政管理机构		各级政府、公安机关、相关行政部门
	工厂企业		工厂、公司
	协会社团		行业协会、社会团体

	1	2	3	4	5	6	7	8	9	10	11
社会精英人口	9.22	32.81	0.57	0.45	2.89	-0.09	-0.05	0.05	18.26	-0.09	0.40
外来务工人员	0.42	1.06	0.68	0.89	0.29	0.92	-0.35	-0.89	-0.13	-0.16	-0.62
低学历老年人	10.25	1.72	0.77	1.06	-0.06	0.03	-0.16	18.46	-2.80	0.12	12.86
商业服务人员	-11.51	19.46	0.27	4.17	3.27	-0.02	-0.05	-4.31	-9.05	-0.10	-1.52
农林鱼牧业人口	-2.55	2.93	-0.22	-0.60	-0.29	-0.10	-0.31	-2.17	0.98	2.09	-1.52
教育设施	8.98	1.42	1.82	2.47	1.42	0.56	-0.35	6.15	1.89	-0.17	3.62
医疗设施	3.49	4.29	1.56	3.73	1.09	0.84	-0.42	3.49	1.49	-0.32	2.29
文体设施	10.47	11.82	1.69	1.66	1.01	0.25	-0.25	11.82	-0.34	-0.08	3.71
零售设施	0.96	0.33	1.25	2.35	0.64	1.17	-0.47	1.59	0.80	-0.38	1.44
娱乐设施	1.10	2.10	1.94	5.94	2.93	0.42	-0.33	5.43	1.68	-0.31	1.29
商务设施	6.57	6.23	2.13	5.36	4.57	0.43	-0.36	6.23	4.57	-0.31	3.46
行政管理部门	8.39	2.85	2.22	3.35	23.17	-0.06	-0.19	1.00	0.39	-0.17	3.98
协会社团	24.44	11.67	1.78	2.26	4.00	0.05	-0.19	2.29	0.16	-0.14	4.00
工厂企业	-0.52	0.17	0.10	-0.26	-0.71	1.28	-0.39	-0.61	-0.47	-0.30	-0.25

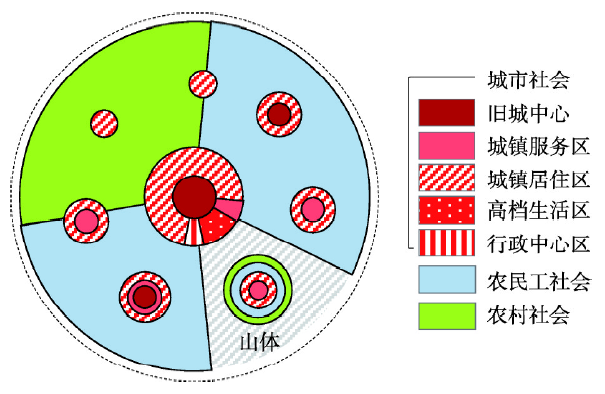

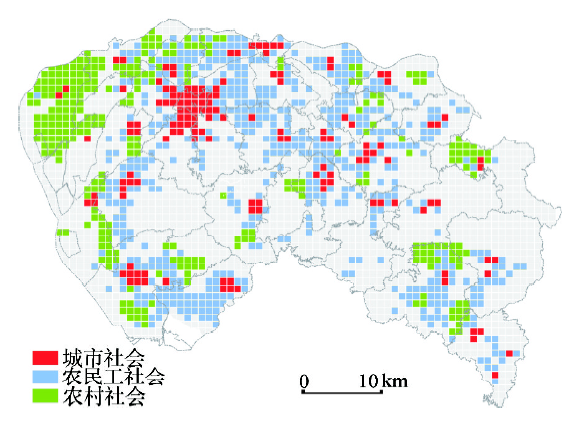

	农村社会	农民工社会	城市社会
空间分布	城市边缘	乡镇生产片区	中心城区/镇中心
社会主体	农民	农民工	城镇户籍居民
住房质量	一般(自建)	较差(租赁)	较好(购买)
家庭规模	较大	较小	较大
收入水平	最低	较低	偏高
就业类型	工业+农业	制造业	服务业
学历水平	较低	较低	较高
经营性服务	较差	中等	较好
公益性服务	中等	较差	较好
组织机构类型	企业+行政	工厂企业	行政+协会+企业
