Spatial demarcation principles of the Dotted Line in the South China Sea

Meng TANG1,2(), Jinsong MA1(), Ying WANG1,2, Fei XIA1,3

  1. 1. The Key Laboratory of Coast and Island Development of Ministry of Education, Department of Coastal Ocean Science, School of Geographic and Oceanographic Sciences, Nanjing University, Nanjing 210023, China
    2. China Centre for Collaborative Innovation of South China Sea Studies, Nanjing University, Nanjing 210093, China
    3. School of Urban and Resource Environment, Jiangsu Second Normal University, Nanjing 210013, China
  • Received:2015-01-05 Revised:2016-04-22 Online:2016-06-30 Published:2016-06-30
  • Supported by:
    Consulting Project for Academic Divisions of the Chinese Academy of Sciences, No.2016ZWH005A-005

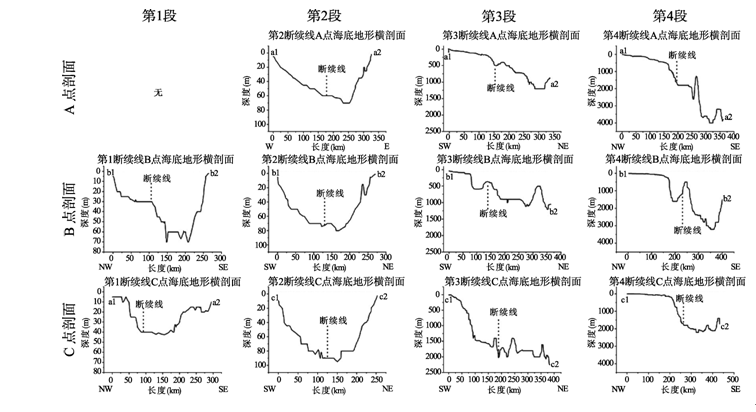

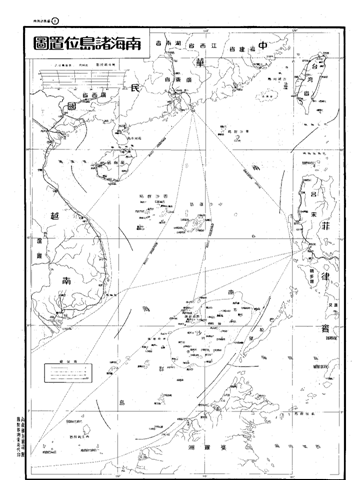

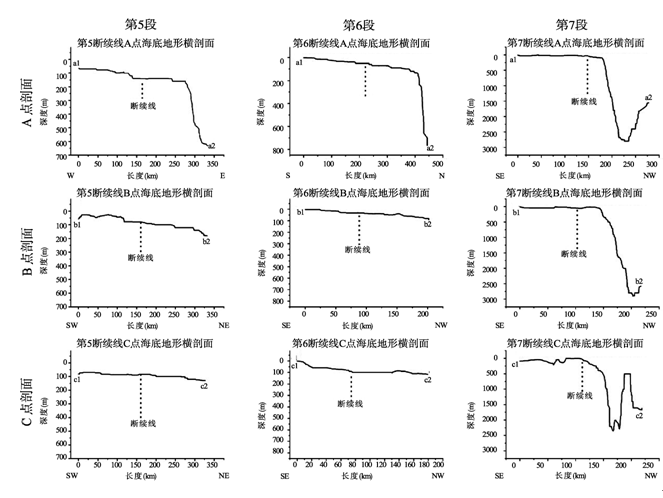

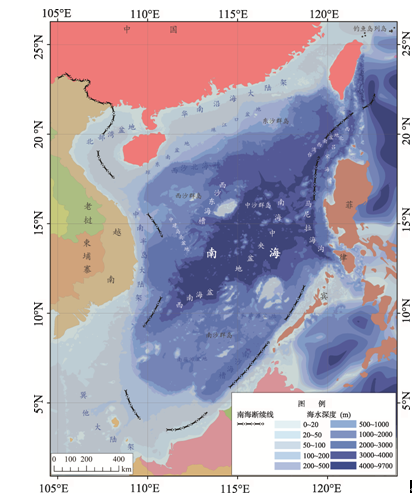

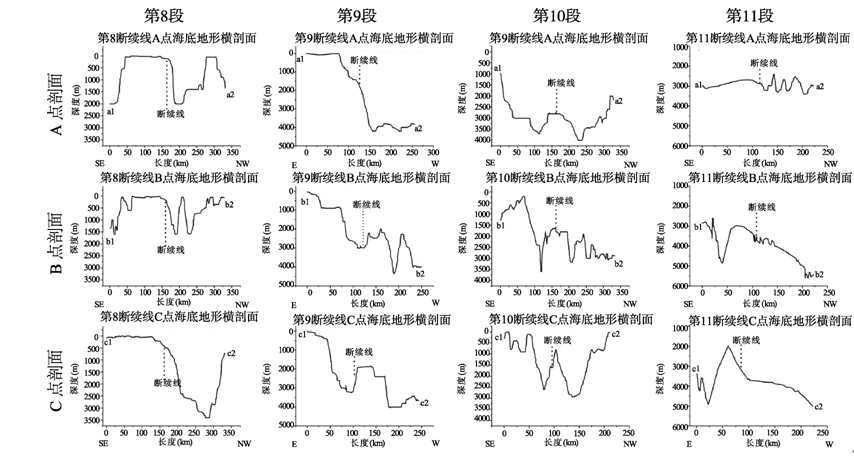

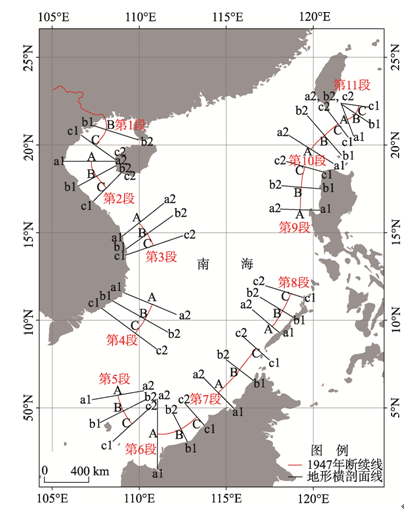

The latitude/longitude coordinates of eleven dotted-line segments in The Location Map of the South China Sea Islands (Nanhai zhudao weizhi tu, in Chinese) of the scale 1:4,000,000, produced by the then-Chinese government in 1947, were determined by affine transformation in the geographic information system. Based on this map, a three-dimensional terrain model of the South China Sea was built and then the seafloor topographic characteristics were analyzed with the spatial overlay algorithm. Results show that the lengths and intervals of the dotted-line segments vary with their geographic locations, with larger lengths in the east and smaller lengths in the west. The range and shape of the dotted-line segments, mostly located on the continental slope and shelf, are parallel to the underlying topography. Three principles for demarcation of the dotted line are further summarized: (1) the principle of "equidistance midline" is adopted for the shallow sea basins and canyons; (2) in areas with dramatic reliefs, it follows the axis of troughs; (3) on the southwestern continental slope and shelf of the South China Sea, the shoreline and underlying topography control its distribution. These results could provide the Chinese government a scientific basis for the solution of disputes in the South China Sea.

Key words: the Dotted Line, demarcation, overlapping analysis, submarine topography, affine transformation, South China Sea, China
