人类活动对港湾岸线及景观变迁影响的比较研究----以中国象山港与美国坦帕湾为例

doi:10.11821/dlxb201601007

Abstract

Abstract:

Using multitemporal Landsat TM images at a 10-year interval, in this study, we (1) extracted information of spatial location, length, and tortuosity of coastline and landscape configuration, diversity and fragmentation in the bay areas of Xiangshangang Bay, China and Tampa Bay, USA as well from the four 10-year periods from 1985 to 2015; (2) constructed indices of artificial coastline and bay area landscape human disturbance; and (3) explored and discussed the impact of human activities on changes in bay area coastline and landscape types. Our analysis results demonstrate the following five points. (1) In the past 30 years, the length of natural coastline in Xiangshangang Bay and Tampa Bay was shrunk, while the length of their artificial coastline was first elongated and then showed a stable trend. Since there was a difference influence of human activities on coastline and landscape types between the two bay areas, Xiangshangang Bay experienced dramatic changes in parts of coastline geomorphologies and continuous decrease of coastline sinuosity while in Tampa Bay, there was a little change in coastline geomorphologies and its coastline sinuosity was almost unchanged. (2) The intensity of human activities in Xiangshangang Bay was continuously enhanced from 1985 to 1995, and then the degree of enhancement had slowed down after 1995. However, in the time period, the impacted extent of human activities gradually increased and finally covered almost entire coastline in the area. In Tampa Bay area, although the intensity of human activities was enhanced, the degree of enhancement was slow from 1985 to 2015 and the impacted area of human activates was concentrated in several coastal city areas. (3) The average area of landscape patches strongly disturbed by human activities in both Xiangshangang Bay and Tampa Bay generally showed a trend of decreasing from 1985 to 2005. However, during the period of 2005-2015, the mean patch area of landscape disturbed by different degree of human activities in Xiangshangang Bay changed differently, while in Tampa Bay it basically unchanged. (4) From 1985 to 2005, the indices of landscape diversity in various areas of human disturbance in Xiangshangang Bay gradually increased, while in Tampa Bay, changes in indices of the landscape diversity varied. From 2005 to 2015, the change in the intensity of human disturbance in both bay areas was from weak to strong while the indices of landscape diversity in Xiangshangang Bay and Tampa Bay increased first and then decreased. (5) Landscape fragmentation index in different human disturbance areas in both Xiangshangang Bay and Tampa Bay gradually increased from 1985 to 2005 while from 2005 to 2015, in both bay areas, the landscape fragmentation index presented a decreasing trend.

Key words: bay coastline, bay landscape, coastline change, human activities, Xiangshangang Bay, Tampa Bay

LIU Yongchao,LI Jialin,YUAN Qixiang,SHI Xiaoli,PU Ruiliang,YANG Lei,LU Xuezhu. Comparative research on the impact of human activities on changes in coastline and landscape in bay areas: A case study with Xiangshangang Bay, China and Tampa Bay, USA[J].Acta Geographica Sinica, 2016, 71(1): 86-103.

Figures/Tables 24

Fig. 1

Fig. 2

Tab. 1

Tab. 2

Tab. 3

Fig. 3

Fig. 4

Tab. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

Fig. 9

Fig. 10

Fig. 11

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Tab. 5

Fig. 16

Fig. 17

Fig. 18

Fig. 19

References 39

[1]	Xu Lianghui, Li Jialin, Yang Lei, et al.Integrated suitability evaluation on mainland coastline resources in Zhejiang Province. China Land Sciences, 2015, 29(4): 49-56.
	[徐谅慧, 李加林, 杨磊, 等. 浙江省大陆岸线资源的适宜性综合评价研究. 中国土地科学, 2015, 29(4): 49-56.]
[2]	Wu Jiansheng, Wang Zheng, Zhang Liqing, et al.Research progresses on driving forces of the changes of landscape pattern. Progress in Geography, 2012, 31(12): 1739-1746.
	[吴健生, 王政, 张理卿, 等. 景观格局变化驱动力研究进展. 地理科学进展, 2012, 31(12): 1739-1746.]
[3]	Tirkey N, Biradar R S, Pikle M, et al.A study on shoreline changes of Mumbai coast using remote sensing and GIS. Journal of the Indian Society of Remote Sensing, 2005, 33(1): 85-91.
[4]	Paterson S K, Loomis D K, Young S E.The human dimension of changing shorelines along the U.S. North Atlantic Coast. Coastal Management, 2014, 42(1): 17-35.
[5]	Li Xing, Zhang Lianpeng, Ji Changchen, et al.Spatiotemporal changes of Jiangsu coastline: A remote sensing and GIS approach. Geographical Research, 2014, 33(3): 414-426.
	[李行, 张连蓬, 姬长晨, 等. 基于遥感和GIS的江苏省海岸线时空变化. 地理研究, 2014, 33(3): 414-426.]
[6]	Xu Jinyong, Zhang Zengxiang, Zhao Xiaoli, et al.Spatial-temporal analysis of coastline changes in northern China from 2000 to 2012. Acta Geographica Sinica, 2013, 68(5): 651-660.
	[徐进勇, 张增祥, 赵晓丽, 等. 2000-2012年中国北方海岸线时空变化分析. 地理学报, 2013, 68(5): 651-660.]
[7]	Chu Z X,Yang X H, Feng X L, et al.Temporal and spatial changes in coastline movement of the Yangtze Delta during 1974-2010. Journal of Asian Earth Sciences, 2013, 66: 166-174.
[8]	Sun Weifu, Ma Yi, Zhang Jie, et al.Study of remote sensing interpretation keys and extraction technique of different types of shoreline. Bulletin of Surveying and Mapping, 2011(3): 41-44.
	[孙伟富, 马毅, 张杰, 等. 不同类型海岸线遥感解译标志建立和提取方法研究. 测绘通报, 2011(3): 41-44.]
[9]	Lantuit H, Pollard W H.Fifty years of coastal erosion and retrogressive thaw slump activity on Herschel Island, southern Beaufort Sea, Yukon Territory, Canada. Geomorphology, 2008, 95(1/2): 84-102.
[10]	Yao Xiaojing, Gao Yi, Du Yunyan, et al.Spatial and temporal changes of Hainan coastline in the past 30 years based on RS. Journal of Natural Resources, 2013, 28(1): 114-125.
	[姚晓静, 高义, 杜云艳, 等. 基于遥感技术的近30a海南岛海岸线时空变化. 自然资源学报, 2013, 28(1): 114-125.]
[11]	Blodget H W, Taylor P T, Roark J H.Shoreline changes along the Rosetta-Nile Promontory: Monitoring with satellite observations. Marine Geology, 1991, 99(1/2): 67-77.
[12]	Zhu Changming, Zhang Xin, Luo Jiancheng, et al.Automatic extraction of coastline by remote sensing technology based on SVM and auto-selection of training samples. Remote Sensing for Land and Resources, 2013, 25(2): 69-74.
	[朱长明, 张新, 骆剑承, 等. 基于样本自动选择与SVM结合的海岸线遥感自动提取. 国土资源遥感, 2013, 25(2): 69-74.]
[13]	Fan Dian, Guo Huadong, Yue Huanyin, et al.Detection of lake shoreline in SAR image based on wavelet. Journal of Remote Sensing, 2002, 6(6): 511-516.
	[范典, 郭华东, 岳焕印, 等. 基于二进小波变换的SAR图像湖岸线提取. 遥感学报, 2002, 6(6): 511-516.]
[14]	Ryu J H, Choi J K, Lee Y K.Potential of remote sensing in management of tidal flats: A case study of thematic mapping in the Korean tidal flats. Ocean & Coastal Management, 2014, 102: 458-470.
[15]	White K, El Asmar H M. Monitoring changing position of coastlines using thematic mapper imagery, an example from the Nile Delta. Geomorphology, 1999, 29(1/2): 93-105.
[16]	Xu L H, Gong H B, Li J L.Comprehensive suitability assessment of coastline resources of Zhejiang Province, China. Philippine Agricultural Scientist, 2015, 98(2): 224-236.
[17]	Guo Luo, Du Shihong, Xue Dayuan, et al.Spatio-Temporal variation of landscape patterns during rapid urbanization in Guangzhou City. Acta Scientiarum Naturalium Universitatis Pekinensis, 2009, 45(1): 129-136.
	[郭泺, 杜世宏, 薛达元, 等. 快速城市化进程中广州市景观格局时空分异特征的研究. 北京大学学报(自然科学版), 2009, 45(1): 129-136.]
[18]	Verbutg P H, Soepboer W, Veldkamp A, et a1. Land use change modeling at the regional scale: The Clues Environmental Management, 2002, 30: 391-405.
[19]	Qin Xiangdong, Min Qinwen.Application of cellular automata in landscape pattern optimization. Resources Science, 2007, 29(4): 85-91.
	[秦向东, 闵庆文. 元胞自动机在景观格局优化中的应用. 资源科学, 2007, 29(4): 85-91.]
[20]	Parcerisas L, Marull J, Pino J, et al.Land use changes, landscape ecology and their socioeconomic driving forces in the Spanish Mediterranean coast (El Maresme County, 1850-2005). Environmental Science & Policy, 2012, 23(11): 120-132.
[21]	Solon J.Spatial context of urbanization: Landscape pattern and changes between 1950 and 1990 in theWarsaw metropolitan area, Poland. Landscape and Urban Planning, 2009, 93(2): 250-261.
[22]	Olsen L M, Dale V H, Foster T.Landscape patterns as indicators of ecological change at Fort Benning Georgia USA. Landscape and Urban Planning, 2007, 79(2): 137-149.
[23]	Tzanopoulos J, Vogiatzakis I N.Processes and patterns of landscape change on a small Aegean island: The case of Sifnos, Greece. Landscape and Urban Planning, 2011, 99(1): 58-64.
[24]	Tian Guangjin, Zhang Zengxiang, Zhang Guoping, et al.Landscape dynamic change pattern of Haikou City by TM imagery and GIS. Acta Ecologica Sinica, 2002, 22(7): 1028-1034.
	[田光进, 张增祥, 张国平, 等. 基于遥感与GIS的海口市景观格局动态演化. 生态学报, 2002, 22(7): 1028-1034.]
[25]	Zhang Qiaomin, Zheng Deyan, Li Shaoning, et al.A study on the sediment dynamics of ebb-tidal delta of Zhanjiang harbor tidal inlet. Acta Geographica Sinica, 1995, 50(5): 421-429.
	[张乔民, 郑德延, 李绍宁, 等. 湛江港潮汐汊道落潮三角洲沉积动力过程. 地理学报, 1995, 50(5): 421-429.]
[26]	Wan Kai, Bao Xianwen, Yao Zhigang, et al.Tidal and residual current characteristics at mouth of Shachenggang channel. Oceanologia Et Limnologia Sinica, 2014, 45(4): 669-675.
	[万凯, 鲍献文, 姚志刚, 等. 沙埕港湾口断面潮流及余流特征分析. 海洋与湖沼, 2014, 45(4): 669-675.]
[27]	Li Chunchu.Ceomorphic characteristics of the harbour coasts in south China. Acta Geographica Sinica, 1986, 41(4): 311-320.
	[李春初. 华南港湾海岸的地貌特征. 地理学报, 1986, 41(4): 311-320.]
[28]	Ma Lijie, Yang Xiguang, Qi Yali, et al.Oceanic area change and contributing factor of Jiaozhou Bay. Scientia Geographica Sinica, 2014, 34(3): 365-369.
	[马立杰, 杨曦光, 祁雅莉,等. 胶州湾海域面积变化及原因探讨. 地理科学, 2014, 34(3): 365-369.]
[29]	Wang Xianghua, Zhu Xiaodong, Li Yangfan, et al.Dynamic assessment of the cumulative ecological effects from Xiamen Bay city development. Acta Ecologica Sinica, 2007, 27(6): 2375-2381.
	[王向华, 朱晓东, 李杨帆, 等. 厦门海湾型城市发展累积生态效应动态评价. 生态学报, 2007, 27(6): 2375-2381.]
[30]	Lin Guilan, Zuo Yuhui.Cumulative ecological effects assessment on resource exploitation and utilization in bay. Journal of Natural Resources, 2006, 21(3): 432-440.
	[林桂兰, 左玉辉. 海湾资源开发的累积生态效应研究. 自然资源学报, 2006, 21(3): 432-440.]
[31]	Chen Zeshi, Wang Wenhai, Wu Sangyun.The Gulf of China. Beijing: China Ocean Press, 2007.
	[陈则实, 王文海, 吴桑云. 中国海湾引论. 北京: 海洋出版社, 2007.]
[32]	Wang Mingyue, Li Jialin, Xu Lianghui, et al.Beach farmland reclamation from landscape pattern change: Dongtai County, Jiangsu Province as a case study. Joural of Ningbo University (NSEE), 2014, 27(4): 60-65.
	[王明月, 李加林, 徐谅慧, 等. 滩涂围垦农业利用区景观格局变化分析: 以江苏东台为例. 宁波大学学报(理工版), 2014, 27(4): 60-65.]
[33]	Yuan Qixiang, Li Jialin, Xu Lianghui, et al.Temporal and spatial variations of shoreline in tidal inlet system of Xiangshangang Bay and its relation to human activities in the past 40a. Joural of applied Oceanography, 2015, 34(2):279-290.
	[袁麒翔, 李加林, 徐谅慧, 等. 近40a象山港潮汐汊道岸线的时空变化特征及其与人类活动的关系. 应用海洋学学报, 2015, 34(2): 279-290.]
[34]	Wang Ying, Ji Xiaomei.Environmental characteristics and changes of coastal ocean as land-ocean transitional zone of China. Scientia Geographica Sinica, 2011, 31(2): 129-135.
	[王颖, 季小梅. 中国海陆过渡带--海岸海洋环境特征与变化研究. 地理科学, 2011, 31(2): 129-135.]
[35]	Yuan Qixiang, Li jialin, Xu Lianghui, et al. Quantitative analysis of river morphological features in Xiangshangang Bay Basin. Journal of Marine Sciences, 2014, 32(3): 50-57.
	[袁麒翔, 李加林, 徐谅慧, 等. 象山港流域河流形态特征定量分析. 海洋学研究, 2014, 32(3): 50-57.]
[36]	Li You, Wang Yanglin, Peng Jian, et al.Research on dynamic changes of coastline in Shenzhen City based on landsat image. Resources Science, 2009, 31(5): 875-883.
	[李猷, 王仰麟, 彭建, 等. 深圳市1978年至2005年海岸线的动态演变分析. 资源科学, 2009, 31(5): 875-883.]
[37]	Zhao Zongze.Mainland shoreline change analysis of Fujian Province of 30 years on remote sensing [D]. Qingdao: Shandong University of Science and Technology, 2013.
	[赵宗泽. 30年来福建省大陆海岸线变迁遥感分析[D]. 青岛: 山东科技大学, 2013.]
[38]	Zhou Juan, Chen Bin, Yu Weiwei.Landscape pattern analysis and dynamic change in Quanzhou Bay. Marine Environmental Science, 2011, 30(3): 370-375.
	[周娟, 陈彬, 俞炜炜. 泉州湾景观格局分析及动态变化研究. 海洋环境科学, 2011, 30(3): 370-375.]
[39]	Lin Guilan, ZuoYuhui. PRED Regulation of Xiamen Bay in the process of urbanization. Acta Geographica Sinica, 2007, 62(2): 137-146.
	[林桂兰, 左玉辉. 厦门湾城市化过程的人口资源环境与发展调控. 地理学报, 2007, 62(2): 137-146.]

一级类	二级类	说明
自然岸线	基岩岸线	基岩海岸的陆海分界线
	河口岸线	入海河口与海洋的分界线
	生物岸线	红树林与潮滩湿地的界线
	砂砾质岸线	沙滩,砾石滩的海岸线
	淤泥质岸线	淤泥或粉砂质泥滩的海岸线
人工岸线	养殖岸线	潮滩湿地养殖场海侧岸线
	建设岸线	城镇建设用地的海侧岸线
	防护岸线	用于防浪,防潮的岸线
	娱乐休闲岸线	用于生活娱乐休闲的岸线
	港口码头岸线	修筑港口码头形成的岸线

景观类型	景观资源环境影响状况	影响因子
建设用地	对港湾景观资源及生态环境有显著影响,且部分为不可逆的	0.85
养殖用地和盐田	对港湾景观资源及生态环境有较大影响,且大多为不可逆的	0.65
娱乐用地	对港湾景观资源及生态环境稍有影响,且大多为不可逆的	0.55
未利用地	对港湾景观资源及生态环境稍有影响,且大多为不可逆的	0.48
耕地	对港湾景观资源及生态环境影响较小,且部分为可逆的	0.25
湖泊河流	对港湾资源及生态环境影响很小,并具有生态维护调节作用	0.10
林地	对港湾资源及生态环境影响很小,并具有生态维护调节作用	0.10
海域	对港湾资源及生态环境影响很小,并具有生态维护调节作用	0.10
潮滩湿地	对港湾资源及生态环境影响很小,并具有生态维护调节作用	0.10

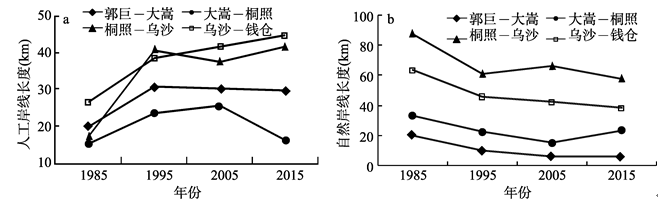

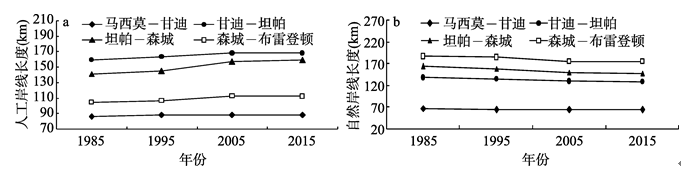

	中国象山港					美国坦帕湾
	类型		1985-1995年	1995-2005年	2005-2015年	类型	1985-1995年	1995-2005年	2005-2015年
自然岸线	基岩岸线	-46.21	-10.71	-3.83		基岩岸线	-0.22	0.01	-0.04
	河口岸线	-2.74	1.71	-1.17		生物岸线	-14.97	-20.13	-2.54
	砂砾质岸线	0.14	0.05	0.41		砂砾质岸线	0.27	-1.38	0.1
	淤泥质岸线	-15.56	-0.4	0.12		淤泥质岸线	0.68	-1.72	0
	小计	-64.37	-9.34	-4.48		小计	-14.26	-23.21	-2.49
人工岸线	养殖岸线	35.6	6.8	-5.11		防护岸线	-3.27	-0.85	0.4
	建设岸线	0.09	-0.25	4.24		建设岸线	7.01	0.92	1.62
	防护岸线	12.13	-6.5	-0.96		娱乐休闲岸线	2.53	5.54	-0.22
	港口码头岸线	6.08	1.41	-0.69		港口码头岸线	5.64	16.97	0.08
	小计	53.91	1.45	-2.53		小计	11.91	22.58	1.88
	总计	-10.46	-7.89	-7.02		总计	-2.34	-0.64	-0.61

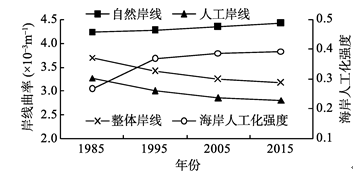

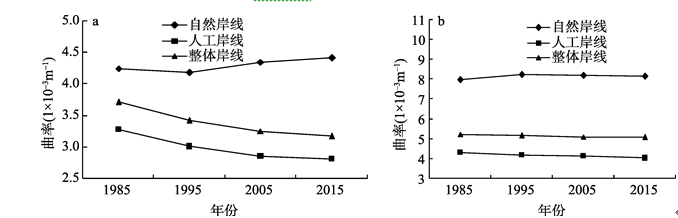

类型	1985年			1995年		2005年			2015年
类型	象山港		坦帕湾		象山港	坦帕湾	象山港	坦帕湾	象山港	坦帕湾
自然岸线	4.25	7.98		4.18	8.22	4.35	8.18		4.42	8.13
人工岸线	3.28	4.32		3.01	4.18	2.86	4.15		2.81	4.03
整体岸线	3.71	5.23		3.42	5.15	3.25	5.09		3.17	5.07

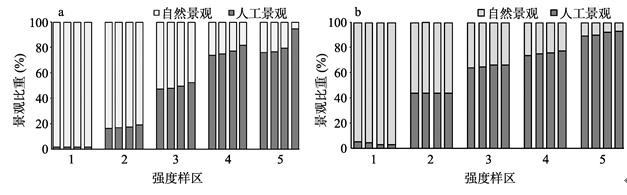

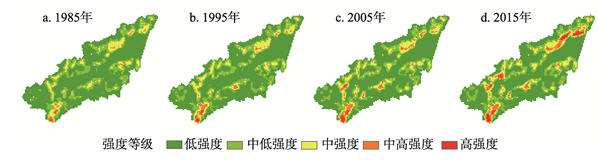

名称	编码	景观组成

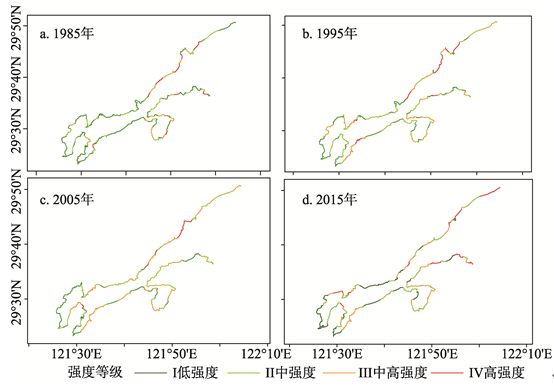

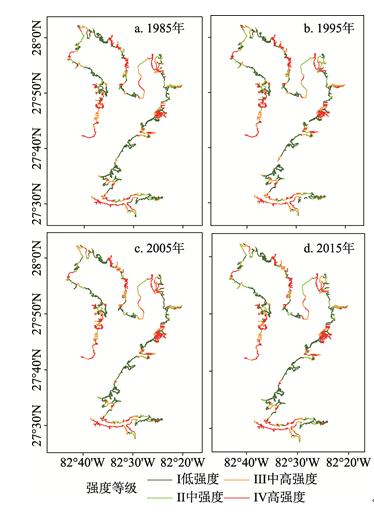

低强度干扰区	1	主要是海洋,林地,不透水性小,包含潮滩湿地,红树林等
中低强度干扰区	2	主要是林地,湖泊等自然景观,包括部分农用地和离散住宅
中强度干扰区	3	主要是建筑和植被的混合区,离散的住宅区和农用地
中高强度干扰区	4	主要包含离散的住宅区,准备开发的空旷地
高强度干扰区	5	主要是大面积的建筑物,不透水性大,包含工厂,高密度住宅区,机场等
