21世纪初期南京城市用地类型与用地强度演变关系

doi:10.11821/dlxb201511009

Abstract

Abstract:

Three-dimensional urban space expansion has become an important feature of China’s urban spatial expansion since the early 21st century. Based on the three-dimensional digital reconstruction results of Nanjing in 2000 and 2012, this paper expanded the application methods of land use types transfer-matrix to study the evolution of land use intensity caused by the changes of land use types in urban built-up areas. The results consist of three aspects: (1) Nanjing's built-up area has experienced rapid expansion since the early 21st century, and it expanded 50.50 km² per year on average. During the past 12 years, industrial land attained maximal growth with an expansion of 155.34 km², and its main incremental source was agricultural land, followed by residential land. Agricultural land and water area decreased obviously, and the lost agricultural land was transferred mainly to industrial land. (2) The sequence of average plot ratio of five major land use types in built-up areas, which were commercial land, residential land, educational land, industrial land and land for other construction purposes in descending order, did not change from 2000 to 2012, and the average plot ratio of the first four land use types increased by 0.59, 0.48, 0.31 and 0.06, respectively. In the transformation processes of five major land use types in built-up areas, the plot ratio of residential land converted to other construction land decreased, while other conversion types significantly increased. The plot ratio of unchanged land use types also constantly rose. (3) The plot ratios of new residential and educational lands as well as land for other construction purposes exceeded those of the corresponding land types in the old town, suggesting that the plot ratios of land types in the urban expansion area were at a higher level. The plot ratios of new industrial land and old industrial land were unchanged. The plot ratio of new commercial land was 65.67% of that of old commercial land.

Key words: improved transfer-matrix method, urban land use type, land use intensity change, Nanjing

Weifeng QIAO, Yansui LIU, Yahua WANG, Bin FANG, Youchen ZHAO. The relationship of evolution between urban land use types and intensity in Nanjing since the early 21st century[J].Acta Geographica Sinica, 2015, 70(11): 1800-1810.

Figures/Tables 9

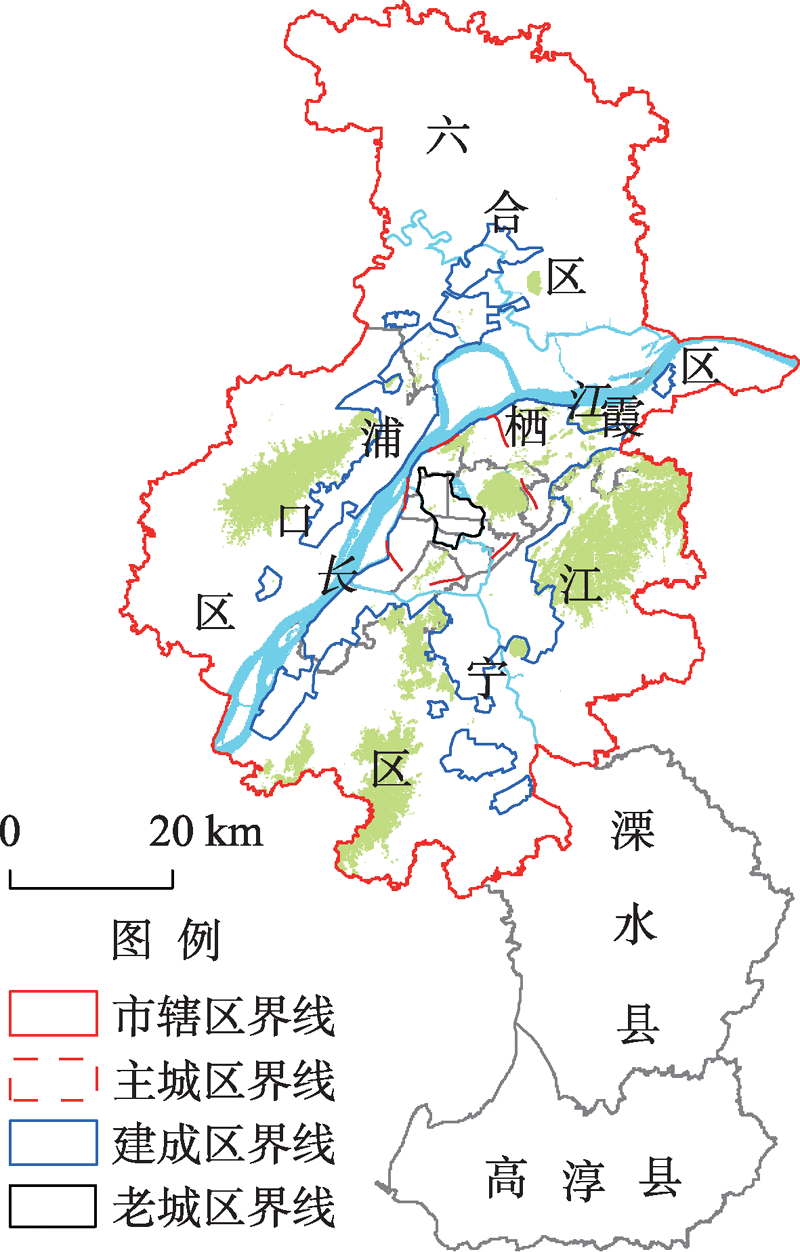

Fig. 1

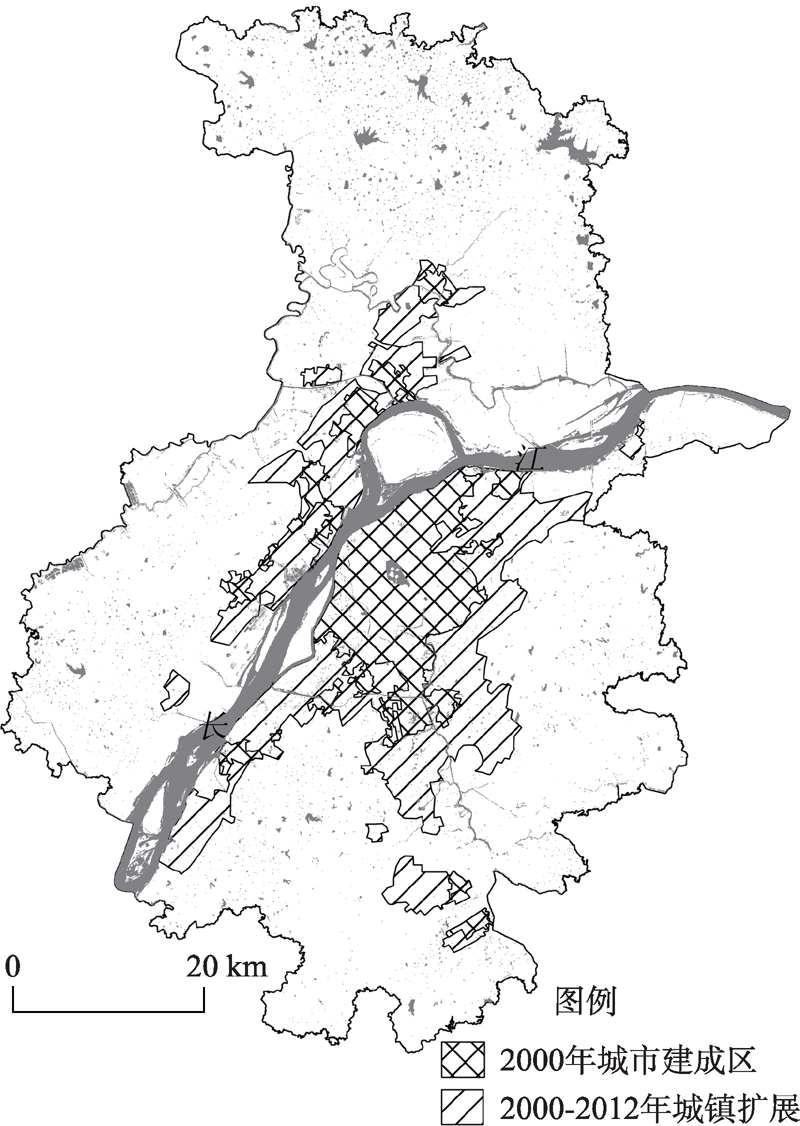

Fig. 2

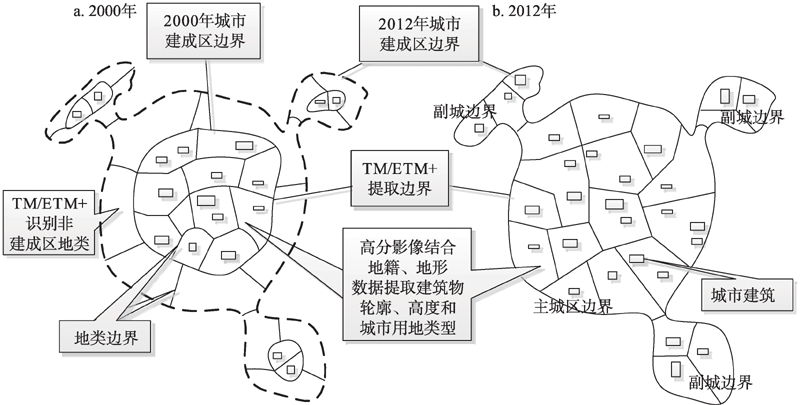

Fig. 3

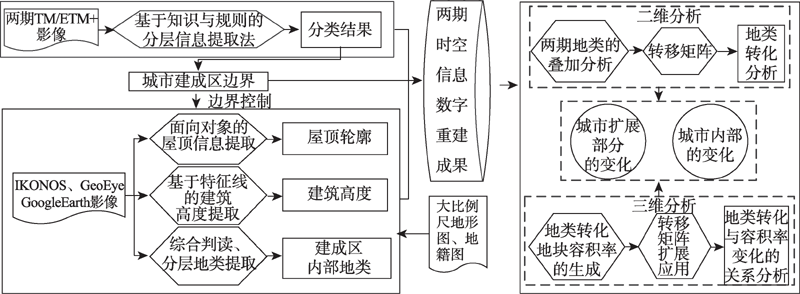

Fig. 4

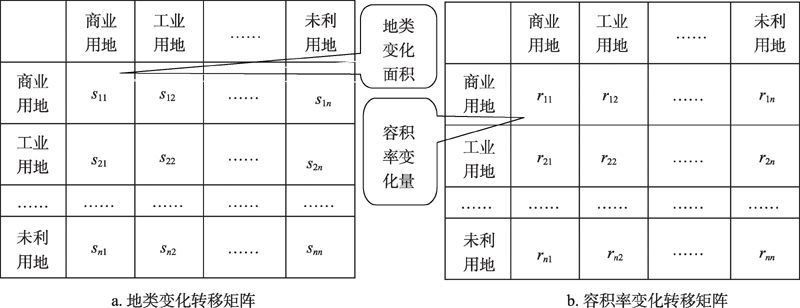

Fig. 5

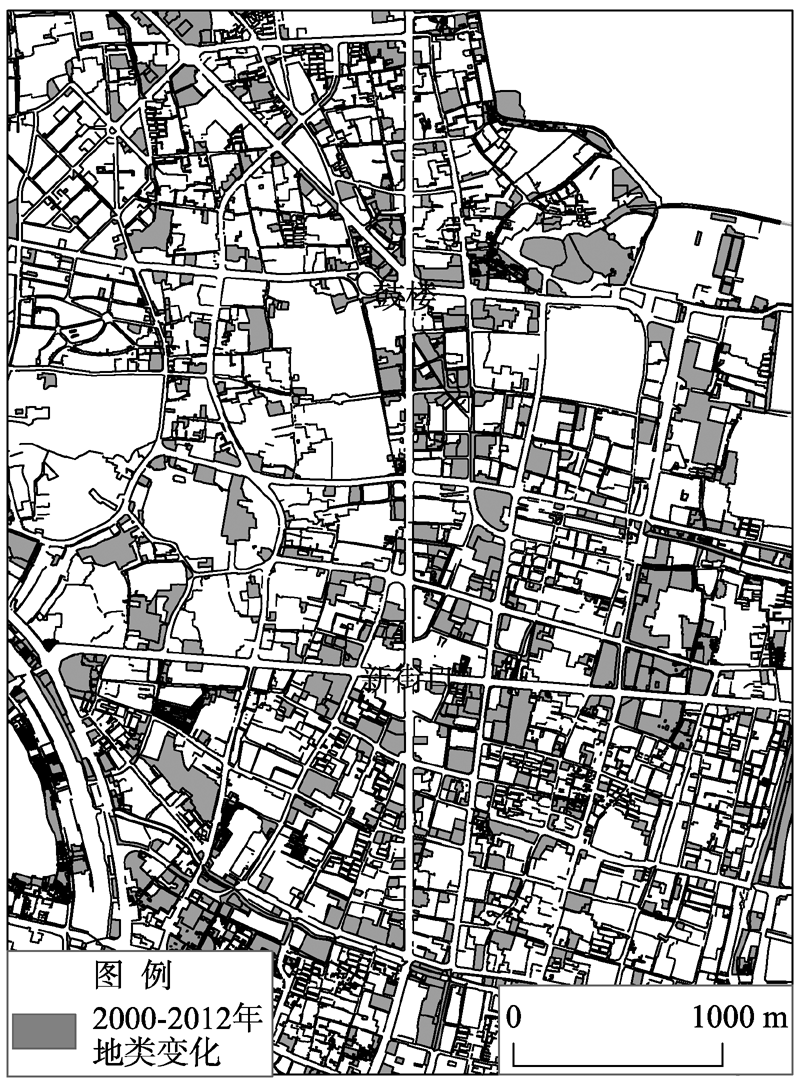

Fig. 6

Tab. 1

Tab. 2

Tab. 3

References 31

[1]	Kuang Wenhui, Shao Quanqin, Liu Jiyuan, et al.Spatio-temporal patterns and driving forces of urban expansion in Beijing central city since 1932. Journal of Geo-Information Science, 2009, 11(4): 428-435.
	[匡文慧, 邵全琴, 刘纪远, 等. 1932年以来北京主城区土地利用空间扩张特征与机制分析. 地球信息科学学报, 2009, 11(4): 428-435. ]
[2]	Zhang Li, Lei Jun, Li Xuemei, et al.The features and influencing factors of urban expansion in China during 1997-2007. Progress in Geography, 2011, 30(5): 607-614. doi: 10.11820/dlkxjz.2011.05.013
	[张利, 雷军, 李雪梅, 等. 1997-2007年中国城市用地扩张特征及其影响因素分析. 地理科学进展, 2011, 30(5): 607-614.] doi: 10.11820/dlkxjz.2011.05.013
[3]	Wang Weiwu, Jin Jianwei, Xiao Zuopeng, et al.Urban expansion and its driving forces based on remote sensed data and GIS: A case study of Hangzhou City from 1991 to 2008. Geographical Research, 2009, 28(3): 685-695.
	[王伟武, 金建伟, 肖作鹏, 等. 近18年来杭州城市用地扩展特征及其驱动机制. 地理研究, 2009, 28(3): 685-695.]
[4]	Tan Minghong, Li Xiubin, Lu Changhe.Expansion of construction land and occupation of farmland in large and medium cities of China in the 1990s. Science in China Series D, 2005, 34(12): 1157-1165. doi: 10.3321/j.issn:1006-9267.2004.12.009
	[谈明洪, 李秀彬, 吕昌河. 20世纪90年代中国大中城市建设用地扩张及其对耕地的占用. 中国科学: D辑, 2005, 34(12): 1157-1165.] doi: 10.3321/j.issn:1006-9267.2004.12.009
[5]	Wang Lei, Duan Xuejun.The expansion of urbanization area in Yangtze River Delta. Scientia Geographica Sinica, 2010, 30(5): 702-709.
	[王磊, 段学军. 长江三角洲地区城市空间扩展研究. 地理科学, 2010, 30(5): 702-709.]
[6]	Zhang Wenzhong, Wang Chuansheng, Xue Dongqian.Urbanization base of city-land use expansion in the Zhujiang River Delta. Journal of Natural Resources, 2003, 18(5): 575-582. doi: 10.11849/zrzyxb.2003.05.009
	[张文忠, 王传胜, 薛东前. 珠江三角洲城镇用地扩展的城市化背景研究. 自然资源学报, 2003, 18(5): 575-582.] doi: 10.11849/zrzyxb.2003.05.009
[7]	Feng Jian.Spatial-temporal evolution of urban morphology and land use structure in Hangzhou. Acta Geographica Sinica, 2003, 58(3): 343-353.
	[冯健. 杭州城市形态和土地利用结构的时空演化. 地理学报, 2003, 58(3): 343-353.]
[8]	Hall P.The future of the metropolis and its form. Regional Studies, 1997, 31(3): 211-220. doi: 10.1080/00343409750134647
[9]	Chang Q, Li S C, Wang Y L, et al.Spatial process of green infrastructure changes associated with rapid urbanization in Shenzhen, China. Chinese Geographical Science, 2013, 23(1): 113-128. doi: 10.1007/s11769-012-0568-3
[10]	Wilson H E, Hurd J D, Civco D L, et al.Development of a geospatial model to qua.pngy, describe and map urban growth. Remote Sensing of Environment, 2003, 86(3): 275-285.
[11]	Liu X P, Li X, Chen Y M, et al.A new landscape index for qua.pngying urban expansion using multi-temporal remotely sensed data. Landscape Ecology, 2010, 25(5): 671-682. doi: 10.1007/s10980-010-9454-5
[12]	Camagni R, Gibelli M C, Rigamonti P.Urban mobility and urban form: The social and environmental costs of different patterns of urban expansion. Ecological Economics, 2002, 40(2): 199-216. doi: 10.1016/S0921-8009(01)00254-3
[13]	Yin J, Yin Z E, Zhong H D, et al.Monitoring urban expansion and land use/land cover changes of Shanghai metropolitan area during the transitional economy (1979-2009) in China. Environmental Monitoring and Assessment, 2011, 177(1-4): 609-621. doi: 10.1007/s10661-010-1660-8 pmid: 20824336
[14]	Wu Hongan, Jiang Jianjun, Zhou Jie, et al.Dynamics of urban expansion in Xi'an City using Landsat TM/TM+ data. Acta Geographica Sinica, 2005, 60(1): 143-150.
	[吴宏安, 蒋建军, 周杰, 等. 西安城市扩张及其驱动力分析. 地理学报, 2005, 60(1): 143-150.]
[15]	He Zhen, Zhao Wenliang, He Junping.Remote sensing monitoring of urban sprawl based on object-oriented and driving forces analysis: A case study of Zhengzhou City. Geographical Research, 2011, 30(12): 2272-2280.
	[贺振, 赵文亮, 贺俊平. 郑州市城市扩张遥感动态监测及驱动力分析. 地理研究, 2011, 30(12): 2272-2280.]
[16]	Sun Shanlei, Zhou Suoquan, Wei Guoshuan, et al.Dynamic monitoring of urban expansion in the region around Hangzhou Bay. Journal of Natural Resources, 2008, 23(2): 327-335. doi: 10.11849/zrzyxb.2008.02.017
	[孙善磊, 周锁铨, 魏国栓, 等. 环杭州湾地区城市扩张的遥感动态监测. 自然资源学报, 2008, 23(2): 327-335.] doi: 10.11849/zrzyxb.2008.02.017
[17]	Liu Shenghe, Wu Chuanjun, Shen Hongquan, et al.A GIS based model of urban land use growth in Beijing. Acta Geographica Sinica, 2000, 55(4): 407-416. doi: 10.3321/j.issn:0375-5444.2000.04.003
	[刘盛和, 吴传钧, 沈洪泉, 等. 基于GIS的北京城市土地利用扩展模式. 地理学报, 2000, 55(4): 407-416.] doi: 10.3321/j.issn:0375-5444.2000.04.003
[18]	Yin Fang, Feng Min, Zhong Feng, et al.Research of urban expansion in Siping City based on remote sensing and GIS. Journal of Geo-Information Science, 2010, 12(2): 242-247.
	[尹芳, 冯敏, 钟凤, 等. 基于GIS的四平市城市扩展遥感分析. 地球信息科学学报, 2010, 12(2): 242-247.]
[19]	Li Feixue, Li Manchun, Liu Yongxue, et al.Urban growth in Nanjing since 1949. Journal of Natural Resources, 2007, 22(4): 524-535. doi: 10.11849/zrzyxb.2007.04.004
	[李飞雪, 李满春, 刘永学, 等. 建国以来南京城市扩展研究. 自然资源学报, 2007, 22(4): 524-535.] doi: 10.11849/zrzyxb.2007.04.004
[20]	Wang Xinsheng, Liu Jiyuan, Zhuang Dafang, et al.Spatial-temporal changes of urban spatial morphology in China. Acta Geographica Sinica, 2005, 60(3): 392-400.
	[王新生, 刘纪远, 庄大方, 等. 中国特大城市空间形态变化的时空特征. 地理学报, 2005, 60(3): 392-400.]
[21]	Yan Shan, Wu Yong.A study on spatial difference of Wuxi City from expansion. Human Geography, 2001, 16(3): 84-88. doi: 10.3969/j.issn.1003-2398.2001.03.003
	[杨山, 吴勇. 无锡市形态扩展的空间差异研究. 人文地理, 2001, 16(3): 84-88.] doi: 10.3969/j.issn.1003-2398.2001.03.003
[22]	Liu Jiyuan, Wang Xinsheng, Zhuang Dafang, et al.Application of convex hull in ide.pngying the types of urban land expansion. Acta Geographica Sinica, 2003, 58(6): 885-892.
	[刘纪远, 王新生, 庄大方, 等. 凸壳原理用于城市用地空间扩展类型识别. 地理学报, 2003, 58(6): 885-892.]
[23]	Gao Jinlong, Chen Jianglong, Yuan Feng, et al.Patterns, functions and underlying mechanisms of urban land expansion in Nanjing. Geographical Research, 2014, 33(10): 1892-1907.
	[高金龙, 陈江龙, 袁丰, 等. 南京市建设用地扩张模式、功能演化与机理. 地理研究, 2014, 33(10): 1892-1907.]
[24]	Liu Xiaoping, Li Xia, Chen Yimin, et al.Landscape expansion index and its applications to quantitative analysis of urban expansion. Acta Geographica Sinica, 2009, 64(12): 1430-1438.
	[刘小平, 黎夏, 陈逸敏, 等. 景观扩张指数及其在城市扩展分析中的应用. 地理学报, 2009, 64(12): 1430-1438. ]
[25]	Yang Yongchun, Yang Xiaojuan.Research on urban spatial expansion and land use inner structure transformation of the large valley-basin cities in China from 1949 to 2005: A case study of Lanzhou. Journal of Natural Resources, 2009, 24(1): 37-49. doi: 10.11849/zrzyxb.2009.01.005
	[杨永春, 杨晓娟. 1949-2005年中国河谷盆地型大城市空间扩展与土地利用结构转型: 以兰州市为例. 自然资源学报, 2009, 14(1): 37-49.] doi: 10.11849/zrzyxb.2009.01.005
[26]	Wang Qian, Zhang Zengxiang, Yi Ling, et al.Research on urban expansion in Nanjing, China using RS and GIS. Resources and Environment in the Yangtze Basin, 2007, 16(5): 554-559.
	[王茜, 张增祥, 易玲, 等. 南京城市扩展的遥感研究. 长江流域资源与环境, 2007, 16(5): 554-559.]
[27]	Qiao Weifeng.Study on urban spatial multidimensional expansion of Nanjing based on land use perspective [D]. Nanjing: Nanjing Normal University, 2013.
	[乔伟峰. 土地利用视角下的南京城市空间多维扩展研究[D]. 南京: 南京师范大学, 2013.]
[28]	Wang Jing, Liu Jin. Dynamic of urban expansion in Lianyungang city based on the multi-time-phase remote sensing images: A case study of Xinpu District. Urban Geotechnical Investigation & Surveying, 2011(1): 81-83.
	[王晶, 刘锦. 基于多时相遥感数据的连云港城市扩展监测: 以新浦区为例. 城市勘测, 2011(1): 81-83.]
[29]	Song Xiaodong, Liu Pu, Zhou Yixing.Urban and rural area division: Taking Shanghai as an example. Acta Geographica Sinica, 2006, 61(8): 787-797.
	[宋小冬, 柳朴, 周一星. 上海市城乡实体地域的划分. 地理学报, 2006, 61(8): 787-797.]
[30]	Tan Qulin.Urban building extraction from VHR multi-spectral images using object-based classification. Acta Geodaetica et Cartographica Sinica, 2010, 39(6): 618-623.
	[谭衢霖. 高分辨率多光谱影像城区建筑物提取研究. 测绘学报, 2010, 39(6): 618-623.]
[31]	Qiao Weifeng, Sheng Yehua, Fang Bin, et al.Land use change information mining in highly urbanized area based on transfer matrix: A case study of Suzhou, Jiangsu Province. Geographical Research, 2013, 32(8): 1497-1507.
	[乔伟峰, 盛业华, 方斌, 等. 基于转移矩阵的高度城市化区域土地利用演变信息挖掘: 以江苏省苏州市为例. 地理研究, 2013, 32(8): 1497-1507.]

2000年	2012年
2000年	商业用地	工业用地	住宅用地	教育用地	其他建设用地	道路广场用地	公园绿地	水域	农用地	未利用地
商业用地	435.44	25.61	204.08	28.53	32.15	148.65	10.86	7.10	0.12	32.31
工业用地	100.38	6365.92	997.16	146.80	157.35	606.56	251.46	57.03	25.24	234.91
住宅用地	182.84	1945.64	7031.23	505.84	1424.80	2035.59	186.11	297.08	603.89	890.17
教育用地	13.00	35.87	240.45	1405.97	69.88	119.50	17.17	9.81	0.31	28.34
其他建设用地	71.80	181.27	449.56	299.38	3193.61	458.27	380.27	39.80	9.37	108.50
道路广场用地	100.16	191.06	676.32	115.67	194.10	2660.71	90.08	63.60	5.23	113.68
公园绿地	24.96	8.45	53.38	12.53	165.41	57.84	2558.65	4.12	0.08	5.40
水域	33.44	707.20	453.72	113.34	596.75	681.99	109.27	853.84	209.17	286.14
农用地	237.22	14418.89	7537.85	2536.40	8054.05	5495.13	431.37	654.15	4514.94	4672.10
未利用地	58.70	596.92	732.54	204.99	395.82	470.85	217.55	60.31	77.69	1391.24

2000年	2012年
2000年	商业用地	工业用地	住宅用地	教育用地	其他建设用地	道路广场用地	公园绿地	水域	农用地	未利用地
商业用地	0.69	0.26	1.54	0.10	0.71	-1.30	-0.64	-1.37	-1.38	-0.03
工业用地	1.49	0.12	1.53	0.48	0.56	-0.37	-0.12	-0.35	0.18	0.27
住宅用地	1.00	0.05	0.35	0.19	-0.15	-0.70	-0.46	-0.53	-0.13	-0.08
教育用地	2.07	0.61	1.46	0.45	0.68	-0.52	-0.22	-0.30	-0.46	0.10
其他建设用地	1.30	0.97	1.30	0.56	0.27	-0.36	0.00	-0.16	-0.05	0.15
道路广场用地	2.78	1.10	2.16	1.12	1.10	0.01	0.12	0.07	-0.96	-0.26
公园绿地	0.15	0.87	1.61	0.81	0.21	-0.03	0.03	-0.03	0.00	0.24
水域	1.51	0.31	1.37	1.08	0.20	0.00	0.09	0.00	0.21	0.30
农用地	0.88	0.39	1.12	0.76	0.37	0.01	0.11	0.05	0.00	0.18
未利用地	1.66	0.66	1.87	0.74	0.49	-0.11	0.05	-0.03	0.21	0.00

	2000年地类面积(km²)	2012年地类面积(km²)	2000年建筑总面积(m²)	2012年建筑总面积(m²)	2000年平均容积率	2012年平均容积率
商业用地	924.85	1257.93	1.24×10⁷	2.30×10⁷	1.34	1.82
工业用地	8942.81	24476.82	3.62×10⁷	1.13×10⁸	0.40	0.46
住宅用地	15103.21	18376.28	1.38×10⁸	2.77×10⁸	0.92	1.51
教育用地	1940.29	5369.46	1.17×10⁷	4.90×10⁷	0.60	0.91
其他建设用地	5191.84	14283.93	1.66×10⁷	3.81×10⁷	0.32	0.27
