河流纵剖面陡峭指数对庐山构造抬升的指示

doi:10.11821/dlxb201509013

Abstract

Abstract:

In this study, we extracted nine river profiles from a 5-m DEM of the Mt. Lushan region. Knickpoints of two types, namely the vertical-step knickpoint and the slope-break knickpoint, are recognized, and are compared with the geological settings to determine their origins. At the same time, we calculated the channel steepness index (k_sn) and concavity (θ) of separated parts of these rivers, using the stream-power incision model. The results show that these rivers are almost in a transient state represented by the occurrence of knickpoints. The vertical-step knickpoints are related to inhomogeneous substrates and the slope-break knickpoints are ascribed to the lowering of the base level due to rapid mountain uplift. The parts of the rivers below the slope-break knickpoint have a relatively large k_sn, which probably indicates a shift from low rate at early uplift to a later high rate. The steepness index in the south of the mountain is larger than that in the north, which might be induced by different uplift rates or substrates.

Key words: Lushan, stream-power incision model, normalized channel steepness index, tectonic uplift, knickpoint

Nairui WANG, Zhiyong HAN, Xusheng LI, Gang CHEN, Xianyan WANG, Huayu LU. Tectonic uplift of Mt. Lushan indicated by the steepness indices of the river longitudinal profiles[J].Acta Geographica Sinica, 2015, 70(9): 1516-1525.

Figures/Tables 5

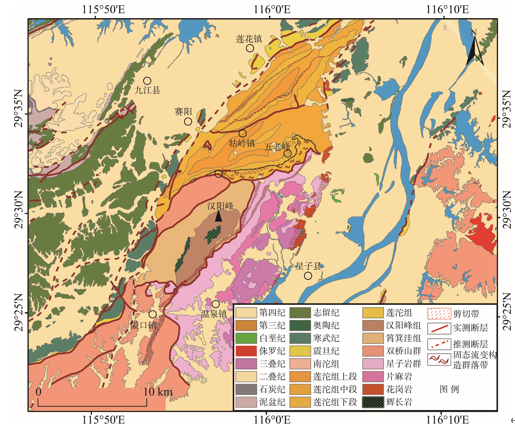

Fig. 1

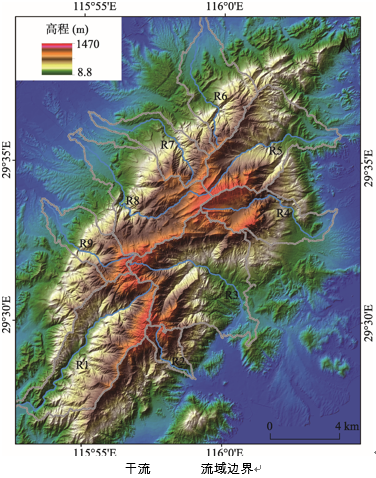

Fig. 2

Tab. 1

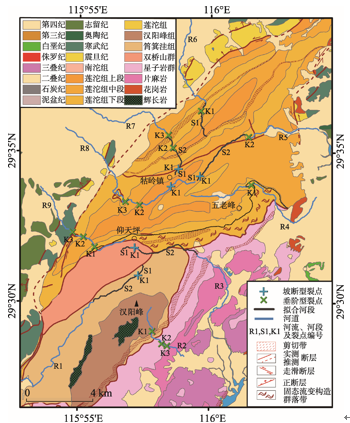

Fig. 3

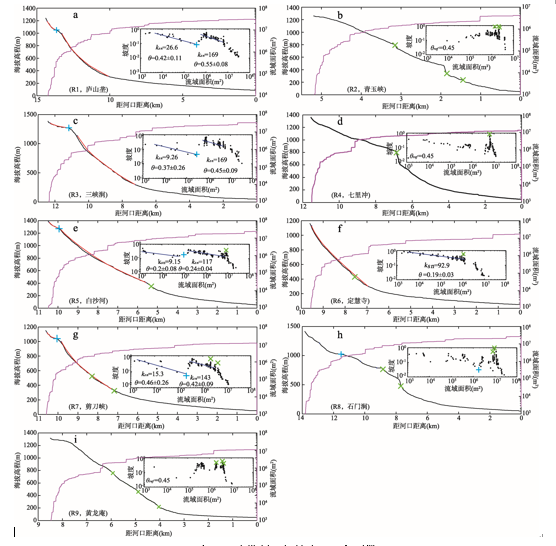

Fig. 4

References 46

[1]	Lavé J, Avouac J.Active folding of fluvial terraces across the Siwaliks Hills, Himalayas of central Nepal. Journal of Geophysical Research, 2000, 105(B3): 5735-5770.
[2]	Kirby E.Quantifying differential rock-uplift rates via stream profile analysis. Geology, 2001, 29(5): 415-418.
[3]	Castillo M, Muñoz-Salinas E, Ferrari L.Response of a landscape to tectonics using channel steepness indices (ksn) and OSL: A case of study from the Jalisco Block, Western Mexico. Geomorphology, 2014, 221: 204-214.
[4]	Kirby E.Expression of active tectonics in erosional landscapes. Journal of Structural Geology, 2012, 44: 54-75.
[5]	Cyr A J, Granger D E, Olivetti V, et al.Distinguishing between tectonic and lithologic controls on bedrock channel longitudinal profiles using cosmogenic 10Be erosion rates and channel steepness index. Geomorphology, 2014, 209: 27-38.
[6]	Whipple K X.Bedrock rivers and the geomorphology of active orogens. Annual Review of Earth and Planetary Sciences, 2004, 32: 151-185.
[7]	Whipple K X.Geomorphic limits to climate-induced increases in topographic relief. Nature, 1999, 401: 39-43.
[8]	Crosby B T, Whipple K X.Knickpoint initiation and distribution within fluvial networks: 236 waterfalls in the Waipaoa River, North Island, New Zealand. Geomorphology, 2006, 82: 16-38.
[9]	Hu Xiaofei, Pan Baotian, Kirby E, et al.Spatial differences in rock uplift rates inferred from channel steepness indices along the northern flank of the Qilian Mountain, northeast Tibetan Plateau. Chinese Science Bulletin, 2010(23): 2329-2338.
	[胡小飞, 潘保田, Kirby E, 等. 河道陡峭指数所反映的祁连山北翼抬升速率的东西差异. 科学通报, 2010 (23): 2329-2338.]
[10]	DiBiase R A, Whipple K X, Heimsath A M, et al. Landscape form and millennial erosion rates in the San Gabriel Mountains, CA. Earth and Planetary Science Letters, 2010, 289: 134-144.
[11]	Wobus C.Tectonics from topography: Procedures, promise, and pitfalls//Willett S D, Hovius N, Brandon M T, et al. Tectonics, Climate, and Landscape Evolution. Geological Society of America Special Paper, 2006, 398: 55-74.
[12]	Whittaker A C, Cowie P A, Attal M, et al.Bedrock channel adjustment to tectonic forcing: Implications for predicting river incision rates. Geology, 2007, 35(2): 103-106.
[13]	Sklar L, Dietrich W E.River longitudinal profiles and bedrock incision models: Stream power and the influence of sediment supply//Tinkler K J, Wohl E E. Rivers over Rock. Washington, DC: AGU Press, 1998, 237-260.
[14]	Ambili V, Narayana A C.Tectonic effects on the longitudinal profiles of the Chaliyar River and its tributaries, southwest India. Geomorphology, 2014, 217: 37-47.
[15]	Wang Ziqiang, Gao Linzhi, Ding Xiaozhong, et al.Tectonic environment of the metamorphosed basement in the Jiangnan Orogen and its evolutional features. Geological Review, 2012(3): 401-413.
	[王自强, 高林志, 丁孝忠, 等. “江南造山带”变质基底形成的构造环境及演化特征. 地质论评, 2012(3): 401-413.]
[16]	Xiang Xinkui, Xu Jianhua, Ma Changxin.Preliminary study on the structure of the metamorphic nucleus complex in Lushan. Journal of East China Geological Institute, 1994(1): 11-17.
	[项新葵, 许建华, 马长信. 庐山变质核杂岩构造的初步研究. 华东地质学院学报, 1994(1): 11-17.]
[17]	Bi Hua, Xiang Xinkui, Zhu Yuansong.Lushan uplift bedding-delamination structure. Geotectonica et Metallogenia, 1998(1): 21-28.
	[毕华, 项新葵, 朱元松. 庐山隆起─滑脱构造. 大地构造与成矿学, 1998(1): 21-28.]
[18]	Department of Geography of Nanjing University. Scientific Lushan. Nanchang: Jiangxi People's Publishing House, 1983: 275.
	[南京大学地理系科学庐山编著组. 科学庐山. 南昌: 江西人民出版社, 1983: 275.]
[19]	Li Jijun, Zhu Junjie.Physiographic study of Lushan. Scientia Geographica Sinica, 1987, 7(4): 306-315.
	[李吉均, 朱俊杰. 庐山的地文研究. 地理科学, 1987, 7(4): 306-315.]
[20]	Liu Changmao.Elementary research of the new tectonic movement of Lushan. Journal of Huazhong Normal University (Natural Sciences), 1987(4): 603-610.
	[刘昌茂. 庐山新构造运动初步研究. 华中师范大学学报(自然科学版), 1987(4): 603-610.]
[21]	Ren Meie.Preliminary study on the terrain of Lushan. Acta Geographica Sinica, 1953, 19(1): 61-73.
	[任美锷. 庐山地形的初步研究. 地理学报, 1953, 19(1): 61-73.]
[22]	Selkirk P M, Adamson D A, Downing A J.Landform and vegetation change in the Greaves Creek Basin: An asymmetric hanging valley in the Blue Mountains, New South Wales. Australian Geographer, 2001, 32(1): 45-75.
[23]	Howard A D, Dietrich W E, Seidl M A.Modeling fluvial erosion on regional to continental scales. Journal of Geophysical Research, 1994, 99(B7): 13971-13986.
[24]	Howard A D.Long profile development of bedrock channels: Interaction of weathering, mass wasting, bed erosion, and sediment transport//Tinkler K J, Wohl E E. Rivers over Rock. Washington, DC: AGU Press, 1998: 297-319.
[25]	Dietrich W E, Whiting P.Boundary shear stress and sediment transport in river meanders of sand and gravel. River meandering, 1989, 12: 1-50.
[26]	Flint J J.Stream gradient as a function of order, magnitude, and discharge. Water Resources Research, 1974, 10(5): 969-973.
[27]	Howard A D.A detachment-limited model of drainage basin evolution. Water Resources Research, 1994, 30(7): 2261-2285.
[28]	Howard A D, Kerby G.Channel changes in badlands. Geological Society of America Bulletin, 1983, 94: 739-752.
[29]	Wobus C W, Crosby B T, Whipple K X.Hanging valleys in fluvial systems: Controls on occurrence and implications for landscape evolution. Journal of Geophysical Research, 2006, 111(F2). doi: 10.1029/2005JF000406.
[30]	Trauerstein M, Norton K P, Preusser F, et al.Climatic imprint on landscape morphology in the western escarpment of the Andes. Geomorphology, 2013, 194: 76-83.
[31]	Cyr A J, Granger D E, Olivetti V, et al.Quantifying rock uplift rates using channel steepness and cosmogenic nuclide-determined erosion rates: Examples from northern and southern Italy. Lithosphere, 2010, 2(3): 188-198.
[32]	Haviv I, Enzel Y, Whipple K X, et al.Evolution of vertical knickpoints (waterfalls) with resistant caprock: Insights from numerical modeling. Journal of Geophysical Research, 2010, 115(F3). doi: 10.1029/2008JF001187.
[33]	Goldrick G, Bishop P.Regional analysis of bedrock stream long profiles: Evaluation of Hack's SL form, and formulation and assessment of an alternative (the DS form). Earth Surface Processes and Landforms, 2007, 32: 649-671.
[34]	Korup O, Montgomery D R, Hewitt K.Glacier and landslide feedbacks to topographic relief in the Himalayan syntaxes. Proceedings of the National Academy of Sciences, 2010, 107(12): 5317-5322.
[35]	Whipple K X, DiBiase R A, Crosby B T. Bedrock rivers. Treatise on Geomorphology, 2013, 9: 550-573.
[36]	Berlin M M, Anderson R S.Modeling of knickpoint retreat on the Roan Plateau, western Colorado. Journal of Geophysical Research, 2007, 112(F3). doi: 10.1029/2006JF000553.
[37]	Harkins N, Kirby E, Heimsath A, et al.Transient fluvial incision in the headwaters of the Yellow River, northeastern Tibet, China. Journal of Geophysical Research, 2007, 112(F3). doi: 10.1029/2006JF000570.
[38]	Snyder N P.Landscape response to tectonic forcing: Digital elevation model analysis of stream profiles in the Mendocino triple junction region, northern California. Geological Society of America Bulletin, 2000, 112(8): 1250-1263.
[39]	Kirby E.Distribution of active rock uplift along the eastern margin of the Tibetan Plateau: Inferences from bedrock channel longitudinal profiles. Journal of Geophysical Research, 2003, 108(B4). doi: 10.1029/2001JB000861.
[40]	Hu Xiaofei, Pan Baotian, Li Qiong.Principles of the stream power erosion model and its latest progress in research. Journal of Lanzhou University (Natural Sciences), 2014(6): 824-831.
	[胡小飞, 潘保田, 李琼. 基岩河道水力侵蚀模型原理及其最新研究进展. 兰州大学学报(自然科学版), 2014(6): 824-831.]
[41]	Molnar P, Anderson R S, Anderson S P.Tectonics, fracturing of rock, and erosion. Journal of Geophysical Research, 2007, 112(F3). doi: 10.1029/2005JF000433.
[42]	Whipple K X.Dynamics of the stream-power river incision model: Implications for height limits of mountain ranges, landscape response timescales, and research needs. Journal of Geophysical Research, 1999, 104(B8): 17661-17674.
[43]	Niemann J D, Gasparini N M, Tucker G E, et al.A quantitative evaluation of Playfair's law and its use in testing long-term stream erosion models. Earth Surface Processes and Landforms, 2001, 26(12): 1317-1332.
[44]	Kirby E, Ouimet W.Tectonic geomorphology along the eastern margin of Tibet//Gloaguen R, Ratschbacher L. Growth and Collapse of the Tibetan Plateau. London: Geological Society, 2011: 165-168.
[45]	Whipple K X.Fluvial landscape response time. American Journal of Science, 2001, 301: 313-325.
[46]	Vanacker V, von Blanckenburg F, Govers G, et al. Transient river response, captured by channel steepness and its concavity. Geomorphology, 2015, 228: 234-243.

流域编号	流域名称	河流长度(km)	流域面积(km²)	拟合河段	k_sn(m^0.9）	凹曲度
R1	庐山垄	14	38	S1	27	0.42
R1	庐山垄	14	38	S2	168	0.55
R2	青玉峡	5	5	-	-	-
R3	三峡涧	12	42	S1	9	0.37
R3	三峡涧	12	42	S2	169	0.51
R4	七里冲	11	19	-	-	-
R5	白沙河	10	29	S1	9	0.20
R5	白沙河	10	29	S2	117	0.24
R6	定慧寺	9	20	S1	93	0.19
R7	剪刀峡	10	14	S1	15	0.49
R7	剪刀峡	10	14	S2	143	0.42
R8	石门涧	13	30	-	-	-
R9	黄龙庵	8	13	-	-	-
