洞庭湖流域植被动态变化的小波多分辨率分析

doi:10.11821/dlxb201509011

Abstract

Abstract:

The vegetation dynamic change can be analyzed by applying the discrete wavelet multi-resolution analysis (MRA) to decompose the normalized difference vegetation index (NDVI) time series into subseries at different time scales. In this thesis, the NDVI time series over Dongting Lake Basin was decomposed under different time scales by the wavelet transform. Then the latent seasonal and inter-annual variability of vegetation was mined and assessed. Finally, the possible causes of the changes were analyzed in combination with the land cover change analysis result and the rainfall data. The results show that by using the wavelet multi-resolution analysis, the information related to vegetation dynamics in Dongting Lake Basin can be extracted, which includes the mean of the inter-annual component of NDVI, the minimum level of NDVI, the amplitude of the annual phonological cycle, the timing of the maximum NDVI, the trend in the data series and the magnitude of the land cover change. The information effectively depicts the basin's vegetation dynamics characteristics. Furthermore, with the combination of land cover change analysis result and precipitation data, an obvious correlation was found between the change of vegetation cover and the precipitation change in the basin, that is, the vegetation dynamic changes response to precipitation is the most obvious in the western and northwestern parts of the basin. Although there is no obvious decrease in precipitation in some areas, the vegetation cover has a decreasing trend, which may be related to other factors, such as higher terrain and urbanization.

Key words: Dongting Lake Basin, MODIS NDVI, discrete wavelet transform, multi-resolution analysis, vegetation dynamic change

Yuehong LONG, Jianxin QIN, Xinguang HE, Zhun YANG. Wavelet multi-resolution analysis of vegetation dynamic change in Dongting Lake Basin[J].Acta Geographica Sinica, 2015, 70(9): 1491-1502.

Figures/Tables 8

Fig. 1

Tab. 1

Fig. 2

Tab. 2

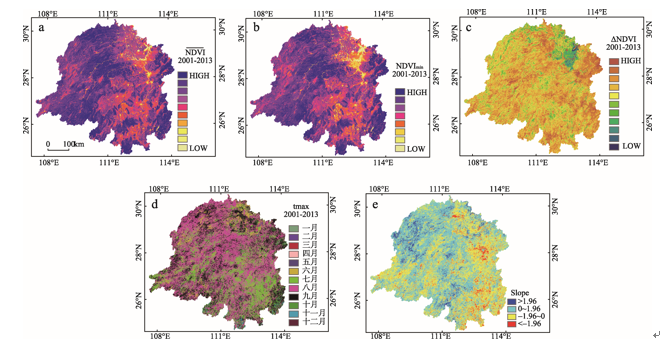

Key features computed from the MRA to study vegetation dynamics

参数	描述	意义
$NDVI ˉ$	年际成分的均值： $NDVI ˉ ≡ A 5 ˉ$	一段时期内植被的均值水平
$NDV I min$	年际变化均值和年内变化率的和的10%分位数： $NDV I min ≡ P 10$ ( $A 5 ˉ$ +V )	在研究期内到达的最小NDVI水平
$ΔNDVI$	年内变化率的10%至90%的范围： $ΔNDVI ≡ R 10,90 (V)$	植被年内变化的幅度(值越大表明植被年内变化越大)
$t max$	与D₄成分相关的最大NDVI值出现的时间	最大NDVI值出现的日期
$Q$	使用森氏方法求取A₅成分的变化率	土地覆盖变化的量级

Tab. 2

Fig. 3

Tab. 3

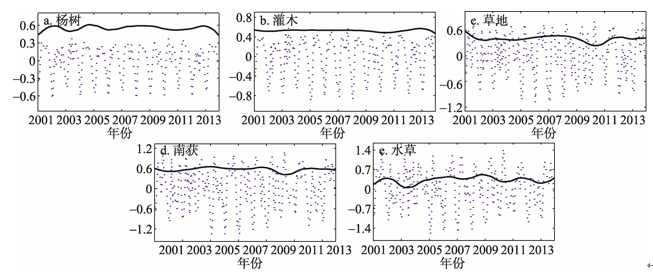

Numerical values for the 5 NDVI key features for the selected vegetation canopies

植被类型	$NDVI ˉ$	$NDV I min$	$ΔNDVI$	$t max$	$Q$
杨树	0.55	0.12	11	7	-0.13
灌木	0.53	0.34	4	8	-0.31
草地	0.40	0.04	10	3	-0.29
南荻	0.57	0.31	8	7	-0.37
水草	0.32	0.07	8	7	1.50

Tab. 3

Fig. 4

Fig. 5

References 25

[1]	Tian Qingjiu, Min Xiangjun.Advances in study on vegetation indices. Advance in Earth Sciences, 1998, 13(4): 327-333.
	[田庆久, 闵祥军. 植被指数研究进展. 地球科学进展, 1998, 13(4): 327-333.]
[2]	Gu Juan, Li Xin, Huang Chunlin.Land cover classification based on time-series MODIS NDVI data in Heihe River Basin. Advance in Earth Sciences, 2010, 25(3): 317-326.
	[顾娟, 李新, 黄春林. 基于时序MODIS NDVI的黑河流域土地覆盖分类研究. 地球科学进展, 2010, 25(3): 317-326.]
[3]	James M E, Kalluri S N V. Pathfinder AVHRR land data set: An improved coarse resolution data set for terrestrial monitoring. International Journal of Remote Sensing, 1994, 15(17): 3347-3363.
[4]	Loveland T R, Reed B C, Brown J F, et al.Development of a global land cover characteristics database and IGBPDIS Cover from 1 km AVHRR data. International Journal of Remote Sensing, 2000, 21(6/7): 1303-1330.
[5]	Telesca L, Lasaponara R.Quantifying intra-annual persistent behavior in SPOT-VEGETATION NDVI data for Mediterranean eco-systems of southern Italy. Remote Sensing of Environment, 2006, 101: 95-103.
[6]	Ross S L, Joseph F K, Jayantha E, et al.Land-cover change detection using multi-temporal MODIS NDVI data. Remote Sensing Environment, 2006, 105: 142-154.
[7]	Wardlow B D, Egbert S L, Kastens J H.Analysis of time-series MODIS 250 m vegetation index data for crop classification in the US Central Great Plain. Remote Sensing of Environment, 2007, 108: 290-310.
[8]	Defries R S, Townshend J R G. NDVI-derived land-cover classifications at a global-scale. International Journal of Remote Sensing, 1994, 15(17): 3567-3586.
[9]	Liu Xianfeng, Ren Zhiyuan, Lin Zhihui, et al.The spatial-temporal changes of vegetation coverage in the Three-River Headwater Region in recent 12 years. Acta Geographica Sinica, 2013, 68(7): 897-908.
	[刘宪锋, 任志远, 林志慧, 等. 2000-2011年三江源区植被覆盖时空变化特征. 地理学报, 2013, 68(7): 897-908.]
[10]	Song Fuqiang, Xing Kaixiong, Liu Yang, et al.Monitoring and assessment of vegetation variation in northern Shaanxi based on MODIS/NDVI. Acta Ecologica Sinica, 2011, 31(2): 354-363.
	[宋富强, 邢开雄, 刘阳, 等. 基于MODIS/NDVI的陕北地区植被动态监测与评价. 生态学报, 2011, 31(2): 354-363.]
[11]	Beatriz Martínez, María Amparo Gilabert.Vegetation dynamics from NDVI time series analysis using the wavelet transform. Remote Sensing of Environment, 2009, 113: 1823-1842.
[12]	Song Tao.Research on the vegetation cover change based on wavelet transform [D]. Fuzhou: Fujian Normal University, 2011.
	[宋涛. 基于小波变换的植被覆盖变化研究[D]. 福州: 福建师范大学, 2011.]
[13]	Deng Fan, Wang Xuelei, Li Enhua, et al.Dynamics of Lake Dongting wetland from 1993 to 2010. Journal of Lake Sciences, 2012, 24(4): 571-576.
	[邓帆, 王学雷, 厉恩华, 等. 1993-2010年洞庭湖湿地动态变化. 湖泊科学, 2012, 24(4): 571-576.]
[14]	Jiang Weiguo, Hou Peng, Zhu Xiaohua, et al.Analysis of vegetation response to rainfall with satellite images in Dongting Lake. Journal of Geographical Sciences, 2011, 21(1): 135-149.
[15]	Wang Guojie, Jiang Tong, Wang Yanjun, et al.Characteristics of climate change in the Lake Donting Basin (1961-2003). Journal of Lake Sciences, 2006, 18(5): 470-475.
	[王国杰, 姜彤, 王艳君, 等. 洞庭湖流域气候变化特征(1961-2003). 湖泊科学, 2006, 18(5): 470-475.]
[16]	Zhou Heping, Yin Jianjun, Xiao Songcheng.Effects of land use and cover on the soil and water erosion in the Dongting Lake Basin. Journal of Water Resources & Water Engineering, 2008, 19(6): 45-48.
	[周和平, 尹建军, 肖送成. 土地利用/覆盖对洞庭湖流域水土流失的影响. 水资源与水工程学报, 2008, 19(6): 45-48.]
[17]	Li Miao, Xia Jun, Chen Sheming, et al.Wavelet analysis on annual precipitation around 300 years in Beijing area. Journal of Natural Resources, 2011, 26(6): 1001-1011.
	[ 李淼, 夏军, 陈社明, 等. 北京地区近300年降水变化的小波分析.自然资源学报, 2011, 26(6): 1001-1011.]
[18]	Sang Yanfang, Wang Zhonggen, Liu Changming.Applications of wavelet analysis to hydrology: Status and prospects. Progress in Geography, 2013, 32(9): 1413-1422
	[桑燕芳, 王中根, 刘昌明. 小波分析方法在水文学研究中的应用现状及展望. 地理科学进展, 2013, 32(9): 1413-1422.]
[19]	Ma Tao, Li Fei, Yue Jianli.Application of wavelet analysis in geophysics and geodesy. Progress in Geophysics, 2003, 18(1): 49-52.
	[马涛, 李斐, 岳建利. 小波分析在地球物理及大地测量中的应用. 地球物理学进展, 2003, 18(1): 49-52.]
[20]	Yin He, Li Zhengguo, Wang Yanglin, et al.Assessment of desertification using time series analysis of hyper-temporal vegetation indicator in Inner Mongolia. Acta Geographica Sinica, 2011, 66(5): 653-661.
	[殷贺, 李正国, 王仰麟, 等. 基于时间序列植被特征的内蒙古荒漠化评价. 地理学报, 2011, 66(5): 653-661.]
[21]	Wang Dianlai, Liu Wenping, Huang Xinyuan.Trend analysis in vegetation cover in Beijing based on Sen+Mann-Kendall method. Computer Engineering and Applications, 2013, 49(5): 13-17.
	[王佃来, 刘文萍, 黄心渊. 基于Sen+Mann-Kendall的北京植被变化趋势分. 计算机工程与应用, 2013, 49(5): 13-17. ]
[22]	McKee T B, Doesken N J, Kleist J. The relationship of drought frequency and duration to time scales. Anaheim, California: Eighth Conference on Applied Climatology. American Meteorological Society. Boston, 1993: 179-184.
[23]	Yuan Yun, Li Dongliang, An Di.Winter aridity division in China based on standardized precipitation index and circulation characteristics. Journal of Desert Research, 2010, 30(4): 917-925.
	[袁云, 李栋梁, 安迪. 基于标准化降水指数的中国冬季干旱分区及气候特征. 中国沙漠, 2010, 30(4): 917-925.]
[24]	Yang Xiaojing, Zuo Depeng, Xu Zongxue.Characteristics of droughts and floods analyzed using the standardized precipitation index in Yunnan Province during the past 55 years. Resources Science, 2014, 36(3): 473-480.
	[杨晓静, 左德鹏, 徐宗学. 基于标准化降水指数的云南省近55年旱涝演变特征. 资源科学, 2014, 36(3): 473-480.]
[25]	Li Jingbao, Zhou Heping, Zhou Liang, et al.Effects by silt process on Microtus fortis calam orum population trends and complex calamities of Dongting Lake. Journal of Natural Disasters, 2008, 17(4): 99-104.
	[李景保, 周和平, 周亮, 等. 水沙过程对洞庭湖区东方田鼠种群动态及群发致害的影响. 自然灾害学报, 2008, 17(4): 99-104.]

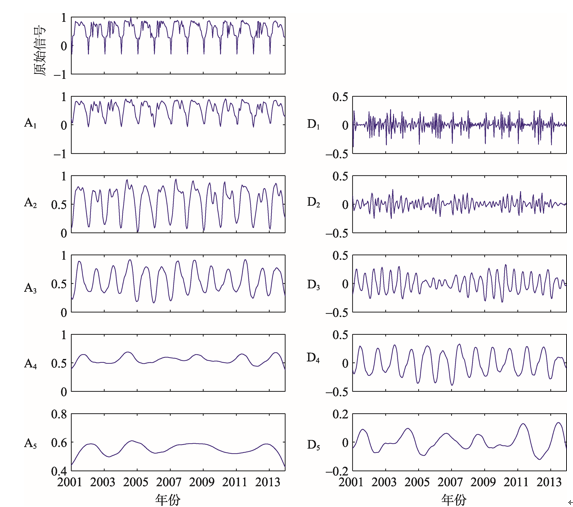

层次(j)	尺度(a)	p(天数)	p/2(天数)
1	2	47	23.5
2	4	95	47
3	8	190	95
4	16	380	190
5	32	760	380
