2001-2010年鄱阳湖采砂规模及其水文泥沙效应

doi:10.11821/dlxb201505014

Abstract

Abstract:

Sand mining has been practiced in rivers, lakes, harbors and coastal areas in recent years in China mostly because of the increasing demand for building materials in construction industry. Sand mining in Poyang Lake has been intensified since 2001 because such practice was banned in the Yangtze River and profitable. Meanwhile, the decline of water level of the Poyang Lake has aroused much more attention from researchers. The decline has been ascribed to a decrease in precipitation in Poyang Lake watershed, attenuation of congestion effect because of the Three Gorges Project and sand mining in the Poyang Lake.

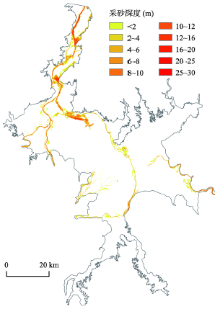

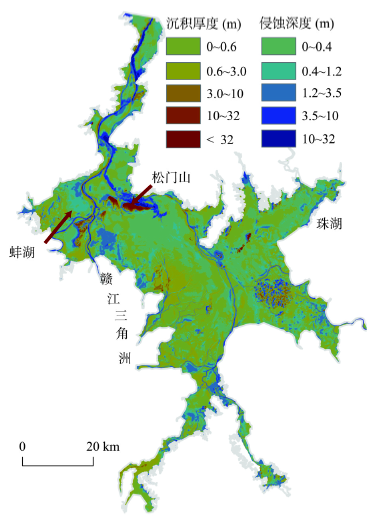

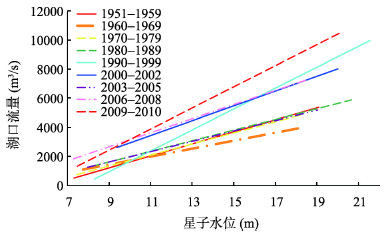

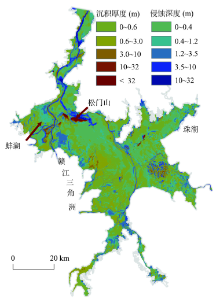

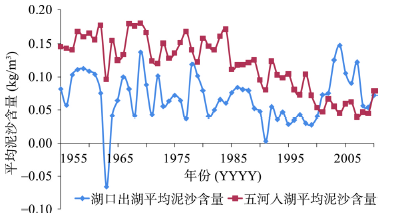

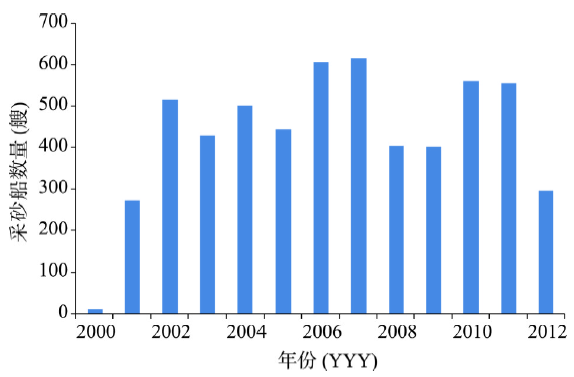

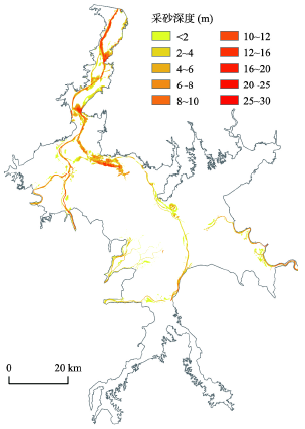

In this study, we analyzed the magnitude of sand mining in Poyang Lake using Digital Elevation Model (DEM) data from two periods and sand vessels distribution detected by remote sensing images. Another two Landsat images were used to evaluate the morphologic change compared with natural sedimentation, inundation extent and shoreline shape. And a hydrological dataset including water level, water discharge rate and sediment content for a long time series were used to analyze the hydrological effect and sediment effect from sand mining. Results showed that: (1) sand mining region was mainly distributed in northern Poyang Lake before 2007, but was extended into the central region and even to the channels of major tributary rivers into the Poyang Lake; (2) the area of sand mining was about 260.4 km². The magnitude of sand mining in Poyang Lake was about 2,154.3 Mt or 1.29×10⁹ m³ during 2000-2010 with the assumption of sand bulk density of 1.67 t m^-3. It is almost 6.5 times of the natural sedimentation in volume during 1955-2010; (3) sand mining affected the hydrologic regimes including increased areas of water discharge sections and water turbidity. Sand mining could be one of the most important factors that caused the decline of water level of Poyang Lake in drought season. It also affected the sediment pattern of the lower reaches of the Yangtze River.

Key words: sand mining, hydrology effect, sediment effect, Poyang Lake

Feng JIANG, Shuhua QI, Fuqiang LIAO, Xiuxiu ZHANG, Dian WANG, Jingxuan ZHU, Mengya XIONG. Hydrological and sediment effects from sand mining in Poyang Lake during 2001-2010[J].Acta Geographica Sinica, 2015, 70(5): 837-845.

Figures/Tables 10

Tab. 1

Figure 1

Tab. 2

Fig. 2

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7

Fig. 8

References 22

[1]	Kondolf G M.Hungry water: effects of dams and gravel mining on river channels. Environment Management, 1997, 21: 533-551.
[2]	Wu G F, De Leeuw J, Skidmore A K, et al.Concurrent monitoring of vessels and water turbidity enhances the strength of evidence in remotely sensed dredging impact assessment. Water Research, 2007, 41: 3271-3280.
[3]	Cui L J, Wu G F, Liu Y L.Monitoring the impact of backflow and dredging on water clarity using MODIS images of Poyang Lake, China. Hydrological Processes, 2009, 23: 342-350.
[4]	Lu X X, Zhang S R, Xie S P, et al. Rapid channel incision of the lower Pearl River (China) since 1990s. Hydrological Earth System Science Discussion, 2007(4): 2205-2227.
[5]	Feng L, Hu C M, Chen X L, et al.Human induced turbidity changes in Poyang Lake between 2000 and 2010: Observations from MODIS. Journal of Geophysical Research, 2012, 117, C07006, doi: 10.1029/2011JC007864.
[6]	Wu G F, De Leeuw J, Skidmore A K, et al.Performance of Landsat TM in ship detection in turbid waters. International Journal of Applied Earth Observation and Geoinformation, 2008, doi: 10.1016/j.jag.2008.07.001.
[7]	De Leeuw J, Shankman D, Wu G F, et al.Strategic assessment of the magnitude and impacts of sand mining in Poyang Lake, China. Regional Environmental Change, 2009, 10: 95-102.
[8]	Chen Qianjin.Effect of unified managing sand-excavating on Poyang Lake in Jiujiang city. Jiangxi Hydrologic Science & Technology, 2010, 36(2): 147-148.
	[陈前金. 九江市对鄱阳湖采砂实行统一管理初见成效. 江西水利科技, 2010, 36(2): 147-148.]
[9]	Sun Peng, Zhang Qiang, Chen Xiaohong, et al.Spatio-temporal patterns of sediment and runoff changes in the Poyang Lake Basin and underlying causes. Acta Geographica Sinica, 2010, 65(7): 828-840.
	[孙鹏, 张强, 陈晓宏, 等. 鄱阳湖流域水沙时空演变特征及其机理. 地理学报, 2010, 65(7): 828-840.]
[10]	Guo Hua, Hu Qi, Zhang Qi.Changes in hydrological Interactions of the Yangtze River and the Poyang Lake in China during 1957-2008. Acta Geographica Sinica, 2011, 66(5): 609-618.
	[郭华, Hu Qi, 张奇. 近50年来长江与鄱阳湖水文相互作用的变化. 地理学报, 2011, 66(5): 609-618.]
[11]	Zhang Q, Liu Y, Yang G, et al.Precipitation and hydrological variations and related associations with large-scale circulation in Poyang Lake basin, China. Hydrological Process, 2011, 25: 740-751.
[12]	Xu Jijun, Chen Jin.Study on the impact of Three Gorges reservoir on Poyang Lake and some proposals. Journal of Hydraulic Engineering, 2013, 44(7): 757-763.
	[许继军, 陈进. 三峡水库运行对鄱阳湖影响及对策研究. 水利学报, 2013, 44(7): 757-763.]
[13]	Feng L, Hu C M, Chen X L.Dramatic changes of China's largest freshwater lakes linked to the Three Gorges Dam. Environmental Science & Technology, 2013, 47(17): 9628-9634. doi: 10.1021/es4009618.
[14]	Liu Y B, Wu G P, Zhao X S. Recent declines in China’s largest freshwater lake: Trend or regime shift? Environment Res. Lett., 2013(8): 014010(9pp). doi: 10.1088/1748-9326/8/014010.
[15]	Lai X J, Shankman, D, Huber C, et al. Sand mining and increasing Poyang Lake's discharge ability: A reassessment of causes for lake decline in China. Journal of Hydrology, 2014, doi: .
[16]	Zhang Fangfang, Qi Shuhua, Liao Fuqiang, et al.Analysis of distribution features of the emerged grassland in Poyang Lake based on remote sensing. Resources and Environment in the Yangtze Basin, 2011, 20(11): 1361-1366.
	[张方方, 齐述华, 廖富强, 等. 鄱阳湖湿地出露草洲分布特征的遥感研究. 长江流域资源与环境, 2011, 20(11): 1361-1366.]
[17]	Cui Lijuan, Zhai Yanfang, Wu Guofeng.Dredging being moved southward enlarges the impacted region in Poyang Lake: The evidences from multi-remote sensing images. Acta Ecologica Sinica, 2013, 33(11): 3520-3525.
	[崔丽娟, 翟彦放, 邬国锋. 鄱阳湖采砂南移扩大影响范围—多源遥感的证据. 生态学报, 2013, 33(11): 3520-3525.]
[18]	Han Zhiyong, Li Xusheng, Zhang Zhaogan, et al.Genesis of ridgelike landform on sand hill on the shore of the Poyang Lake. Acta Geographica Sinica, 2010, 65(3): 331-338.
	[韩志勇, 李徐生, 张兆干, 等. 鄱阳湖湖滨沙山垄状地形的成因. 地理学报, 2010, 65(3): 331-338.]
[19]	Qi Shuhua, Liao Fuqiang.Study on the lake level regulating scheme of Poyang Lake dam. Acta Geographica Sinica, 2013, 68(1): 115-122.
	[齐述华, 廖富强. 鄱阳湖水利枢纽工程水位调控方案的探讨. 地理学报, 2013, 68(1): 115-122.]
[20]	Jiangxi Provincial Academy of Sciences, Nanjing Institute of Geography & Limnology under the Chinese Academy of Sciences, Office of the Mountain-River-Lake Development Committee of Jiangxi Province. The Atlas of Poyang Lake. Beijing: Science Press, 1993.
	[江西省科学院, 中国科学院南京地理与湖泊研究所, 江西省山江湖开发与治理委员会办公室. 鄱阳湖图集. 北京: 科学出版社, 1993.]
[21]	Fang Chunming, Cao Wenhong, Mao Jixin, et al.Relationship between Poyang Lake and Yangtze River and influence of Three Georges Reservoir. Journal of Hydraulic Engineering, 2012, 43(2): 175-181.
	[方春明, 曹文洪, 毛继新, 等. 鄱阳湖与长江关系及三峡蓄水的影响. 水利学报, 2012, 43(2): 175-181.]
[22]	Gao J H, Jia J J, Albert J K, et al.Changes in water and sediment exchange between the Changjiang River and Poyang Lake under natural and anthropogenic conditions, China. Science of the Total Environment, 2014, 481: 542-553.

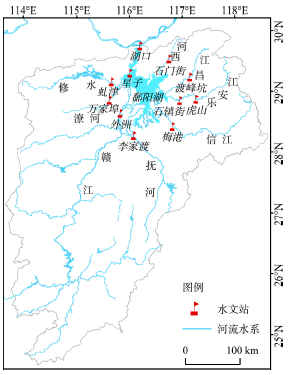

水文站名称	所处河流	控制面积(×10⁴ km²)	平均水流量(×10⁹ yr^-1)	流量、含沙量数据年份
外洲	赣江	8.12	66.878	1955-2013
李家渡	抚河	1.58	12.377	1955-2013
梅港	信江	1.55	17.466	1952-2013
石镇街	乐安河,饶河的支流	0.94	7.360	1953-2001
虎山	乐安河,饶河的支流	0.65	7.360	2002-2013
渡峰坑	昌江,饶河的支流	0.50	4.525	1953-2013
虬津	修河干流	0.99	8.518	1956-1980 1983-2001
万家埠	潦河,修河的支流	1.48	3.424	1955-2013
湖口	鄱阳湖通江河道	16.22	146.139	1955-2013

编号	影像获取日期 (YYYY-MM-DD)	卫星/传感器名称	湖口水文站 (m)	用途
1	2000-08-22	Landsat7/ETM+	13.63	a
2	2001-06-30	Landsat5/TM	15.02	a
3	2002-09-29	Landsat7/ETM+	12.37	a
4	2003-08-07	Landsat7/ETM+	14.83	a
5	2004-06-22	Landsat5/TM	13.55	a
6	2005-08-12	Landsat5/TM	13.80	a
7	2006-06-12	Landsat5/TM	14.34	a
8	2007-08-02	Landsat5/TM	15.98	a
9	2008-05-16	Landsat5/TM	10.73	a
10	2009-06-04	Landsat5/TM	13.37	a
11	2010-07-25	Landsat5/TM	17.99	a
12	2009-02-12	Landsat5/TM	5.68	b
13	1993-01-31	Landsat5/TM	6.68	b
