近50年长三角地区水系时空变化及其驱动机制

doi:10.11821/dlxb201505012

Abstract

Abstract:

Spatial and temporal variations of river systems in the Yangtze River Delta (YRD) during the 1960s-2010s were investigated based on streams derived from the topographic map in the 1960s, 1980s and 2010s. A list of indices, drainage density (Dd), water surface ratio (WSR), the ratio of area to length of main river (R), evolution coefficient of branch river (K) and box dimension (D), were classified into three types (quantitative, structural, and complex indices) and used to quantify the variation of stream structure. Results showed that: (1) quantitative indices (Dd, WSR) presented a decreasing trend in the past 50 years, and Dd in Wuchengxiyu, Hangjiahu and Yindongnan decreased by about 20%. Structurally, the Qinhuai river basin was characterized by a significantly upward R, and K value in Hangjiahu went down dramatically by 46.8% during the 1960s-2010s. A decreasing tendency in D was found to dominate the YRD, and decreasing magnitude in Wuchengxiyu and Hangjiahu peaked for 7.8%, and 6.5%, respectively in the YRD. (2) Urbanization affected the spatial pattern of river system, and areas with a high level of urbanization exhibited least Dd (2.18 km/km²), WSR (6.52%), K (2.64) and D (1.42), compared with moderate and low levels of urbanization. (3) Urbanization also affected the evolution of stream system. In the past 50 years, areas with high level of urbanization showed a compelling decreasing tendency in quantitative (27.2% and 19.3%) and complex indices (4.9%) and trend of enlargement of main rivers (4.5% and 7.9% in periods of the 1960s-1980s and 1980s-2010s). (4) Expanding of urban land, construction of hydraulic engineering and irrigation and water conservancy activities were the main means.

Key words: stream structure, spatial and temporal change, urbanization, Yangtze River Delta

Longfei HAN, Youpeng XU, Liu YANG, Xiaojun DENG, Chunsheng HU, Guanglai XU. Temporal and spatial change of stream structure in Yangtze River Delta and its driving forces during 1960s-2010s[J].Acta Geographica Sinica, 2015, 70(5): 819-827.

Figures/Tables 5

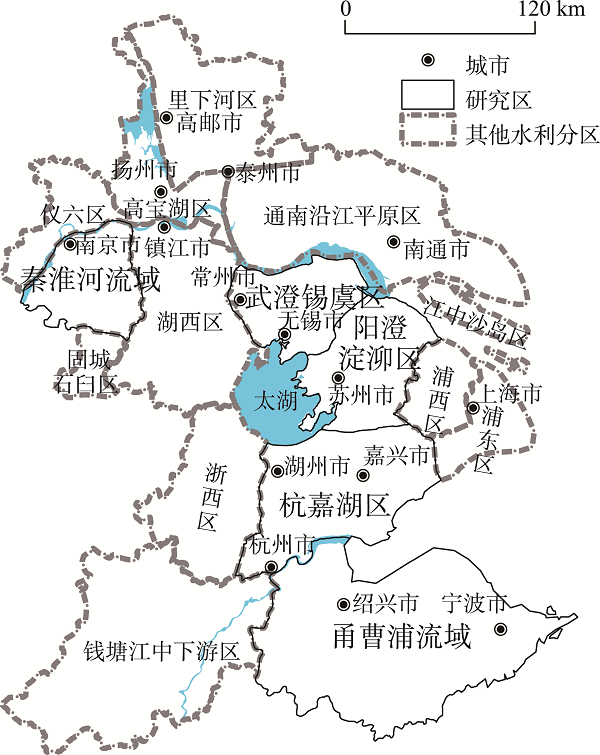

Fig. 1

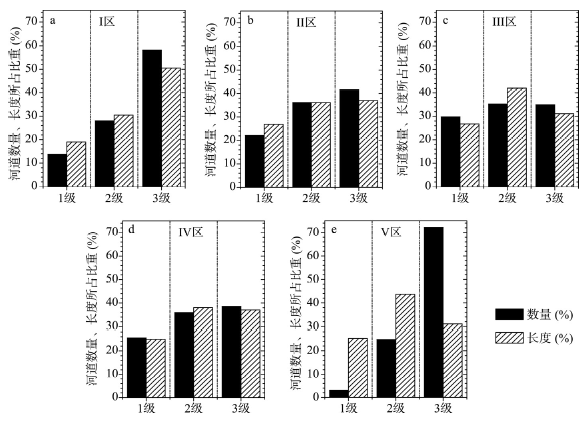

Fig. 2

Tab. 1

Tab. 2

Tab. 3

References 25

[1]	Ni Jinren, Liu Yuanyuan.Ecological rehabilitation of damaged river system. Science and Technology Review, 2006, 24(7): 17-20.
	[倪晋仁, 刘元元. 受损河流的生态修复. 科技导报, 2006, 24(7): 17-20.]
[2]	Li Yuanyuan, Li Jianqiang, Li Zongli, et al.Issues and challenges for the study of the interconnected river system network. Resources Science, 2011, 33(3): 386-391.
	[李原园, 郦建强, 李宗礼, 等. 河湖水系连通研究的若干问题与挑战. 资源科学, 2011, 33(3): 386-391.]
[3]	Xu Youpeng.Impacts of Urbanization of the Yangtze River Delta Region on River System in Basins and Hydrological Processes. Beijing: Science Press, 2012.
	[许有鹏. 长江三角洲地区城市化对流域水系与水文过程的影响. 北京: 科学出版社, 2012.]
[4]	Marsh G P.Man and Nature, or Physical Geography as modified by Human Action. University of Washington Press, 1865.
[5]	Horton R E.Erosional development of streams and their drainage basins: Hydrophysical approach to quantitative morphology. Geological Society of America Bulletin, 1945, 56(3): 275-370.
[6]	Strahler A N.Quantitative analysis of watershed geomorphology. Eos, Transactions American Geophysical Union, 1957, 38(6): 913-920.
[7]	Gregory K J, Davis R J, Downs P W.Identification of river channel change to due to urbanization. Applied Geography, 1992, 12(4): 299-318.
[8]	Hammer T R.Stream channel enlargement due to urbanization. Water Resources Research, 1972, 8(6): 1530-1540.
[9]	Graf W L.Network characteristics in suburbanizing streams. Water Resources Research, 1977, 13(2): 459-463.
[10]	Vanacker V, Molina A, Govers G, et al.River channel response to short-term human-induced change in landscape connectivity in Andean ecosystems. Geomorphology, 2005, 72(1): 340-353.
[11]	Elmore A J, Kaushal S S.Disappearing headwaters: Patterns of stream burial due to urbanization. Frontiers in Ecology and the Environment, 2008, 6(6): 308-312.
[12]	Meyer J L, Wallace J B, Press M C, et al.Lost linkages and lotic ecology: Rediscovering small streams//Ecology: Achievement and challenge: The 41st Symposium of the British Ecological Society sponsored by the Ecological Society of America held at Orlando, Florida, USA, 10-13 April 2000. Blackwell Science, 2001: 295-317.
[13]	Dunne T, Leopold L B.Water in Environmental Planning. Macmillan, 1978.
[14]	Xu Guanglai, Xu Youpeng, Wang Liuyan.Temporal and spatial changes of river systems in Hangzhou-Jiaxing-Huzhou Plain during 1960s-2000s. Acta Geographica Sinica, 2013, 68(7): 966-974.
	[徐光来, 许有鹏, 王柳艳. 近50年杭—嘉—湖平原水系时空变化. 地理学报, 2013, 68(7): 966-974.]
[15]	Han Longfei, Xu Youpeng, Shao Yulong, et al.Effect of urbanization on the stream structure and connectivity: A case study in the midlower reaches of the Qinhuai River. Journal of Lake Sciences, 2013, 25(3): 335-341.
	[韩龙飞, 许有鹏, 邵玉龙, 等. 城市化对水系结构及其连通性的影响: 以秦淮河中下游为例. 湖泊科学, 2013, 25(3): 335-341.]
[16]	Yuan Wen, Yang Kai, Wu Jianping.River structure characteristics and classification system in river network plain during the course of urbanization. Scientia Geographica Sinica, 2007, 27(3): 401-407.
	[袁雯, 杨凯, 吴建平. 城市化进程中平原河网地区河流结构特征及其分类方法探讨. 地理科学, 2007, 27(3): 401-407.]
[17]	Yuan Wen, Yang Kai, Tang Min, et al.Stream structure characteristics and their impact on storage and flood control capacity in the urbanized plain river network. Geographical Research, 2005, 24(5): 717-724.
	[袁雯, 杨凯, 唐敏, 等. 平原河网地区河流结构特征及其对调蓄能力的影响. 地理研究, 2005, 24(5): 717-724.]
[18]	Yang Kai, Yuan Wen, Zhao Jun, et al.Stream structure characteristics and its urbanization responses to tidal river system. Acta Geographica Sinica, 2004, 59(4): 557-564.
	[杨凯, 袁雯, 赵军, 等. 感潮河网地区水系结构特征及城市化响应. 地理学报, 2004, 59(4):557-564.]
[19]	Chen Dechao, Li Xiangping, Yang Jishan, et al.Development of water system in the progress of urbanization of Shanghai and its influences to the city drainage. Urban Problems, 2002, (5): 31-35.
	[陈德超, 李香萍, 杨吉山, 等. 上海城市化进程中的河网水系演化. 城市问题, 2002, (5): 31-35.]
[20]	Huang Yilong, Wang Yanglin, Liu Zhenhuan, et al.Stream construction characteristics in rapid urbanization area: Shenzhen city as a case. Geographical Research, 2008, 27(5): 1212-1220.
	[黄奕龙, 王仰麟, 刘珍环, 等. 快速城市化地区水系结构变化特征: 以深圳市为例. 地理研究, 2008, 27(5): 1212-1220.]
[21]	Zhou Hongjian, Shi Peijun, Wang Jing'ai, et al. River Network change and its ecological effects in Shenzhen region in recent 30 years. Acta Geographica Sinica, 2008, 63(9): 969-980.
	[周洪建, 史培军, 王静爱, 等. 近30年来深圳河网变化及其生态效应分析. 地理学报, 2008, 63(9): 969-980.]
[22]	Han Changlai, Mao Rui.The structure characteristics and the functional variation of the river systems in taihu lake catchment. Journal of Lake Science, 1997, 9(4): 300-306.
	[韩昌来, 毛锐. 太湖水系结构特点及其功能的变化. 湖泊科学, 1997, 9(4): 300-306.]
[23]	Zhou Hongjian, Wang Jing'ai, Yue Yaojie, et al. Assessment of flood hazard based on river network change: Taking the Beijing-Tianjin segment of Yongding River watershed as an example. Journal of Natural Disasters, 2006, 15(6): 45-49.
	[周洪建, 王静爱, 岳耀杰, 等. 基于河网水系变化的水灾危险性评价. 自然灾害学报, 2006, 15(6): 45-49.]
[24]	Wang Liuyan, Xu Youpeng, Yu Mingjing.Anylysis of the urbanization effect on the Taihu plain river network: A case study of Wuchengxiyu region of Taihu basin. Resources and Environment in the Yangtze Basin, 2012, 21(2): 151-156.
	[王柳艳, 许有鹏, 余铭婧.城市化对太湖平原河网的影响: 以太湖流域武澄锡虞区为例. 2012, 21(2): 151-156.]
[25]	Chin A.Urban transformation of river landscapes in a global context. Geomorphology, 2006, 79(3/4): 460-487.

指标	时期	本文研究区					其他地区
指标	时期	武澄锡虞	阳澄淀泖	杭嘉湖	秦淮河流域	鄞东南^*	上海地区^{*[17, 18]}	珠三角深圳地区^*[21]
面积 (km²)		3841.0	4914.0	7621.0	497.1	476.1	4962.5	1991.8
河网密度 (Dd)	1960 s	3.80	3.54	3.75	1.25	3.40	3.45	0.86
	1980 s	3.27	3.87	3.24	1.58	3.06		0.84
	2010 s	2.93	3.41	2.93	1.14	2.75		0.65
水面率 (WSR)	1960 s	6.10	18.86	10.63	5.53	8.18	5.62	-
	1980 s	5.59	17.47	9.88	5.60	6.54		-
	2010 s	4.66	15.20	8.76	7.52	5.77		-
支流发育系数 (K)	1960 s	4.93	2.54	3.65	2.52	3.39	3.39	4.42
	1980 s	4.00	3.07	2.83	2.74	2.96		3.04
	2010 s	3.83	2.56	1.94	4.37	2.53		3.50
干流面积长度比 (R)	1960 s	41.53	43.75	45.54	44.11	37.40	-	-
	1980 s	42.83	48.22	47.03	39.96	34.10		-
	2010 s	38.85	42.94	45.66	73.23	35.60		-
盒维数 (D)	1960 s	1.71	1.68	1.69	1.32	1.62	1.40	-
	1980 s	1.65	1.71	1.64	1.32	1.58		-
	2010 s	1.58	1.65	1.58	1.27	1.54		-

	行政分区	城市化水平^*
高度城市化地区	常州市市辖区	58.15%
	苏州市市辖区	57.76%
	无锡市市辖区	49.94%
	杭州市市辖区	46.79%
中度城市化地区	昆山市	39.68%
	张家港市	38.38%
	太仓市	35.62%
	常熟市	34.64%
	吴县市	31.93%
	吴江市	30.18%
低度城市化地区	海宁市	29.82%
	海盐县	22.20%
	青浦县	22.05%

水系参数	时期	高度城市化地区	中度城市化地区	低度城市化地区
河网密度（Dd）	1960s	2.45	3.80	4.47
	1980s	2.32	4.04	3.46
	2010s	1.78	3.64	2.96
水面率（WSR）	1960s	6.88	14.69	17.23
	1980s	7.14	13.51	16.25
	2010s	5.55	11.85	15.30
支流发育系数（K）	1960s	2.93	4.90	9.12
	1980s	2.90	4.65	6.19
	2010s	2.10	4.57	2.89
干流面积长度比（R）	1960s	40.91	41.39	41.08
	1980s	42.76	45.72	44.39
	2010s	46.14	42.37	40.68
盒维数（D）	1960s	1.45	1.67	1.69
	1980s	1.43	1.69	1.61
	2010s	1.38	1.66	1.61
